2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#34299) — 178 parça

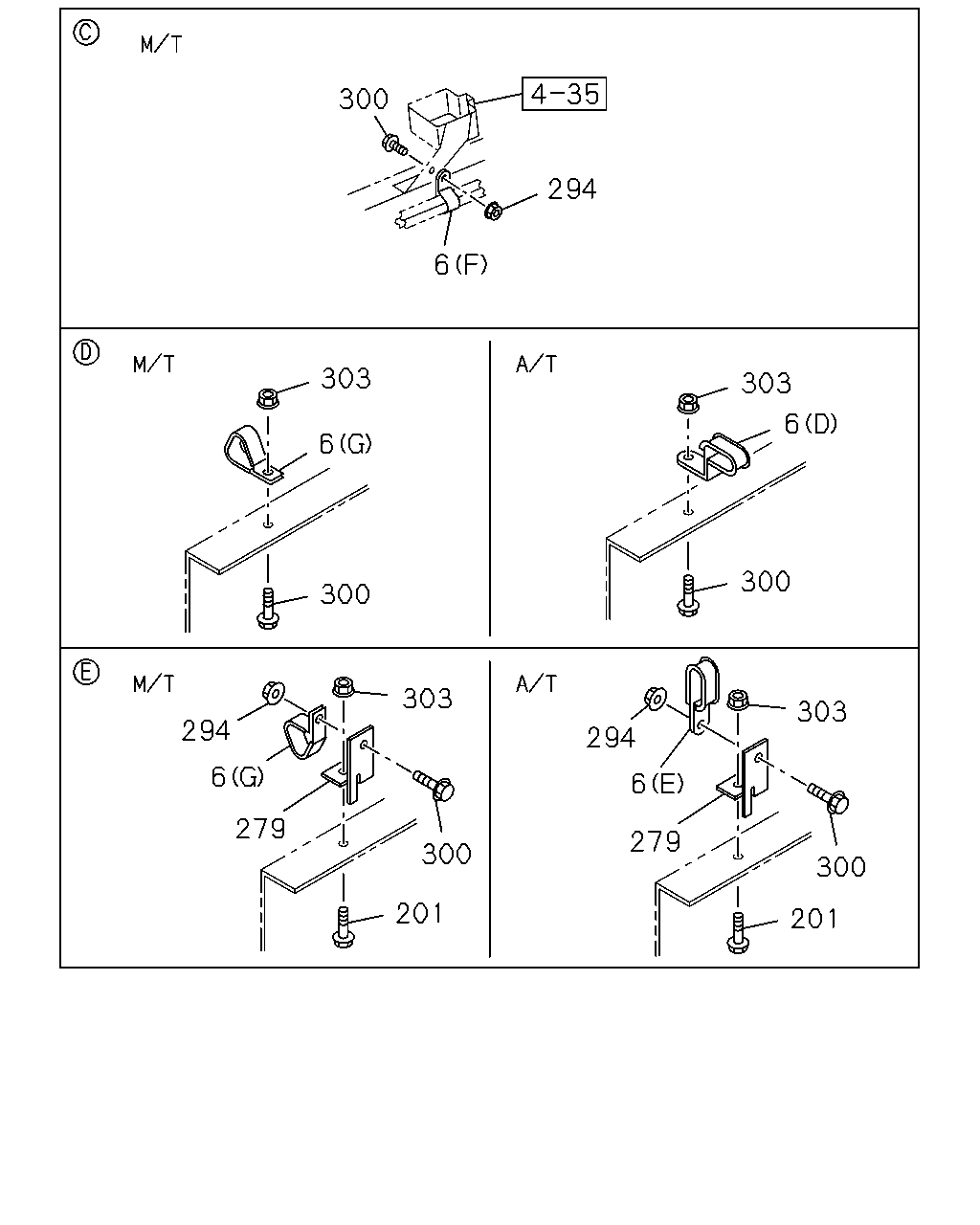

çizim 34332
300 294 6 303 303 6 6 300 300 303 303 294 294 6 6 279 279 300 300 201 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (G) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (G) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502-0502 ● ● ●
6 04.047 CLIP; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502-0502 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97011-448-0 02 1 0502- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (F) 		8-97036-332-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97036-332-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (H) 		8-97147-985-0 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60), TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97039-517-1 01 1 0502-0504 ● ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
(H) 		8-97147-985-0 01 1 0502-0504 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97147-985-0 01 1 0505- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) 06.672 (D) 		8-94107-545-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) 04.785 (E) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 0211-0501 ●
201 04.032 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
201 04.032 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) 		8-97171-065-0 01 1 0211-0501 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97171-065-0 01 1 0502- ● ● ●
294 00.854 NUT; CLIP
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
294 00.854 NUT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
294 00.854 NUT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
303 00.855 NUT; CLIP
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
303 00.855 NUT; CLIP
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●

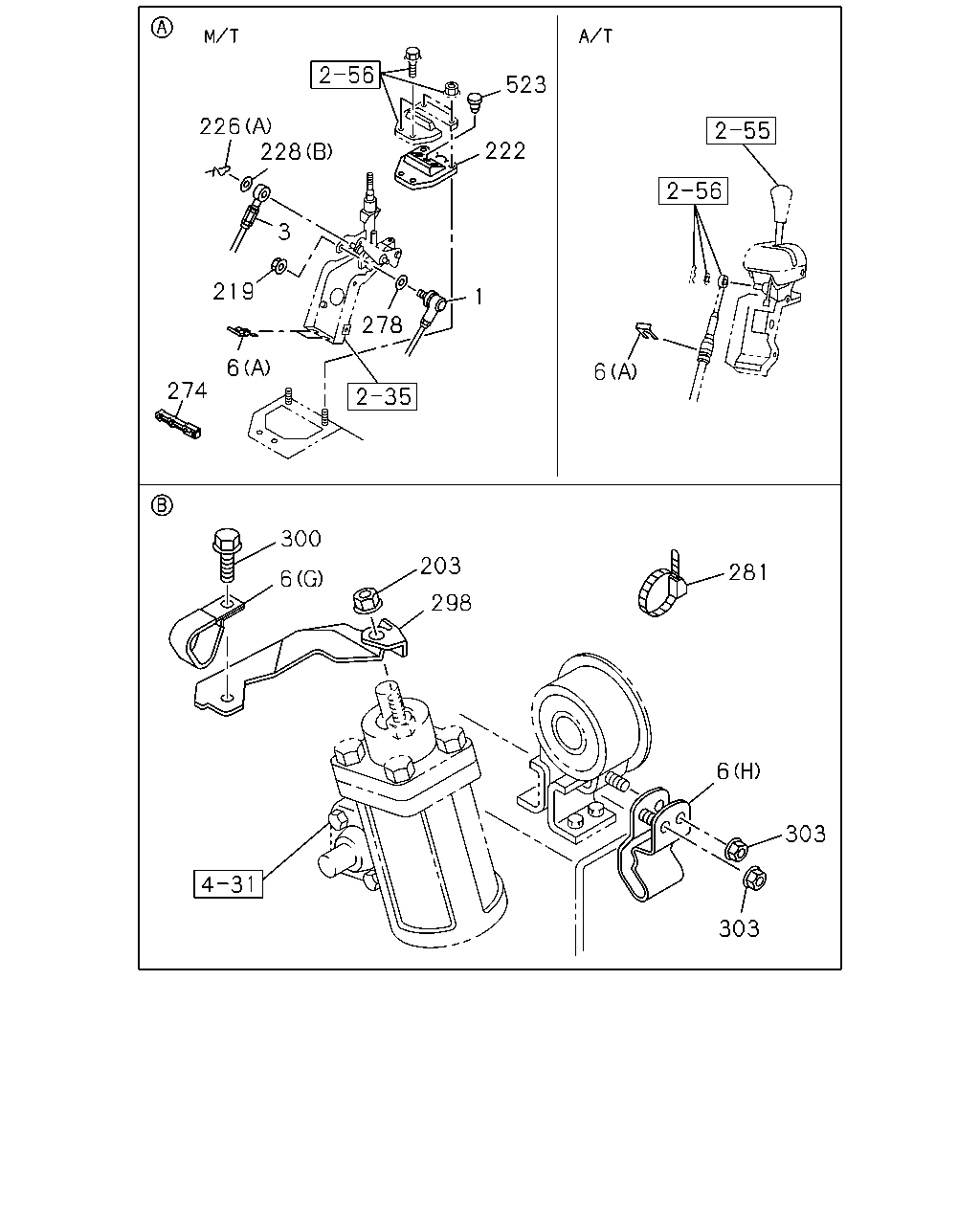

çizim 34333
523 226 228 222 3 219 1 278 6 6 274 300 203 281 6 298 6 303 303
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3055 		8-97350-425-1 01 1 0211-0501 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055 		8-97350-425-1 01 1 0502-0502 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055 		8-98009-295-1 01 1 0502- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3070 		8-97329-417-0 01 1 0211-0501 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070 		8-97329-417-1 01 1 0502-0911 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98146-836-0 01 1 0912- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3113 		8-97350-426-0 01 1 0211-0501 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113 		8-97350-426-0 01 1 0502-0502 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113 		8-98009-287-1 01 1 0502- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3151 		8-97329-418-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151 		8-97329-418-0 01 1 0502-0502 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151 		8-98009-288-0 01 1 0502- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (G) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (G) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502-0502 ● ● ●
6 04.047 CLIP; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502-0502 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97011-448-0 02 1 0502- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (F) 		8-97036-332-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97036-332-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (H) 		8-97147-985-0 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60), TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97039-517-1 01 1 0502-0504 ● ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
(H) 		8-97147-985-0 01 1 0502-0504 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97147-985-0 01 1 0505- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) 06.672 (D) 		8-94107-545-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) 04.785 (E) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 0211-0501 ●
203 04.032 NUT; BRKT FIX
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
203 04.032 NUT; BRKT FIX
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
203 04.032 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0211-0501 ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 0502- ● ● ●
222 04.010 GROMMET; CABLE 8-97065-212-1 01 1 0211- ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211-0501 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 0502- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211-0501 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 01 1 0502- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211-0501 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0502- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0501 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0502-0605 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0211-0501 ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97093-491-1 01 1 0502- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0211-0501 ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0502-0604 ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605- ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 0211- ● ● ● ●
298 00.854 BRACKET
4HE1 ENG(RLY) 		8-97288-446-0 01 1 0211-0501 ● ● ● ●
298 00.854 BRACKET 8-97288-446-0 01 1 0502- ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ● ●
300 00.854 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
303 00.855 NUT; CLIP
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
303 00.855 NUT; CLIP
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
523 04.010 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-108-0 02 1 0502- ● ● ●

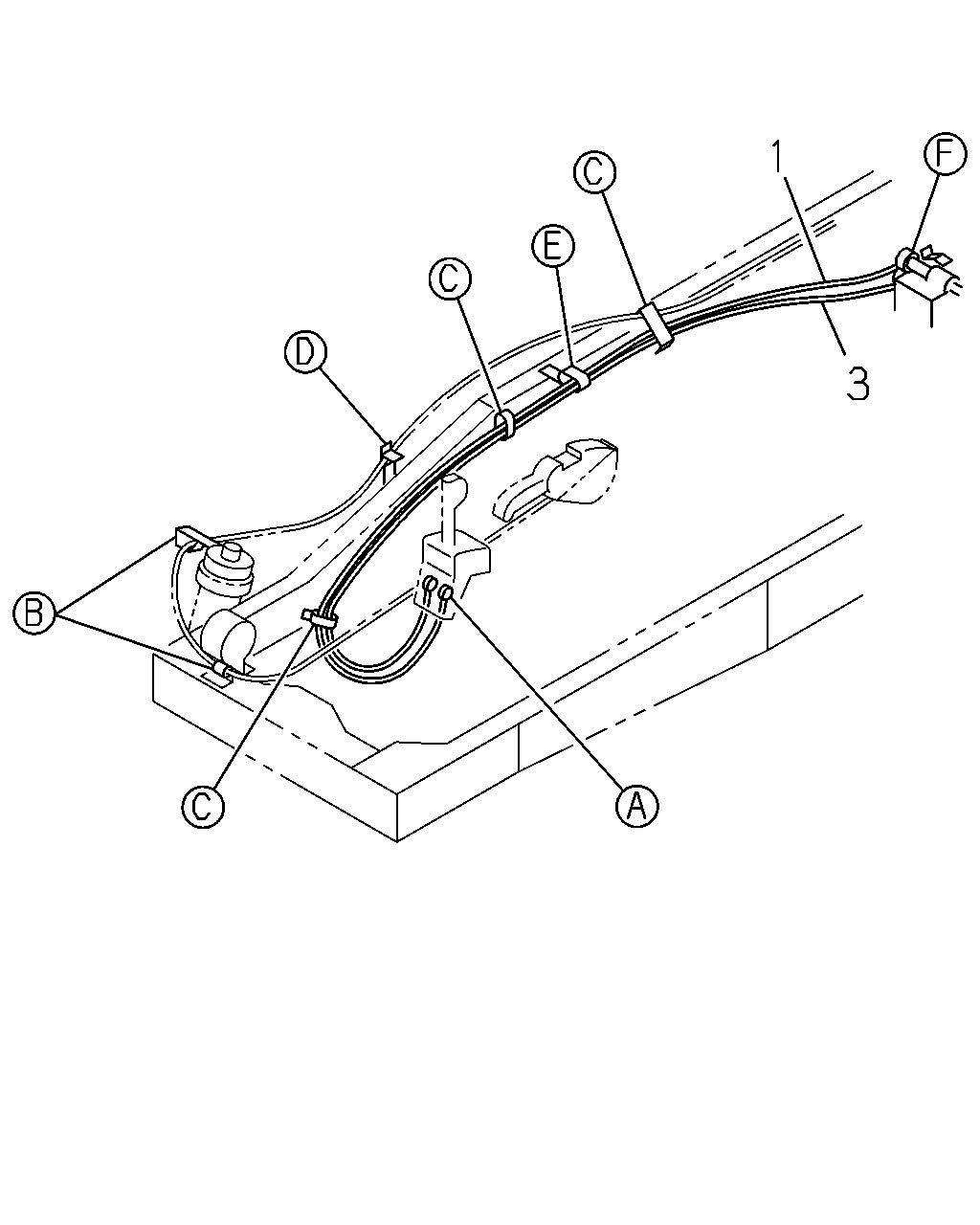

çizim 99933
1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3055 		8-97350-425-1 01 1 0211-0501 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055 		8-97350-425-1 01 1 0502-0502 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055 		8-98009-295-1 01 1 0502- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3070 		8-97329-417-0 01 1 0211-0501 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070 		8-97329-417-1 01 1 0502-0911 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98146-836-0 01 1 0912- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3113 		8-97350-426-0 01 1 0211-0501 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113 		8-97350-426-0 01 1 0502-0502 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113 		8-98009-287-1 01 1 0502- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3151 		8-97329-418-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151 		8-97329-418-0 01 1 0502-0502 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151 		8-98009-288-0 01 1 0502- ●

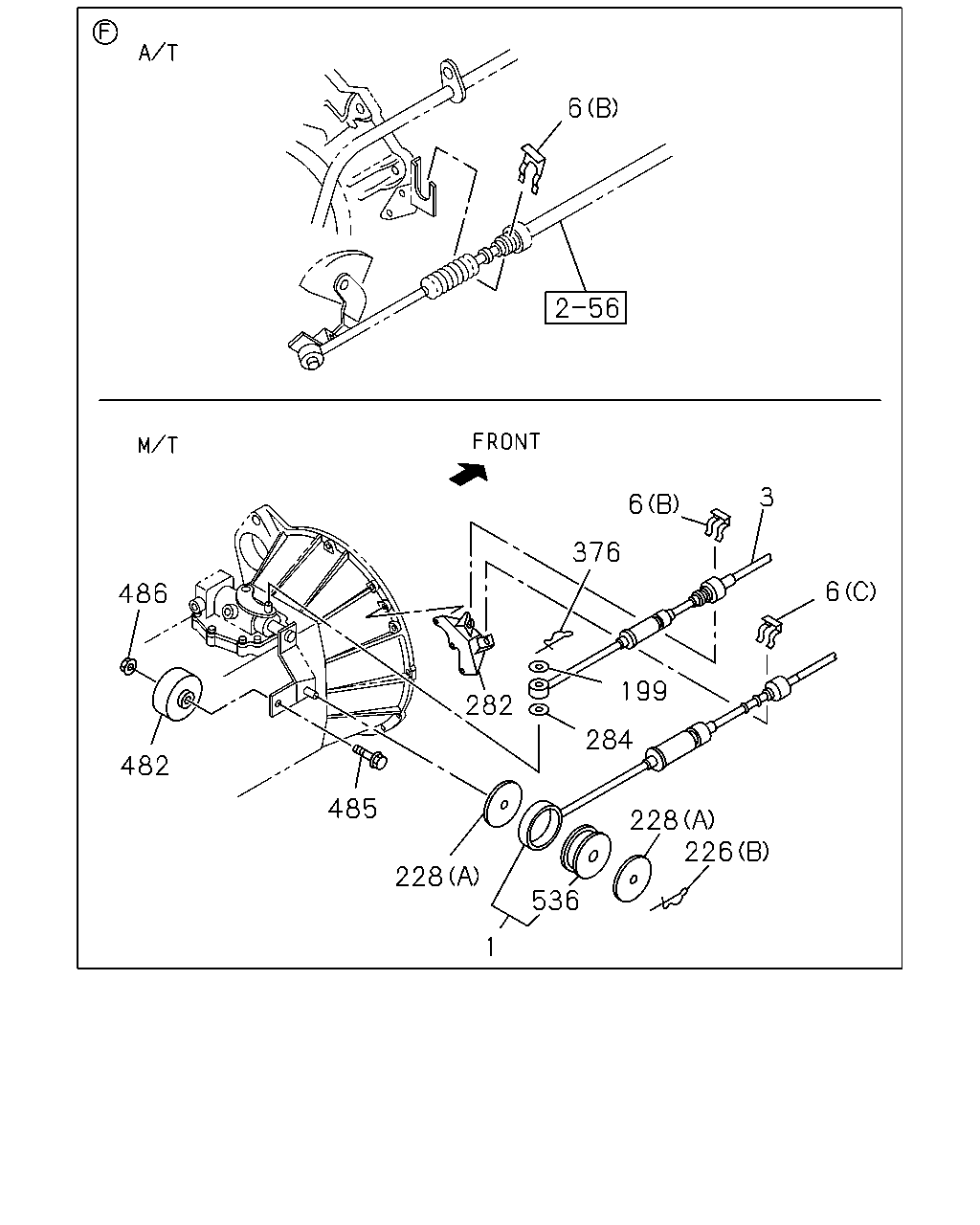

çizim 100104
6 3 6 376 6 486 199 282 284 482 485 228 226 228 536 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3055 		8-97350-425-1 01 1 0211-0501 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055 		8-97350-425-1 01 1 0502-0502 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055 		8-98009-295-1 01 1 0502- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3070 		8-97329-417-0 01 1 0211-0501 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070 		8-97329-417-1 01 1 0502-0911 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98146-836-0 01 1 0912- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3113 		8-97350-426-0 01 1 0211-0501 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113 		8-97350-426-0 01 1 0502-0502 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113 		8-98009-287-1 01 1 0502- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=3151 		8-97329-418-0 01 1 0211-0501 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151 		8-97329-418-0 01 1 0502-0502 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151 		8-98009-288-0 01 1 0502- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (G) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (G) 		8-97036-333-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502-0502 ● ● ●
6 04.047 CLIP; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502-0502 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97036-333-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 02 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97011-448-0 02 1 0502- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (F) 		8-97036-332-1 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97036-332-1 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) (H) 		8-97147-985-0 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60), TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97039-517-1 01 1 0502-0504 ● ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0211-0501 ● ● ●
6 04.047 CLIP; CABLE
(H) 		8-97147-985-0 01 1 0502-0504 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97147-985-0 01 1 0505- ● ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) 06.672 (D) 		8-94107-545-0 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) 04.785 (E) 		8-94458-385-1 01 1 0211-0501 ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 0502- ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97011-448-0 01 1 0211-0501 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0211-0501 ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4 		9-09160-508-0 01 1 0502-0605 ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211-0501 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 0502- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211-0501 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 01 1 0502- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211-0501 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0502- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0501 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0502-0605 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606- ● ● ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97311-441-1 01 1 0211-0501 ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97311-441-1 01 1 0502- ● ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97311-442-1 01 1 0211-0501 ●
282 04.010 BRACKET; TRANS SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97311-442-1 01 1 0502- ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0211-0501 ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=14 		5-09550-002-0 01 1 0502- ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0211-0501 ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=23 		8-94170-378-0 01 1 0502- ● ● ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-2 01 1 0211-0305 ● ● ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 0211-0305 ● ● ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 0211-0305 ● ● ●
536 00.854 DAMPER; CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-681-0 01 1 0711- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
