2-30 — GEAR SHIFTER AND QUADRANT BOX (#34297) — 493 parça

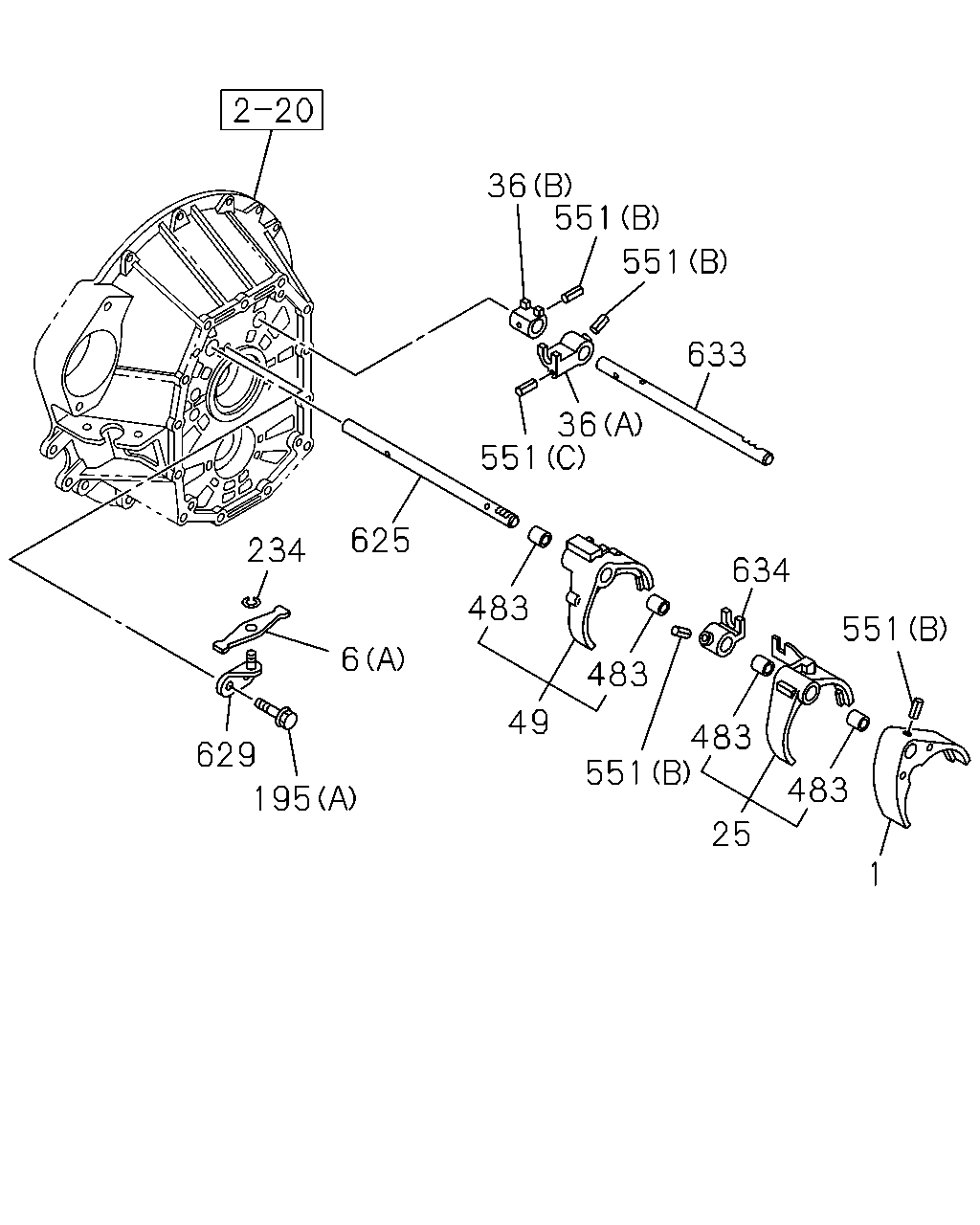

çizim 34363
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0211- ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0211- ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0502-0507 ● ●
6 04.302 LEVER; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0508- ● ● ●
6 04.302 LEVER; RELAY
4HE1 ENG(RLY) (A) 		8-97241-344-0 01 1 0211-0501 ●
6 04.302 LEVER; RELAY
4HK1-TCN ENG(RDQ) (A) 		8-97241-344-0 01 1 0502- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0211-0404 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0211-0507 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 0508- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HE1 ENG(RLY) (A) 		8-97241-329-1 01 1 0211-0501 ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HK1-TCN ENG(RDQ) (A) 		8-97241-329-1 01 1 0502- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HE1 ENG(RLY) (B) 		8-97241-330-0 01 1 0211-0501 ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HK1-TCN ENG(RDQ) (B) 		8-97241-330-0 01 1 0502- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1 ENG(RLY) 		8-97258-716-0 01 1 0211-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HK1-TCN ENG(RDQ) 		8-97258-716-0 01 1 0502- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-711-1 01 1 0211-0404 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-0 01 1 0405-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HK1-TCN ENG(RDQ) 		8-97362-732-1 01 1 0502- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0211-0507 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 0508- ●
195 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ● ●
195 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
195 04.105 BOLT
04.012 (A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ● ●
234 04.311 RING; SNAP
4HE1 ENG(RLY) 04.307 ID=12 		8-94460-357-0 01 1 0211-0501 ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ) 04.307 ID=12 		8-94460-357-0 01 1 0502- ●
234 04.311 RING; SNAP
4HE1 ENG(RLY) ID=16.5 		9-09180-418-0 02 1 0211-0404 ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0405-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0405-0501 ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ) ID=16.5 		9-09180-418-0 01 1 0502-0507 ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=16.5 		9-09180-418-0 01 1 0508-0604 ● ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=16.5 		0-91800-618-0 01 1 0605- ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0211-0403 ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0211-0403 ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-1 02 1 0404-0404 ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0405-0408 ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0405-0408 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0409- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0409- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-1 04 1 0211-0404 ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 04 1 0405-0408 ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0409- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211-0501 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405-0501 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 01 1 0502- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 04 1 0508- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-333-3 01 1 0211-0404 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0405- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-332-2 01 1 0211-0507 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 0508- ●
629 04.555 BRIDGE; LEVER
4HE1 ENG(RLY) 		8-97237-107-1 01 1 0211-0501 ●
629 04.555 BRIDGE; LEVER
4HK1-TCN ENG(RDQ) 		8-97237-107-1 01 1 0502- ●
629 04.555 BRIDGE; LEVER
4HE1 ENG(RLY) 		8-97241-345-1 01 1 0211-0501 ● ●
629 04.555 BRIDGE; LEVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97241-345-1 01 1 0502- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98206-518-0 01 1 1202- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4HE1 ENG(RLY) 		8-97358-832-0 01 1 0211-0404 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405-1201 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-743-0 01 1 1202- ●
634 04.303 BLOCK; SHIFT,LOW,REV
4HE1 ENG(RLY) 		8-97241-327-1 01 1 0211-0501 ●
634 04.303 BLOCK; SHIFT,LOW,REV
4HK1-TCN ENG(RDQ) 		8-97241-327-1 01 1 0502- ●

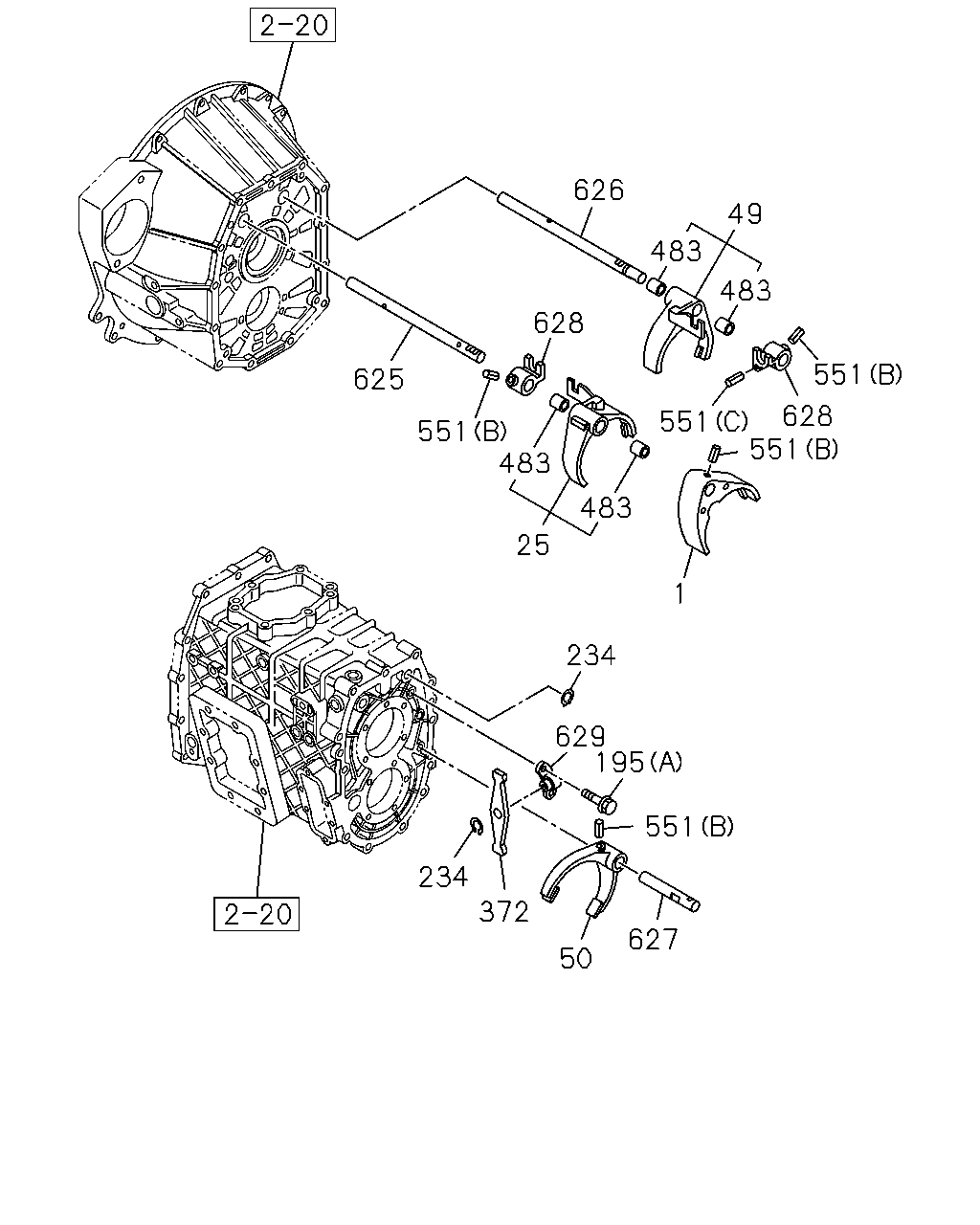

çizim 34920
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0211- ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0211- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0211-0404 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0405- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0211-0507 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 0508- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1 ENG(RLY) 		8-97258-716-0 01 1 0211-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HK1-TCN ENG(RDQ) 		8-97258-716-0 01 1 0502- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-711-1 01 1 0211-0404 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-0 01 1 0405-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HK1-TCN ENG(RDQ) 		8-97362-732-1 01 1 0502- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0211-0507 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 0508- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 0211- ●
50 04.302 ARM; SHIFT,6TH
4HE1 ENG(RLY) 		8-97241-325-1 01 1 0211-0501 ●
50 04.302 ARM; SHIFT,6TH
4HK1-TCN ENG(RDQ) 		8-97241-325-1 01 1 0502- ●
195 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ● ●
195 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
195 04.105 BOLT
04.012 (A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ● ●
234 04.311 RING; SNAP
4HE1 ENG(RLY) 04.307 ID=12 		8-94460-357-0 01 1 0211-0501 ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ) 04.307 ID=12 		8-94460-357-0 01 1 0502- ●
234 04.311 RING; SNAP
4HE1 ENG(RLY) ID=16.5 		9-09180-418-0 02 1 0211-0404 ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0405-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0405-0501 ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ) ID=16.5 		9-09180-418-0 01 1 0502-0507 ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=16.5 		9-09180-418-0 01 1 0508-0604 ● ●
234 04.311 RING; SNAP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=16.5 		0-91800-618-0 01 1 0605- ● ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 0211- ●
372 04.302 LEVER; RELAY,6TH
4HE1 ENG(RLY) 		8-97241-343-0 01 1 0211-0501 ●
372 04.302 LEVER; RELAY,6TH
4HK1-TCN ENG(RDQ) 		8-97241-343-0 01 1 0502- ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0211-0403 ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0211-0403 ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-1 02 1 0404-0404 ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0405-0408 ● ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 02 1 0405-0408 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0409- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0409- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-1 04 1 0211-0404 ●
483 04.419 BUSHING; SHIFT ARM
4HE1 ENG(RLY) 00.683 		8-97241-326-1 04 1 0405-0408 ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0409- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211-0501 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405-0501 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 01 1 0502- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 04 1 0508- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-333-3 01 1 0211-0404 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0405- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-332-2 01 1 0211-0507 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 0508- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-548-0 01 1 0802- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-335-2 01 1 0211-0404 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 0405-0501 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCN ENG(RDQ) 		8-97366-024-1 01 1 0502- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-334-1 01 1 0211-0507 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) 		8-97383-754-0 01 1 0508-0801 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97383-754-0 01 1 0802- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB
4HE1 ENG(RLY) 		8-97241-339-0 01 1 0211-0501 ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97241-339-0 01 1 0502-0805 ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98119-293-0 01 1 0806- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH
4HE1 ENG(RLY) 		8-97241-327-1 02 1 0211-0501 ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97241-327-1 02 1 0502- ● ●
629 04.555 BRIDGE; LEVER
4HE1 ENG(RLY) 		8-97237-107-1 01 1 0211-0501 ●
629 04.555 BRIDGE; LEVER
4HK1-TCN ENG(RDQ) 		8-97237-107-1 01 1 0502- ●
629 04.555 BRIDGE; LEVER
4HE1 ENG(RLY) 		8-97241-345-1 01 1 0211-0501 ● ●
629 04.555 BRIDGE; LEVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97241-345-1 01 1 0502- ● ●

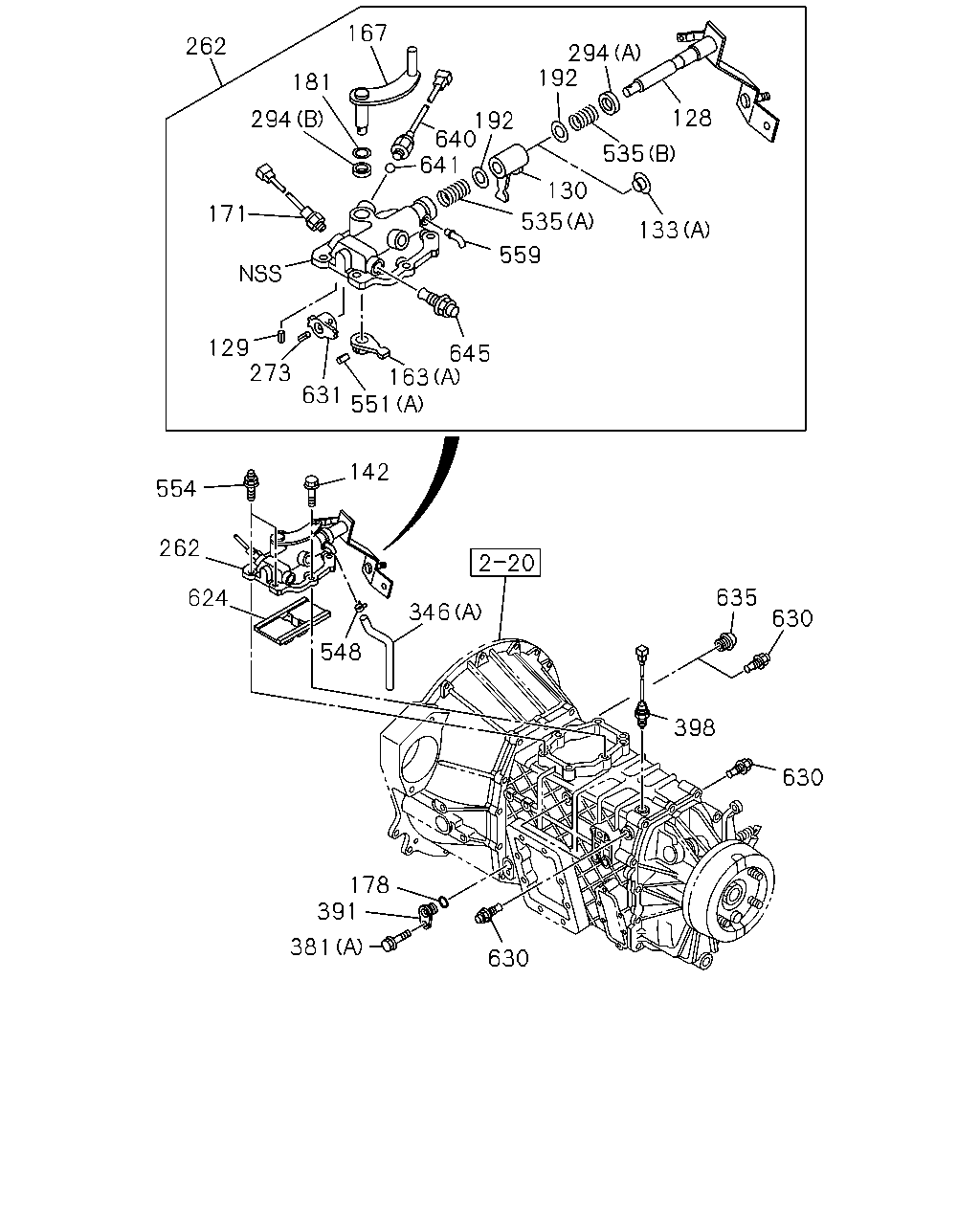

çizim 99935
167 262 294 192 181 128 294 192 640 641 535 130 171 535 133 559 129 273 645 163 551 631 142 554 262 635 624 346 630 548 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-658-0 01 1 0211-0303 ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0304-0501 ●
128 04.030 LEVER; SHIFT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-725-0 01 1 0502- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0211-0303 ● ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 0304-0501 ● ●
128 04.030 LEVER; SHIFT,EXTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97363-226-0 01 1 0502- ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0211-0501 ● ● ●
129 04.027 PIN; SPR,SHIFT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=30 OD=4 		1-09748-031-0 01 1 0502- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97305-657-0 01 1 0211-0303 ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0211-0303 ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0304-0501 ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97306-647-0 01 1 0502- ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0502-0507 ● ●
133 04.027 SEAT; SPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0508- ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 0502-0507 ● ●
133 04.027 SEAT; SPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 0508- ● ● ●
133 04.027 SEAT; SPR
4HE1 ENG(RLY) (A) 		8-97305-667-0 01 1 0211-0501 ●
133 04.027 SEAT; SPR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97305-667-0 01 1 0502- ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-97364-971-0 03 1 0502-0507 ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-97364-971-0 03 1 0508-0610 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 0611- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-97364-972-0 03 1 0502-0507 ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-97364-972-0 03 1 0508-0610 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 0611- ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0211-0501 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0502-0604 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0502-0507 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0508- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0502-0507 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0508- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 0211-0501 ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97305-663-0 01 1 0502- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97305-665-0 01 1 0211-0501 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0502-0507 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0508- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97306-648-0 01 1 0502-0611 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98039-434-0 01 1 0612- ● ● ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698 		8-98023-050-0 01 1 0605-0611 ● ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0612- ● ● ●
171 04.054 SWITCH; NEUTRAL 8-97316-688-1 01 1 0211-0501 ● ● ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-688-1 01 1 0502-0507 ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ) 		8-97316-688-1 01 1 0502-0507 ● ●
171 04.054 SWITCH; NEUTRAL 8-97316-688-1 01 1 0508-0604 ● ● ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-688-1 01 1 0605-0611 ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0211-0501 ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09567-113-0 01 1 0502- ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0211-0303 ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0304-0501 ● ● ●
181 04.302 WASHER; PL,SELECT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-327-0 01 1 0502- ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 0502-0507 ● ●
192 04.309 WASHER; PL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 0508- ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0211-0303 ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 0304-0501 ●
192 04.309 WASHER; PL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-661-0 01 1 0502- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0304-0501 ● ●
192 04.309 WASHER; PL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-661-0 02 1 0502- ● ●
262 04.105 BOX ASM; SHIFT CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-744-2 01 1 0502- ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-804-0 01 1 0605-0610 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1 ENG(RLY) 		8-97329-084-1 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-751-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97319-536-5 01 1 0502-0507 ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97319-536-5 01 1 0508-0604 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97319-536-5 01 1 0605-0610 ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-399-6 01 1 0611- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-97329-083-1 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-749-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-750-2 01 1 0502- ●
262 04.105 BOX ASM; SHIFT CONT 8-97256-823-8 01 1 0211-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-97256-823-9 01 1 0502-0611 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-98039-441-0 01 1 0612- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 0304-0501 ● ● ●
273 04.309 PIN; SPR,STOPPER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 0502- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0502-0507 ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0508- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0211-0501 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97305-662-0 01 1 0502- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0211-0303 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304-0501 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0502- ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0502- ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 0211- ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 0502-0507 ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 0508-0512 ● ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 04 1 0601-0906 ● ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ● ●
381 04.105 BOLT
SGL CAB(NP**S*) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 01 1 0502-0512 ●
381 04.105 BOLT
SGL CAB(NP**S*) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
381 04.105 BOLT
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501 ● ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512 ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512 ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 0211-0501 ● ● ●
391 04.104 PLUG; SW HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-273-1 01 1 0502- ● ● ●
398 02.698 SWITCH; REV LAMP
04.054 		8-97316-688-1 01 1 0211-0604 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0605- ● ● ●
535 04.302 SPRING; LEVER
4HE1 ENG(RLY) (A) 		8-97323-771-0 01 1 0211-0501 ●
535 04.302 SPRING; LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97323-771-0 01 1 0502- ●
535 04.302 SPRING; LEVER
4HE1 ENG(RLY) (B) 		8-97323-772-0 01 1 0211-0501 ●
535 04.302 SPRING; LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97323-772-0 01 1 0502- ●
535 04.302 SPRING; LEVER
4HE1 ENG(RLY) (A) 		8-97305-659-0 01 1 0211-0501 ● ●
535 04.302 SPRING; LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97305-659-0 01 1 0502- ● ●
535 04.302 SPRING; LEVER
4HE1 ENG(RLY) (B) 		8-97305-660-0 01 1 0211-0501 ● ●
535 04.302 SPRING; LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97305-660-0 01 1 0502- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211-0501 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405-0501 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 01 1 0502- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 04 1 0508- ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0211-0501 ● ● ●
554 04.302 STUD; CONT BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49 		8-97352-677-0 02 1 0502-0604 ● ● ●
554 04.302 STUD; CONT BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605- ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-999-0 01 1 0502-0507 ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-999-0 01 1 0508-0610 ● ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0611- ● ● ●
559 04.302 PIPE; BREATHER 8-97305-517-0 02 1 0211-0302 ●
559 04.302 PIPE; BREATHER 8-97305-517-0 03 1 0303-0501 ●
559 04.302 PIPE; BREATHER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-517-0 03 1 0502-0507 ●
559 04.302 PIPE; BREATHER 8-97305-517-0 01 1 0211-0501 ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-517-0 01 1 0502-0507 ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-517-0 01 1 0508-0604 ● ● ●
559 04.302 PIPE; BREATHER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510 		8-97358-318-0 01 1 0605- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0211- ● ● ●
630 04.307 DETENT ASM
4HE1 ENG(RLY) 		8-97241-341-0 03 1 0211-0501 ●
630 04.307 DETENT ASM 8-97241-341-0 03 1 0502-0604 ●
630 04.307 DETENT ASM
4HK1-TCN ENG(RDQ) 		8-98019-536-0 03 1 0605- ●
630 04.307 DETENT ASM
4HE1 ENG(RLY) 		8-97241-341-0 04 1 0211-0501 ● ●
630 04.307 DETENT ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97241-341-0 04 1 0502-0604 ● ●
630 04.307 DETENT ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98019-536-0 04 1 0605- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0502-0507 ● ●
631 04.105 STOPPER; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0508- ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 0211-0501 ● ● ●
631 04.105 STOPPER; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-666-0 01 1 0502- ● ● ●
635 04.309 PLUG; DETENT
4HE1 ENG(RLY) 00.206 		8-97229-313-2 01 1 0211-0501 ●
635 04.309 PLUG; DETENT
00.206 		8-97229-313-2 01 1 0502-0611 ●
635 04.309 PLUG; DETENT
4HK1-TCN ENG(RDQ) 00.206 		8-97380-892-0 01 1 0612- ●
640 04.054 SWITCH; SELECT 8-97316-687-1 01 1 0211-0501 ● ●
641 04.311 BALL 8-97305-668-0 01 1 0211-0501 ● ●
645 04.311 DETENT ASM
04.307 		8-97241-341-0 01 1 0405-0501 ● ●
645 04.311 DETENT ASM
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 		8-97241-341-0 01 1 0502-0604 ● ●
645 04.311 DETENT ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 		8-98019-536-0 01 1 0605- ● ●

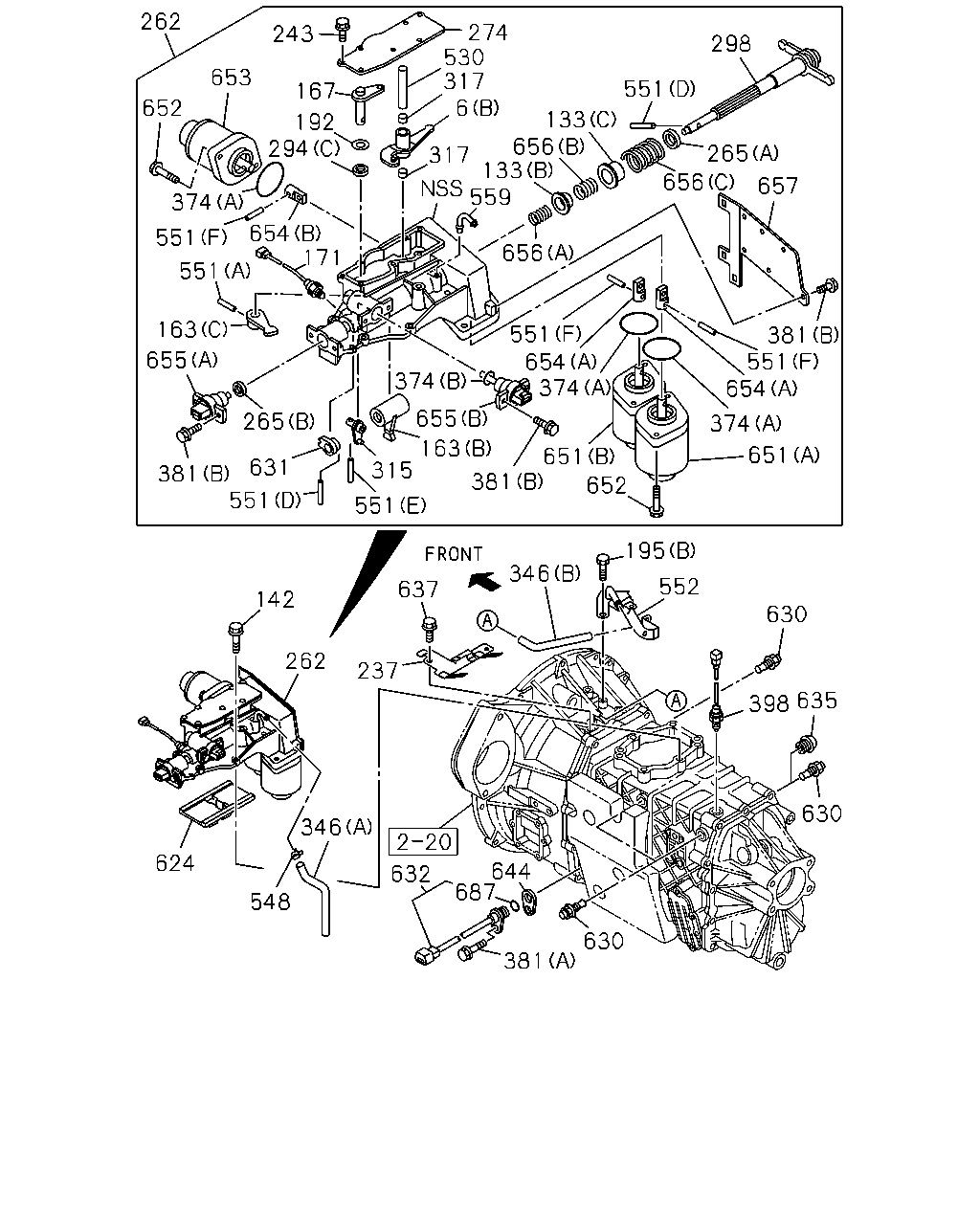

çizim 100049
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 552 637 142 630 262 237 398 635 630 346 644 687 624 632 548 630 381
BalonParca AdiParca NoAdetTipApplied Date A B C
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0502-0507 ● ●
6 04.302 LEVER; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0508- ● ● ●
6 04.302 LEVER; RELAY
4HE1 ENG(RLY) (A) 		8-97241-344-0 01 1 0211-0501 ●
6 04.302 LEVER; RELAY
4HK1-TCN ENG(RDQ) (A) 		8-97241-344-0 01 1 0502- ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0502-0507 ● ●
133 04.027 SEAT; SPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0508- ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 0502-0507 ● ●
133 04.027 SEAT; SPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 0508- ● ● ●
133 04.027 SEAT; SPR
4HE1 ENG(RLY) (A) 		8-97305-667-0 01 1 0211-0501 ●
133 04.027 SEAT; SPR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97305-667-0 01 1 0502- ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-97364-971-0 03 1 0502-0507 ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-97364-971-0 03 1 0508-0610 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 0611- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-97364-972-0 03 1 0502-0507 ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-97364-972-0 03 1 0508-0610 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 0611- ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0211-0501 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0502-0604 ● ● ●
142 04.012 BOLT; QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0502-0507 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0508- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0502-0507 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0508- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 0211-0501 ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97305-663-0 01 1 0502- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97305-665-0 01 1 0211-0501 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0502-0507 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0508- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97306-648-0 01 1 0502-0611 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98039-434-0 01 1 0612- ● ● ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698 		8-98023-050-0 01 1 0605-0611 ● ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0612- ● ● ●
171 04.054 SWITCH; NEUTRAL 8-97316-688-1 01 1 0211-0501 ● ● ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-688-1 01 1 0502-0507 ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ) 		8-97316-688-1 01 1 0502-0507 ● ●
171 04.054 SWITCH; NEUTRAL 8-97316-688-1 01 1 0508-0604 ● ● ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-688-1 01 1 0605-0611 ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 0502-0507 ● ●
192 04.309 WASHER; PL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 0508- ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0211-0303 ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 0304-0501 ●
192 04.309 WASHER; PL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-661-0 01 1 0502- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0304-0501 ● ●
192 04.309 WASHER; PL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-661-0 02 1 0502- ● ●
195 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ● ●
195 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
195 04.105 BOLT
04.012 (A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ● ●
237 04.057 BRACKET; CABLE,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97369-186-1 01 1 0502-0611 ● ● ●
237 04.057 BRACKET; CABLE,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-905-1 01 1 0612- ● ● ●
243 04.105 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 M6X12 FLANGE 		0-28080-612-0 11 1 0502-0507 ● ●
243 04.105 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 M6X12 FLANGE 		0-28080-612-0 11 1 0508-0512 ● ● ●
243 04.105 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE 		0-28050-612-0 11 1 0601-0906 ● ● ●
243 04.105 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 0907- ● ● ●
262 04.105 BOX ASM; SHIFT CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-744-2 01 1 0502- ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-804-0 01 1 0605-0610 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1 ENG(RLY) 		8-97329-084-1 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-751-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97319-536-5 01 1 0502-0507 ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97319-536-5 01 1 0508-0604 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97319-536-5 01 1 0605-0610 ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-399-6 01 1 0611- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-97329-083-1 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-749-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-750-2 01 1 0502- ●
262 04.105 BOX ASM; SHIFT CONT 8-97256-823-8 01 1 0211-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-97256-823-9 01 1 0502-0611 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-98039-441-0 01 1 0612- ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0502-0507 ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0508- ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 0502-0507 ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 0508- ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97380-000-0 01 1 0502-0507 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97380-000-0 01 1 0508-0610 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0611- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0502-0507 ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0508- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0211-0501 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97305-662-0 01 1 0502- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0211-0303 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304-0501 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0502- ● ● ●
298 04.309 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0502-0507 ● ●
298 04.309 SHAFT; SHIFT LEVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0508- ● ● ●
315 04.302 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0502-0507 ● ●
315 04.302 LEVER; SELECT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0508- ● ● ●
317 04.302 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0502-0507 ● ●
317 04.302 BUSHING; LEVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0508- ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0502- ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 0211- ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 0502-0507 ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 0508- ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 0502-0507 ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 0508- ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 0502-0507 ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 0508-0512 ● ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 04 1 0601-0906 ● ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ● ●
381 04.105 BOLT
SGL CAB(NP**S*) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 01 1 0502-0512 ●
381 04.105 BOLT
SGL CAB(NP**S*) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
381 04.105 BOLT
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501 ● ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512 ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512 ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
381 04.105 BOLT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
398 02.698 SWITCH; REV LAMP
04.054 		8-97316-688-1 01 1 0211-0604 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0605- ● ● ●
530 04.302 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 0502-0507 ● ●
530 04.302 SHAFT; SELECT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 0508- ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0508- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211-0501 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-0507 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0508- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405-0501 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 01 1 0502- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) 04.302 (B) L=32 		8-97011-596-2 04 1 0508- ● ●
552 04.105 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-914-1 01 1 0502- ● ●
552 04.105 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		8-97385-018-2 01 1 0511- ●
552 04.105 BRACKET
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		8-97385-018-2 01 1 0508-0510 ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-999-0 01 1 0502-0507 ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-999-0 01 1 0508-0610 ● ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0611- ● ● ●
559 04.302 PIPE; BREATHER 8-97305-517-0 02 1 0211-0302 ●
559 04.302 PIPE; BREATHER 8-97305-517-0 03 1 0303-0501 ●
559 04.302 PIPE; BREATHER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-517-0 03 1 0502-0507 ●
559 04.302 PIPE; BREATHER 8-97305-517-0 01 1 0211-0501 ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-517-0 01 1 0502-0507 ● ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-517-0 01 1 0508-0604 ● ● ●
559 04.302 PIPE; BREATHER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510 		8-97358-318-0 01 1 0605- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0211- ● ● ●
630 04.307 DETENT ASM
4HE1 ENG(RLY) 		8-97241-341-0 03 1 0211-0501 ●
630 04.307 DETENT ASM 8-97241-341-0 03 1 0502-0604 ●
630 04.307 DETENT ASM
4HK1-TCN ENG(RDQ) 		8-98019-536-0 03 1 0605- ●
630 04.307 DETENT ASM
4HE1 ENG(RLY) 		8-97241-341-0 04 1 0211-0501 ● ●
630 04.307 DETENT ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97241-341-0 04 1 0502-0604 ● ●
630 04.307 DETENT ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98019-536-0 04 1 0605- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0502-0507 ● ●
631 04.105 STOPPER; SPRING
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0508- ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 0211-0501 ● ● ●
631 04.105 STOPPER; SPRING
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97305-666-0 01 1 0502- ● ● ●
632 04.054 SENSOR; TRANS,REV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 0502- ● ● ●
635 04.309 PLUG; DETENT
4HE1 ENG(RLY) 00.206 		8-97229-313-2 01 1 0211-0501 ●
635 04.309 PLUG; DETENT
00.206 		8-97229-313-2 01 1 0502-0611 ●
635 04.309 PLUG; DETENT
4HK1-TCN ENG(RDQ) 00.206 		8-97380-892-0 01 1 0612- ●
637 04.105 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ● ● ●
637 04.105 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
644 04.302 SPACER; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-489-1 01 1 0502- ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-828-2 01 1 0502-0507 ● ●
651 04.309 SOLENOID ASM; SHIFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-828-2 01 1 0508-0610 ● ● ●
651 04.309 SOLENOID ASM; SHIFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98002-759-0 01 1 0611- ● ● ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97365-922-1 01 1 0502-0507 ● ●
651 04.309 SOLENOID ASM; SHIFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97365-922-1 01 1 0508-0610 ● ● ●
651 04.309 SOLENOID ASM; SHIFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98002-760-0 01 1 0611- ● ● ●
652 04.309 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X25 FLANGE 		0-28181-025-0 06 1 0502-0507 ● ●
652 04.309 BOLT; SORENOID
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X25 FLANGE 		0-28181-025-0 06 1 0508-0512 ● ● ●
652 04.309 BOLT; SORENOID
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 0601- ● ● ●
653 04.309 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97324-830-1 01 1 0502-0507 ● ●
653 04.309 SOLENOID ASM; SELECT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97324-830-1 01 1 0508-0610 ● ● ●
653 04.309 SOLENOID ASM; SELECT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 0611- ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 0502-0507 ● ●
654 04.309 JOINT; SOLENOID,CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 0508- ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 0502-0507 ● ●
654 04.309 JOINT; SOLENOID,CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 0508- ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-826-0 01 1 0502-0507 ● ●
655 04.309 SENSOR; STROKE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-826-0 01 1 0508- ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97324-827-0 01 1 0502-0507 ● ●
655 04.309 SENSOR; STROKE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97324-827-0 01 1 0508- ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 0502-0507 ● ●
656 04.307 SPRING; SHAFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 0508- ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 0502-0507 ● ●
656 04.307 SPRING; SHAFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 0508- ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 0502-0507 ● ●
656 04.307 SPRING; SHAFT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 0508- ● ● ●
657 04.105 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97380-001-0 01 1 0502-0507 ● ●
657 04.105 PLATE; SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97380-001-0 01 1 0508-0610 ● ● ●
657 04.105 PLATE; SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 0611- ● ● ●
687 04.075 GASKET; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 		9-09567-113-0 01 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
