Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#34296) — 695 parça

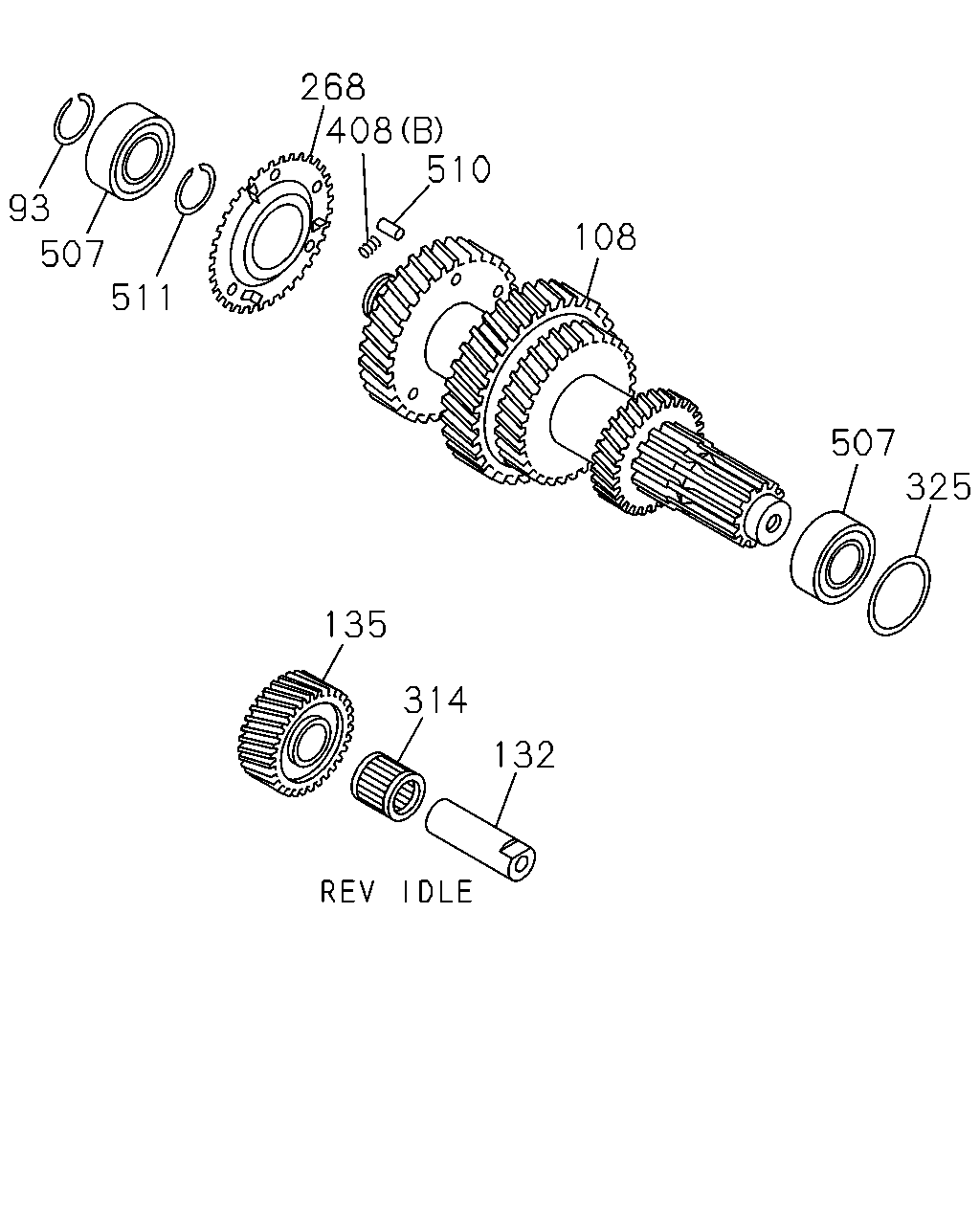

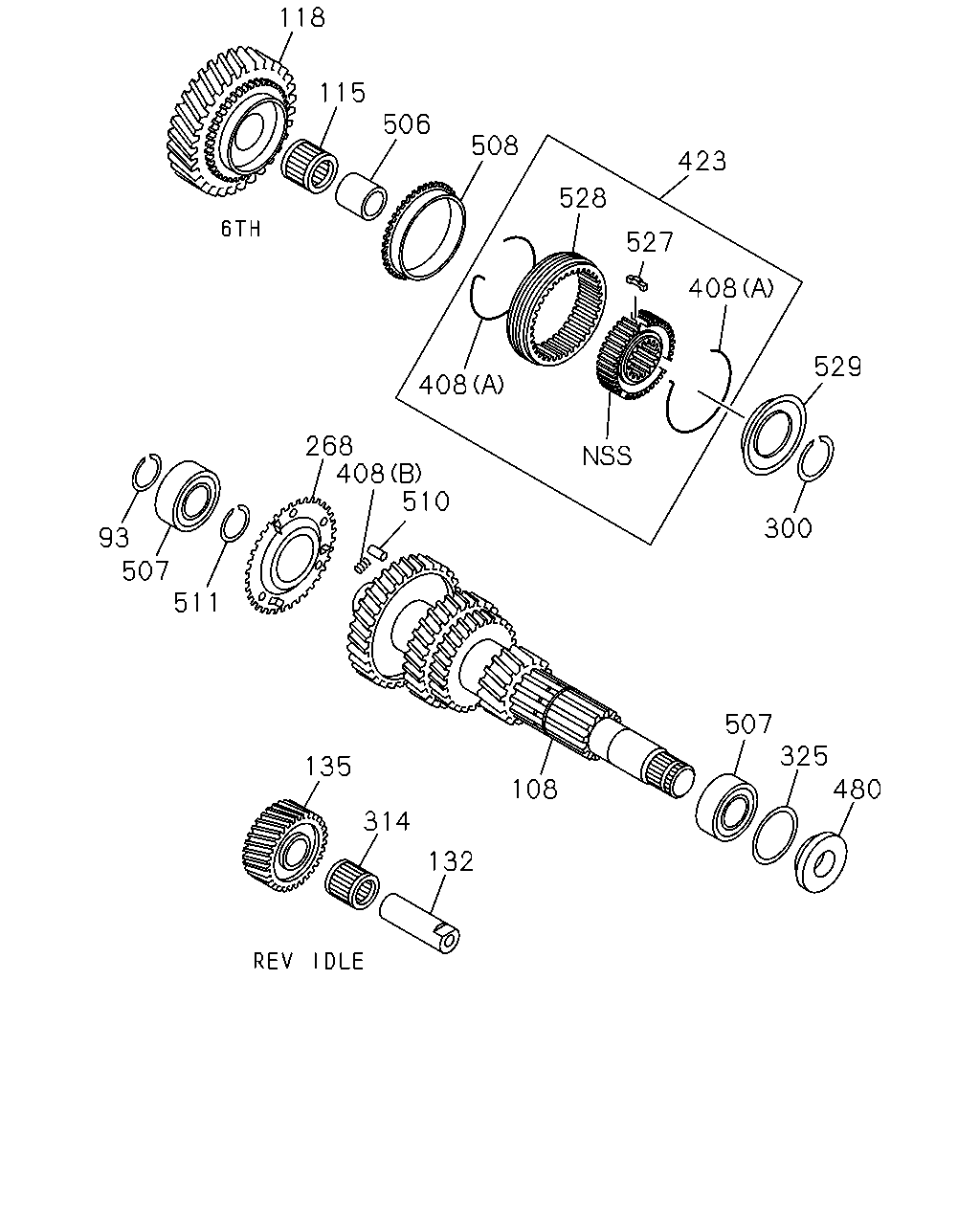

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0211-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0211-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0211-			●
108	04.428 SHAFT; COUNTER SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0502-	●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=45-49-33-20	8-97326-590-0	01	1	0211-0404		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-0	01	1	0405-0501		●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97380-630-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=47-39-33-20	8-97252-639-0	01	1	0211-0404	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-0	01	1	0405-0501	●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97380-627-1	01	1	0502-	●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0211-0501			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) Z=46-37-28-21	8-97252-636-0	01	1	0502-0910			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) Z=46-37-28-21	8-98113-220-0	01	1	0911-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) OD=49.75	8-97253-113-0	01	1	0211-0501	●		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=49.75	8-97253-113-0	01	1	0502-	●		●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0211-			●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=49	8-97241-247-0	01	1	0211-0501	●
118	04.421 GEAR; 6TH,COUNTER 4HK1-TCN ENG(RDQ) Z=49	8-97241-247-0	01	1	0502-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0211-	●	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0211-			●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0211-0512	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ) Z=25	8-98031-869-1	01	1	0601-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0211-0404			●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97257-300-1	01	1	0211-0501		●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97257-300-1	01	1	0502-		●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97252-684-1	01	1	0211-0501	●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-684-1	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=30.7 T=1.7	8-97254-727-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) ID=30.7 T=1.7	8-97254-727-0	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=30.7 T=1.9	8-97254-734-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0304-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=30.7 T=1.6	8-97365-617-0	01	1	0304-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) ID=30.7 T=1.6	8-97365-617-0	01	1	0502-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0211-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-0501	●	●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0502-	●	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97300-196-0	01	1	0211-0404	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	0405-0501	●
423	04.384 SLEEVE & HUB ASM; 6TH 4HK1-TCN ENG(RDQ)	8-97367-022-0	01	1	0502-	●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	0211-			●
480	04.419 WASHER; THRUST,6TH 4HE1 ENG(RLY)	8-97253-123-0	01	1	0211-0501	●
480	04.419 WASHER; THRUST,6TH 4HK1-TCN ENG(RDQ)	8-97253-123-1	01	1	0502-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0211-			●
506	04.419 COLLAR; 6TH,COUNTER 4HE1 ENG(RLY)	8-97253-121-1	01	1	0211-0501	●
506	04.419 COLLAR; 6TH,COUNTER 4HK1-TCN ENG(RDQ)	8-97253-121-1	01	1	0502-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0211-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0211-			●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0211-			●
508	04.383 RING; BLOCK,6TH 4HE1 ENG(RLY) 04.395 Z=45	8-97309-532-0	01	1	0211-0501	●
508	04.383 RING; BLOCK,6TH 4HK1-TCN ENG(RDQ) 04.395 Z=45	8-97309-532-0	01	1	0502-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0211-0404	●	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0405-0501	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.862	9-08160-825-0	03	1	0502-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0211-0404	●	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-0501	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-767-0	01	1	0502-	●	●
527	04.384 INSERT; 6TH 4HE1 ENG(RLY)	8-94448-202-2	03	1	0211-0501	●
527	04.384 INSERT; 6TH 4HK1-TCN ENG(RDQ)	8-94448-202-2	03	1	0502-	●
528	04.384 SLEEVE; 6TH 4HE1 ENG(RLY) 04.535 Z=45	8-94421-871-1	01	1	0211-0501	●
528	04.384 SLEEVE; 6TH 4HK1-TCN ENG(RDQ) 04.535 Z=45	8-94421-871-1	01	1	0502-	●
529	04.384 PLATE; STOPPER,6TH 4HE1 ENG(RLY)	8-97248-952-0	01	1	0211-0501	●
529	04.384 PLATE; STOPPER,6TH 4HK1-TCN ENG(RDQ)	8-97248-952-0	01	1	0502-	●

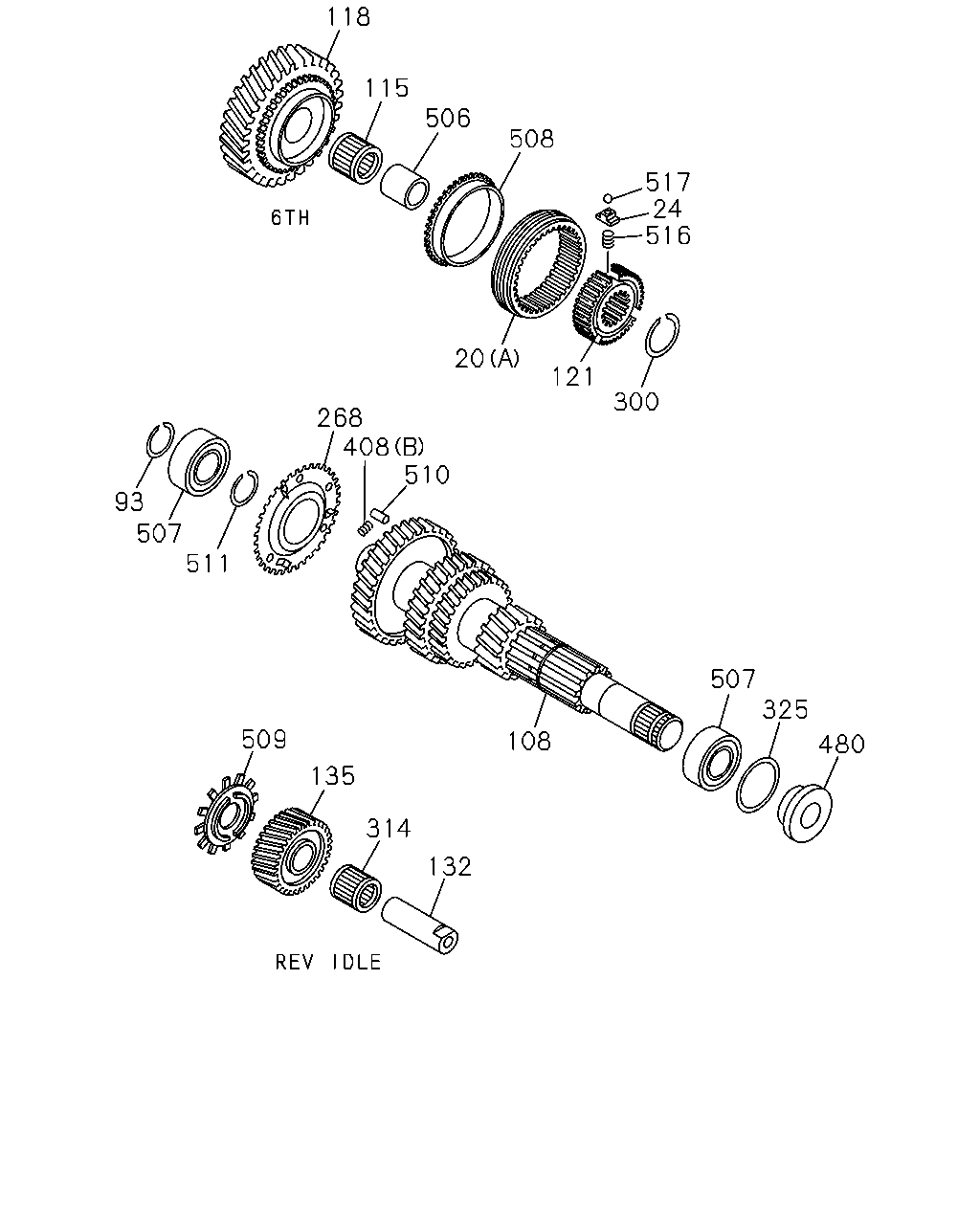

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 509 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	0211-			●
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-			●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0507-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0506			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0507-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0211-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0211-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0211-			●
108	04.428 SHAFT; COUNTER SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0502-	●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=45-49-33-20	8-97326-590-0	01	1	0211-0404		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-0	01	1	0405-0501		●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97380-630-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=47-39-33-20	8-97252-639-0	01	1	0211-0404	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-0	01	1	0405-0501	●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97380-627-1	01	1	0502-	●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0211-0501			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) Z=46-37-28-21	8-97252-636-0	01	1	0502-0910			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) Z=46-37-28-21	8-98113-220-0	01	1	0911-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) OD=49.75	8-97253-113-0	01	1	0211-0501	●		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=49.75	8-97253-113-0	01	1	0502-	●		●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0211-			●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=49	8-97241-247-0	01	1	0211-0501	●
118	04.421 GEAR; 6TH,COUNTER 4HK1-TCN ENG(RDQ) Z=49	8-97241-247-0	01	1	0502-	●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0211-			●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0211-	●	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0211-			●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0211-0512	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ) Z=25	8-98031-869-1	01	1	0601-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0211-0404			●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97257-300-1	01	1	0211-0501		●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97257-300-1	01	1	0502-		●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97252-684-1	01	1	0211-0501	●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-684-1	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=30.7 T=1.7	8-97254-727-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) ID=30.7 T=1.7	8-97254-727-0	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=30.7 T=1.9	8-97254-734-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0304-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=30.7 T=1.6	8-97365-617-0	01	1	0304-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCN ENG(RDQ) ID=30.7 T=1.6	8-97365-617-0	01	1	0502-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0211-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-0501	●	●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0502-	●	●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	0211-			●
480	04.419 WASHER; THRUST,6TH 4HE1 ENG(RLY)	8-97253-123-0	01	1	0211-0501	●
480	04.419 WASHER; THRUST,6TH 4HK1-TCN ENG(RDQ)	8-97253-123-1	01	1	0502-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0211-			●
506	04.419 COLLAR; 6TH,COUNTER 4HE1 ENG(RLY)	8-97253-121-1	01	1	0211-0501	●
506	04.419 COLLAR; 6TH,COUNTER 4HK1-TCN ENG(RDQ)	8-97253-121-1	01	1	0502-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0211-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0211-			●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0211-			●
508	04.383 RING; BLOCK,6TH 4HE1 ENG(RLY) 04.395 Z=45	8-97309-532-0	01	1	0211-0501	●
508	04.383 RING; BLOCK,6TH 4HK1-TCN ENG(RDQ) 04.395 Z=45	8-97309-532-0	01	1	0502-	●
509	04.417 SLINGER; OIL,REV IDLE	8-97252-682-0	01	1	0211-0302			●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0211-0404	●	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0405-0501	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.862	9-08160-825-0	03	1	0502-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0211-0404	●	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-0501	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-767-0	01	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0507-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0506			●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0506			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0507-			●

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0211-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0211-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0211-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0211-			●
108	04.428 SHAFT; COUNTER SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0502-	●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=45-49-33-20	8-97326-590-0	01	1	0211-0404		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-0	01	1	0405-0501		●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97380-630-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=47-39-33-20	8-97252-639-0	01	1	0211-0404	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-0	01	1	0405-0501	●
108	04.428 SHAFT; COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97380-627-1	01	1	0502-	●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0211-0501			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) Z=46-37-28-21	8-97252-636-0	01	1	0502-0910			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) Z=46-37-28-21	8-98113-220-0	01	1	0911-			●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0211-	●	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0211-			●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0211-0512	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ) Z=25	8-98031-869-1	01	1	0601-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0211-0404			●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97257-300-1	01	1	0211-0501		●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97257-300-1	01	1	0502-		●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97252-684-1	01	1	0211-0501	●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-684-1	01	1	0502-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0211-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0211-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0211-			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-0501	●	●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0502-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0211-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0211-			●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0211-0404	●	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0405-0501	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.862	9-08160-825-0	03	1	0502-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0211-0404	●	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-0501	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-767-0	01	1	0502-	●	●

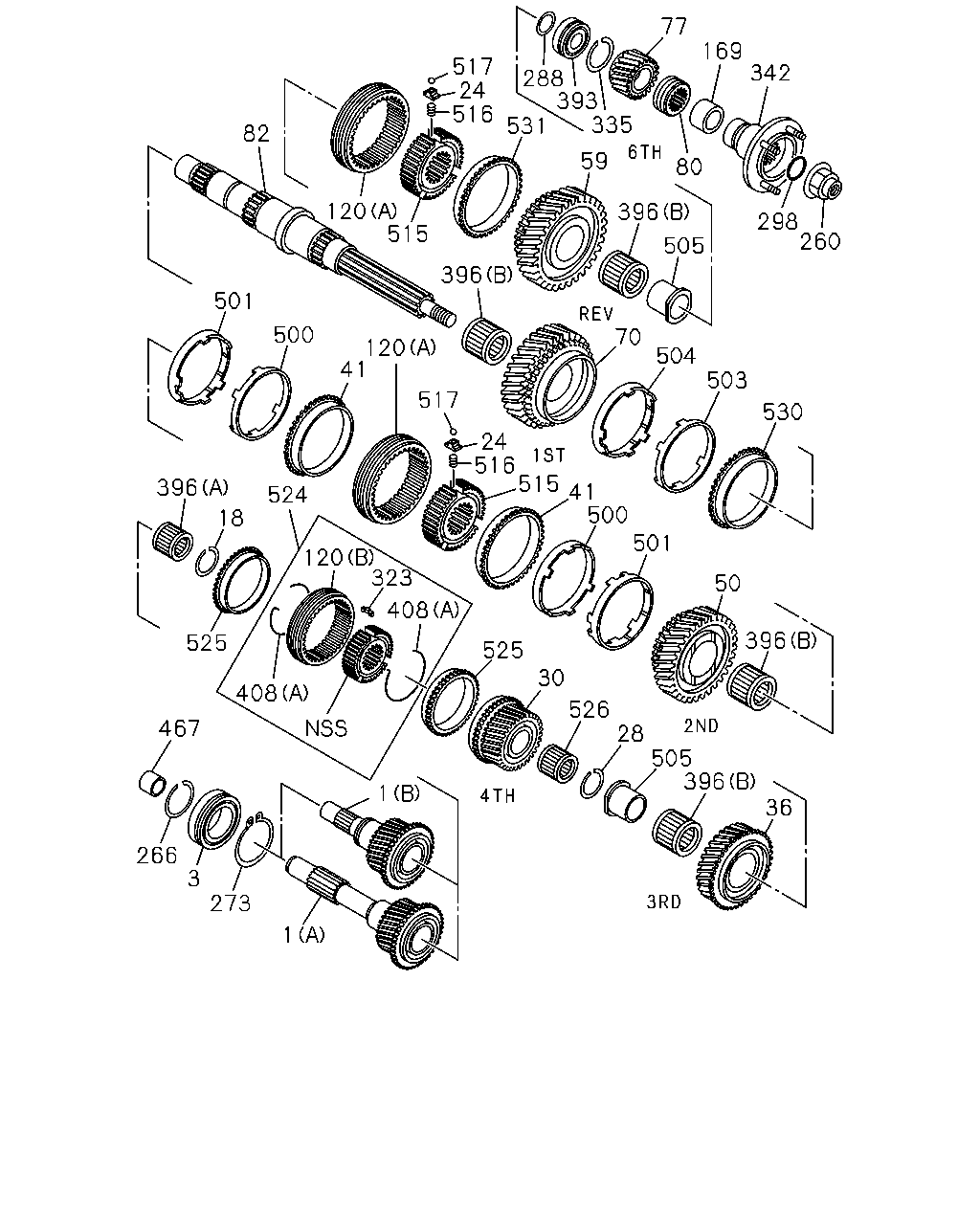

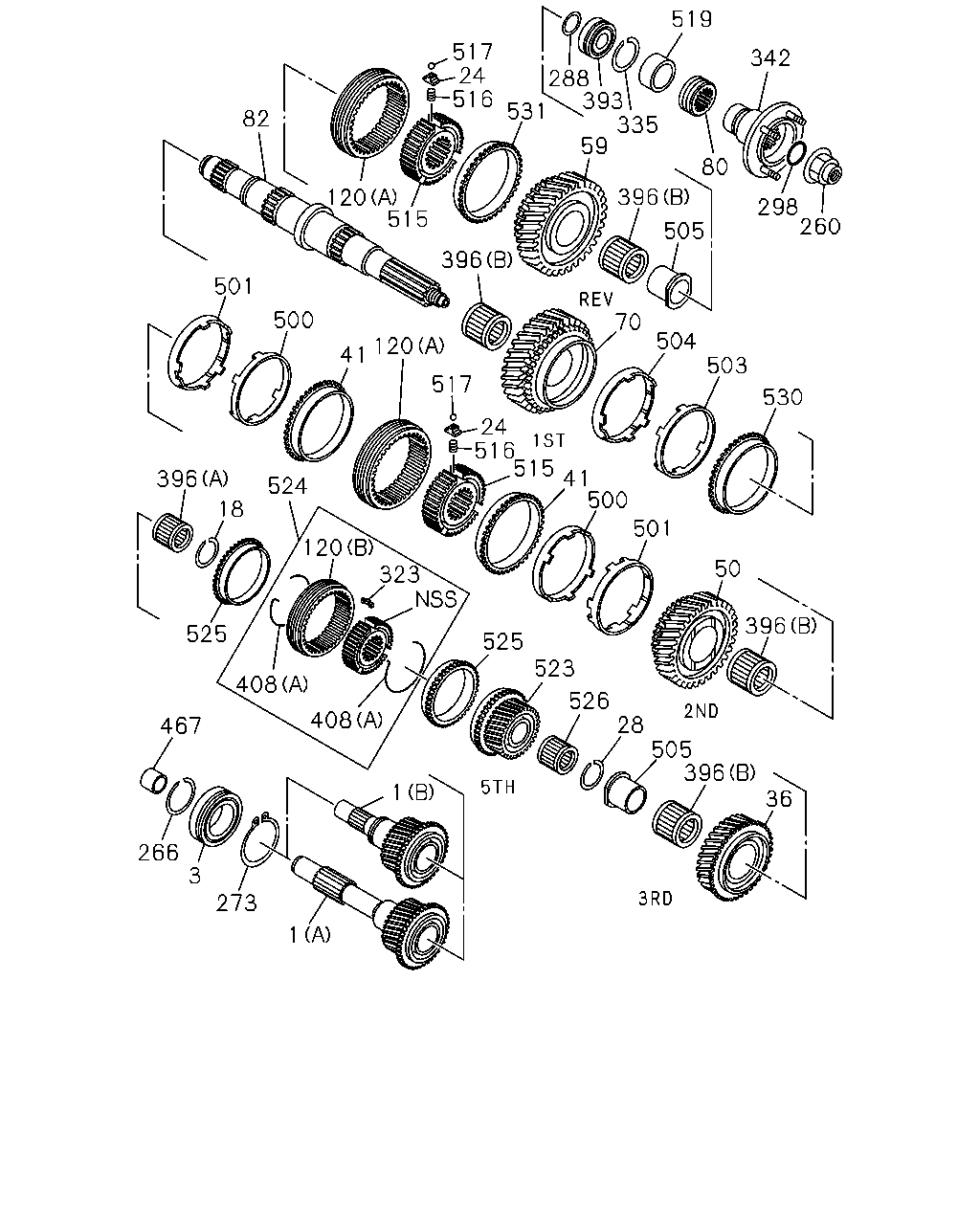

77 169 342 517 24 516 288 393 335 531 82 59 80 120 515 396 298 260 505 396 501 70 500 120 41 504 503 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-97253-543-2	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-97350-008-0	01	1	0502-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0502-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) (A) Z=28	8-97252-924-1	01	1	0211-0501		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=28	8-97252-924-1	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=25	8-97252-922-1	01	1	0211-0308			●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=25	8-97372-362-0	01	1	0309-0501			●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97372-362-0	01	1	0502-0506			●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97371-090-0	01	1	0507-			●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=26	8-97252-923-1	01	1	0211-0404	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=26	8-97350-006-0	01	1	0405-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=26	8-97350-006-0	01	1	0502-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0211-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0211-			●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0211-	●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0211-			●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0507-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0506			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0507-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0211-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0211-			●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=28	8-97241-230-0	01	1	0211-0501	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1-TCN ENG(RDQ) Z=28	8-97241-230-0	01	1	0502-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0211-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0211-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0211-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0211-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0211-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0211-			●
59	04.417 GEAR; REV MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97350-011-0	01	1	0502-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0211-0501	●	●
59	04.417 GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0502-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0211-			●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0502-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0211-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0211-0404	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501	●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97350-010-0	01	1	0502-	●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0211-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=21	8-97241-266-1	01	1	0211-0501	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1-TCN ENG(RDQ) Z=21	8-97241-266-1	01	1	0502-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0211-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0211-0501			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0502-			●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-117-3	01	1	0211-0501		●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-117-3	01	1	0502-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0211-			●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-116-3	01	1	0211-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-116-3	01	1	0502-	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	0211-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-0501	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0502-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0502-	●	●
169	04.419 COLLAR; MAINSHAFT 4HE1 ENG(RLY)	8-97252-937-1	01	1	0211-0501	●
169	04.419 COLLAR; MAINSHAFT 4HK1-TCN ENG(RDQ)	8-97252-937-1	01	1	0502-	●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0211-0604	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0605-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0211-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0211-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0211-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0211-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0211-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0211-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0211-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0507	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	0211-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0211-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0211-			●
342	05.545 FLANGE; OUTPUT	8-97252-814-1	01	1	0211-0501	●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-97350-014-0	01	1	0502-0610	●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	0611-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0211-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0211-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0211-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0211-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0211-			●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-0501	●	●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0502-	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0502-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0211-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0211-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0211-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0211-			●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0211-0501	●	●
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	02	1	0502-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0211-0506			●
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-307-1	02	1	0507-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0211-0501	●	●
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	02	1	0502-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0211-0506			●
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-311-1	02	1	0507-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0211-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0211-0501	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0502-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0502-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0211-			●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0507-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0506			●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0506			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0507-			●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0211-0404	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0211-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0211-	●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97370-967-0	01	1	0502-0506			●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0211-0501	●	●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0502-	●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-0501			●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0502-			●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97370-967-0	01	1	0502-0506			●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0211-0305	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501	●	●
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0502-	●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-0501			●
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0502-			●

519 517 24 516 342 288 393 335 59 531 82 80 396 120 515 298 260 505 396 501 70 500 504 120 41 503 517 530 24 516 515 41 500 396 524 18 501 120 323 50 396 525 525 523 408 526 28 505 396 36 408 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-97253-543-2	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-97350-008-0	01	1	0502-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0502-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) (A) Z=28	8-97252-924-1	01	1	0211-0501		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=28	8-97252-924-1	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=25	8-97252-922-1	01	1	0211-0308			●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=25	8-97372-362-0	01	1	0309-0501			●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97372-362-0	01	1	0502-0506			●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97371-090-0	01	1	0507-			●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=26	8-97252-923-1	01	1	0211-0404	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=26	8-97350-006-0	01	1	0405-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=26	8-97350-006-0	01	1	0502-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0211-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0211-			●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0211-	●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0211-			●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0507-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0506			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0507-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0211-	●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0211-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0211-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0211-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0211-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0211-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0211-			●
59	04.417 GEAR; REV MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97350-011-0	01	1	0502-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0211-0501	●	●
59	04.417 GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0502-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0211-			●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0502-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0211-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0211-0404	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501	●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97350-010-0	01	1	0502-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0211-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0211-0501			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0502-			●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-117-3	01	1	0211-0501		●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-117-3	01	1	0502-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0211-			●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-116-3	01	1	0211-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-116-3	01	1	0502-	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	0211-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-0501	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0502-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0502-	●	●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0211-0604	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0605-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0211-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0211-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0211-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0211-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0211-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0211-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0211-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0507	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	0211-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0211-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0211-			●
342	05.545 FLANGE; OUTPUT	8-97252-814-1	01	1	0211-0501	●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-97350-014-0	01	1	0502-0610	●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	0611-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0211-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0211-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0211-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0211-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0211-			●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0211-0404	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) (A)	8-97366-040-1	02	1	0502-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-0501	●	●
408	04.384 SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B)	8-94148-196-0	03	1	0502-	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0502-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0211-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0211-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0211-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0211-			●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0211-0501	●	●
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	02	1	0502-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0211-0506			●
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-307-1	02	1	0507-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0211-0501	●	●
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	02	1	0502-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0211-0506			●
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-311-1	02	1	0507-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0211-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0211-0501	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0502-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0502-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0211-			●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0507-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0506			●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0506			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0507-			●
519	04.419 COLLAR; MAINSHAFT END,5TH 4HE1 ENG(RLY) 04.415	8-97252-940-0	01	1	0211-0501		●
519	04.419 COLLAR; MAINSHAFT END,5TH 4HK1-TCN ENG(RDQ) 04.415	8-97252-940-0	01	1	0502-		●
523	04.395 GEAR; OD,MAINSHAFT 4HE1 ENG(RLY) Z=22	8-97241-231-0	01	1	0211-0501		●
523	04.395 GEAR; OD,MAINSHAFT 4HK1-TCN ENG(RDQ) Z=22	8-97241-231-0	01	1	0502-		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0211-0404	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0211-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0211-	●	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97370-967-0	01	1	0502-0506			●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0211-0501	●	●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0502-	●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-0501			●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0502-			●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97370-967-0	01	1	0502-0506			●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0211-0305	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501	●	●
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0502-	●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-0501			●
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0502-			●

517 24 516 502 77 531 288 393 335 503 504 59 20 515 80 298 260 82 396 505 396 501 70 500 504 503 41 502 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 19 396 19 30 432 28 505 396 36 20 467 266 21 3 273 1 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-97253-543-2	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-97350-008-0	01	1	0502-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0502-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) (A) Z=28	8-97252-924-1	01	1	0211-0501		●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=28	8-97252-924-1	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=25	8-97252-922-1	01	1	0211-0308			●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=25	8-97372-362-0	01	1	0309-0501			●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97372-362-0	01	1	0502-0506			●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97371-090-0	01	1	0507-			●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=26	8-97252-923-1	01	1	0211-0404	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=26	8-97350-006-0	01	1	0405-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=26	8-97350-006-0	01	1	0502-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0211-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0211-			●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0211-	●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0211-			●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0211-			●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	0211-			●
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-			●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0211-			●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0507-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	03	1	0502-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0506			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0507-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0211-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0211-			●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=28	8-97241-230-0	01	1	0211-0501	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1-TCN ENG(RDQ) Z=28	8-97241-230-0	01	1	0502-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0211-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0211-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0211-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0211-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0211-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0211-			●
59	04.417 GEAR; REV MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97350-011-0	01	1	0502-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0211-0501	●	●
59	04.417 GEAR; REV MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0502-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0211-			●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0502-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0211-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0211-0404	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501	●	●
70	04.417 GEAR; 1ST,MAINSHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97350-010-0	01	1	0502-	●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0211-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=21	8-97241-266-1	01	1	0211-0501	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1-TCN ENG(RDQ) Z=21	8-97241-266-1	01	1	0502-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0211-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0211-0501			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0502-			●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-117-3	01	1	0211-0501		●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-117-3	01	1	0502-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0211-			●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97253-116-3	01	1	0211-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ) Z=28-42-42-21	8-97253-116-3	01	1	0502-	●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0211-0604	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0605-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0211-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0211-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0211-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0211-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0211-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0211-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0211-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0507	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0211-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0211-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0211-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0211-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0211-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0211-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0211-			●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0211-			●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0502-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0211-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0211-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0211-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0211-			●
502	04.383 RING; BLOCK,LOW & REV Z=54	8-97241-305-2	02	1	0211-0402			●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0211-0501	●	●
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	02	1	0502-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0211-0506			●
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-307-1	02	1	0507-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0211-0501	●	●
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	02	1	0502-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0211-0506			●
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-311-1	02	1	0507-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0211-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0211-0501	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0502-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0502-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0211-			●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0507-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-835-0	03	1	0502-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0506			●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0507-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	03	1	0502-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0506			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0507-			●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97370-967-0	01	1	0502-0506			●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0211-0501	●	●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0502-	●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-0501			●
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0502-			●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97370-967-0	01	1	0502-0506			●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0211-0305	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501	●	●
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	0502-	●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-0501			●
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0502-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
