Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#34294) — 431 parça

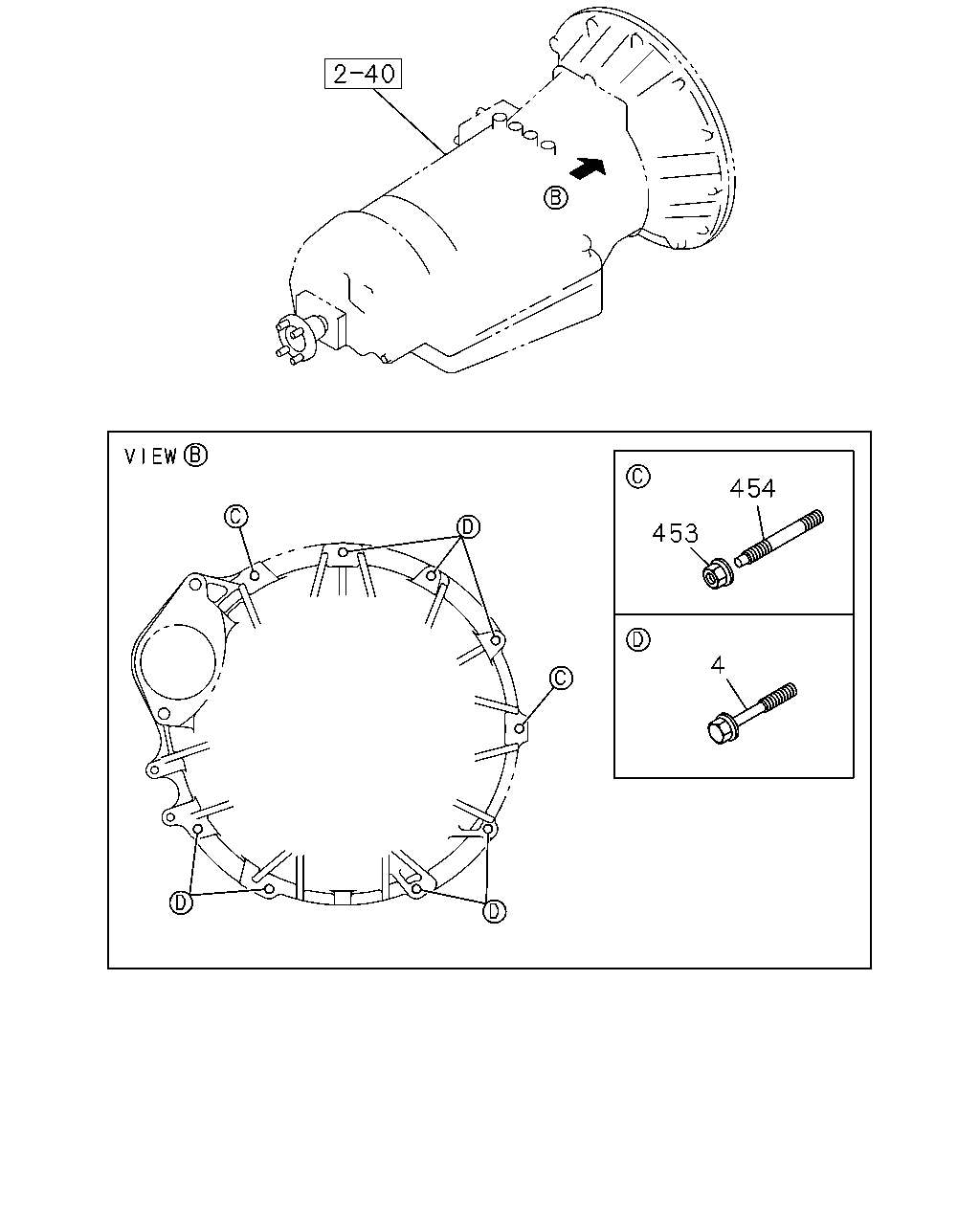

454 453 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0609-			●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-			●	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0211-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.900 M10X50 FLANGE	0-28181-050-0	03	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M10X50 FLANGE	0-28181-050-0	03	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	03	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	03	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	02	1	0609-0611		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-94399-863-1	02	1	0609-0611		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●	●	●
453	00.683 NUT; CLU HSG 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
453	00.683 NUT; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
454	00.683 STUD; CLU HSG 4HE1 ENG(RLY)	0-49841-050-0	02	1	0211-0501	●
454	00.683 STUD; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	0-49841-050-0	02	1	0502-0512	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	0-49841-050-0	02	1	0502-0512	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X50 L=99	0-49241-050-0	02	1	0601-	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	0601-	●	●	●	●

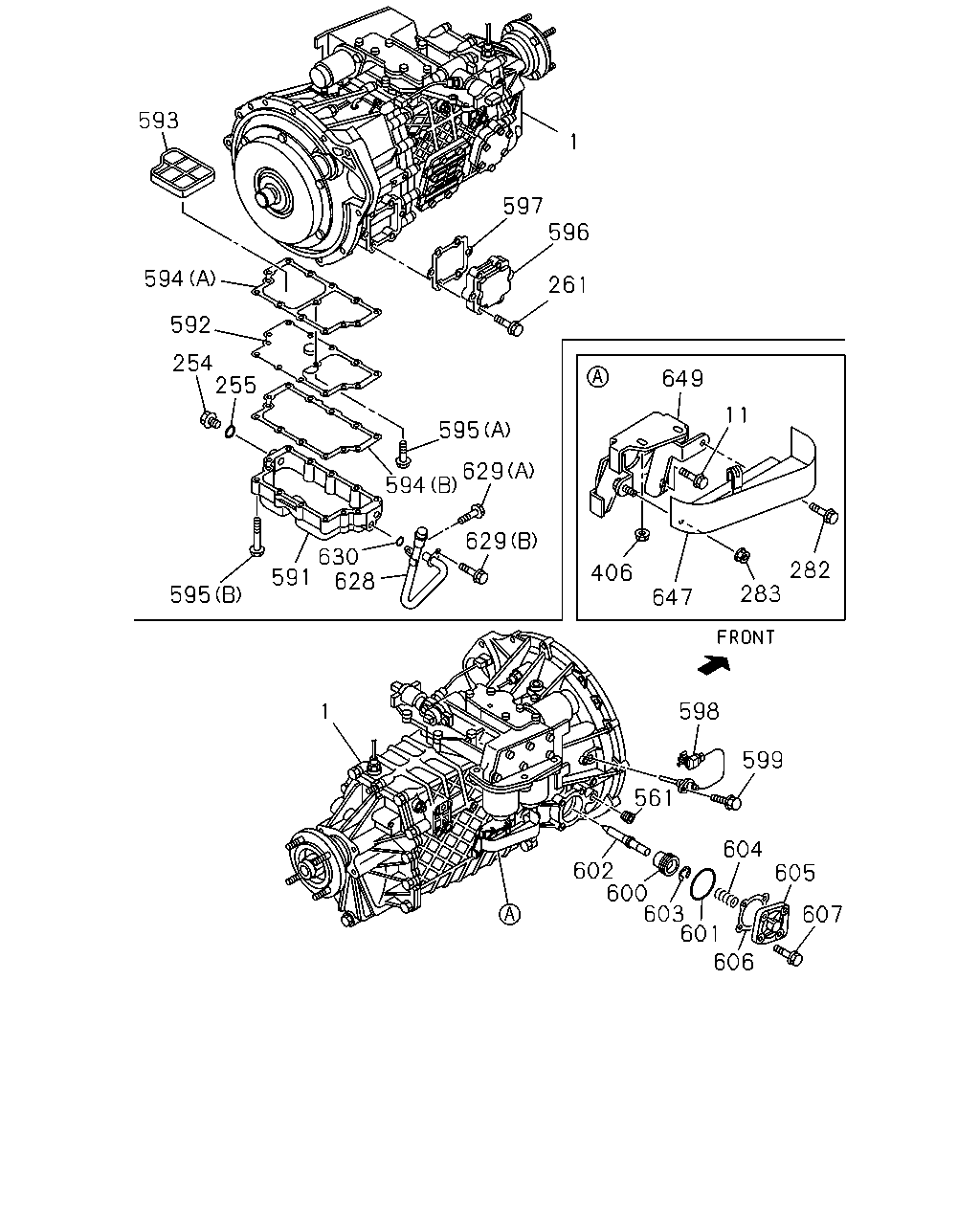

593 1 597 596 594 261 592 254 255 649 11 595 629 594 629 630 628 282 283 406 591 595 647 598 1 599 561 604 602 600 603 601 605 607 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL DBL CAB(NP*W) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-215-0	01	1	0502-0502		●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0502-0502		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0503-0506		●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0507-0608		●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0502-0608	●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0609-	●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-744-0	01	1	0502-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0507-0608			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-97377-183-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0507-0608		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-214-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0609-	●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-744-0	01	1	0609-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97327-107-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0502-0506			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0507-0608			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-917-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0502-0608			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL	8-97350-615-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-901-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0502-0608		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0609-		●
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X12 FLANGE	0-28791-020-0	02	1	0502-0512	●	●	●
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0601-	●	●	●
254	04.104 PLUG; DRAIN,OIL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-997-0	01	1	0502-0610	●	●	●
254	04.104 PLUG; DRAIN,OIL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-377-0	01	1	0611-	●	●	●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0502-	●	●	●
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M6X35 FLANGE	0-28680-635-0	06	1	0502-0512	●	●	●
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	0601-	●	●	●
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●	●	●
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
283	04.083 NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●
283	04.083 NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
561	04.104 PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0502-	●	●	●
591	04.195 PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0502-	●	●	●
592	04.338 COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0502-	●	●	●
593	04.338 FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0502-	●	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0502-	●	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0502-	●	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M6X35 FLANGE	0-28680-635-0	13	1	0502-0512	●	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	0601-	●	●	●
596	04.317 COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0502-	●	●	●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0502-	●	●	●
598	04.329 SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0502-	●	●	●
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●	●	●
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●
600	04.105 PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0502-	●	●	●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0502-	●	●	●
602	04.166 PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	0502-	●	●	●
603	04.317 RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) 03.838 ID=8	9-09185-008-0	01	1	0502-	●	●	●
604	04.384 SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	0502-	●	●	●
605	04.356 COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0502-	●	●	●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0502-	●	●	●
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 M8X30 FLANGE	0-28680-830-0	04	1	0502-0512	●	●	●
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●
628	04.439 TUBE; OIL FILLER DBL CAB(NP*W) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97368-276-2	01	1	0502-0502		●
628	04.439 TUBE; OIL FILLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97367-636-2	01	1	0502-0502	●		●
628	04.439 TUBE; OIL FILLER SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-636-2	01	1	0502-0502		●
628	04.439 TUBE; OIL FILLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-636-2	01	1	0503-	●	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.604 (A) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512	●	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-	●	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	0502-	●	●	●
647	00.782 PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0502-	●	●	●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-175-1	01	1	0502-0610	●	●	●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	0611-	●	●	●

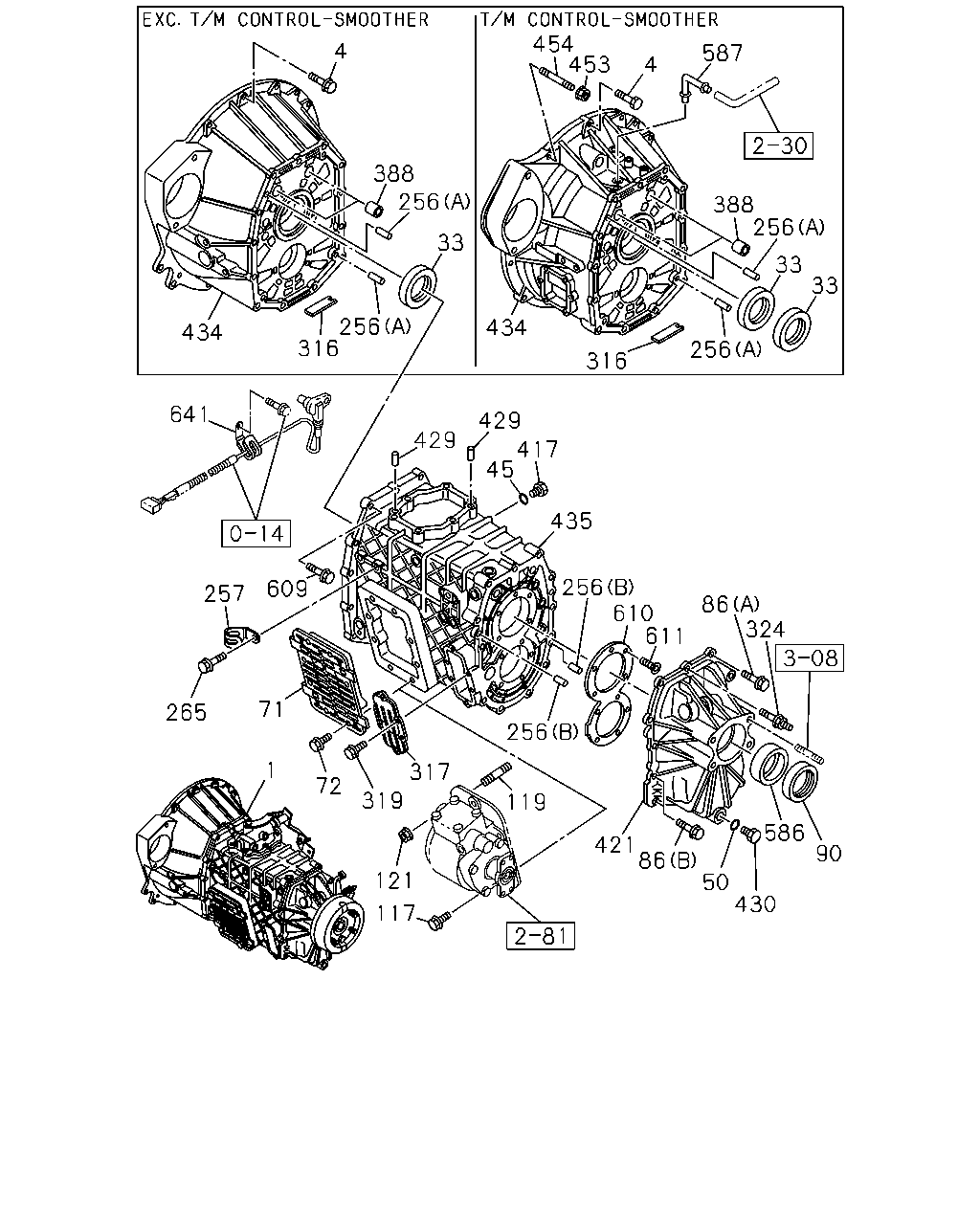

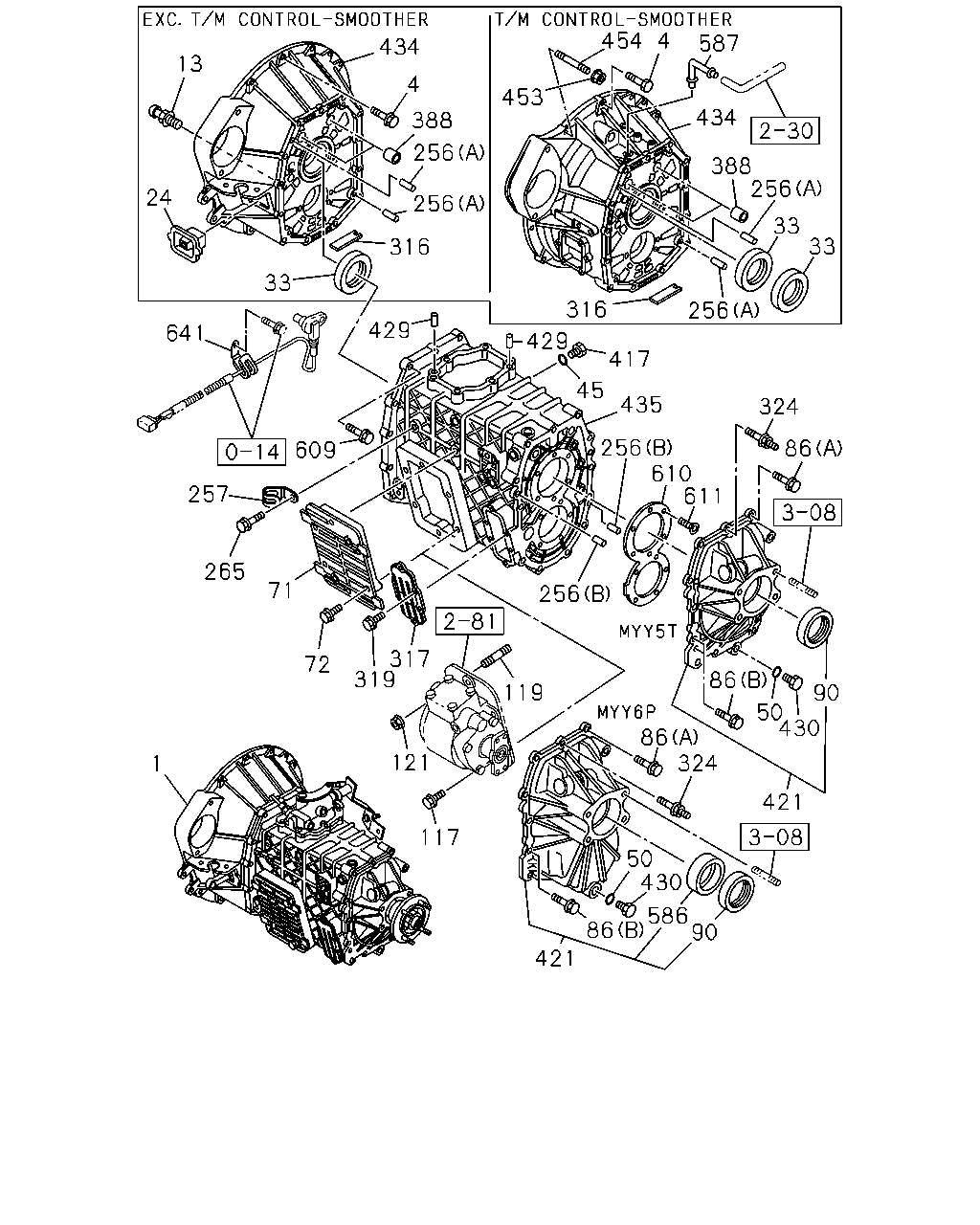

454 453 4 587 4 388 256 388 256 33 33 33 256 316 434 434 256 316 641 429 429 417 45 435 256 610 611 609 257 86 324 256 71 265 1 317 72 319 119 586 421 86 50 430 90 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL DBL CAB(NP*W) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-215-0	01	1	0502-0502			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0502-0502			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0503-0506			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0507-0608			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0502-0608		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-744-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0507-0608				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0507-0608			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-744-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97327-107-0	01	1	0211-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0502-0506				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0507-0608				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0211-0404				●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-917-0	01	1	0405-0501				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0502-0608				●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL	8-97350-615-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-901-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0502-0608			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0609-			●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0609-			●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-			●	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0211-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.900 M10X50 FLANGE	0-28181-050-0	03	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M10X50 FLANGE	0-28181-050-0	03	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	03	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	03	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	02	1	0609-0611		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-94399-863-1	02	1	0609-0611		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0502-		●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0211-0501		●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97253-550-0	01	1	0502-		●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-		●	●	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0211-0608			●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0609-			●	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-2	01	1	0211-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0211-0501			●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0502-			●	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0211-0501		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0502-		●
86	04.317 BOLT; RR COVER 04.510 (A) M10X40 FLANGE	0-28181-040-0	10	1	0211-0512		●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●	●	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0211-0604		●	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0211-			●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0211-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0609-			●	●
117	04.439 BOLT; PTO FIX 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE	0-28181-028-0	06	1	0609-0706		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0609-			●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	0609-		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0609-			●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0609-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0211-		●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0211-		●	●	●
257	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0801		●	●	●
257	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●	●
265	00.785 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●	●	●
265	00.785 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-		●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0211-		●	●	●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0211-0512		●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-		●	●	●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0211-0604		●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0211-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-0604		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●	●	●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	0211-		●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97252-621-0	01	1	0211-0501				●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0502-0507				●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-98020-029-0	01	1	0508-				●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97252-620-0	01	1	0211-0501			●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-97252-620-0	01	1	0502-0507			●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-98020-028-0	01	1	0508-			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-		●	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-0604		●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●	●	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-913-1	01	1	0502-0602			●	●
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0603-0906			●	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	0907-			●	●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-528-1	01	1	0502-0609		●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-555-0	01	1	0610-0906		●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-980-0	01	1	0907-		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0211-0501			●	●
434	00.683 HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97237-099-5	01	1	0502-			●	●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0211-0501		●
434	00.683 HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97238-930-4	01	1	0502-		●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97252-623-7	01	1	0211-0403				●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-0501				●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ)	8-97379-375-0	01	1	0502-				●
435	04.103 CASE; TRANS	8-97237-102-7	01	1	0211-0403			●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97379-374-0	01	1	0404-0501			●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ)	8-97379-374-0	01	1	0502-			●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0211-0408		●
435	04.103 CASE; TRANS	8-97382-868-1	01	1	0409-		●
453	00.683 NUT; CLU HSG 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
453	00.683 NUT; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
454	00.683 STUD; CLU HSG 4HE1 ENG(RLY)	0-49841-050-0	02	1	0211-0501	●
454	00.683 STUD; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	0-49841-050-0	02	1	0502-0512	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	0-49841-050-0	02	1	0502-0512	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X50 L=99	0-49241-050-0	02	1	0601-	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	0601-	●	●	●	●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0211-		●
586	00.683 BEARING; NEEDLE 4HE1 ENG(RLY)	8-97253-109-0	01	1	0211-0501			●
586	00.683 BEARING; NEEDLE 4HK1-TCN ENG(RDQ)	8-97253-109-0	01	1	0502-			●
587	04.020 PIPE; BREATHER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97305-517-0	01	1	0502-0602		●	●	●
587	04.020 PIPE; BREATHER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97305-517-0	01	1	0603-0604		●
587	04.020 PIPE; BREATHER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0603-0604			●	●
587	04.020 PIPE; BREATHER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0605-		●	●	●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0211-0512		●	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-		●	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0211-			●	●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	0211-		●
611	04.104 SCREW M10X27	8-97254-834-2	11	1	0211-0604			●	●
611	04.104 SCREW 4HK1-TCN ENG(RDQ) M10X27 TORQUES	8-97365-354-0	11	1	0605-			●	●
611	04.104 SCREW M10X27	8-97254-834-2	10	1	0211-0604		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	10	1	0605-		●
641	04.710 CLIP; CAM SENSOR 02.698 ID=8	8-94107-659-0	01	1	0502-		●	●	●

587 434 13 4 453 434 388 256 388 256 24 256 33 33 316 316 33 256 429 641 429 417 45 435 324 256 610 611 86 609 257 265 71 256 86 317 319 72 119 90 50 430 86 324 121 1 421 117 50 430 586 86 90 421 454 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL DBL CAB(NP*W) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-215-0	01	1	0502-0502			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0502-0502			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0503-0506			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0507-0608			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0502-0608		●
1	04.003 TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-744-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0507-0608				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0507-0608			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98001-214-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0609-			●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-170-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL SGL CAB(NP*S) 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97307-744-0	01	1	0609-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97327-107-0	01	1	0211-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-183-0	01	1	0502-0506				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0507-0608				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-97377-183-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0211-0404				●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-917-0	01	1	0405-0501				●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0502-0608				●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-216-0	01	1	0609-				●
1	04.003 TRANSMISSION ASM; MANUAL	8-97350-615-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-901-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0502-0608			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-213-0	01	1	0609-			●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0609-			●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0609-			●	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0211-0501		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0211-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.900 M10X50 FLANGE	0-28181-050-0	03	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M10X50 FLANGE	0-28181-050-0	03	1	0502-0512	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	03	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	03	1	0601-	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0608		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-94399-863-1	02	1	0609-0611		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-94399-863-1	02	1	0609-0611		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●	●	●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0211-0501			●	●
13	04.302 SUPPORT; SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-385-1	01	1	0502-			●	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0211-0501			●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-201-0	01	1	0502-			●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0502-		●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0211-0501		●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97253-550-0	01	1	0502-		●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-		●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-		●	●	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0211-0608			●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0609-			●	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-2	01	1	0211-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0211-0501			●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0502-			●	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0211-0501		●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0502-		●
86	04.317 BOLT; RR COVER 04.510 (A) M10X40 FLANGE	0-28181-040-0	10	1	0211-0512		●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●	●	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0211-0604		●	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0211-			●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0211-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0609-			●	●
117	04.439 BOLT; PTO FIX 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE	0-28181-028-0	06	1	0609-0706		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0609-			●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	0609-		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0609-			●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0609-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0211-		●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0211-		●	●	●
257	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0801		●	●	●
257	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●	●	●
265	00.785 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●	●	●
265	00.785 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-		●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0211-		●	●	●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0211-0512		●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-		●	●	●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0211-0604		●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0211-		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-0604		●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-		●	●	●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	0211-		●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97252-621-0	01	1	0211-0501				●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0502-0507				●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-98020-029-0	01	1	0508-				●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97252-620-0	01	1	0211-0501			●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-97252-620-0	01	1	0502-0507			●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-98020-028-0	01	1	0508-			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-		●	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-0604		●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-		●	●	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-913-1	01	1	0502-0602			●	●
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0603-0906			●	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	0907-			●	●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-528-1	01	1	0502-0609		●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-555-0	01	1	0610-0906		●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-980-0	01	1	0907-		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0211-0501			●	●
434	00.683 HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97237-099-5	01	1	0502-			●	●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0211-0501		●
434	00.683 HOUSING; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97238-930-4	01	1	0502-		●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97252-623-7	01	1	0211-0403				●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-0501				●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ)	8-97379-375-0	01	1	0502-				●
435	04.103 CASE; TRANS	8-97237-102-7	01	1	0211-0403			●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97379-374-0	01	1	0404-0501			●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ)	8-97379-374-0	01	1	0502-			●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0211-0408		●
435	04.103 CASE; TRANS	8-97382-868-1	01	1	0409-		●
453	00.683 NUT; CLU HSG 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
453	00.683 NUT; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
453	00.683 NUT; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
454	00.683 STUD; CLU HSG 4HE1 ENG(RLY)	0-49841-050-0	02	1	0211-0501	●
454	00.683 STUD; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	0-49841-050-0	02	1	0502-0512	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	0-49841-050-0	02	1	0502-0512	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X50 L=99	0-49241-050-0	02	1	0601-	●	●	●	●
454	00.683 STUD; CLU HSG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	0601-	●	●	●	●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0211-		●
586	00.683 BEARING; NEEDLE 4HE1 ENG(RLY)	8-97253-109-0	01	1	0211-0501			●
586	00.683 BEARING; NEEDLE 4HK1-TCN ENG(RDQ)	8-97253-109-0	01	1	0502-			●
587	04.020 PIPE; BREATHER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97305-517-0	01	1	0502-0602		●	●	●
587	04.020 PIPE; BREATHER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97305-517-0	01	1	0603-0604		●
587	04.020 PIPE; BREATHER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0603-0604			●	●
587	04.020 PIPE; BREATHER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0605-		●	●	●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0211-0512		●	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-		●	●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0211-			●	●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	0211-		●
611	04.104 SCREW M10X27	8-97254-834-2	11	1	0211-0604			●	●
611	04.104 SCREW 4HK1-TCN ENG(RDQ) M10X27 TORQUES	8-97365-354-0	11	1	0605-			●	●
611	04.104 SCREW M10X27	8-97254-834-2	10	1	0211-0604		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	10	1	0605-		●
641	04.710 CLIP; CAM SENSOR 02.698 ID=8	8-94107-659-0	01	1	0502-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
