2-08 — CLUTCH MASTER CYLINDER (#34292) — 126 parça
çizim 34218
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97224-612-1 01 1 0502-0610 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-781-2 01 1 0611-0709 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-276-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-250-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-249-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-747-1 01 1 0502-0502 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-747-1 01 1 0502-0610 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-782-2 01 1 0611-0709 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV>,TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98062-277-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97162-963-0 01 1 0502-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98117-639-0 01 1 0804- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-617-0 01 1 0502-0709 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-221-0 01 1 0710- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-597-0 01 1 0502-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-226-0 01 1 0804- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-780-0 01 1 0502- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-148-0 01 1 0502-0709 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-784-0 01 1 0710- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-154-0 01 1 0502-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-191-0 01 1 0502-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-191-0 01 1 0710- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-143-0 01 1 0502-0610 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-352-0 01 1 0611-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0502-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0710- ● ● ●
64 00.777 GASKET; CONNECTOR
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0211-0501 ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0502-0709 ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0710- ● ● ●

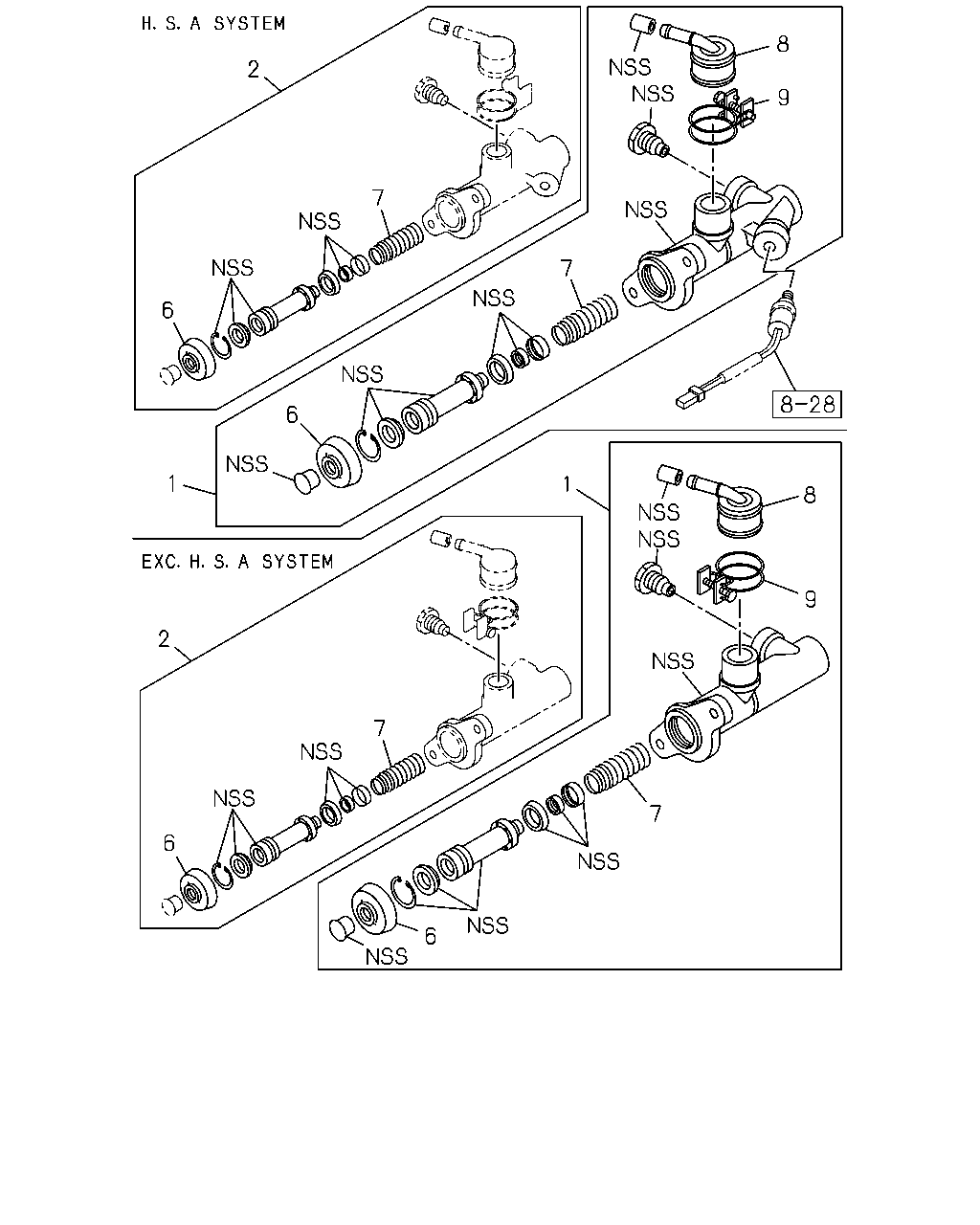

çizim 34433
8 2 9 7 7 6 6 1 1 8 9 2 7 7 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97224-612-1 01 1 0502-0610 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-781-2 01 1 0611-0709 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-276-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-250-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-249-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-747-1 01 1 0502-0502 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-747-1 01 1 0502-0610 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-782-2 01 1 0611-0709 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV>,TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98062-277-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97162-963-0 01 1 0502-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98117-639-0 01 1 0804- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-617-0 01 1 0502-0709 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-221-0 01 1 0710- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-597-0 01 1 0502-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-226-0 01 1 0804- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-153-0 01 1 0502-0709 ● ● ●
6 00.775 BOOT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94412-200-0 01 1 0502- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-780-0 01 1 0502- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-148-0 01 1 0502-0709 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-784-0 01 1 0710- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-154-0 01 1 0502-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-191-0 01 1 0502-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-191-0 01 1 0710- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-143-0 01 1 0502-0610 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-352-0 01 1 0611-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0502-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0710- ● ● ●

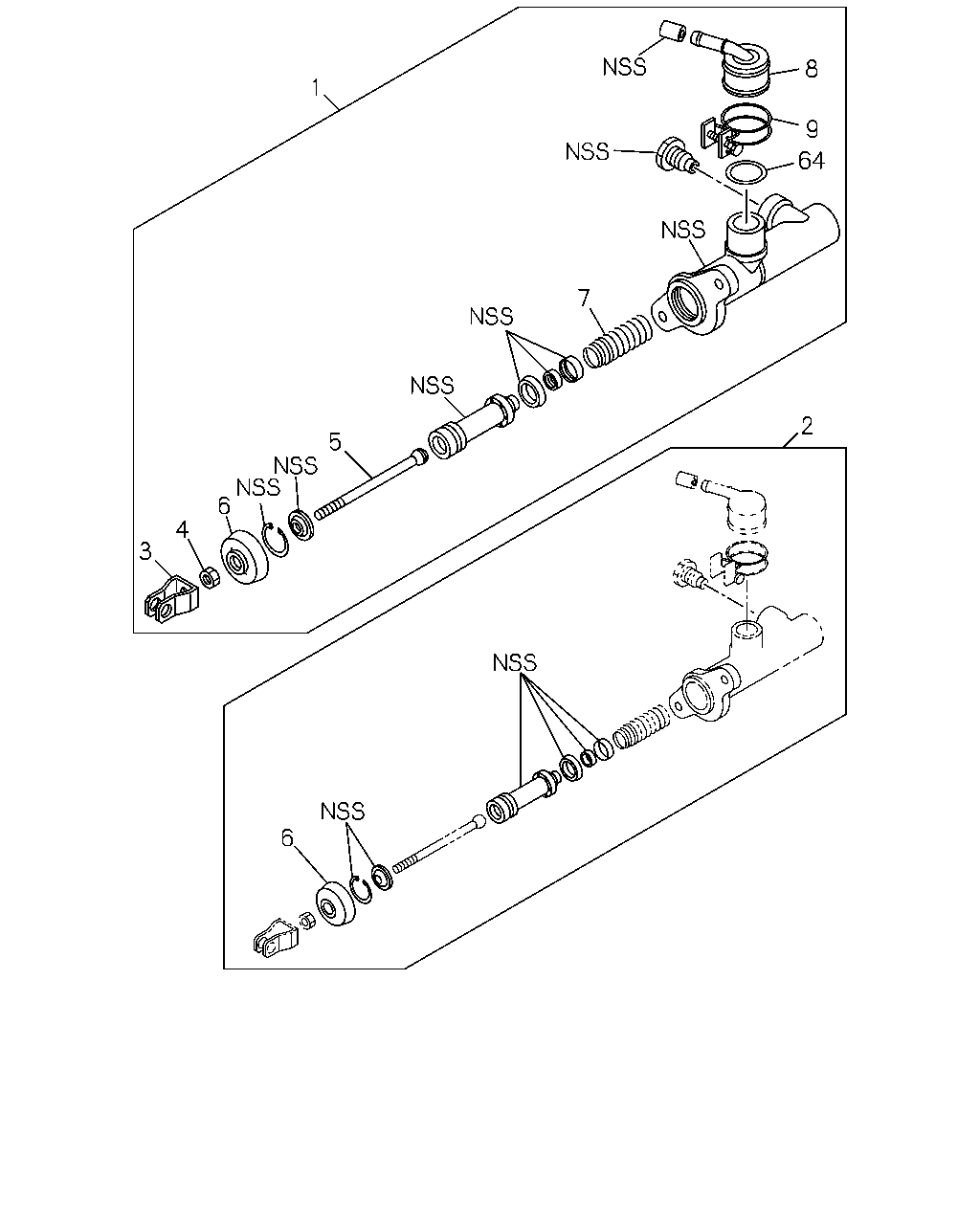

çizim 34693
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97224-612-1 01 1 0502-0610 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-781-2 01 1 0611-0709 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-276-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-250-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-249-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-747-1 01 1 0502-0502 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-747-1 01 1 0502-0610 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-782-2 01 1 0611-0709 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV>,TRANSMISSION CONTROL-SMO OTHER(8GF) 		8-98062-277-0 01 1 0710- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0211-0501 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97162-963-0 01 1 0502-0803 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98117-639-0 01 1 0804- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-617-0 01 1 0502-0709 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-221-0 01 1 0710- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0211-0501 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-597-0 01 1 0502-0803 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-226-0 01 1 0804- ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0211-0501 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-770-0 01 1 0502- ● ● ●
4 00.777 NUT; JAW JOINT
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0211-0501 ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 00.787 M8 		9-09111-408-0 01 1 0502-0511 ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 		0-91111-508-0 01 1 0512- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0211-0501 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-768-0 01 1 0502- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-153-0 01 1 0502-0709 ● ● ●
6 00.775 BOOT; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0211-0501 ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94412-200-0 01 1 0502- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-780-0 01 1 0502- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0211-0501 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-148-0 01 1 0502-0709 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-784-0 01 1 0710- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-154-0 01 1 0502-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0211-0501 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-191-0 01 1 0502-0709 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-191-0 01 1 0710- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-143-0 01 1 0502-0610 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-352-0 01 1 0611-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0211-0501 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0502-0709 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0710- ● ● ●
64 00.777 GASKET; CONNECTOR
4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0211-0501 ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0502-0709 ● ● ●
64 00.777 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
