◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#3429) — 51 parça

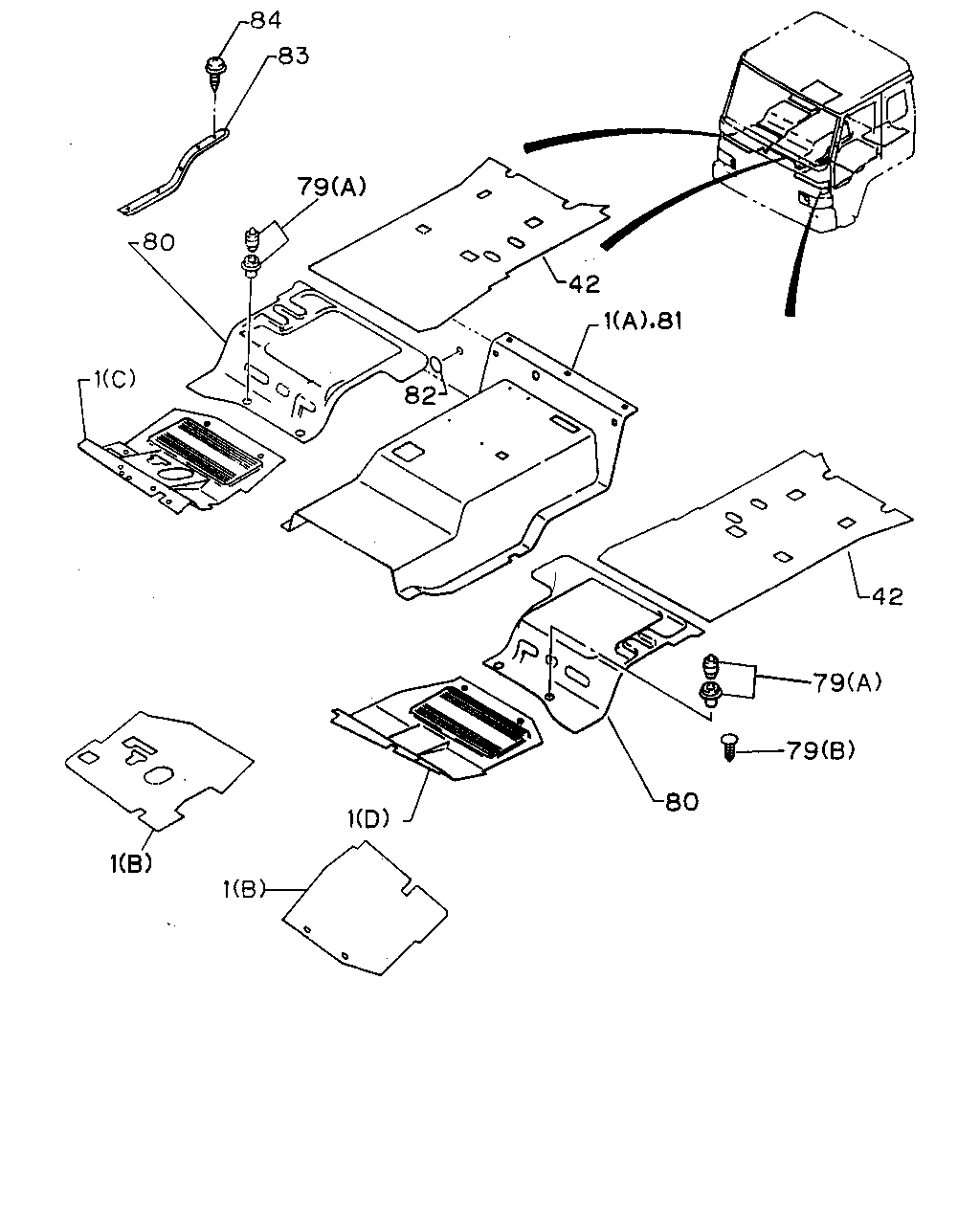

çizim 36039
84 80 83 79 1 42 82 1 81 42 79 79 80 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-244-0 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-353-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-73211-239-2 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-73211-359-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> TAIWAN EQUIPMENT(WW5) (B) 		1-73211-276-0 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> TAIWAN EQUIPMENT(WW5) (B) 		1-73211-356-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-73211-243-0 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-73211-354-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (D) 		1-73237-387-0 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (D) 		1-73237-419-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2>,TAIWAN EQUIPMENT(WW5) (C) 		1-73237-388-0 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2>,TAIWAN EQUIPMENT(WW5) (C) 		1-73237-420-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
TAIWAN EQUIPMENT(WW5) EXC. DELUXE CARPET<BF2> (C) 		1-73237-389-0 01 1 9002-9306 ● ● ●
1 CARPET; FLOOR,FRT
TAIWAN EQUIPMENT(WW5) EXC. DELUXE CARPET<BF2> (C) 		1-73237-485-0 01 1 9307- ● ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-73211-256-1 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-73211-358-0 01 1 9307- ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> 		1-73211-249-1 01 1 9002-9306 ● ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> 		1-73211-363-0 01 1 9307- ● ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-251-0 01 1 9002-9306 ● ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-364-0 01 1 9307- ● ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-252-0 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-365-0 01 1 9307- ● ●
79 HOOK; MALE
(B) 		1-09987-114-0 01 1 9002- ● ● ●
79 HOOK; MALE
(A) 		8-94291-778-0 04 1 9002- ● ● ●
80 MAT; FLOOR,RR 1-73237-428-2 01 1 9307-9308 ●
80 MAT; FLOOR,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-73237-428-2 01 1 9307-9308 ● ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-428-2 01 1 9309- ●
80 MAT; FLOOR,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-428-2 01 1 9309- ● ●
80 MAT; FLOOR,RR 1-73237-421-2 01 1 9307-9308 ● ● ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-421-2 01 1 9309- ● ● ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-370-0 01 1 9002-9306 ● ● ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2>,DUMP CONTROL LEVER<RC4>, PTO CONTROL(SV6) 		1-73237-374-0 01 1 9002-9306 ● ● ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUMP TRUCK<RA1> EXC. DELUXE CARPET<BF2> 		1-73237-506-0 01 1 9312- ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-73237-427-2 01 1 9307-9308 ● ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2> 		1-73237-427-2 01 1 9309-9311 ● ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,DUMP TRUCK<RA1> 		1-73237-427-2 01 1 9312- ● ●
80 MAT; FLOOR,RR
DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) EXC. DELUXE CARPET<BF2> 		1-73237-375-0 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-382-1 01 1 9002-9306 ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-382-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-489-2 01 1 9307- ● ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-383-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-378-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-380-1 01 1 9002-9306 ● ●
82 SEAL; BED PAN
OD=36 		1-76778-007-0 04 1 9002-9306 ● ● ●
82 SEAL; BED PAN
BRAKE SYSTEM SPRING BRAKE DELETE(JE2) OD=36 		1-76778-007-0 04 1 9002-9306 ● ●
82 SEAL; BED PAN
OD=36 		1-76798-018-0 04 1 9307- ● ● ●
82 SEAL; BED PAN
OD=36 		1-76798-018-0 02 1 9002- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-019-3 01 1 9002- ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-018-3 01 1 9002- ● ● ●
84 SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER 		1-09981-505-0 06 1 9002- ● ● ●
84 SCREW; PLATE TO FLOOR
CHEAPER CAB(SAX) M6X24 W/PL WASHER 		1-09981-504-0 04 1 9002- ● ●
