2-05 — CLUTCH PIPING (#34289) — 52 parça

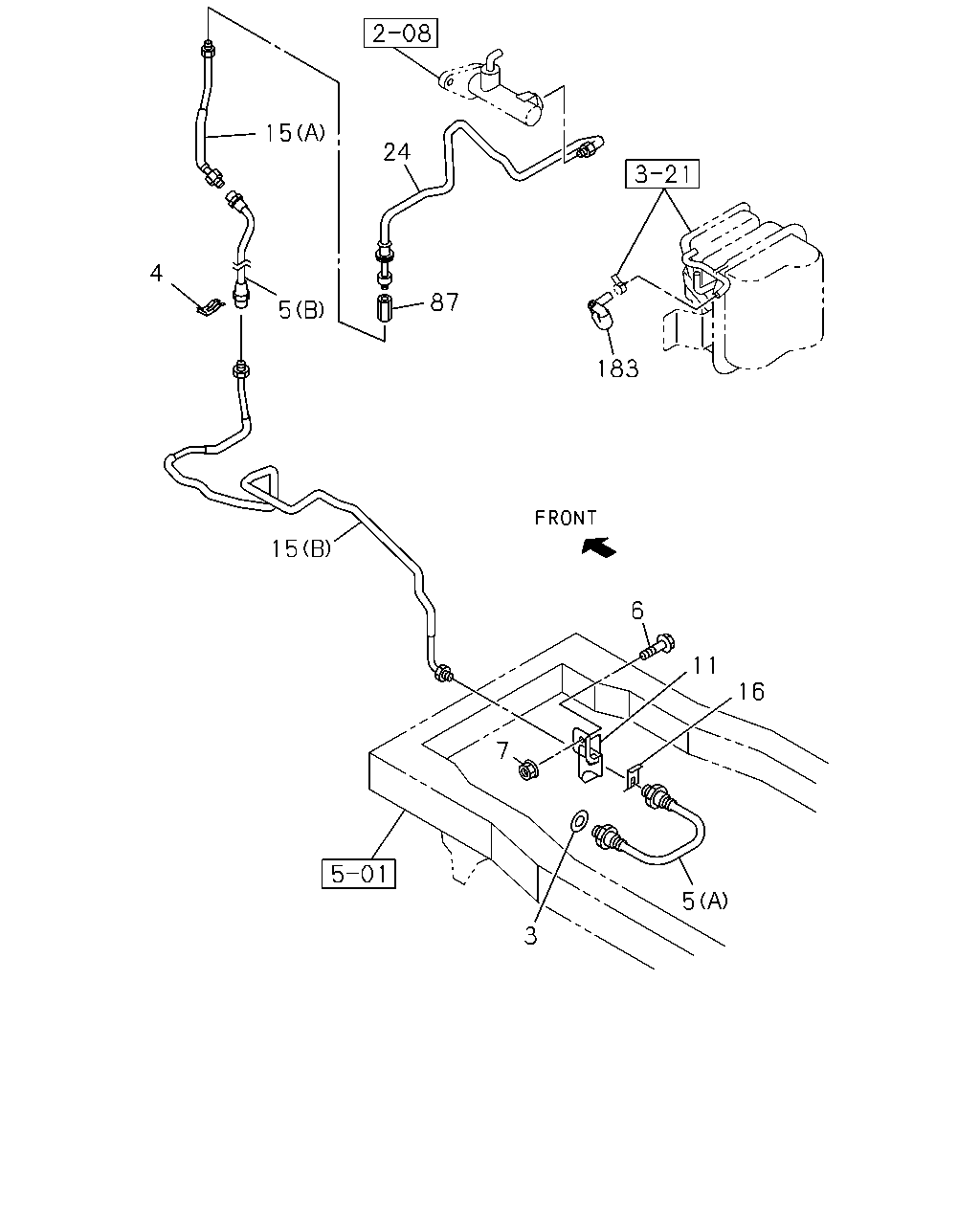

çizim 34271
15 24 4 87 5 183 15 6 11 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0211-0501 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09920-873-1 01 1 0502- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0501 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 02 1 0502-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-965-0 01 1 0504- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0211-0501 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0502-0502 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97047-058-1 01 1 0502- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0211-0501 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0502-0502 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97148-640-0 01 1 0502-0502 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97148-640-0 01 1 0502-0503 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97148-640-0 01 1 0502-0503 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97148-640-0 01 1 0504- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0502-0502 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-94377-793-1 01 1 0502-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-158-0 01 1 0507- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0501 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-94248-702-2 01 1 0502-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98090-655-0 01 1 0707- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0211-0305 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97365-305-0 01 1 0306-0501 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94366-288-0 01 1 0502-0502 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-305-0 01 1 0502- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0211-0501 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97177-305-0 01 1 0502- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97187-578-1 01 1 0211-0501 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97187-578-1 01 1 0502- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0211-0501 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 01 1 0502-0610 ● ● ●
16 00.785 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97365-304-0 01 1 0611- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-034-0 01 1 0502-0502 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97207-635-0 01 1 0502- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97149-835-0 01 1 0502-0502 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-703-0 01 1 0502- ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97129-873-0 01 1 0211- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 		8-97129-874-0 01 1 0211- ● ● ●
