◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#34286) — 32 parça

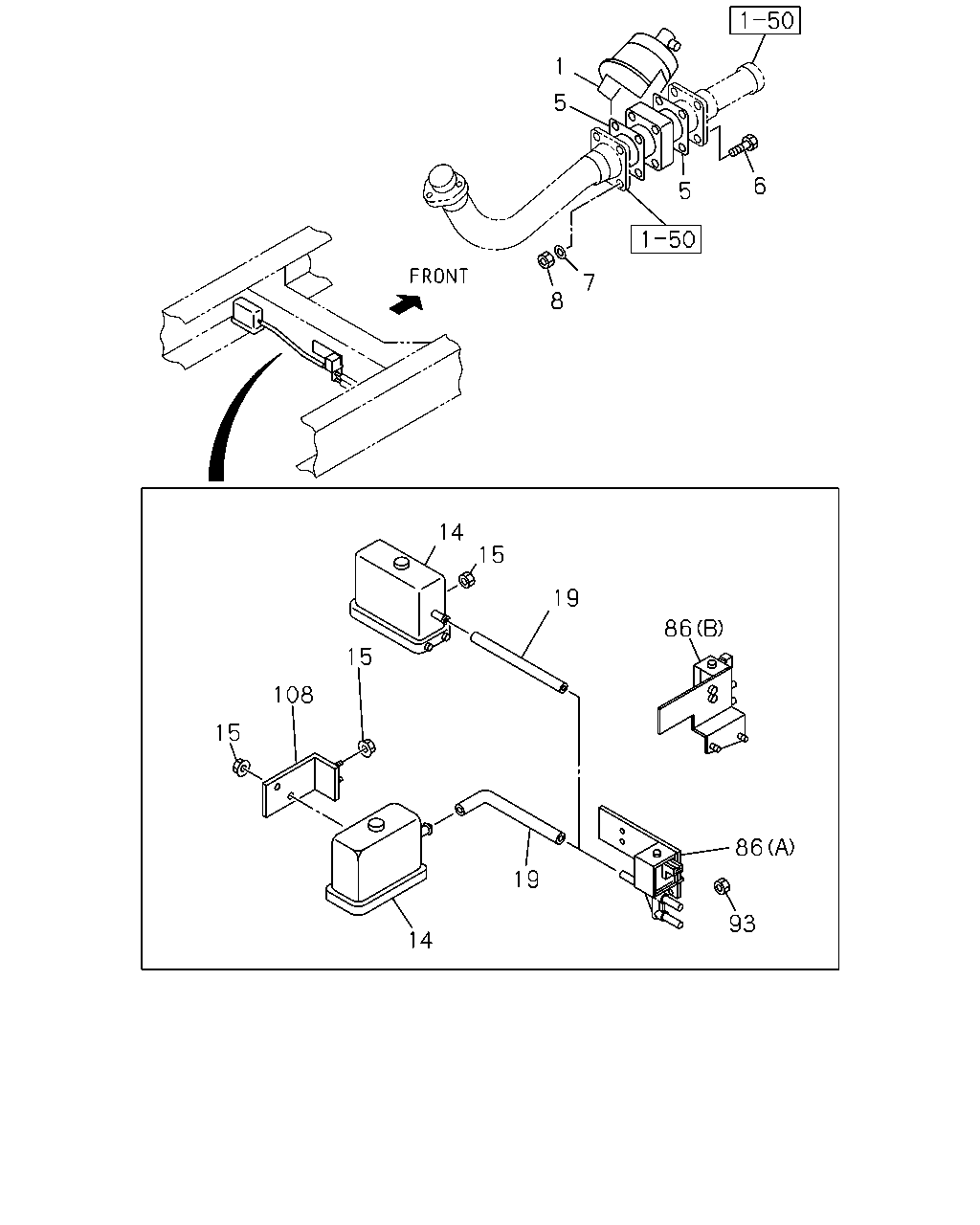

çizim 34272
1 5 6 5 7 8 14 15 19 86 15 108 15 86 19 93 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.632 BRAKE UNIT; EXH 8-97308-232-1 01 1 0211-0611 ● ● ● ● ●
1 03.632 BRAKE UNIT; EXH 8-98056-673-0 01 1 0612- ● ● ● ● ●
5 03.634 GASKET; EXH BRAKE UNIT
ID=64 		8-97037-694-0 02 1 0211- ● ● ● ● ●
6 03.632 BOLT; EXH BRAKE UNIT FIX
03.708 M8X70 		0-10805-870-0 04 1 0211-0512 ● ● ● ● ●
6 03.632 BOLT; EXH BRAKE UNIT FIX
M8X70 		0-10855-870-0 04 1 0601- ● ● ● ● ●
7 03.632 WASHER; EXH BRAKE UNIT FIX
T=1.9 		5-09500-012-0 04 1 0211- ● ● ● ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
02.559 M8 		9-09110-408-0 04 1 0211-0512 ● ● ● ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
02.334 M8 		0-91110-508-0 04 1 0601- ● ● ● ● ●
14 03.634 FILTER; AIR,EXH BRAKE
4HE1 ENG(RLY) 		8-94419-755-2 01 1 0211-0501 ●
14 03.634 FILTER; AIR,EXH BRAKE
4HK1-TCN ENG(RDQ) 		8-94419-755-2 01 1 0502- ●
14 03.634 FILTER; AIR,EXH BRAKE
4HE1 ENG(RLY) 		8-97033-888-0 01 1 0211-0501 ● ● ● ●
14 03.634 FILTER; AIR,EXH BRAKE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97033-888-0 01 1 0502- ● ● ● ●
15 03.634 NUT; AIR FILTER
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ●
15 03.634 NUT; AIR FILTER
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
15 03.634 NUT; AIR FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
15 03.634 NUT; AIR FILTER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
15 03.634 NUT; AIR FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
15 03.634 NUT; AIR FILTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
19 03.630 HOSE; AIR FILTER
4HE1 ENG(RLY) L=360 SERVICED BY L=3000 		0-08258-300-0 01 1 0211-0501 ●
19 03.630 HOSE; AIR FILTER
4HK1-TCN ENG(RDQ) L=360 SERVICED BY L=3000 		0-08258-300-0 01 1 0502- ●
19 03.630 HOSE; AIR FILTER
4HE1 ENG(RLY) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0211-0501 ● ● ● ●
19 03.630 HOSE; AIR FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 0502- ● ● ● ●
86 03.636 VALVE; MAG,EXH BRK
4HE1 ENG(RLY) (B) 		8-97090-972-0 01 1 0211-0405 ●
86 03.636 VALVE; MAG,EXH BRK
4HE1 ENG(RLY) (B) 		8-97374-165-0 01 1 0406-0501 ●
86 03.636 VALVE; MAG,EXH BRK
4HK1-TCN ENG(RDQ) (B) 		8-97374-165-0 01 1 0502- ●
86 03.636 VALVE; MAG,EXH BRK
4HE1 ENG(RLY) (A) 		8-97239-246-0 01 1 0211-0405 ● ● ● ●
86 03.636 VALVE; MAG,EXH BRK
4HE1 ENG(RLY) (A) 		8-97374-152-0 01 1 0406-0501 ● ● ● ●
86 03.636 VALVE; MAG,EXH BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97374-152-2 01 1 0502- ● ● ● ●
93 08.917 NUT; MAG VLV
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ● ● ●
93 08.917 NUT; MAG VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
108 03.634 BRACKET; AIR FILTER
4HE1 ENG(RLY) 		8-97168-156-1 01 1 0211-0501 ●
108 03.634 BRACKET; AIR FILTER 8-97168-156-1 01 1 0502- ●
