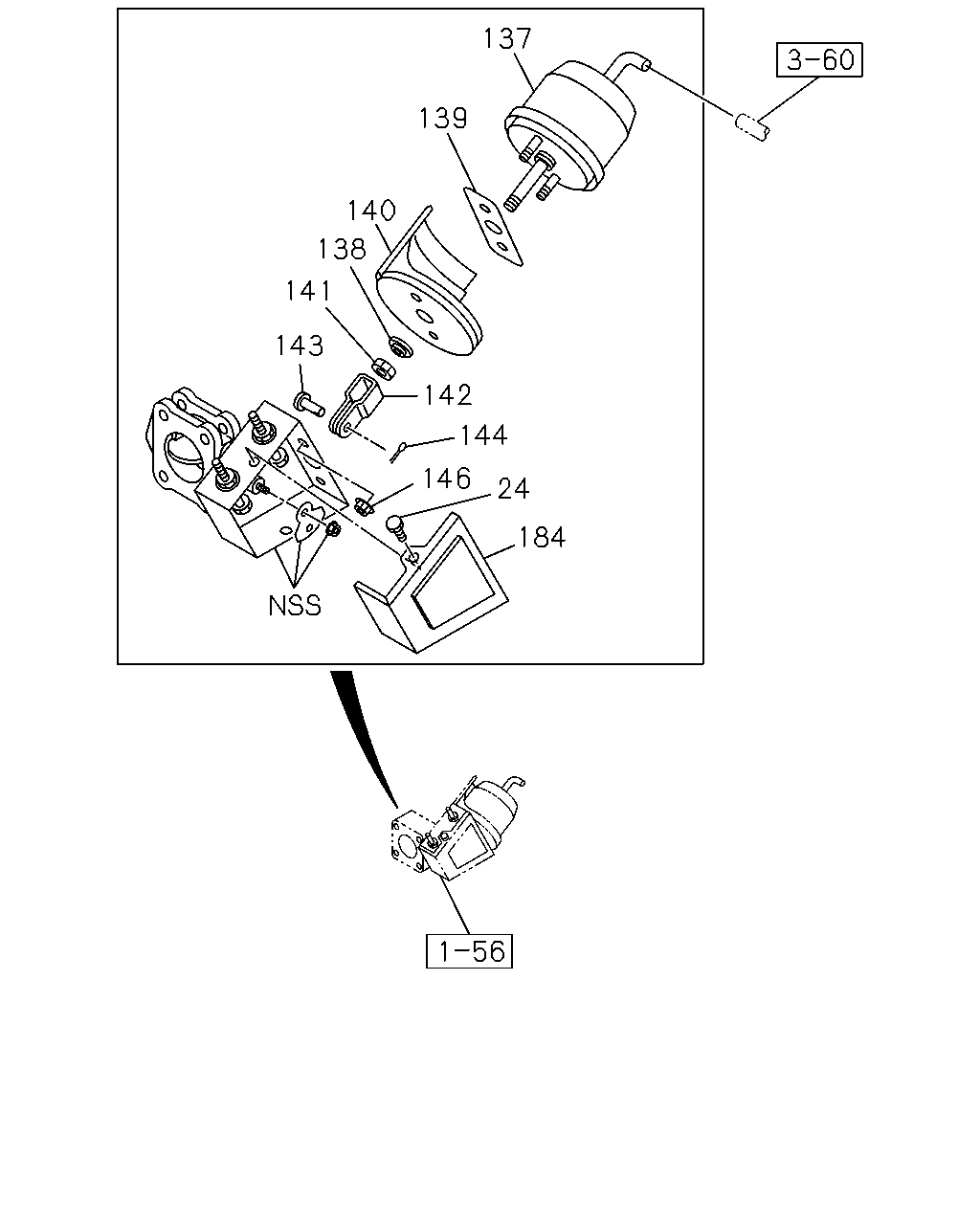

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#34285) — 11 parça

137 139 140 138 141 143 142 144 146 24 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	0612-	●	●	●	●	●
137	03.634 CHAMBER; POWER	8-98070-470-0	01	1	0612-	●	●	●	●	●
138	03.634 BEARING; EXH BRK VLV	5-22189-004-0	01	1	0612-	●	●	●	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	0612-	●	●	●	●	●
140	03.634 INSULATOR; EXH BRK VLV	8-97173-333-0	01	1	0612-	●	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 05.122	8-94311-428-0	01	1	0612-	●	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	0612-	●	●	●	●	●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	0612-	●	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	0612-	●	●	●	●	●
146	03.634 NUT; EXH BRK VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●	●	●
184	03.634 COVER; BRKT	8-98070-514-0	01	1	0612-	●	●	●	●	●
