Sayfa 1-45 - Isuzu EPC

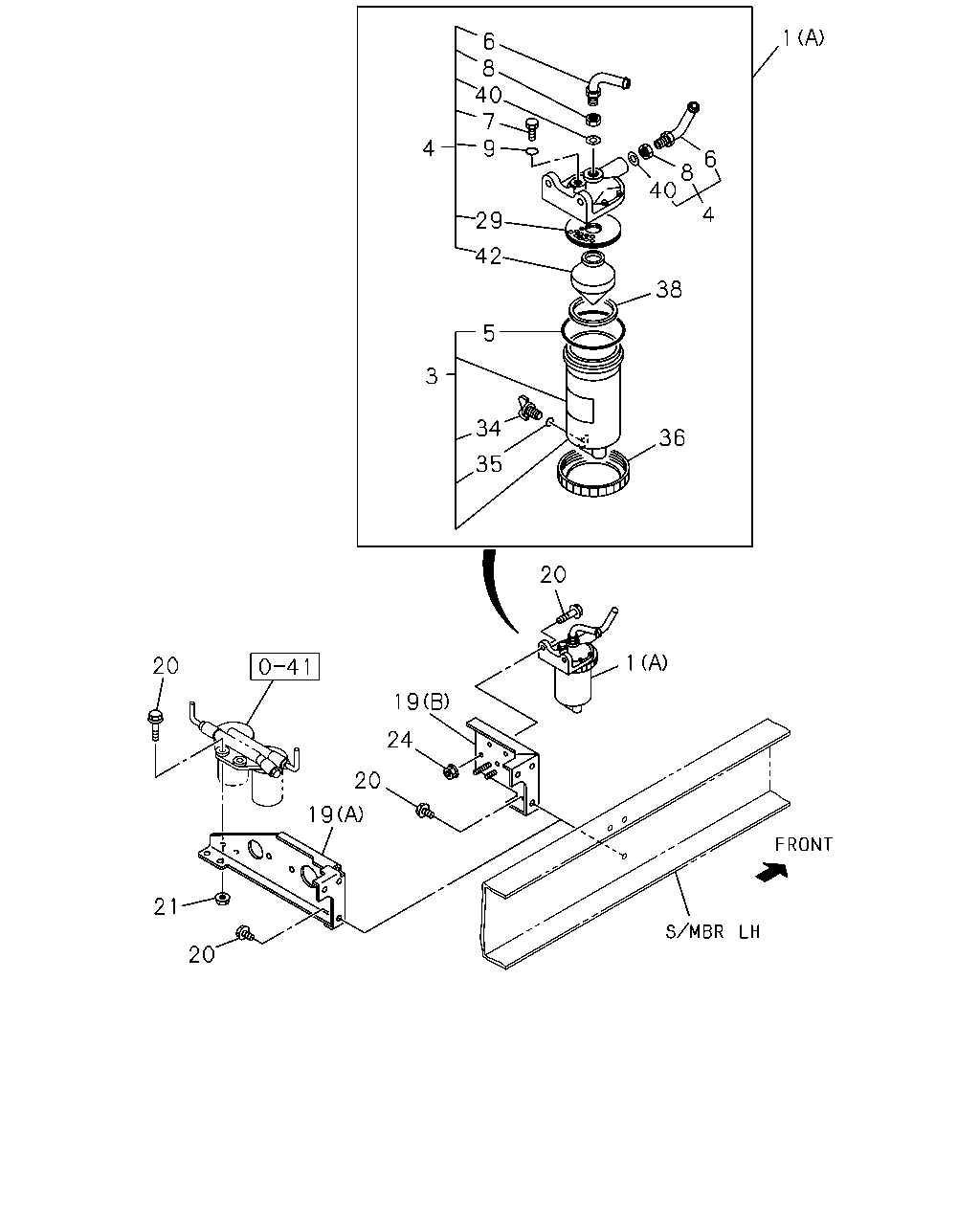

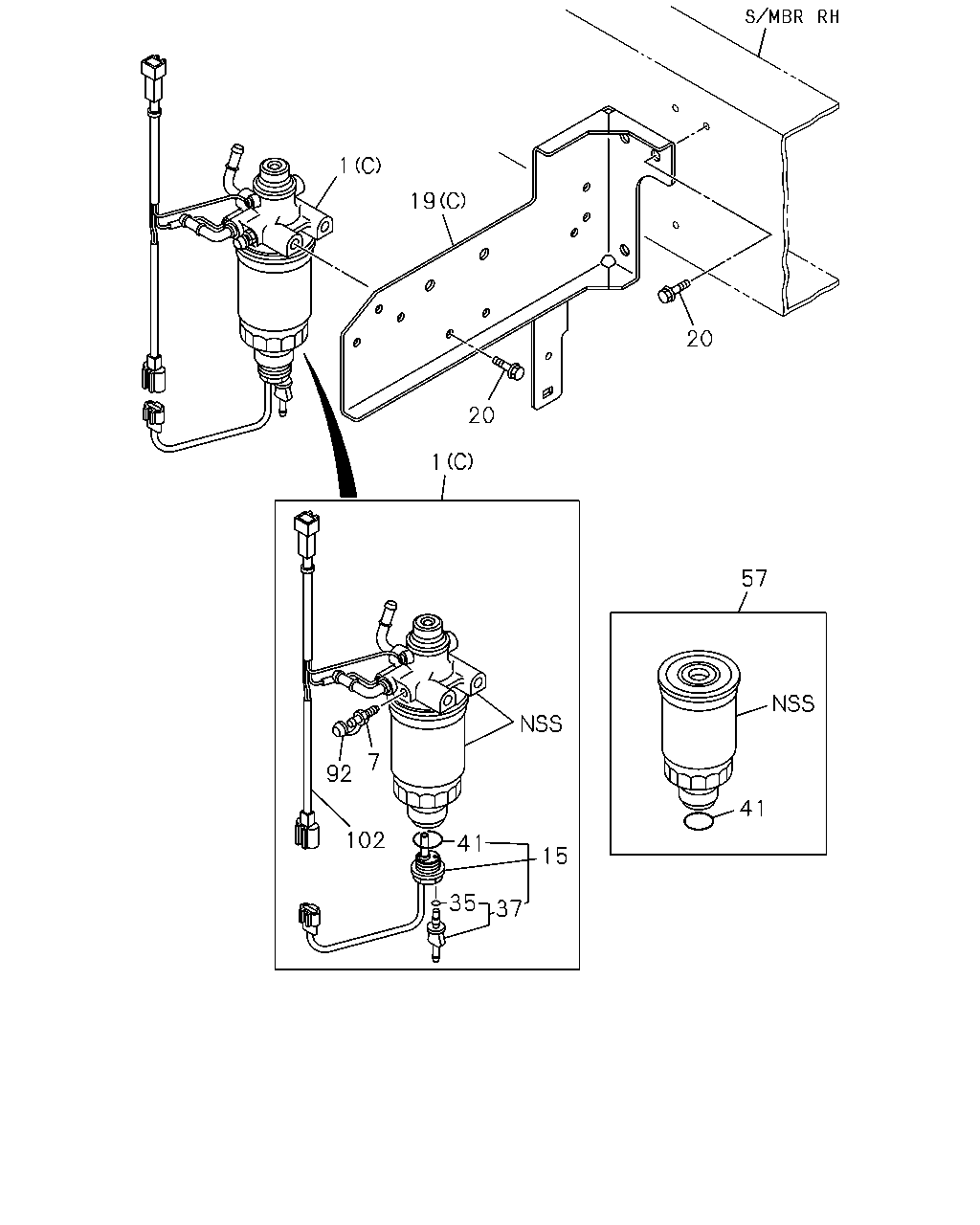

1-45 — WATER SEDIMENTER; FUEL (#34283) — 148 parça

1 98 92 7 20 41 14 37 57 15 41 14 37 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97352-895-1	01	1	0502-0504	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98017-806-2	01	1	0505-	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL (A)	8-97188-042-0	01	1	0211-0501	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97372-009-2	01	1	0502-0504	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0505-	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	9-13219-070-0	01	1	0211-0501	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97172-546-1	01	1	0502-	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94447-156-0	01	1	0502-0504	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU>	8-97064-712-2	01	1	0502-0504	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU>	8-98004-758-0	01	1	0505-	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97352-935-0	01	1	0502-0504	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98009-886-0	01	1	0505-	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512			●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-			●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0211-0501	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0502-0502	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0503-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0503-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-		●
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97123-549-0	01	1	0502-0504	●	●	●	●	●
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98004-899-0	01	1	0505-	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417	1-09623-649-0	01	1	0502-0611	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	1-09623-649-0	01	1	0612-	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94369-299-3	01	1	0502-0504	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98021-811-0	01	1	0505-0511	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98031-847-0	01	1	0512-0611	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98037-481-0	01	1	0612-	●	●	●	●	●
92	01.203 CAP; DRAIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	8-97172-548-0	01	1	0502-	●	●	●	●	●
98	01.203 CAP; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97188-742-0	01	1	0502-0504	●	●	●	●	●

1 6 8 40 7 9 4 6 8 40 4 29 42 38 5 3 34 36 35 20 1 20 19 24 20 19 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97352-895-1	01	1	0502-0504	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98017-806-2	01	1	0505-	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL (A)	8-97188-042-0	01	1	0211-0501	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97372-009-2	01	1	0502-0504	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0505-	●	●	●	●	●
3	03.890 BODY ASM; SEDIMENTER	1-13211-192-0	01	1	0211-0501	●	●	●	●	●
4	03.890 COVER; UPR,SEDIMENTER ASM	1-13212-146-0	01	1	0211-0501	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER	1-09623-491-0	01	1	0211-0501	●	●	●	●	●
6	03.890 CONNECTOR ASM; SEDIMENTER	1-13229-002-0	02	1	0211-0501	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	9-13219-070-0	01	1	0211-0501	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97172-546-1	01	1	0502-	●	●	●	●	●
8	03.890 STOPPER; CONN,SEDIMENTER	1-13229-001-0	02	1	0211-0501	●	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0211-0501	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A)	8-97148-721-1	01	1	0211-0212	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A)	8-97363-088-0	01	1	0301-0501	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97368-101-5	01	1	0502-	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97182-048-2	01	1	0211-0309	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) (B)	8-97182-048-2	01	1	0211-0309					●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97372-020-0	01	1	0310-0310	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) (B)	8-97372-020-0	01	1	0310-0310					●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97182-048-2	01	1	0311-0501	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) (B)	8-97182-048-2	01	1	0311-0501					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512			●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-			●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0211-0501	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0502-0502	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0503-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0503-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-		●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0302	●	●	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501	●	●	●	●	●
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602	●	●	●	●	●
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-	●	●	●	●	●
24	03.890 NUT; SEDIMENTER 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●	●	●	●
29	03.890 SCREEN ASM; SEDIMENTER	1-13219-228-0	01	1	0211-0501	●	●	●	●	●
34	03.890 PLUG; DRAIN,FUEL FILTER	1-13219-225-0	01	1	0211-0501	●	●	●	●	●
35	03.890 GASKET; DRAIN PLUG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98004-898-0	01	1	0505-	●	●	●	●	●
35	03.890 GASKET; DRAIN PLUG	1-09623-490-0	01	1	0211-0501	●	●	●	●	●
36	03.890 RING; BODY TO CASE	1-13219-226-0	01	1	0211-0501	●	●	●	●	●
38	03.890 FLOAT; SEDIMENTER	1-13219-227-0	01	1	0211-0501	●	●	●	●	●
40	03.890 GASKET; CONNECTOR TO COVER 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501	●	●	●	●	●
42	03.890 PLATE; BAFFLE	1-13219-229-0	01	1	0211-0501	●	●	●	●	●

1 19 20 20 1 57 7 92 41 102 41 15 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97352-895-1	01	1	0502-0504	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98017-806-2	01	1	0505-	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL (A)	8-97188-042-0	01	1	0211-0501	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97372-009-2	01	1	0502-0504	●	●	●	●	●
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-98008-066-2	01	1	0505-	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER	9-13219-070-0	01	1	0211-0501	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97172-546-1	01	1	0502-	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU>	8-97064-712-2	01	1	0502-0504	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU>	8-98004-758-0	01	1	0505-	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97352-935-0	01	1	0502-0504	●	●	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98009-886-0	01	1	0505-	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A)	8-97148-721-1	01	1	0211-0212	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A)	8-97363-088-0	01	1	0301-0501	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97368-101-5	01	1	0502-	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97182-048-2	01	1	0211-0309	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) (B)	8-97182-048-2	01	1	0211-0309					●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97372-020-0	01	1	0310-0310	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) (B)	8-97372-020-0	01	1	0310-0310					●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B)	8-97182-048-2	01	1	0311-0501	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) (B)	8-97182-048-2	01	1	0311-0501					●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512			●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0503-0512				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-			●		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCS ENG(RJS) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0211-0501	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0502-0502	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0503-0512	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0503-0512		●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-		●
35	03.890 GASKET; DRAIN PLUG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98004-898-0	01	1	0505-	●	●	●	●	●
35	03.890 GASKET; DRAIN PLUG	1-09623-490-0	01	1	0211-0501	●	●	●	●	●
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97123-549-0	01	1	0502-0504	●	●	●	●	●
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98004-899-0	01	1	0505-	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0611	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417	1-09623-649-0	01	1	0502-0611	●	●	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	1-09623-649-0	01	1	0612-	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94369-299-3	01	1	0502-0504	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98021-811-0	01	1	0505-0511	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98031-847-0	01	1	0512-0611	●	●	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98037-481-0	01	1	0612-	●	●	●	●	●
92	01.203 CAP; DRAIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	8-97172-548-0	01	1	0502-	●	●	●	●	●
102	02.480 HARNESS; SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU>	8-97372-339-0	01	1	0505-	●	●	●	●	●
