Sayfa 1-40 - Isuzu EPC

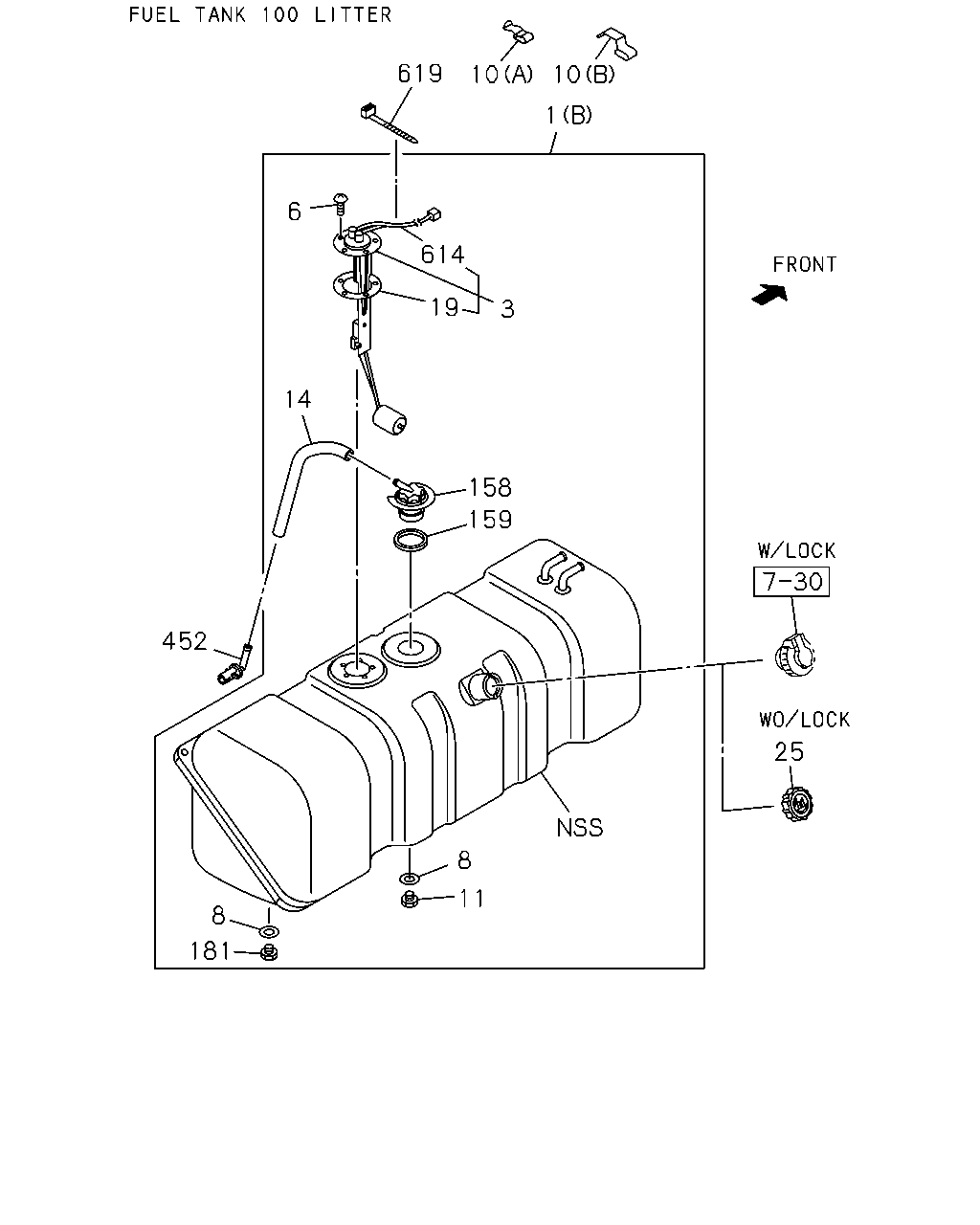

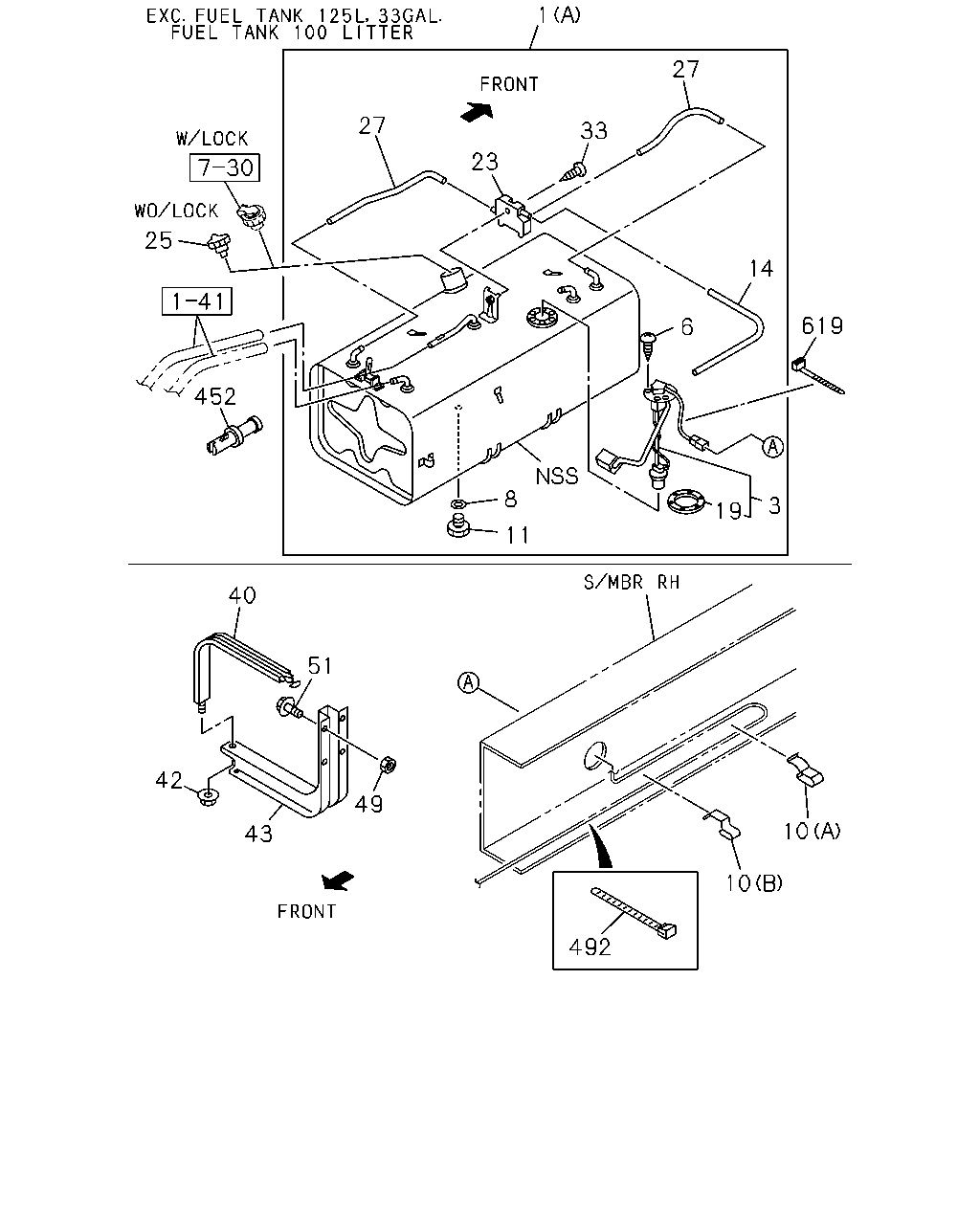

1-40 — FUEL TANK (#34281) — 358 parça

1 27 33 23 27 25 452 11 8 19 3 619 14 6 40 51 49 43 42 492 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L	8-97376-818-0	01	1	0502-0502	●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (B) 1003X375X380 100L	8-97351-658-7	01	1	0502-	●	●
1	03.001 TANK; FUEL (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0501	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0501		●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> (A) 1000X340X327 100L	8-97353-984-1	01	1	0502-		●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-97047-401-3	01	1	0211-0501		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-97047-401-3	01	1	0211-0501			●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0502-0810		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0502-0810			●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-98133-451-2	01	1	0811-		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-98133-451-2	01	1	0811-			●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-97363-006-0	01	1	0502-0502	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-97173-186-2	01	1	0502-0505	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98005-215-0	01	1	0506-0611	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98050-491-0	01	1	0612-	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0501	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0211-0501		●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 03.001	8-94316-190-0	01	1	0502-		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0211-		●
3	03.107 UNIT; FUEL TANK,SUB	8-97314-827-0	01	1	0211-			●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0603	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 100 LITTER<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604			●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	0211-		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001 ID=20	9-09720-558-0	01	1	0211-			●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	0211-0301	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	0211-0301		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0501	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0501		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-0502		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-		●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0211-	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0211-	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	0211-0501		●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M20X1.5	9-09662-002-0	01	1	0211-0501			●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0301	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0301		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0302-0501	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.453 M14X14	9-09862-156-0	01	1	0302-0501		●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0502-			●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1004-	●	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0501	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0501		●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-97363-616-0	01	1	0502-0502	●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-97222-756-0	01	1	0502-	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0501	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0502-			●	●	●
23	03.162 JOINT; BREATHER HOSE	8-97077-713-1	01	1	0211-0501	●
23	03.162 JOINT; BREATHER HOSE EXC. FUEL TANK 125L,33GAL<NL7>	8-97077-713-1	01	1	0211-0501		●
23	03.162 JOINT; BREATHER HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97077-713-1	01	1	0502-		●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501		●
25	03.028 CAP; FILLER,FUEL TANK	8-94258-609-1	01	1	0502-0506	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94258-609-1	01	1	0502-0506		●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0507-	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0507-		●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0211-		●
25	03.028 CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0211-			●	●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0211-0501	●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0211-0501		●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0502-		●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0211-0501	●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0211-0501		●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0502-0604		●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> M6X20 W/LK&PL WASHER	0-36230-620-0	01	1	0605-		●

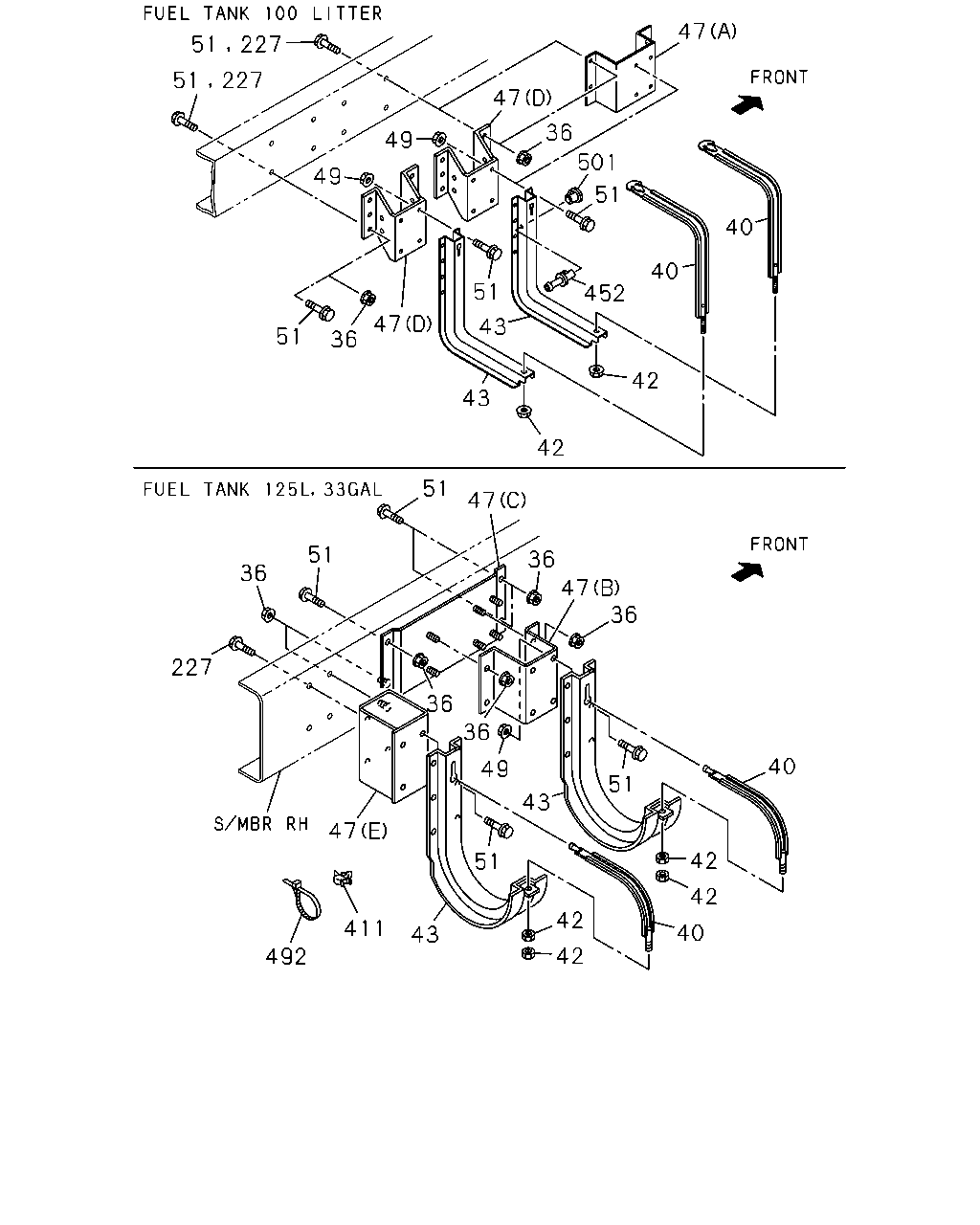

40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0502-	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 100 LITTER<N02>	8-97169-231-1	02	1	0502-		●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0211-0501	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94438-385-4	02	1	0211-0501		●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-94438-385-4	02	1	0502-		●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.023	8-94418-159-0	02	1	0211-		●
40	03.022 BELT; SUPPORT,FUEL TANK 03.023	8-94418-159-0	02	1	0211-			●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0211-	●
42	03.023 NUT; SUPPORT BELT EXC. FUEL TANK 125L,33GAL<NL7> M8 FLANGE	9-09130-408-0	02	1	0211-		●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 09.011 M10	9-09110-410-0	04	1	0211-0512		●
42	03.023 NUT; SUPPORT BELT 09.011 M10	9-09110-410-0	04	1	0211-0512			●	●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 00.833 M10	0-91110-510-0	04	1	0601-		●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	0601-			●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97308-623-1	01	1	0502-0502	●
43	03.015 BRACKET; FUEL TANK REAR	8-97308-624-1	01	1	0502-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> REAR	8-97181-220-0	01	1	0502-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> FRONT	8-97035-517-0	01	1	0502-0502		●
43	03.015 BRACKET; FUEL TANK 4HK1-TCN ENG(RDQ) FRONT	8-97035-517-0	01	1	0503-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> FRONT	8-97035-517-0	01	1	0503-		●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0211-0501	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97035-517-0	02	1	0211-0501		●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97035-517-0	02	1	0502-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	0211-		●
43	03.015 BRACKET; FUEL TANK	5-53461-044-2	02	1	0211-			●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0211-0602	●	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0602					●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-					●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0503-0512	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0211-0501		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	07	1	0211-0512		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0601-		●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0502-	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	0502-		●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0211-0501	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97062-954-1	01	1	0211-0501		●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97062-954-1	01	1	0502-		●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0211-	●	●	●	●	●
619	03.028 CLIP; FUEL TANK UNIT CABLE FUEL TANK 125L,33GAL<NL7> 02.559 L=250	5-09707-030-1	02	1	0502-0506		●
619	03.028 CLIP; FUEL TANK UNIT CABLE 02.559 L=250	5-09707-030-1	02	1	0502-0506			●	●	●
619	03.028 CLIP; FUEL TANK UNIT CABLE 03.162 L=140	5-09707-031-1	02	1	0502-0506	●
619	03.028 CLIP; FUEL TANK UNIT CABLE EXC. FUEL TANK 125L,33GAL<NL7> 03.162 L=140	5-09707-031-1	02	1	0502-0506		●
619	03.028 CLIP; FUEL TANK UNIT CABLE 03.162 L=140	5-09707-031-1	02	1	0507-	●	●	●	●	●

619 10 10 1 6 614 3 19 14 158 159 452 8 181 11 8 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L	8-97376-818-0	01	1	0502-0502	●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (B) 1003X375X380 100L	8-97351-658-7	01	1	0502-	●	●
1	03.001 TANK; FUEL (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0501	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0501		●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> (A) 1000X340X327 100L	8-97353-984-1	01	1	0502-		●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-97047-401-3	01	1	0211-0501		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-97047-401-3	01	1	0211-0501			●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0502-0810		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0502-0810			●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-98133-451-2	01	1	0811-		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-98133-451-2	01	1	0811-			●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-97363-006-0	01	1	0502-0502	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-97173-186-2	01	1	0502-0505	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98005-215-0	01	1	0506-0611	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98050-491-0	01	1	0612-	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0501	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0211-0501		●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 03.001	8-94316-190-0	01	1	0502-		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0211-		●
3	03.107 UNIT; FUEL TANK,SUB	8-97314-827-0	01	1	0211-			●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0603	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 100 LITTER<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604			●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	0211-		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001 ID=20	9-09720-558-0	01	1	0211-			●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	0211-0301	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	0211-0301		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0501	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0501		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-0502		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-		●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0211-	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0211-	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	0211-0501		●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M20X1.5	9-09662-002-0	01	1	0211-0501			●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0301	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0301		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0302-0501	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.453 M14X14	9-09862-156-0	01	1	0302-0501		●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0502-			●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1004-	●	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0501	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0211-0501		●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-97363-616-0	01	1	0502-0502	●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-97222-756-0	01	1	0502-	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0501	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0502-			●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501		●
25	03.028 CAP; FILLER,FUEL TANK	8-94258-609-1	01	1	0502-0506	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94258-609-1	01	1	0502-0506		●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0507-	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0507-		●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0211-		●
25	03.028 CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0211-			●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	0502-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	1-22453-003-0	01	1	0211-0810		●
158	03.164 VALVE; ROLL OVER & FLOAT	1-22453-003-0	01	1	0211-0810			●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	8-98103-512-0	01	1	0811-		●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98103-512-0	01	1	0811-			●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	0502-	●	●
181	03.001 PLUG; CONNECTOR FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0502-	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	0502-		●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0211-0501	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97062-954-1	01	1	0211-0501		●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97062-954-1	01	1	0502-		●
614	03.028 HARNESS; FUEL FUEL TANK 100 LITTER<N02>	8-97363-614-0	01	1	0502-0502	●	●
619	03.028 CLIP; FUEL TANK UNIT CABLE FUEL TANK 125L,33GAL<NL7> 02.559 L=250	5-09707-030-1	02	1	0502-0506		●
619	03.028 CLIP; FUEL TANK UNIT CABLE 02.559 L=250	5-09707-030-1	02	1	0502-0506			●	●	●
619	03.028 CLIP; FUEL TANK UNIT CABLE 03.162 L=140	5-09707-031-1	02	1	0502-0506	●
619	03.028 CLIP; FUEL TANK UNIT CABLE EXC. FUEL TANK 125L,33GAL<NL7> 03.162 L=140	5-09707-031-1	02	1	0502-0506		●
619	03.028 CLIP; FUEL TANK UNIT CABLE 03.162 L=140	5-09707-031-1	02	1	0507-	●	●	●	●	●

1 6 3 19 25 158 131 129 135 130 422 8 11 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L	8-97376-818-0	01	1	0502-0502	●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (B) 1003X375X380 100L	8-97351-658-7	01	1	0502-	●	●
1	03.001 TANK; FUEL (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0501	●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7> (A) 1000X340X327 100L	8-97350-991-0	01	1	0211-0501		●
1	03.001 TANK; FUEL EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> (A) 1000X340X327 100L	8-97353-984-1	01	1	0502-		●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-97047-401-3	01	1	0211-0501		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-97047-401-3	01	1	0211-0501			●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0502-0810		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-97371-035-0	01	1	0502-0810			●	●	●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> (C) OD=400 L=1130 124.5L	8-98133-451-2	01	1	0811-		●
1	03.001 TANK; FUEL (C) OD=400 L=1130 124.5L	8-98133-451-2	01	1	0811-			●	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-97363-006-0	01	1	0502-0502	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-97173-186-2	01	1	0502-0505	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98005-215-0	01	1	0506-0611	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98050-491-0	01	1	0612-	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	0211-0501	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	0211-0501		●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 03.001	8-94316-190-0	01	1	0502-		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97314-827-0	01	1	0211-		●
3	03.107 UNIT; FUEL TANK,SUB	8-97314-827-0	01	1	0211-			●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER<N02> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-0604	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0603	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. FUEL TANK 100 LITTER<N02> 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0604-0604			●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	0502-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	0211-		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001 ID=20	9-09720-558-0	01	1	0211-			●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	0211-0301	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	0211-0301		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0501	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0501		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-0502		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0502-		●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	0211-	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	0211-	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	0211-	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	0211-0501		●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M20X1.5	9-09662-002-0	01	1	0211-0501			●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0301	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0301		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0302-0501	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.453 M14X14	9-09862-156-0	01	1	0302-0501		●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	0502-		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0502-			●	●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-97363-616-0	01	1	0502-0502	●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-97222-756-0	01	1	0502-	●	●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0211-0501	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71	5-83148-001-0	01	1	0502-		●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0502-			●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0211-0501		●
25	03.028 CAP; FILLER,FUEL TANK	8-94258-609-1	01	1	0502-0506	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94258-609-1	01	1	0502-0506		●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0507-	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	0507-		●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-97233-810-0	01	1	0211-		●
25	03.028 CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0211-			●	●	●
129	03.164 VENTILATOR; SAFETY,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22451-012-0	01	1	0211-0810		●
129	03.164 VENTILATOR; SAFETY,FUEL TANK	1-22451-012-0	01	1	0211-0810			●	●	●
129	03.164 VENTILATOR; SAFETY,FUEL TANK FUEL TANK 125L,33GAL<NL7>	8-98106-041-1	01	1	0811-		●
129	03.164 VENTILATOR; SAFETY,FUEL TANK	8-98106-041-1	01	1	0811-			●	●	●
130	03.164 SCREW; SAFETY VENT FUEL TANK 125L,33GAL<NL7> 06.512 M5X14 W/LK WASHER	9-03910-514-0	05	1	0211-0604		●
130	03.164 SCREW; SAFETY VENT 06.512 M5X14 W/LK WASHER	9-03910-514-0	05	1	0211-0604			●	●	●
130	03.164 SCREW; SAFETY VENT FUEL TANK 125L,33GAL<NL7> M5X14 W/LK WASHER	0-36220-514-0	05	1	0605-		●
130	03.164 SCREW; SAFETY VENT M5X14 W/LK WASHER	0-36220-514-0	05	1	0605-			●	●	●
131	03.164 GASKET; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	1-22459-001-1	01	1	0211-		●
131	03.164 GASKET; SAFETY VENT	1-22459-001-1	01	1	0211-			●	●	●
135	03.163 COVER; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	5-22458-005-0	01	1	0211-		●
135	03.163 COVER; SAFETY VENT	5-22458-005-0	01	1	0211-			●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	0502-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	1-22453-003-0	01	1	0211-0810		●
158	03.164 VALVE; ROLL OVER & FLOAT	1-22453-003-0	01	1	0211-0810			●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	8-98103-512-0	01	1	0811-		●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98103-512-0	01	1	0811-			●	●	●
422	03.023 PLUG; FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162	8-94421-626-0	01	1	0211-		●
422	03.023 PLUG; FUEL TANK 03.162	8-94421-626-0	01	1	0211-			●	●	●

51 227 51 227 49 49 47 36 501 51 40 40 47 452 42 42 43 43 51 47 36 51 51 47 36 47 36 36 36 51 36 227 47 492 411 43 51 43 49 51 40 42 42 40 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
36	03.015 NUT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0503-0602	●
36	03.015 NUT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0602		●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> G.V.W. 8.0-8.5TON(RPZ) 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0602		●
36	03.015 NUT; SPACER,FUEL TANK 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0602				●
36	03.015 NUT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-		●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> G.V.W. 8.0-8.5TON(RPZ) 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-		●
36	03.015 NUT; SPACER,FUEL TANK 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-				●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.785 M10 FLANGE	0-91150-110-0	06	1	0211-0501		●
36	03.015 NUT; SPACER,FUEL TANK 04.785 M10 FLANGE	0-91150-110-0	06	1	0211-0501			●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 04.785 M10 FLANGE	0-91150-110-0	06	1	0502-0602		●
36	03.015 NUT; SPACER,FUEL TANK 04.785 M10 FLANGE	0-91150-110-0	06	1	0502-0602			●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 03.162 M10 FLANGE	0-91180-110-0	06	1	0603-		●
36	03.015 NUT; SPACER,FUEL TANK 03.162 M10 FLANGE	0-91180-110-0	06	1	0603-			●
36	03.015 NUT; SPACER,FUEL TANK 04.785 M10 FLANGE	0-91150-110-0	09	1	0211-0602					●
36	03.015 NUT; SPACER,FUEL TANK 03.162 M10 FLANGE	0-91180-110-0	09	1	0603-					●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0502-	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 100 LITTER<N02>	8-97169-231-1	02	1	0502-		●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0211-0501	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94438-385-4	02	1	0211-0501		●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-94438-385-4	02	1	0502-		●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.023	8-94418-159-0	02	1	0211-		●
40	03.022 BELT; SUPPORT,FUEL TANK 03.023	8-94418-159-0	02	1	0211-			●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0211-	●
42	03.023 NUT; SUPPORT BELT EXC. FUEL TANK 125L,33GAL<NL7> M8 FLANGE	9-09130-408-0	02	1	0211-		●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 09.011 M10	9-09110-410-0	04	1	0211-0512		●
42	03.023 NUT; SUPPORT BELT 09.011 M10	9-09110-410-0	04	1	0211-0512			●	●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 00.833 M10	0-91110-510-0	04	1	0601-		●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	0601-			●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97308-623-1	01	1	0502-0502	●
43	03.015 BRACKET; FUEL TANK REAR	8-97308-624-1	01	1	0502-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> REAR	8-97181-220-0	01	1	0502-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> FRONT	8-97035-517-0	01	1	0502-0502		●
43	03.015 BRACKET; FUEL TANK 4HK1-TCN ENG(RDQ) FRONT	8-97035-517-0	01	1	0503-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> FRONT	8-97035-517-0	01	1	0503-		●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0211-0501	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97035-517-0	02	1	0211-0501		●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97035-517-0	02	1	0502-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	0211-		●
43	03.015 BRACKET; FUEL TANK	5-53461-044-2	02	1	0211-			●	●	●
47	03.023 SPACER; FUEL TANK (A)	8-97357-648-1	01	1	0503-	●
47	03.023 SPACER; FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> (D)	8-97104-375-0	02	1	0211-		●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> (D)	8-97104-375-0	02	1	0211-		●
47	03.023 SPACER; FUEL TANK (D)	8-97104-375-0	02	1	0211-			●	●
47	03.023 SPACER; FUEL TANK (E)	8-97326-136-0	01	1	0211-					●
47	03.023 SPACER; FUEL TANK (C)	8-97356-640-0	01	1	0211-					●
47	03.023 SPACER; FUEL TANK (B)	8-97356-641-0	01	1	0211-					●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0211-0602	●	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0602					●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-					●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0503-0512	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0211-0501		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	07	1	0211-0512		●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	07	1	0601-		●	●	●	●
227	03.015 BOLT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	0211-0512		●
227	03.015 BOLT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	0211-0512		●
227	03.015 BOLT; SPACER,FUEL TANK 03.162 M10X35 FLANGE	0-28681-035-0	08	1	0211-0512			●	●	●
227	03.015 BOLT; SPACER,FUEL TANK EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> EXC. FUEL TANK 125L,33GAL<NL7> 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0601-		●
227	03.015 BOLT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0601-		●
227	03.015 BOLT; SPACER,FUEL TANK 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0601-			●	●	●
227	03.015 BOLT; SPACER,FUEL TANK 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0211-0502					●
227	03.015 BOLT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0503-0512	●				●
227	03.015 BOLT; SPACER,FUEL TANK 4HK1-TCN ENG(RDQ) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-	●				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 125L,33GAL<NL7> ID=6.5	8-94257-639-0	01	1	0211-0505		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS ID=6.5	8-94257-639-0	01	1	0211-0505			●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0502-	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	0502-		●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0211-0501	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97062-954-1	01	1	0211-0501		●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97062-954-1	01	1	0502-		●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-1	01	1	0211-	●	●	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	0211-0501	●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 125L,33GAL<NL7>	8-97096-990-0	01	1	0211-0501		●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97096-990-0	01	1	0502-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
