◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#34280) — 13 parça

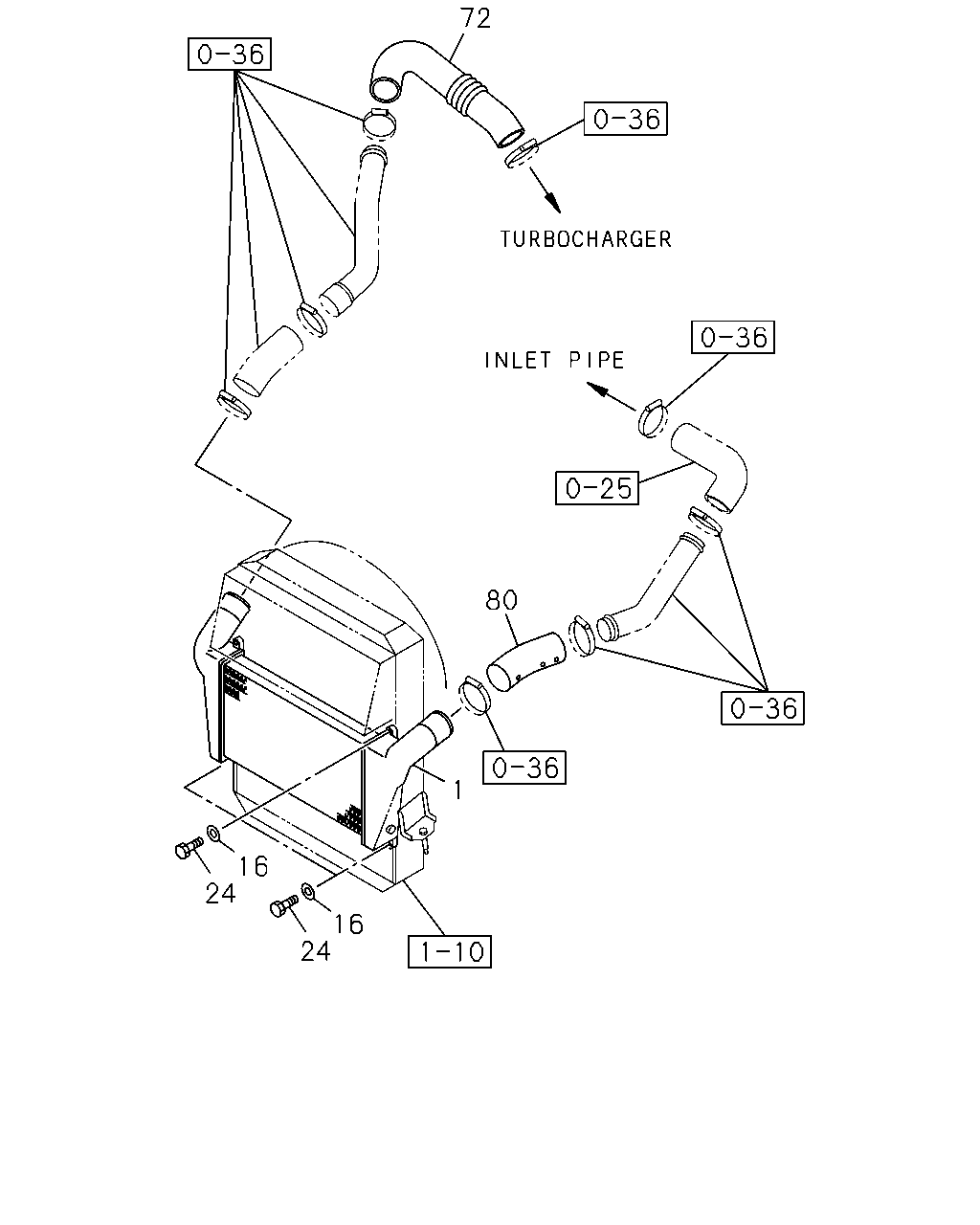

çizim 34205
72 80 1 16 24 16 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) 		8-97333-362-1 01 1 0502- ● ●
1 03.374 COOLER; CHARGE AIR 8-97218-394-4 01 1 0211-0501 ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) 		8-97218-394-4 01 1 0502- ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
16.674 ID=8.4 		9-09160-508-0 04 1 0502-1103 ● ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCS ENG(RJS) 16.674 ID=8.4 		9-09160-508-0 04 1 1104- ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16 		0-91610-508-0 04 1 1104- ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0211- ● ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT 8-97203-993-2 01 1 0211- ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCS ENG(RJS) 		8-97332-294-1 01 1 0502-0502 ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCS ENG(RJS) 		8-98011-904-2 01 1 0502-0608 ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCS ENG(RJS) 		8-98053-760-0 01 1 0609- ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO 8-97233-792-0 01 1 0211-0501 ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ) 		8-97233-792-1 01 1 0502- ● ● ● ●
