6-70 — FLOOR PANEL (#3428) — 32 parça

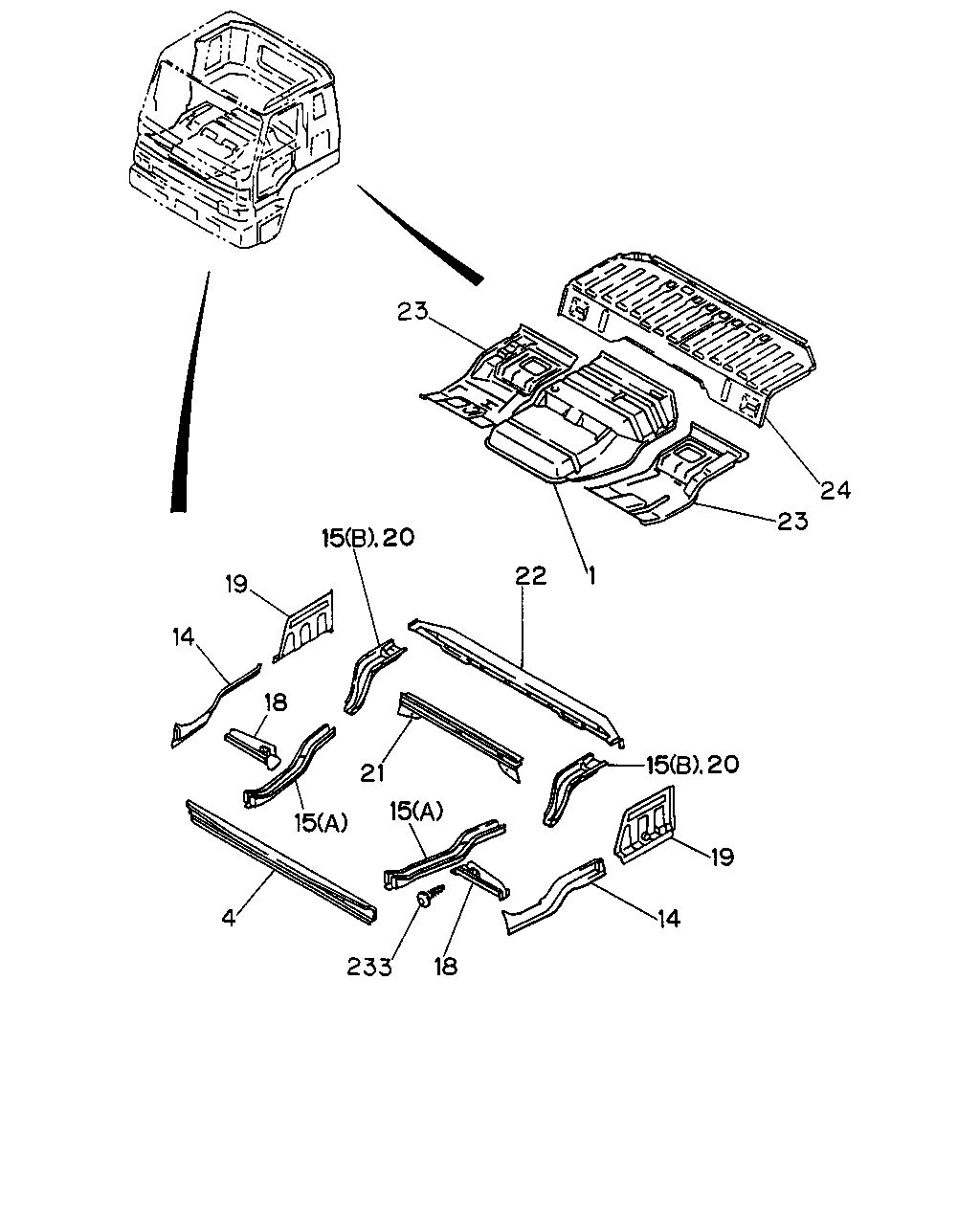

çizim 36025
23 24 22 23 20 15 19 14 18 4 15 15 18 233 14 19 20 15 1 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR 1-62172-278-1 01 1 9002- ● ● ●
4 FRAME; FLOOR,FRT 1-62472-382-5 01 1 9002- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62472-264-6 01 1 9002- ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62472-263-6 01 1 9002- ● ● ●
15 FRAME; UNDER
(A) 		1-62472-333-3 01 1 9002-9205 ● ● ●
15 FRAME; UNDER
(A) 		1-62472-556-0 01 1 9206- ● ● ●
15 FRAME; UNDER
(A) 		1-62472-332-3 01 1 9002- ● ● ●
15 FRAME; UNDER
(B) 		1-62472-208-7 01 1 9307- ● ● ●
15 FRAME; UNDER
(B) 		1-62472-209-6 01 1 9307- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-455-1 01 1 9002-9105 ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-551-1 01 1 9106- ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-311-1 01 1 9002- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-325-1 01 1 9002-9105 ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-566-0 01 1 9106- ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-106-7 01 1 9002- ● ● ●
20 FRAME; FLOOR SIDE,REAR 1-62472-209-6 01 1 9002-9306 ● ● ●
20 FRAME; FLOOR SIDE,REAR 1-62472-208-7 01 1 9002-9306 ● ● ●
21 FRAME; FLOOR CENTER
EXC. TAIWAN EQUIPMENT(WW5) 		1-62472-370-1 01 1 9002-9101 ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) 		1-62472-370-1 01 1 9002-9101 ● ●
21 FRAME; FLOOR CENTER
TAIWAN EQUIPMENT(WW5) 		1-62472-371-1 01 1 9002-9101 ● ● ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) 		1-62472-371-1 01 1 9002-9101 ● ●
21 FRAME; FLOOR CENTER 1-62472-371-1 01 1 9102-9105 ● ● ●
21 FRAME; FLOOR CENTER 1-62472-571-0 01 1 9106- ● ● ●
22 FRAME; FLOOR REAR 1-62472-338-3 01 1 9002-9012 ● ● ●
22 FRAME; FLOOR REAR 1-62472-543-4 01 1 9101- ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-374-5 01 1 9002- ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-368-5 01 1 9002- ● ● ●
24 PANEL; BED PAN 1-62172-227-3 01 1 9002- ●
24 PANEL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62172-227-3 01 1 9002- ● ●
24 PANEL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-344-5 01 1 9002- ● ●
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 04 1 9002-9107 ● ● ●
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 07 1 9108- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
