◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

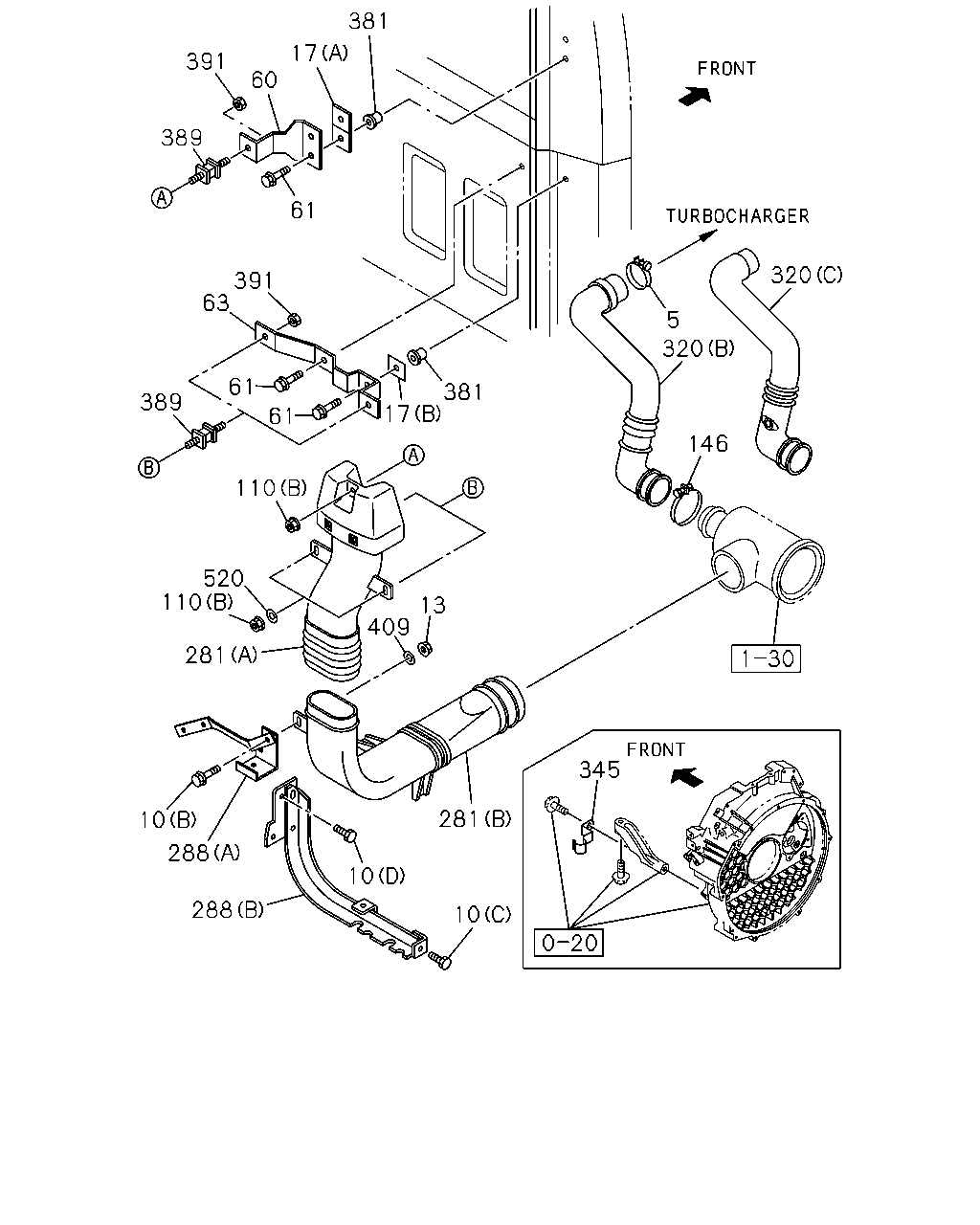

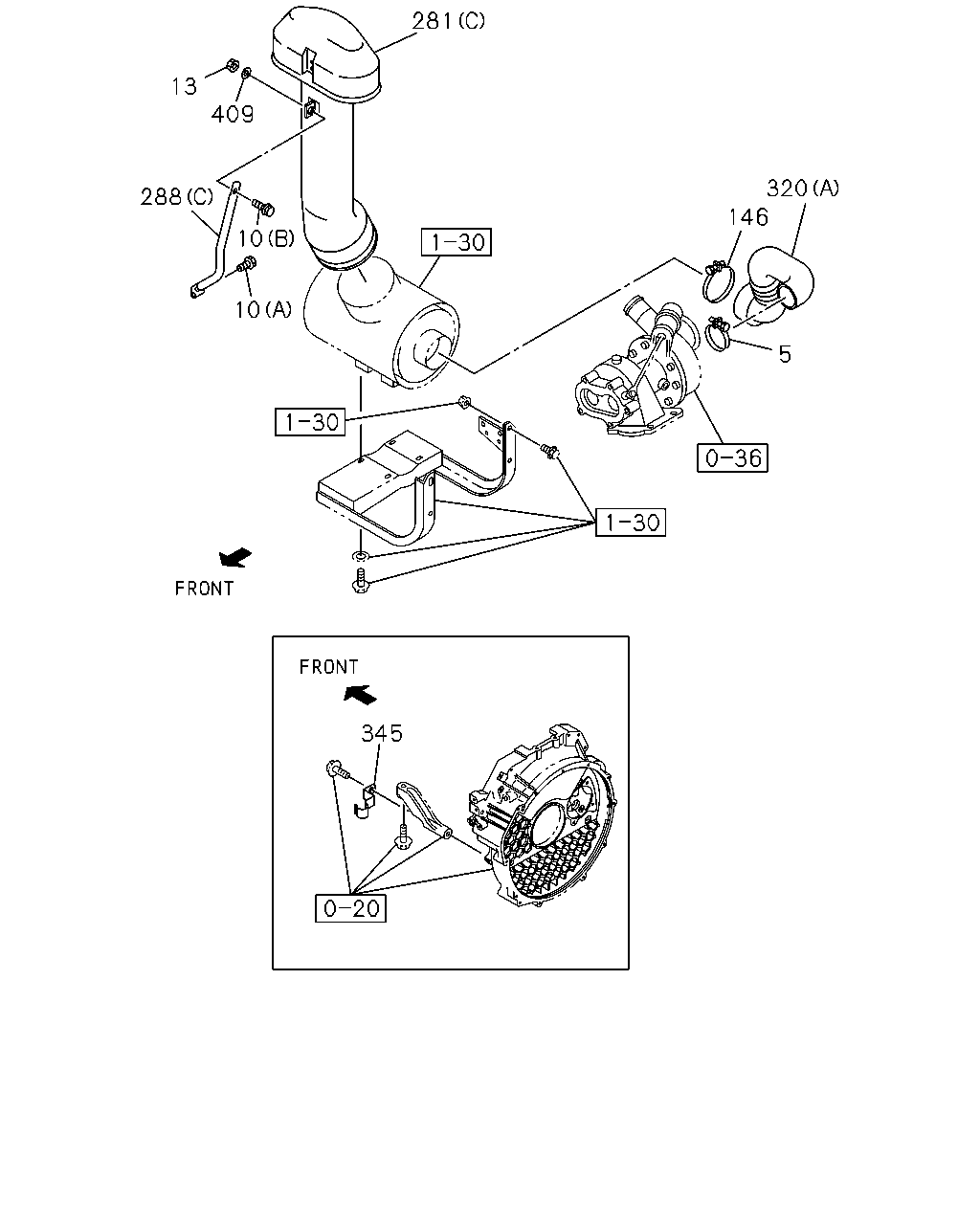

1-31 — AIR DUCT (#34279) — 100 parça

281 13 409 320 288 146 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90	8-98122-372-0	01	1	1002-	●	●	●	●	●
5	03.407 CLIP; AIR DUCT ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●
5	03.407 CLIP; AIR DUCT ID=68-85	1-09707-202-0	01	1	0502-0810	●	●	●	●	●
5	03.407 CLIP; AIR DUCT ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> ID=65-85	8-98133-350-0	01	1	1002-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501					●
10	03.417 BOLT; BRKT FIX 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512					●
10	03.417 BOLT; BRKT FIX 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
10	03.417 BOLT; BRKT FIX 03.405 (D) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512					●
10	03.417 BOLT; BRKT FIX 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0601-					●
13	03.417 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●
13	03.417 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 03.407 ID=112	9-09915-074-1	01	1	0211-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT (C)	8-97180-995-0	01	1	0211-	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT (A)	8-97213-911-2	01	1	0211-0501					●
281	03.417 DUCT; AIR,VERTICAL INT (A)	8-97372-358-0	01	1	0502-					●
281	03.417 DUCT; AIR,VERTICAL INT (B)	8-97213-912-3	01	1	0211-					●
288	03.417 BRACKET; DUCT (C)	8-97183-041-2	01	1	0211-	●	●	●	●
288	03.417 BRACKET; DUCT (A)	8-97214-827-1	01	1	0211-					●
288	03.417 BRACKET; DUCT 03.405 (B)	8-97214-828-0	01	1	0211-0501					●
288	03.417 BRACKET; DUCT (B)	8-98011-754-0	01	1	0502-					●
320	03.417 HOSE; CONN,ACL (A)	8-97209-707-0	01	1	0211-0501	●	●	●	●
320	03.417 HOSE; CONN,ACL (A)	8-98000-873-1	01	1	0502-	●	●	●	●
320	03.417 HOSE; CONN,ACL (B)	8-97211-578-0	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL (C)	8-98000-874-0	01	1	0502-					●
345	03.417 CLIP; PCV HOSE	8-97066-710-1	01	1	0211-0307	●	●	●	●	●
345	03.417 CLIP; PCV HOSE	8-97369-959-0	01	1	0308-0504	●	●	●	●	●
345	03.417 CLIP; PCV HOSE	8-98020-040-0	01	1	0505-	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●	●	●

381 17 391 60 389 61 320 391 63 5 320 61 381 17 389 61 146 110 520 110 13 409 281 345 281 10 288 10 288 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90	8-98122-372-0	01	1	1002-	●	●	●	●	●
5	03.407 CLIP; AIR DUCT ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●
5	03.407 CLIP; AIR DUCT ID=68-85	1-09707-202-0	01	1	0502-0810	●	●	●	●	●
5	03.407 CLIP; AIR DUCT ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> ID=65-85	8-98133-350-0	01	1	1002-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0512	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501					●
10	03.417 BOLT; BRKT FIX 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512					●
10	03.417 BOLT; BRKT FIX 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-					●
10	03.417 BOLT; BRKT FIX 03.405 (D) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512					●
10	03.417 BOLT; BRKT FIX 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0601-					●
13	03.417 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●	●
13	03.417 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
17	03.403 GASKET; AIR DUCT (A)	8-97853-699-2	01	1	0211-					●
17	03.403 GASKET; AIR DUCT (B)	8-97892-723-0	02	1	0211-					●
60	03.417 BRACKET; AIR DUCT,UPR	8-97892-525-4	01	1	0211-					●
61	03.417 BOLT; BRKT,AIR DUCT 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0211-					●
63	03.417 BRACKET; AIR DUCT,LWR	8-97892-526-3	01	1	0211-					●
110	03.403 NUT; RUBBER MTG 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0211-0910					●
110	03.403 NUT; RUBBER MTG 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-					●
146	03.417 CLIP; HOSE,ACL 03.407 ID=112	9-09915-074-1	01	1	0211-	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT (C)	8-97180-995-0	01	1	0211-	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT (A)	8-97213-911-2	01	1	0211-0501					●
281	03.417 DUCT; AIR,VERTICAL INT (A)	8-97372-358-0	01	1	0502-					●
281	03.417 DUCT; AIR,VERTICAL INT (B)	8-97213-912-3	01	1	0211-					●
288	03.417 BRACKET; DUCT (C)	8-97183-041-2	01	1	0211-	●	●	●	●
288	03.417 BRACKET; DUCT (A)	8-97214-827-1	01	1	0211-					●
288	03.417 BRACKET; DUCT 03.405 (B)	8-97214-828-0	01	1	0211-0501					●
288	03.417 BRACKET; DUCT (B)	8-98011-754-0	01	1	0502-					●
320	03.417 HOSE; CONN,ACL (A)	8-97209-707-0	01	1	0211-0501	●	●	●	●
320	03.417 HOSE; CONN,ACL (A)	8-98000-873-1	01	1	0502-	●	●	●	●
320	03.417 HOSE; CONN,ACL (B)	8-97211-578-0	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL (C)	8-98000-874-0	01	1	0502-					●
345	03.417 CLIP; PCV HOSE	8-97066-710-1	01	1	0211-0307	●	●	●	●	●
345	03.417 CLIP; PCV HOSE	8-97369-959-0	01	1	0308-0504	●	●	●	●	●
345	03.417 CLIP; PCV HOSE	8-98020-040-0	01	1	0505-	●	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 16.570 M8 POP NUT	8-94279-538-0	03	1	0211-0805					●
381	03.417 NUT; BRKT,AIR DUCT 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417	8-97080-149-0	03	1	0211-					●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	03	1	0211-0910					●
391	03.417 NUT; SUPPORT RUBBER,UPR M8 W/LK WASHER	8-97581-234-0	03	1	0911-					●
409	03.417 WASHER; PL,BRKT 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●	●	●
520	03.403 WASHER; RUBBER MTG 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0605					●
520	03.403 WASHER; RUBBER MTG 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-					●

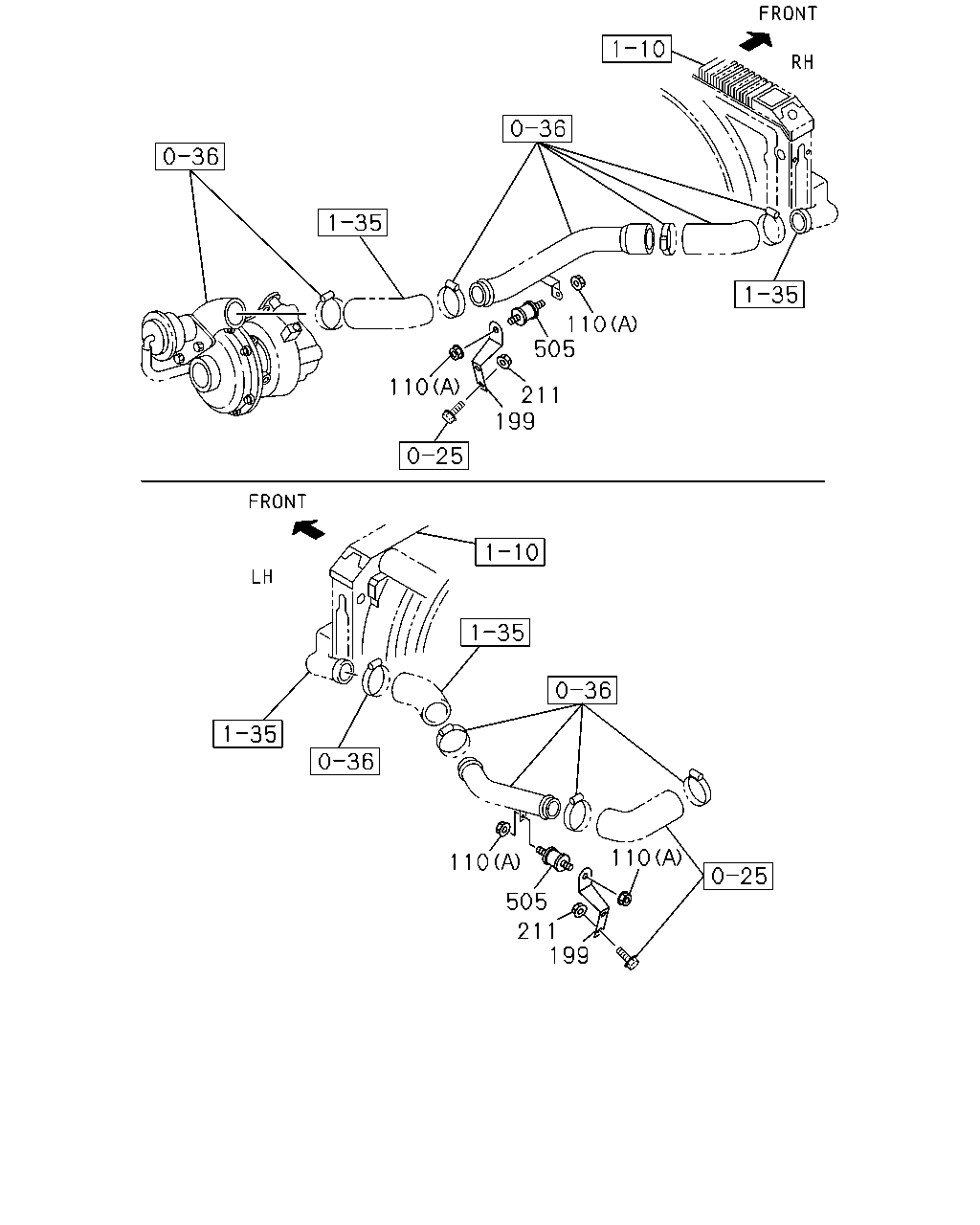

110 505 110 211 199 110 110 505 211 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
110	03.403 NUT; RUBBER MTG 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0211-0910					●
110	03.403 NUT; RUBBER MTG 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-					●
199	03.417 BRACKET; PIPE	8-97189-603-1	01	1	0211-0501	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-97368-806-0	01	1	0502-0502	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-98011-752-1	01	1	0502-	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-97189-604-0	01	1	0211-0501	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-97368-805-0	01	1	0502-0502	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-98011-753-1	01	1	0502-	●	●	●	●	●
211	03.405 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	02	1	0502-0610	●	●	●	●	●
211	03.405 NUT; BRKT 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●	●	●	●	●
505	03.406 RUBBER; MTG 03.405	8-94158-155-1	02	1	0211-0611	●	●	●	●	●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	02	1	0612-	●	●	●	●	●
