Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#34276) — 282 parça

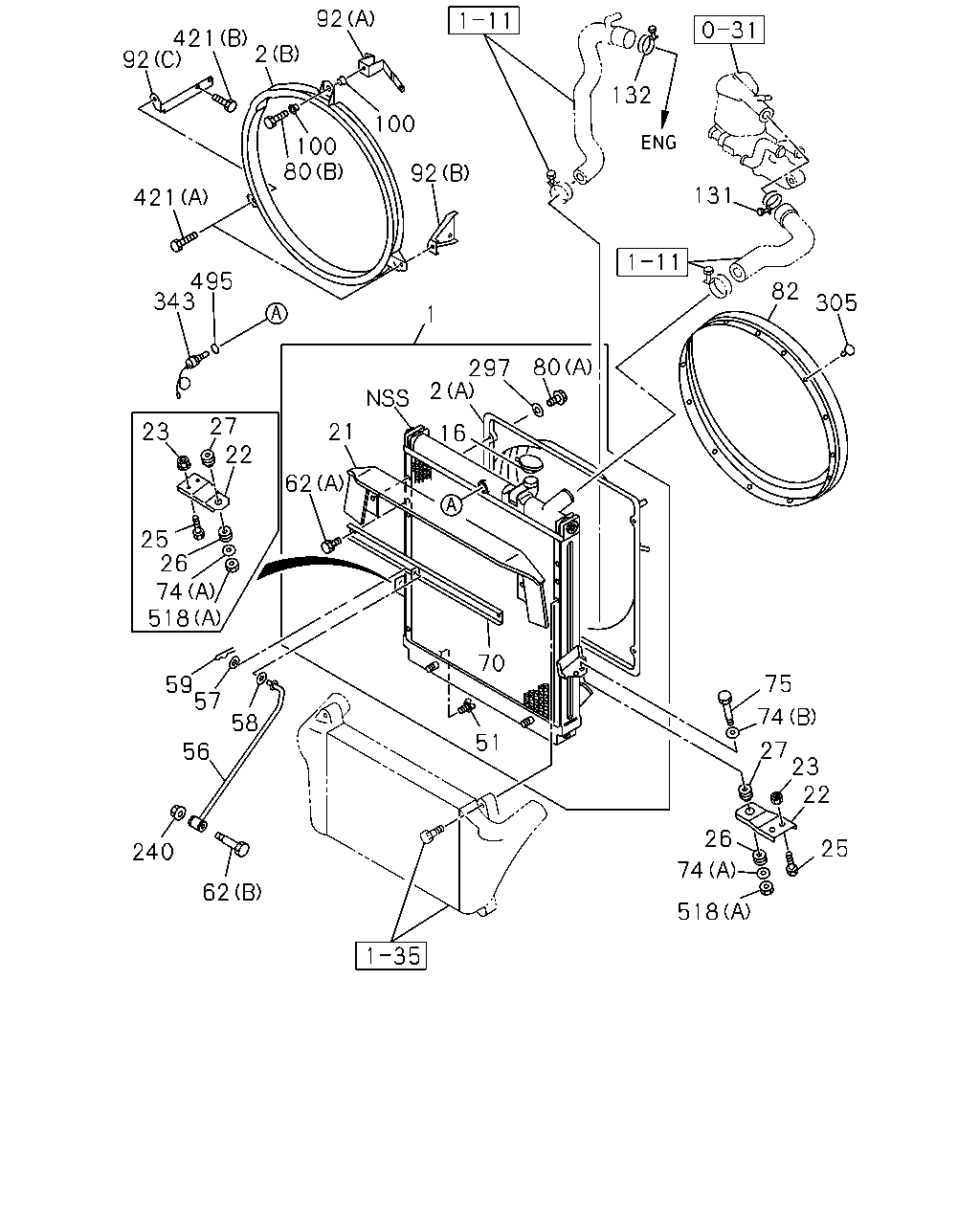

92 421 2 92 132 100 100 80 92 131 421 495 343 1 305 80 2 16 27 22 23 21 62 25 26 74 518 518 82 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-97377-241-0	01	1	0502-		●
1	01.219 RADIATOR ASM	8-97354-363-0	01	1	0211-0501		●	●	●	●
1	01.219 RADIATOR ASM FLOOR REMOTE SHIFT<M11>	8-97354-363-0	01	1	0211-0501	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-1	01	1	0502-	●		●	●	●
1	01.219 RADIATOR ASM EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-1	01	1	0211-0501	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-1	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97218-802-1	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97333-268-0	01	1	0502-	●	●
2	01.277 GUIDE; FAN (B)	8-97068-803-0	01	1	0211-0501	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97068-803-0	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN (A)	8-97218-802-1	01	1	0211-0501	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97350-995-0	01	1	0502-	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0211-	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0502-	●	●
21	01.276 SEAL; RAD	8-97218-801-1	01	1	0211-0501	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-1	01	1	0502-	●		●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0502-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-280-0	01	1	0502-		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0502-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-281-0	01	1	0502-		●
22	01.270 BRACKET; RAD MTG	8-97074-093-0	02	1	0211-0501	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0502-	●		●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0211-0501	●	●	●	●	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-	●		●	●	●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0502-	●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0502-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0501	●	●	●	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●		●	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●		●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0502-	●	●
51	08.951 PLUG; DRAIN W/GASKET	1-09609-023-0	01	1	0211-0501	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0502-	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0502-	●	●
56	01.270 STAY; RAD	8-97073-424-2	01	1	0211-0501	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0502-	●		●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0211-	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0502-	●	●
70	01.271 STAY; RAD	8-97073-125-0	01	1	0211-0501	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0502-	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0501	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0502-0610	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-0501	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●		●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-0501	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0502-	●		●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0211-0512	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0806	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0211-	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0502-	●	●
82	01.277 COVER; FAN,RAD	8-97218-799-0	01	1	0211-0501	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97148-940-0	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE (C)	8-97148-941-1	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE (A)	8-97189-394-1	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0502-	●		●	●	●
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	0211-	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0211-	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0211-	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE	1-09470-009-0	12	1	0211-	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL M18X12	1-09604-081-0	01	1	0211-0501	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0502-	●		●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0211-	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0211-0512	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●	●
495	01.274 GASKET; SENSOR 01.097	1-09623-185-0	01	1	0211-0501	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0502-	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●
518	01.270 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0211-0501	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0502-0610	●	●	●	●	●

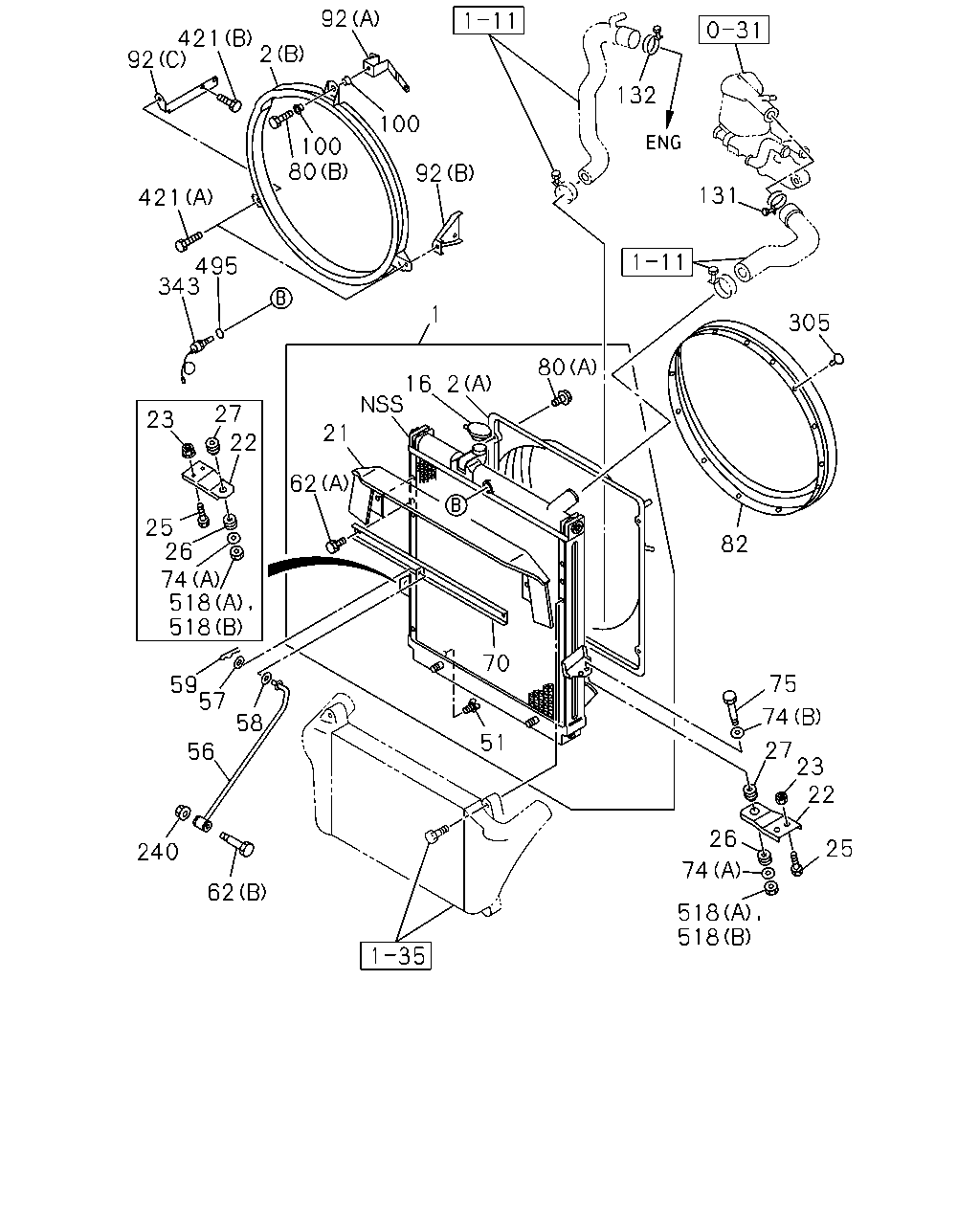

92 421 2 92 132 100 100 80 92 131 421 495 343 82 305 1 80 297 2 27 22 23 21 16 62 25 26 74 518 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-97377-241-0	01	1	0502-		●
1	01.219 RADIATOR ASM	8-97354-363-0	01	1	0211-0501		●	●	●	●
1	01.219 RADIATOR ASM FLOOR REMOTE SHIFT<M11>	8-97354-363-0	01	1	0211-0501	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-1	01	1	0502-	●		●	●	●
1	01.219 RADIATOR ASM EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-1	01	1	0211-0501	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-1	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97218-802-1	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97333-268-0	01	1	0502-	●	●
2	01.277 GUIDE; FAN (B)	8-97068-803-0	01	1	0211-0501	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97068-803-0	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN (A)	8-97218-802-1	01	1	0211-0501	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97350-995-0	01	1	0502-	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0211-	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0502-	●	●
21	01.276 SEAL; RAD	8-97218-801-1	01	1	0211-0501	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-1	01	1	0502-	●		●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0502-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-280-0	01	1	0502-		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0502-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-281-0	01	1	0502-		●
22	01.270 BRACKET; RAD MTG	8-97074-093-0	02	1	0211-0501	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0502-	●		●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0211-0501	●	●	●	●	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-	●		●	●	●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0502-	●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0502-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0501	●	●	●	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●		●	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●		●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0502-	●	●
51	08.951 PLUG; DRAIN W/GASKET	1-09609-023-0	01	1	0211-0501	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0502-	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0502-	●	●
56	01.270 STAY; RAD	8-97073-424-2	01	1	0211-0501	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0502-	●		●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0211-	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0502-	●	●
70	01.271 STAY; RAD	8-97073-125-0	01	1	0211-0501	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0502-	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0501	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0502-0610	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-0501	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●		●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-0501	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ) 01.274 M8X63	8-94249-446-0	01	1	0502-	●		●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0211-0512	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0806	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0211-	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0502-	●	●
82	01.277 COVER; FAN,RAD	8-97218-799-0	01	1	0211-0501	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97148-940-0	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE (C)	8-97148-941-1	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE (A)	8-97189-394-1	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0502-	●		●	●	●
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	0211-	●	●	●	●	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0211-	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0211-	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●	●	●	●
297	01.277 WASHER; PL,FAN GUIDE 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0211-0501	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE	1-09470-009-0	12	1	0211-	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL M18X12	1-09604-081-0	01	1	0211-0501	●	●	●	●	●
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0502-	●		●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0211-	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0211-0512	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●	●
495	01.274 GASKET; SENSOR 01.097	1-09623-185-0	01	1	0211-0501	●	●	●	●	●
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0502-	●		●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●
518	01.270 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0211-0501	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0502-0610	●	●	●	●	●

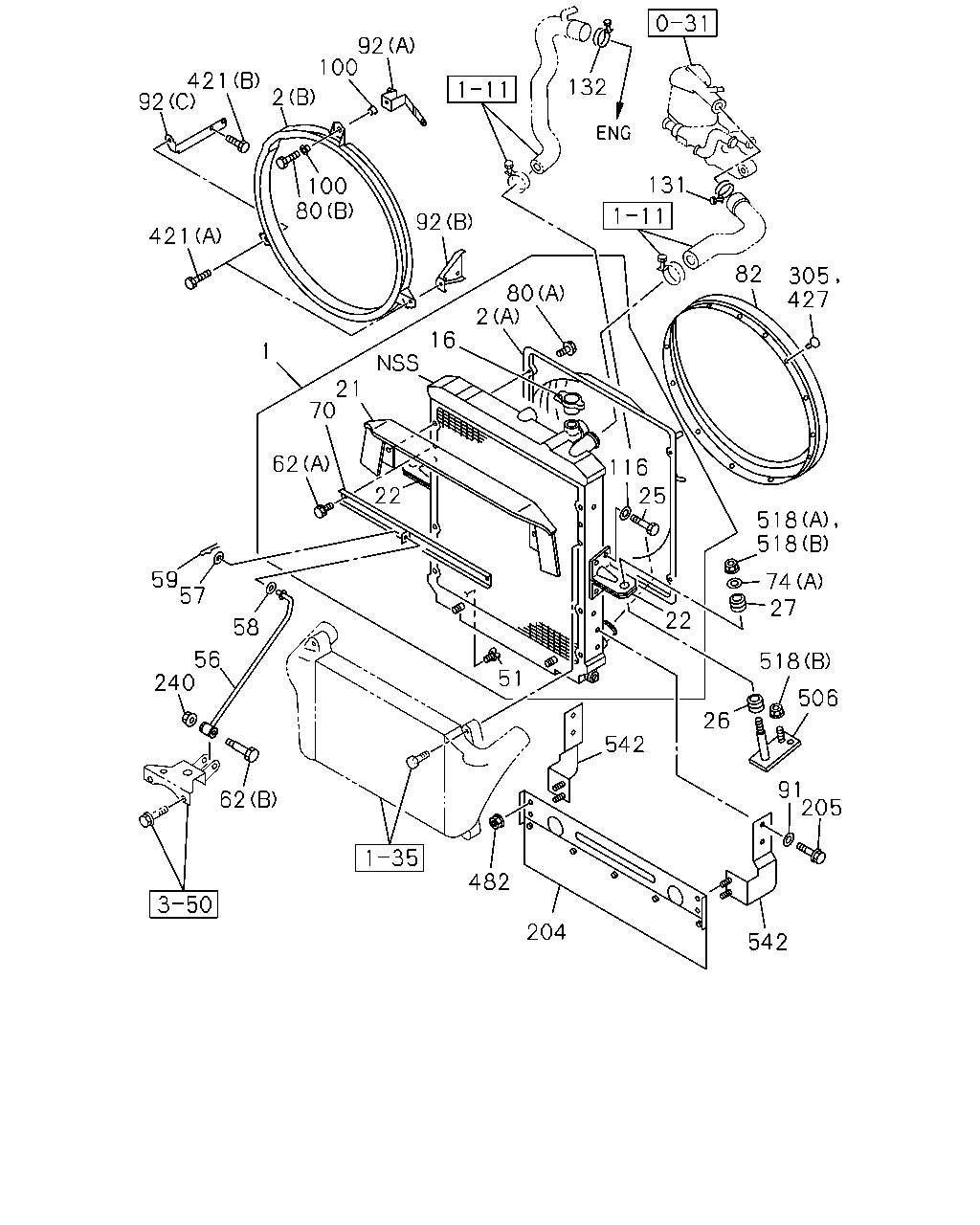

92 100 421 92 132 2 131 100 80 92 421 82 305 427 80 2 16 1 21 70 62 116 22 25 518 518 59 57 74 27 22 58 56 240 518 51 506 26 542 91 205 62 482 204 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-918-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-241-0	01	1	0502-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-97377-241-0	01	1	0502-		●
1	01.219 RADIATOR ASM	8-97354-363-0	01	1	0211-0501		●	●	●	●
1	01.219 RADIATOR ASM FLOOR REMOTE SHIFT<M11>	8-97354-363-0	01	1	0211-0501	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-236-1	01	1	0502-	●		●	●	●
1	01.219 RADIATOR ASM EXC. FLOOR REMOTE SHIFT<M11>	8-97354-364-1	01	1	0211-0501	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97377-237-1	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (A)	8-97218-802-1	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (A)	8-97333-268-0	01	1	0502-	●	●
2	01.277 GUIDE; FAN (B)	8-97068-803-0	01	1	0211-0501	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (B)	8-97068-803-0	01	1	0502-	●		●	●	●
2	01.277 GUIDE; FAN (A)	8-97218-802-1	01	1	0211-0501	●	●	●	●	●
2	01.277 GUIDE; FAN 4HK1-TCS ENG(RJS) (B)	8-97350-995-0	01	1	0502-	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0211-	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS) 01.277	8-97332-382-0	01	1	0502-	●	●
21	01.276 SEAL; RAD	8-97218-801-1	01	1	0211-0501	●	●	●	●	●
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-1	01	1	0502-	●		●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-280-0	01	1	0502-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-280-0	01	1	0502-		●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-281-0	01	1	0502-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS)	8-97333-281-0	01	1	0502-		●
22	01.270 BRACKET; RAD MTG	8-97074-093-0	02	1	0211-0501	●	●	●	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97074-093-0	02	1	0502-	●		●	●	●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0502-	●
25	01.271 BOLT; BRKT 4HK1-TCS ENG(RJS) 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0502-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0501	●	●	●	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●		●	●	●
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●		●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCS ENG(RJS) W/GASKET	8-97171-437-0	01	1	0502-	●	●
51	08.951 PLUG; DRAIN W/GASKET	1-09609-023-0	01	1	0211-0501	●	●	●	●	●
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0502-	●		●	●	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-97032-802-2	01	1	0502-	●	●
56	01.270 STAY; RAD	8-97073-424-2	01	1	0211-0501	●	●	●	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-424-2	01	1	0502-	●		●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0211-	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-97333-269-0	01	1	0502-	●	●
70	01.271 STAY; RAD	8-97073-125-0	01	1	0211-0501	●	●	●	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97073-125-0	01	1	0502-	●		●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0501	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0502-0610	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-0501	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●		●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0211-0512	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0806	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-	●	●	●	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0211-	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-97332-330-0	01	1	0502-	●	●
82	01.277 COVER; FAN,RAD	8-97218-799-0	01	1	0211-0501	●	●	●	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0502-	●		●	●	●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0502-0605	●	●
91	01.277 WASHER; PL 4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97350-996-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (C)	8-97350-997-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (B)	8-97350-998-0	01	1	0502-	●	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97148-940-0	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE (C)	8-97148-941-1	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0502-	●		●	●	●
92	01.277 BRACKET; FAN GUIDE (A)	8-97189-394-1	01	1	0211-0501	●	●	●	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0502-	●		●	●	●
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	0211-	●	●	●	●	●
116	01.270 WASHER; PL,BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4	9-09160-508-0	08	1	0502-	●
116	01.270 WASHER; PL,BRKT 4HK1-TCS ENG(RJS) 16.674 ID=8.4	9-09160-508-0	08	1	0502-		●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0211-	●	●	●	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0211-	●	●	●	●	●
204	01.267 GUIDE ASM; AIR 4HK1-TCS ENG(RJS)	8-97332-962-1	01	1	0502-	●	●
205	01.267 BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	0502-0512	●	●
205	01.267 BOLT; AIR GUIDE 4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE	1-09470-009-0	12	1	0211-	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0211-	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0211-0512	●	●	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	0502-	●	●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 04.594 M6 FLANGE	0-91150-106-0	04	1	0502-0602	●	●
482	01.277 NUT; AIR GUIDE 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
506	01.277 PLATE; RAD 4HK1-TCS ENG(RJS)	8-97330-527-1	02	1	0502-	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●
518	01.270 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●	●	●
518	01.270 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0211-0501	●	●	●	●	●
518	01.270 NUT 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	0502-0610	●	●	●	●	●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-963-0	01	1	0502-	●	●
542	01.277 BRACKET; AIR GUIDE 4HK1-TCS ENG(RJS)	8-97332-964-0	01	1	0502-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
