1-01 — ACCELERATOR PEDAL AND CONTROL (#34275) — 125 parça

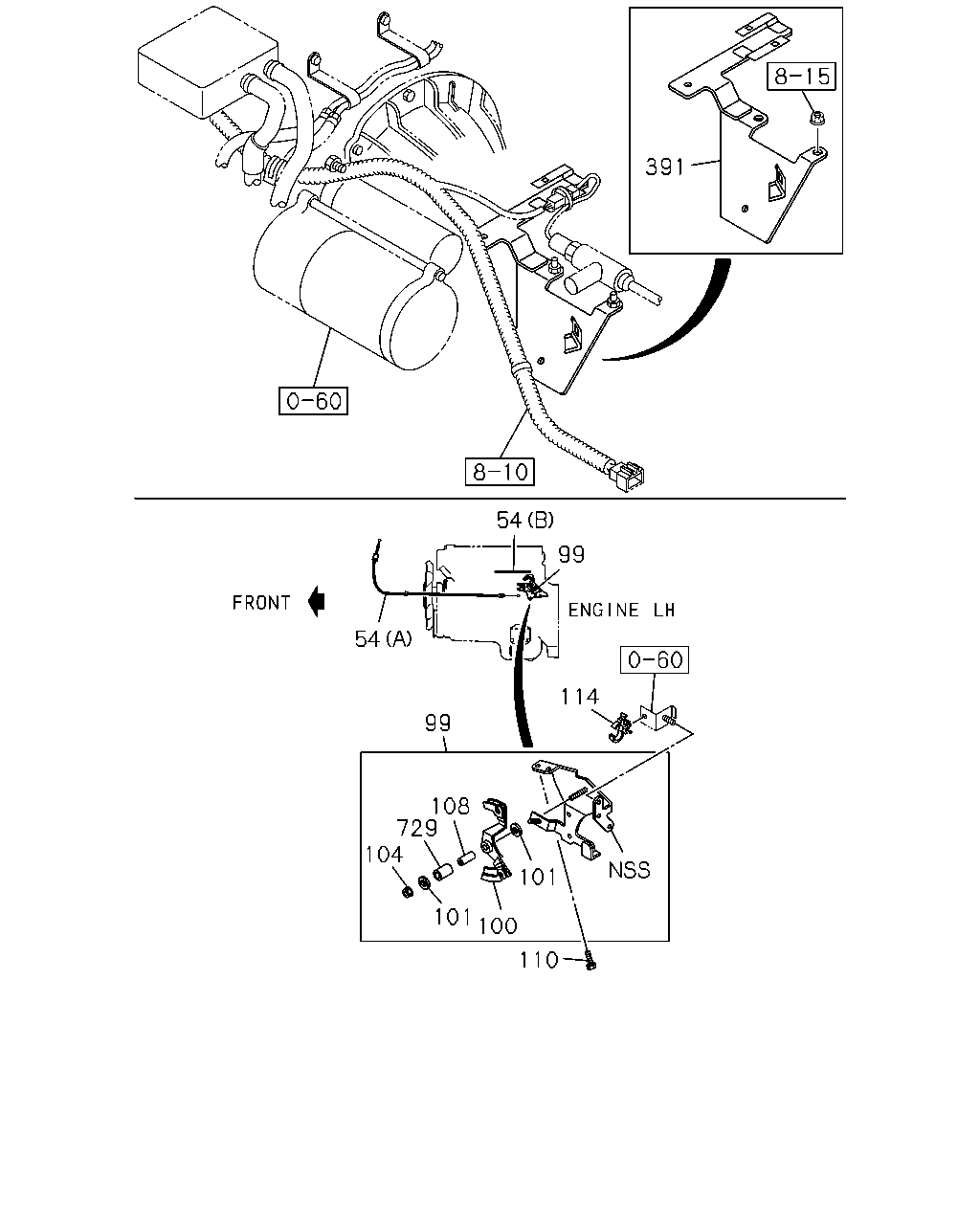

391 54 99 54 114 99 108 729 104 101 101 100 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	03.430 CABLE; ENG CONT (A) L=3078	8-97148-584-3	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0211-0501	●	●	●	●	●
54	03.430 CABLE; ENG CONT (A) L=3078	8-97225-573-1	01	1	0211-0501					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97167-871-3	01	1	0211-0501	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97225-505-0	01	1	0211-0501	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT	8-97167-870-2	01	1	0211-0501	●	●	●	●	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0211-0501	●	●	●	●	●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0211-0501	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 02.559 ID=7-10	8-94472-578-0	01	1	0211-0501	●	●	●	●	●
391	03.452 BRACKET; ENG CONT	8-97357-141-0	01	1	0211-0501	●		●	●	●
391	03.452 BRACKET; ENG CONT FLOOR REMOTE SHIFT<M11>	8-97357-141-0	01	1	0211-0501		●
391	03.452 BRACKET; ENG CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0502-	●	●	●	●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0211-0501	●	●	●	●	●

389 395 316 389 54 60 320 389 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	03.430 CABLE; ENG CONT (A) L=3078	8-97148-584-3	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT (B) L=384	8-97168-299-1	01	1	0211-0501	●	●	●	●	●
54	03.430 CABLE; ENG CONT (A) L=3078	8-97225-573-1	01	1	0211-0501					●
60	08.155 BOLT; CABLE EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
60	08.155 BOLT; CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0211-0501	●	●	●	●	●
320	03.483 CLIP; FRAME EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) 02.559 L=250	5-09707-030-1	01	1	0211-0501	●	●	●	●	●

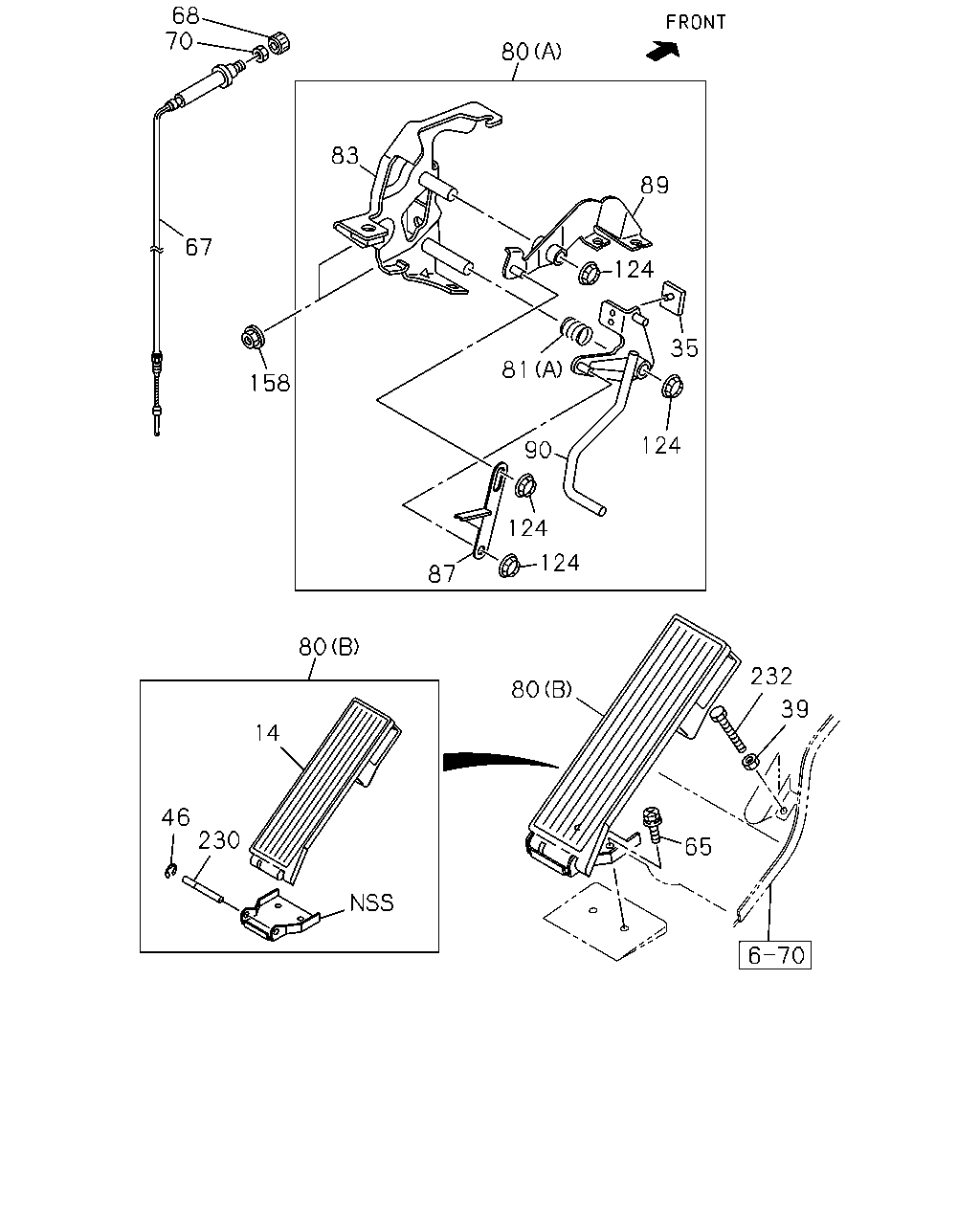

68 70 80 83 89 67 124 35 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0211-0501	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0211-0501	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-0501	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	0211-0501		●
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-6	01	1	0502-	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0211-0501	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-AISIN(RNJ) (B)	8-97857-168-0	01	1	0211-0501		●
83	03.452 BRACKET; CONT LINK M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501	●	●	●	●	●
83	03.452 BRACKET; CONT LINK A/T 4 SPEED-AISIN(RNJ)	8-97853-369-5	01	1	0211-0501		●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0211-0501	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97581-415-5	01	1	0502-	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501	●	●	●	●	●
89	03.454 LEVER; RELAY A/T 4 SPEED-AISIN(RNJ)	8-97868-043-0	01	1	0211-0501		●
90	03.454 LEVER; RELAY,ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT A/T 4 SPEED-AISIN(RNJ)	8-97868-041-0	01	1	0211-0501		●
124	03.463 NUT; LEVER M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0501	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-AISIN(RNJ) ID=4.9 PUSH NUT	8-94279-042-0	04	1	0211-0501		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL A/T 4 SPEED-AISIN(RNJ) M8X45	8-97584-796-0	01	1	0405-0501		●

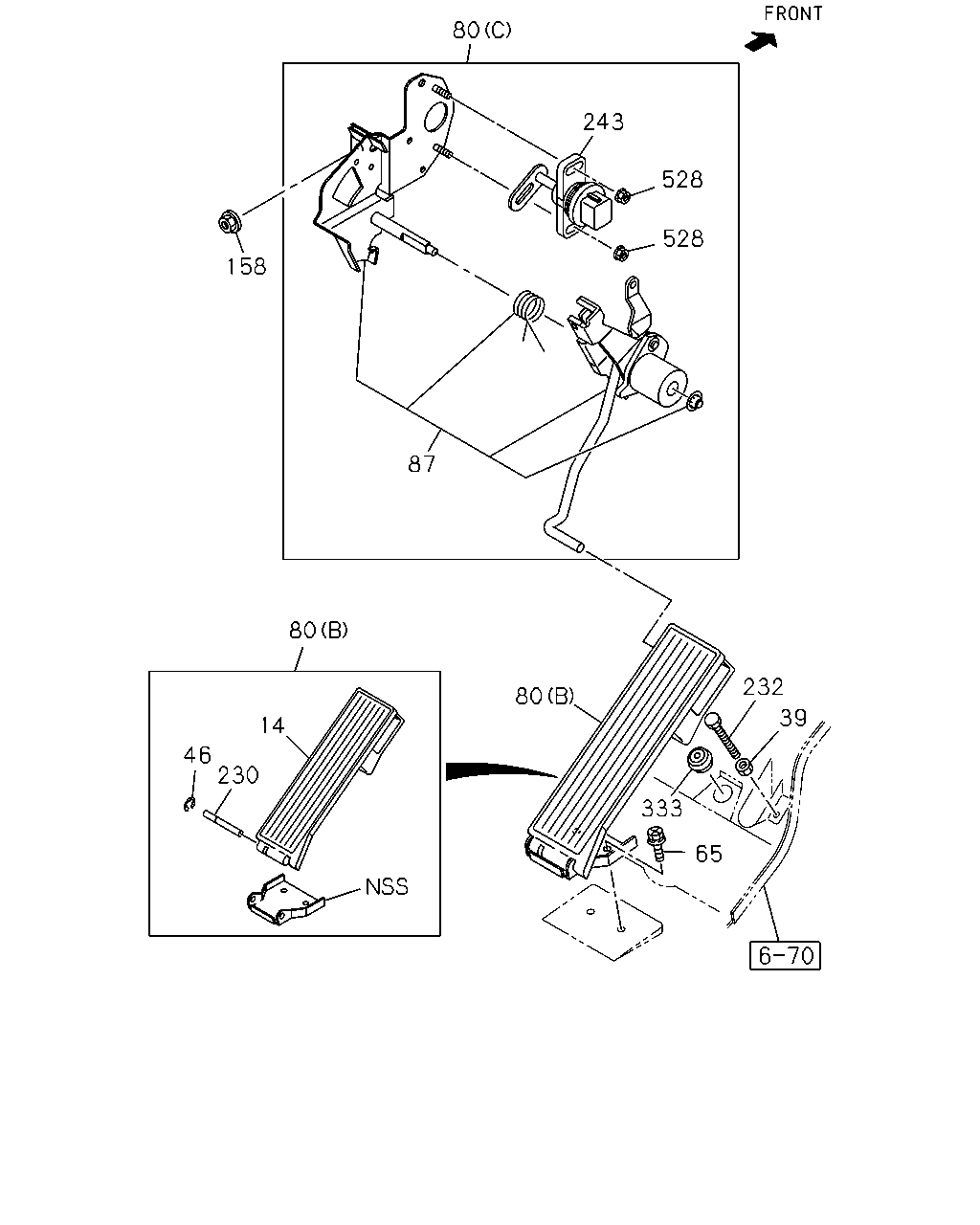

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	0211-0501		●
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-6	01	1	0502-	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0211-0501	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97581-415-5	01	1	0502-	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL A/T 4 SPEED-AISIN(RNJ) M8X45	8-97584-796-0	01	1	0405-0501		●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0502-	●	●	●	●	●
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0502-	●	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0502-	●	●	●	●	●

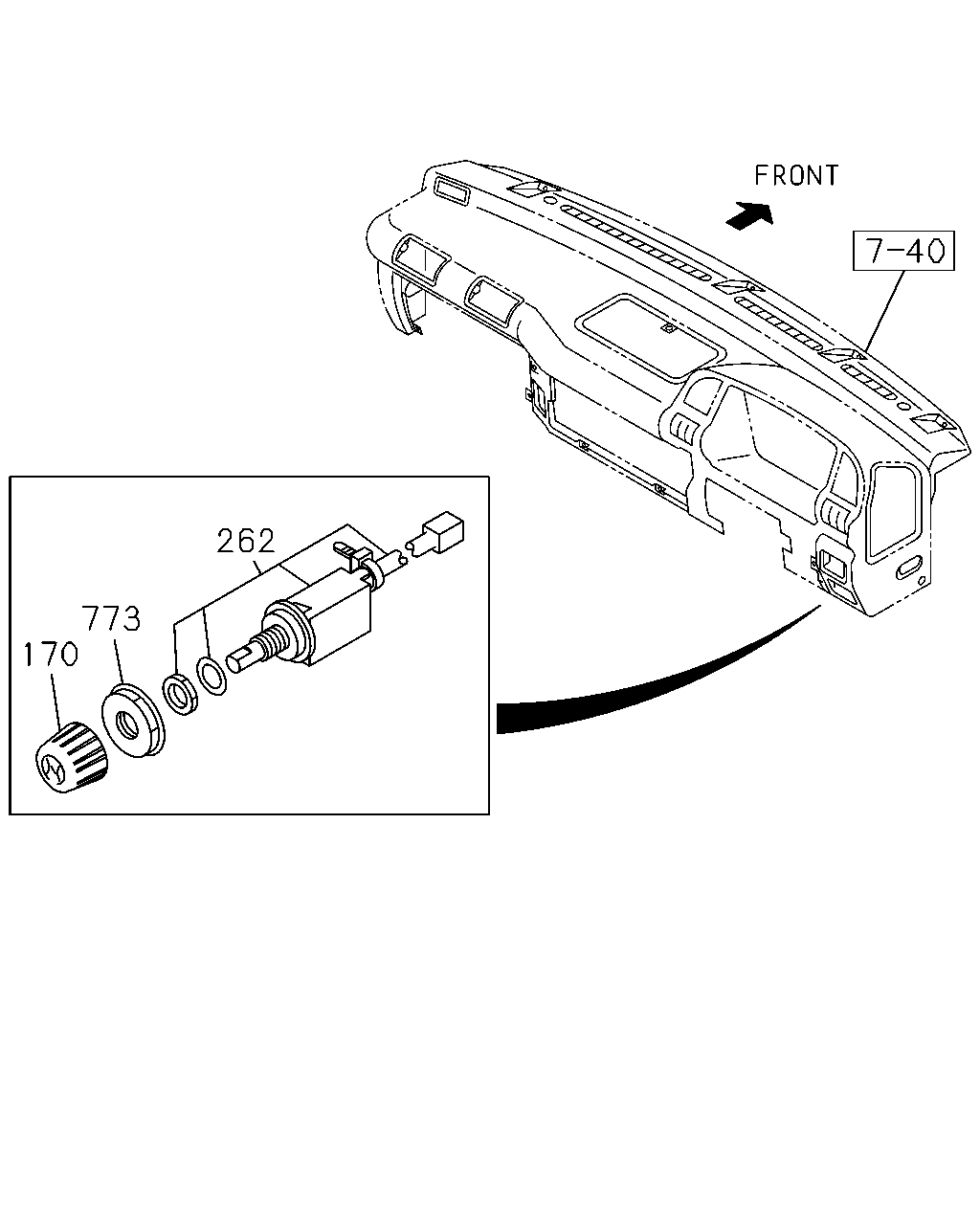

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
170	03.480 KNOB	8-97310-165-0	01	1	0502-	●	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE	8-97215-119-1	01	1	0502-	●	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0502-	●	●	●	●	●

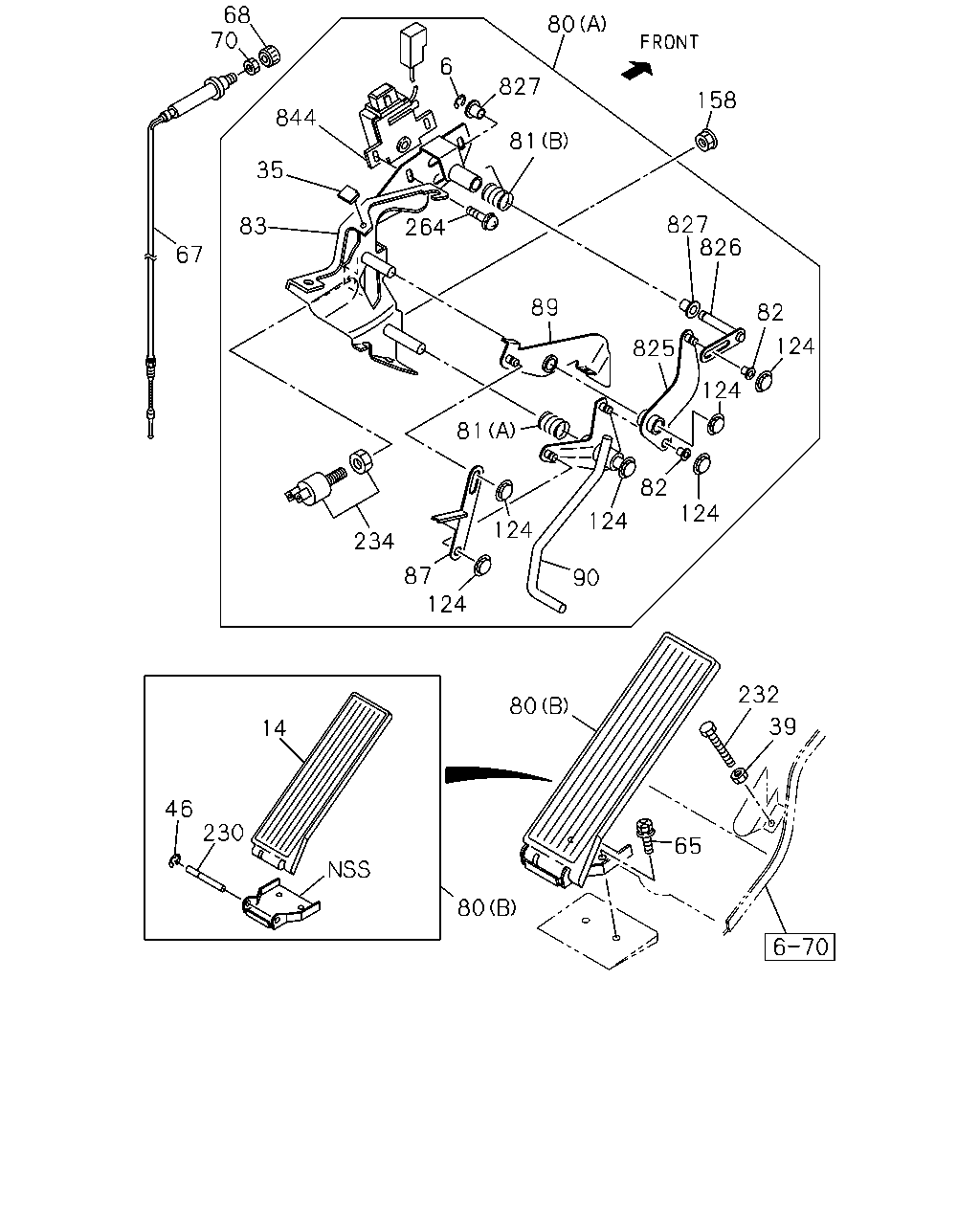

68 70 80 6 827 158 844 81 35 827 826 83 264 67 89 82 124 825 124 81 82 124 124 124 234 87 124 90 232 80 39 14 46 230 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	03.880 RING; SNAP,LINK TO LINK A/T 4 SPEED-AISIN(RNJ) 04.040 ID=6	9-09185-406-0	01	1	0211-0501		●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0211-0501	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0604	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0211-0501	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-0501	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	0211-0501		●
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-6	01	1	0502-	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0211-0501	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER A/T 4 SPEED-AISIN(RNJ) (B)	8-97857-168-0	01	1	0211-0501		●
82	03.463 BUSHING; ENG CONT LVR A/T 4 SPEED-AISIN(RNJ)	8-97044-236-0	02	1	0211-0501		●
83	03.452 BRACKET; CONT LINK M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501	●	●	●	●	●
83	03.452 BRACKET; CONT LINK A/T 4 SPEED-AISIN(RNJ)	8-97853-369-5	01	1	0211-0501		●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0211-0501	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97581-415-5	01	1	0502-	●	●	●	●	●
89	03.454 LEVER; RELAY M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501	●	●	●	●	●
89	03.454 LEVER; RELAY A/T 4 SPEED-AISIN(RNJ)	8-97868-043-0	01	1	0211-0501		●
90	03.454 LEVER; RELAY,ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT A/T 4 SPEED-AISIN(RNJ)	8-97868-041-0	01	1	0211-0501		●
124	03.463 NUT; LEVER M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0501	●	●	●	●	●
124	03.463 NUT; LEVER A/T 4 SPEED-AISIN(RNJ) ID=4.9 PUSH NUT	8-94279-042-0	04	1	0211-0501		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL A/T 4 SPEED-AISIN(RNJ) M8X45	8-97584-796-0	01	1	0405-0501		●
234	03.452 SWITCH; ACCEL A/T 4 SPEED-AISIN(RNJ)	8-97855-058-0	01	1	0211-0501		●
264	03.425 SCREW; ACCEL SW A/T 4 SPEED-AISIN(RNJ) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	0211-0501		●
825	03.454 LEVER; RELAY,TPS A/T 4 SPEED-AISIN(RNJ)	8-97868-044-0	01	1	0211-0501		●
826	03.454 LEVER ASM; TPS A/T 4 SPEED-AISIN(RNJ)	8-97853-371-2	01	1	0211-0501		●
827	03.463 BUSHING; LEVER,TPS A/T 4 SPEED-AISIN(RNJ) 16.585 OD=9.9	8-94279-701-3	02	1	0211-0501		●
844	03.452 SWITCH; THROTTLE VLV A/T 4 SPEED-AISIN(RNJ)	8-97112-742-0	01	1	0211-0501		●
