◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#34274) — 13 parça

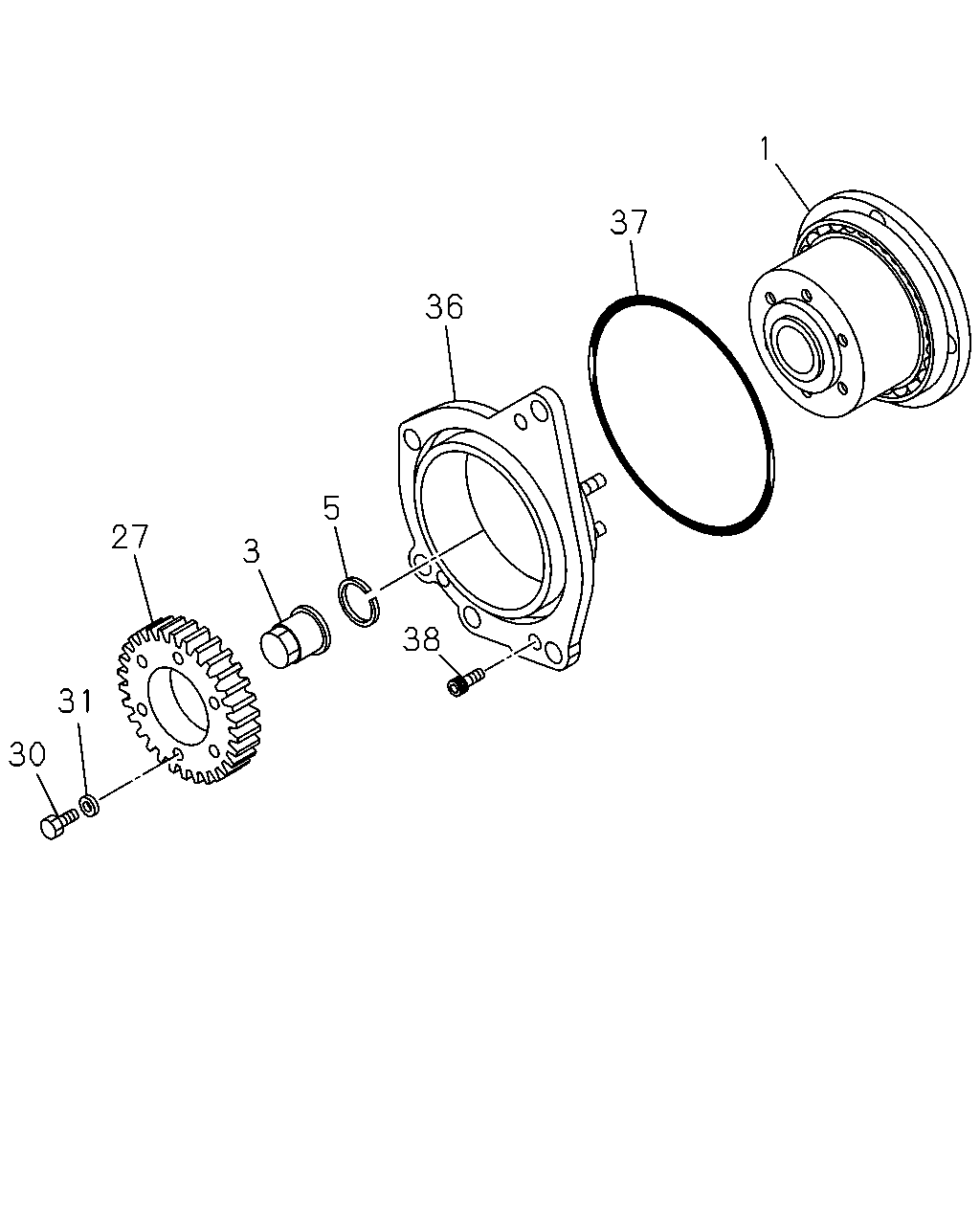

çizim 34144
1 37 36 5 27 3 38 31 30
BalonParca AdiParca NoAdetTipApplied Date
1 03.340 COUPLING; INJ PUMP DRIVE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97202-358-4 01 1 0211-0211
1 03.340 COUPLING; INJ PUMP DRIVE
ENGINE POWER N-SPEC(7QV) 		8-97202-359-4 01 1 0211-0211
1 03.340 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0212-0501
3 03.340 NUT; COUPLING FIX,INJ PUMP 1-15749-144-0 01 1 0211-0501
5 03.340 WASHER; COUPLING FIX,INJ PUMP 1-15749-145-0 01 1 0211-0501
27 03.340 GEAR; COUPLING
EXC. ENGINE POWER N-SPEC(7QV) 		8-97212-191-0 01 1 0211-0211
27 03.340 GEAR; COUPLING
ENGINE POWER N-SPEC(7QV) 		8-97212-190-0 01 1 0211-0211
27 03.340 GEAR; COUPLING 8-97367-803-0 01 1 0212-0501
30 03.340 BOLT; GEAR TO COUPLING 8-97211-798-0 06 1 0211-0501
31 03.340 WASHER; PL,GEAR TO COUPLING 8-97211-797-0 06 1 0211-0501
36 03.340 COVER; COUPLING 8-97202-360-2 01 1 0211-0501
37 03.340 GASKET; COUPLING 8-97201-279-0 01 1 0211-0501
38 03.340 BOLT; COVER,COUPLING 1-09054-035-0 03 1 0211-0501
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
