0-81 — GOVERNOR; INJECTION PUMP (#34270) — 265 parça

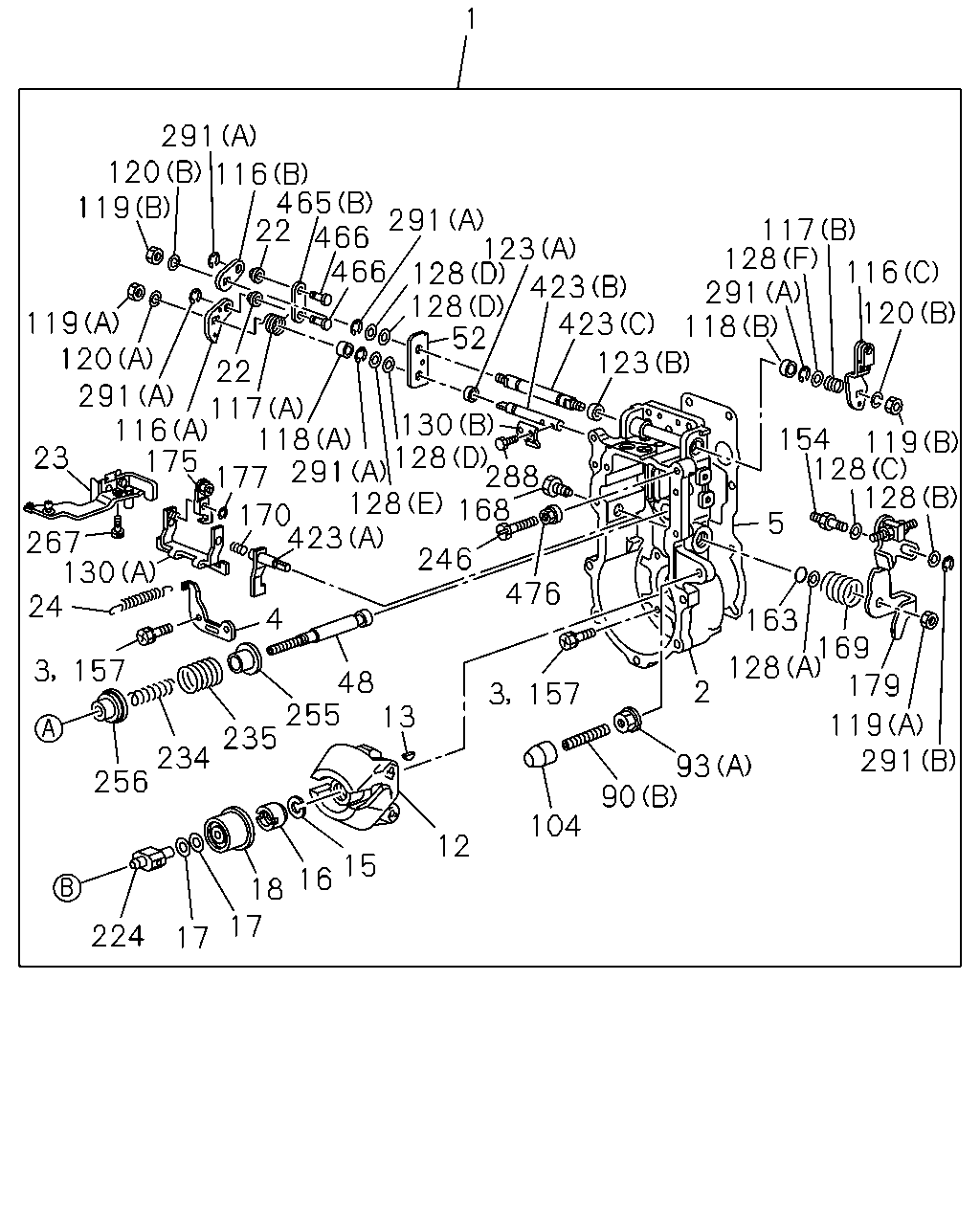

çizim 98814
1 291 120 119 116 465 22 466 466 291 123 128 128 119 52 120 22 291 117 116 130 118 175 128 291 288 128 170 168 423 117 128 291 118 123 116 423 423 120 154 119 128 128 23 177 5 267 130 24 246 476 4 163 169 128 3 157 48 255 13 235 234 256 179 2 3 157 119 291 93 90 104 12 15 16 18 17 224 17
BalonParca AdiParca NoAdetTipApplied Date
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-97212-188-1, 97212188 		8-97213-288-1 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186 		8-97215-868-1 01 1 -
2 03.308 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-060-0 01 1 -
3 03.318 BOLT; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-226-0 08 1 -
4 03.306 PLATE; START SPRING,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-524-0 01 1 -
5 03.308 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-136-0 01 1 -
12 03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-344-0 01 1 -
13 03.308 KEY; FLYWEIGHT,GOV
13MM ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-030-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-034-0 01 1 -
16 03.308 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-086-0 01 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-891-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-892-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-893-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-286-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-287-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-088-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-551-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-552-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-553-0 AR 1 -
18 03.308 SLEEVE; GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-372-0 01 1 -
22 03.308 COLLAR; LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-157-0 02 1 -
23 03.308 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-900-1 01 1 -
24 03.308 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-450-0 01 1 -
48 03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-240-0 01 1 -
52 03.308 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-071-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), M10X70 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-248-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), L=53 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-296-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M8X50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-123-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M8X54 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-124-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M8X86 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-125-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M10X58 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-127-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M10X68.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-128-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-347-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), ID=18 L=54 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-348-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), L=58 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-349-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), L=62 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-350-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), L=68.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-351-0 01 1 -0211
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97160-586-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-133-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-134-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-158-0 02 1 -
116 03.300 LEVER; ENG STOP,GOV
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-064-0 01 1 -
116 03.300 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-068-0 01 1 -
116 03.300 LEVER; ENG STOP,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-069-0 01 1 -
117 03.308 SPRING; STOP LEVER,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-072-0 01 1 -
117 03.308 SPRING; STOP LEVER,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-078-1 01 1 -
118 03.308 COLLAR; CONT SHAFT,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-389-0 01 1 -
118 03.308 COLLAR; CONT SHAFT,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-155-1 01 1 -
119 03.308 NUT; ENG STOP LEVER,GOV
03.318, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-006-0 02 1 -
119 03.308 NUT; ENG STOP LEVER,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-236-0 02 1 -
120 03.308 WASHER; LK,SPD ADJ LEVER,GOV
09.181, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-83579-492-0 01 1 -
120 03.308 WASHER; LK,SPD ADJ LEVER,GOV
00.206, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09150-506-0 02 1 -
123 03.308 SEAL; OIL,CONT SHAFT,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-282-0 01 1 -
123 03.308 SEAL; OIL,CONT SHAFT,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15619-024-0 02 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.60 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-897-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.80 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-898-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.90 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-899-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15749-097-0 01 1 -
128 03.306 SHIM; CONT SHAFT,GOV
03.330, (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15749-099-0 01 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(D), T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-230-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(D), T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-231-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(E) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-388-0 01 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(F) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-152-0 01 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-556-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.30 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-557-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.40 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-558-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.25 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-559-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.35 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-560-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-88410-421-0 AR 1 -
130 03.306 LEVER; CONT,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-895-0 01 1 -
130 03.306 LEVER; CONT,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-063-0 01 1 -
154 03.308 BOLT; GOV HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-147-0 01 1 -
157 03.308 BOLT; START SPRING PLATE,GOV
03.318 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-226-0 02 1 -
163 03.306 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-227-0 01 1 -
168 03.306 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-285-0 01 1 -
169 03.306 SPRING; LEVER SET,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-548-0 01 1 -
170 03.306 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15723-033-0 01 1 -
175 03.306 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-893-0 01 1 -
177 03.306 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94324-735-0 01 1 -
179 03.308 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97212-766-0 01 1 -
224 03.308 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-334-0 01 1 -
234 03.308 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-500-0 01 1 -
235 03.308 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-517-0 01 1 -
246 03.306 BOLT; GOV
03.308, M6X42 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-104-0 01 1 -
255 03.308 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-241-0 01 1 -
256 03.308 SEAT; GOV SPRING
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-242-0 01 1 -
267 03.308 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15749-747-0 01 1 -
288 03.308 BOLT; LEVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-197-0 02 1 -
291 03.308 RING; SNAP,CONT SHAFT,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-196-0 05 1 -
291 03.308 RING; SNAP,CONT SHAFT,GOV
03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94244-599-0 01 1 -
423 03.306 SHAFT; CONT,GOV HSG,INJ PUMP
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-525-0 01 1 -
423 03.306 SHAFT; CONT,GOV HSG,INJ PUMP
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-070-0 01 1 -
423 03.306 SHAFT; CONT,GOV HSG,INJ PUMP
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-151-1 01 1 -
465 03.308 LINK; GOVERNOR
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-146-0 01 1 -
465 03.308 LINK; GOVERNOR
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-154-0 01 1 -
466 03.308 PIN; LINK
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-156-0 02 1 -
476 03.308 NUT; HSG,GOVERNOR
03.162 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-153-0 01 1 -

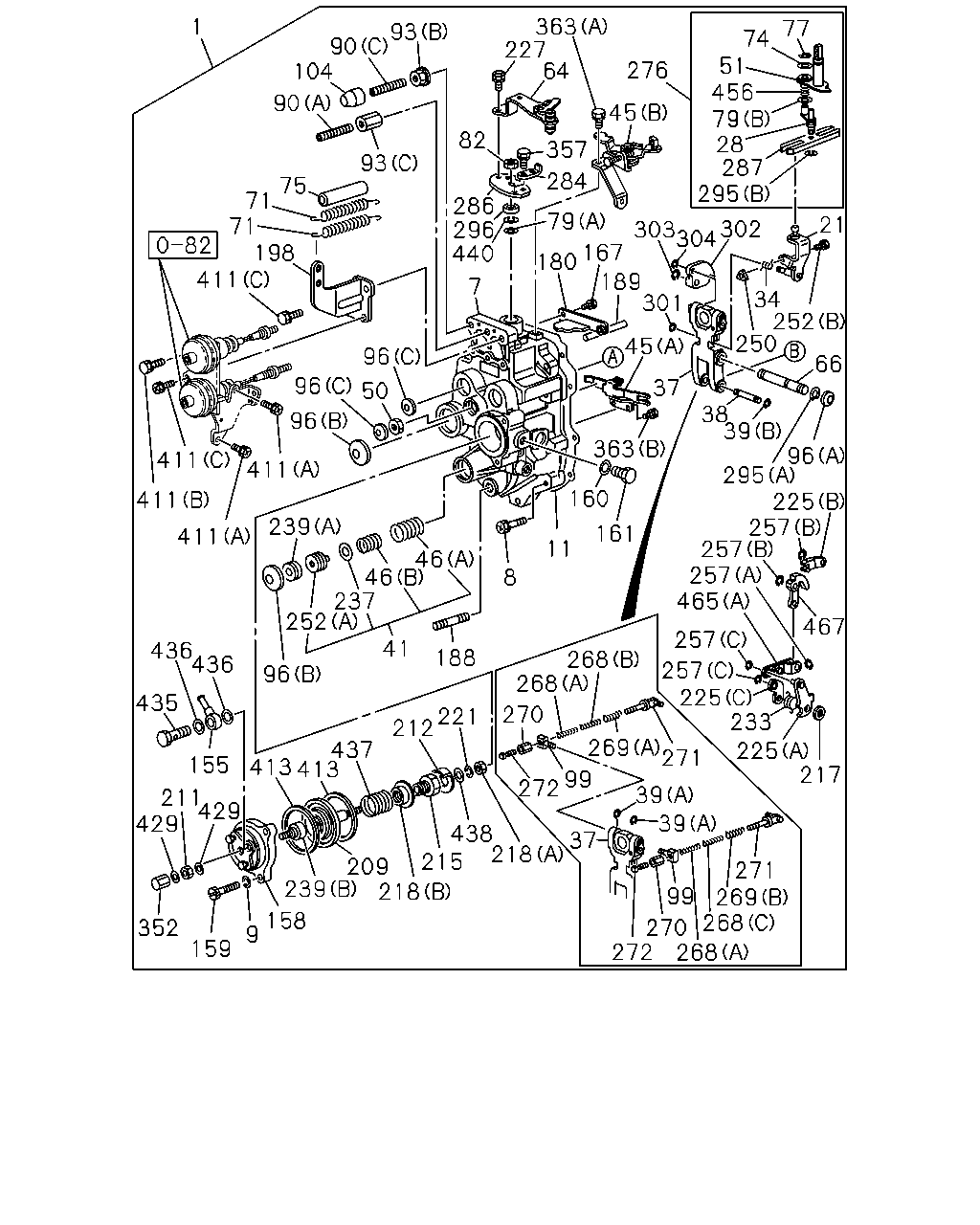

çizim 98816
363 227 64 1 77 93 90 104 74 51 456 79 28 287 295 276 90 45 82 357 93 284 75 71 71 198 411 286 296 440 79 21 303 302 304 167 180 189 301 7 34 252 250 45 96 66 96 37 50 38 39 96 295 225 257 257 257 465 96 411 363 411 160 411 239 161 411 11 46 46 237 252 8 467 257 41 436 436 188 268 268 257 225 233 96 435 270 221 212 269 271 437 413 413 225 217 155 99 272 39 211 429 429 39 438 218 215 37 209 239 218 271 268 158 270 352 9 159 272 268 99 269
BalonParca AdiParca NoAdetTipApplied Date
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-97212-188-1, 97212188 		8-97213-288-1 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186 		8-97215-868-1 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-079-0 01 1 -0211
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97329-808-0 01 1 0212-
8 01.531 BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-033-0 09 1 -
9 03.308 WASHER; LK,GOV COVER
00.206, ID=6.1 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09150-506-0 03 1 -
11 03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-137-0 01 1 -
21 03.308 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-081-0 01 1 -
28 03.308 LEVER; SUPPORTING,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-780-0 01 1 -
34 03.308 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-549-0 01 1 -
37 03.308 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-080-0 01 1 -
38 03.308 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-271-0 01 1 -
39 03.308 RING; SNAP,LEVER PIN,GOV
03.485, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-09588-170-0 02 1 -
39 03.308 RING; SNAP,LEVER PIN,GOV
03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94244-599-0 02 1 -
41 03.308 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-132-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-819-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-150-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-481-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-075-0 01 1 -
50 03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94171-147-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-528-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-86647-319-0 01 1 -
66 03.308 SHAFT; LEVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-234-0 01 1 -
71 03.306 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-076-0 02 1 -
74 03.330 WASHER; LEVER SPR
03.308 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-232-0 01 1 -
75 03.308 TUBE; RETURN SPRING,STOPPER LEVE
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-141-0 02 1 -
77 03.308 RING; SNAP,CONT LEVER,GOV
03.320 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-023-0 01 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-988-0 01 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-232-0 01 1 -
82 03.308 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-236-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), M10X70 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-248-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), L=53 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-296-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M8X50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-123-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M8X54 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-124-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M8X86 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-125-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M10X58 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-127-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), M10X68.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-128-0 01 1 0212-
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-347-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), ID=18 L=54 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-348-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), L=58 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-349-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), L=62 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-350-0 01 1 -0211
90 03.308 SCREW; FULL LOAD ADJ,GOV
(C), L=68.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-351-0 01 1 -0211
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97160-586-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-133-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-134-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-293-0 02 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-076-0 02 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94171-148-0 03 1 -
99 03.308 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-082-0 02 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-158-0 02 1 -
155 03.308 JOINT; HOSE,HSG
03.326 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94171-178-0 01 1 -
158 03.308 COVER; GOV HSG
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97160-589-0 01 1 -
159 03.308 BOLT; COVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-505-0 03 1 -
160 03.308 GASKET; PLUG TO HSG
08.955, ID=12.2 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09571-412-0 01 1 -
161 03.308 PLUG; HSG
03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97037-288-0 01 1 -
167 03.308 BOLT; PLATE
03.318, M6X16 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-071-0 02 1 -
180 03.308 PLATE; GOV COVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-532-0 01 1 -
188 03.308 STUD; COVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-140-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=72.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-336-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=73.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-337-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=73.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-338-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=74.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-339-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=74.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-340-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=75.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-341-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=75.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-342-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=76.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-343-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=76.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-344-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=77.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-345-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=77.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-346-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=78.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-347-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=78.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-348-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=79.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-349-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=79.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-350-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=80.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-351-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=80.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-352-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=81.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-353-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=81.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-354-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=82.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-355-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=82.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-356-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=83.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-426-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=83.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-427-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=84.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-428-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=84.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-429-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=85.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-430-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=85.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-431-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=86.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-432-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=86.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-433-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=87.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-434-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=87.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-435-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=88.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-436-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=88.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-437-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=89.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-438-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=89.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-439-0 01 1 -
189 03.308 ROD; PUSH,GOV
L=90.0 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-440-0 01 1 -
198 03.306 BRACKET; COVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-138-0 01 1 -
209 03.308 DIAPHRAGM; GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15713-006-0 01 1 -
211 03.308 NUT; LOCK,GOV
08.845 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-88410-525-0 01 1 -
212 03.306 PLATE; GOV
03.314 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94122-719-0 01 1 -
215 03.308 BOLT; DIAPH
03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97037-284-0 01 1 -0211
215 03.308 BOLT; DIAPH
03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97104-945-0 01 1 0212-
217 03.308 SHIM; GOV
T=0.5 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-88410-122-0 01 1 -
218 03.308 NUT; DIAPH
03.320, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-249-0 01 1 -0211
218 03.308 NUT; DIAPH
03.318, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94122-726-0 01 1 -0211
218 03.308 NUT; DIAPH
03.320, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97104-978-0 01 1 0212-
218 03.308 NUT; DIAPH
08.845, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-88410-525-0 01 1 0212-
221 03.308 WASHER; LK,DIAPH
00.206, ID=6.1 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09150-506-0 01 1 -
225 03.308 LEVER; GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-066-0 01 1 -
225 03.308 LEVER; GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-067-0 01 1 -
225 03.308 LEVER; GOV
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97202-343-0 01 1 -
227 03.308 BOLT; GOV LEVER
03.330 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15719-005-0 02 1 -
233 03.308 SPRING; LEVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-077-0 01 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=2.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-891-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=3.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-892-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=4.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-893-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-286-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.50 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-287-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-088-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-551-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.40 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-552-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-553-0 AR 1 -
239 03.308 SCREW; GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-239-0 01 1 -
239 03.308 SCREW; GOV
03.320, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97037-287-0 01 1 -
250 03.308 NUT; GUIDE SCREW,GOV SHAFT
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-287-0 01 1 -
252 03.308 SCREW; GUIDE
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-238-0 01 1 -
252 03.308 SCREW; GUIDE
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-122-0 01 1 -
257 03.308 RING; SNAP,GOV
03.320, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-023-0 01 1 -
257 03.308 RING; SNAP,GOV
03.330, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94244-599-0 02 1 -
257 03.308 RING; SNAP,GOV
04.040, (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09185-404-0 02 1 -
268 03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-445-0 02 1 -
268 03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-446-0 01 1 -
268 03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-074-0 01 1 -
269 03.308 SPRING; ROD OUTER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-459-0 01 1 -
269 03.308 SPRING; ROD OUTER,TORQUE CAM,GOV
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-073-0 01 1 -
270 03.308 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-272-0 02 1 -
271 03.308 ROD; TORQUE CAM,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-235-1 02 1 -
272 03.308 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-289-0 02 1 -
276 03.308 LEVER ASM; LOAD CONT,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-901-0 01 1 -
284 03.306 PLATE; LEVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-135-0 01 1 -
286 03.306 LEVER; GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-782-0 01 1 -
287 03.308 LEVER; GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15725-781-0 01 1 -
295 03.308 RING; SNAP
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-273-0 02 1 -
295 03.308 RING; SNAP
03.320, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-023-0 01 1 -
296 03.308 SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97024-879-0 01 1 -
301 03.308 RING; SNAP
04.040, ID=4 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09185-404-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: B = 8-97212-188-1, 97212188 		8-97213-292-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: A = 8-97212-186-1, 97212186 		8-97215-871-0 01 1 -
303 03.308 RING; SNAP,CAM PLATE,GOV
03.320 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-023-0 01 1 -
304 03.308 RING; SNAP,LINK TO CAM PLATE,GOV
04.040, ID=4 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-09185-404-0 01 1 -
352 03.308 NUT; CAP
03.330, CAP NUT ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-093-0 01 1 -
357 03.308 BOLT; PLATE,GOV
03.330 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15719-005-0 02 1 -
363 03.308 BOLT; LEVER FIX
03.330, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15719-005-0 02 1 -
363 03.308 BOLT; LEVER FIX
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-94247-029-0 02 1 -
411 03.306 BOLT; BRKT
03.330, (A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15719-005-0 02 1 -
411 03.306 BOLT; BRKT
03.023, (B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-02041-025-0 01 1 -
411 03.306 BOLT; BRKT
03.485, (C) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		9-81325-186-0 02 1 -
413 03.308 GASKET; GOV COVER
03.320 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-129-0 02 1 -
429 03.308 GASKET; CAP NUT
09.170 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		5-15729-099-0 02 1 -
435 03.308 BOLT; EYE,GOV COVER
03.485 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-325-0 01 1 -
436 03.308 GASKET; EYE BOLT
03.306 ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15639-009-0 02 1 -
437 03.308 SPRING; DIAPHRAGM
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-538-0 01 1 -
438 03.308 DISK; DIAPHRAGM
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15779-333-0 01 1 -
440 03.308 RING; SNAP,LEVER
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15729-989-0 01 1 -
456 03.308 SPRING; LEVER,GOV
ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		1-15723-551-0 01 1 -
465 03.308 LINK; GOVERNOR
(A) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-146-0 01 1 -
465 03.308 LINK; GOVERNOR
(B) ASM PART: A = 8-97212-186-1, 97212186, B = 8-97212-188-1, 97212188 		8-97201-154-0 01 1 -
467 03.308 CAM; TIMING,GOVERNOR
ASM PART: A = 8-97212-186-1, 97212186 		8-97202-356-0 01 1 -
467 03.308 CAM; TIMING,GOVERNOR
ASM PART: B = 8-97212-188-1, 97212188 		8-97202-356-0 01 1 0212-
467 03.308 CAM; TIMING,GOVERNOR
ASM PART: B = 8-97212-188-1, 97212188 		8-97202-357-0 01 1 -0211
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
