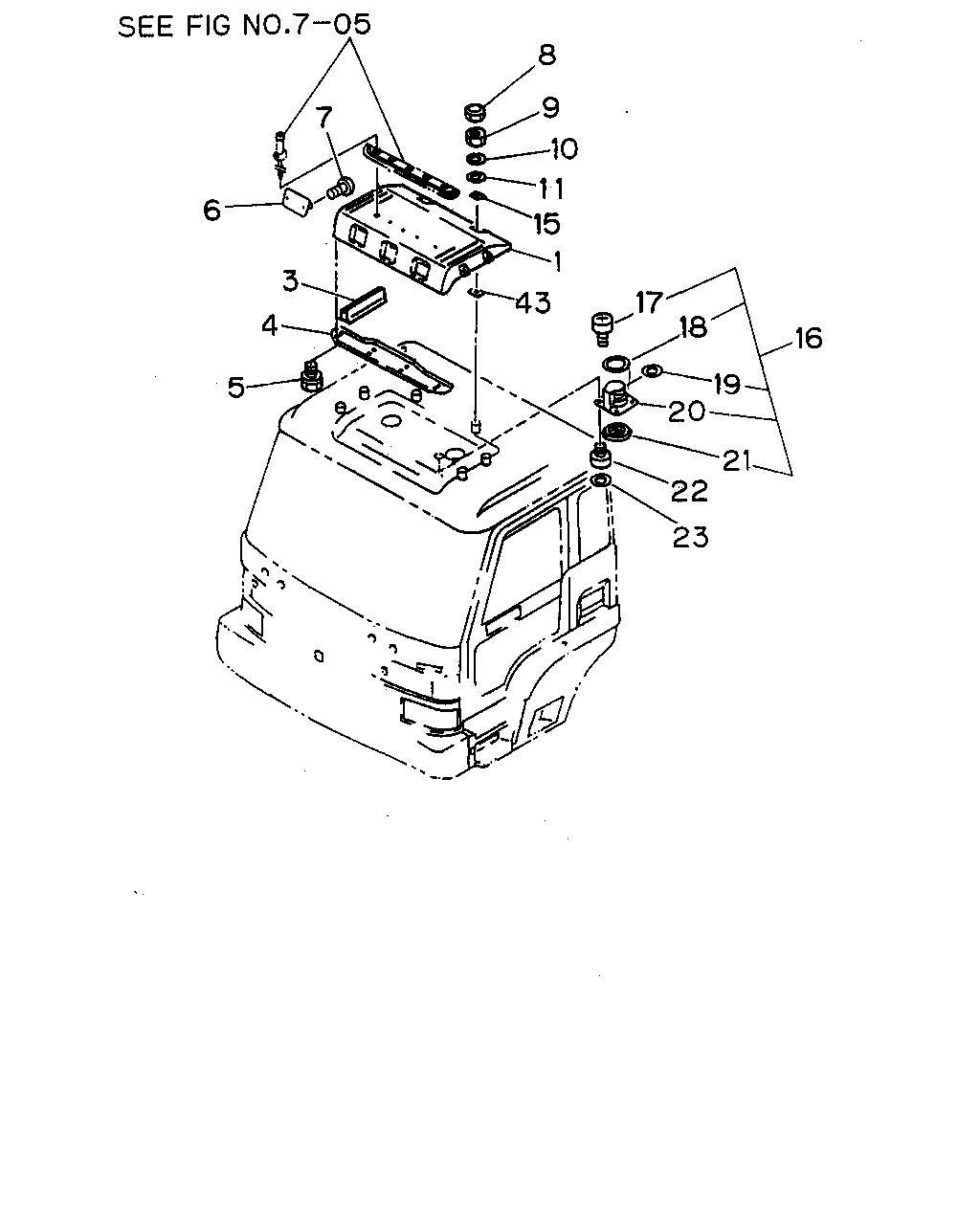

6-68 — ROOF VENTILATOR
(#3427) — 25 parça
Tümü
A - CXM6MF
B - CXZ6MC
C - CXZ6MF
7
6
3
4
5
43
1
15
11
10
9
8
17
18
16
20
19
21
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HOOD; ROOF VENT
1-76337-437-0
01
1
9002-
●
●
●
3
SEAL; HOOD,ROOF VENT
1-76777-066-0
04
1
9002-
●
●
●
4
GUARD; MOTH,ROOF VENT
1-76337-265-0
01
1
9002-
●
●
●
5
SCREW; MOTH GUARD
M5X10
1-09981-428-0
10
1
9002-9112
●
●
●
5
SCREW; MOTH GUARD
M5X10
1-09981-428-0
08
1
9201-
●
●
●
6
COVER; SPD INDICATOR LAMP
EXC. MARKER LAMP THREE AMBER<WD9>
1-76337-394-0
03
1
9002-
●
●
●
7
SCREW; COVER
EXC. MARKER LAMP THREE AMBER<WD9> M5X12 W/LK&PL WASHER
1-09981-464-0
06
1
9002-
●
●
●
8
NUT; CAP,HOOD,ROOF VENT
M8 FLANGE
1-09984-126-0
06
1
9002-
●
●
●
9
NUT; HOOD
M8
1-09984-149-0
06
1
9002-
●
●
●
10
WASHER; LK,HOOD,ROOF VENT
ID=8.2
1-09985-177-0
06
1
9002-
●
●
●
11
WASHER; PL,HOOD,ROOF VENT
ID=8.4 OD=22
1-09985-188-0
06
1
9002-
●
●
●
15
PATCH; HOOD,ROOF VENT
1-76337-319-0
06
1
9002-
●
●
●
16
DEVICE; VENT,ROOF VENT
1-76337-443-0
02
1
9002-9306
●
●
●
16
DEVICE; VENT,ROOF VENT
1-76337-456-0
02
1
9307-
●
●
●
17
SCREW; BODY,ROOF VENT
1-76337-282-0
18
1
9002-
●
●
●
18
SEAL; BODY,ROOF VENT
1-76337-279-0
02
1
9002-
●
●
●
19
SEAL; DAMPER,ROOF VENT
1-76337-280-0
02
1
9002-
●
●
●
20
BODY ASM; ROOF VENT
1-76337-444-0
02
1
9002-9306
●
●
●
20
BODY ASM; ROOF VENT
1-76337-457-0
02
1
9307-
●
●
●
21
GRILLE ASM; ROOF VENT
1-76337-446-0
02
1
9002-9306
●
●
●
21
GRILLE ASM; ROOF VENT
1-76337-458-0
02
1
9307-
●
●
●
22
SCREW; DEVICE,ROOF VENT
M6X20 W/LK&PL WASHER
1-09981-312-0
08
1
9002-
●
●
●
23
COVER; DEVICE,HOLE,ROOF VENT
1-76337-445-0
08
1
9002-9306
●
●
●
23
COVER; DEVICE,HOLE,ROOF VENT
1-73337-366-0
08
1
9307-
●
●
●
43
SHEET; HOOD,ROOF VENT
1-76337-271-1
06
1
9002-
●
●
●
