0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#34266) — 178 parça

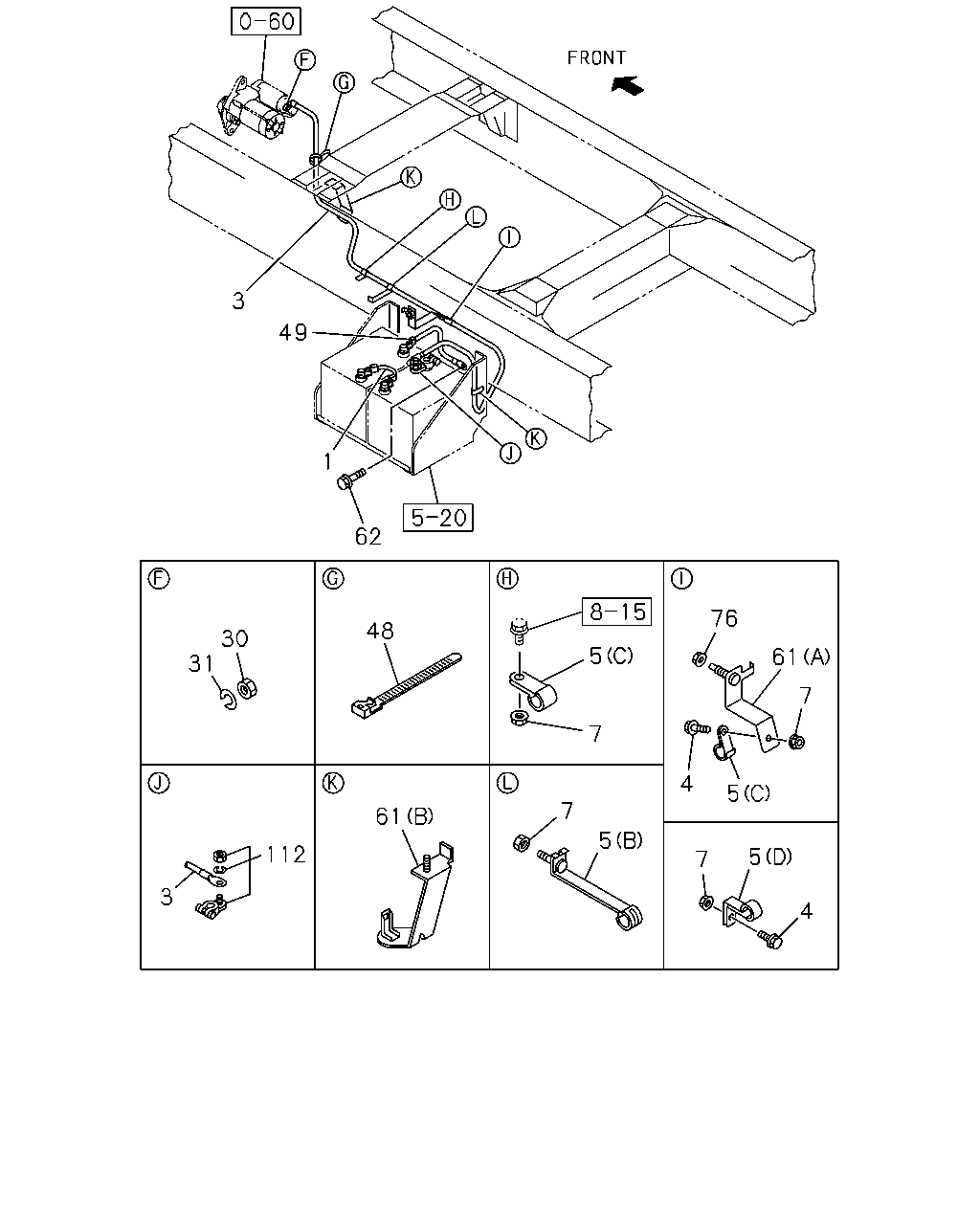

çizim 34051
3 49 1 62 76 48 30 5 61 31 7 7 4 5 7 61 5 112 5 7 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-777-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
LONG(NP***K) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-777-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-771-0 01 1 0502-0502 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-029-3 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-029-0 01 1 0502-0502 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-771-3 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHORT(NP***C) 		8-97357-101-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) FLOOR REMOTE SHIFT<M11> EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> 		8-97357-101-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHORT(NP***C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 		8-97328-795-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FLOOR REMOTE SHIFT<M11> 		8-97328-795-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
LONG(NP***K) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXD LONG(NP***N) 		8-97377-766-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ) 		8-97357-080-0 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> 		8-97377-779-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHORT(NP***C) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-779-1 01 1 0502- ●
4 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0502 ●
4 02.559 BOLT; BATTERY CABLE
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
4 02.559 BOLT; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) 03.483 (D) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502-0502 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 0503- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (A) L=170.3 		1-09987-182-0 01 1 0212-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) M/T MYY6P(RSJ),M/T MYY5T(RSM) (B) ID=13 L=90 		8-97015-782-1 01 1 0211-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (B) ID=13 L=90 		8-97015-782-1 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (B) ID=13 L=90 		8-97015-782-1 02 1 0502-0502 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 02 1 0502-0502 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (B) ID=13 L=90 		8-97015-782-1 02 1 0503- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) FLOOR REMOTE SHIFT<M11> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) A/T 4 SPEED-AISIN(RNJ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
A/T 4 SPEED-AISIN(RNJ) 04.785 (C) 		9-09525-245-0 02 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NP**SF) A/T 4 SPEED-AISIN(RNJ) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> 02.343 (B) ID=16 H=24 L=20 		9-09527-015-0 01 1 0304-0501 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0502 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0503-0602 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0303 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) A/T 4 SPEED-AISIN(RNJ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0303 ●
7 02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0501 ●
7 02.343 NUT; (+) CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0501 ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0502 ● ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0502 ● ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0503-0602 ● ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
7 02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ) 00.002 M8 		9-09110-508-0 01 1 0211-0501 ●
7 02.343 NUT; (+) CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
7 02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0211-0501 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0512 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0211-0501 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0603 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604- ● ●
48 02.343 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> 03.162 L=140 		5-09707-031-1 01 1 0211-0303 ● ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0211-0303 ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0502- ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0502- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> L=200 		8-97231-243-1 01 1 0211-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB(NP**S*) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> L=200 		8-97231-243-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB(NP**W*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> L=200 		8-97231-243-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB(NP**W*) L=200 		8-97231-243-1 01 1 0502-0502 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> L=300 		8-97230-536-1 01 1 0211-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> L=300 		8-97230-536-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB(NP**W*) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> L=300 		8-97230-536-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB(NP**S*) L=300 		8-97230-536-1 01 1 0502-0502 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=300 		8-97230-536-1 01 1 0502- ● ● ●
61 02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97202-472-1 01 1 0211-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97369-198-1 01 1 0502-0502 ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL CAB(NP**S*) VOLTAGE 24V<7AE> (C) 		8-97369-198-1 01 1 0502-0502 ● ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97369-198-1 01 1 0503- ● ●
61 02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97355-087-0 01 1 0211-0303 ●
61 02.333 BRACKET; BATTERY CABLE
SGL CAB(NP**S*) VOLTAGE 24V<7AE> (A) 		8-97355-087-0 01 1 0304-0501 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
76 02.343 NUT; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0303 ●
76 02.343 NUT; BATTERY CABLE
SGL CAB(NP**S*) VOLTAGE 24V<7AE> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0304-0501 ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0502- ● ●

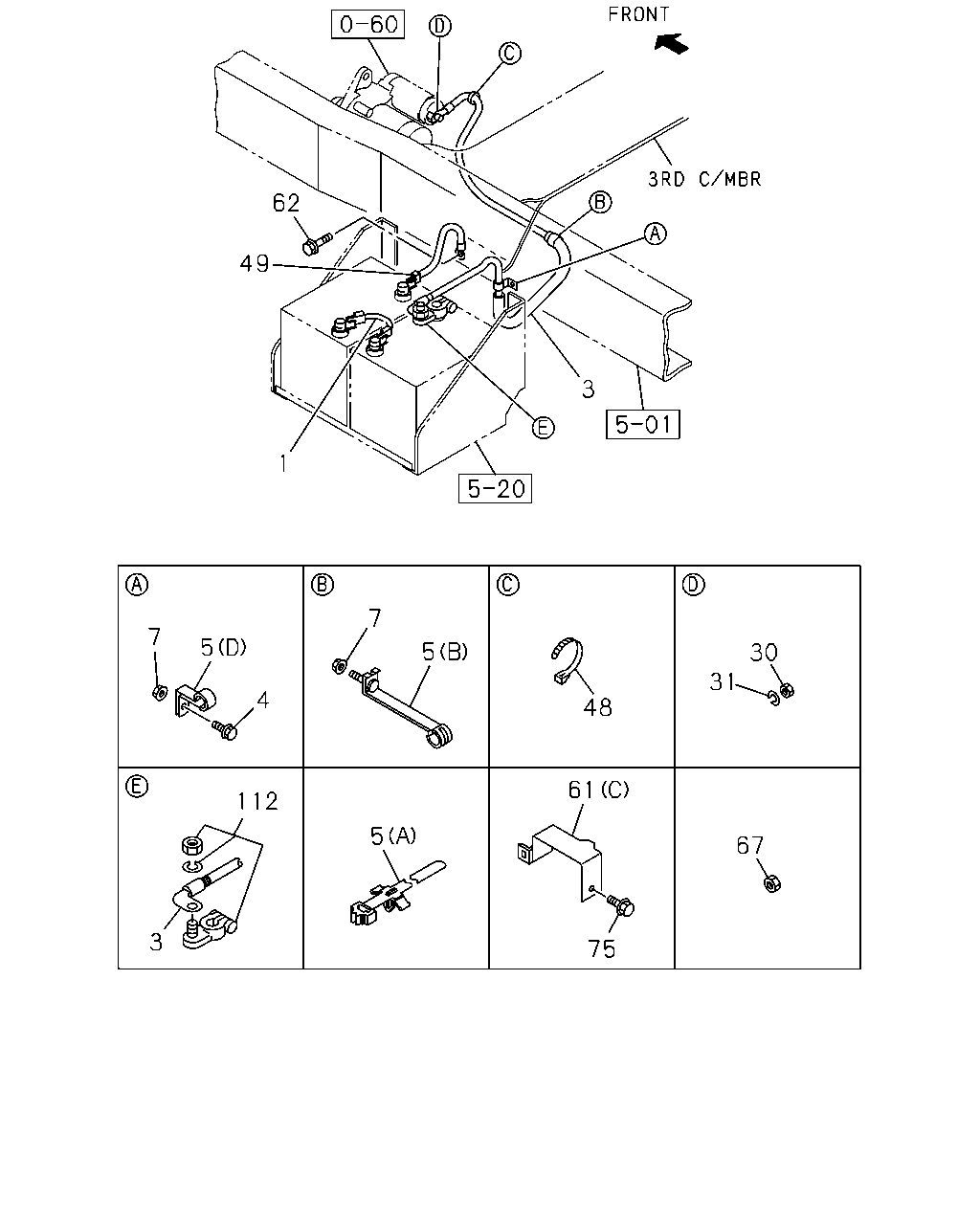

çizim 34228
62 49 3 1 7 7 5 5 30 31 4 48 61 112 5 67 3 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-1 01 1 0211-0501 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-777-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
LONG(NP***K) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-777-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-771-0 01 1 0502-0502 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-029-3 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-029-0 01 1 0502-0502 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-771-3 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHORT(NP***C) 		8-97357-101-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) FLOOR REMOTE SHIFT<M11> EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> 		8-97357-101-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHORT(NP***C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-772-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 		8-97328-795-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) FLOOR REMOTE SHIFT<M11> 		8-97328-795-1 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
LONG(NP***K) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-766-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXD LONG(NP***N) 		8-97377-766-1 01 1 0502- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ) 		8-97357-080-0 01 1 0211-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NP**SF) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> 		8-97377-779-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHORT(NP***C) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-779-1 01 1 0502- ●
4 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0502 ●
4 02.559 BOLT; BATTERY CABLE
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ●
4 02.559 BOLT; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) 03.483 (D) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502-0502 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 0503- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (A) L=170.3 		1-09987-182-0 01 1 0212-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) M/T MYY6P(RSJ),M/T MYY5T(RSM) (B) ID=13 L=90 		8-97015-782-1 01 1 0211-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (B) ID=13 L=90 		8-97015-782-1 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (B) ID=13 L=90 		8-97015-782-1 02 1 0502-0502 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 02 1 0502-0502 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> (B) ID=13 L=90 		8-97015-782-1 02 1 0503- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0303 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) FLOOR REMOTE SHIFT<M11> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB(NP**S*) A/T 4 SPEED-AISIN(RNJ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 03.430 (D) ID=13 H=15 L=25 		1-09700-888-0 01 1 0304-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
A/T 4 SPEED-AISIN(RNJ) 04.785 (C) 		9-09525-245-0 02 1 0211-0501 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NP**SF) A/T 4 SPEED-AISIN(RNJ) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> 02.343 (B) ID=16 H=24 L=20 		9-09527-015-0 01 1 0304-0501 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0502 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0503-0602 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0303 ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) A/T 4 SPEED-AISIN(RNJ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0303 ●
7 02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0501 ●
7 02.343 NUT; (+) CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0304-0501 ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0502 ● ●
7 02.343 NUT; (+) CABLE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0502 ● ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0503-0602 ● ●
7 02.343 NUT; (+) CABLE
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
7 02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ) 00.002 M8 		9-09110-508-0 01 1 0211-0501 ●
7 02.343 NUT; (+) CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
7 02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0211-0501 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0502-0512 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0211-0501 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0502-0603 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604- ● ●
48 02.343 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> 03.162 L=140 		5-09707-031-1 01 1 0211-0303 ● ● ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0211-0303 ●
48 02.343 CLIP; CABLE
M/T MZZ6U(RSF) 03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0304-0501 ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0502- ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0502- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> L=200 		8-97231-243-1 01 1 0211-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB(NP**S*) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> L=200 		8-97231-243-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB(NP**W*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> L=200 		8-97231-243-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB(NP**W*) L=200 		8-97231-243-1 01 1 0502-0502 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> L=300 		8-97230-536-1 01 1 0211-0301 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB(NP**S*) EXH SYSTEM CHROME SINGLE VERTICAL TAIL P IPE<NC4> L=300 		8-97230-536-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB(NP**W*) EXC. EXH SYSTEM CHROME SINGLE VERTICAL T AIL PIPE<NC4> L=300 		8-97230-536-1 01 1 0302-0501 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB(NP**S*) L=300 		8-97230-536-1 01 1 0502-0502 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=300 		8-97230-536-1 01 1 0502- ● ● ●
61 02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97202-472-1 01 1 0211-0501 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97369-198-1 01 1 0502-0502 ● ●
61 02.333 BRACKET; BATTERY CABLE
SGL CAB(NP**S*) VOLTAGE 24V<7AE> (C) 		8-97369-198-1 01 1 0502-0502 ● ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97369-198-1 01 1 0503- ● ●
61 02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97355-087-0 01 1 0211-0303 ●
61 02.333 BRACKET; BATTERY CABLE
SGL CAB(NP**S*) VOLTAGE 24V<7AE> (A) 		8-97355-087-0 01 1 0304-0501 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
67 02.183 NUT; BRKT
DBL CAB(NP**W*) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0503-0602 ●
67 02.183 NUT; BRKT
DBL CAB(NP**W*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
75 02.333 BOLT; BRKT
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0502 ● ●
75 02.333 BOLT; BRKT
SGL CAB(NP**S*) VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0502 ● ●
75 02.333 BOLT; BRKT
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0503-0512 ● ●
75 02.333 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
75 02.333 BOLT; BRKT
DBL CAB(NP**W*) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0503-0512 ●
75 02.333 BOLT; BRKT
DBL CAB(NP**W*) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0211-0501 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
