0-60 — ENGINE ELECTRICAL CONTROL PARTS (#34265) — 131 parça

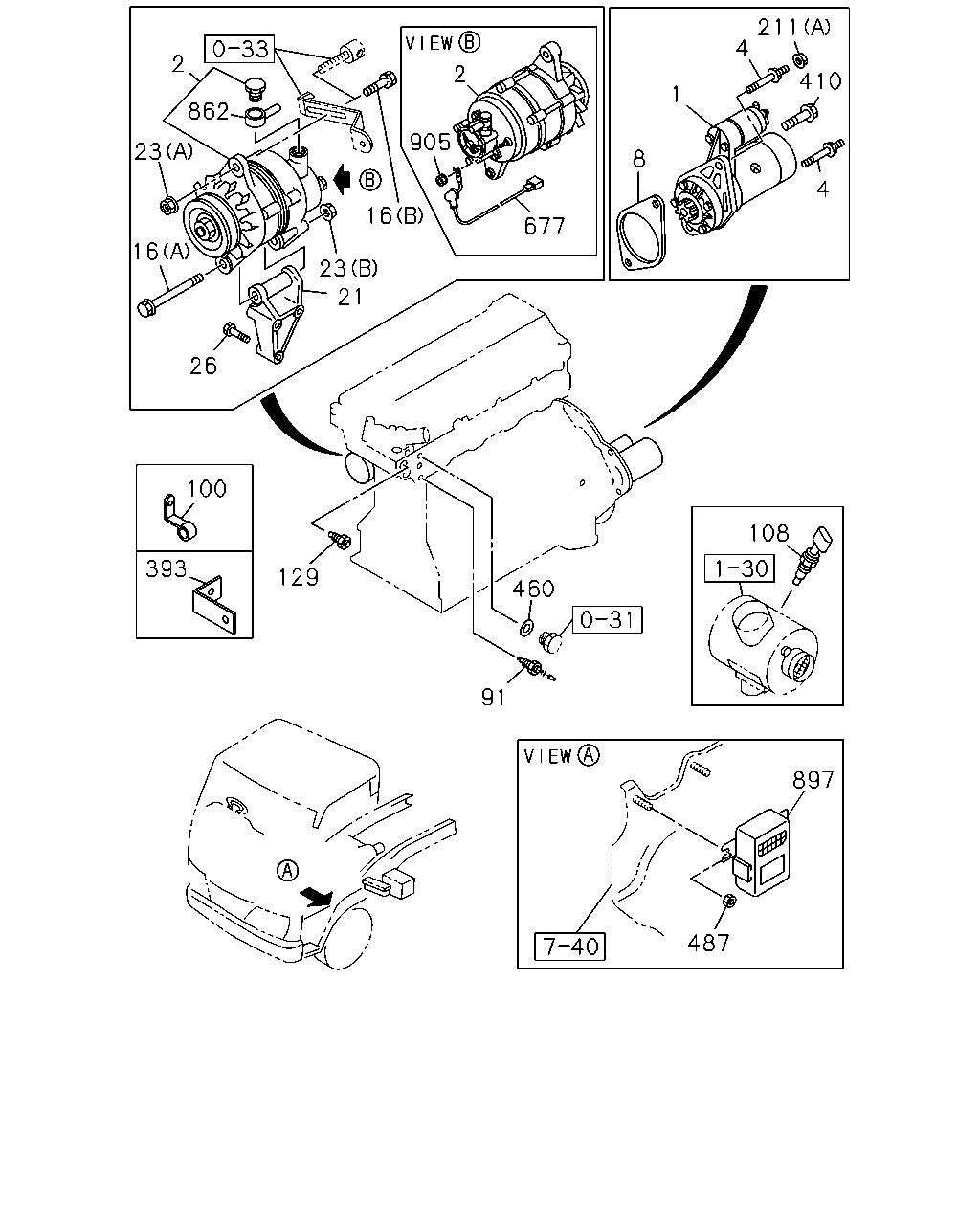

çizim 34018
211 4 2 410 2 1 862 905 23 8 4 16 677 16 23 21 26 100 108 393 129 460 91 897 487
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0502- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0502-0503 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0504- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0211-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-1 01 1 0502- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0306-0308 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0502- ● ●
8 02.042 SPACER; STARTER
M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-947-0 01 1 0502- ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0502- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211-0501 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0502- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0211-0501 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0502- ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0211-0501 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0502-0512 ● ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0211-0501 ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0502-0512 ● ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
91 01.150 SWITCH; THERMO HTR
HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> 03.883 		8-97038-625-0 01 1 0211-0402 ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0502-0606 ● ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
108 01.150 SWITCH; THERMO 8-97189-295-0 01 1 0211-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0211-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0502- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0211-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0502-1007 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) 		8-97255-925-0 01 1 0503- ●
410 02.343 BOLT; BRKT,GRAND
A/T 4 SPEED-AISIN(RNJ) 12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0211-0501 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0211-0501 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0502- ● ●
487 02.343 NUT
04.594 M6 FLANGE 		0-91150-106-0 02 1 0504-0602 ● ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0305-0305 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 		8-97367-772-0 01 1 0306-0308 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0309-0501 ●
677 02.277 HARNESS; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97367-772-0 01 1 0502-0503 ● ●
677 02.277 HARNESS; GEN 8-97367-772-0 01 1 0504- ● ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0309-0501 ●
862 02.313 CONNECTOR; GEN
EXC. GENERATOR 24V60A(KG2) 		8-97351-626-0 01 1 0502-0503 ● ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0504- ● ●
897 02.510 DRM 8-98013-144-7 01 1 0504- ● ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0305-0305 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0306-0308 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0309-0501 ●
905 02.559 NUT; HARNESS
EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0502-0503 ● ●
905 02.559 NUT; HARNESS
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0504- ● ●

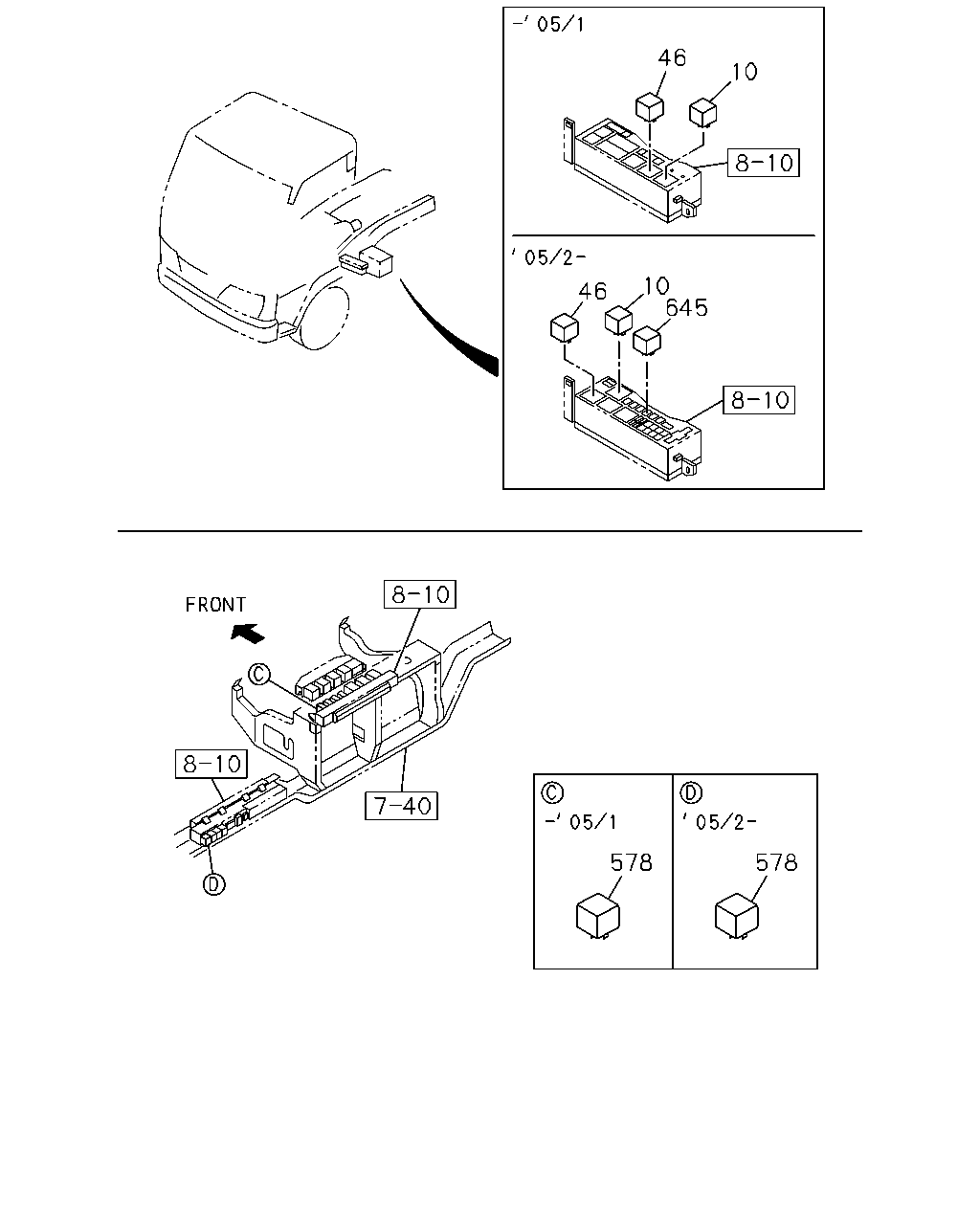

çizim 34019
46 10 10 645 46 578 578
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0211-0501 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0502- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0211-0501 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0502- ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0211-0501 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
645 02.510 RELAY; ENG CONT
24V 30A MITUBA 		8-97238-540-0 01 1 0502- ● ●

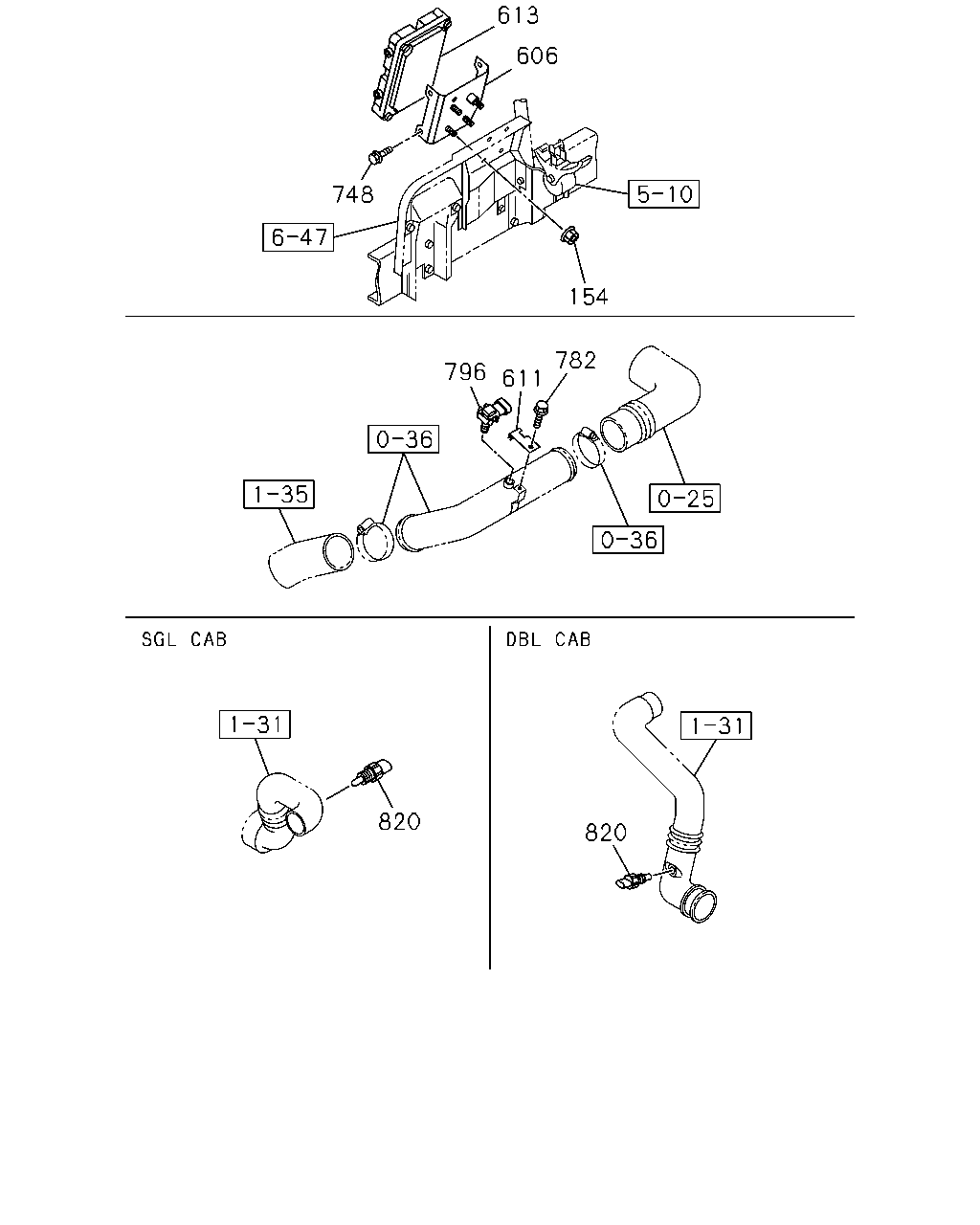

çizim 34021
613 606 748 154 782 796 611 820 820
BalonParca AdiParca NoAdetTipApplied Date A B C
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0502-0611 ● ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ● ●
606 03.680 BRACKET; CONT UNIT 8-97367-699-1 01 1 0502-0502 ● ●
606 03.680 BRACKET; CONT UNIT 8-97369-871-1 01 1 0502- ● ●
611 01.150 BRACKET; SENSOR 8-97368-621-0 01 1 0502- ● ●
613 03.670 CONTROL UNIT; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-1 01 1 0502-0504 ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-3 01 1 0505-0606 ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-5 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-5 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-596-1 01 1 0502-0504 ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF> 		8-98000-596-1 01 1 0505- ●
613 03.670 CONTROL UNIT; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-2 01 1 0502-0508 ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-5 01 1 0509- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-5 01 1 0509- ●
613 03.670 CONTROL UNIT; ENG 8-97223-183-1 01 1 0211-0501 ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-597-5 01 1 0502- ●
748 02.500 BOLT; CONT UNIT
09.190 M6X30 FLANGE 		0-28680-630-0 06 1 0502-0508 ● ●
748 02.500 BOLT; CONT UNIT
10.450 M6X10 		9-03800-610-0 03 1 0502-0604 ● ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605- ● ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0502-0512 ● ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
796 01.150 SENSOR; MAP 8-09373-269-1 01 1 0502-0810 ● ●
796 01.150 SENSOR; MAP 8-28139-775-0 01 1 0811- ● ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0502- ● ●

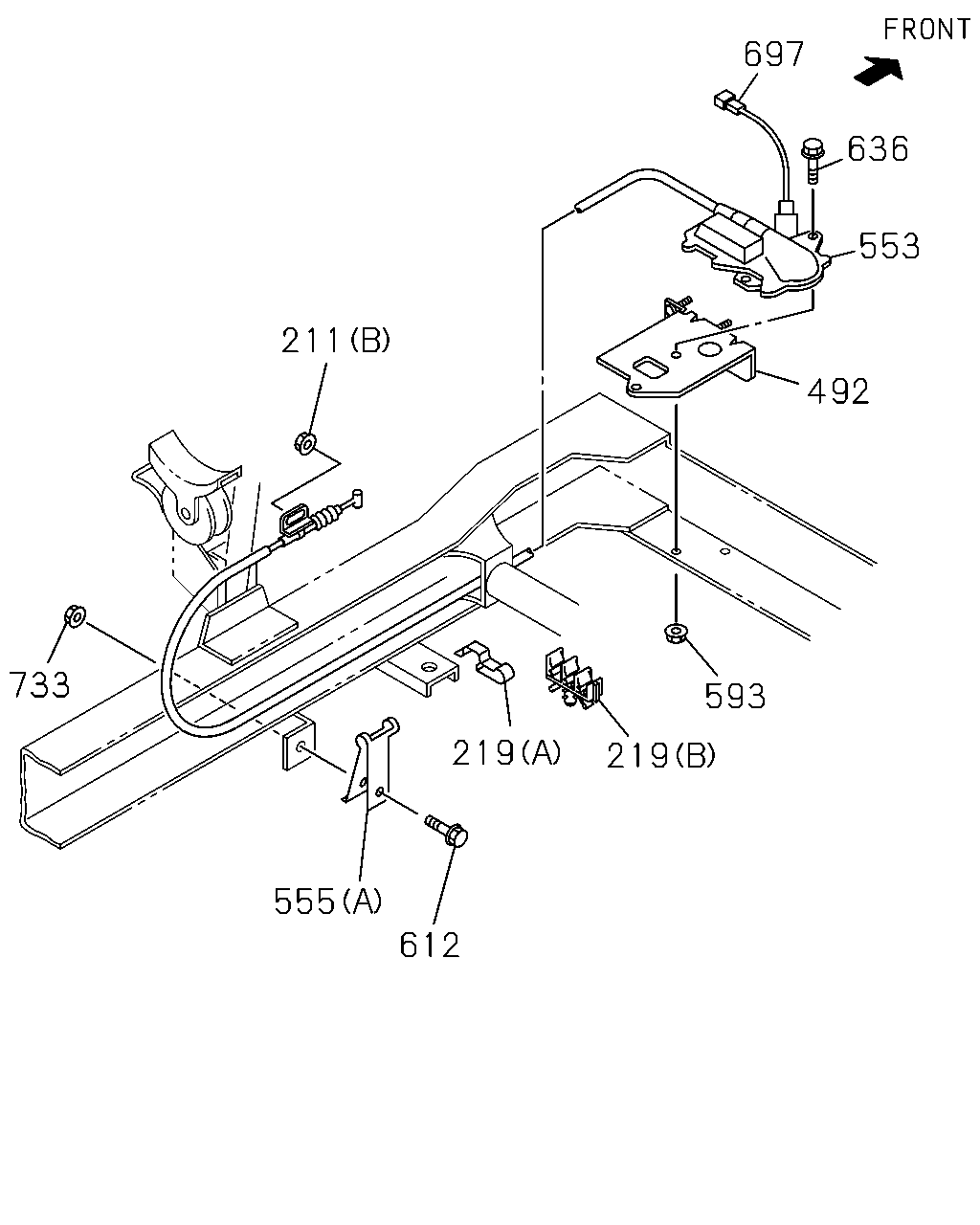

çizim 34052
697 636 553 211 492 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (C) L=140 		5-09707-031-1 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER 8-97127-037-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-071-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP 8-97255-069-0 01 1 0502-0502 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0211-0501 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0211-0501 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
697 03.726 HARNESS; CABLE 8-97126-038-0 01 1 0211-0501 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●

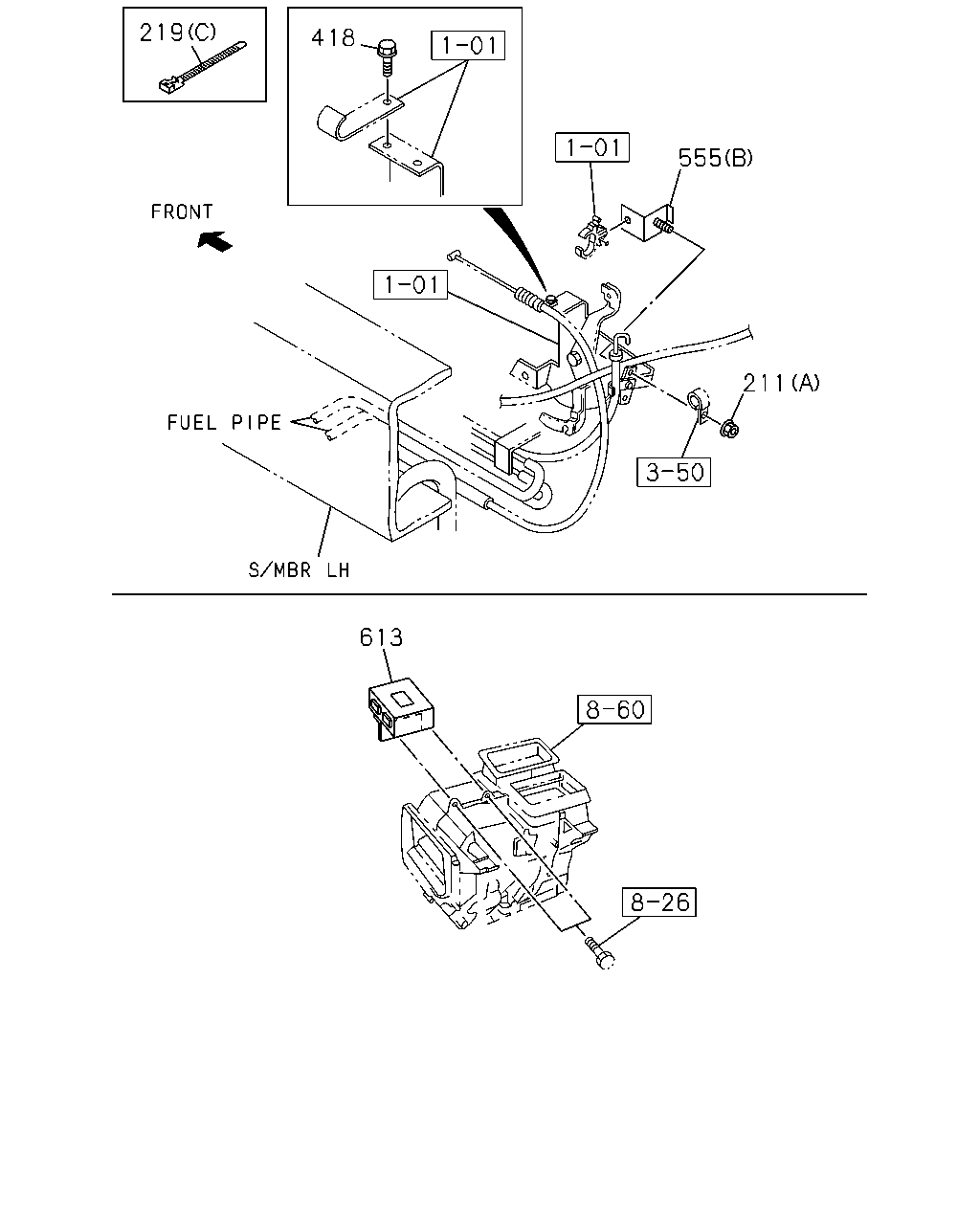

çizim 98758
219 418 555 211 613
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (C) L=140 		5-09707-031-1 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211-0501 ●
418 02.559 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP
(B) 		8-97188-280-0 01 1 0211-0501 ●
613 03.670 CONTROL UNIT; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-1 01 1 0502-0504 ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-3 01 1 0505-0606 ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-5 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-595-5 01 1 0607- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-596-1 01 1 0502-0504 ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF> 		8-98000-596-1 01 1 0505- ●
613 03.670 CONTROL UNIT; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-2 01 1 0502-0508 ●
613 03.670 CONTROL UNIT; ENG
EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-5 01 1 0509- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-594-5 01 1 0509- ●
613 03.670 CONTROL UNIT; ENG 8-97223-183-1 01 1 0211-0501 ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-597-5 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
