Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#34264) — 416 parça

20 20 76 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> (A)	8-97042-258-4	01	1	9312-9510	●	●	●	●	●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> (A)	8-97042-258-4	01	1	9511-9611	●	●	●			●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97042-258-4	01	1	9612-9708	●	●	●			●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97177-302-0	01	1	9709-9711	●	●	●			●
19	04.686 BRACKET; OIL PIPE EXC. HYDRO MASTER<7LT> (A)	8-97149-718-2	01	1	9712-	●	●	●	●	●	●
19	04.686 BRACKET; OIL PIPE A/T 4 SPEED-JATCO(RMK) (A)	8-97042-259-4	01	1	9312-9708		●
19	04.686 BRACKET; OIL PIPE A/T 4 SPEED-JATCO(RMK) (A)	8-97177-303-0	01	1	9709-9711		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B)	1-47476-979-1	01	1	9612-9708		●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B)	8-97179-123-0	01	1	9709-		●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9511-9603	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9604-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (J) ID=4.8X2	8-94113-470-0	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (J) ID=4.8X2	8-94113-470-0	01	1	9511-9603	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=4.8X2	8-94113-470-0	01	1	9604-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=4.8X2	8-94113-470-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9312-9507	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9312-9406	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9407	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9407	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711	●					●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711	●					●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711		●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711		●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9712-9801	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9712-9801	●	●	●		●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9802-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9802-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	9312-9406	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9612-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9612-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9401-9510	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9705	●	●	●			●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9706-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9401-9510	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9511-9705	●	●	●			●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9706-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (C) ID=4.8X2	8-94455-816-0	01	1	9401-9510	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9511-9705	●	●	●			●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9706-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9401-9404						●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9401-9404	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9405-9506	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9507-9510		●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9511-		●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404						●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9506	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9506	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9507-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9507-9510		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-9711		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9712-9801	●	●	●		●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9712-9801		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9802-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9802-		●
20	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	9401-9404						●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9401-9404	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9405-9506	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9507-9510		●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9511-		●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9405-9408	●	●	●			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9512	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9511-9511	●	●	●			●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (F)	8-94110-461-1	01	1	9612-9711		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (F)	8-94110-461-1	01	1	9712-		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (E)	8-97026-150-0	01	1	9612-9711		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (E)	8-97026-150-0	01	1	9712-		●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 16.714 M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9312-9510	●	●	●			●	●
76	04.686 BOLT; BRKT,OIL PIPE 16.714 M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9511-9605	●	●	●			●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9606-9611	●	●	●			●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9612-9711	●	●	●	●		●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●	●	●	●	●

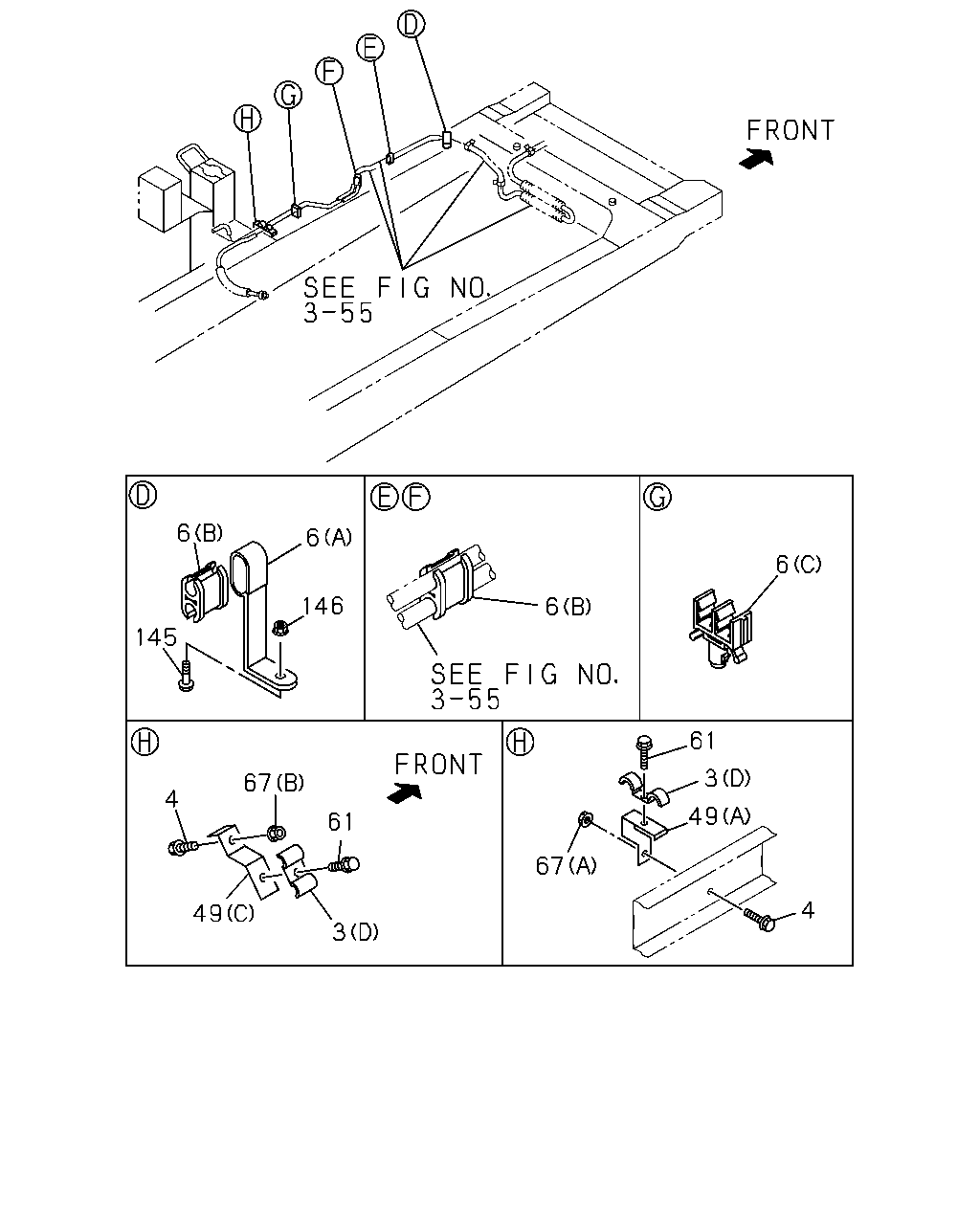

62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9712-	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9712-	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9712-	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9712-	●	●	●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	9712-	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9712-	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	05	1	9712-9802	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	9803-	●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●

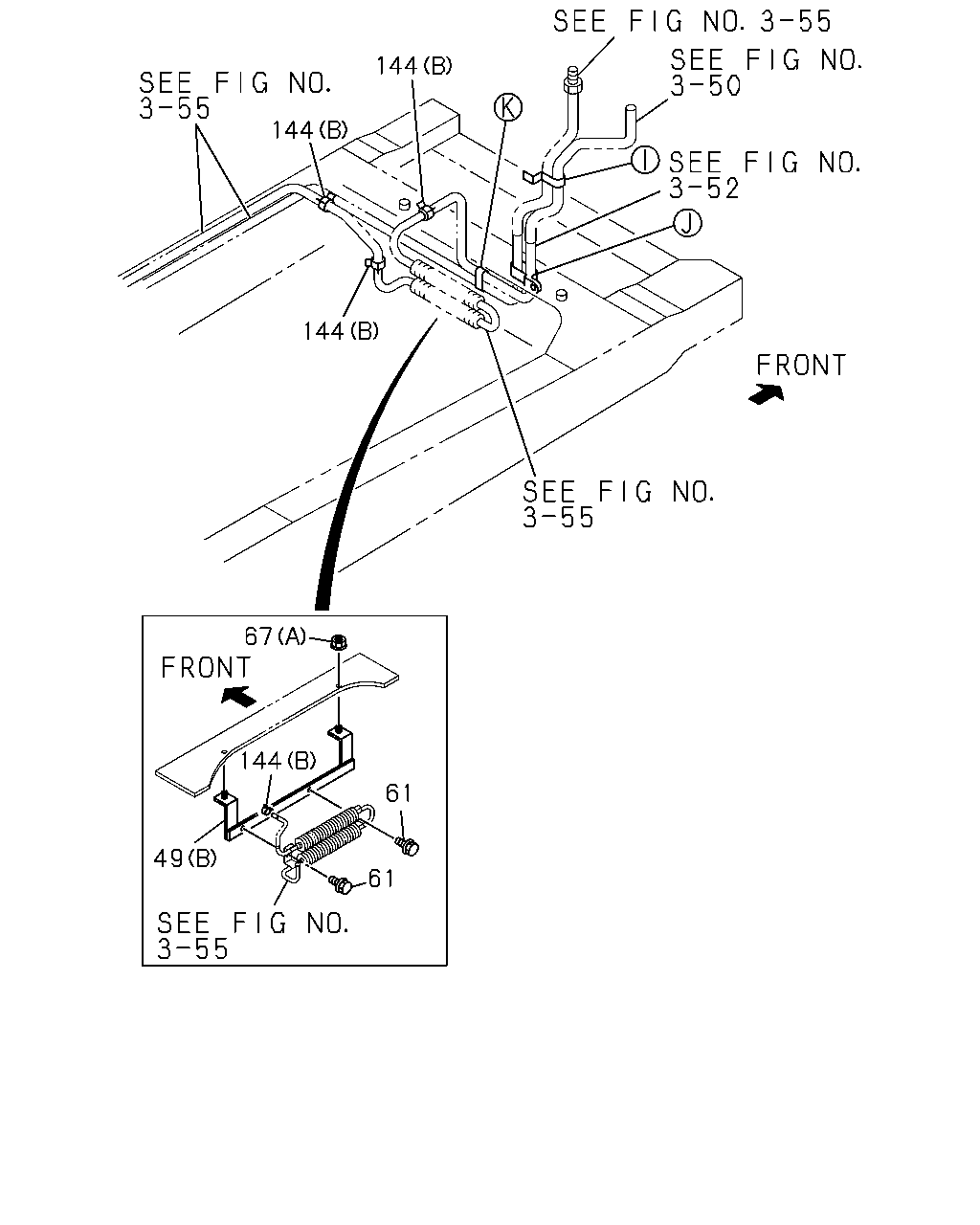

144 144 144 67 144 61 49 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-0	01	1	9712-	●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9712-	●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9712-	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9805	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9806-	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9712-	●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-	●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9712-	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	05	1	9712-9802	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	9803-	●	●	●	●

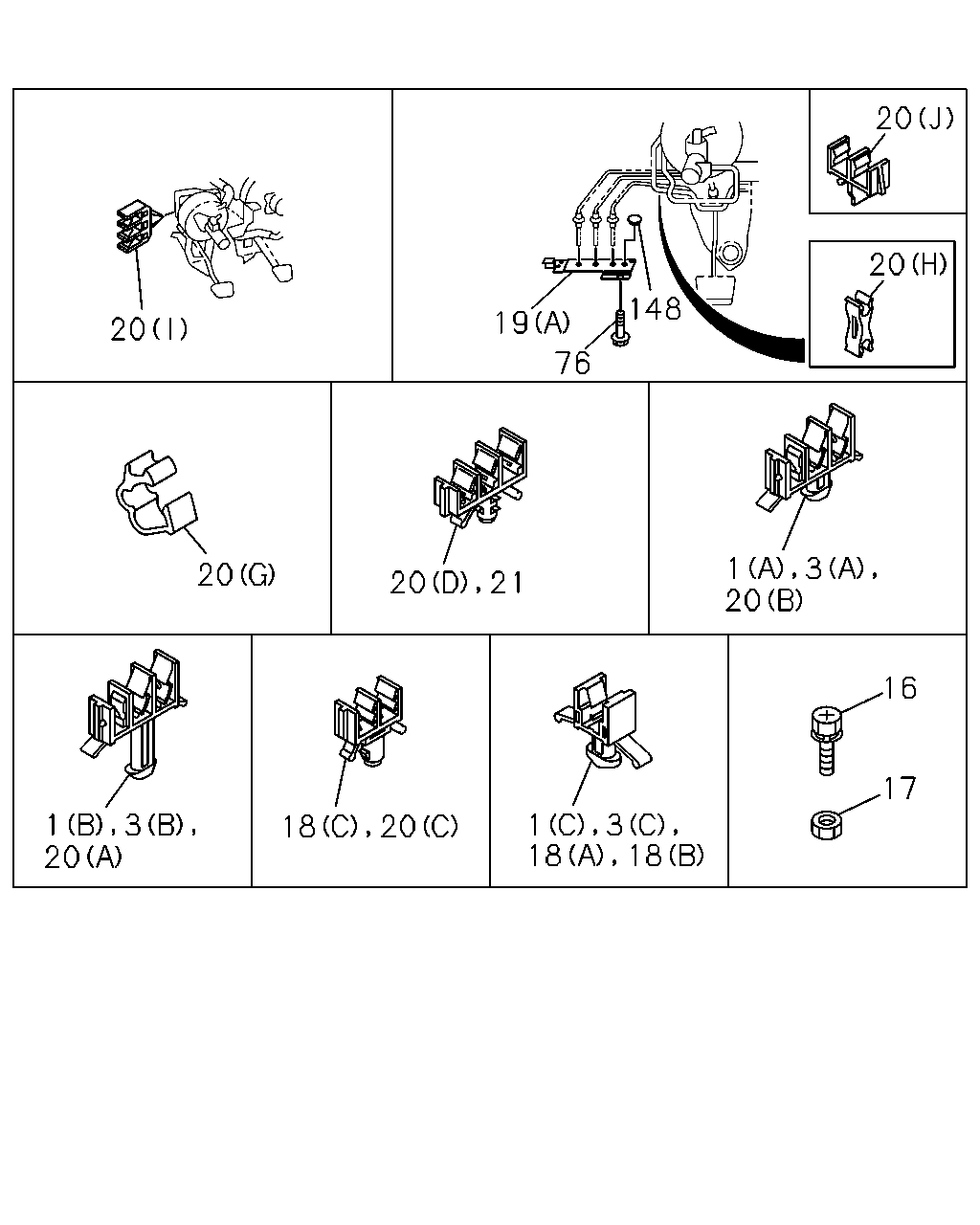

20 148 20 19 20 76 1 20 20 20 21 16 17 20 18 18 20 18 3 3 1 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9312-9312	●	●	●			●	●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404	●	●	●			●	●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404						●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9506	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9507-9510		●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-		●
1	04.686 CLIP; OIL PIPE TO BODY 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9401-9510	●	●	●	●	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9705	●	●	●			●
1	04.686 CLIP; OIL PIPE TO BODY 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9706-9711	●	●	●			●
1	04.686 CLIP; OIL PIPE TO BODY 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-	●	●	●	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (C) ID=4.8 H=32.5	8-94405-141-0	01	1	9401-9510	●	●	●	●	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=32.5	8-94405-141-0	01	1	9511-9705	●	●	●			●
1	04.686 CLIP; OIL PIPE TO BODY 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=32.5	8-94405-141-0	01	1	9706-9711	●	●	●			●
1	04.686 CLIP; OIL PIPE TO BODY 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=32.5	8-94405-141-0	01	1	9712-	●	●	●	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8 H=26	8-94249-685-0	01	1	9401-9404						●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8 H=26	8-94249-685-0	01	1	9401-9404	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8 H=26	8-94249-685-0	01	1	9405-9506	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8 H=26	8-94249-685-0	01	1	9507-9510		●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26	8-94249-685-0	01	1	9511-		●
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9406-9510							●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9406-9510	●	●	●			●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9511-9711	●	●	●			●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9712-9801	●	●	●		●	●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9802-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9312-9404			●				●
3	04.685 CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9312-9404		●	●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9405-9406		●	●			●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9405-9406			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506		●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506			●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506						●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510		●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510			●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510						●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9604		●	●			●
3	04.685 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9604			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9605-9711		●	●			●
3	04.685 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9605-9711			●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-		●	●			●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-			●
3	04.685 CLIP; BRK PIPE 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9312-9404	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9405-9509	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9405-9509	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9510-9510	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9510-9510	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9511-9711	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9511-9711	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9712-9801	●	●	●		●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9712-9801	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9802-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9802-	●		●
3	04.685 CLIP; BRK PIPE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9312-9404		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9510		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-9604		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9605-9711		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9712-9807		●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9808-		●	●
3	04.685 CLIP; BRK PIPE 4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9808-		●	●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9808-						●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9712-		●	●	●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	05	1	9312-9404		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (C) ID=4.8X2	8-94316-410-0	01	1	9405-9509		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9510-9510		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9511-		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	04	1	9312-9404			●
16	04.686 BOLT; BRKT TO FRAME BRK WHL LK CONT LSPV<6PH> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-9312	●	●	●			●
16	04.686 BOLT; BRKT TO FRAME BRK WHL LK CONT LSPV<6PH> 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9401-9408	●	●	●			●
16	04.686 BOLT; BRKT TO FRAME BRK WHL LK CONT LSPV<6PH> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9409-9409	●	●	●			●
16	04.686 BOLT; BRKT TO FRAME BRK WHL LK CONT LSPV<6PH> M8X30 FLANGE	0-28680-830-0	01	1	9410-9509	●	●	●			●
17	04.686 NUT; BRKT TO FRAME BRK WHL LK CONT LSPV<6PH> 02.559 M8	9-09110-408-0	01	1	9312-9312	●	●	●			●
17	04.686 NUT; BRKT TO FRAME BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	01	1	9401-9509	●	●	●			●
18	04.686 CLIP; BRK PIPE (A) ID=4.8 H=26	8-94249-685-0	04	1	9312-9404							●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	04	1	9312-9404			●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	02	1	9312-9404			●				●
18	04.686 CLIP; BRK PIPE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) (A) ID=4.8 H=26	8-94249-685-0	01	1	9312-9404	●
18	04.686 CLIP; BRK PIPE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	01	1	9312-9404		●	●			●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) (A) ID=4.8 H=26	8-94249-685-0	01	1	9405-9510	●	●	●			●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	01	1	9405-9510		●	●			●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9511-9604	●	●	●			●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9511-9604		●	●			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9605-9711		●	●			●
18	04.686 CLIP; BRK PIPE 4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9605-9711		●	●
18	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9605-9711			●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9712-	●	●	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9712-		●	●
18	04.686 CLIP; BRK PIPE 4BD2 ENG(RLW) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9712-		●	●
18	04.686 CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9312-9404	●
18	04.686 CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9312-9404	●
18	04.686 CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9312-9404		●	●
18	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9405-9405	●	●	●			●	●
18	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9405-9405		●	●			●	●
18	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9405-9510	●	●	●	●	●	●	●
18	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9405-9510		●	●			●	●
18	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9405-9510			●				●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9511-9604	●					●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9511-9604		●	●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9511-9604		●	●
18	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9511-9604			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9511-9604						●
18	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9605-9606	●		●			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9605-9606		●	●			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9605-9606		●	●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9607-9711	●					●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9607-9711		●	●			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9607-9711		●	●
18	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9607-9711			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9712-9801	●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9712-9801		●	●		●	●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9712-9801		●	●			●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9802-	●			●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9802-		●	●		●	●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9802-		●	●			●
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9802-			●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	9312-9404	●	●				●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	9405-9510	●	●	●			●	●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	9405-9510			●				●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9511-9711	●	●	●			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9511-9711			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9712-9801	●	●	●		●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9712-9801			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9802-	●	●	●	●	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9802-			●
18	04.686 CLIP; BRK PIPE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV) EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	02	1	9312-9404		●	●			●
18	04.686 CLIP; BRK PIPE (A) ID=4.8 H=26	8-94249-685-0	02	1	9405-9510							●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	02	1	9405-9510	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	02	1	9511-9711	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	02	1	9712-	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	05	1	9312-9404		●				●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8 H=26	8-94249-685-0	03	1	9405-9510		●				●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	03	1	9511-		●				●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> (A)	8-97042-258-4	01	1	9312-9510	●	●	●	●	●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> (A)	8-97042-258-4	01	1	9511-9611	●	●	●			●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97042-258-4	01	1	9612-9708	●	●	●			●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97177-302-0	01	1	9709-9711	●	●	●			●
19	04.686 BRACKET; OIL PIPE EXC. HYDRO MASTER<7LT> (A)	8-97149-718-2	01	1	9712-	●	●	●	●	●	●
19	04.686 BRACKET; OIL PIPE A/T 4 SPEED-JATCO(RMK) (A)	8-97042-259-4	01	1	9312-9708		●
19	04.686 BRACKET; OIL PIPE A/T 4 SPEED-JATCO(RMK) (A)	8-97177-303-0	01	1	9709-9711		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B)	1-47476-979-1	01	1	9612-9708		●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B)	8-97179-123-0	01	1	9709-		●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9511-9603	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9604-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (J) ID=4.8X2	8-94113-470-0	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (J) ID=4.8X2	8-94113-470-0	01	1	9511-9603	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=4.8X2	8-94113-470-0	01	1	9604-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=4.8X2	8-94113-470-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9312-9507	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9312-9406	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9407	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9407	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9407-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711	●					●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711	●					●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711		●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9612-9711		●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9712-9801	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9712-9801	●	●	●		●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9802-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9802-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	9312-9406	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9612-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9312-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9511-9611	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9612-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (I) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9401-9510	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9705	●	●	●			●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9706-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9401-9510	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9511-9705	●	●	●			●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9706-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (C) ID=4.8X2	8-94455-816-0	01	1	9401-9510	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9511-9705	●	●	●			●
20	04.686 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9706-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9712-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9401-9404						●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9401-9404	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9405-9506	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9507-9510		●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9511-		●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404						●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9401-9404	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9506	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9506	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9507-9510	●	●	●			●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9507-9510		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-9711	●	●	●			●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-9711		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9712-9801	●	●	●		●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9712-9801		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9802-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9802-		●
20	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	9401-9404						●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9401-9404	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9405-9506	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9507-9510		●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9511-		●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9405-9408	●	●	●			●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9512	●	●	●			●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9511-9511	●	●	●			●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (F)	8-94110-461-1	01	1	9612-9711		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (F)	8-94110-461-1	01	1	9712-		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (E)	8-97026-150-0	01	1	9612-9711		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (E)	8-97026-150-0	01	1	9712-		●	●	●
21	04.686 CLIP; BRK PIPE 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9401-9510	●	●	●			●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9511-9711	●	●	●			●
21	04.686 CLIP; BRK PIPE 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9312	●	●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9312	●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9401-9404	●	●	●			●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9405-9510	●	●	●			●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711	●	●	●			●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-9801	●	●	●		●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-9801						●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9802-9804	●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9806-	●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9712-9801	●	●	●		●
21	04.686 CLIP; BRK PIPE 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9712-9801						●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9802-9804	●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9805-9805	●	●	●	●	●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9806-	●	●	●	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 16.714 M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9312-9510	●	●	●			●	●
76	04.686 BOLT; BRKT,OIL PIPE 16.714 M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9511-9605	●	●	●			●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9606-9611	●	●	●			●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9612-9711	●	●	●	●		●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●	●	●	●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	9712-	●	●	●	●		●
148	04.686 GROMMET A/T 4 SPEED-JATCO(RMK) EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	02	1	9712-		●

6 6 6 146 6 145 61 3 67 4 49 61 67 4 49 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9406-9510							●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9406-9510	●	●	●			●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9511-9711	●	●	●			●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9712-9801	●	●	●		●	●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9802-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9312-9404			●				●
3	04.685 CLIP; BRK PIPE G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9312-9404		●	●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9405-9406		●	●			●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9405-9406			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506		●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506			●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9407-9506						●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510		●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510			●
3	04.685 CLIP; BRK PIPE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9507-9510						●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9604		●	●			●
3	04.685 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9511-9604			●
3	04.685 CLIP; BRK PIPE 4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9605-9711		●	●			●
3	04.685 CLIP; BRK PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9605-9711			●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-		●	●			●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9712-			●
3	04.685 CLIP; BRK PIPE 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9312-9404	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9405-9509	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9405-9509	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9510-9510	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9510-9510	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9511-9711	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9511-9711	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9712-9801	●	●	●		●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9712-9801	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9802-	●	●	●	●	●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9802-	●		●
3	04.685 CLIP; BRK PIPE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9312-9404		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9405-9510		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9511-9604		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9605-9711		●	●			●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9712-9807		●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9808-		●	●
3	04.685 CLIP; BRK PIPE 4BD2 ENG(RLW) EUROPEAN BASIC EQUIPMENT(EK4), UNITEDKINGDOM EQUIPMENT(6AA),IRISH EQUIPM ENT(6CU) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9808-		●	●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9808-						●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9712-		●	●	●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	05	1	9312-9404		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (C) ID=4.8X2	8-94316-410-0	01	1	9405-9509		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9510-9510		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9511-		●				●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	04	1	9312-9404			●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9712-		●	●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-		●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9712-		●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9712-		●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9712-		●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9712-		●	●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-0	01	1	9712-		●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9712-		●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9712-		●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9805		●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9806-		●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9712-		●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-		●	●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9712-		●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-		●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-		●	●	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
