◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#34262) — 359 parça
çizim 17104
51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9312-9510 ● ● ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9511-9611 ● ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (D) 		8-97040-986-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(D) 		8-97177-306-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (D) 		8-97177-306-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9312-9510 ● ● ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9511-9611 ● ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97040-988-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(A) 		8-97177-307-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97177-307-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97129-530-1 01 1 9612-9703 ● ●
51 04.685 PIPE; BRK
(C) 		8-97129-530-1 01 1 9612-9703 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9704-9711 ● ●
51 04.685 PIPE; BRK
(C) 		8-97180-428-0 01 1 9704-9711 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9712-9801 ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9712-9801 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9802- ● ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97129-523-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(B) 		8-97129-523-0 01 1 9612-9711 ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97129-523-0 01 1 9712- ● ● ●
çizim 17659
106 107 106 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
106 04.686 HOSE; FIN PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-219-1 01 1 9712- ● ● ● ●
107 04.686 PIPE; RETURN TO FIN PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-989-1 01 1 9712- ● ● ● ●
çizim 67475
51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9312-9510 ● ● ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9511-9611 ● ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (D) 		8-97040-986-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(D) 		8-97177-306-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (D) 		8-97177-306-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9312-9510 ● ● ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9511-9611 ● ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97040-988-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(A) 		8-97177-307-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97177-307-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97129-530-1 01 1 9612-9703 ● ●
51 04.685 PIPE; BRK
(C) 		8-97129-530-1 01 1 9612-9703 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9704-9711 ● ●
51 04.685 PIPE; BRK
(C) 		8-97180-428-0 01 1 9704-9711 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9712-9801 ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9712-9801 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9802- ● ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97129-523-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(B) 		8-97129-523-0 01 1 9612-9711 ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97129-523-0 01 1 9712- ● ● ●

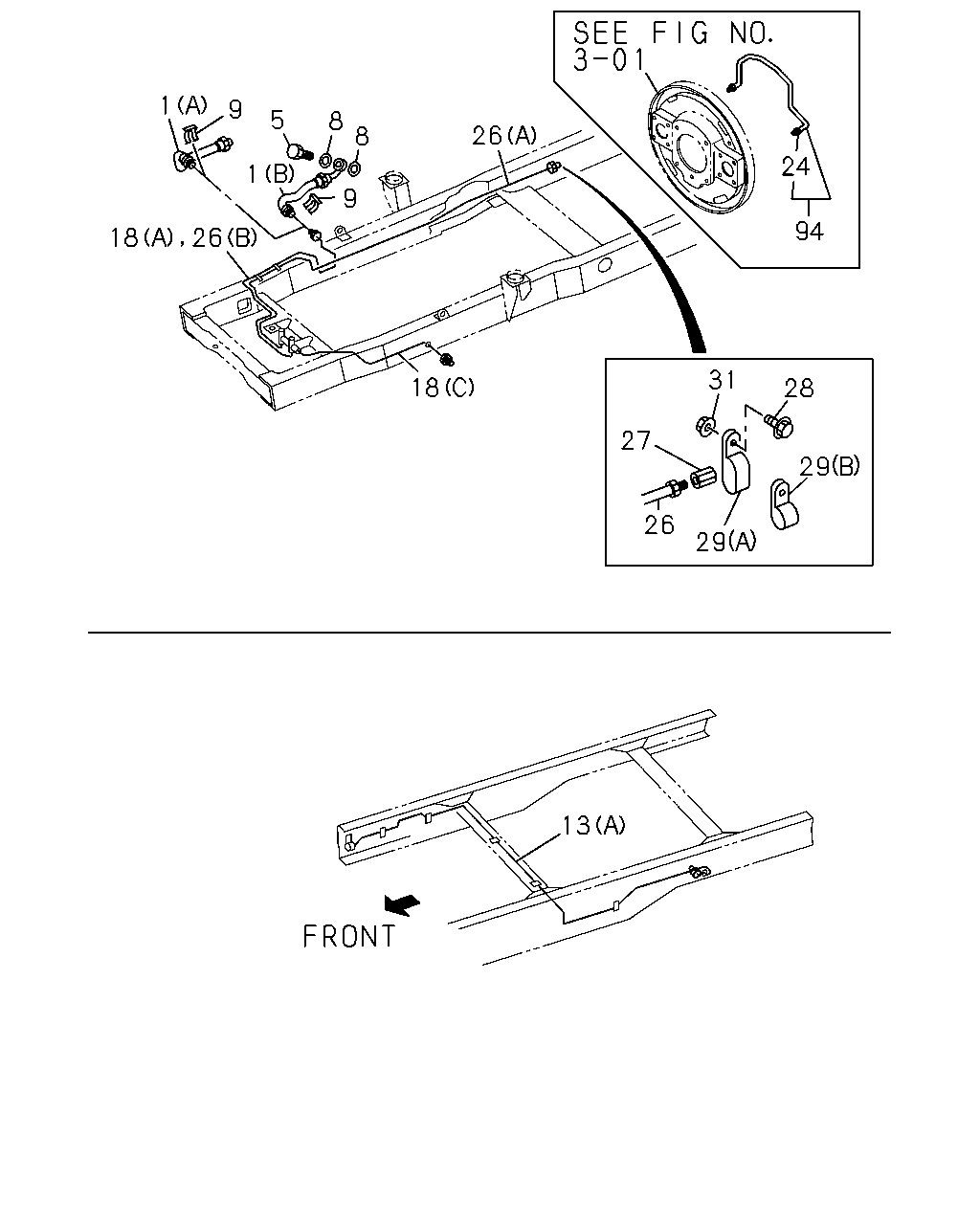

çizim 67816
1 9 5 8 26 8 24 1 9 94 18 26 31 18 28 27 29 26 29 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9312-9510 ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9511-9611 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9612-9711 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9712- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97039-542-0 02 1 9312-9506 ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97039-542-0 02 1 9507-9711 ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9712-9807 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9808- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 9712- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9312-9506 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9507-9711 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9712-9807 ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9808- ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9312-9506 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9507-9711 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9712-9807 ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9808- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9312-9510 ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9312-9510 ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9511-9711 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9511-9711 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97081-692-4 01 1 9312-9510 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97081-692-4 01 1 9312-9510 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-692-4 01 1 9511- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97091-939-1 01 1 9312-9711 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97091-939-2 01 1 9712- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97184-205-0 01 1 9712- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97096-964-0 01 1 9511-9611 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97096-964-0 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-533-1 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97081-691-4 01 1 9312-9510 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 9511- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97096-965-0 01 1 9511-9611 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97096-965-0 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97147-415-1 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
(B) 		8-97129-534-1 01 1 9612-9711 ●
13 04.685 PIPE; OIL,UNION TO UNION
HYDRO MASTER<7LT> (B) 		8-97129-534-1 01 1 9712-9801 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-534-1 01 1 9802- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97134-899-0 01 1 9712-9801 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97134-899-0 01 1 9802- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97134-900-0 01 1 9712- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52> (C) 		8-97079-952-4 01 1 9312-9510 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9511-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9712-9801 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9802-9807 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9808- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		8-97091-934-3 01 1 9312-9510 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> (C) 		8-97079-953-3 01 1 9312-9506 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> (C) 		8-97079-953-3 01 1 9507-9510 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-953-3 01 1 9511-9711 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-953-3 01 1 9712-9807 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-953-3 01 1 9808- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (B) 		8-97073-503-4 01 1 9312-9506 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (B) 		8-97073-503-4 01 1 9507-9510 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> (B) 		8-97080-575-4 01 1 9312-9506 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> (B) 		8-97080-575-4 01 1 9507-9510 ● ●
24 04.686 NUT; UNION,OIL PIPE
(09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C) EXC. DISC BRAKE FRT<J52> 08.963 		9-09217-625-0 04 1 9312-9402 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97073-504-5 01 1 9312-9404 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97114-347-0 01 1 9405-9510 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-1 01 1 9511-9711 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-2 01 1 9712-9801 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-2 01 1 9802- ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97122-367-2 01 1 9511-9511 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9512-9711 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9712-9801 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9802-9807 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9808- ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97122-368-2 01 1 9511-9511 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9512-9711 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9712-9807 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9808- ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312-9510 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312-9510 ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9511-9611 ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9612-9711 ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9712- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9312-9711 ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9712- ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE 		0-28080-625-0 01 1 9511-9610 ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9611-9711 ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9712-9801 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9802- ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612- ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9312-9510 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9312-9510 ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9511-9711 ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9712-9801 ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9802- ● ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9312-9510 ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9511-9711 ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9712-9801 ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9802- ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9711 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
(09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C) EXC. DISC BRAKE FRT<J52> 		8-94154-916-0 02 1 9312-9402 ● ● ● ●

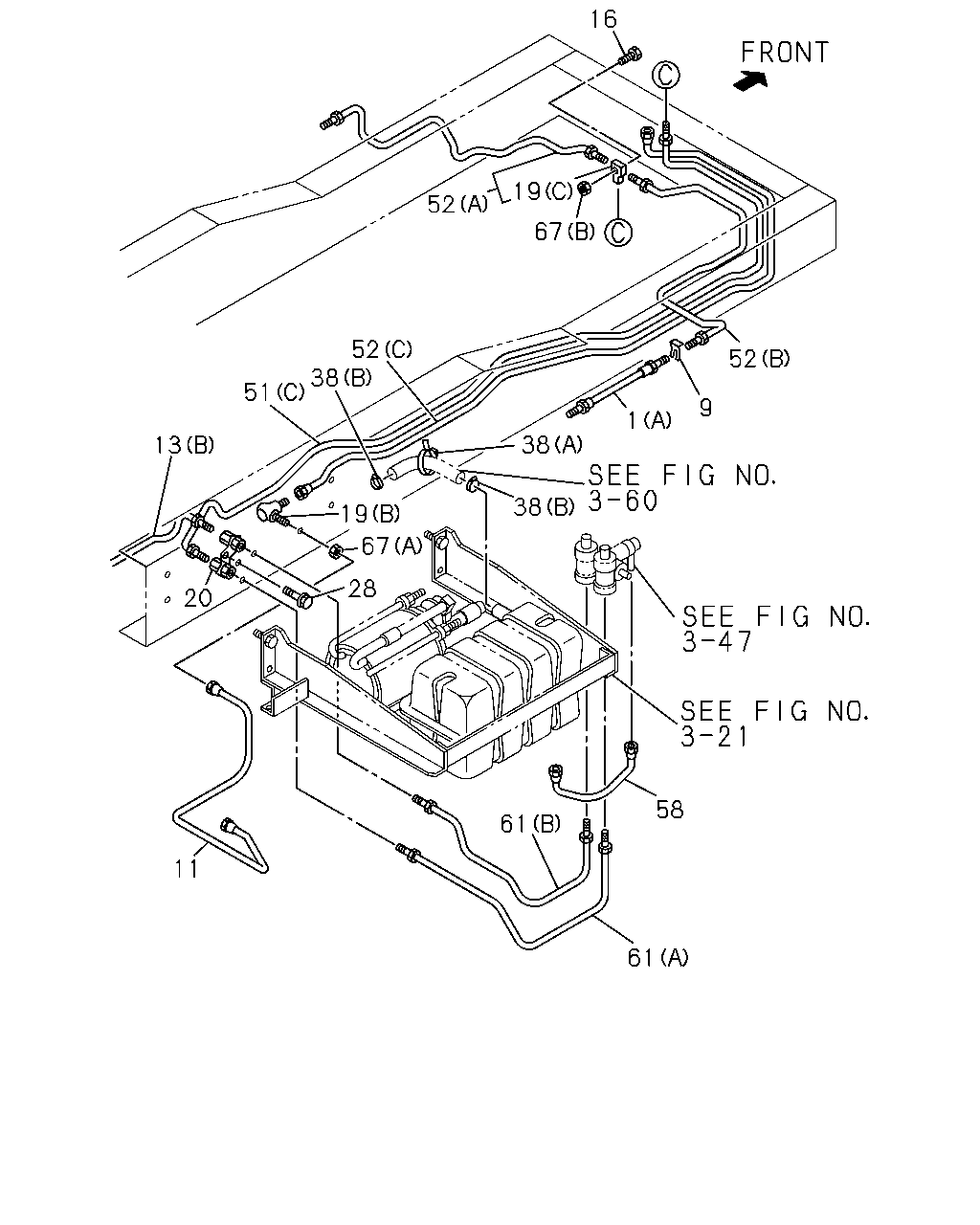

çizim 68135
16 19 52 67 52 38 51 52 9 1 38 13 38 19 67 28 20 58 61 11 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9312-9510 ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9511-9611 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9612-9711 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9712- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97039-542-0 02 1 9312-9506 ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97039-542-0 02 1 9507-9711 ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9712-9807 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9808- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 9712- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9312-9510 ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9312-9510 ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9511-9711 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9511-9711 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-526-1 01 1 9612- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97081-692-4 01 1 9312-9510 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97081-692-4 01 1 9312-9510 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-692-4 01 1 9511- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97091-939-1 01 1 9312-9711 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97091-939-2 01 1 9712- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97184-205-0 01 1 9712- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97096-964-0 01 1 9511-9611 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97096-964-0 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-533-1 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97081-691-4 01 1 9312-9510 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 9511- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97096-965-0 01 1 9511-9611 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97096-965-0 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97147-415-1 01 1 9612- ●
13 04.685 PIPE; OIL,UNION TO UNION
(B) 		8-97129-534-1 01 1 9612-9711 ●
13 04.685 PIPE; OIL,UNION TO UNION
HYDRO MASTER<7LT> (B) 		8-97129-534-1 01 1 9712-9801 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-534-1 01 1 9802- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97134-899-0 01 1 9712-9801 ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97134-899-0 01 1 9802- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97134-900-0 01 1 9712- ●
16 04.686 BOLT; 3 WAY CONNECTOR
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> M8X30 FLANGE 		0-28680-830-0 01 1 9612-9711 ● ● ●
16 04.686 BOLT; 3 WAY CONNECTOR
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ● ●
19 04.686 UNION; OIL PIPE
BRK WHL LK CONT LSPV<6PH> (A) M10 3WAY 		9-09227-305-0 01 1 9312-9510 ● ● ● ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.866 (B) M14 		9-09225-208-1 01 1 9612- ● ● ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (C) M10 3WAY 		9-09227-305-0 01 1 9612- ● ● ●
20 04.686 BRACKET; UNION,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-561-0 01 1 9612- ● ● ●
28 04.686 BOLT; UNION CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE 		0-28080-625-0 01 1 9511-9610 ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9611-9711 ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9712-9801 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9802- ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612- ● ● ●
38 04.686 CLIP
HYDRO MASTER<7LT> 02.559 (A) L=250 		5-09707-030-1 01 1 9612- ● ● ●
38 04.686 CLIP
HYDRO MASTER<7LT> 04.681 (B) ID=32 		9-09915-005-1 02 1 9612- ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9312-9510 ● ● ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9511-9611 ● ● ● ●
51 04.685 PIPE; BRK
(D) 		8-97040-986-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (D) 		8-97040-986-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(D) 		8-97177-306-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (D) 		8-97177-306-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9312-9510 ● ● ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9511-9611 ● ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97040-988-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97040-988-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(A) 		8-97177-307-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97177-307-0 01 1 9712- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97129-530-1 01 1 9612-9703 ● ●
51 04.685 PIPE; BRK
(C) 		8-97129-530-1 01 1 9612-9703 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9704-9711 ● ●
51 04.685 PIPE; BRK
(C) 		8-97180-428-0 01 1 9704-9711 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9712-9801 ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9712-9801 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9802- ● ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97129-523-0 01 1 9612-9711 ● ●
51 04.685 PIPE; BRK
(B) 		8-97129-523-0 01 1 9612-9711 ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97129-523-0 01 1 9712- ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97129-525-0 01 1 9612- ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (A) 		8-97129-532-1 01 1 9612- ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (B) 		8-97129-531-1 01 1 9612-9703 ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (B) 		8-97180-429-0 01 1 9704- ● ● ●
58 04.685 PIPE; OIL,HYDROMASTER TO SAFETY
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-527-0 01 1 9612- ● ● ●
61 04.685 PIPE; BRK,SAFETY VLV
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) 		8-97129-528-0 01 1 9612- ● ● ●
61 04.685 PIPE; BRK,SAFETY VLV
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-529-0 01 1 9612- ● ● ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 06.172 (A) M14 		9-99111-414-0 01 1 9612- ● ● ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9612-9711 ● ● ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●

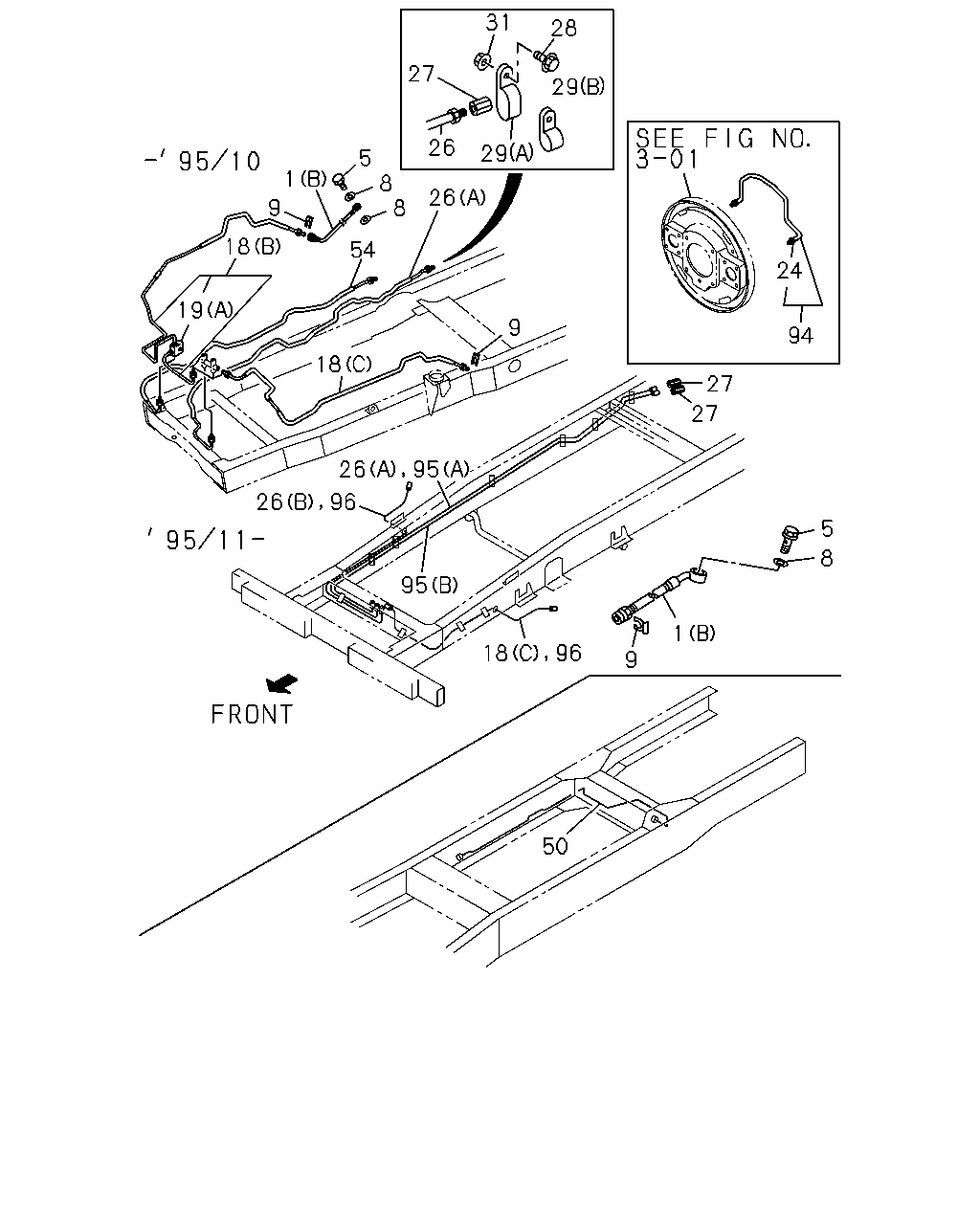

çizim 70526
31 28 27 29 26 29 5 8 8 1 26 9 18 54 24 19 9 94 18 27 27 26 95 26 96 5 8 95 1 18 96 9 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9312-9510 ● ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9511-9611 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9612-9711 ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-0 02 1 9712- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97039-542-0 02 1 9312-9506 ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> (B) 		8-97039-542-0 02 1 9507-9711 ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9712-9807 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9808- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 9712- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9312-9506 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9507-9711 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9712-9807 ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9808- ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9312-9506 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9507-9711 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9712-9807 ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9808- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9312-9510 ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9312-9510 ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9511-9711 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9511-9711 ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52> (C) 		8-97079-952-4 01 1 9312-9510 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9511-9711 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9712-9801 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9802-9807 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-952-4 01 1 9808- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		8-97091-934-3 01 1 9312-9510 ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> (C) 		8-97079-953-3 01 1 9312-9506 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> (C) 		8-97079-953-3 01 1 9507-9510 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-953-3 01 1 9511-9711 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-953-3 01 1 9712-9807 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97079-953-3 01 1 9808- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (B) 		8-97073-503-4 01 1 9312-9506 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (B) 		8-97073-503-4 01 1 9507-9510 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> (B) 		8-97080-575-4 01 1 9312-9506 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> (B) 		8-97080-575-4 01 1 9507-9510 ● ●
19 04.686 UNION; OIL PIPE
BRK WHL LK CONT LSPV<6PH> (A) M10 3WAY 		9-09227-305-0 01 1 9312-9510 ● ● ● ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.866 (B) M14 		9-09225-208-1 01 1 9612- ● ● ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (C) M10 3WAY 		9-09227-305-0 01 1 9612- ● ● ●
24 04.686 NUT; UNION,OIL PIPE
(09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C) EXC. DISC BRAKE FRT<J52> 08.963 		9-09217-625-0 04 1 9312-9402 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97073-504-5 01 1 9312-9404 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97114-347-0 01 1 9405-9510 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-1 01 1 9511-9711 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-2 01 1 9712-9801 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-2 01 1 9802- ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97122-367-2 01 1 9511-9511 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9512-9711 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9712-9801 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9802-9807 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9808- ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97122-368-2 01 1 9511-9511 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9512-9711 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9712-9807 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9808- ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312-9510 ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9312-9510 ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9511-9611 ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9612-9711 ● ● ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9712- ● ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9312-9711 ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9712- ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
M6X25 FLANGE 		0-28080-625-0 01 1 9312-9510 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 FLANGE 		0-28080-625-0 01 1 9511-9610 ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9611-9711 ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9712-9801 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9802- ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612- ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9312-9510 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9312-9510 ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9511-9711 ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9712-9801 ● ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9802- ● ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9312-9510 ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9511-9711 ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9712-9801 ● ● ● ● ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9802- ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9510 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9511-9711 ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9712-9801 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9802- ● ● ● ● ● ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97091-937-2 01 1 9312-9701 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97173-707-0 01 1 9702-9711 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97173-707-0 01 1 9712- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-47411-781-0 01 1 9511-9711 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 SERVICED BY L=2300 		5-47411-785-0 01 1 9712- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97073-505-3 01 1 9312-9510 ● ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-505-3 01 1 9511-9604 ● ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97143-559-0 01 1 9604-9605 ● ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97149-121-0 01 1 9606-9807 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97149-121-0 01 1 9808- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> 		8-97149-121-0 01 1 9808- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ> 		8-97143-560-0 01 1 9606- ● ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97073-506-2 01 1 9312-9510 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-506-2 01 1 9511- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 SERVICED BY L=2300 		5-47411-785-0 01 1 9511-9711 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 05.476 SERVICED BY L=2720 		5-47411-788-0 01 1 9712- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> 04.686 SERVICED BY L=3035 		5-47411-789-0 01 1 9712-9801 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 SERVICED BY L=3035 		5-47411-789-0 01 1 9802- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 SERVICED BY L=3035 		5-47411-789-0 01 1 9712- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97170-243-3 01 1 9712- ●
54 04.685 PIPE; BRK,UNION TO UNION
BRK WHL LK CONT LSPV<6PH> 		8-97073-502-4 01 1 9312-9404 ● ● ● ●
54 04.685 PIPE; BRK,UNION TO UNION
BRK WHL LK CONT LSPV<6PH> 		8-97114-344-0 01 1 9405-9505 ● ● ● ●
54 04.685 PIPE; BRK,UNION TO UNION
BRK WHL LK CONT LSPV<6PH> 		8-97131-915-0 01 1 9506-9510 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
(09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C) EXC. DISC BRAKE FRT<J52> 		8-94154-916-0 02 1 9312-9402 ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> (A) 		8-97122-369-2 01 1 9508-9510 ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-369-2 01 1 9511-9711 ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-369-2 01 1 9712-9801 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-369-2 01 1 9802- ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97149-838-0 01 1 9712- ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97149-838-0 01 1 9712- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) 		8-97149-839-0 01 1 9712- ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97149-839-0 01 1 9712- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-031-0 01 1 9511-9511 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9511-9711 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9712- ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9712- ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-957-0 01 1 9511-9511 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97142-709-0 01 1 9511-9611 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9612-9711 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9712- ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9712- ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97096-954-0 01 1 9511-9611 ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-954-0 01 1 9612-9711 ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-954-1 01 1 9712- ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97096-950-0 01 1 9511-9611 ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-950-0 01 1 9612-9711 ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-950-0 01 1 9712- ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97177-532-3 01 1 9712- ● ● ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97177-531-2 01 1 9712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
