Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#34261) — 182 parça

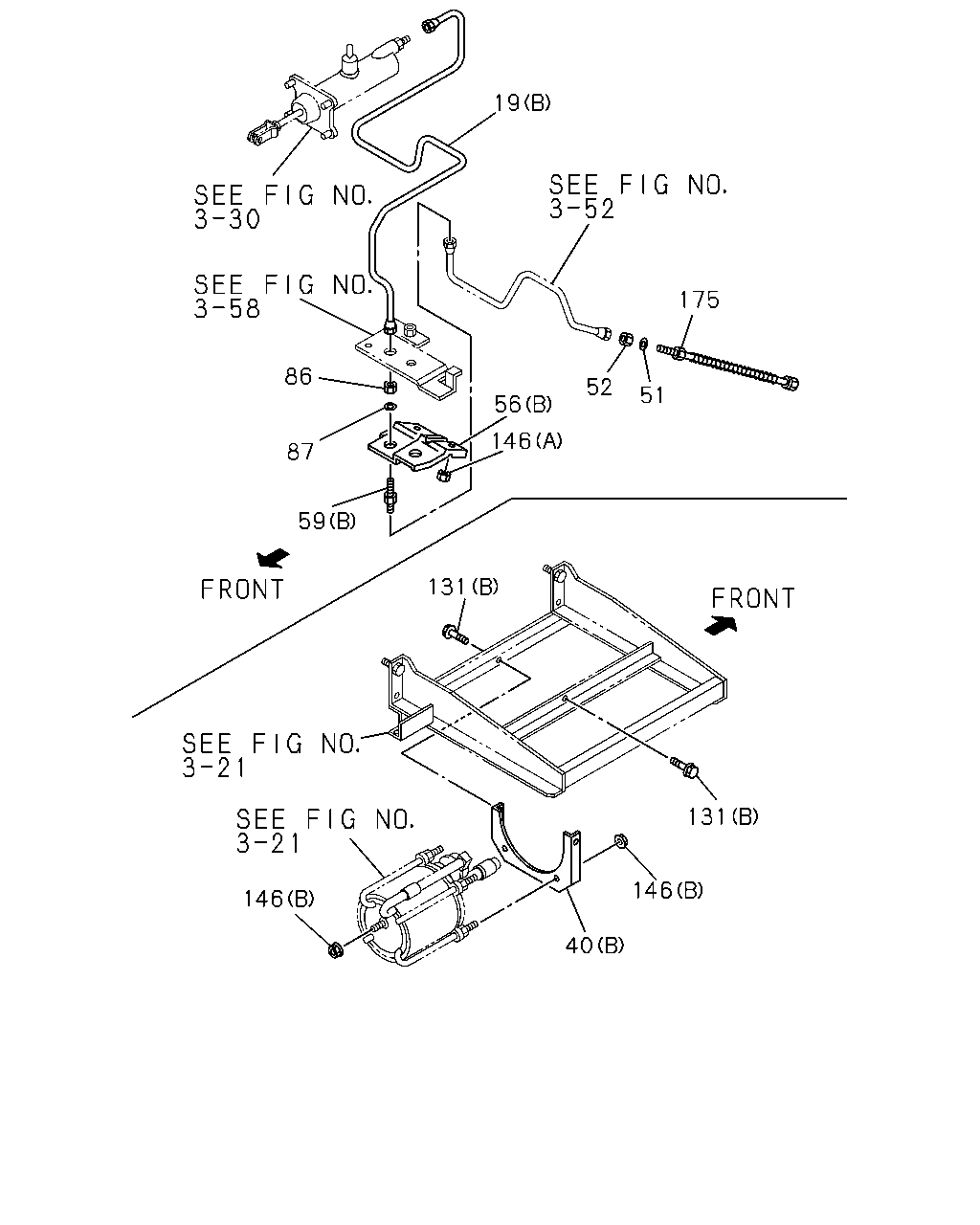

19 175 86 52 51 56 146 87 59 131 131 146 146 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97040-985-1	01	1	9312-9510	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97040-985-1	01	1	9511-9603	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT> (A)	8-97040-985-1	01	1	9604-9711	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT> (A)	8-97149-834-1	01	1	9712-	●	●	●	●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT> (B)	8-97129-521-1	01	1	9612-9703		●	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT> (B)	8-97179-899-0	01	1	9704-9711		●	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT> (B)	8-97179-899-0	01	1	9712-		●	●			●
40	04.690 BRACKET HYDRO MASTER<7LT> (B)	8-97145-247-1	01	1	9612-		●	●			●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97188-262-0	01	1	9712-		●	●			●	●
51	04.681 WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 00.796 ID=14.2	9-09150-514-0	02	1	9612-9711		●	●
51	04.681 WASHER; LK,FLEX HOSE 00.796 ID=14.2	9-09150-514-0	02	1	9612-9711						●
51	04.681 WASHER; LK,FLEX HOSE HYDRO MASTER<7LT> 00.796 ID=14.2	9-09150-514-0	02	1	9712-		●	●			●
52	04.681 NUT; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 06.232 M14	9-99110-414-0	02	1	9612-9711		●	●
52	04.681 NUT; FLEX HOSE 06.232 M14	9-99110-414-0	02	1	9612-9711						●
52	04.681 NUT; FLEX HOSE HYDRO MASTER<7LT> 06.232 M14	9-99110-414-0	02	1	9712-		●	●			●
56	04.686 BRACKET; UNION,BRK (A)	8-97078-564-1	01	1	9312-9510	●	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97078-564-1	01	1	9511-9611	●	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO MASTER<7LT> (A)	8-97078-564-1	01	1	9612-9711	●	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO MASTER<7LT> (A)	8-97149-604-1	01	1	9712-	●	●	●	●		●	●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	8-97129-587-1	01	1	9612-9703		●	●			●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	1-71998-934-2	01	1	9704-9711		●	●			●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	1-71998-934-2	01	1	9712-		●	●			●
59	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9312-9510	●	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9511-9611	●	●	●	●
59	04.686 UNION; BRK PIPE EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9612-9711	●	●	●	●
59	04.686 UNION; BRK PIPE EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9712-	●	●	●	●		●	●
59	04.686 UNION; BRK PIPE HYDRO MASTER<7LT> 04.866 (B) M14	9-09223-308-1	01	1	9612-9711		●	●			●
59	04.686 UNION; BRK PIPE HYDRO MASTER<7LT> 04.866 (B) M14	9-09223-308-1	01	1	9712-		●	●			●
86	04.681 NUT; UNION HYDRO MASTER<7LT> 06.172 M14	9-99111-414-0	01	1	9612-9711		●	●			●
86	04.681 NUT; UNION HYDRO MASTER<7LT> 06.172 M14	9-99111-414-0	01	1	9712-		●	●			●
87	04.681 WASHER; LK,UNION HYDRO MASTER<7LT> 00.796 ID=14.2	9-09150-514-0	01	1	9612-9711		●	●			●
87	04.681 WASHER; LK,UNION HYDRO MASTER<7LT> 00.796 ID=14.2	9-09150-514-0	01	1	9712-		●	●			●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9511-9611		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9612-9711		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●	●			●	●
131	04.710 BOLT; BRKT HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9612-		●	●			●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9511-9611	●	●	●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●	●		●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●		●	●
146	04.685 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	03	1	9612-		●	●			●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-		●	●			●	●
175	04.681 HOSE; FLEX FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 00.785 L=420	1-09364-615-0	01	1	9612-9711		●	●
175	04.681 HOSE; FLEX 00.785 L=420	1-09364-615-0	01	1	9612-9711						●
175	04.681 HOSE; FLEX HYDRO MASTER<7LT> 00.785 L=420	1-09364-615-0	01	1	9712-		●	●			●

193 188 181 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	F	G
181	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9712-	●	●	●	●
188	04.685 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-	●	●	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97160-076-2	01	1	9712-	●	●	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97177-033-3	01	1	9712-	●	●	●	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97177-089-3	01	1	9712-	●	●	●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 ID=16	5-09707-023-2	01	1	9712-9802	●	●	●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	9803-	●	●	●	●

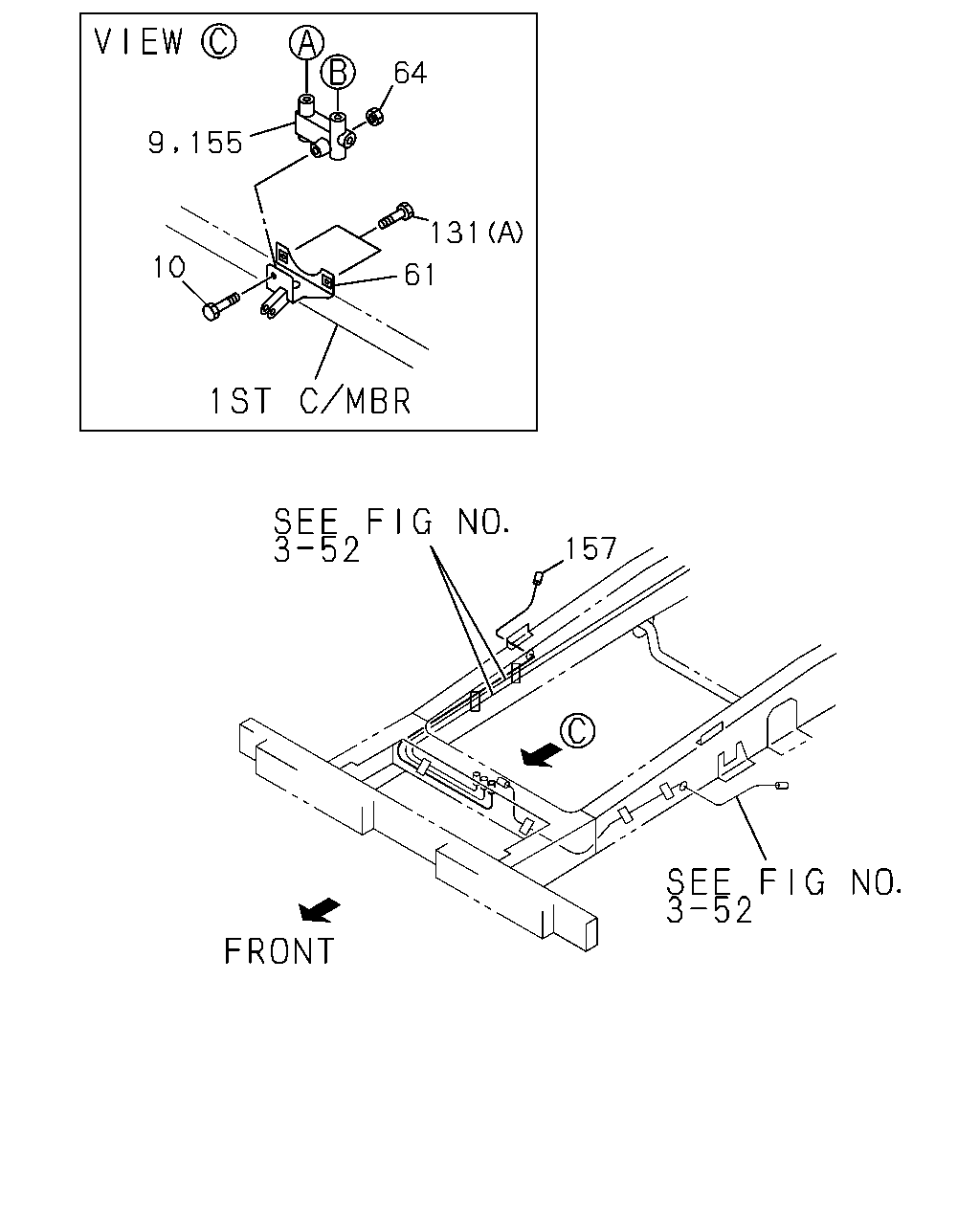

64 9 155 131 10 61 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9508-9510					●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9508-9510	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9511-9611	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT>	5-47456-009-0	01	1	9612-9711	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT>	5-47456-009-0	01	1	9712-	●	●	●	●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9312-9507	●	●	●	●	●
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9312-9510	●	●	●	●	●
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9511-9611	●	●	●	●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9612-9703	●	●	●	●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9704-9711	●	●	●	●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●	●	●	●		●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97081-008-3	01	1	9511-9610		●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	9611-9611		●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97170-632-0	01	1	9612-9711		●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97170-632-0	01	1	9712-	●	●	●			●	●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9511-9611		●	●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.594 M6 FLANGE	0-91150-106-0	01	1	9612-9711		●	●
64	04.686 NUT; 5 WAY TO BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-	●	●	●			●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9511-9611		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9612-9711		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●	●			●	●
131	04.710 BOLT; BRKT HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	9612-		●	●			●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9508-9711	●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9712-	●	●	●	●		●	●
157	04.685 PIPE; BRK,6WAY BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>	8-97122-367-2	01	1	9508-9510	●	●	●	●
157	04.685 PIPE; BRK,6WAY DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH>	8-97122-368-2	01	1	9508-9510		●	●

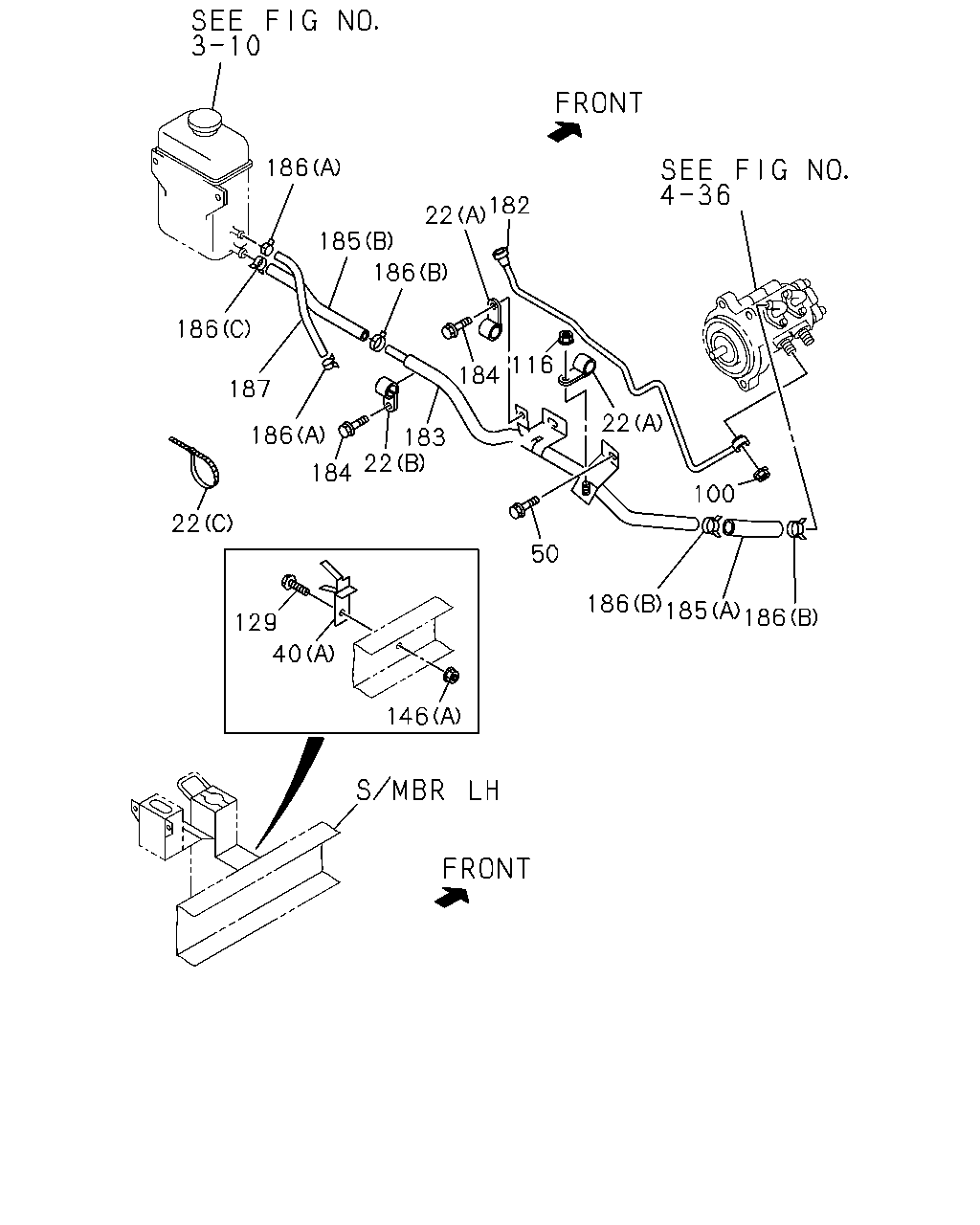

186 182 22 185 186 186 116 184 187 22 186 183 22 184 100 22 50 186 185 186 129 40 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	9712-		●	●			●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	9712-		●	●			●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32	9-09525-866-0	01	1	9712-		●	●			●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250	5-09707-030-1	01	1	9802-		●	●			●	●
40	04.690 BRACKET HYDRO MASTER<7LT> (B)	8-97145-247-1	01	1	9612-		●	●			●
40	04.690 BRACKET HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97188-262-0	01	1	9712-		●	●			●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-		●	●			●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	9712-		●	●			●	●
116	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●			●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-		●	●			●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9511-9611	●	●	●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●	●		●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●		●	●
146	04.685 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	03	1	9612-		●	●			●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-		●	●			●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97181-945-0	01	1	9712-		●	●			●	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL>	8-97184-067-4	01	1	9712-		●	●			●	●
183	04.685 PIPE; SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-946-5	01	1	9712-		●	●			●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-		●	●			●	●
184	04.681 BOLT; CLIP HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-		●	●			●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (A)	0-09814-120-0	01	1	9712-		●	●			●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	9712-		●	●			●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-851-0	01	1	9712-		●	●			●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	9712-		●	●			●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	9712-		●	●			●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	9712-		●	●			●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> L=270	0-09809-270-0	01	1	9712-		●	●			●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97181-961-2	01	1	9712-		●	●			●	●

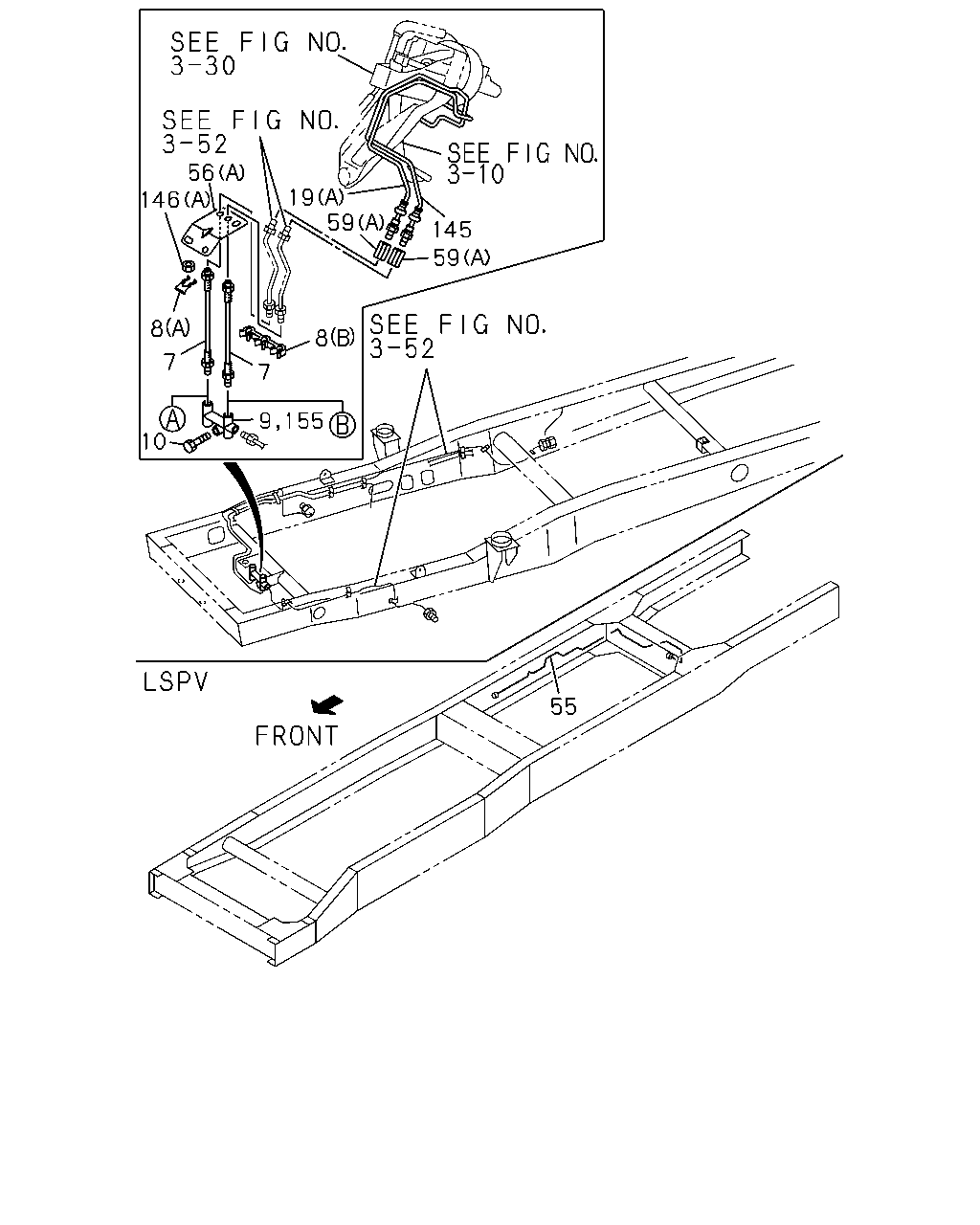

56 146 19 59 145 59 8 8 7 7 9 155 10 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97035-573-0	02	1	9312-9510	●	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97035-573-0	02	1	9511-9611	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT EXC. HYDRO MASTER<7LT>	8-97035-573-0	02	1	9612-9711	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT EXC. HYDRO MASTER<7LT>	8-97171-031-0	02	1	9712-	●	●	●	●		●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	9312-9510	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	9511-9611	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE EXC. HYDRO MASTER<7LT> 00.785 (A)	8-94167-006-0	02	1	9612-9711	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE EXC. HYDRO MASTER<7LT> 00.785 (A)	8-94167-006-0	02	1	9712-	●	●	●	●		●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	9312-9510	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	9511-9611	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE EXC. HYDRO MASTER<7LT> 04.686 (B)	8-97076-471-0	01	1	9612-9711	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE EXC. HYDRO MASTER<7LT> 04.686 (B)	8-97076-471-0	01	1	9712-	●	●	●	●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9508-9510					●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9508-9510	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>	5-47456-009-0	01	1	9511-9611	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT>	5-47456-009-0	01	1	9612-9711	●	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT>	5-47456-009-0	01	1	9712-	●	●	●	●		●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE	5-47456-009-0	01	1	9312-9507	●	●	●	●	●
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9312-9510	●	●	●	●	●
10	04.686 BOLT; JOINT M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9511-9611	●	●	●	●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> M6X40 W/LK&PL WASHER	0-51240-640-0	01	1	9612-9703	●	●	●	●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9704-9711	●	●	●	●
10	04.686 BOLT; JOINT EXC. HYDRO MASTER<7LT> 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●	●	●	●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97040-985-1	01	1	9312-9510	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97040-985-1	01	1	9511-9603	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT> (A)	8-97040-985-1	01	1	9604-9711	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO MASTER<7LT> (A)	8-97149-834-1	01	1	9712-	●	●	●	●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT> (B)	8-97129-521-1	01	1	9612-9703		●	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT> (B)	8-97179-899-0	01	1	9704-9711		●	●			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO MASTER<7LT> (B)	8-97179-899-0	01	1	9712-		●	●			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH>	8-97091-938-3	01	1	9312-9711	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-938-3	01	1	9712-	●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685	5-47411-781-0	01	1	9511-9711		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	5-47411-784-0	01	1	9712-		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH>	8-97073-485-5	01	1	9312-9510		●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97073-485-5	01	1	9511-9604		●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685	8-97143-560-0	01	1	9604-9605		●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97149-122-0	01	1	9606-9807		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97149-122-1	01	1	9808-		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EURO2 SPECIFICATION<7AF>	8-97149-122-1	01	1	9808-				●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ> 04.685	8-97143-559-0	01	1	9606-9706		●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ>	8-97180-893-0	01	1	9707-9712		●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. EURO2 SPECIFICATION<7AF>,FRAME STRAIGHT TYPE<7KJ>	8-97184-238-0	01	1	9801-		●		●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH>	8-97073-486-4	01	1	9312-9510			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97073-486-4	01	1	9511-			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> SERVICED BY L=2300	5-47411-785-0	01	1	9511-9711			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685	5-47411-786-0	01	1	9712-			●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> SERVICED BY L=3035	5-47411-789-0	01	1	9712-9801						●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> SERVICED BY L=3035	5-47411-789-0	01	1	9802-						●
55	04.686 PIPE; BRK,VLV TO UNION BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ>	5-47411-790-0	01	1	9712-							●
56	04.686 BRACKET; UNION,BRK (A)	8-97078-564-1	01	1	9312-9510	●	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97078-564-1	01	1	9511-9611	●	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO MASTER<7LT> (A)	8-97078-564-1	01	1	9612-9711	●	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO MASTER<7LT> (A)	8-97149-604-1	01	1	9712-	●	●	●	●		●	●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	8-97129-587-1	01	1	9612-9703		●	●			●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	1-71998-934-2	01	1	9704-9711		●	●			●
56	04.686 BRACKET; UNION,BRK HYDRO MASTER<7LT> (B)	1-71998-934-2	01	1	9712-		●	●			●
59	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9312-9510	●	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9511-9611	●	●	●	●
59	04.686 UNION; BRK PIPE EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9612-9711	●	●	●	●
59	04.686 UNION; BRK PIPE EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9712-	●	●	●	●		●	●
59	04.686 UNION; BRK PIPE HYDRO MASTER<7LT> 04.866 (B) M14	9-09223-308-1	01	1	9612-9711		●	●			●
59	04.686 UNION; BRK PIPE HYDRO MASTER<7LT> 04.866 (B) M14	9-09223-308-1	01	1	9712-		●	●			●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97040-987-1	01	1	9312-9510	●	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97040-987-1	01	1	9511-9603	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO MASTER<7LT>	8-97040-987-1	01	1	9604-9711	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO MASTER<7LT>	8-97149-833-1	01	1	9712-	●	●	●	●		●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9511-9611	●	●	●	●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●	●		●
146	04.685 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●		●	●
146	04.685 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	03	1	9612-		●	●			●
146	04.685 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9712-		●	●			●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9508-9711	●	●	●	●
155	04.686 JOINT; 6WAY BRK WHL LK CONT LSPV<6PH>	8-97120-033-1	01	1	9712-	●	●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
