3-32 — HYDRO BOOSTING SYSTEM (#34258) — 43 parça

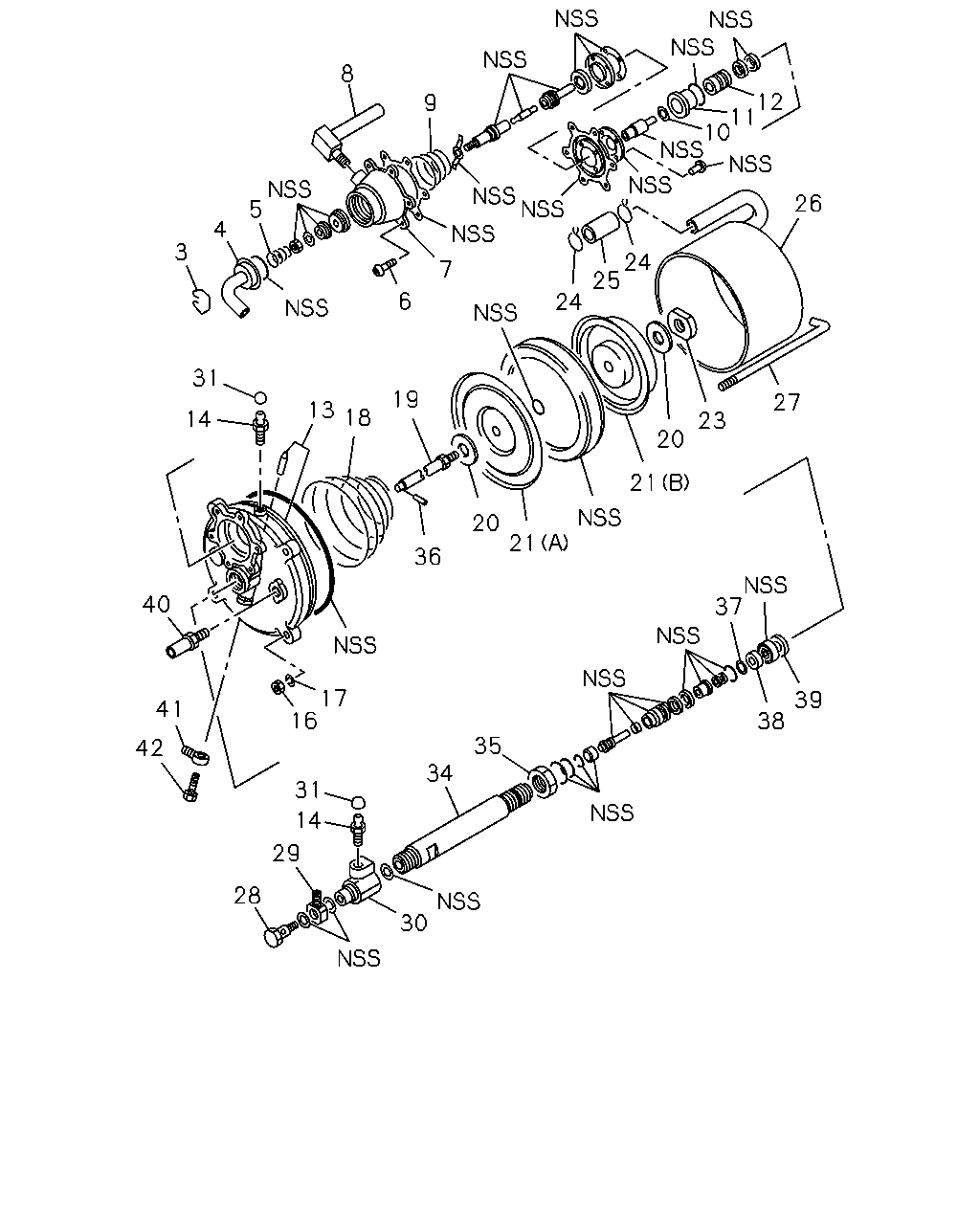

8 12 11 10 9 5 26 4 3 24 25 24 7 6 31 19 27 13 18 14 23 20 21 20 21 36 37 40 17 16 39 38 41 35 42 34 31 14 29 28 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	04.890 RETAINER; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47819-061-0	01	1	-
4	04.890 PIPE; HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47849-004-0	01	1	-
5	04.890 SPRING; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83341-308-0	01	1	-
6	04.886 SCREW; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-88510-210-0	06	1	-
7	04.890 BODY; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-052-0	01	1	-
8	04.892 ELBOW; SHELL,HYDROMASTER T=0.925 ASM PART: A = 8-97129-512-0, 97129512	8-97174-159-0	01	1	-
9	04.890 SPRING; DIAPH,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-056-0	01	1	-
10	04.890 RING; RET,FITTING,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-22189-193-0	01	1	-
11	04.890 FITTING; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-069-0	01	1	-
12	04.882 PISTON; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-071-0	01	1	-
13	04.880 PLATE; END,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-054-0	01	1	-
14	04.882 PLUG; CAP,HYDROMASTER 06.806 ASM PART: A = 8-97129-512-0, 97129512	9-83331-704-0	02	1	-
16	04.892 NUT; END PLATE TO SHELL,HYDROMAS ASM PART: A = 8-97129-512-0, 97129512	9-83315-080-0	04	1	-
17	04.890 WASHER; END PLATE TO SHELL,HYDRO 00.002, ID=10.2 ASM PART: A = 8-97129-512-0, 97129512	9-09150-510-0	04	1	-
18	04.886 SPRING; CYL SHELL,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83321-402-0	01	1	-
19	04.880 ROD; PUSH,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47825-003-0	01	1	-
20	04.890 WASHER; LK,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83325-031-0	02	1	-
21	04.886 PLATE; PISTON,SHELL,HYDROMASTER (B) ASM PART: A = 8-97129-512-0, 97129512	1-47811-084-0	01	1	-
21	04.886 PLATE; PISTON,SHELL,HYDROMASTER (A) ASM PART: A = 8-97129-512-0, 97129512	1-47811-085-0	01	1	-
23	04.886 NUT; PUSH ROD,SHELL,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83325-032-0	01	1	-
24	04.890 CLAMP; HOSE,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83315-023-0	02	1	-
25	04.890 HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83315-007-0	01	1	-
26	04.890 SHELL; CYL,HYDROMASTER T=0.850 ASM PART: A = 8-97129-512-0, 97129512	8-97174-156-0	01	1	-
27	04.886 BOLT; HOOK,HYDROMASTER T=0.825 ASM PART: A = 8-97129-512-0, 97129512	8-97174-155-0	04	1	-
28	04.892 BOLT; EYE,CAP,HYDROMASTER 00.785 ASM PART: A = 8-97129-512-0, 97129512	9-83315-047-0	01	1	-
29	04.892 CONNECTOR; EYE,CAP,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47819-118-0	01	1	-
30	04.892 CAP; CYL,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47819-047-0	01	1	-
31	04.882 PROTECTOR; CAP,HYDROMASTER 06.806 ASM PART: A = 8-97129-512-0, 97129512	9-83335-044-0	02	1	-
34	04.880 CYLINDER; HYDROMASTER T=0.900 ASM PART: A = 8-97129-512-0, 97129512	8-97174-158-0	01	1	-
35	04.886 NUT; CYL,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83335-012-0	01	1	-
36	04.890 PIN; PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83325-023-0	01	1	-
37	04.890 WASHER; PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47819-028-0	01	1	-
38	04.890 RETAINER; PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47819-029-0	01	1	-
39	04.890 WASHER; OIL SEAL,PISTON,HYDROMAS ASM PART: A = 8-97129-512-0, 97129512	1-47819-031-0	01	1	-
40	04.892 CONNECTOR; HOSE,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-047-0	01	1	-
41	04.892 CONNECTOR; EYE,END PLATE,HYDROMA ASM PART: A = 8-97129-512-0, 97129512	1-47819-119-0	01	1	-
42	04.886 BOLT; EYE,END PLATE,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	1-47811-088-0	01	1	-

1 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

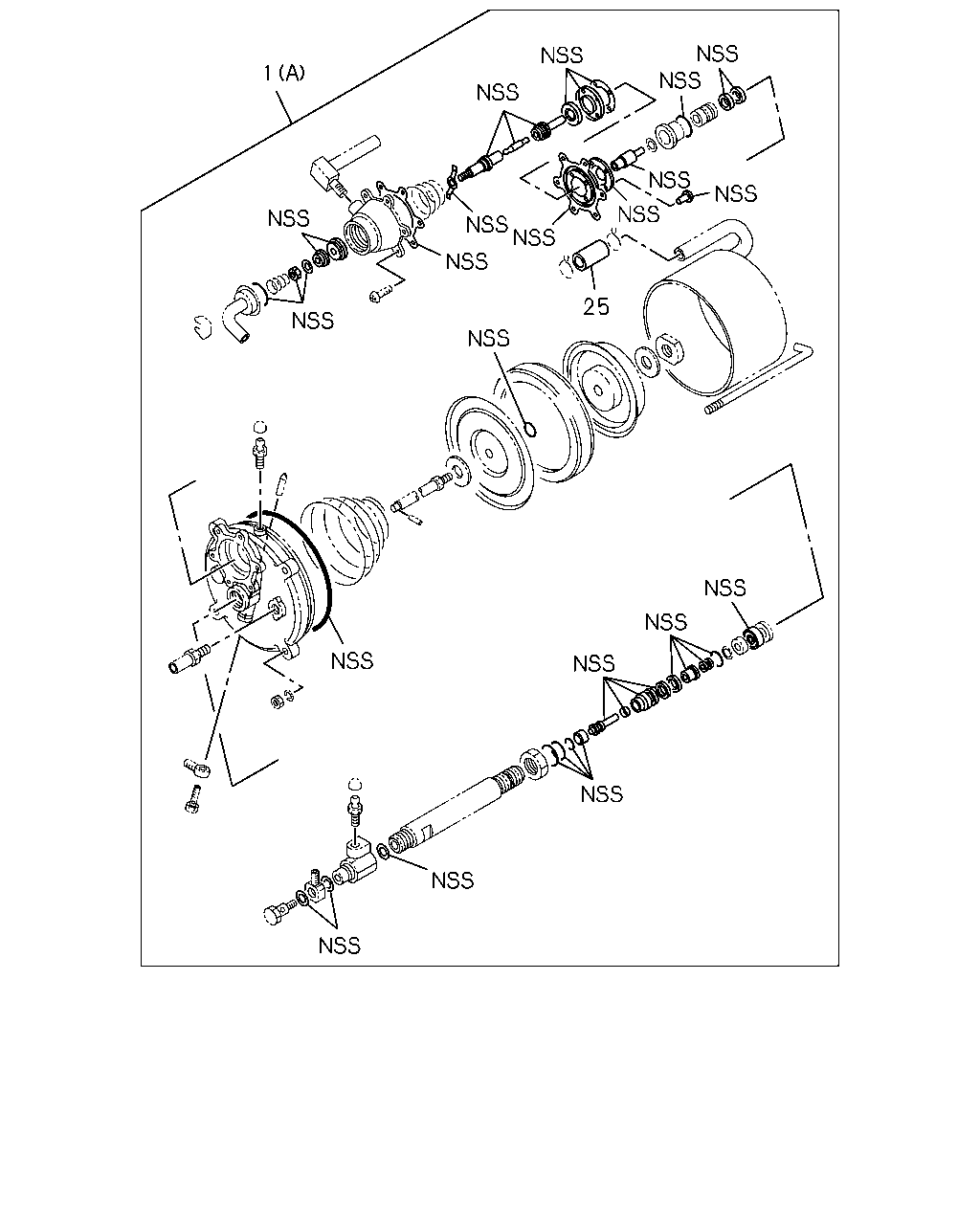

1	04.880 REPAIR KIT; HYDROMASTER (A) ASM PART: A = 8-97129-512-0, 97129512	8-97174-081-0	01	1	-

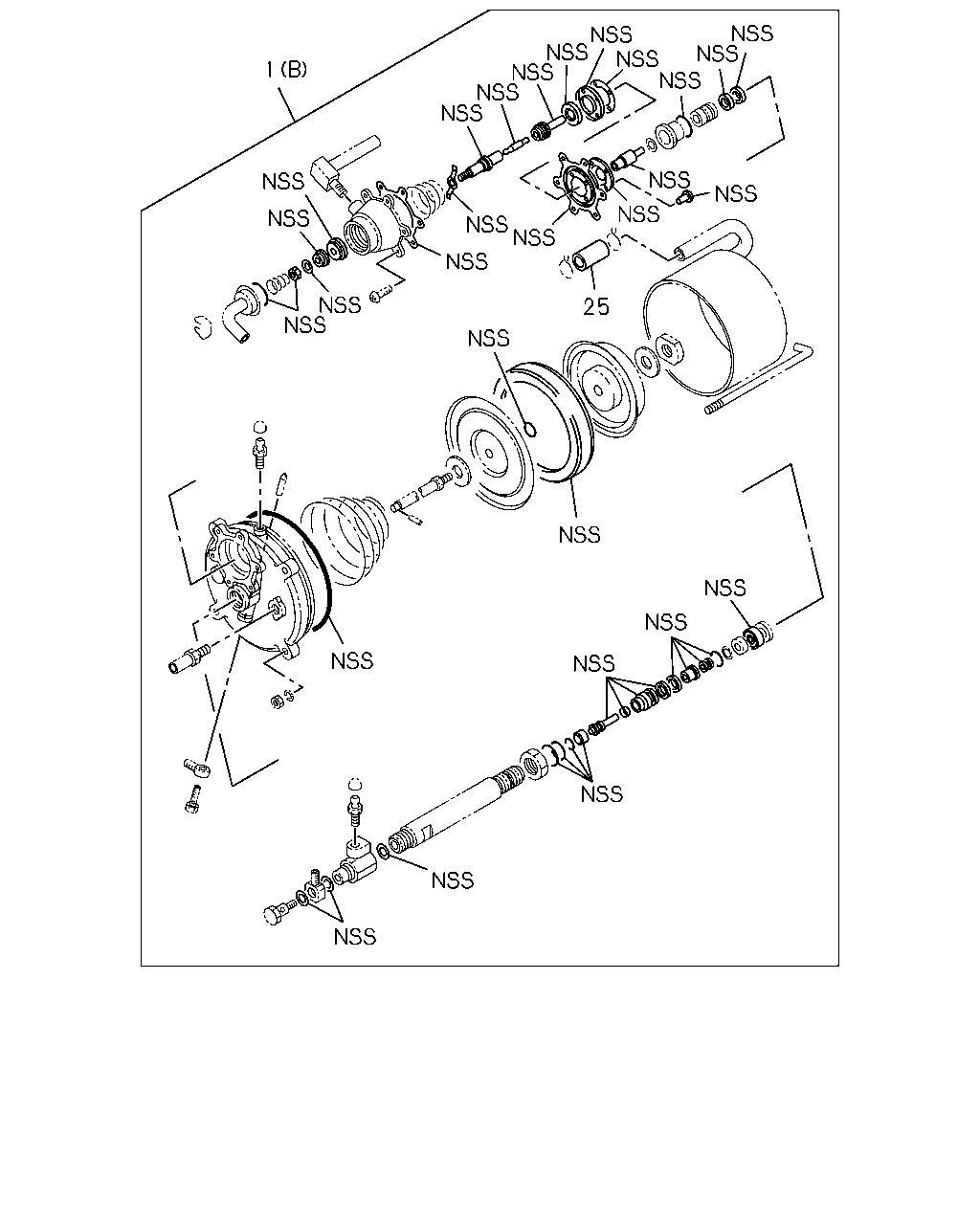

1	04.880 REPAIR KIT; HYDROMASTER (B) ASM PART: A = 8-97129-512-0, 97129512	8-97174-082-0	01	1	-
25	04.890 HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83315-007-0	01	1	-

1 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.880 REPAIR KIT; HYDROMASTER (A) ASM PART: A = 8-97129-512-0, 97129512	8-97174-081-0	01	1	-
1	04.880 REPAIR KIT; HYDROMASTER (B) ASM PART: A = 8-97129-512-0, 97129512	8-97174-082-0	01	1	-
25	04.890 HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 8-97129-512-0, 97129512	9-83315-007-0	01	1	-
