◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#34257) — 291 parça
çizim 67436
47 1 17 16 24 15 11 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97036-929-0 01 1 9312-9506 ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (B) 		8-97036-929-0 01 1 9312-9506 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (B) 		8-97036-929-0 01 1 9507-9510 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (B) 		8-97036-929-0 01 1 9507-9510 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97036-929-0 01 1 9511-9611 ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (B) 		8-97036-929-0 01 1 9511-9611 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (B) 		8-97036-929-0 01 1 9612-9612 ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (B) 		8-97036-929-0 01 1 9612-9612 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (B) 		8-97036-929-0 01 1 9701-9711 ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (B) 		8-97036-929-0 01 1 9701-9711 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (B) 		8-97036-929-0 01 1 9701-9711 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97036-929-0 01 1 9712-9801 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97036-929-0 01 1 9712-9801 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-974-0 01 1 9802-9807 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-974-0 01 1 9802-9807 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-974-0 01 1 9808- ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-974-0 01 1 9808- ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97033-986-1 01 1 9312-9506 ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97033-986-1 01 1 9312-9506 ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97033-986-1 01 1 9507-9510 ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97033-986-1 01 1 9507-9510 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97033-986-1 01 1 9511-9611 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97033-986-1 01 1 9511-9611 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97033-986-1 01 1 9612-9612 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97033-986-1 01 1 9612-9612 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (A) 		8-97033-986-1 01 1 9701-9711 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97033-986-1 01 1 9701-9711 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97033-986-1 01 1 9712-9801 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97033-986-1 01 1 9712-9801 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97033-986-1 01 1 9712-9801 ●
1 04.901 MASTER VAC ASM; BRK
(A) 		8-97033-986-1 01 1 9712-9801 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-972-1 01 1 9802-9807 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-972-1 01 1 9802-9807 ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) (C) 		8-97177-972-1 01 1 9808- ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-972-1 01 1 9808- ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97177-972-1 01 1 9808- ●
1 04.901 MASTER VAC ASM; BRK
EXC. DISC BRAKE FRT<J52> (C) 		8-97177-972-1 01 1 9808- ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 9312-9510 ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 9511-9611 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO MASTER<7LT> 		9-83315-319-0 01 1 9612-9711 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9712- ● ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.913 		9-83345-063-0 02 1 9312-9506 ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 04.913 		9-83345-063-0 02 1 9312-9506 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.913 		9-83345-063-0 02 1 9507-9510 ● ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 04.913 		9-83345-063-0 02 1 9507-9510 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 04.913 		9-83345-063-0 02 1 9511-9611 ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 04.913 		9-83345-063-0 02 1 9511-9611 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 04.913 		9-83345-063-0 02 1 9612-9612 ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 04.913 		9-83345-063-0 02 1 9612-9612 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 04.913 		9-83345-063-0 02 1 9701-9711 ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 04.913 		9-83345-063-0 02 1 9701-9711 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 04.913 		9-83345-063-0 02 1 9701-9711 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9712-9807 ● ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9712-9807 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9808- ● ● ● ●
11 04.906 FILTER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9808- ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 04.913 		9-83345-063-0 01 1 9312-9506 ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 04.913 		9-83345-063-0 01 1 9312-9506 ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 04.913 		9-83345-063-0 01 1 9507-9510 ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 04.913 		9-83345-063-0 01 1 9507-9510 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 04.913 		9-83345-063-0 01 1 9511-9611 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 04.913 		9-83345-063-0 01 1 9511-9611 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 04.913 		9-83345-063-0 01 1 9612-9612 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 04.913 		9-83345-063-0 01 1 9612-9612 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 04.913 		9-83345-063-0 01 1 9701-9711 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 04.913 		9-83345-063-0 01 1 9701-9711 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 04.913 		9-83345-063-0 01 1 9712-9807 ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 01 1 9712-9807 ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 01 1 9712-9807 ●
11 04.906 FILTER; M/VAC
04.913 		9-83345-063-0 01 1 9712-9807 ●
11 04.906 FILTER; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 04.913 		9-83345-063-0 01 1 9808- ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 01 1 9808- ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 01 1 9808- ●
11 04.906 FILTER; M/VAC
EXC. DISC BRAKE FRT<J52> 04.913 		9-83345-063-0 01 1 9808- ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-94465-510-0 01 1 9312-9506 ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-94465-510-0 01 1 9312-9506 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-94465-510-0 01 1 9507-9510 ● ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-94465-510-0 01 1 9507-9510 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-94465-510-0 01 1 9511-9611 ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-94465-510-0 01 1 9511-9611 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-94465-510-0 01 1 9612-9612 ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-94465-510-0 01 1 9612-9612 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-94465-510-0 01 1 9701-9711 ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-94465-510-0 01 1 9701-9711 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-94465-510-0 01 1 9701-9711 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 9712-9807 ● ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 9712-9807 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 9808- ● ● ● ●
12 04.906 SILENCER; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 9808- ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94341-722-0 01 1 9312-9506 ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94341-722-0 01 1 9312-9506 ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94341-722-0 01 1 9507-9510 ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94341-722-0 01 1 9507-9510 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94341-722-0 01 1 9511-9611 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94341-722-0 01 1 9511-9611 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-94341-722-0 01 1 9612-9612 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94341-722-0 01 1 9612-9612 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-94341-722-0 01 1 9701-9711 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94341-722-0 01 1 9701-9711 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94341-722-0 01 1 9712-9807 ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-722-0 01 1 9712-9807 ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-722-0 01 1 9712-9807 ●
12 04.906 SILENCER; M/VAC 8-94341-722-0 01 1 9712-9807 ●
12 04.906 SILENCER; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94341-722-0 01 1 9808- ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-722-0 01 1 9808- ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-722-0 01 1 9808- ●
12 04.906 SILENCER; M/VAC
EXC. DISC BRAKE FRT<J52> 		8-94341-722-0 01 1 9808- ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.922 		8-94123-119-0 01 1 9312-9506 ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 04.922 		8-94123-119-0 01 1 9312-9506 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 04.922 		8-94123-119-0 01 1 9507-9510 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 04.922 		8-94123-119-0 01 1 9507-9510 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 04.922 		8-94123-119-0 01 1 9511-9611 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 04.922 		8-94123-119-0 01 1 9511-9611 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 04.922 		8-94123-119-0 01 1 9612-9612 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 04.922 		8-94123-119-0 01 1 9612-9612 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 04.922 		8-94123-119-0 01 1 9701-9711 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 04.922 		8-94123-119-0 01 1 9701-9711 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 04.922 		8-94123-119-0 01 1 9701-9711 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9712-9807 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9712-9807 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9808- ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9808- ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94375-083-0 01 1 9312-9506 ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94375-083-0 01 1 9312-9506 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94375-083-0 01 1 9507-9510 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94375-083-0 01 1 9507-9510 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94375-083-0 01 1 9511-9611 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94375-083-0 01 1 9511-9611 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-94375-083-0 01 1 9612-9612 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94375-083-0 01 1 9612-9612 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-94375-083-0 01 1 9701-9711 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94375-083-0 01 1 9701-9711 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94375-083-0 01 1 9712-9807 ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 9712-9807 ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 9712-9807 ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 9712-9807 ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94375-083-0 01 1 9808- ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 9808- ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 9808- ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. DISC BRAKE FRT<J52> 		8-94375-083-0 01 1 9808- ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 03.459 M10 		9-09111-510-0 01 1 9312-9506 ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 03.459 M10 		9-09111-510-0 01 1 9312-9506 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 03.459 M10 		9-09111-510-0 01 1 9507-9510 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 03.459 M10 		9-09111-510-0 01 1 9507-9510 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 03.459 M10 		9-09111-510-0 01 1 9511-9603 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 03.459 M10 		9-09111-510-0 01 1 9511-9603 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 06.822 M10 		9-09111-410-0 01 1 9604-9611 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 06.822 M10 		9-09111-410-0 01 1 9604-9611 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 06.822 M10 		9-09111-410-0 01 1 9612-9612 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 06.822 M10 		9-09111-410-0 01 1 9612-9612 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 06.822 M10 		9-09111-410-0 01 1 9701-9711 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 06.822 M10 		9-09111-410-0 01 1 9701-9711 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 06.822 M10 		9-09111-410-0 01 1 9701-9711 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9712-9807 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9712-9807 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9808- ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9808- ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M10 FLANGE 		8-97096-430-0 01 1 9312-9506 ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) M10 FLANGE 		8-97096-430-0 01 1 9312-9506 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) M10 FLANGE 		8-97096-430-0 01 1 9507-9510 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M10 FLANGE 		8-97096-430-0 01 1 9507-9510 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M10 FLANGE 		8-97096-430-0 01 1 9511-9611 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) M10 FLANGE 		8-97096-430-0 01 1 9511-9611 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> M10 FLANGE 		8-97096-430-0 01 1 9612-9612 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> M10 FLANGE 		8-97096-430-0 01 1 9612-9612 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> M10 FLANGE 		8-97096-430-0 01 1 9701-9711 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> M10 FLANGE 		8-97096-430-0 01 1 9701-9711 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M10 FLANGE 		8-97096-430-0 01 1 9712-9807 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		8-97096-430-0 01 1 9712-9807 ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		8-97096-430-0 01 1 9712-9807 ●
16 04.662 NUT; VLV ROD,M/VAC
M10 FLANGE 		8-97096-430-0 01 1 9712-9807 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) M10 FLANGE 		8-97096-430-0 01 1 9808- ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		8-97096-430-0 01 1 9808- ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		8-97096-430-0 01 1 9808- ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. DISC BRAKE FRT<J52> M10 FLANGE 		8-97096-430-0 01 1 9808- ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-47829-011-0 01 1 9312-9506 ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		5-47829-011-0 01 1 9312-9506 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		5-47829-011-0 01 1 9507-9510 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		5-47829-011-0 01 1 9507-9510 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		5-47829-011-0 01 1 9511-9611 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		5-47829-011-0 01 1 9511-9611 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		5-47829-011-0 01 1 9612-9612 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		5-47829-011-0 01 1 9612-9612 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		5-47829-011-0 01 1 9701-9711 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		5-47829-011-0 01 1 9701-9711 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		5-47829-011-0 01 1 9701-9711 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 9712-9807 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 9712-9807 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 9808- ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 9808- ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94341-787-0 01 1 9312-9506 ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94341-787-0 01 1 9312-9506 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94341-787-0 01 1 9507-9510 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94341-787-0 01 1 9507-9510 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94341-787-0 01 1 9511-9611 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94341-787-0 01 1 9511-9611 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-94341-787-0 01 1 9612-9612 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94341-787-0 01 1 9612-9612 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-94341-787-0 01 1 9701-9711 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94341-787-0 01 1 9701-9711 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94341-787-0 01 1 9712-9807 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-787-0 01 1 9712-9807 ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-787-0 01 1 9712-9807 ●
17 04.662 CLEVIS; YOKE,M/VAC 8-94341-787-0 01 1 9712-9807 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94341-787-0 01 1 9808- ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-787-0 01 1 9808- ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94341-787-0 01 1 9808- ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. DISC BRAKE FRT<J52> 		8-94341-787-0 01 1 9808- ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97079-350-0 01 1 9312-9506 ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-350-0 01 1 9312-9506 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97079-350-0 01 1 9507-9510 ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-350-0 01 1 9507-9510 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97079-350-0 01 1 9511-9611 ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-350-0 01 1 9511-9611 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97079-350-0 01 1 9612-9612 ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97079-350-0 01 1 9612-9612 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97079-350-0 01 1 9701-9711 ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97079-350-0 01 1 9701-9711 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97079-350-0 01 1 9701-9711 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 9712-9807 ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 9712-9807 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 9808- ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 9808- ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94152-349-0 01 1 9312-9506 ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94152-349-0 01 1 9312-9506 ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94152-349-0 01 1 9507-9510 ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94152-349-0 01 1 9507-9510 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94152-349-0 01 1 9511-9611 ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-94152-349-0 01 1 9511-9611 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-94152-349-0 01 1 9612-9612 ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94152-349-0 01 1 9612-9612 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-94152-349-0 01 1 9701-9711 ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-94152-349-0 01 1 9701-9711 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94152-349-0 01 1 9712-9807 ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94152-349-0 01 1 9712-9807 ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94152-349-0 01 1 9712-9807 ●
23 04.910 SEAL; M/VAC 8-94152-349-0 01 1 9712-9807 ●
23 04.910 SEAL; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94152-349-0 01 1 9808- ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94152-349-0 01 1 9808- ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94152-349-0 01 1 9808- ●
23 04.910 SEAL; M/VAC
EXC. DISC BRAKE FRT<J52> 		8-94152-349-0 01 1 9808- ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97079-349-0 01 1 9312-9506 ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-349-0 01 1 9312-9506 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97079-349-0 01 1 9507-9510 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-349-0 01 1 9507-9510 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97079-349-0 01 1 9511-9611 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-349-0 01 1 9511-9611 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97079-349-0 01 1 9612-9612 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97079-349-0 01 1 9612-9612 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97079-349-0 01 1 9701-9711 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97079-349-0 01 1 9701-9711 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97079-349-0 01 1 9701-9711 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 9712-9807 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 9712-9807 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 9808- ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 9808- ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97025-156-0 01 1 9312-9506 ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97025-156-0 01 1 9312-9506 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97025-156-0 01 1 9507-9510 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97025-156-0 01 1 9507-9510 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97025-156-0 01 1 9511-9611 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) 		8-97025-156-0 01 1 9511-9611 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97025-156-0 01 1 9612-9612 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97025-156-0 01 1 9612-9612 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97025-156-0 01 1 9701-9711 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97025-156-0 01 1 9701-9711 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-97025-156-0 01 1 9712-9801 ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97025-156-0 01 1 9712-9801 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97025-156-0 01 1 9712-9801 ●
24 04.906 GUARD; VLV BODY,M/VAC 8-97025-156-0 01 1 9712-9801 ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-084-1 01 1 9802-9807 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-084-1 01 1 9802-9807 ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 		8-94375-084-1 01 1 9808- ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-084-1 01 1 9808- ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-084-1 01 1 9808- ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. DISC BRAKE FRT<J52> 		8-94375-084-1 01 1 9808- ●
47 04.901 SPACER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 00.864 		8-97167-489-0 01 1 9802-9807 ● ● ● ●
47 04.901 SPACER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 00.864 		8-97167-489-0 01 1 9802-9807 ● ●
47 04.901 SPACER; M/VAC
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 00.864 		8-97167-489-0 01 1 9808- ●
47 04.901 SPACER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 00.864 		8-97167-489-0 01 1 9808- ● ●
47 04.901 SPACER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 00.864 		8-97167-489-0 01 1 9808- ●
47 04.901 SPACER; M/VAC
EXC. DISC BRAKE FRT<J52> 00.864 		8-97167-489-0 01 1 9808- ●

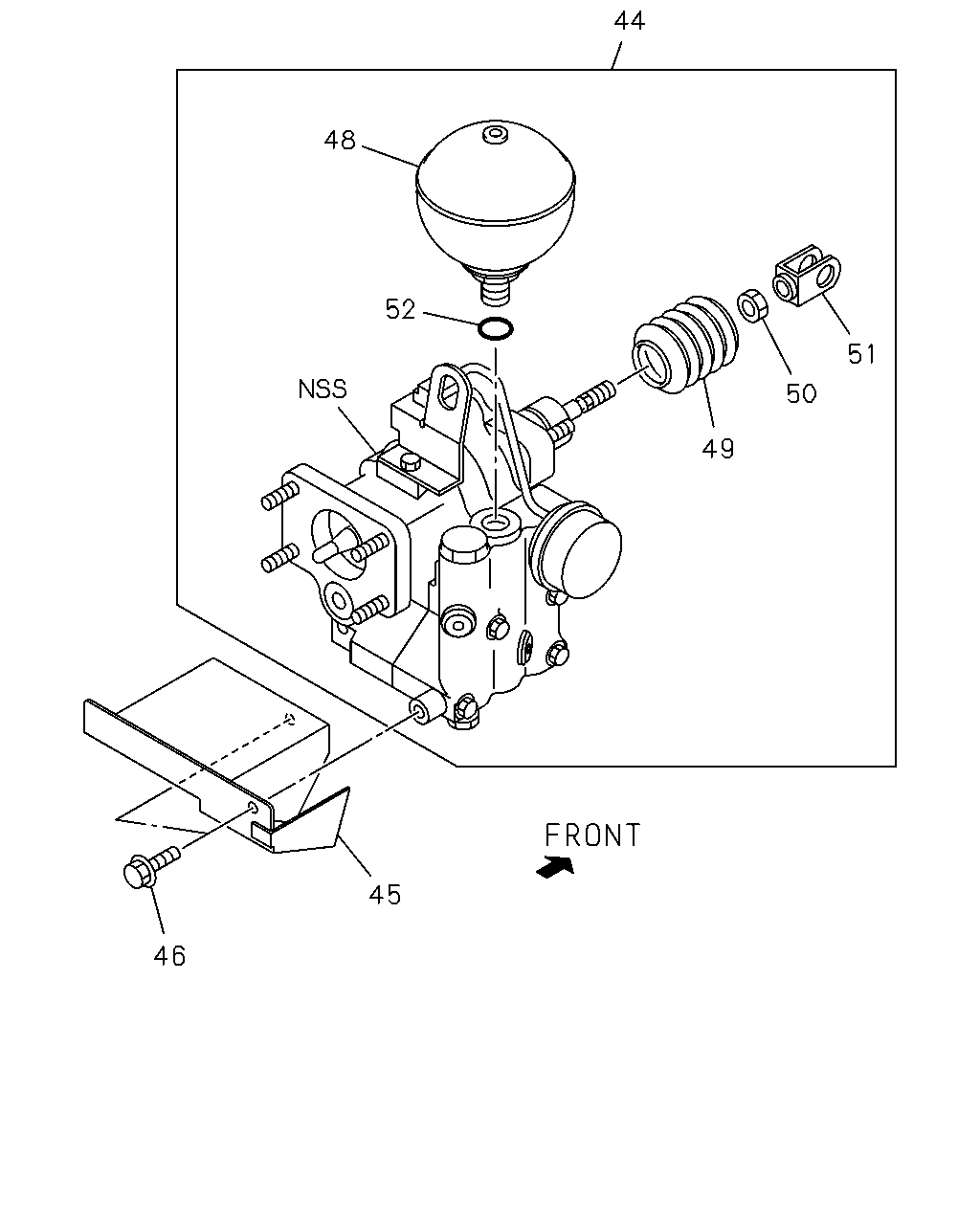

çizim 68934
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97162-797-5 01 1 9712-9803 ● ● ● ●
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 9804- ● ● ● ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 9712- ● ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712- ● ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 9712- ● ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 9712- ● ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-042-0 01 1 9712- ● ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-041-0 01 1 9712- ● ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.910 		8-97191-038-0 01 1 9712- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
