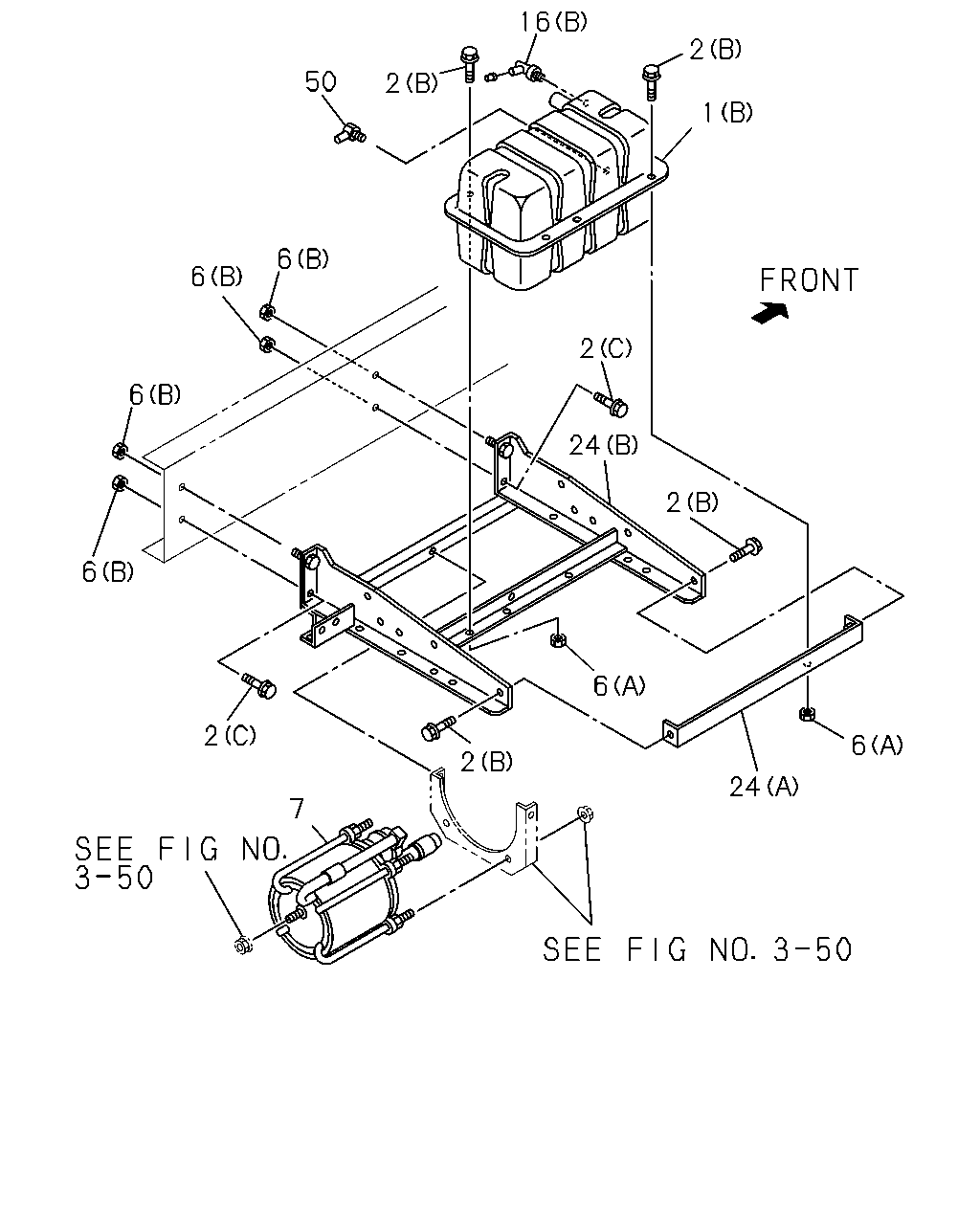

3-21 — VACUUM TANK (#34255) — 114 parça

1 37 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-4	01	1	9312-9510	●	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-4	01	1	9511-9611	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> (A)	8-97062-399-4	01	1	9612-9711	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9712-	●	●	●	●		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97073-471-3	01	1	9312-9510	●	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97073-471-3	01	1	9511-9611	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> (A)	8-97073-471-3	01	1	9612-9711	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-471-3	01	1	9712-	●	●	●	●		●
1	04.902 TANK; VAC,MAIN HYDRO MASTER<7LT> (B)	1-48330-477-0	01	1	9612-		●	●			●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-0	01	1	9712-		●	●			●	●
2	04.902 BOLT; VAC TANK 04.047 (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9312-9404	●	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9405-9510	●	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9511-9611	●	●	●	●
2	04.902 BOLT; VAC TANK EXC. HYDRO MASTER<7LT> 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9612-9711	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-		●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9612-		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9612-9705		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	9706-		●	●			●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9611	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO MASTER<7LT> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●			●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●			●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	9312-9510	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	9511-9611	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 02.559 (A) L=219.5	1-09987-136-0	01	1	9612-9711	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9712-	●	●	●	●		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	9312-9510	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	9511-9611	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 04.930 (B) ID=16	8-94238-568-0	02	1	9612-9711	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9712-	●	●	●	●		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9312-9510	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9511-9611	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 04.930 (B) ID=16	8-94238-568-0	01	1	9612-9711	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9712-	●	●	●	●		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9712-		●	●			●	●

16 2 50 2 1 6 6 2 6 24 2 6 6 2 6 2 24 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-4	01	1	9312-9510	●	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-4	01	1	9511-9611	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> (A)	8-97062-399-4	01	1	9612-9711	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9712-	●	●	●	●		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97073-471-3	01	1	9312-9510	●	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97073-471-3	01	1	9511-9611	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> (A)	8-97073-471-3	01	1	9612-9711	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-471-3	01	1	9712-	●	●	●	●		●
1	04.902 TANK; VAC,MAIN HYDRO MASTER<7LT> (B)	1-48330-477-0	01	1	9612-		●	●			●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-0	01	1	9712-		●	●			●	●
2	04.902 BOLT; VAC TANK 04.047 (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9312-9404	●	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9405-9510	●	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9511-9611	●	●	●	●
2	04.902 BOLT; VAC TANK EXC. HYDRO MASTER<7LT> 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9612-9711	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-		●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9612-		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9612-9705		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	9706-		●	●			●
6	04.902 NUT; BRKT HYDRO MASTER<7LT> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9612-		●	●			●
6	04.902 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	04	1	9612-		●	●			●
7	04.880 HYDROMASTER ASM; BRK SEE FIG-NO 3-32 FOR COMPONENT. HYDRO MASTER<7LT> 04.740	8-97129-512-0	01	1	9612-		●	●			●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	9312-9510	●	●	●	●	●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	9511-9611	●	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO MASTER<7LT> (A)	8-97073-374-1	01	1	9612-9711	●	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	9712-	●	●	●	●		●
16	04.906 SWITCH; VAC HYDRO MASTER<7LT> (B)	1-82420-006-4	01	1	9612-		●	●			●
24	04.902 BRACKET; VAC TANK HYDRO MASTER<7LT> (A)	8-97145-245-1	01	1	9612-		●	●			●
24	04.902 BRACKET; VAC TANK HYDRO MASTER<7LT> (B)	8-97145-246-2	01	1	9612-		●	●			●
50	04.902 VALVE; CHECK HYDRO MASTER<7LT> 04.955	1-48410-083-0	01	1	9612-		●	●			●

37 37 37 3 1 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-4	01	1	9312-9510	●	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-4	01	1	9511-9611	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> (A)	8-97062-399-4	01	1	9612-9711	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-4	01	1	9712-	●	●	●	●		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97073-471-3	01	1	9312-9510	●	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97073-471-3	01	1	9511-9611	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> (A)	8-97073-471-3	01	1	9612-9711	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-471-3	01	1	9712-	●	●	●	●		●
1	04.902 TANK; VAC,MAIN HYDRO MASTER<7LT> (B)	1-48330-477-0	01	1	9612-		●	●			●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-0	01	1	9712-		●	●			●	●
2	04.902 BOLT; VAC TANK 04.047 (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9312-9404	●	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9405-9510	●	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9511-9611	●	●	●	●
2	04.902 BOLT; VAC TANK EXC. HYDRO MASTER<7LT> 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9612-9711	●	●	●	●
2	04.902 BOLT; VAC TANK 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-		●	●			●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.634 (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9712-		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9612-		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9612-9705		●	●			●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	9706-		●	●			●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9611	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO MASTER<7LT> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●			●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●			●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	9312-9510	●	●	●	●	●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	9511-9611	●	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO MASTER<7LT> (A)	8-97073-374-1	01	1	9612-9711	●	●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	9712-	●	●	●	●		●
16	04.906 SWITCH; VAC HYDRO MASTER<7LT> (B)	1-82420-006-4	01	1	9612-		●	●			●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	9312-9510	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	9511-9611	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 02.559 (A) L=219.5	1-09987-136-0	01	1	9612-9711	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	9712-	●	●	●	●		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	9312-9510	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	9511-9611	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 04.930 (B) ID=16	8-94238-568-0	02	1	9612-9711	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	9712-	●	●	●	●		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9312-9510	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	9511-9611	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 04.930 (B) ID=16	8-94238-568-0	01	1	9612-9711	●	●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9712-	●	●	●	●		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	9712-		●	●			●	●
