Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#34252) — 465 parça

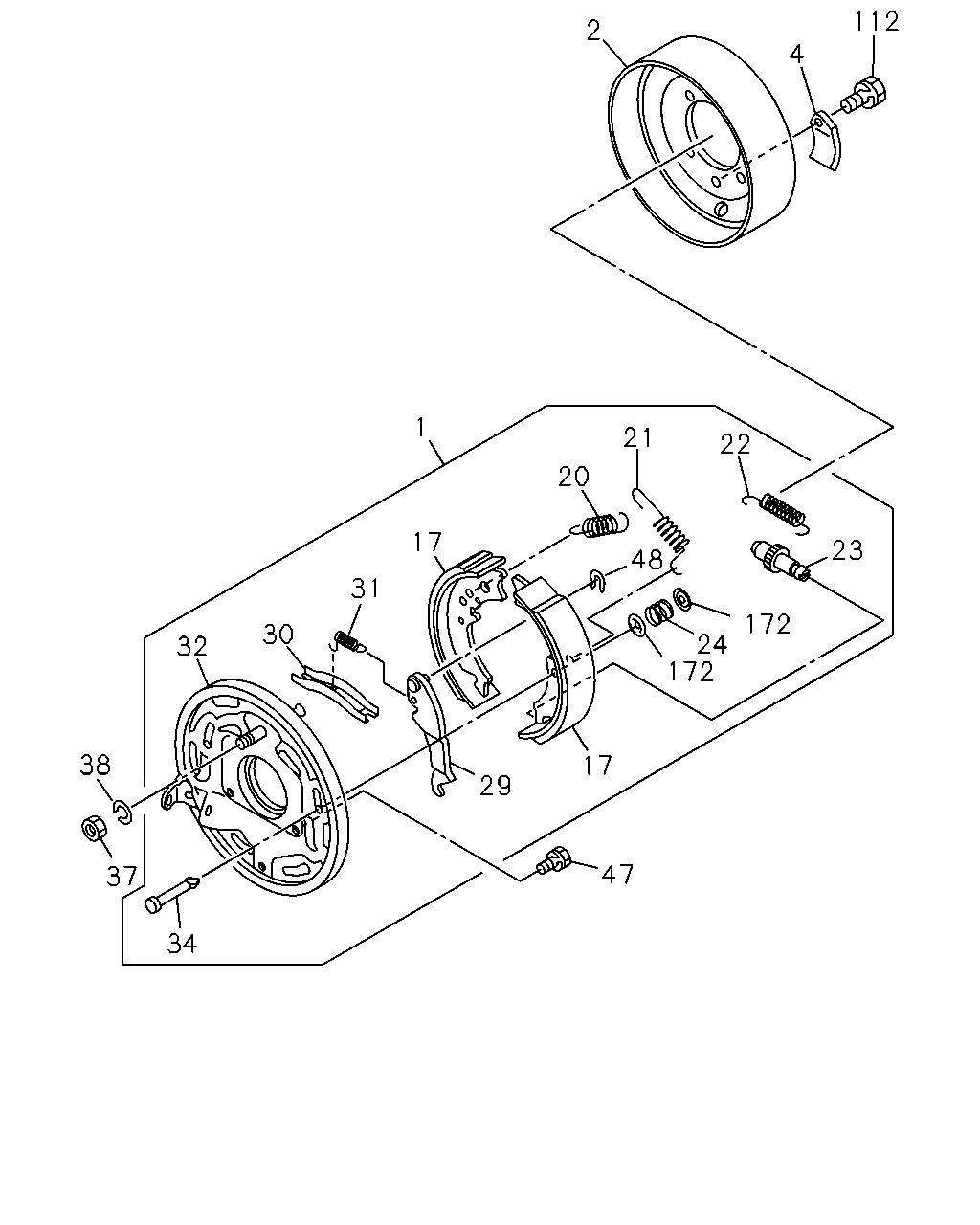

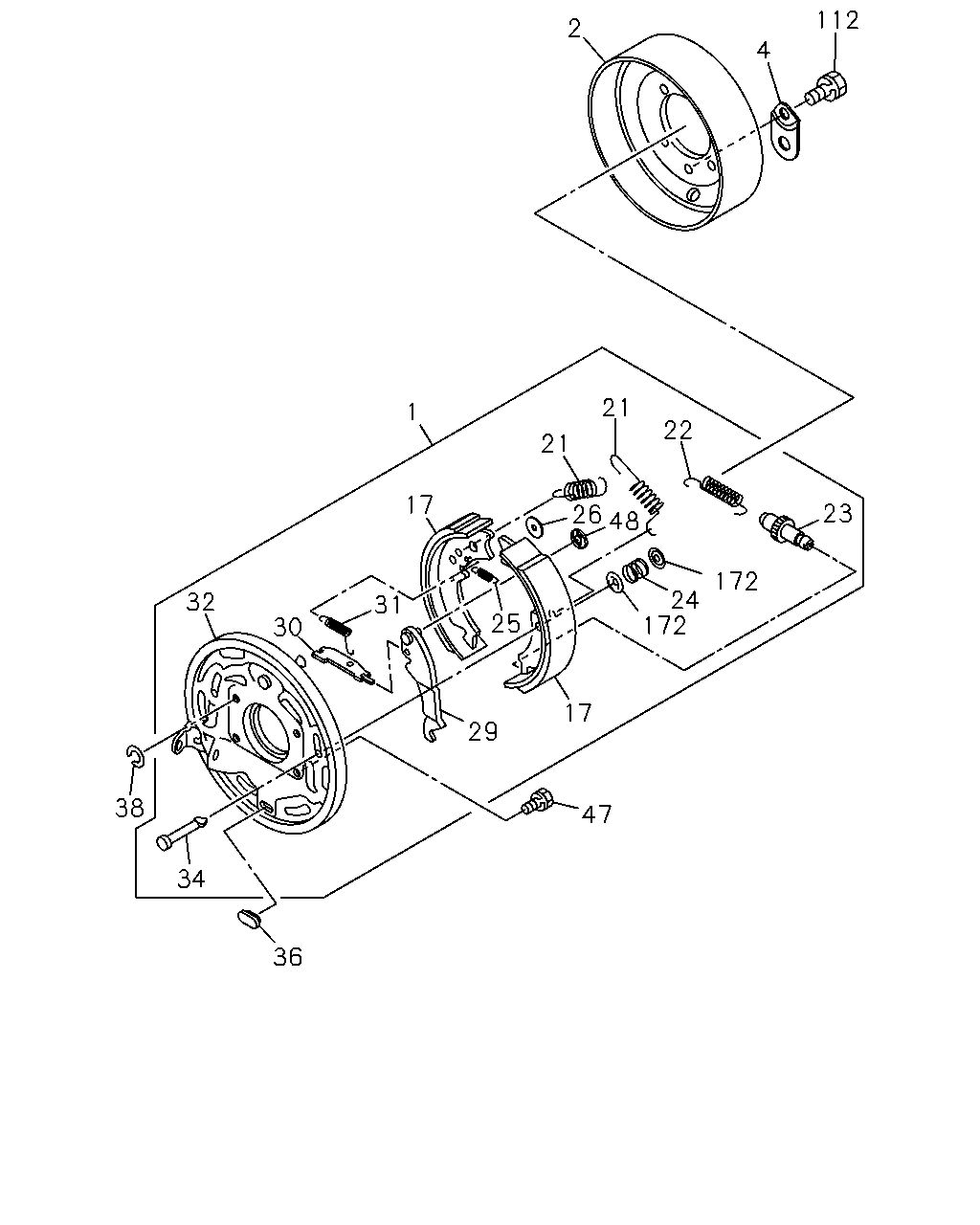

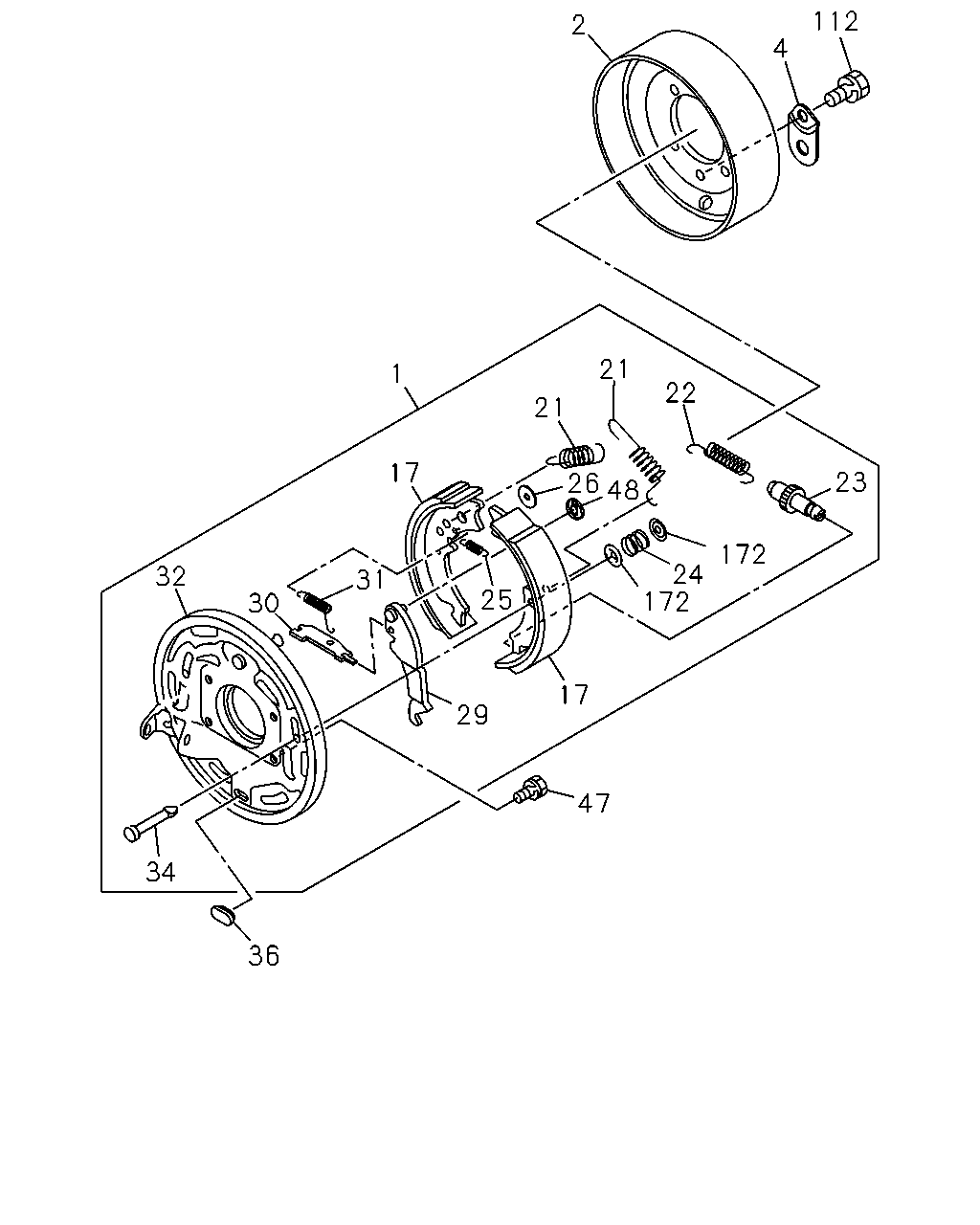

112 2 4 21 1 22 21 17 23 26 48 172 31 24 172 32 25 30 17 29 47 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97100-212-2	01	1	9312-9510	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97100-212-2	01	1	9511-9611	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97100-212-2	01	1	9612-9711	●	●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97100-212-2	01	1	9712-	●	●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9312-9506	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9507-		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97033-989-1	01	1	9312-9510	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9511-9611	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9612-9711	●	●	●	●		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97033-989-1	01	1	9712-	●	●	●	●		●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9312-9506	●	●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9507-		●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9712-		●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9712-		●	●				●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-46219-001-0	01	1	9312-9510	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9511-9611	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9612-9711	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	5-46219-001-0	01	1	9712-	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9312-9506	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9507-		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9712-		●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9712-		●	●				●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97020-250-2	02	1	9312-9510	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9511-9611	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9612-9711	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97020-250-2	02	1	9712-	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9312-9506	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9507-		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9712-		●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9712-		●	●				●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94132-157-0	02	1	9312-9510	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9511-9611	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9612-9711	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9712-	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9312-9506	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9507-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9712-		●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9712-		●	●				●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94107-618-0	01	1	9312-9406	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94107-618-0	01	1	9407-9510	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9511-9511	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9512-9611	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9612-9711	●	●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9712-	●	●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9312-9506	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9507-		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-47165-025-0	01	1	9312-9510	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9511-9611	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9612-9711	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9712-	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9712-		●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9712-		●	●				●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-155-0	02	1	9312-9510	●	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-155-0	02	1	9511-9611	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-155-0	02	1	9612-9711	●	●	●	●		●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-155-0	02	1	9712-	●	●	●	●		●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9312-9506	●	●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9507-		●
25	05.605 SPRING; SHOE ALIGNMENT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-156-0	01	1	9312-9510	●	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-156-0	01	1	9511-9611	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-156-0	01	1	9612-9711	●	●	●	●		●
25	05.605 SPRING; SHOE ALIGNMENT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-156-0	01	1	9712-	●	●	●	●		●
26	05.605 PLATE; SHOE GUIDE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	9-09851-986-0	01	1	9312-9510	●	●	●	●	●
26	05.605 PLATE; SHOE GUIDE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	9-09851-986-0	01	1	9511-9611	●	●	●	●
26	05.605 PLATE; SHOE GUIDE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	9-09851-986-0	01	1	9612-9711	●	●	●	●		●
26	05.605 PLATE; SHOE GUIDE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	9-09851-986-0	01	1	9712-	●	●	●	●		●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-97027-125-0	01	1	9312-9510	●	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9511-9611	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9612-9711	●	●	●	●		●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9712-	●	●	●	●		●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9312-9506	●	●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9507-		●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-779-0	01	1	9312-9510	●	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-779-0	01	1	9511-9611	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-779-0	01	1	9612-9711	●	●	●	●		●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-779-0	01	1	9712-	●	●	●	●		●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9312-9506	●	●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9507-		●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-158-0	01	1	9312-9510	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-158-0	01	1	9511-9611	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-158-0	01	1	9612-9711	●	●	●	●		●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-158-0	01	1	9712-	●	●	●	●		●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9312-9506	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-780-1	01	1	9312-9510	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9511-9611	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9612-9711	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-780-1	01	1	9712-	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9312-9506	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9712-		●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9712-		●	●				●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-159-0	02	1	9312-9510	●	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-159-0	02	1	9511-9611	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-159-0	02	1	9612-9711	●	●	●	●		●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-159-0	02	1	9712-	●	●	●	●		●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9312-9506	●	●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9507-		●
36	05.606 GROMMET; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.117	5-47169-002-0	01	1	9312-9510	●	●	●	●	●
36	05.606 GROMMET; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.117	5-47169-002-0	01	1	9511-9611	●	●	●	●
36	05.606 GROMMET; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.117	5-47169-002-0	01	1	9612-9711	●	●	●	●		●
36	05.606 GROMMET; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.117	5-47169-002-0	01	1	9712-	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9312-9506	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9507-		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) M12X22	0-20801-222-0	04	1	9312-9405	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97115-723-0	04	1	9406-9605	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97147-821-0	04	1	9606-9611	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97147-821-0	04	1	9612-9711	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97147-821-0	04	1	9712-9809	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) M12X20 FLANGE	8-97213-401-0	04	1	9810-	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9312-9504		●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9505-		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.158	9-46349-005-1	01	1	9312-9510	●	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9511-9611	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9612-9711	●	●	●	●		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9712-	●	●	●	●		●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9510	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9511-9611	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9612-9711	●	●	●	●		●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9712-	●	●	●	●		●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.043	9-47162-033-0	04	1	9407-9510	●	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9511-9611	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9612-9711	●	●	●	●		●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9712-	●	●	●	●		●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45) 05.043	9-46238-006-0	04	1	9407-9506	●	●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45) 05.043	9-46238-006-0	04	1	9507-9610		●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45)	8-94378-404-0	04	1	9611-		●

111 2 4 6 7 20 33 17 110 20 13 32 17 39 37 46 21 40 18 41 19 23 40 42 42 3 43 45 8 44 15 16 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97033-989-1	01	1	9312-9510	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9511-9611	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9612-9711	●	●	●	●		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97033-989-1	01	1	9712-	●	●	●	●		●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9312-9506	●	●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9507-		●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9712-		●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9712-		●	●				●
3	05.610 NUT; LK M/T MBP6P(RNC),M/T MBP6Q(RNM) 05.595 M30 FLANGE	1-09449-066-1	01	1	9712-		●	●			●	●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-46219-001-0	01	1	9312-9510	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9511-9611	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9612-9711	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	5-46219-001-0	01	1	9712-	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9312-9506	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9507-		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9712-		●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9712-		●	●				●
6	05.605 NUT; FLANGE M/T MBP6Q(RNM) 07.529 M14	9-99110-514-0	04	1	9712-		●	●				●
7	05.605 WASHER; LK,FLANGE M/T MBP6Q(RNM) 00.796 ID=14.2	9-09150-514-0	04	1	9712-		●	●				●
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	9712-		●	●			●	●
8	05.605 FLANGE; PARKING BRK M/T MBP6Q(RNM)	8-97177-198-0	01	1	9712-		●	●				●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC)	1-46239-003-0	01	1	9712-		●	●			●	●
13	05.615 BRACE; PARKING BRK M/T MBP6Q(RNM)	9-46239-002-0	01	1	9712-		●	●				●
14	05.605 BOLT; DRUM TO FLANGE M/T MBP6Q(RNM) M14X35	9-46219-011-0	04	1	9712-		●	●				●
15	05.605 BOLT; FLANGE M/T MBP6P(RNC),M/T MBP6Q(RNM) M12X39	1-09046-001-1	04	1	9712-		●	●			●	●
16	05.606 GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC),M/T MBP6Q(RNM) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	9712-		●	●			●	●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97020-250-2	02	1	9312-9510	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9511-9611	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9612-9711	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97020-250-2	02	1	9712-	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9312-9506	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9507-		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9712-		●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9712-		●	●				●
18	05.610 LINING; BRK,PARKING M/T MBP6Q(RNM)	8-97180-739-0	02	1	9712-		●	●				●
19	05.158 RIVET; LINING,PARKING BRK M/T MBP6Q(RNM)	1-09732-012-0	32	1	9712-		●	●				●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9312-9506	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9507-		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	9712-		●	●			●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6Q(RNM) 05.615	9-09942-434-0	02	1	9712-		●	●				●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94132-157-0	02	1	9312-9510	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9511-9611	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9612-9711	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9712-	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9312-9506	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9507-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9712-		●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9712-		●	●				●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-47165-025-0	01	1	9312-9510	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9511-9611	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9612-9711	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9712-	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9712-		●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9712-		●	●				●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-780-1	01	1	9312-9510	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9511-9611	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9612-9711	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-780-1	01	1	9712-	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9312-9506	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9712-		●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9712-		●	●				●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC)	1-46251-009-0	01	1	9712-		●	●			●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6Q(RNM)	1-46251-006-0	01	1	9712-		●	●				●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9312-9506	●	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9507-		●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MBP6Q(RNM) M14 FLANGE	1-09440-048-0	04	1	9712-		●	●			●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC)	1-46213-075-0	01	1	9712-		●	●			●	●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6Q(RNM)	8-97180-733-0	01	1	9712-		●	●				●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC) (B)	1-46252-041-0	01	1	9712-		●	●			●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6Q(RNM) (A)	8-97180-701-0	01	1	9712-		●	●				●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC)	9-09878-594-0	01	1	9712-		●	●			●	●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC) (B)	1-09583-041-0	01	1	9712-		●	●			●	●
42	05.605 SPRING; RETURN,LEVER M/T MXA6S(RNB),M/T MBP6P(RNC) UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) FRAME STRAIGHT TYPE<7KJ> (A)	1-09583-073-0	01	1	9712-		●	●				●
43	05.605 BOLT; LEVER TO CM/SHF M/T MBP6Q(RNM) 04.037	0-10811-040-0	01	1	9712-		●	●				●
44	05.605 NUT; LEVER TO CM/SHF M/T MBP6Q(RNM) 06.822 M10	9-09111-410-0	01	1	9712-		●	●				●
45	05.605 WASHER; LK,LEVER TO CM/SHF M/T MBP6Q(RNM) 00.002 ID=10.2	9-09150-510-0	01	1	9712-		●	●				●
46	05.605 WASHER; LEVER M/T MBP6P(RNC)	1-09509-057-0	01	1	9712-		●	●			●	●
46	05.605 WASHER; LEVER M/T MBP6Q(RNM)	9-09855-362-0	01	1	9712-		●	●				●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9712-		●	●			●	●
110	05.610 BRAKE ASM; PARKING M/T MBP6Q(RNM)	8-97177-548-1	01	1	9712-		●	●				●
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6P(RNC) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9712-		●	●			●	●
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6Q(RNM) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-		●	●				●

112 2 4 21 1 22 21 17 23 26 48 172 31 24 172 32 25 30 17 29 38 47 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97100-212-2	01	1	9312-9510	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97100-212-2	01	1	9511-9611	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97100-212-2	01	1	9612-9711	●	●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97100-212-2	01	1	9712-	●	●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9312-9506	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9507-		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97033-989-1	01	1	9312-9510	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9511-9611	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9612-9711	●	●	●	●		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97033-989-1	01	1	9712-	●	●	●	●		●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9312-9506	●	●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9507-		●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9712-		●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9712-		●	●				●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-46219-001-0	01	1	9312-9510	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9511-9611	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9612-9711	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	5-46219-001-0	01	1	9712-	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9312-9506	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9507-		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9712-		●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9712-		●	●				●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97020-250-2	02	1	9312-9510	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9511-9611	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9612-9711	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97020-250-2	02	1	9712-	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9312-9506	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9507-		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9712-		●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9712-		●	●				●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94132-157-0	02	1	9312-9510	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9511-9611	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9612-9711	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9712-	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9312-9506	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9507-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9712-		●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9712-		●	●				●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94107-618-0	01	1	9312-9406	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94107-618-0	01	1	9407-9510	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9511-9511	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9512-9611	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9612-9711	●	●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9712-	●	●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9312-9506	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9507-		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-47165-025-0	01	1	9312-9510	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9511-9611	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9612-9711	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9712-	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9712-		●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9712-		●	●				●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-155-0	02	1	9312-9510	●	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-155-0	02	1	9511-9611	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-155-0	02	1	9612-9711	●	●	●	●		●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-155-0	02	1	9712-	●	●	●	●		●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9312-9506	●	●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9507-		●
25	05.605 SPRING; SHOE ALIGNMENT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-156-0	01	1	9312-9510	●	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-156-0	01	1	9511-9611	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-156-0	01	1	9612-9711	●	●	●	●		●
25	05.605 SPRING; SHOE ALIGNMENT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-156-0	01	1	9712-	●	●	●	●		●
26	05.605 PLATE; SHOE GUIDE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	9-09851-986-0	01	1	9312-9510	●	●	●	●	●
26	05.605 PLATE; SHOE GUIDE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	9-09851-986-0	01	1	9511-9611	●	●	●	●
26	05.605 PLATE; SHOE GUIDE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	9-09851-986-0	01	1	9612-9711	●	●	●	●		●
26	05.605 PLATE; SHOE GUIDE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	9-09851-986-0	01	1	9712-	●	●	●	●		●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-97027-125-0	01	1	9312-9510	●	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9511-9611	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9612-9711	●	●	●	●		●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9712-	●	●	●	●		●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9312-9506	●	●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9507-		●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-779-0	01	1	9312-9510	●	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-779-0	01	1	9511-9611	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-779-0	01	1	9612-9711	●	●	●	●		●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-779-0	01	1	9712-	●	●	●	●		●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9312-9506	●	●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9507-		●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-158-0	01	1	9312-9510	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-158-0	01	1	9511-9611	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-158-0	01	1	9612-9711	●	●	●	●		●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-158-0	01	1	9712-	●	●	●	●		●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9312-9506	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-780-1	01	1	9312-9510	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9511-9611	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9612-9711	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-780-1	01	1	9712-	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9312-9506	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9712-		●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9712-		●	●				●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-159-0	02	1	9312-9510	●	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-159-0	02	1	9511-9611	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-159-0	02	1	9612-9711	●	●	●	●		●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-159-0	02	1	9712-	●	●	●	●		●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9312-9506	●	●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9507-		●
36	05.606 GROMMET; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.117	5-47169-002-0	01	1	9312-9510	●	●	●	●	●
36	05.606 GROMMET; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.117	5-47169-002-0	01	1	9511-9611	●	●	●	●
36	05.606 GROMMET; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.117	5-47169-002-0	01	1	9612-9711	●	●	●	●		●
36	05.606 GROMMET; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.117	5-47169-002-0	01	1	9712-	●	●	●	●		●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5S(R45) 04.046 ID=8.2	9-09150-808-0	02	1	9312-9506	●	●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5S(R45) 04.046 ID=8.2	9-09150-808-0	02	1	9507-		●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 00.002 ID=12.2	9-09150-812-0	04	1	9312-9605	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9312-9506	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9507-		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) M12X22	0-20801-222-0	04	1	9312-9405	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97115-723-0	04	1	9406-9605	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97147-821-0	04	1	9606-9611	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97147-821-0	04	1	9612-9711	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97147-821-0	04	1	9712-9809	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) M12X20 FLANGE	8-97213-401-0	04	1	9810-	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9312-9504		●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9505-		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.158	9-46349-005-1	01	1	9312-9510	●	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9511-9611	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9612-9711	●	●	●	●		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9712-	●	●	●	●		●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9510	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9511-9611	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9612-9711	●	●	●	●		●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9712-	●	●	●	●		●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.043	9-47162-033-0	04	1	9407-9510	●	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9511-9611	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9612-9711	●	●	●	●		●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9712-	●	●	●	●		●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45) 05.043	9-46238-006-0	04	1	9407-9506	●	●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45) 05.043	9-46238-006-0	04	1	9507-9610		●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45)	8-94378-404-0	04	1	9611-		●

112 2 4 1 21 22 20 17 23 48 31 172 30 24 172 32 38 17 29 47 37 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97100-212-2	01	1	9312-9510	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97100-212-2	01	1	9511-9611	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97100-212-2	01	1	9612-9711	●	●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97100-212-2	01	1	9712-	●	●	●	●		●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9312-9506	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5S(R45)	8-97034-553-2	01	1	9507-		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97033-989-1	01	1	9312-9510	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9511-9611	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97033-989-1	01	1	9612-9711	●	●	●	●		●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97033-989-1	01	1	9712-	●	●	●	●		●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9312-9506	●	●
2	05.605 DRUM; PARKING BRK M/T MSB5S(R45)	5-46210-005-3	01	1	9507-		●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9712-		●	●			●	●
2	05.605 DRUM; PARKING BRK M/T MBP6Q(RNM)	1-46211-056-0	01	1	9712-		●	●				●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-46219-001-0	01	1	9312-9510	●	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9511-9611	●	●	●	●
4	05.606 COVER; ADJ HOLE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	5-46219-001-0	01	1	9612-9711	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	5-46219-001-0	01	1	9712-	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9312-9506	●	●
4	05.606 COVER; ADJ HOLE M/T MSB5S(R45)	5-42319-003-0	01	1	9507-		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	9712-		●	●			●	●
4	05.606 COVER; ADJ HOLE M/T MBP6Q(RNM)	1-46219-019-0	02	1	9712-		●	●				●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-97020-250-2	02	1	9312-9510	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9511-9611	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97020-250-2	02	1	9612-9711	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97020-250-2	02	1	9712-	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9312-9506	●	●
17	05.606 SHOE; PARKING BRK M/T MSB5S(R45)	8-97042-933-1	02	1	9507-		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	9712-		●	●			●	●
17	05.606 SHOE; PARKING BRK M/T MBP6Q(RNM)	8-97180-702-0	02	1	9712-		●	●				●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9312-9506	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5S(R45)	9-09942-553-1	01	1	9507-		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	9712-		●	●			●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6Q(RNM) 05.615	9-09942-434-0	02	1	9712-		●	●				●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94132-157-0	02	1	9312-9510	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9511-9611	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9612-9711	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94132-157-0	02	1	9712-	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9312-9506	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5S(R45)	9-09942-552-1	01	1	9507-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	9712-		●	●			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6Q(RNM) 05.605	9-09942-516-0	01	1	9712-		●	●				●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94107-618-0	01	1	9312-9406	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-94107-618-0	01	1	9407-9510	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9511-9511	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9512-9611	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9612-9711	●	●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-94107-618-0	01	1	9712-	●	●	●	●		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9312-9506	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5S(R45)	9-09942-340-1	01	1	9507-		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	5-47165-025-0	01	1	9312-9510	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9511-9611	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9612-9711	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G)	5-47165-025-0	01	1	9712-	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	9712-		●	●			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6Q(RNM)	1-46240-003-0	01	1	9712-		●	●				●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-155-0	02	1	9312-9510	●	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-155-0	02	1	9511-9611	●	●	●	●
24	05.605 SPRING; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-155-0	02	1	9612-9711	●	●	●	●		●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-155-0	02	1	9712-	●	●	●	●		●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9312-9506	●	●
24	05.605 SPRING; BRK SHOE M/T MSB5S(R45)	9-09941-062-1	02	1	9507-		●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.605	8-97027-125-0	01	1	9312-9510	●	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9511-9611	●	●	●	●
29	04.591 LEVER; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9612-9711	●	●	●	●		●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.605	8-97027-125-0	01	1	9712-	●	●	●	●		●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9312-9506	●	●
29	04.591 LEVER; PARKING BRK M/T MSB5S(R45)	8-94128-765-0	01	1	9507-		●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-779-0	01	1	9312-9510	●	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-779-0	01	1	9511-9611	●	●	●	●
30	05.605 STRUT; PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-779-0	01	1	9612-9711	●	●	●	●		●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-779-0	01	1	9712-	●	●	●	●		●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9312-9506	●	●
30	05.605 STRUT; PARKING BRK M/T MSB5S(R45)	5-46251-007-0	01	1	9507-		●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-158-0	01	1	9312-9510	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-158-0	01	1	9511-9611	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-158-0	01	1	9612-9711	●	●	●	●		●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-158-0	01	1	9712-	●	●	●	●		●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9312-9506	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94311-780-1	01	1	9312-9510	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9511-9611	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94311-780-1	01	1	9612-9711	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94311-780-1	01	1	9712-	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9312-9506	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5S(R45)	9-46213-601-2	01	1	9507-		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	9712-		●	●			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6Q(RNM)	1-46213-085-0	01	1	9712-		●	●				●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N)	8-94132-159-0	02	1	9312-9510	●	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-159-0	02	1	9511-9611	●	●	●	●
34	05.605 PIN; BRK SHOE M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-94132-159-0	02	1	9612-9711	●	●	●	●		●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-94132-159-0	02	1	9712-	●	●	●	●		●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9312-9506	●	●
34	05.605 PIN; BRK SHOE M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	9507-		●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9312-9506	●	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5S(R45) M12	8-97033-122-0	01	1	9507-		●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MBP6Q(RNM) M14 FLANGE	1-09440-048-0	04	1	9712-		●	●			●	●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5S(R45) 04.046 ID=8.2	9-09150-808-0	02	1	9312-9506	●	●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5S(R45) 04.046 ID=8.2	9-09150-808-0	02	1	9507-		●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 00.002 ID=12.2	9-09150-812-0	04	1	9312-9605	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9312-9506	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5S(R45)	9-02060-814-0	02	1	9507-		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) M12X22	0-20801-222-0	04	1	9312-9405	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97115-723-0	04	1	9406-9605	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97147-821-0	04	1	9606-9611	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G)	8-97147-821-0	04	1	9612-9711	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G)	8-97147-821-0	04	1	9712-9809	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) M12X20 FLANGE	8-97213-401-0	04	1	9810-	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE 4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9312-9504		●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9505-		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.158	9-46349-005-1	01	1	9312-9510	●	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9511-9611	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9612-9711	●	●	●	●		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) 05.158	9-46349-005-1	01	1	9712-	●	●	●	●		●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9510	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9511-9611	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9612-9711	●	●	●	●		●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSB5S(R45),M/T MSA5G(S7G) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9712-	●	●	●	●		●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 05.043	9-47162-033-0	04	1	9407-9510	●	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9511-9611	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MXA5D(RMF),A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9612-9711	●	●	●	●		●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MSA5G(S7G) 05.043	9-47162-033-0	04	1	9712-	●	●	●	●		●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45) 05.043	9-46238-006-0	04	1	9407-9506	●	●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45) 05.043	9-46238-006-0	04	1	9507-9610		●
172	05.605 CUP; SHOE HOLD M/T MSB5S(R45)	8-94378-404-0	04	1	9611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
