2-85C — POWER TAKE OFF CONTROL (#34248) — 48 parça

172 195 195 172 173 4 195 195 172 195 173 172 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.439 BRACKET; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97114-534-1	01	1	9712-	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●
172	04.439 BOLT; BRKT 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9712-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9712-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9808-	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
173	04.439 NUT; BRKT 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	9808-	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97085-695-3	01	1	9712-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	9712-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	9712-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	9712-	●	●
195	04.439 BRACKET; CONT CABLE 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	9712-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9712-	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (I)	8-97210-766-0	01	1	9808-	●	●

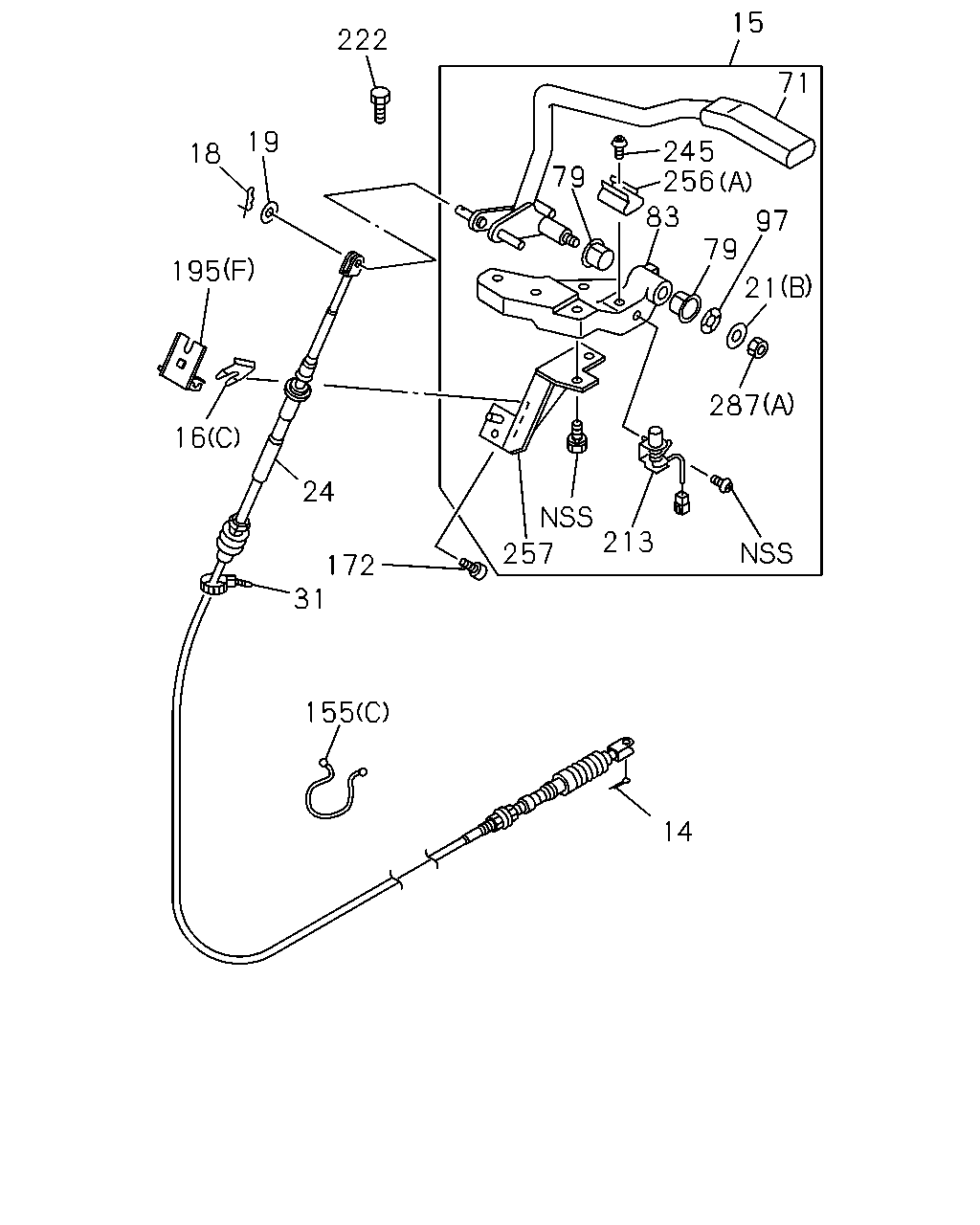

15 222 71 19 245 18 79 83 97 79 15 21 287 16 24 213 257 172 31 155 14 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	9712-	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-1	01	1	9712-	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027 (C)	8-94152-900-0	01	1	9712-	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9712-	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9712-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9712-	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=3259	8-97142-491-0	01	1	9712-	●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9712-	●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3282	8-97184-373-0	01	1	9712-	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-0	01	1	9712-9803	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9804-	●	●
31	04.439 CLIP; BAND,CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9804-	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	9712-	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9712-	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	9712-	●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	9712-	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 (C) ID=15	1-09709-003-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●
172	04.439 BOLT; BRKT 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9712-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9712-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9808-	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	9712-	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9712-	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9712-	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97117-351-0	01	1	9712-	●	●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	9712-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9712-	●	●
