2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#34244) — 271 parça

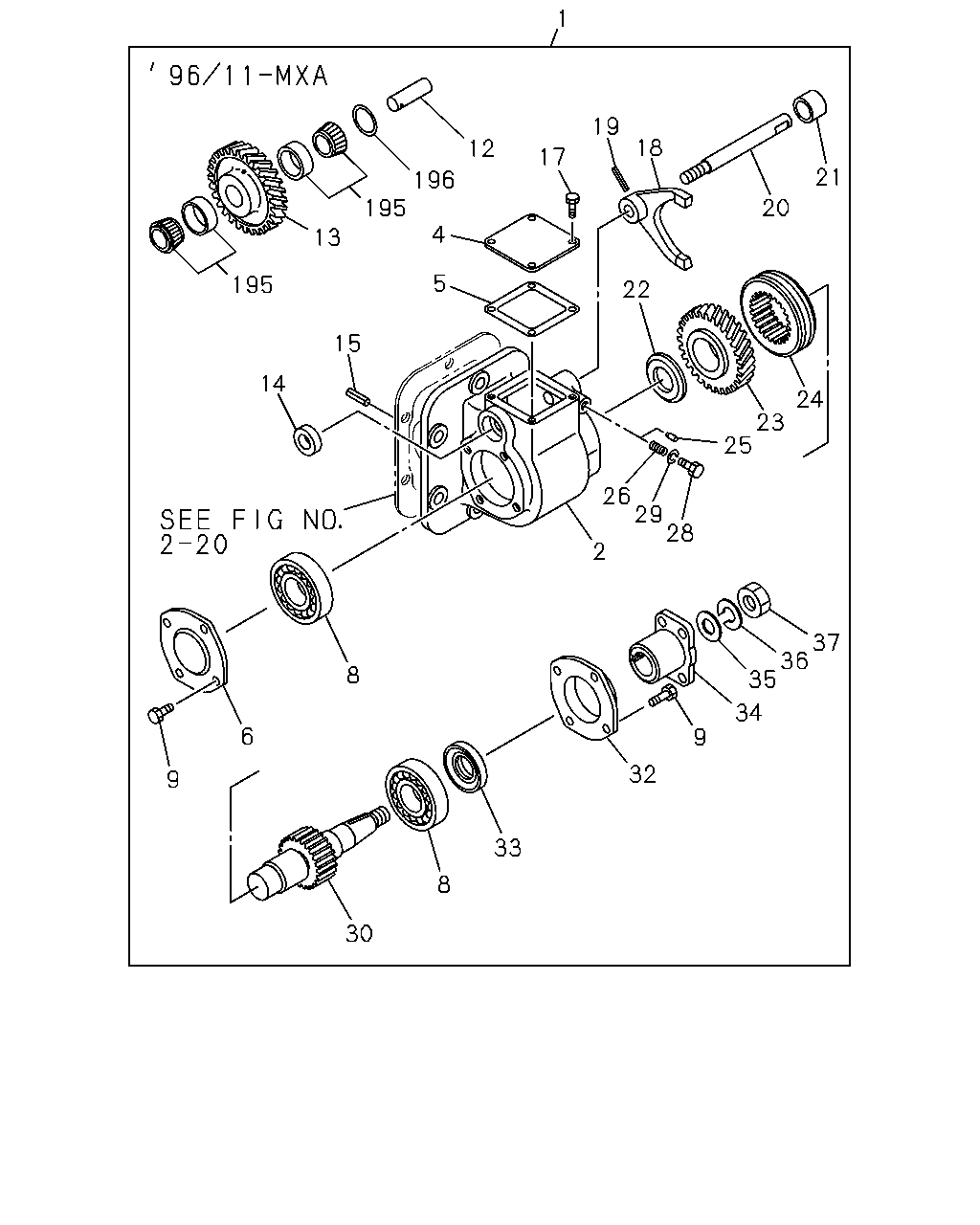

çizim 16982
1 19 18 12 17 21 196 195 20 4 13 5 195 22 15 14 24 23 25 26 29 28 2 37 36 35 8 34 6 32 9 33 8 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9312-9506 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9507-9510 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9511-9602 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9603-9610 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A 		8-97103-001-0 01 1 9611-9705 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A 		8-97178-512-0 01 1 9706-9711 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A 		8-97178-512-1 01 1 9712- ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H 		8-94343-025-2 01 1 9312-9506 ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H 		8-94343-025-2 01 1 9507- ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94343-021-3 01 1 9312- ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97076-703-1 01 1 9312-9510 ● ● ● ● ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97076-703-1 01 1 9511-9705 ● ● ● ● ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97076-703-1 01 1 9706- ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97192-181-0 01 1 9706-9711 ● ● ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97192-181-0 01 1 9712- ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38131-603-1 01 1 9312-9510 ● ● ● ● ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38131-603-1 01 1 9511-9610 ● ● ● ● ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38131-603-1 01 1 9611- ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97106-718-0 01 1 9611-9711 ● ● ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97106-718-0 01 1 9712- ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38132-602-1 01 1 9312-9510 ● ● ● ● ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38132-602-1 01 1 9511-9610 ● ● ● ● ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38132-602-1 01 1 9611- ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97077-326-0 01 1 9611-9711 ● ● ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97077-326-0 01 1 9712- ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 9312-9510 ● ● ● ● ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 9511-9711 ● ● ● ● ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 9712- ● ● ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-0 02 1 9312-9510 ● ● ● ● ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-0 02 1 9511-9711 ● ● ● ● ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 9712- ● ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 08 1 9312-9510 ● ● ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 08 1 9511-9711 ● ● ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 08 1 9712- ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 00.027 M8X16 		0-20800-816-0 08 1 9312-9506 ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) 00.027 M8X16 		0-20800-816-0 08 1 9507- ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 9312-9510 ● ● ● ● ● ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 9511-9711 ● ● ● ● ● ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 9712- ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9312-9506 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9507-9510 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9511-9602 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9603-9610 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=32 		8-97106-719-0 01 1 9611-9711 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=32 		8-97106-719-0 01 1 9712- ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=34 		9-38241-614-1 01 1 9312-9506 ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) Z=34 		9-38241-614-1 01 1 9507- ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=29 		5-38241-018-2 01 1 9312- ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 9312-9510 ● ● ● ● ● ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 9511-9711 ● ● ● ● ● ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 9712- ● ● ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 9312-9510 ● ● ● ● ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 9511-9711 ● ● ● ● ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 9712- ● ● ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9312-9510 ● ● ● ● ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9511-9711 ● ● ● ● ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9712- ● ● ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97027-045-0 01 1 9312-9510 ● ● ● ● ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97027-045-0 01 1 9511-9711 ● ● ● ● ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97027-045-0 01 1 9712- ● ● ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4 		9-09678-515-0 01 1 9312-9510 ● ● ● ● ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4 		9-09678-515-0 01 1 9511-9711 ● ● ● ● ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4 		9-09678-515-0 01 1 9712- ● ● ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94156-954-1 01 1 9312-9510 ● ● ● ● ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94156-954-1 01 1 9511-9711 ● ● ● ● ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94156-954-1 01 1 9712- ● ● ● ●
21 04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-33545-602-0 01 1 9312-9510 ● ● ● ● ● ●
21 04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-33545-602-0 01 1 9511-9711 ● ● ● ● ● ●
21 04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-33545-602-0 01 1 9712- ● ● ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-0 01 1 9312-9510 ● ● ● ● ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 9511-9711 ● ● ● ● ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 9712- ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9312-9506 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9507-9510 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9511-9602 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9603-9711 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9712- ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=22 		9-38241-612-1 01 1 9312-9506 ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) Z=22 		9-38241-612-1 01 1 9507- ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=22 		5-38241-016-1 01 1 9312- ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=22 		5-38241-017-1 01 1 9511- ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38244-602-2 01 1 9312-9510 ● ● ● ● ● ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38244-602-2 01 1 9511-9711 ● ● ● ● ● ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38244-602-2 01 1 9712- ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9312-9510 ● ● ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9511-9705 ● ● ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9711-9711 ● ● ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9712- ● ● ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 9312-9510 ● ● ● ● ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 9511-9711 ● ● ● ● ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 9712- ● ● ● ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.686 M8X12 		0-20800-812-0 01 1 9312-9510 ● ● ● ● ● ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.686 M8X12 		0-20800-812-0 01 1 9511-9711 ● ● ● ● ● ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.686 M8X12 		0-20800-812-0 01 1 9712- ● ● ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 9312-9510 ● ● ● ● ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 9511-9711 ● ● ● ● ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-607-1 01 1 9312-9510 ● ● ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-607-1 01 1 9511-9610 ● ● ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-607-1 01 1 9611- ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97118-183-0 01 1 9611-9711 ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97118-183-0 01 1 9712- ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-38161-608-0 01 1 9312-9510 ● ● ● ● ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-38161-608-0 01 1 9511-9711 ● ● ● ● ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-38161-608-0 01 1 9712- ● ● ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-09924-533-1 01 1 9312-9510 ● ● ● ● ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-09924-533-1 01 1 9511-9711 ● ● ● ● ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-09924-533-1 01 1 9712- ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		9-33239-659-0 01 1 9312-9510 ● ● ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		9-33239-659-0 01 1 9511-9610 ● ● ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		9-33239-659-0 01 1 9611- ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97118-184-0 01 1 9611-9711 ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97118-184-0 01 1 9712- ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 9312-9510 ● ● ● ● ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 9511-9711 ● ● ● ● ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 9712- ● ● ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 9312-9510 ● ● ● ● ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 9511-9711 ● ● ● ● ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 9712- ● ● ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 9312-9510 ● ● ● ● ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 9511-9711 ● ● ● ● ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 9712- ● ● ● ●
195 04.439 BEARING; ROLLER,TAPER,PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 9611-9711 ● ● ● ●
195 04.439 BEARING; ROLLER,TAPER,PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 9712- ● ●
195 04.439 BEARING; ROLLER,TAPER,PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) KOYO 		8-97106-735-0 02 1 9611-9711 ● ● ● ●
195 04.439 BEARING; ROLLER,TAPER,PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) KOYO 		8-97106-735-0 02 1 9712- ● ●
196 04.439 PIECE; THRUST
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 9611-9711 ● ● ● ●
196 04.439 PIECE; THRUST
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 9712- ● ●
196 04.439 PIECE; THRUST
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 9611-9711 ● ● ● ●
196 04.439 PIECE; THRUST
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 9712- ● ●
196 04.439 PIECE; THRUST
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 9611-9711 ● ● ● ●
196 04.439 PIECE; THRUST
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 9712- ● ●
196 04.439 PIECE; THRUST
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 9611-9711 ● ● ● ●
196 04.439 PIECE; THRUST
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 9712- ● ●
196 04.439 PIECE; THRUST
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 9611-9711 ● ● ● ●
196 04.439 PIECE; THRUST
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 9712- ● ●
196 04.439 PIECE; THRUST
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 9611-9711 ● ● ● ●
196 04.439 PIECE; THRUST
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 9712- ● ●

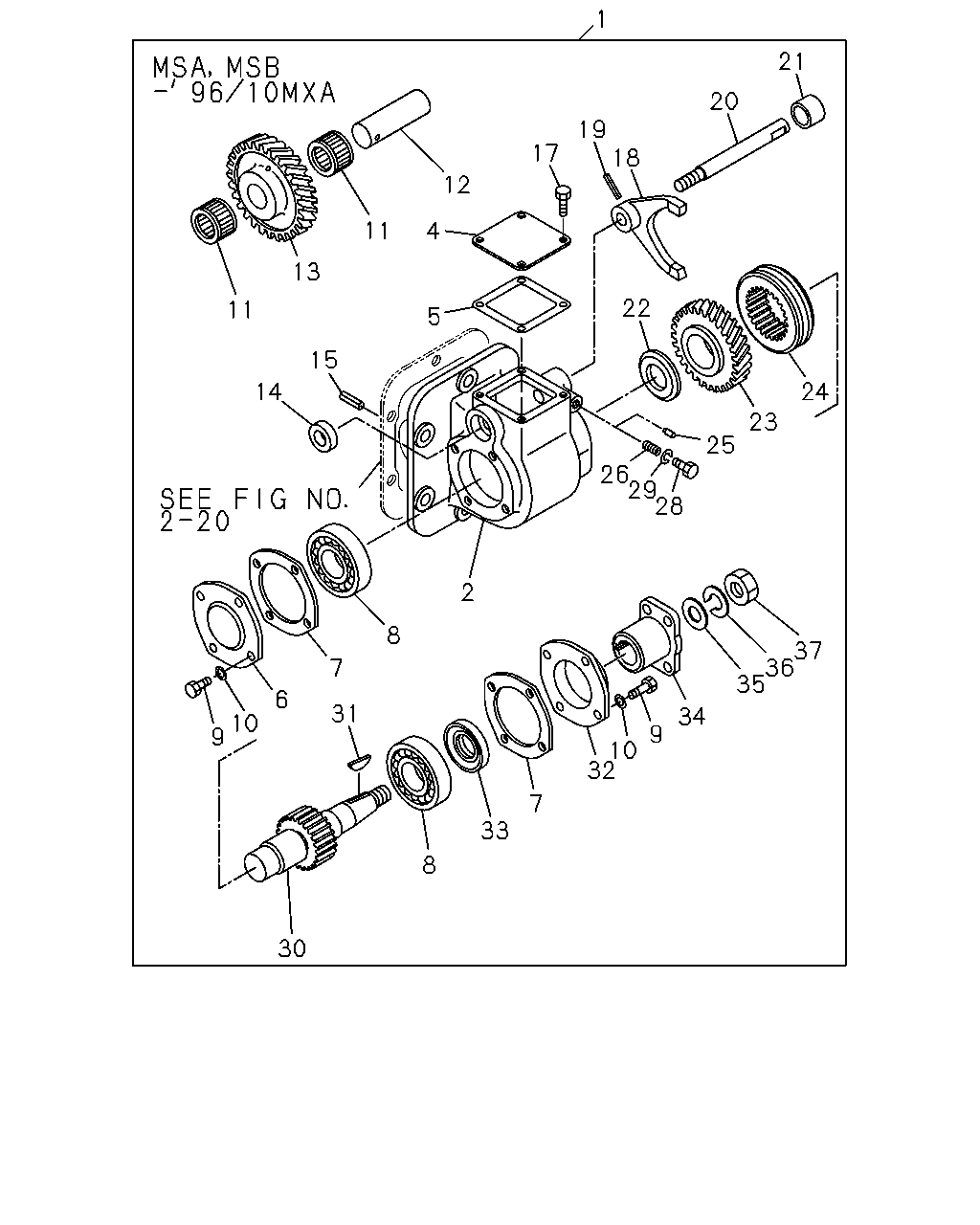

çizim 16984
1 21 20 19 18 17 12 11 4 13 22 11 5 15 24 14 23 25 26 29 28 2 8 37 36 35 7 6 31 34 10 9 9 10 32 7 33 8 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9312-9506 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9507-9510 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9511-9602 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-94343-023-3 01 1 9603-9610 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A 		8-97103-001-0 01 1 9611-9705 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A 		8-97178-512-0 01 1 9706-9711 ● ● ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A 		8-97178-512-1 01 1 9712- ● ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H 		8-94343-025-2 01 1 9312-9506 ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H 		8-94343-025-2 01 1 9507- ●
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-94343-021-3 01 1 9312- ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97076-703-1 01 1 9312-9510 ● ● ● ● ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97076-703-1 01 1 9511-9705 ● ● ● ● ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97076-703-1 01 1 9706- ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97192-181-0 01 1 9706-9711 ● ● ● ●
2 04.439 CASE; GEAR,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97192-181-0 01 1 9712- ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38131-603-1 01 1 9312-9510 ● ● ● ● ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38131-603-1 01 1 9511-9610 ● ● ● ● ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38131-603-1 01 1 9611- ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97106-718-0 01 1 9611-9711 ● ● ● ●
4 04.439 COVER; UPR,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97106-718-0 01 1 9712- ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38132-602-1 01 1 9312-9510 ● ● ● ● ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38132-602-1 01 1 9511-9610 ● ● ● ● ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38132-602-1 01 1 9611- ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97077-326-0 01 1 9611-9711 ● ● ● ●
5 04.439 GASKET; UPR COVER,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97077-326-0 01 1 9712- ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 9312-9510 ● ● ● ● ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 9511-9711 ● ● ● ● ● ●
6 04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 		9-38151-604-0 01 1 9712- ● ● ● ●
7 04.439 GASKET; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66) 		9-38152-604-1 02 1 9312-9510 ● ● ● ● ● ●
7 04.439 GASKET; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66) 		9-38152-604-1 02 1 9511-9610 ● ● ● ● ● ●
7 04.439 GASKET; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66) 		9-38152-604-1 02 1 9611- ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-0 02 1 9312-9510 ● ● ● ● ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-0 02 1 9511-9711 ● ● ● ● ● ●
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 9712- ● ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 08 1 9312-9510 ● ● ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 08 1 9511-9711 ● ● ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 08 1 9712- ● ● ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66) 00.027 M8X16 		0-20800-816-0 08 1 9312-9506 ●
9 04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) 00.027 M8X16 		0-20800-816-0 08 1 9507- ●
10 04.439 WASHER; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 04 1 9312-9506 ●
10 04.439 WASHER; OUTPUT SHAFT COVER,SIDE
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 04 1 9507- ●
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-00096-646-0 02 1 9312-9510 ● ● ● ● ● ●
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-00096-646-0 02 1 9511-9610 ● ● ● ● ● ●
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-00096-646-0 02 1 9611- ● ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 9312-9510 ● ● ● ● ● ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 9511-9711 ● ● ● ● ● ●
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 9712- ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9312-9506 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9507-9510 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9511-9602 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=32 		8-94176-981-1 01 1 9603-9610 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=32 		8-97106-719-0 01 1 9611-9711 ● ● ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=32 		8-97106-719-0 01 1 9712- ● ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=34 		9-38241-614-1 01 1 9312-9506 ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) Z=34 		9-38241-614-1 01 1 9507- ●
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=29 		5-38241-018-2 01 1 9312- ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 9312-9510 ● ● ● ● ● ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 9511-9711 ● ● ● ● ● ●
14 04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09724-015-0 01 1 9712- ● ● ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 9312-9510 ● ● ● ● ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 9511-9711 ● ● ● ● ● ●
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 9712- ● ● ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9312-9510 ● ● ● ● ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9511-9711 ● ● ● ● ● ●
17 04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9712- ● ● ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97027-045-0 01 1 9312-9510 ● ● ● ● ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97027-045-0 01 1 9511-9711 ● ● ● ● ● ●
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97027-045-0 01 1 9712- ● ● ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4 		9-09678-515-0 01 1 9312-9510 ● ● ● ● ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4 		9-09678-515-0 01 1 9511-9711 ● ● ● ● ● ●
19 04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4 		9-09678-515-0 01 1 9712- ● ● ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94156-954-1 01 1 9312-9510 ● ● ● ● ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94156-954-1 01 1 9511-9711 ● ● ● ● ● ●
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94156-954-1 01 1 9712- ● ● ● ●
21 04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-33545-602-0 01 1 9312-9510 ● ● ● ● ● ●
21 04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-33545-602-0 01 1 9511-9711 ● ● ● ● ● ●
21 04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) 		9-33545-602-0 01 1 9712- ● ● ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-0 01 1 9312-9510 ● ● ● ● ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 9511-9711 ● ● ● ● ● ●
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 9712- ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9312-9506 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9507-9510 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9511-9602 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9603-9711 ● ● ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=19 		5-38240-005-2 01 1 9712- ● ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=22 		9-38241-612-1 01 1 9312-9506 ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JG2 ENG(RJC) PTO TRANSMISSION SIDE(V66) Z=22 		9-38241-612-1 01 1 9507- ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=22 		5-38241-016-1 01 1 9312- ●
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=22 		5-38241-017-1 01 1 9511- ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38244-602-2 01 1 9312-9510 ● ● ● ● ● ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38244-602-2 01 1 9511-9711 ● ● ● ● ● ●
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38244-602-2 01 1 9712- ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9312-9510 ● ● ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9511-9705 ● ● ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9711-9711 ● ● ● ● ● ●
25 04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 9712- ● ● ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 9312-9510 ● ● ● ● ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 9511-9711 ● ● ● ● ● ●
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 9712- ● ● ● ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.686 M8X12 		0-20800-812-0 01 1 9312-9510 ● ● ● ● ● ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.686 M8X12 		0-20800-812-0 01 1 9511-9711 ● ● ● ● ● ●
28 04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.686 M8X12 		0-20800-812-0 01 1 9712- ● ● ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 9312-9510 ● ● ● ● ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 9511-9711 ● ● ● ● ● ●
29 04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-607-1 01 1 9312-9510 ● ● ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-607-1 01 1 9511-9610 ● ● ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-607-1 01 1 9611- ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97118-183-0 01 1 9611-9711 ● ● ● ●
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97118-183-0 01 1 9712- ● ●
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-08055-628-0 01 1 9312-9510 ● ● ● ● ● ●
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-08055-628-0 01 1 9511-9610 ● ● ● ● ● ●
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-08055-628-0 01 1 9611- ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-38161-608-0 01 1 9312-9510 ● ● ● ● ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-38161-608-0 01 1 9511-9711 ● ● ● ● ● ●
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-38161-608-0 01 1 9712- ● ● ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-09924-533-1 01 1 9312-9510 ● ● ● ● ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-09924-533-1 01 1 9511-9711 ● ● ● ● ● ●
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		9-09924-533-1 01 1 9712- ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		9-33239-659-0 01 1 9312-9510 ● ● ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		9-33239-659-0 01 1 9511-9610 ● ● ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		9-33239-659-0 01 1 9611- ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4HF1 ENG(RLS),4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97118-184-0 01 1 9611-9711 ● ● ● ●
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 		8-97118-184-0 01 1 9712- ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 9312-9510 ● ● ● ● ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 9511-9711 ● ● ● ● ● ●
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 02.575 ID=15 		9-09160-514-0 01 1 9712- ● ● ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 9312-9510 ● ● ● ● ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 9511-9711 ● ● ● ● ● ●
36 04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2 		9-09150-514-0 01 1 9712- ● ● ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 9312-9510 ● ● ● ● ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 9511-9711 ● ● ● ● ● ●
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.172 M14 		9-99111-414-0 01 1 9712- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
