2-56B — AUTO TRANS CONTROL LINK (#34242) — 37 parça

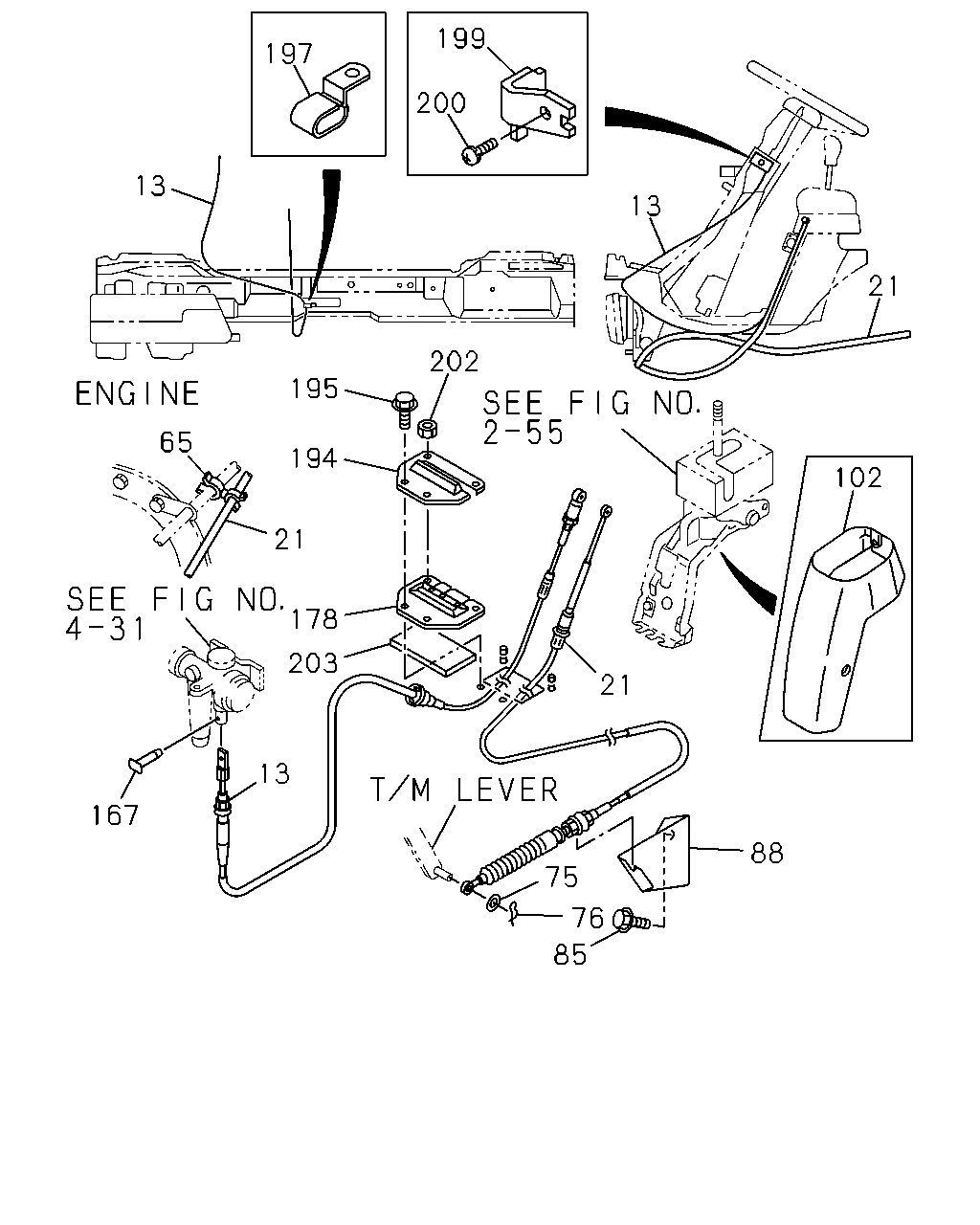

çizim 67243
199 197 200 13 13 21 202 195 65 194 102 21 178 203 21 13 167 88 75 76 85
BalonParca AdiParca NoAdetTipApplied Date
13 04.047 CABLE; SAFETY LK 8-97079-983-2 01 1 9312-9711
13 04.047 CABLE; SAFETY LK 8-97123-084-0 01 1 9712-
21 04.047 CABLE; A/T 8-97080-007-2 01 1 9312-9502
21 04.047 CABLE; A/T 8-97127-363-0 01 1 9503-9711
21 04.047 CABLE; A/T
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 		8-97174-373-1 01 1 9712-
65 04.047 CLIP; A/T CONT CABLE
04.104 ID=12 & 16.5 		8-94400-865-0 01 1 9312-
75 04.275 WASHER; PL,CONT CABLE TO A/T
02.183 ID=6.4 OD=14 		9-09160-606-0 02 1 9312-
76 04.275 PIN; SNAP,A/T CONT
04.027 L=21.2 		8-94111-136-0 02 1 9312-
85 04.047 BOLT; A/T CONT CABLE
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9312-9501
85 04.047 BOLT; A/T CONT CABLE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9502-
88 04.047 BRACKET; A/T CONT CABLE 8-97043-279-0 01 1 9312-9711
88 04.047 BRACKET; A/T CONT CABLE
04.040 		8-97140-128-0 01 1 9712-
102 04.047 COVER; GEAR CONT 8-97009-707-3 01 1 9312-9711
102 04.047 COVER; GEAR CONT 8-97867-531-3 01 1 9712-
167 04.047 PIN; JOINT 8-94170-423-0 01 1 9312-
178 04.047 GROMMET; CONT CABLE 8-97065-444-1 01 1 9312-
194 04.047 RETAINER; GROMMET 8-97065-213-2 01 1 9312-9510
194 04.047 RETAINER; GROMMET 8-97065-213-2 01 1 9511-9611
194 04.047 RETAINER; GROMMET 8-97065-213-2 01 1 9612-9701
194 04.047 RETAINER; GROMMET 1-33657-674-0 01 1 9702-9711
194 04.047 RETAINER; GROMMET 1-33657-674-0 01 1 9712-
195 04.047 BOLT; GROMMET FIX
01.540 M6X20 		0-28280-620-0 02 1 9312-9510
195 04.047 BOLT; GROMMET FIX
01.540 M6X20 		0-28280-620-0 02 1 9511-9606
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9607-9611
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9612-9711
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28480-620-0 02 1 9712-
197 04.047 CLIP; KEY LOCK CABLE
ID=11 & 11 		1-09700-734-0 01 1 9312-
199 04.047 BRACKET; KEY LOCK 8-97077-382-0 01 1 9312-
200 04.047 SCREW; KEY LOCK
06.500 M4X12 W/LK WASHER 		9-03910-412-0 01 1 9312-
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91150-206-0 02 1 9312-9510
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91150-206-0 02 1 9511-9611
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91150-206-0 02 1 9612-9711
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91150-206-0 02 1 9712-
203 04.047 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9312-9510
203 04.047 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9511-9611
203 04.047 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9612-9711
203 04.047 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 9712-
