◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55B - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55B — AUTO TRANS SHIFT CONTROL LEVER (#34240) — 179 parça

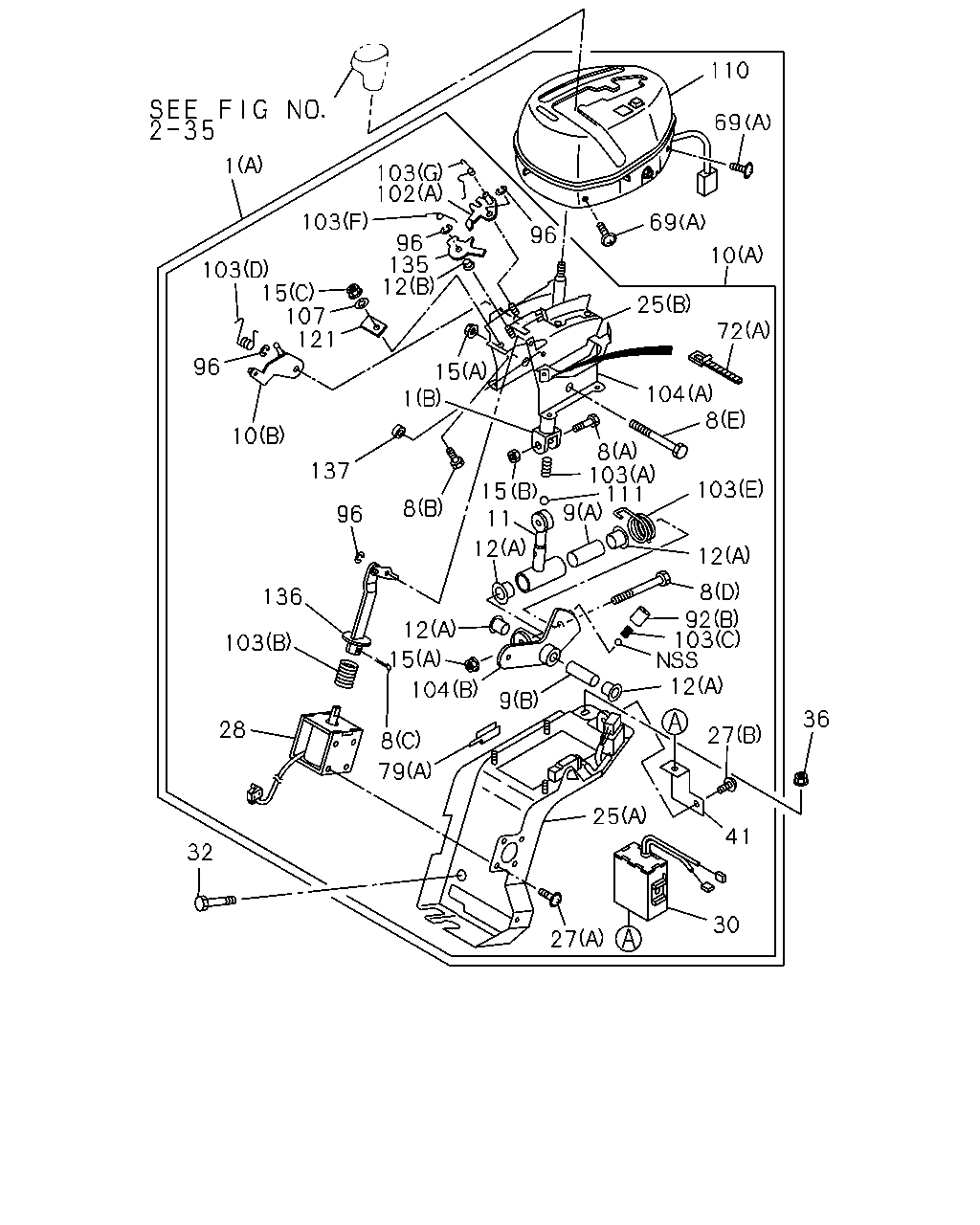

çizim 16877
110 69 1 103 102 103 69 96 96 135 12 10 103 15 107 121 25 72 96 15 104 1 8 10 8 103 111 137 103 15 11 8 9 96 12 12 8 92 103 12 136 12 103 15 104 9 36 28 27 8 79 25 41 32 30 27
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 LEVER; SHIFT,A/T
(A) 		8-97098-708-0 01 1 9312-9711
1 04.006 LEVER; SHIFT,A/T
(C) DARK GRAY 		8-97155-991-2 01 1 9712-
1 04.006 LEVER; SHIFT,A/T
(B) 		8-97100-741-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(F) 		8-97100-705-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(A) 		8-97100-759-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(B) 		8-97100-760-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(C) 		8-97100-762-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(D) 		8-97100-847-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(E) 		8-97100-848-0 01 1 9407-
9 04.006 SLEEVE; KNOB,SHIFT LEVER
(A) 		8-97100-763-0 01 1 9407-9711
9 04.006 SLEEVE; KNOB,SHIFT LEVER
(B) 		8-97100-764-0 01 1 9407-
10 04.006 LEVER; A/T CONT
(A) 		8-97066-426-1 01 1 9312-9711
10 04.006 LEVER; A/T CONT
(C) 		8-97173-358-0 01 1 9712-
10 04.006 LEVER; A/T CONT
(B) 		8-97100-748-0 01 1 9407-9711
11 04.040 LEVER; A/T SHIFT LEVER TO LINK 8-97100-756-0 01 1 9407-9711
12 04.008 BUSHING; SELECT LEVER
(A) 		8-97100-765-0 04 1 9407-9711
12 04.008 BUSHING; SELECT LEVER
(C) 		8-97100-765-0 01 1 9712-
12 04.008 BUSHING; SELECT LEVER
(B) 		8-97100-766-0 03 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
01.540 (A) M8 FLANGE 		0-91150-208-0 06 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
01.540 (D) M8 FLANGE 		0-91150-208-0 01 1 9712-
15 04.042 NUT; LEVER TO SHAFT
17.185 (C) M5 		9-99110-405-0 02 1 9407-9711
25 04.010 PLATE SUB ASM; AUTO SHIFT LEVER
(A) 		8-97100-736-0 01 1 9407-9711
25 04.010 PLATE SUB ASM; AUTO SHIFT LEVER
(B) 		8-97100-739-0 01 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
(C) 		8-97048-083-0 03 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
02.485 (B) M4X8 W/WASHER 		9-03920-408-0 03 1 9712-
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (B) M5X12 W/LK&PL WASHER 		9-03920-512-0 04 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9712-
27 04.022 SCREW; INDICATOR TO BRKT
4HF1 ENG(RLS) 02.485 (A) M4X8 W/WASHER 		9-03920-408-0 02 1 9407-9711
28 04.006 SOLENOID ASM 8-97066-430-0 01 1 9312-9711
28 04.006 SOLENOID ASM 8-97140-486-0 01 1 9712-
30 04.006 CONTROLLER; A/T 8-97066-428-0 01 1 9312-9711
30 04.006 CONTROLLER; A/T 8-97140-481-0 01 1 9712-
32 04.008 BOLT; CONT LEVER TO BODY
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9312-9410
32 04.008 BOLT; CONT LEVER TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9411-
36 04.008 NUT; CONT LEVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-
41 04.010 BRACKET; A/T CONT LEVER 8-97100-754-0 01 1 9407-9711
69 04.012 SCREW; COVER,SHIFT LEVER
16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 04 1 9312-
69 04.012 SCREW; COVER,SHIFT LEVER
(B) 		8-97173-340-0 02 1 9712-
72 04.047 CLAMP; SWITCH CABLE,A/T LEVER
(A) 		8-97100-776-0 02 1 9407-9711
72 04.047 CLAMP; SWITCH CABLE,A/T LEVER
4HF1 ENG(RLS) 16.680 (B) ID=5.3 		9-09164-505-0 01 1 9407-
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER
(B) 		8-97100-697-0 01 1 9407-9711
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER
(A) 		8-97116-312-0 01 1 9407-
92 04.030 GUIDE; SLIDER
(A) 		8-97100-735-0 01 1 9407-9711
92 04.030 GUIDE; SLIDER
(C) 		8-97173-357-0 01 1 9712-
92 04.030 GUIDE; SLIDER
(B) 		8-97100-745-0 01 1 9407-9711
96 04.057 RING; SNAP
ID=5 		9-09185-405-0 04 1 9407-9711
96 04.057 RING; SNAP
ID=5 		9-09185-405-0 02 1 9712-
102 04.030 PLATE; SELECT
(B) 		8-97100-693-0 01 1 9407-9711
102 04.030 PLATE; SELECT
(C) 		8-97173-354-0 01 1 9712-
102 04.030 PLATE; SELECT
(A) 		8-97100-757-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(A) 		8-97100-767-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(A) 		8-97173-339-0 01 1 9712-
103 04.008 SPRING; PLATE
(B) 		8-97100-768-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(B) 		8-97173-345-0 01 1 9712-
103 04.008 SPRING; PLATE
(C) 		8-97100-769-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(C) 		8-97173-346-0 01 1 9712-
103 04.008 SPRING; PLATE
(D) 		8-97100-771-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(D) 		8-97173-355-0 01 1 9712-
103 04.008 SPRING; PLATE
(E) 		8-97100-772-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(E) 		8-97173-356-0 01 1 9712-
103 04.008 SPRING; PLATE
(F) 		8-97100-773-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(G) 		8-97100-775-0 01 1 9407-9711
104 04.011 PLATE; LINK
(B) 		8-97100-737-0 01 1 9407-9711
104 04.011 PLATE; LINK
(A) 		8-97100-747-0 01 1 9407-9711
107 04.008 WASHER; PL
16.680 ID=5.3 		9-09164-505-0 02 1 9407-9711
110 04.030 COVER; INDICATOR,A/T CONT 8-97098-709-0 01 1 9312-9711
110 04.030 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-0 01 1 9712-
111 04.042 BALL 8-97029-393-0 01 1 9407-9711
121 04.010 BRACKET 8-97100-752-0 01 1 9407-9711
135 04.020 PIECE; SHIFT LOCK 8-97116-166-0 01 1 9407-9711
136 04.008 LOCK ASM 8-97100-744-0 01 1 9407-9711
137 04.010 CUSHION 8-97100-753-0 01 1 9407-9711

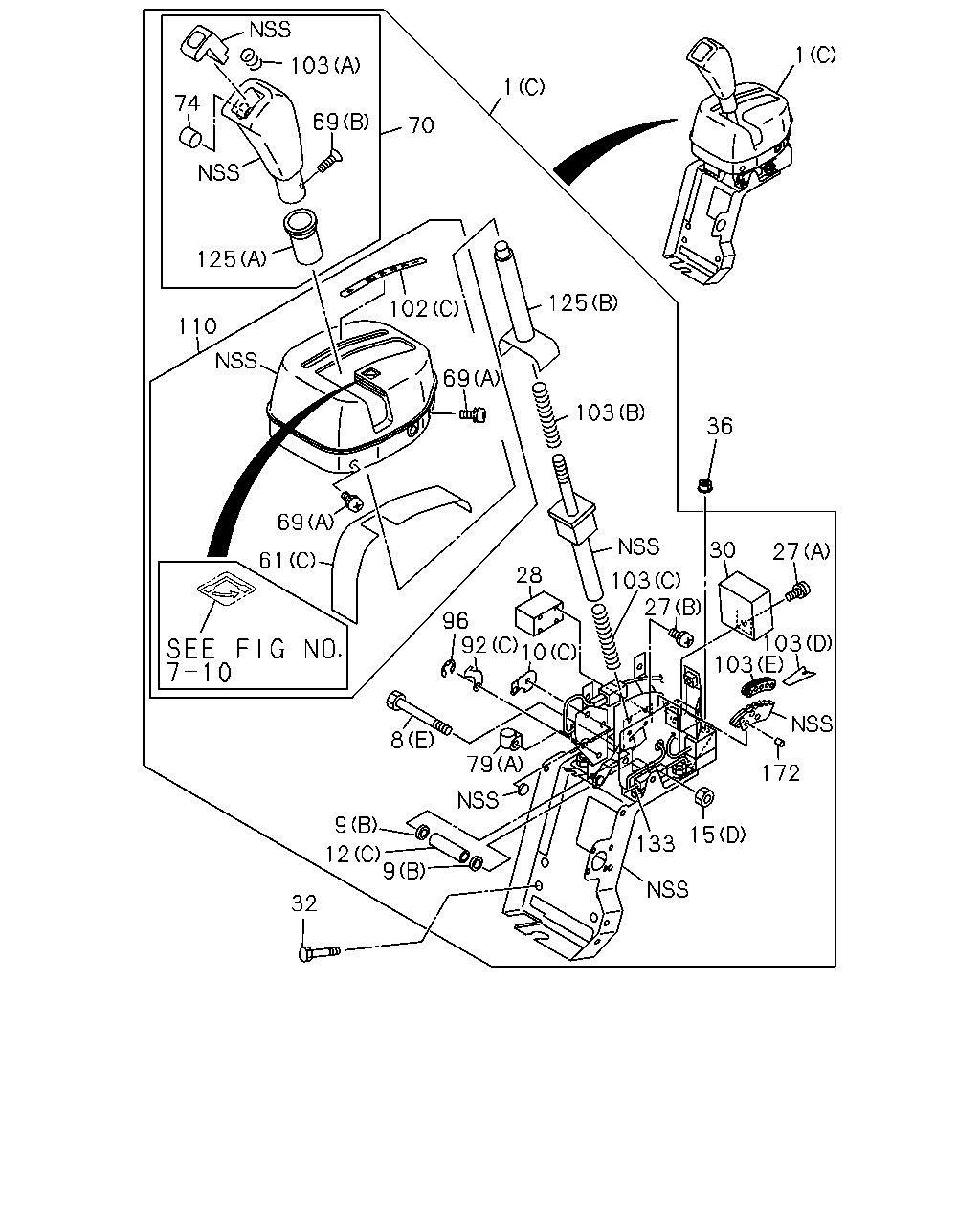

çizim 19610
1 103 1 74 69 70 125 125 102 110 69 103 36 69 30 27 61 28 103 27 96 92 10 103 103 8 79 172 9 15 133 12 9 32
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 LEVER; SHIFT,A/T
(A) 		8-97098-708-0 01 1 9312-9711
1 04.006 LEVER; SHIFT,A/T
(C) DARK GRAY 		8-97155-991-2 01 1 9712-
1 04.006 LEVER; SHIFT,A/T
(B) 		8-97100-741-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(F) 		8-97100-705-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(A) 		8-97100-759-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(B) 		8-97100-760-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(C) 		8-97100-762-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(D) 		8-97100-847-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(E) 		8-97100-848-0 01 1 9407-
9 04.006 SLEEVE; KNOB,SHIFT LEVER
(A) 		8-97100-763-0 01 1 9407-9711
9 04.006 SLEEVE; KNOB,SHIFT LEVER
(B) 		8-97100-764-0 01 1 9407-
10 04.006 LEVER; A/T CONT
(A) 		8-97066-426-1 01 1 9312-9711
10 04.006 LEVER; A/T CONT
(C) 		8-97173-358-0 01 1 9712-
10 04.006 LEVER; A/T CONT
(B) 		8-97100-748-0 01 1 9407-9711
12 04.008 BUSHING; SELECT LEVER
(A) 		8-97100-765-0 04 1 9407-9711
12 04.008 BUSHING; SELECT LEVER
(C) 		8-97100-765-0 01 1 9712-
12 04.008 BUSHING; SELECT LEVER
(B) 		8-97100-766-0 03 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
01.540 (A) M8 FLANGE 		0-91150-208-0 06 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
01.540 (D) M8 FLANGE 		0-91150-208-0 01 1 9712-
15 04.042 NUT; LEVER TO SHAFT
17.185 (C) M5 		9-99110-405-0 02 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
(C) 		8-97048-083-0 03 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
02.485 (B) M4X8 W/WASHER 		9-03920-408-0 03 1 9712-
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (B) M5X12 W/LK&PL WASHER 		9-03920-512-0 04 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9712-
27 04.022 SCREW; INDICATOR TO BRKT
4HF1 ENG(RLS) 02.485 (A) M4X8 W/WASHER 		9-03920-408-0 02 1 9407-9711
28 04.006 SOLENOID ASM 8-97066-430-0 01 1 9312-9711
28 04.006 SOLENOID ASM 8-97140-486-0 01 1 9712-
30 04.006 CONTROLLER; A/T 8-97066-428-0 01 1 9312-9711
30 04.006 CONTROLLER; A/T 8-97140-481-0 01 1 9712-
32 04.008 BOLT; CONT LEVER TO BODY
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9312-9410
32 04.008 BOLT; CONT LEVER TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9411-
36 04.008 NUT; CONT LEVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-
61 04.030 PANEL; SHIFT LEVER
(A) 		8-97100-694-0 01 1 9407-9711
61 04.030 PANEL; SHIFT LEVER
(C) 		8-97173-352-0 01 1 9712-
61 04.030 PANEL; SHIFT LEVER
(B) 		8-97100-695-0 01 1 9407-9711
69 04.012 SCREW; COVER,SHIFT LEVER
16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 04 1 9312-
69 04.012 SCREW; COVER,SHIFT LEVER
(B) 		8-97173-340-0 02 1 9712-
70 04.006 KNOB; SHIFT LEVER
DARK GRAY 		8-97158-968-0 01 1 9712-
74 04.057 SWITCH; OVERDRIVE,A/T CONT LEVER
DARK GRAY 		8-97158-969-0 01 1 9712-
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER
(B) 		8-97100-697-0 01 1 9407-9711
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER
(A) 		8-97116-312-0 01 1 9407-
92 04.030 GUIDE; SLIDER
(A) 		8-97100-735-0 01 1 9407-9711
92 04.030 GUIDE; SLIDER
(C) 		8-97173-357-0 01 1 9712-
92 04.030 GUIDE; SLIDER
(B) 		8-97100-745-0 01 1 9407-9711
96 04.057 RING; SNAP
ID=5 		9-09185-405-0 04 1 9407-9711
96 04.057 RING; SNAP
ID=5 		9-09185-405-0 02 1 9712-
102 04.030 PLATE; SELECT
(B) 		8-97100-693-0 01 1 9407-9711
102 04.030 PLATE; SELECT
(C) 		8-97173-354-0 01 1 9712-
102 04.030 PLATE; SELECT
(A) 		8-97100-757-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(A) 		8-97100-767-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(A) 		8-97173-339-0 01 1 9712-
103 04.008 SPRING; PLATE
(B) 		8-97100-768-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(B) 		8-97173-345-0 01 1 9712-
103 04.008 SPRING; PLATE
(C) 		8-97100-769-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(C) 		8-97173-346-0 01 1 9712-
103 04.008 SPRING; PLATE
(D) 		8-97100-771-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(D) 		8-97173-355-0 01 1 9712-
103 04.008 SPRING; PLATE
(E) 		8-97100-772-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(E) 		8-97173-356-0 01 1 9712-
103 04.008 SPRING; PLATE
(F) 		8-97100-773-0 01 1 9407-9711
103 04.008 SPRING; PLATE
(G) 		8-97100-775-0 01 1 9407-9711
110 04.030 COVER; INDICATOR,A/T CONT 8-97098-709-0 01 1 9312-9711
110 04.030 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-0 01 1 9712-
125 04.020 COVER; SHIFT LEVER
(A) DARK GRAY 		8-97158-970-0 01 1 9712-
125 04.020 COVER; SHIFT LEVER
(B) DARK GRAY 		8-97158-971-0 01 1 9712-
133 04.030 HARNESS; INDICATOR 8-97100-709-0 01 1 9407-9711
133 04.030 HARNESS; INDICATOR 8-97173-344-0 01 1 9712-
172 04.008 PIN; SPRING 8-97173-349-0 02 1 9712-

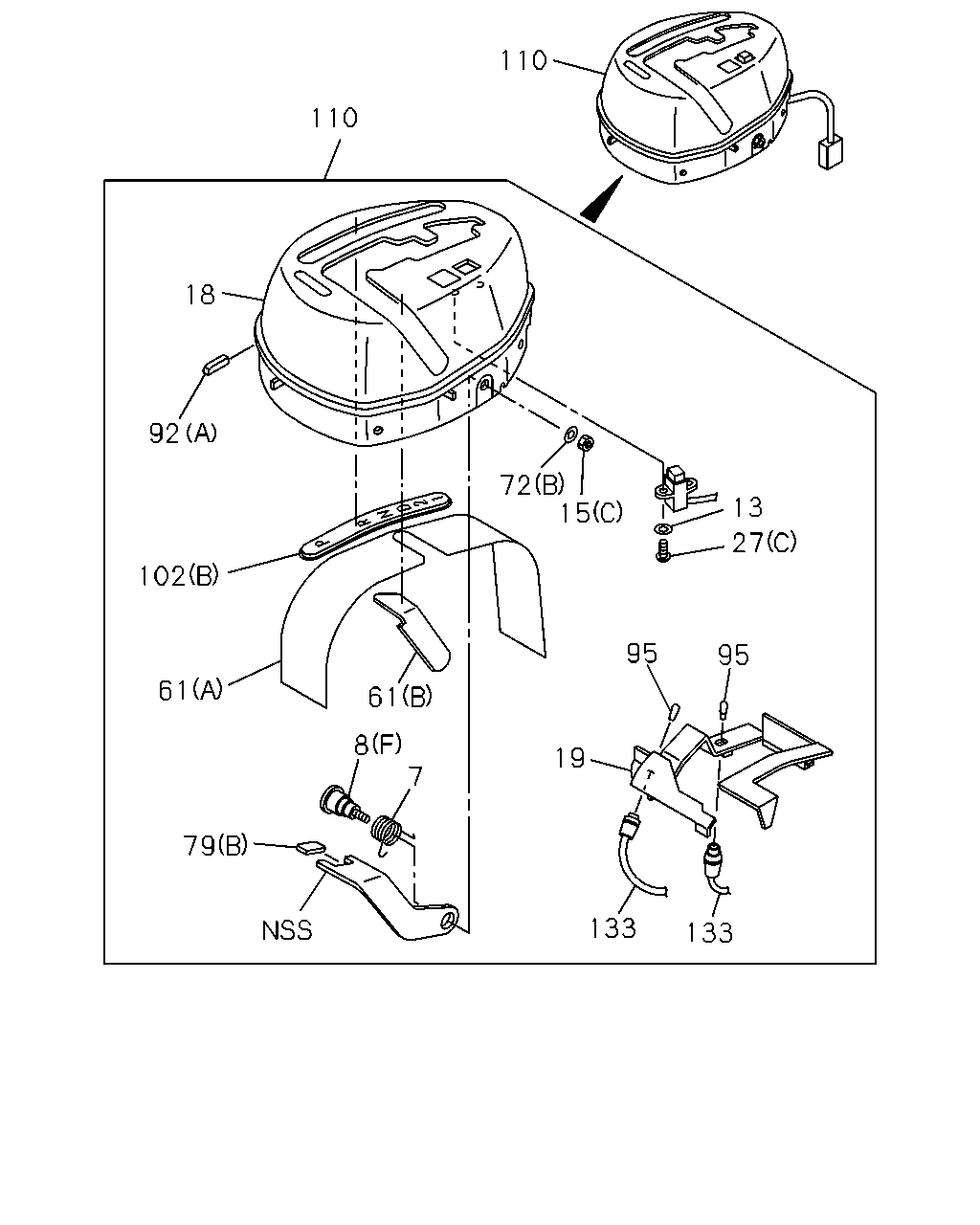

çizim 67441
110 110 18 92 72 15 13 27 102 95 95 61 61 8 19 7 79 133 133
BalonParca AdiParca NoAdetTipApplied Date
7 04.008 SPRING; RETURN,ROD 8-97100-698-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(F) 		8-97100-705-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(A) 		8-97100-759-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(B) 		8-97100-760-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(C) 		8-97100-762-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(D) 		8-97100-847-0 01 1 9407-9711
8 04.008 PIN; SELECT GATE
(E) 		8-97100-848-0 01 1 9407-
13 04.042 WASHER; LEVER TO SHAFT 8-97048-084-0 03 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
01.540 (A) M8 FLANGE 		0-91150-208-0 06 1 9407-9711
15 04.042 NUT; LEVER TO SHAFT
01.540 (D) M8 FLANGE 		0-91150-208-0 01 1 9712-
15 04.042 NUT; LEVER TO SHAFT
17.185 (C) M5 		9-99110-405-0 02 1 9407-9711
18 04.020 COVER; INDICATOR,UPR 8-97100-691-0 01 1 9407-9711
19 04.020 COVER; INDICATOR,LWR 8-97100-692-0 01 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
(C) 		8-97048-083-0 03 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
02.485 (B) M4X8 W/WASHER 		9-03920-408-0 03 1 9712-
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (B) M5X12 W/LK&PL WASHER 		9-03920-512-0 04 1 9407-9711
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9712-
27 04.022 SCREW; INDICATOR TO BRKT
4HF1 ENG(RLS) 02.485 (A) M4X8 W/WASHER 		9-03920-408-0 02 1 9407-9711
61 04.030 PANEL; SHIFT LEVER
(A) 		8-97100-694-0 01 1 9407-9711
61 04.030 PANEL; SHIFT LEVER
(C) 		8-97173-352-0 01 1 9712-
61 04.030 PANEL; SHIFT LEVER
(B) 		8-97100-695-0 01 1 9407-9711
72 04.047 CLAMP; SWITCH CABLE,A/T LEVER
(A) 		8-97100-776-0 02 1 9407-9711
72 04.047 CLAMP; SWITCH CABLE,A/T LEVER
4HF1 ENG(RLS) 16.680 (B) ID=5.3 		9-09164-505-0 01 1 9407-
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER
(B) 		8-97100-697-0 01 1 9407-9711
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER
(A) 		8-97116-312-0 01 1 9407-
92 04.030 GUIDE; SLIDER
(A) 		8-97100-735-0 01 1 9407-9711
92 04.030 GUIDE; SLIDER
(C) 		8-97173-357-0 01 1 9712-
92 04.030 GUIDE; SLIDER
(B) 		8-97100-745-0 01 1 9407-9711
95 04.006 LAMP; INDICATOR 8-97100-711-0 02 1 9407-9711
102 04.030 PLATE; SELECT
(B) 		8-97100-693-0 01 1 9407-9711
102 04.030 PLATE; SELECT
(C) 		8-97173-354-0 01 1 9712-
102 04.030 PLATE; SELECT
(A) 		8-97100-757-0 01 1 9407-9711
110 04.030 COVER; INDICATOR,A/T CONT 8-97098-709-0 01 1 9312-9711
110 04.030 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-0 01 1 9712-
133 04.030 HARNESS; INDICATOR 8-97100-709-0 01 1 9407-9711
133 04.030 HARNESS; INDICATOR 8-97173-344-0 01 1 9712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
