6-47 — MUD GUARD AND INSULATOR (#3424) — 194 parça

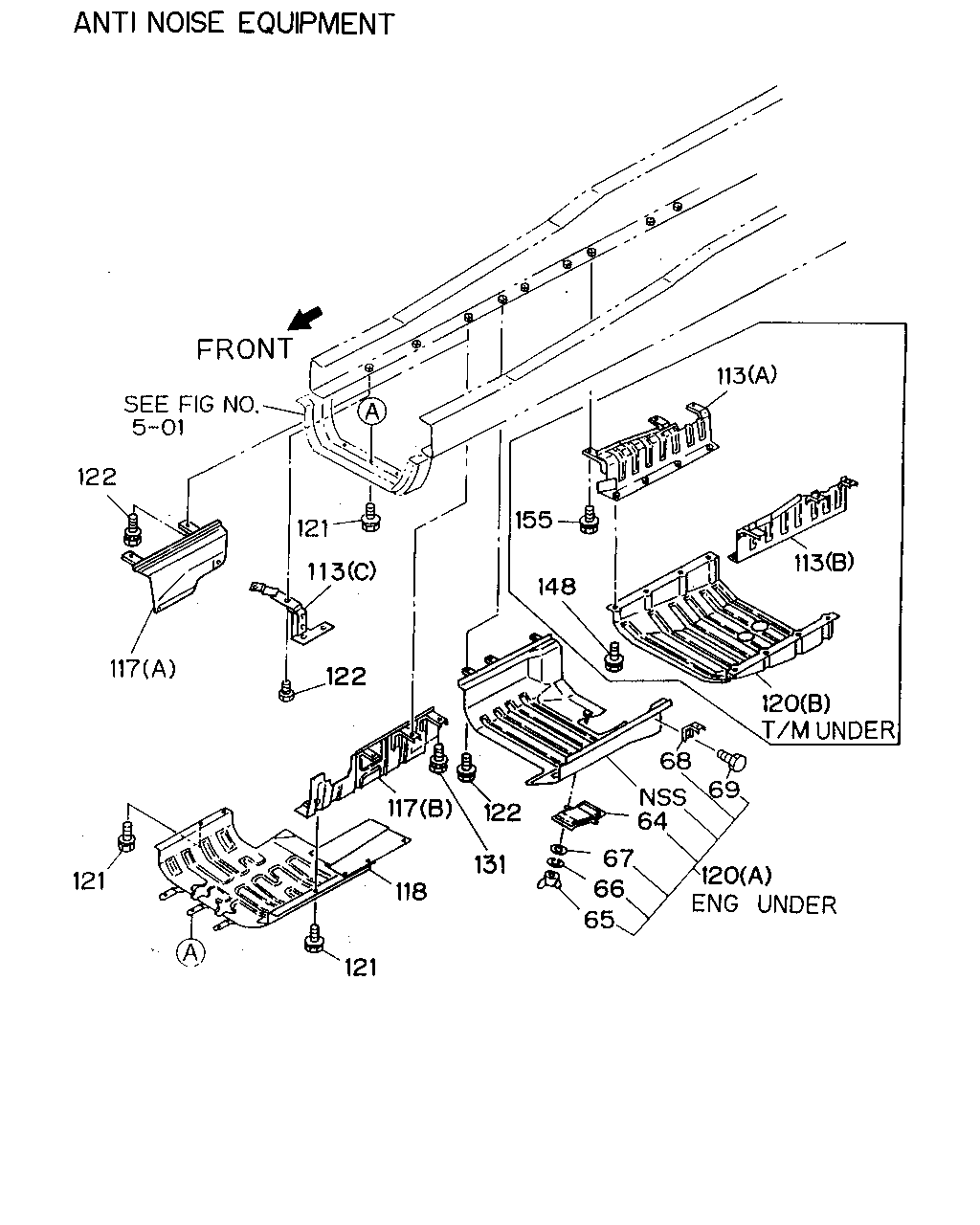

çizim 35510
122 117 121 121 118 117 122 131 65 66 67 64 69 120 68 113 113 155 148 122 113 121
BalonParca AdiParca NoAdetTipApplied Date A B C
64 COVER; CHECK HOLE
TAIWAN EQUIPMENT(WW5) 		1-53441-421-0 01 1 9307- ● ● ●
65 NUT; WING
TAIWAN EQUIPMENT(WW5) M8 WING NUT 		9-09118-408-0 02 1 9307- ● ● ●
66 WASHER; LK
TAIWAN EQUIPMENT(WW5) ID=8.2 		9-09150-508-0 02 1 9307- ● ● ●
67 WASHER; PL
TAIWAN EQUIPMENT(WW5) ID=8.4 		9-09160-508-0 02 1 9307- ● ● ●
68 STAY; COVER
TAIWAN EQUIPMENT(WW5) 		1-53441-452-0 03 1 9307- ● ● ●
69 BOLT; COVER TO STAY
TAIWAN EQUIPMENT(WW5) M8X16 FLANGE 		0-28280-816-0 06 1 9307- ● ● ●
113 PANEL; SIDE
TAIWAN EQUIPMENT(WW5) (B) 		1-53192-372-0 01 1 9307- ● ● ●
113 PANEL; SIDE
TAIWAN EQUIPMENT(WW5) (A) 		1-53192-366-0 01 1 9307- ● ● ●
113 PANEL; SIDE
TAIWAN EQUIPMENT(WW5) AUTO CAB TILT<WV2> (C) 		1-53192-587-0 01 1 9307- ● ● ●
113 PANEL; SIDE
TAIWAN EQUIPMENT(WW5) EXC. AUTO CAB TILT<WV2> (C) 		1-53192-872-0 01 1 9307- ● ● ●
117 PANEL; SIDE,B UNDER
TAIWAN EQUIPMENT(WW5) (B) 		1-53192-588-1 01 1 9307- ● ● ●
117 PANEL; SIDE,B UNDER
TAIWAN EQUIPMENT(WW5) (A) 		1-53192-352-0 01 1 9307- ● ● ●
118 PANEL ASM; UNDER
TAIWAN EQUIPMENT(WW5) 		1-53192-356-1 01 1 9307- ● ● ●
120 PANEL; UNDER
TAIWAN EQUIPMENT(WW5) (A) 		1-53192-358-5 01 1 9307- ● ● ●
120 PANEL; UNDER
12PD1 C ENG(43L) (B) 		1-53192-344-0 01 1 9307- ●
121 BOLT
TAIWAN EQUIPMENT(WW5) M8X18 FLANGE 		0-28080-818-0 06 1 9307- ● ● ●
121 BOLT
TAIWAN EQUIPMENT(WW5) M8X25 FLANGE 		0-28080-825-0 03 1 9307- ● ● ●
122 BOLT
TAIWAN EQUIPMENT(WW5) M8X25 FLANGE 		0-28080-825-0 06 1 9307- ● ● ●
122 BOLT
TAIWAN EQUIPMENT(WW5) M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ● ●
122 BOLT
TAIWAN EQUIPMENT(WW5) M8X35 FLANGE 		0-28080-835-0 02 1 9307- ● ● ●
122 BOLT
TAIWAN EQUIPMENT(WW5) M8X18 FLANGE 		0-28080-818-0 02 1 9307- ● ● ●
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) M8X30 FLANGE 		0-28080-830-0 04 1 9307- ● ● ●
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) M8X35 FLANGE 		0-28080-835-0 02 1 9307- ● ● ●
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) AUTO CAB TILT<WV2> M8X16 FLANGE 		0-28080-816-0 01 1 9307- ● ● ●
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 02 1 9307- ● ● ●
131 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) EXC. AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 03 1 9307- ● ● ●
148 BOLT; PANEL TO PANEL
12PD1 C ENG(43L) M8X18 FLANGE 		0-28080-818-0 08 1 9307- ●
155 BOLT; PANEL
TAIWAN EQUIPMENT(WW5) M8X35 FLANGE 		0-28080-835-0 06 1 9307- ● ● ●

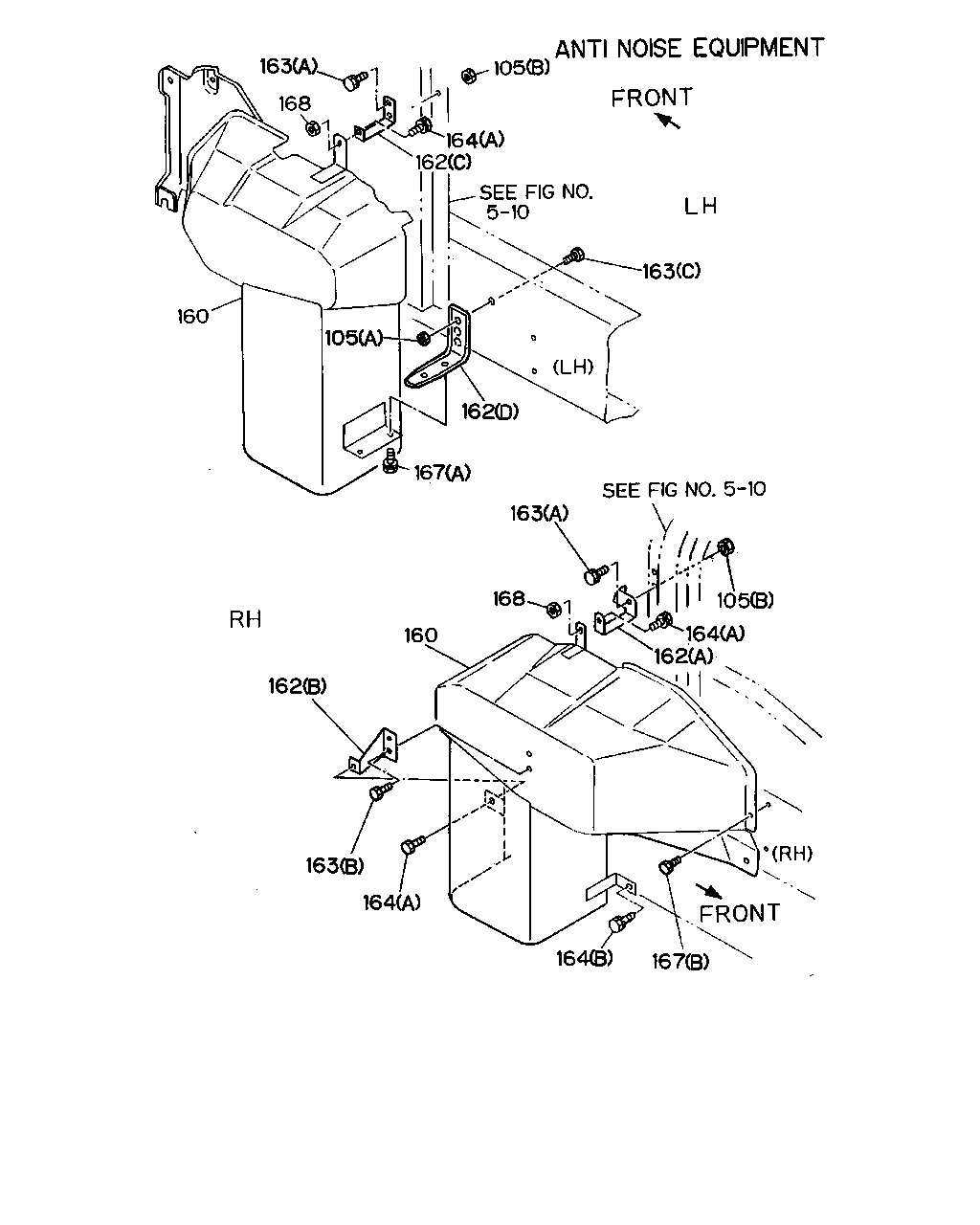

çizim 36132
163 105 168 164 162 160 105 162 167 163 163 168 160 162 163 164 164 167 162 164 105
BalonParca AdiParca NoAdetTipApplied Date A B C
105 NUT; BRKT
ANTI NOISE EQUIPMENT<SV9> EXC. AUTO CAB TILT<WV2> (A) M10 		9-09110-510-0 02 1 9307- ● ● ●
105 NUT; BRKT
TAIWAN EQUIPMENT(WW5) (B) M8 		9-09110-408-0 03 1 9307- ● ● ●
160 COVER ASM; EXH
TAIWAN EQUIPMENT(WW5) 		1-79930-912-2 01 1 9307- ● ● ●
160 COVER ASM; EXH
TAIWAN EQUIPMENT(WW5) 		1-79931-015-0 01 1 9307- ● ● ●
162 BRACKET
TAIWAN EQUIPMENT(WW5) (C) 		1-53441-488-0 01 1 9307- ● ● ●
162 BRACKET
TAIWAN EQUIPMENT(WW5) (A) 		1-53441-487-0 01 1 9307- ● ● ●
162 BRACKET
TAIWAN EQUIPMENT(WW5) (B) 		1-53441-512-0 01 1 9307- ● ● ●
162 BRACKET
TAIWAN EQUIPMENT(WW5) EXC. AUTO CAB TILT<WV2> (D) 		1-53441-489-0 01 1 9307- ● ● ●
163 BOLT; BRKT
TAIWAN EQUIPMENT(WW5) (A) M8X20 FLANGE 		0-28080-820-0 03 1 9307- ● ● ●
163 BOLT; BRKT
TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ● ●
163 BOLT; BRKT
TAIWAN EQUIPMENT(WW5) EXC. AUTO CAB TILT<WV2> (C) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9307- ● ● ●
164 BOLT; FLEX COVER
TAIWAN EQUIPMENT(WW5) (A) M8X18 FLANGE 		0-28080-818-0 03 1 9307- ● ● ●
164 BOLT; FLEX COVER
TAIWAN EQUIPMENT(WW5) (B) M8X30 FLANGE 		0-28080-830-0 01 1 9307- ● ● ●
167 BOLT; EXH COVER
TAIWAN EQUIPMENT(WW5) (A) M8X18 FLANGE 		0-28080-818-0 02 1 9307- ● ● ●
167 BOLT; EXH COVER
TAIWAN EQUIPMENT(WW5) (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 9307- ● ● ●
168 NUT; EXH COVER
TAIWAN EQUIPMENT(WW5) M8 FLANGE 		5-09440-005-0 02 1 9307- ● ● ●

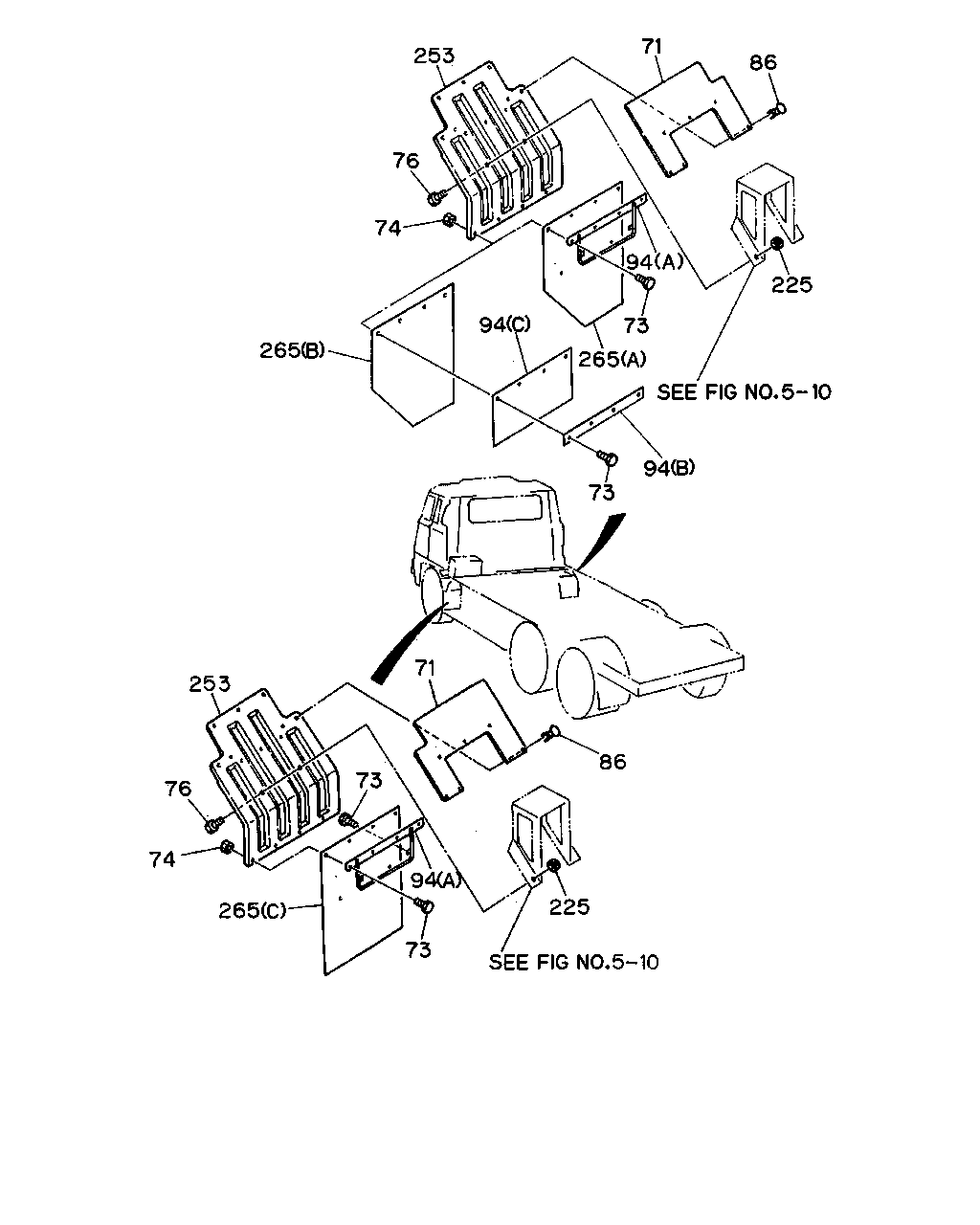

çizim 36175
253 76 74 265 71 86 225 94 94 73 94 265 73 71 86 225 73 73 265 74 76 253 94
BalonParca AdiParca NoAdetTipApplied Date A B C
71 RUBBER; SEAL
TAIWAN EQUIPMENT(WW5) 470X230 		1-79930-645-1 01 1 9002- ● ● ●
71 RUBBER; SEAL
TAIWAN EQUIPMENT(WW5) 470X320 		1-79930-644-1 01 1 9002- ● ● ●
71 RUBBER; SEAL
EXC. TAIWAN EQUIPMENT(WW5) 470X230 		1-79930-589-0 01 1 9002- ● ● ●
71 RUBBER; SEAL
EXC. TAIWAN EQUIPMENT(WW5) 470X320 		1-79930-588-1 01 1 9002- ● ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 04 1 9002-9204 ● ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9205-9205 ● ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		9-01960-816-0 05 1 9002-9204 ● ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 05 1 9205-9306 ● ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ● ●
73 BOLT; MUD COVER BRKT
6RB1 STD ENG(07L) M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9306 ● ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9306 ● ● ●
73 BOLT; MUD COVER BRKT
6RB1 STD ENG(07L) M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9306 ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9307- ●
73 BOLT; MUD COVER BRKT
6RB1 STD ENG(07L) M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9307- ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9307- ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9307- ● ●
73 BOLT; MUD COVER BRKT
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8X16 W/LK&PL WASHER 		0-50140-816-0 05 1 9307- ● ● ●
74 NUT
M8 		9-09110-408-0 04 1 9307- ●
74 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 04 1 9307- ● ●
74 NUT
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. AIR DRYER<PS7> M8 		9-09110-408-0 04 1 9307- ● ●
74 NUT
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8 		9-09110-408-0 04 1 9307- ● ●
74 NUT
M8 		9-09110-408-0 04 1 9002-9306 ● ● ●
74 NUT
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> M8 		9-09110-408-0 04 1 9002-9306 ● ● ●
74 NUT
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> M8 		9-09110-408-0 04 1 9002-9306 ● ● ●
74 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 04 1 9002-9306 ● ●
74 NUT
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8 		9-09110-408-0 05 1 9002- ● ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9002- ● ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ● ●
86 CLIP; MUD GUARD 5-09987-033-0 07 1 9002- ● ● ●
94 RETAINER; FLAP RUBBER
(A) 		8-94300-800-2 01 1 9307- ●
94 RETAINER; FLAP RUBBER
6RB1 STD ENG(07L) (A) 		8-94300-800-2 01 1 9307- ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. AIR DRYER<PS7> (A) 		8-94300-800-2 01 1 9307- ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		8-94300-800-2 01 1 9307- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-341-0 01 1 9002-9105 ● ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-870-1 01 1 9106-9108 ● ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-888-1 01 1 9109- ● ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A) 		8-94300-800-2 01 1 9002-9306 ● ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-94300-800-2 01 1 9002-9306 ● ● ●
94 RETAINER; FLAP RUBBER
6RB1 STD ENG(07L) (A) 		8-94300-800-2 01 1 9002-9306 ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (C) 		1-79930-738-2 01 1 9002- ● ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (B) 		1-79930-757-1 01 1 9002-9310 ● ● ●
94 RETAINER; FLAP RUBBER
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-122-0 01 1 9311- ● ● ●
225 NUT; MUD GUARD
M10 FLANGE 		5-09440-006-0 08 1 9002- ● ● ●
225 NUT; MUD GUARD
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		5-09440-005-0 02 1 9002- ● ● ●
253 GUARD; MUD 1-79930-886-1 01 1 9307- ●
253 GUARD; MUD
6RB1 STD ENG(07L) 		1-79930-886-1 01 1 9307- ● ●
253 GUARD; MUD
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. AIR DRYER<PS7> 		1-79930-886-1 01 1 9307- ● ●
253 GUARD; MUD
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> 		1-79930-886-1 01 1 9307- ● ●
253 GUARD; MUD 1-79930-733-0 01 1 9002-9006 ● ● ●
253 GUARD; MUD 1-79930-851-2 01 1 9007-9106 ● ● ●
253 GUARD; MUD 1-79930-887-1 01 1 9107- ● ● ●
253 GUARD; MUD
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> 		1-79930-740-0 01 1 9002-9006 ● ● ●
253 GUARD; MUD
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> 		1-79930-740-0 01 1 9002-9006 ● ● ●
253 GUARD; MUD
6RB1 STD ENG(07L) 		1-79930-740-0 01 1 9002-9006 ● ●
253 GUARD; MUD
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> 		1-79930-850-2 01 1 9007-9106 ● ● ●
253 GUARD; MUD
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> 		1-79930-850-2 01 1 9007-9106 ● ● ●
253 GUARD; MUD
6RB1 STD ENG(07L) 		1-79930-850-2 01 1 9007-9106 ● ●
253 GUARD; MUD
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> 		1-79930-886-1 01 1 9107-9306 ● ● ●
253 GUARD; MUD
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> 		1-79930-886-1 01 1 9107-9306 ● ● ●
253 GUARD; MUD
6RB1 STD ENG(07L) 		1-79930-886-1 01 1 9107-9306 ● ●
253 GUARD; MUD
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> 		1-79930-754-2 01 1 9002- ● ● ●
265 RUBBER; FLAP,REAR
(A) 		1-79930-544-0 01 1 9307- ●
265 RUBBER; FLAP,REAR
6RB1 STD ENG(07L) (A) 		1-79930-544-0 01 1 9307- ● ●
265 RUBBER; FLAP,REAR
10PD1 STD ENG(40L),12PD1 C ENG(43L) EXC. AIR DRYER<PS7> (A) 		1-79930-544-0 01 1 9307- ● ●
265 RUBBER; FLAP,REAR
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 		1-79930-544-0 01 1 9307- ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-343-1 01 1 9002-9011 ● ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-798-0 01 1 9012-9105 ● ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-869-0 01 1 9106- ● ● ●
265 RUBBER; FLAP,REAR
10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A) 		1-79930-544-0 01 1 9002-9306 ● ● ●
265 RUBBER; FLAP,REAR
10PD1 STD ENG(40L) EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79930-544-0 01 1 9002-9306 ● ● ●
265 RUBBER; FLAP,REAR
6RB1 STD ENG(07L) (A) 		1-79930-544-0 01 1 9002-9306 ● ●
265 RUBBER; FLAP,REAR
10PD1 STD ENG(40L),12PD1 C ENG(43L) AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (B) 		1-79930-756-1 01 1 9002- ● ● ●

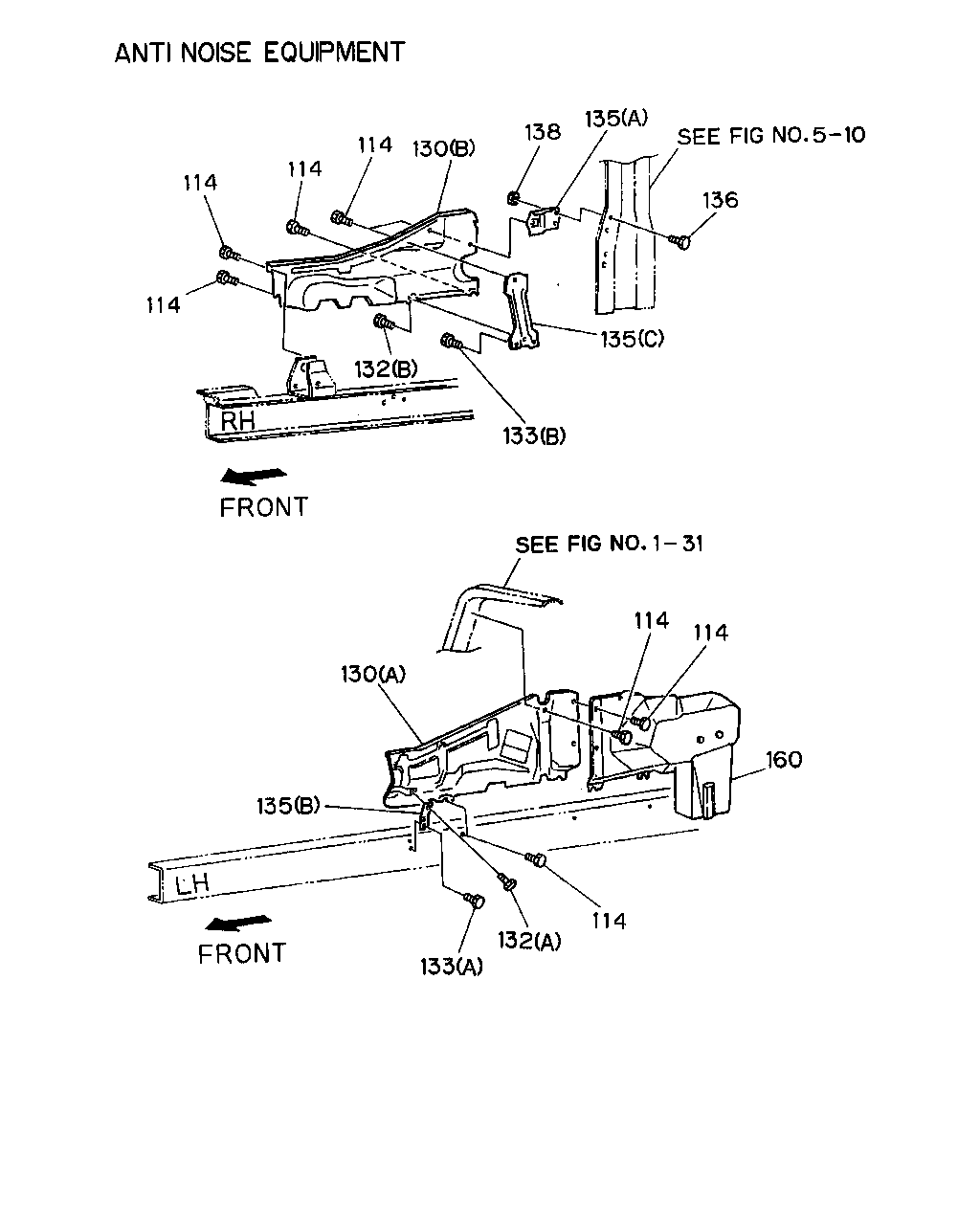

çizim 37148
114 114 114 114 130 138 135 136 135 133 132 114 114 160 114 132 133 135 130
BalonParca AdiParca NoAdetTipApplied Date A B C
114 BOLT
TAIWAN EQUIPMENT(WW5) M8X14 FLANGE 		0-28080-814-0 01 1 9307- ● ● ●
114 BOLT
TAIWAN EQUIPMENT(WW5) M8X22 W/LK&PL WASHER 		1-09030-042-0 07 1 9307- ● ● ●
114 BOLT
TAIWAN EQUIPMENT(WW5) M8X30 W/LK&PL WASHER 		1-09030-080-0 04 1 9307- ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-53192-333-0 01 1 9307- ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-817-3 01 1 9307-9501 ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-817-3 01 1 9502- ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-53192-585-0 01 1 9307- ● ● ●
132 BOLT; SIDE PANEL
TAIWAN EQUIPMENT(WW5) (A) 		0-28080-820-0 02 1 9307- ● ● ●
132 BOLT; SIDE PANEL
TAIWAN EQUIPMENT(WW5) (B) 		1-09030-073-0 01 1 9307- ● ● ●
133 BOLT; FRAME
TAIWAN EQUIPMENT(WW5) (A) M8X30 FLANGE 		0-28080-830-0 02 1 9307- ● ● ●
133 BOLT; FRAME
TAIWAN EQUIPMENT(WW5) (B) M8X30 W/LK&PL WASHER 		1-09030-080-0 02 1 9307- ● ● ●
135 BRACKET; SIDE PANEL
TAIWAN EQUIPMENT(WW5) (A) 		1-53441-494-1 01 1 9307- ● ● ●
135 BRACKET; SIDE PANEL
TAIWAN EQUIPMENT(WW5) (B) 		1-53441-503-1 01 1 9307- ● ● ●
135 BRACKET; SIDE PANEL
TAIWAN EQUIPMENT(WW5) (C) 		1-53441-491-0 01 1 9307- ● ● ●
136 BOLT
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ● ●
138 NUT
TAIWAN EQUIPMENT(WW5) M8 		9-09110-408-0 06 1 9307- ● ● ●
160 COVER ASM; EXH
TAIWAN EQUIPMENT(WW5) 		1-79930-912-2 01 1 9307- ● ● ●
160 COVER ASM; EXH
TAIWAN EQUIPMENT(WW5) 		1-79931-015-0 01 1 9307- ● ● ●

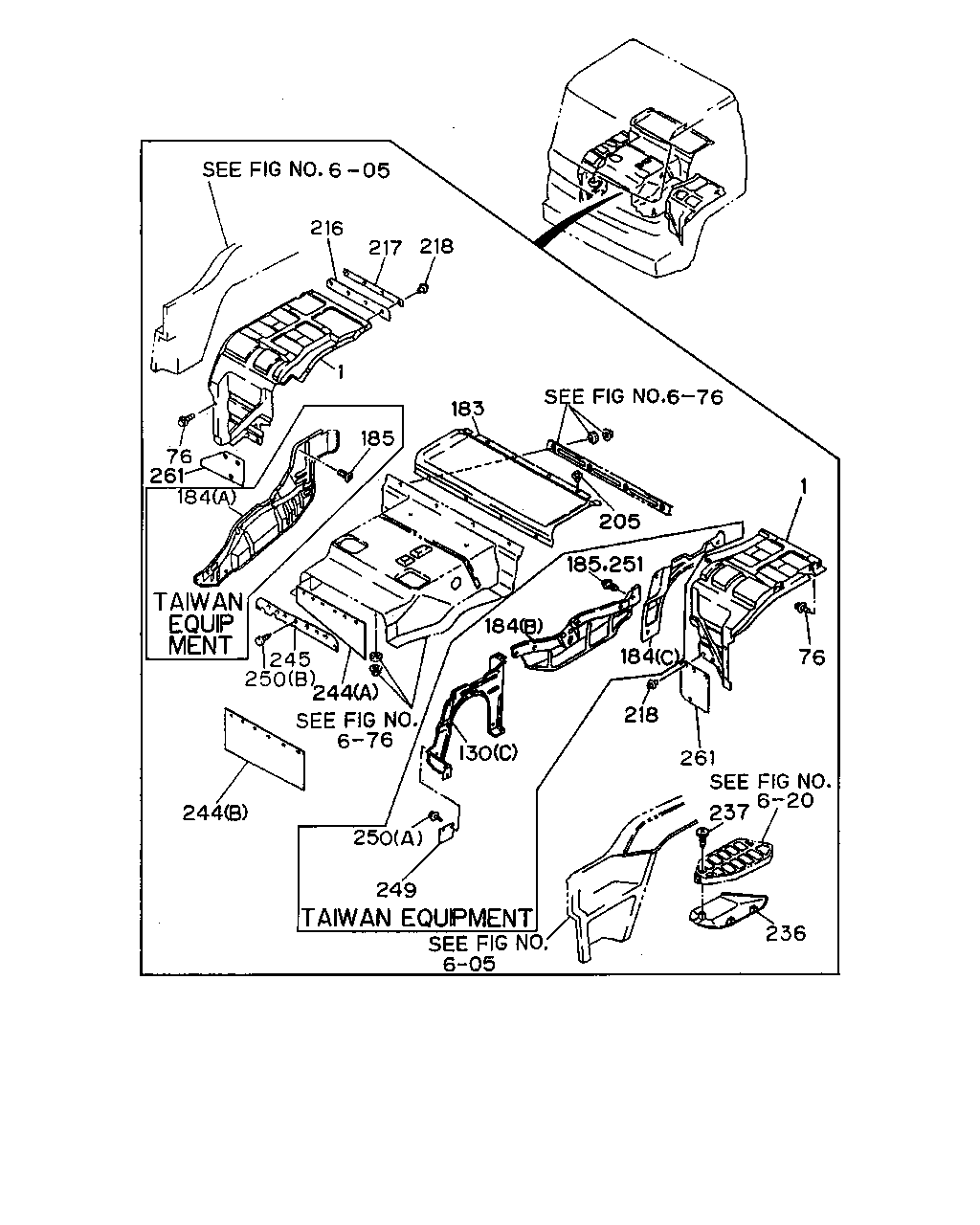

çizim 37754
216 218 217 76 261 1 183 185 184 205 245 250 244 250 249 130 244 184 185 251 1 76 184 218 261 237 236
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GUARD; MUD,FRT 1-79937-711-9 01 1 9002-9301 ● ● ●
1 GUARD; MUD,FRT 1-79937-923-0 01 1 9302- ● ● ●
1 GUARD; MUD,FRT 1-79937-710-9 01 1 9002- ● ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9002- ● ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-53192-333-0 01 1 9307- ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-817-3 01 1 9307-9501 ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-817-3 01 1 9502- ● ● ●
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-53192-585-0 01 1 9307- ● ● ●
183 INSULATOR; HEAT,BED PAN 1-71997-486-4 01 1 9002-9004 ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-71997-486-4 01 1 9002-9004 ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-027-3 01 1 9005- ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-71907-027-3 01 1 9005- ● ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-71997-540-2 01 1 9002-9004 ● ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-71997-539-5 01 1 9005- ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
TAIWAN EQUIPMENT(WW5) (C) 		1-71997-896-0 01 1 9307-9501 ● ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
TAIWAN EQUIPMENT(WW5) (C) 		1-71997-896-0 01 1 9502- ● ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
TAIWAN EQUIPMENT(WW5) (B) 		1-71997-970-0 01 1 9307-9501 ● ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
TAIWAN EQUIPMENT(WW5) (B) 		1-71997-970-0 01 1 9502- ● ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
TAIWAN EQUIPMENT(WW5) (A) 		1-71997-748-2 01 1 9307-9501 ● ● ●
184 INSULATOR; HEAT,ENG SIDE FRT
TAIWAN EQUIPMENT(WW5) (A) 		1-71997-748-2 01 1 9502- ● ● ●
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 17 1 9307-9501 ● ● ●
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 17 1 9502- ● ● ●
205 FASTENER; MUD COVER
D6X23 BLACK 		1-09987-114-0 07 1 9002-9212 ● ● ●
205 FASTENER; MUD COVER
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) D6X23 BLACK 		1-09987-114-0 06 1 9002-9212 ● ● ●
205 FASTENER; MUD COVER 1-09987-189-0 07 1 9301-9502 ● ● ●
205 FASTENER; MUD COVER
6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) 		1-09987-189-0 07 1 9503- ● ● ●
205 FASTENER; MUD COVER
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) 		1-09987-189-0 06 1 9301- ● ● ●
216 RUBBER; RR,MUD GUARD FRT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-716-1 01 1 9002- ● ● ●
217 RETAINER; RUBBER,MUD GUARD FRT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-717-1 01 1 9002- ● ● ●
218 FASTENER; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 05 1 9002- ● ● ●
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 08 1 9002- ● ● ●
236 GUARD ASM; MUD 1ST STEP 1-79937-744-0 02 1 9002-9405 ● ● ●
236 GUARD ASM; MUD 1ST STEP
TAIWAN EQUIPMENT(WW5) 		1-79937-744-0 02 1 9406- ● ● ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-497-0 06 1 9002-9307 ● ● ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9308-9405 ● ● ●
237 BOLT; MUD GUARD
TAIWAN EQUIPMENT(WW5) M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9406- ● ● ●
244 GUARD; MUD,SPLASH
(B) 		1-79937-772-1 01 1 9002-9202 ● ● ●
244 GUARD; MUD,SPLASH
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) (A) 		1-79937-856-0 01 1 9002-9306 ● ● ●
244 GUARD; MUD,SPLASH
10PD1 STD ENG(40L) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79937-772-1 01 1 9203-9501 ● ● ●
244 GUARD; MUD,SPLASH
6RB1 STD ENG(07L) (B) 		1-79937-772-1 01 1 9203-9501 ● ●
244 GUARD; MUD,SPLASH
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79937-772-1 01 1 9502-9502 ● ● ●
244 GUARD; MUD,SPLASH
6RB1 STD ENG(07L) (B) 		1-79937-772-1 01 1 9502-9502 ● ●
244 GUARD; MUD,SPLASH
6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79937-772-1 01 1 9503- ● ● ●
245 RUBBER; SHUTTER,RAD 1-79937-723-4 01 1 9002- ● ● ●
249 RUBBER; SHUTTER
TAIWAN EQUIPMENT(WW5) 		1-79937-886-0 01 1 9307-9501 ● ● ●
249 RUBBER; SHUTTER
TAIWAN EQUIPMENT(WW5) 		1-79937-886-0 01 1 9502- ● ● ●
250 FASTENER; SHUTTER
(B) 		1-09987-189-0 07 1 9002- ● ● ●
250 FASTENER; SHUTTER
TAIWAN EQUIPMENT(WW5) (A) D6X16 PUSH RIVET 		1-09983-105-0 02 1 9307-9501 ● ● ●
250 FASTENER; SHUTTER
TAIWAN EQUIPMENT(WW5) (A) D6X16 PUSH RIVET 		1-09983-105-0 02 1 9502- ● ● ●
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 28 1 9405-9410 ● ● ●
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 37 1 9411-9501 ● ● ●
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 09 1 9502- ● ● ●
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 10 1 9411- ● ● ●
251 CLIP; NOISE INSULATOR
TAIWAN EQUIPMENT(WW5) 		8-94279-048-0 28 1 9502- ● ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-774-1 01 1 9002- ● ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-742-0 01 1 9002- ● ● ●
261 RUBBER; FRT,MUD GUARD
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-742-0 02 1 9002- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
