2-53B — TRANSMISSION OIL COOLER SYSTEM (#34239) — 103 parça

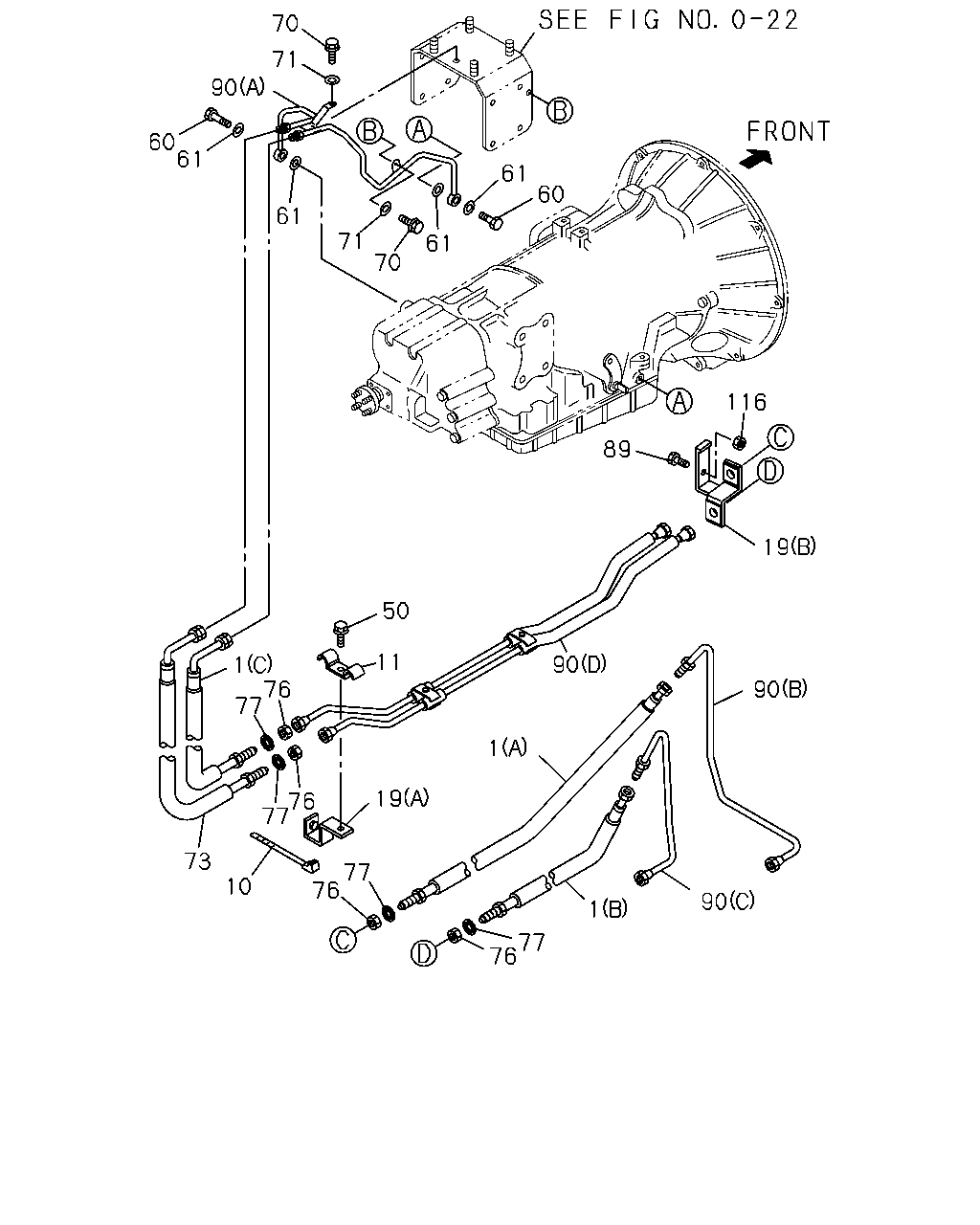

70 71 90 60 61 61 60 61 71 61 70 116 89 19 50 11 90 76 77 1 90 1 19 76 77 73 77 76 10 90 1 77 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF (A) L=294	8-97042-877-0	01	1	9312-9510
1	04.128 HOSE; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=294	8-97042-877-0	01	1	9511-9711
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9712-
1	04.128 HOSE; ATF (B)	8-97042-878-0	01	1	9312-9510
1	04.128 HOSE; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97042-878-0	01	1	9511-9711
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9712-
1	04.128 HOSE; ATF (C)	8-97089-488-1	01	1	9312-9510
1	04.128 HOSE; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97089-488-1	01	1	9511-9711
10	04.128 CLIP; A/T COOLER HOSE 02.559 L=250	5-09707-030-0	01	1	9312-9510
10	04.128 CLIP; A/T COOLER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-0	01	1	9511-9711
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9712-
11	04.128 CLIP; PIPE 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9312-9510
11	04.128 CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9511-9711
19	04.128 BRACKET; FLEX HOSE (A)	8-97042-769-1	01	1	9312-9402
19	04.128 BRACKET; FLEX HOSE (A)	8-97109-398-0	01	1	9403-9510
19	04.128 BRACKET; FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97109-398-0	01	1	9511-9711
19	04.128 BRACKET; FLEX HOSE (B)	8-97079-381-3	01	1	9312-9510
19	04.128 BRACKET; FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97079-381-3	01	1	9511-9711
50	04.128 BOLT; CLIP 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9402
50	04.128 BOLT; CLIP 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9403-9510
50	04.128 BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9511-9711
60	04.128 BOLT; EYE,ATF PIPE 4BD2 ENG(RLW)	1-09675-033-0	01	1	9712-
60	04.128 BOLT; EYE,ATF PIPE 4HF1 ENG(RLS)	1-09675-033-0	02	1	9312-9711
60	04.128 BOLT; EYE,ATF PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	1-09675-033-0	02	1	9712-
61	04.128 GASKET; EYE BOLT,ATF PIPE 4BD2 ENG(RLW) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HF1 ENG(RLS) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9408
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HF1 ENG(RLS) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9409-9711
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9712-
70	04.128 BOLT; CLIP,A/T SIDE 4HF1 ENG(RLS) 08.900 M8X18 FLANGE	0-28080-818-0	02	1	9312-9409
70	04.128 BOLT; CLIP,A/T SIDE 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9410-9504
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9505-
71	04.128 WASHER; CLIP 4HF1 ENG(RLS) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9312-9409
73	04.128 HOSE; FLEX,TRANS	8-97089-487-1	01	1	9312-9510
73	04.128 HOSE; FLEX,TRANS EXC. FRAME STRAIGHT TYPE<7KJ>	8-97089-487-1	01	1	9511-9711
76	04.128 NUT; FLEX HOSE 04.681 M16	9-99111-416-0	04	1	9312-9510
76	04.128 NUT; FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 M16	9-99111-416-0	04	1	9511-9711
77	04.128 WASHER; LK 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	04	1	9312-9510
77	04.128 WASHER; LK EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	04	1	9511-9711
89	04.128 BOLT; BRKT,FLEX HOSE 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9402
89	04.128 BOLT; BRKT,FLEX HOSE 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9403-9507
89	04.128 BOLT; BRKT,FLEX HOSE 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9508-9510
89	04.128 BOLT; BRKT,FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9511-9711
89	04.128 BOLT; BRKT,FLEX HOSE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9504-9711
90	04.128 PIPE ASM; ATF (B)	8-97041-003-2	01	1	9312-9510
90	04.128 PIPE ASM; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97041-003-2	01	1	9511-9711
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97174-639-6	01	1	9712-
90	04.128 PIPE ASM; ATF (C)	8-97041-004-2	01	1	9312-9510
90	04.128 PIPE ASM; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97041-004-2	01	1	9511-9711
90	04.128 PIPE ASM; ATF (D)	8-97079-379-6	01	1	9312-9510
90	04.128 PIPE ASM; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-379-6	01	1	9511-9711
90	04.128 PIPE ASM; ATF 4BD2 ENG(RLW) (A)	8-94455-596-2	01	1	9712-
90	04.128 PIPE ASM; ATF 4HF1 ENG(RLS) (A)	8-97037-222-6	01	1	9312-9711
90	04.128 PIPE ASM; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A)	8-97037-222-6	01	1	9712-
116	04.128 NUT; BRKT,FLEX HOSE 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510
116	04.128 NUT; BRKT,FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9712-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-

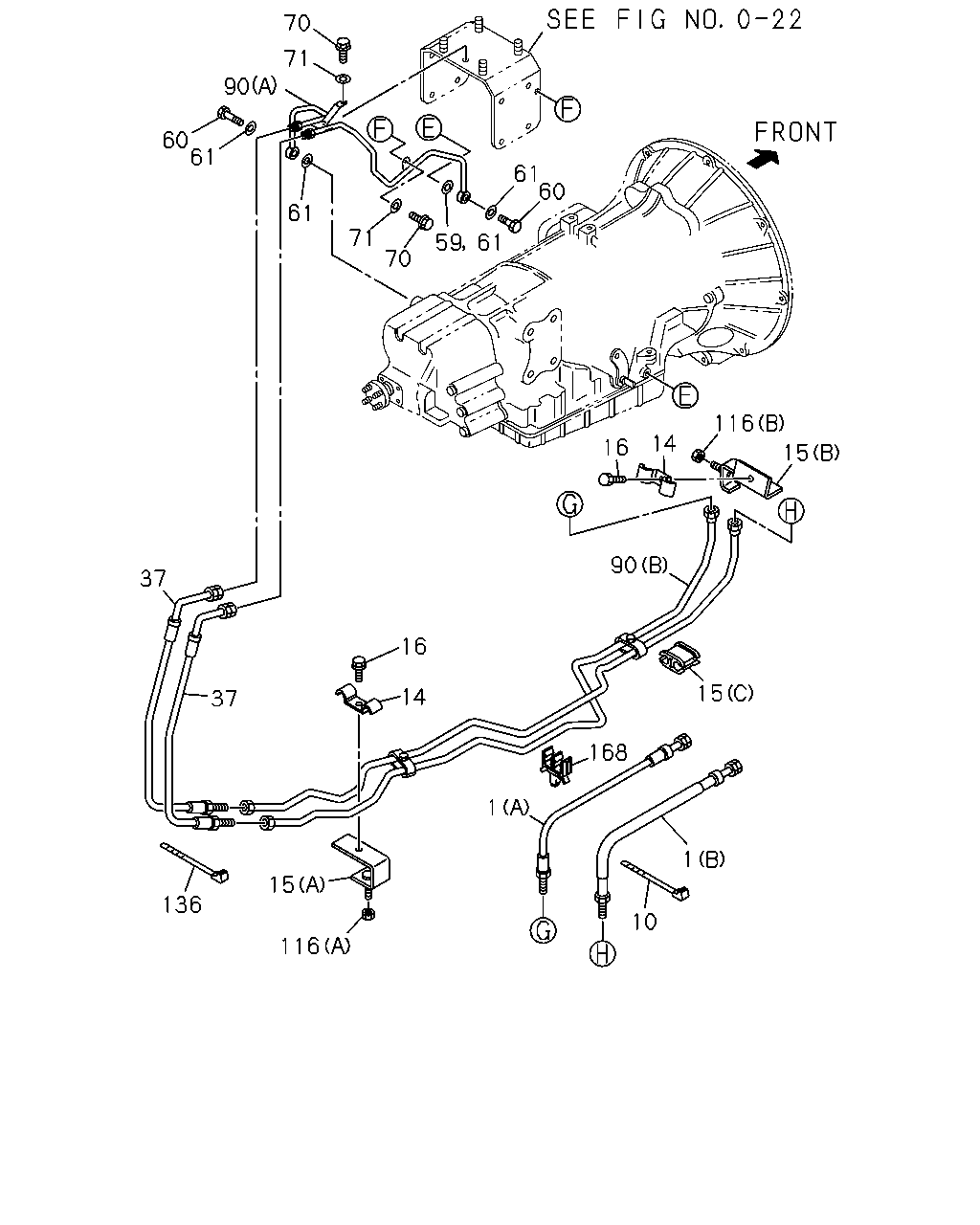

70 71 90 60 61 61 60 61 71 59 61 70 116 14 16 15 90 37 16 15 14 37 168 1 1 15 136 10 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF (A) L=294	8-97042-877-0	01	1	9312-9510
1	04.128 HOSE; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=294	8-97042-877-0	01	1	9511-9711
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9712-
1	04.128 HOSE; ATF (B)	8-97042-878-0	01	1	9312-9510
1	04.128 HOSE; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97042-878-0	01	1	9511-9711
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9712-
1	04.128 HOSE; ATF (C)	8-97089-488-1	01	1	9312-9510
1	04.128 HOSE; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97089-488-1	01	1	9511-9711
10	04.128 CLIP; A/T COOLER HOSE 02.559 L=250	5-09707-030-0	01	1	9312-9510
10	04.128 CLIP; A/T COOLER HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-0	01	1	9511-9711
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9712-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9712-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> 06.672 (C) ID=10X2 H=22	8-94252-455-2	02	1	9712-9807
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9712-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-637-0	01	1	9712-
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ>	8-97171-165-0	02	1	9712-
59	04.128 GASKET; ATF CONNECTOR 4BD2 ENG(RLW) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-
60	04.128 BOLT; EYE,ATF PIPE 4BD2 ENG(RLW)	1-09675-033-0	01	1	9712-
60	04.128 BOLT; EYE,ATF PIPE 4HF1 ENG(RLS)	1-09675-033-0	02	1	9312-9711
60	04.128 BOLT; EYE,ATF PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	1-09675-033-0	02	1	9712-
61	04.128 GASKET; EYE BOLT,ATF PIPE 4BD2 ENG(RLW) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HF1 ENG(RLS) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9408
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HF1 ENG(RLS) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9409-9711
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9712-
70	04.128 BOLT; CLIP,A/T SIDE 4HF1 ENG(RLS) 08.900 M8X18 FLANGE	0-28080-818-0	02	1	9312-9409
70	04.128 BOLT; CLIP,A/T SIDE 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9410-9504
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9505-
71	04.128 WASHER; CLIP 4HF1 ENG(RLS) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9312-9409
90	04.128 PIPE ASM; ATF (B)	8-97041-003-2	01	1	9312-9510
90	04.128 PIPE ASM; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97041-003-2	01	1	9511-9711
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97174-639-6	01	1	9712-
90	04.128 PIPE ASM; ATF (C)	8-97041-004-2	01	1	9312-9510
90	04.128 PIPE ASM; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97041-004-2	01	1	9511-9711
90	04.128 PIPE ASM; ATF (D)	8-97079-379-6	01	1	9312-9510
90	04.128 PIPE ASM; ATF EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-379-6	01	1	9511-9711
90	04.128 PIPE ASM; ATF 4BD2 ENG(RLW) (A)	8-94455-596-2	01	1	9712-
90	04.128 PIPE ASM; ATF 4HF1 ENG(RLS) (A)	8-97037-222-6	01	1	9312-9711
90	04.128 PIPE ASM; ATF 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A)	8-97037-222-6	01	1	9712-
116	04.128 NUT; BRKT,FLEX HOSE 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9510
116	04.128 NUT; BRKT,FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9511-9711
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9712-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9712-
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	9712-
168	04.128 CLIP; A/T SIDE 4BD2 ENG(RLW) 04.785 ID=11 L=28	9-09525-055-0	01	1	9712-
