◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-49B - AUTO TRANS INHIBITOR SWITCH ▶
2-49B — AUTO TRANS INHIBITOR SWITCH (#34238) — 66 parça

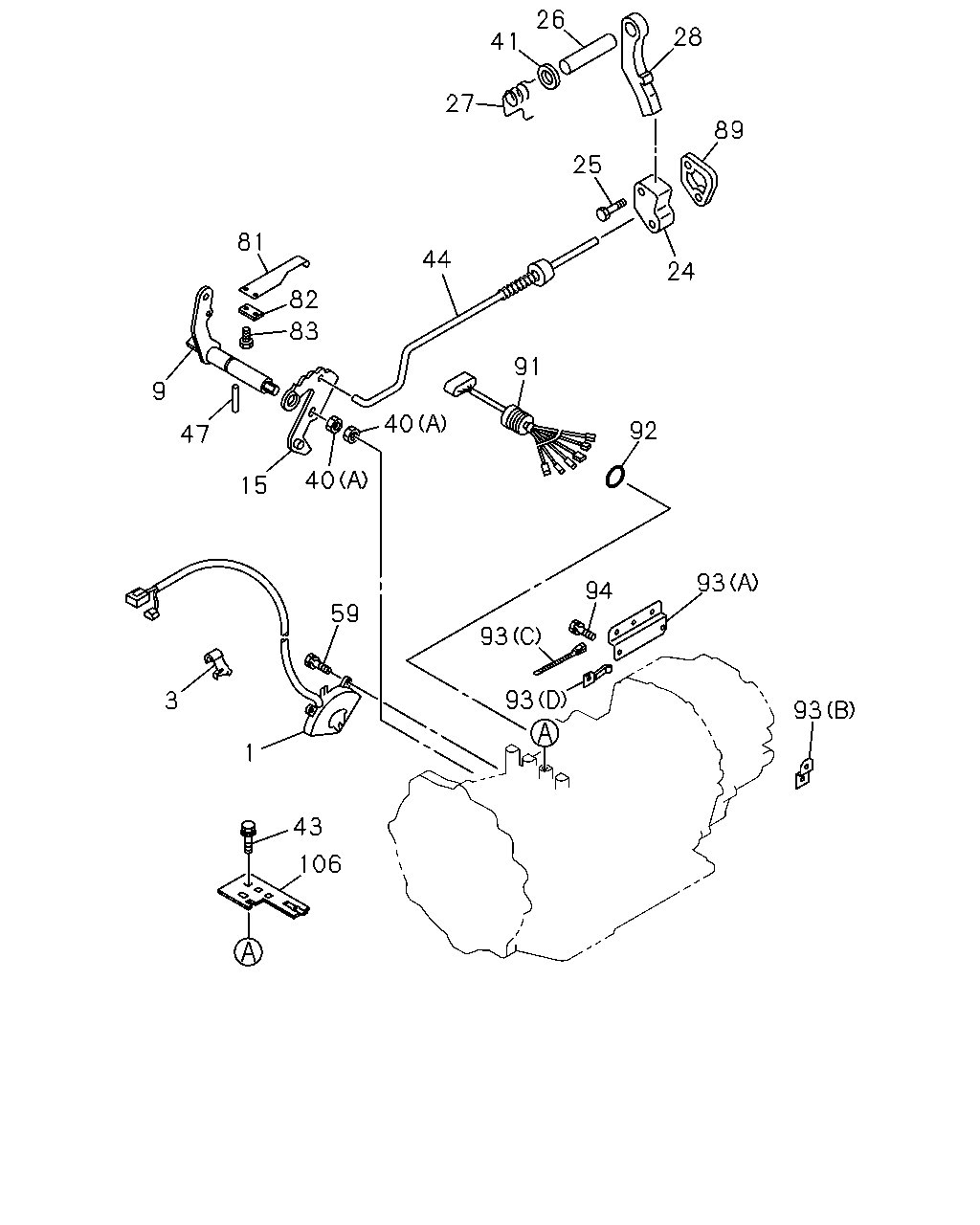

çizim 65919
26 28 41 27 89 25 81 44 24 82 83 91 9 40 92 47 40 15 93 94 59 93 93 3 93 1 43 106
BalonParca AdiParca NoAdetTipApplied Date
1 04.054 SWITCH; INHIBITOR,A/T
4HF1 ENG(RLS) 		8-97092-826-0 01 1 9312-9412
1 04.054 SWITCH; INHIBITOR,A/T
4HF1 ENG(RLS) 		8-97126-091-0 01 1 9501-9711
1 04.054 SWITCH; INHIBITOR,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97126-091-0 01 1 9712-
3 04.054 CLIP; INHIBITOR SW,A/T
4HF1 ENG(RLS) 		8-94483-613-0 01 1 9312-9711
3 04.054 CLIP; INHIBITOR SW,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-613-0 01 1 9712-
9 04.275 SHAFT; MANUAL,A/T
4HF1 ENG(RLS) 		8-94483-276-0 01 1 9312-9711
9 04.275 SHAFT; MANUAL,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-276-0 01 1 9712-
15 04.275 PLATE; MANUAL SHAFT,A/T
4HF1 ENG(RLS) 		8-94483-275-0 01 1 9312-9711
15 04.275 PLATE; MANUAL SHAFT,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-275-0 01 1 9712-
24 04.290 SUPPORT; ACTUATOR,A/T
4HF1 ENG(RLS) 		8-94483-335-0 01 1 9312-9711
24 04.290 SUPPORT; ACTUATOR,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-335-0 01 1 9712-
25 04.290 BOLT; ACTUATOR SUPPORT,A/T
4HF1 ENG(RLS) 04.319 M10X115 		8-94376-208-0 01 1 9312-9711
25 04.290 BOLT; ACTUATOR SUPPORT,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.319 M10X115 		8-94376-208-0 01 1 9712-
26 04.294 SHAFT; PARKING PAWL,A/T
4HF1 ENG(RLS) 		8-94483-338-0 01 1 9312-9711
26 04.294 SHAFT; PARKING PAWL,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-338-0 01 1 9712-
27 04.295 SPRING; PAWL RETURN,A/T
4HF1 ENG(RLS) 		8-94483-340-0 01 1 9312-9711
27 04.295 SPRING; PAWL RETURN,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-340-0 01 1 9712-
28 04.294 PAWL; PARKING,A/T
4HF1 ENG(RLS) 		8-94483-339-0 01 1 9312-9711
28 04.294 PAWL; PARKING,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-339-0 01 1 9712-
40 04.037 NUT; LEVER TO SHAFT
4HF1 ENG(RLS) 03.613 (B) M14 FLANGE 		0-91150-114-0 01 1 9312-9504
40 04.037 NUT; LEVER TO SHAFT
03.613 (B) M14 FLANGE 		0-91150-114-0 01 1 9505-
40 04.037 NUT; LEVER TO SHAFT
4HF1 ENG(RLS) (A) M14 		8-94483-278-0 02 1 9312-9711
40 04.037 NUT; LEVER TO SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) M14 		8-94483-278-0 02 1 9712-
41 04.290 RETAINER; SPR,SHAFT
4HF1 ENG(RLS) 		8-94483-341-0 01 1 9312-9711
41 04.290 RETAINER; SPR,SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-341-0 01 1 9712-
43 04.290 BOLT; BRKT
4HF1 ENG(RLS) M6X12 W/WASHER ET SCREW 		8-94430-946-0 02 1 9312-9711
43 04.290 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) M6X12 W/WASHER ET SCREW 		8-94430-946-0 02 1 9712-
44 04.290 ROD ASM; PARKING PAWL
4HF1 ENG(RLS) 		8-94483-271-0 01 1 9312-9711
44 04.290 ROD ASM; PARKING PAWL
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-271-0 01 1 9712-
47 04.275 PIN; ROLL SHAFT
4HF1 ENG(RLS) 		8-94483-277-0 01 1 9312-9711
47 04.275 PIN; ROLL SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-277-0 01 1 9712-
59 04.265 SCREW; SW,A/T
4HF1 ENG(RLS) 04.053 		8-94483-612-0 03 1 9312-9711
59 04.265 SCREW; SW,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.053 		8-94483-612-0 03 1 9712-
81 04.293 SPRING; DETENT,MANUAL CONT PLATE
4BD2 ENG(RLW) 		8-97135-610-0 01 1 9511-
81 04.293 SPRING; DETENT,MANUAL CONT PLATE
4HF1 ENG(RLS) 		8-97109-229-0 01 1 9312-9711
81 04.293 SPRING; DETENT,MANUAL CONT PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97109-229-0 01 1 9712-
82 02.559 SPACER; DETENT SPRING
4HF1 ENG(RLS) 		8-97109-230-0 01 1 9312-9711
82 02.559 SPACER; DETENT SPRING
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97109-230-0 01 1 9712-
83 04.169 SCREW; DETENT SPRING,MANUAL CONT
4HF1 ENG(RLS) 		8-94483-274-0 01 1 9312-9408
83 04.169 SCREW; DETENT SPRING,MANUAL CONT
4HF1 ENG(RLS) 		8-97101-141-0 01 1 9409-9711
83 04.169 SCREW; DETENT SPRING,MANUAL CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97101-141-0 01 1 9712-
89 04.290 GUIDE; PARKING ROD A/T
4HF1 ENG(RLS) 		8-94483-336-0 01 1 9312-9711
89 04.290 GUIDE; PARKING ROD A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-336-0 01 1 9712-
91 02.530 HARNESS ASM; CABLE,A/T CONT
4HF1 ENG(RLS) 		8-97087-832-0 01 1 9312-9711
91 02.530 HARNESS ASM; CABLE,A/T CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97087-832-0 01 1 9712-
92 04.282 SEAL; GASKET
4HF1 ENG(RLS) 		8-94483-280-0 01 1 9312-9711
92 04.282 SEAL; GASKET
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-280-0 01 1 9712-
93 02.559 CLIP; A/T CONT HARNESS
4HF1 ENG(RLS) 01.166 (C) 		8-94385-704-0 01 1 9312-9711
93 02.559 CLIP; A/T CONT HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) 01.166 (C) 		8-94385-704-0 01 1 9712-
93 02.559 CLIP; A/T CONT HARNESS
4HF1 ENG(RLS) (B) 		8-97078-324-0 01 1 9312-9711
93 02.559 CLIP; A/T CONT HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97078-324-0 01 1 9712-
93 02.559 CLIP; A/T CONT HARNESS
4HF1 ENG(RLS) (A) 		8-97087-831-0 01 1 9312-9711
93 02.559 CLIP; A/T CONT HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-831-0 01 1 9712-
93 02.559 CLIP; A/T CONT HARNESS
4HF1 ENG(RLS) (D) 		8-97107-391-0 01 1 9312-9505
93 02.559 CLIP; A/T CONT HARNESS
4HF1 ENG(RLS) (D) 		8-97112-971-0 01 1 9506-9711
93 02.559 CLIP; A/T CONT HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (D) 		8-97112-971-0 01 1 9712-
94 02.559 BOLT; CLIP,A/T CONT HARNESS
4HF1 ENG(RLS) 		8-94483-333-0 04 1 9312-9711
94 02.559 BOLT; CLIP,A/T CONT HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-333-0 04 1 9712-
106 04.047 BRACKET; HARNESS
4HF1 ENG(RLS) 		8-97061-054-2 01 1 9312-9711
106 04.047 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97061-054-2 01 1 9712-

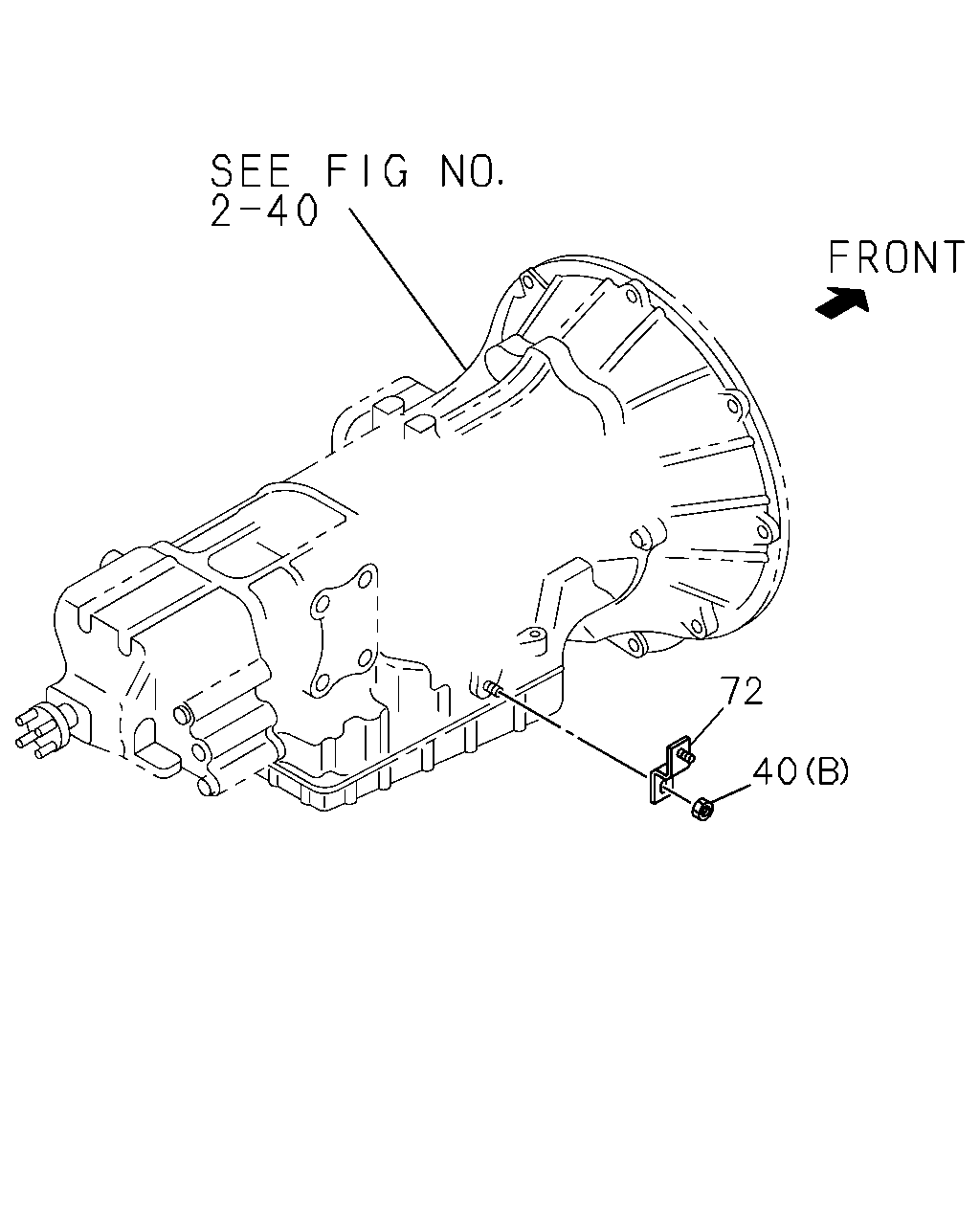

çizim 69155
72 40
BalonParca AdiParca NoAdetTipApplied Date
40 04.037 NUT; LEVER TO SHAFT
4HF1 ENG(RLS) 03.613 (B) M14 FLANGE 		0-91150-114-0 01 1 9312-9504
40 04.037 NUT; LEVER TO SHAFT
03.613 (B) M14 FLANGE 		0-91150-114-0 01 1 9505-
40 04.037 NUT; LEVER TO SHAFT
4HF1 ENG(RLS) (A) M14 		8-94483-278-0 02 1 9312-9711
40 04.037 NUT; LEVER TO SHAFT
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) M14 		8-94483-278-0 02 1 9712-
72 04.035 LEVER; SELECT CONT
4HF1 ENG(RLS) 		8-97047-878-0 01 1 9312-9504
72 04.035 LEVER; SELECT CONT 8-97047-878-0 01 1 9505-
