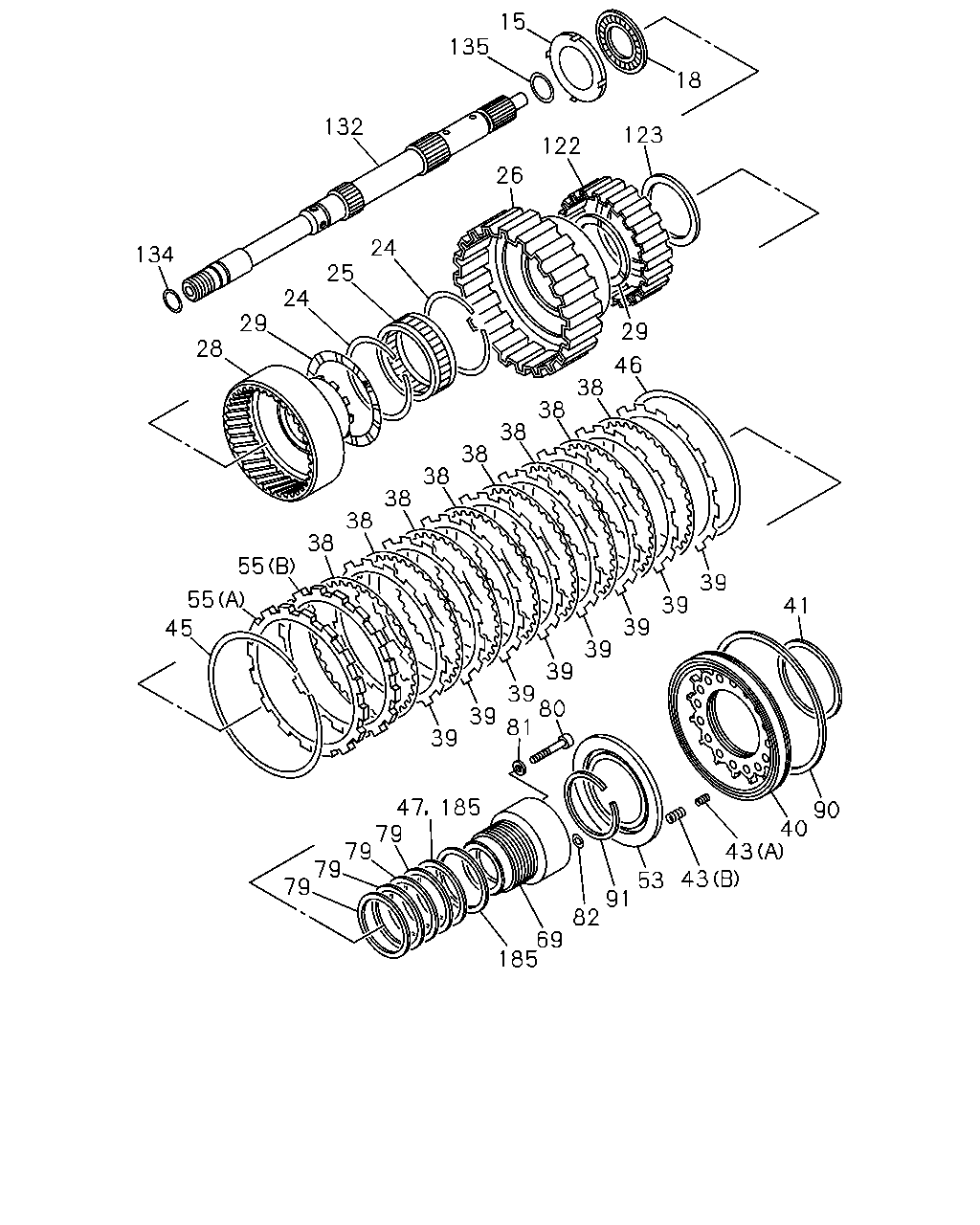

2-47B — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#34237) — 146 parça

15 135 18 132 123 122 26 24 134 25 24 29 29 28 46 38 38 38 38 38 38 38 38 55 39 55 39 41 39 45 39 39 39 80 81 39 39 47 79 79 79 79 185 90 40 43 43 53 91 82 69 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.180 RACE; THRUST BRG,RR PLANETARY GE 4HF1 ENG(RLS)	8-94483-362-0	01	1	9312-9711
15	04.180 RACE; THRUST BRG,RR PLANETARY GE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-362-0	01	1	9712-
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4HF1 ENG(RLS)	8-97027-233-1	01	1	9312-9711
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97027-233-1	01	1	9712-
24	04.164 RING; RET,FRT PLANETARY,A/T 4HF1 ENG(RLS)	8-94483-370-0	02	1	9312-9711
24	04.164 RING; RET,FRT PLANETARY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-370-0	02	1	9712-
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4HF1 ENG(RLS)	8-94483-369-0	01	1	9312-9709
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4HF1 ENG(RLS)	8-97185-763-0	01	1	9710-9711
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97185-763-0	01	1	9712-
26	04.168 RACE; ONEWAY CLU,A/T 4HF1 ENG(RLS)	8-94483-368-1	01	1	9312-9711
26	04.168 RACE; ONEWAY CLU,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-368-1	01	1	9712-
28	04.187 GEAR ASM; RR PLANETARY,A/T 4HF1 ENG(RLS)	8-97092-803-0	01	1	9312-9711
28	04.187 GEAR ASM; RR PLANETARY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-803-0	01	1	9712-
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4HF1 ENG(RLS)	8-94483-372-0	02	1	9312-9711
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-372-0	02	1	9712-
38	04.163 PLATE; DRIVE,LOW & REV,A/T 4HF1 ENG(RLS)	8-94483-263-0	08	1	9312-9711
38	04.163 PLATE; DRIVE,LOW & REV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-263-0	08	1	9712-
39	04.163 PLATE; DRIVEN,LOW & REV,A/T 4HF1 ENG(RLS)	8-94483-262-0	08	1	9312-9711
39	04.163 PLATE; DRIVEN,LOW & REV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-262-0	08	1	9712-
40	04.166 PISTON; BRK,LOW & REV,A/T 4HF1 ENG(RLS)	8-94483-255-0	01	1	9312-9505
40	04.166 PISTON; BRK,LOW & REV,A/T 4HF1 ENG(RLS)	8-97130-098-0	01	1	9506-9711
40	04.166 PISTON; BRK,LOW & REV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97130-098-0	01	1	9712-
41	04.166 SEAL; PISTON,LOW & REV,A/T 4HF1 ENG(RLS)	8-94483-256-0	01	1	9312-9711
41	04.166 SEAL; PISTON,LOW & REV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-256-0	01	1	9712-
43	04.164 SPRING; PISTON RETURN,A/T 4HF1 ENG(RLS) (A)	8-94483-259-0	16	1	9312-9505
43	04.164 SPRING; PISTON RETURN,A/T 4HF1 ENG(RLS) (B)	8-94483-281-0	16	1	9312-9505
43	04.164 SPRING; PISTON RETURN,A/T 4HF1 ENG(RLS) (A)	8-97130-096-0	16	1	9506-9711
43	04.164 SPRING; PISTON RETURN,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97130-096-0	16	1	9712-
43	04.164 SPRING; PISTON RETURN,A/T 4HF1 ENG(RLS) (B)	8-97130-097-0	16	1	9506-9711
43	04.164 SPRING; PISTON RETURN,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97130-097-0	16	1	9712-
45	04.164 RING; SNAP,LOW & REV BRK 4HF1 ENG(RLS)	8-94483-260-0	01	1	9312-9711
45	04.164 RING; SNAP,LOW & REV BRK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-260-0	01	1	9712-
46	04.164 PLATE; DISHED,LOW & REV,A/T 4HF1 ENG(RLS)	8-94483-261-0	01	1	9312-9711
46	04.164 PLATE; DISHED,LOW & REV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-261-0	01	1	9712-
47	04.176 BEARING; NEEDLE,LOW & REV 4HF1 ENG(RLS)	8-94483-283-0	01	1	9511-9711
47	04.176 BEARING; NEEDLE,LOW & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-283-0	01	1	9712-
53	04.180 RETAINER; LOW & REV,CLU SPR 4HF1 ENG(RLS)	8-94483-258-0	01	1	9312-9408
53	04.180 RETAINER; LOW & REV,CLU SPR 4HF1 ENG(RLS)	8-97119-875-0	01	1	9409-9711
53	04.180 RETAINER; LOW & REV,CLU SPR 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97119-875-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (A) T=4.4	8-94483-264-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) T=4.4	8-94483-264-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (B) T=4.6	8-94483-265-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) T=4.6	8-94483-265-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (B) T=4.8	8-94483-266-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) T=4.8	8-94483-266-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (B) T=5.0	8-94483-267-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) T=5.0	8-94483-267-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (A) T=5.2	8-94483-268-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) T=5.2	8-94483-268-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (B) T=5.4	8-94483-269-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) T=5.4	8-94483-269-0	01	1	9712-
55	04.163 PLATE; LOW & REV,CLU BACKING 4HF1 ENG(RLS) (B) T=5.6	8-94483-270-0	01	1	9312-9711
55	04.163 PLATE; LOW & REV,CLU BACKING 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) T=5.6	8-94483-270-0	01	1	9712-
69	04.164 RACE; LOW ONEWAY CLU 4HF1 ENG(RLS)	8-97109-227-0	01	1	9312-9505
69	04.164 RACE; LOW ONEWAY CLU 4HF1 ENG(RLS)	8-97123-259-0	01	1	9506-9711
69	04.164 RACE; LOW ONEWAY CLU 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97123-259-0	01	1	9712-
79	04.164 RING; SEAL,ONEWAY CLU RACE,LOW & 4HF1 ENG(RLS)	8-94483-250-0	04	1	9312-9711
79	04.164 RING; SEAL,ONEWAY CLU RACE,LOW & 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-250-0	04	1	9712-
80	04.164 BOLT; ONEWAY CLU RACE,LOW & REV 4HF1 ENG(RLS)	8-94483-252-0	08	1	9312-9510
80	04.164 BOLT; ONEWAY CLU RACE,LOW & REV 4HF1 ENG(RLS)	8-97136-210-0	08	1	9511-9711
80	04.164 BOLT; ONEWAY CLU RACE,LOW & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97136-210-0	08	1	9712-
81	04.164 WASHER; PL,ONEWAY CLU RACE,LOW & 4HF1 ENG(RLS)	8-94483-254-0	08	1	9312-9510
82	04.166 SEAL; GASKET,LOW ONEWAY CLU RACE 4HF1 ENG(RLS)	8-94483-287-0	04	1	9312-9510
82	04.166 SEAL; GASKET,LOW ONEWAY CLU RACE 4HF1 ENG(RLS)	8-94483-287-0	03	1	9511-9711
82	04.166 SEAL; GASKET,LOW ONEWAY CLU RACE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-287-0	03	1	9712-
90	04.166 SEAL; PISTON,LOW & REV 4HF1 ENG(RLS)	8-94483-257-0	01	1	9312-9711
90	04.166 SEAL; PISTON,LOW & REV 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-257-0	01	1	9712-
91	04.166 RING; SNAP,SPRING RET 4HF1 ENG(RLS)	8-94483-282-0	01	1	9312-9510
122	04.180 HUB; OVERRUN CLU,A/T 4HF1 ENG(RLS)	8-97092-810-0	01	1	9312-9711
122	04.180 HUB; OVERRUN CLU,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-810-0	01	1	9712-
123	04.176 BEARING; THRUST,OVERRUN CLU HUB 4HF1 ENG(RLS)	8-97092-801-0	01	1	9312-9711
123	04.176 BEARING; THRUST,OVERRUN CLU HUB 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-801-0	01	1	9712-
132	04.123 SHAFT; INPUT,A/T 4HF1 ENG(RLS)	8-94483-239-0	01	1	9312-9505
132	04.123 SHAFT; INPUT,A/T 4HF1 ENG(RLS)	8-97135-473-0	01	1	9506-9711
132	04.123 SHAFT; INPUT,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97135-473-0	01	1	9712-
134	04.166 SEAL; INPUT SHAFT,FRT 4HF1 ENG(RLS)	8-94483-240-0	01	1	9312-9610
134	04.166 SEAL; INPUT SHAFT,FRT 4HF1 ENG(RLS)	8-97174-501-0	01	1	9611-9711
134	04.166 SEAL; INPUT SHAFT,FRT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97174-501-0	01	1	9712-
135	04.166 RING; SEAL,INPUT SHAFT,A/T 4HF1 ENG(RLS)	8-94483-243-0	01	1	9312-9711
135	04.166 RING; SEAL,INPUT SHAFT,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-243-0	01	1	9712-
185	04.158 WASHER; THRUST,ONEWAY CLU RACE 4HF1 ENG(RLS)	8-97107-388-0	02	1	9312-9510

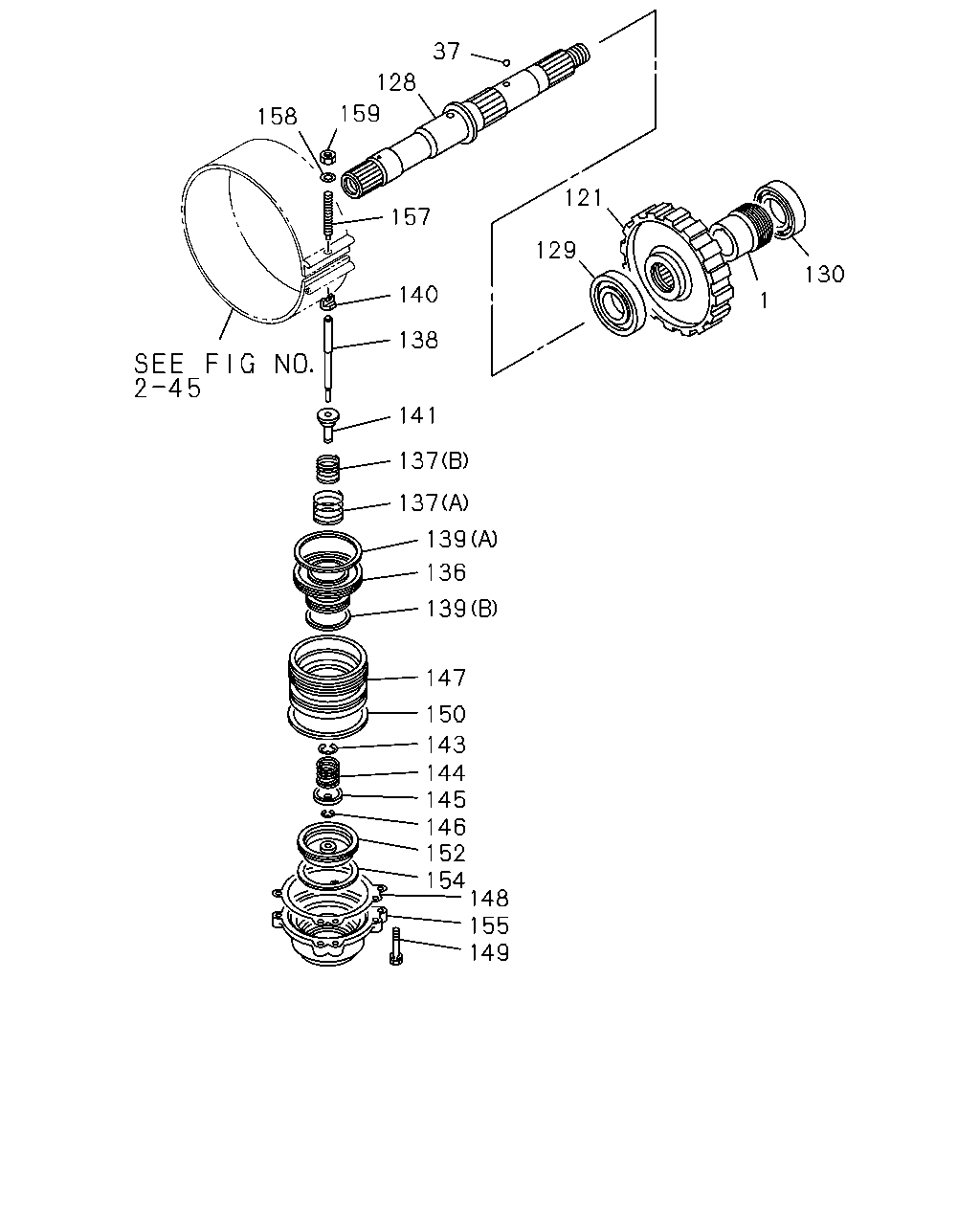

37 128 159 158 121 157 129 130 140 1 138 141 137 137 139 136 139 147 150 143 144 145 146 152 154 148 155 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4HF1 ENG(RLS)	8-94483-356-0	01	1	9312-9711
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-356-0	01	1	9712-
37	04.256 BALL; SPD DRIVE 4HF1 ENG(RLS) 04.265	8-94140-853-0	01	1	9312-9711
37	04.256 BALL; SPD DRIVE 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.265	8-94140-853-0	01	1	9712-
121	04.162 GEAR; PARKING LK,A/T 4HF1 ENG(RLS) 04.164	8-94483-352-0	01	1	9312-9711
121	04.162 GEAR; PARKING LK,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.164	8-94483-352-0	01	1	9712-
128	04.175 SHAFT; OUTPUT,A/T 4HF1 ENG(RLS)	8-97092-807-0	01	1	9312-9711
128	04.175 SHAFT; OUTPUT,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-807-0	01	1	9712-
129	04.176 BEARING; OUTPUT SHAFT,FRT,A/T 4HF1 ENG(RLS)	8-94483-353-0	01	1	9312-9711
129	04.176 BEARING; OUTPUT SHAFT,FRT,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-353-0	01	1	9712-
130	04.176 BEARING; OUTPUT SHAFT,RR,A/T 4HF1 ENG(RLS)	8-94483-354-0	01	1	9312-9711
130	04.176 BEARING; OUTPUT SHAFT,RR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-354-0	01	1	9712-
136	04.166 PISTON; BRK BAND SERVO 4HF1 ENG(RLS)	8-94483-458-0	01	1	9312-9408
136	04.166 PISTON; BRK BAND SERVO 4HF1 ENG(RLS)	8-97135-607-0	01	1	9409-9711
136	04.166 PISTON; BRK BAND SERVO 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97135-607-0	01	1	9712-
137	04.164 SPRING; SERVO PISTON,OUTER,BRK B 4HF1 ENG(RLS) (A)	8-94483-456-0	01	1	9312-9408
137	04.164 SPRING; SERVO PISTON,OUTER,BRK B 4HF1 ENG(RLS) (B)	8-94483-457-0	01	1	9312-9408
137	04.164 SPRING; SERVO PISTON,OUTER,BRK B 4HF1 ENG(RLS) (A)	8-97135-608-0	01	1	9407-9711
137	04.164 SPRING; SERVO PISTON,OUTER,BRK B 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97135-608-0	01	1	9712-
138	04.251 STEM; PISTON,BRK BAND SERVO 4HF1 ENG(RLS)	8-94483-461-1	01	1	9312-9709
138	04.251 STEM; PISTON,BRK BAND SERVO 4HF1 ENG(RLS)	8-97173-640-0	01	1	9710-9711
138	04.251 STEM; PISTON,BRK BAND SERVO 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97173-640-0	01	1	9712-
139	04.166 SEAL; PISTON,BRK BAND SERVO 4HF1 ENG(RLS) (A)	8-94483-459-0	01	1	9312-9610
139	04.166 SEAL; PISTON,BRK BAND SERVO 4HF1 ENG(RLS) (A)	8-97174-505-0	01	1	9611-9711
139	04.166 SEAL; PISTON,BRK BAND SERVO 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97174-505-0	01	1	9712-
139	04.166 SEAL; PISTON,BRK BAND SERVO 4HF1 ENG(RLS) (B)	8-94483-460-0	01	1	9312-9610
139	04.166 SEAL; PISTON,BRK BAND SERVO 4HF1 ENG(RLS) (B)	8-97174-506-0	01	1	9611-9711
139	04.166 SEAL; PISTON,BRK BAND SERVO 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97174-506-0	01	1	9712-
140	04.251 STRUT; BRK BAND SERVO 4HF1 ENG(RLS)	8-94483-462-0	01	1	9312-9711
140	04.251 STRUT; BRK BAND SERVO 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-462-0	01	1	9712-
141	04.164 RETAINER; SPRING,SERVO CUSHION 4HF1 ENG(RLS)	8-94483-463-0	01	1	9312-9408
143	04.164 RING; SNAP,SERVO PISTON,BRK BAND 4HF1 ENG(RLS) 04.229	8-94483-465-0	01	1	9312-9408
144	04.164 SPRING; SERVO PISTON 4HF1 ENG(RLS)	8-94483-466-0	01	1	9312-9711
144	04.164 SPRING; SERVO PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-466-0	01	1	9712-
145	04.164 RETAINER; SPRING,SERVO PISTON 4HF1 ENG(RLS)	8-94483-467-0	01	1	9312-9711
145	04.164 RETAINER; SPRING,SERVO PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-467-0	01	1	9712-
146	04.166 RING; SNAP,SPRING RET,SERVO PIST 4HF1 ENG(RLS) 04.229	8-94483-468-0	01	1	9312-9711
146	04.166 RING; SNAP,SPRING RET,SERVO PIST 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.229	8-94483-468-0	01	1	9712-
147	04.164 RETAINER; SERVO PISTON,BRK BAND 4HF1 ENG(RLS)	8-94483-469-0	01	1	9312-9711
147	04.164 RETAINER; SERVO PISTON,BRK BAND 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-469-0	01	1	9712-
148	04.164 GASKET; RET,SERVO PISTON 4HF1 ENG(RLS)	8-94483-470-0	01	1	9312-9312
148	04.164 GASKET; RET,SERVO PISTON 4HF1 ENG(RLS)	8-97106-999-0	01	1	9401-9711
148	04.164 GASKET; RET,SERVO PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97106-999-0	01	1	9712-
149	04.164 BOLT; RET,SERVO PISTON,BRK BAND 4HF1 ENG(RLS)	8-94483-471-0	04	1	9312-9312
149	04.164 BOLT; RET,SERVO PISTON,BRK BAND 4HF1 ENG(RLS)	8-97107-000-0	04	1	9401-9711
149	04.164 BOLT; RET,SERVO PISTON,BRK BAND 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97107-000-0	04	1	9712-
150	04.164 SEAL; SERVO PISTON,BRK BAND 4HF1 ENG(RLS)	8-94483-475-0	01	1	9312-9711
150	04.164 SEAL; SERVO PISTON,BRK BAND 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-475-0	01	1	9712-
152	04.166 PISTON; BAND SERVO,OVERDRIVE 4BD2 ENG(RLW)	8-97167-657-0	01	1	9511-
152	04.166 PISTON; BAND SERVO,OVERDRIVE 4HF1 ENG(RLS)	8-94483-472-0	01	1	9312-9711
152	04.166 PISTON; BAND SERVO,OVERDRIVE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-94483-472-0	01	1	9712-
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4BD2 ENG(RLW)	8-97039-482-0	01	1	9511-9610
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4BD2 ENG(RLW)	8-97174-507-0	01	1	9611-
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4HF1 ENG(RLS)	8-94483-473-0	01	1	9312-9610
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4HF1 ENG(RLS)	8-97174-508-0	01	1	9611-9711
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97174-508-0	01	1	9712-
155	04.164 RETAINER; SERVO PISTON,OVERDRIVE 4BD2 ENG(RLW)	8-97039-483-0	01	1	9511-
155	04.164 RETAINER; SERVO PISTON,OVERDRIVE 4HF1 ENG(RLS)	8-94483-474-0	01	1	9312-9711
155	04.164 RETAINER; SERVO PISTON,OVERDRIVE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-94483-474-0	01	1	9712-
157	04.164 PIN; ANCHOR,BRK BAND,A/T 4HF1 ENG(RLS)	8-94483-476-0	01	1	9312-9711
157	04.164 PIN; ANCHOR,BRK BAND,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-476-0	01	1	9712-
158	04.164 WASHER; PL,ANCHOR PIN,BRK BAND 4HF1 ENG(RLS) 04.228	8-94483-477-0	01	1	9312-9509
159	04.164 NUT; ANCHOR PIN LOCK,BRK BAND 4HF1 ENG(RLS) 04.228	8-94483-478-0	01	1	9312-9509
159	04.164 NUT; ANCHOR PIN LOCK,BRK BAND 4HF1 ENG(RLS)	8-97143-181-0	01	1	9510-9711
159	04.164 NUT; ANCHOR PIN LOCK,BRK BAND 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97143-181-0	01	1	9712-
