2-45B — AUTO TRANS CLUTCH AND PLANETARY GEAR (#34236) — 241 parça

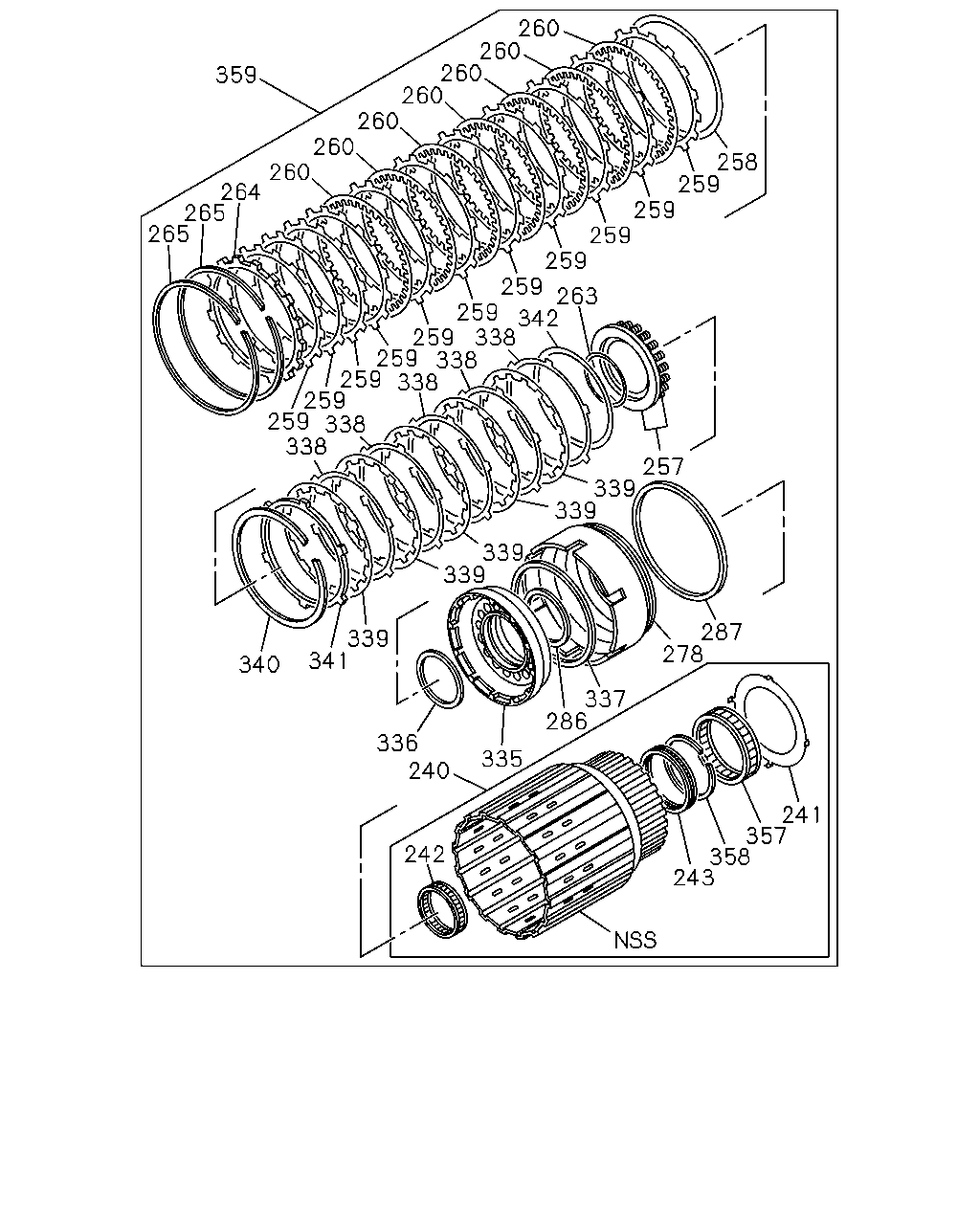

çizim 17643
260 260 260 260 260 260 260 264 265 265 359 258 259 259 259 259 259 263 259 342 259 259 338 259 259 338 338 257 339 339 339 339 287 278 339 341 340 337 286 336 240 335 241 357 358 243 242 259 338 338
BalonParca AdiParca NoAdetTipApplied Date
240 04.169 DRUM ASM; FWD CLU,A/T
4HF1 ENG(RLS) 		8-97109-226-0 01 1 9312-9711
240 04.169 DRUM ASM; FWD CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97109-226-0 01 1 9712-
241 04.163 PLATE; SIDE,LOW ONEWAY CLU,A/T
4HF1 ENG(RLS) 		8-94483-375-0 01 1 9312-9711
241 04.163 PLATE; SIDE,LOW ONEWAY CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-375-0 01 1 9712-
242 04.169 BEARING; NEEDLE,CLU DRUM,PISTON
4HF1 ENG(RLS) 		8-94483-377-0 01 1 9312-9711
242 04.169 BEARING; NEEDLE,CLU DRUM,PISTON
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-377-0 01 1 9712-
243 04.169 BEARING; NEEDLE,CLU DRUM,CLU SID
4HF1 ENG(RLS) 		8-97109-224-0 01 1 9312-9711
243 04.169 BEARING; NEEDLE,CLU DRUM,CLU SID
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97109-224-0 01 1 9712-
257 04.164 SPRING; PISTON RETURN,FRT CLU,A/
4HF1 ENG(RLS) 		8-94483-408-0 01 1 9312-9508
257 04.164 SPRING; PISTON RETURN,FRT CLU,A/
4HF1 ENG(RLS) 		8-97138-133-0 01 1 9509-9711
257 04.164 SPRING; PISTON RETURN,FRT CLU,A/
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97138-133-0 01 1 9712-
258 04.163 PLATE; DISHED,FRT CLU,A/T
4HF1 ENG(RLS) 		8-94483-396-0 01 1 9312-9711
258 04.163 PLATE; DISHED,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-396-0 01 1 9712-
259 04.163 PLATE; DRIVE,FRT CLU,A/T
4HF1 ENG(RLS) 		8-97029-866-0 14 1 9312-9510
259 04.163 PLATE; DRIVE,FRT CLU,A/T
4HF1 ENG(RLS) 		8-94483-388-0 08 1 9511-9711
259 04.163 PLATE; DRIVE,FRT CLU,A/T
4BD2 ENG(RLW) 		8-94483-388-0 08 1 9712-
259 04.163 PLATE; DRIVE,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97029-866-0 10 1 9712-
260 04.163 PLATE; DRIVEN,FRT CLU,A/T
4HF1 ENG(RLS) 		8-94483-388-0 08 1 9312-9510
260 04.163 PLATE; DRIVEN,FRT CLU,A/T
4HF1 ENG(RLS) 		8-97029-866-0 14 1 9511-9711
260 04.163 PLATE; DRIVEN,FRT CLU,A/T
4BD2 ENG(RLW) 		8-97029-866-0 14 1 9712-
260 04.163 PLATE; DRIVEN,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94483-388-0 08 1 9712-
263 04.164 RING; SNAP,FRT CLU,A/T
4HF1 ENG(RLS) 		8-94483-383-0 01 1 9312-9711
263 04.164 RING; SNAP,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-383-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=4.4 		8-94483-389-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.4 		8-94483-389-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=4.6 		8-94483-390-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.6 		8-94483-390-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=4.8 		8-94483-391-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.8 		8-94483-391-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=5.0 		8-94483-392-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.0 		8-94483-392-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=5.2 		8-94483-393-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.2 		8-94483-393-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=5.4 		8-94483-394-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.4 		8-94483-394-0 01 1 9712-
264 04.163 PLATE; RET,FRT CLU,A/T
4HF1 ENG(RLS) T=4.2 		8-97027-235-0 01 1 9312-9711
264 04.163 PLATE; RET,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.2 		8-97027-235-0 01 1 9712-
265 04.164 RING; SNAP,FRT CLU,A/T
4HF1 ENG(RLS) 		8-94483-395-0 02 1 9312-9711
265 04.164 RING; SNAP,FRT CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-395-0 02 1 9712-
278 04.166 PISTON; FWD CLU
4HF1 ENG(RLS) 		8-94483-380-0 01 1 9312-9711
278 04.166 PISTON; FWD CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-380-0 01 1 9712-
286 04.166 SEAL; FWD CLU PISTON,INNER
4HF1 ENG(RLS) 		8-94483-381-0 01 1 9312-9711
286 04.166 SEAL; FWD CLU PISTON,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-381-0 01 1 9712-
287 04.166 SEAL; FWD CLU PISTON,OUTER
4HF1 ENG(RLS) 		8-94483-382-0 01 1 9312-9711
287 04.166 SEAL; FWD CLU PISTON,OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-382-0 01 1 9712-
335 04.166 PISTON; OVERRUN CLU,FWD
4HF1 ENG(RLS) 		8-94483-384-0 01 1 9312-9711
335 04.166 PISTON; OVERRUN CLU,FWD
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-384-0 01 1 9712-
336 04.166 SEAL; OVERRUN CLU
4HF1 ENG(RLS) 		8-94483-385-0 01 1 9312-9610
336 04.166 SEAL; OVERRUN CLU
4HF1 ENG(RLS) 		8-97174-503-0 01 1 9611-9711
336 04.166 SEAL; OVERRUN CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97174-503-0 01 1 9712-
337 04.166 SEAL; OVERRUN CLU
4HF1 ENG(RLS) 		8-94483-386-0 01 1 9312-9610
337 04.166 SEAL; OVERRUN CLU
4HF1 ENG(RLS) 		8-97174-504-0 01 1 9611-9711
337 04.166 SEAL; OVERRUN CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97174-504-0 01 1 9712-
338 04.163 PLATE; DRIVEN,OVERRUN CLU,A/T
4HF1 ENG(RLS) 		8-94483-398-0 05 1 9312-9610
338 04.163 PLATE; DRIVEN,OVERRUN CLU,A/T
4HF1 ENG(RLS) 		8-97174-510-0 05 1 9611-9711
338 04.163 PLATE; DRIVEN,OVERRUN CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97174-510-0 05 1 9712-
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4HF1 ENG(RLS) 		8-94483-399-0 05 1 9312-9505
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4HF1 ENG(RLS) 		8-97131-024-0 05 1 9506-9711
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97131-024-0 05 1 9712-
340 04.180 RING; SNAP,OVERRUN CLU PLATE
4HF1 ENG(RLS) 04.164 		8-94483-400-0 01 1 9312-9711
340 04.180 RING; SNAP,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.164 		8-94483-400-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=4.0 		8-94483-401-0 01 1 9312-9711
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.0 		8-94483-401-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=4.2 		8-94483-402-0 01 1 9312-9711
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.2 		8-94483-402-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=4.4 		8-94483-403-0 01 1 9312-9711
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.4 		8-94483-403-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=4.6 		8-94483-404-0 01 1 9312-9711
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.6 		8-94483-404-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=4.8 		8-94483-405-0 01 1 9312-9711
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.8 		8-94483-405-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=5.0 		8-94483-406-0 01 1 9312-9711
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.0 		8-94483-406-0 01 1 9712-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4HF1 ENG(RLS) T=5.2 		8-94483-407-0 01 1 9312-9510
342 04.180 PLATE; DISHED,OVERRUN CLU
4HF1 ENG(RLS) 		8-94483-397-0 01 1 9312-9711
342 04.180 PLATE; DISHED,OVERRUN CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-397-0 01 1 9712-
357 04.180 CLUTCH ASM; LOW ONEWAY
4HF1 ENG(RLS) 		8-97092-797-0 01 1 9312-9711
357 04.180 CLUTCH ASM; LOW ONEWAY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97092-797-0 01 1 9712-
358 04.180 RING; SNAP,CLU DRUM,A/T
4HF1 ENG(RLS) 		8-94483-379-0 01 1 9312-9711
358 04.180 RING; SNAP,CLU DRUM,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-379-0 01 1 9712-
359 04.164 CLUTCH ASM; FRT,A/T
4HF1 ENG(RLS) 		8-97109-225-0 01 1 9312-9610
359 04.164 CLUTCH ASM; FRT,A/T
4HF1 ENG(RLS) 		8-97174-495-0 01 1 9611-9711
359 04.164 CLUTCH ASM; FRT,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97174-495-0 01 1 9712-

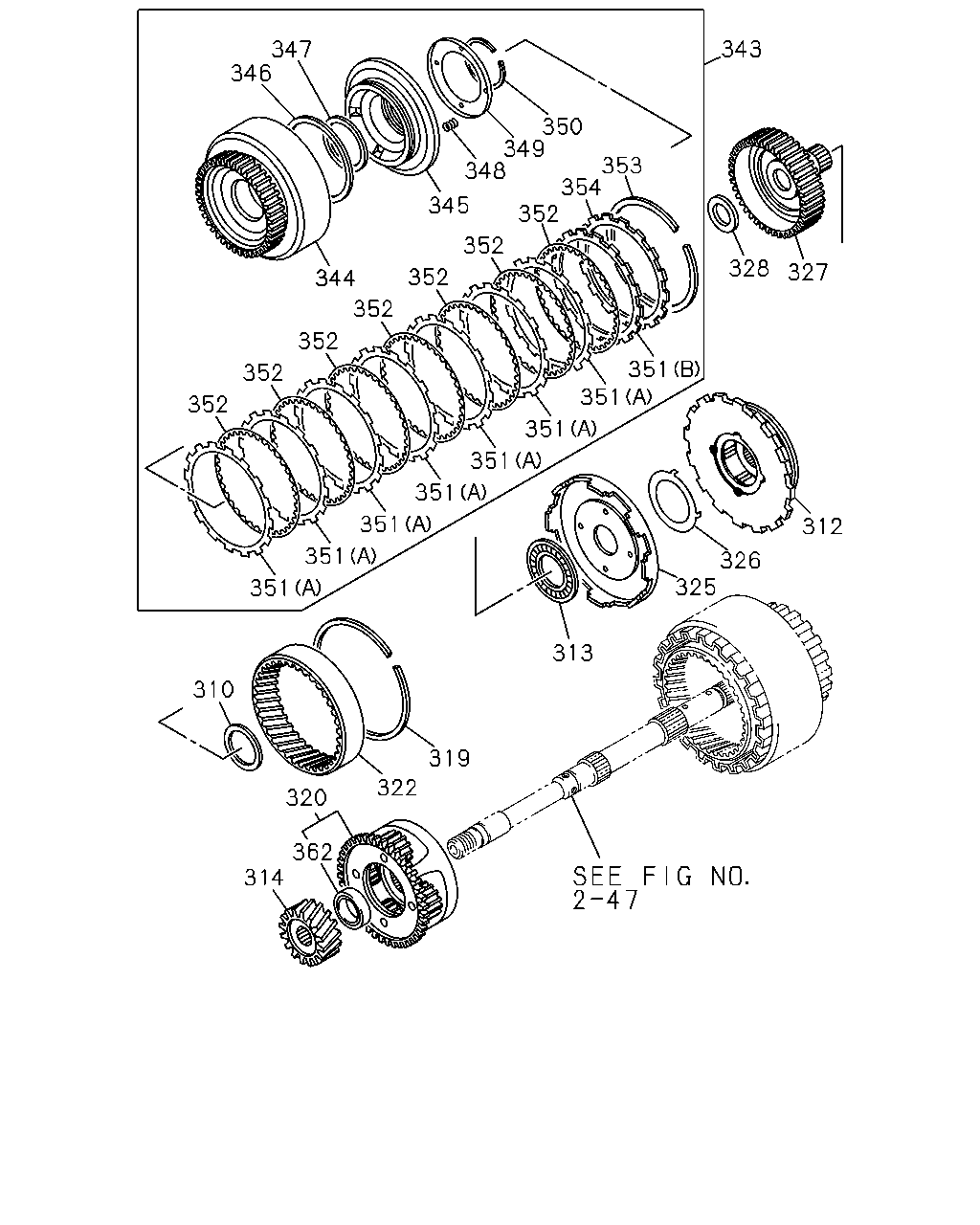

çizim 18523
343 347 346 350 349 348 353 354 352 345 352 328 327 352 344 352 352 351 351 352 352 351 351 351 351 312 351 326 325 351 313 310 319 322 320 362 314
BalonParca AdiParca NoAdetTipApplied Date
310 04.159 BEARING; NEEDLE,CARRIER
4HF1 ENG(RLS) 		8-94483-374-0 01 1 9312-9509
310 04.159 BEARING; NEEDLE,CARRIER
4HF1 ENG(RLS) 		8-97143-238-0 01 1 9510-9711
310 04.159 BEARING; NEEDLE,CARRIER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97143-238-0 01 1 9712-
312 04.175 CARRIER ASM; FRT
4HF1 ENG(RLS) 		8-97109-233-0 01 1 9312-9505
312 04.175 CARRIER ASM; FRT
4HF1 ENG(RLS) 		8-97111-149-0 01 1 9506-9711
312 04.175 CARRIER ASM; FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97111-149-0 01 1 9712-
313 04.176 BEARING; FRT CLU CARRIER,A/T
4HF1 ENG(RLS) 		8-94483-373-0 02 1 9312-9312
313 04.176 BEARING; FRT CLU CARRIER,A/T
4HF1 ENG(RLS) 		8-94483-373-0 01 1 9401-9711
313 04.176 BEARING; FRT CLU CARRIER,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-373-0 01 1 9712-
314 04.175 GEAR; SUN,CLU CARRIER,A/T
4HF1 ENG(RLS) 		8-94388-932-0 01 1 9312-9711
314 04.175 GEAR; SUN,CLU CARRIER,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94388-932-0 01 1 9712-
319 04.176 RING; SNAP,RR CARRIER,A/T
4HF1 ENG(RLS) 		8-94483-366-0 01 1 9312-9711
319 04.176 RING; SNAP,RR CARRIER,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-366-0 01 1 9712-
320 04.175 CARRIER ASM; RR,CLU,A/T
4HF1 ENG(RLS) 		8-97107-392-0 01 1 9312-9711
320 04.175 CARRIER ASM; RR,CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97107-392-0 01 1 9712-
322 04.158 GEAR; INPUT,INTERNAL
4HF1 ENG(RLS) 		8-94483-365-0 01 1 9312-9711
322 04.158 GEAR; INPUT,INTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-365-0 01 1 9712-
325 04.159 GEAR ASM; SUN,FRT
4HF1 ENG(RLS) 		8-97092-805-0 01 1 9312-9711
325 04.159 GEAR ASM; SUN,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97092-805-0 01 1 9712-
326 04.159 RACE; BEARING,FRT CARRIER
4HF1 ENG(RLS) 		8-94483-357-0 01 1 9312-9312
326 04.159 RACE; BEARING,FRT CARRIER
4HF1 ENG(RLS) 		8-97109-284-0 01 1 9401-9711
326 04.159 RACE; BEARING,FRT CARRIER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97109-284-0 01 1 9712-
327 04.176 HUB ASM; HIGH CLU,A/T
4HF1 ENG(RLS) 		8-97026-891-0 01 1 9312-9711
327 04.176 HUB ASM; HIGH CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97026-891-0 01 1 9712-
328 04.159 BEARING; THRUST,HIGH CLU HUB,A/T
4HF1 ENG(RLS) 04.176 		8-94140-772-0 01 1 9312-9711
328 04.159 BEARING; THRUST,HIGH CLU HUB,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.176 		8-94140-772-0 01 1 9712-
343 04.164 CLUTCH ASM; HIGH,A/T
4BD2 ENG(RLW) 		8-97039-480-0 01 1 9506-
343 04.164 CLUTCH ASM; HIGH,A/T
4HF1 ENG(RLS) 		8-94483-410-0 01 1 9312-9505
343 04.164 CLUTCH ASM; HIGH,A/T
4HF1 ENG(RLS) 		8-97136-030-0 01 1 9506-9711
343 04.164 CLUTCH ASM; HIGH,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97136-030-0 01 1 9712-
344 04.169 DRUM; HIGH CLU
4BD2 ENG(RLW) 		8-94483-411-0 01 1 9506-
344 04.169 DRUM; HIGH CLU
4HF1 ENG(RLS) 		8-94483-411-0 01 1 9312-9505
344 04.169 DRUM; HIGH CLU
4HF1 ENG(RLS) 		8-97136-031-0 01 1 9506-9711
344 04.169 DRUM; HIGH CLU
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97136-031-0 01 1 9712-
345 04.166 PISTON; HIGH CLU
4HF1 ENG(RLS) 		8-94483-412-0 01 1 9312-9711
345 04.166 PISTON; HIGH CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-412-0 01 1 9712-
346 04.166 SEAL; HIGH CLU PISTON,OUTER
4HF1 ENG(RLS) 		8-94483-413-0 01 1 9312-9711
346 04.166 SEAL; HIGH CLU PISTON,OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-413-0 01 1 9712-
347 04.166 SEAL; HIGH CLU PISTON,INNER
4HF1 ENG(RLS) 		8-94483-414-0 01 1 9312-9711
347 04.166 SEAL; HIGH CLU PISTON,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-414-0 01 1 9712-
348 04.164 SPRING; RETURN,HIGH CLU PISTON
4HF1 ENG(RLS) 		8-94483-415-1 16 1 9312-9711
348 04.164 SPRING; RETURN,HIGH CLU PISTON
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-415-1 16 1 9712-
349 04.164 RETAINER; RETURN SPRING,CLU PIST
4HF1 ENG(RLS) 		8-94483-416-0 01 1 9312-9711
349 04.164 RETAINER; RETURN SPRING,CLU PIST
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-416-0 01 1 9712-
350 04.164 RING; SNAP,SPRING RET,HIGH CLU
4HF1 ENG(RLS) 		8-94483-417-0 01 1 9312-9711
350 04.164 RING; SNAP,SPRING RET,HIGH CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-417-0 01 1 9712-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4BD2 ENG(RLW) 04.163 (A) 		8-94483-444-0 07 1 9505-9610
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4BD2 ENG(RLW) (B) 		8-97107-393-0 01 1 9505-9610
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4BD2 ENG(RLW) 04.163 (A) 		8-94483-444-0 07 1 9611-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4BD2 ENG(RLW) (B) 		8-97107-393-0 01 1 9611-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4HF1 ENG(RLS) (A) 		8-94483-418-0 06 1 9312-9711
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-94483-418-0 06 1 9712-
352 04.176 PLATE; DRIVE,HIGH CLU,A/T
4BD2 ENG(RLW) 		8-94483-419-0 07 1 9505-
352 04.176 PLATE; DRIVE,HIGH CLU,A/T
4HF1 ENG(RLS) 		8-94483-419-0 06 1 9312-9711
352 04.176 PLATE; DRIVE,HIGH CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94483-419-0 06 1 9712-
353 04.176 RING; SNAP,HIGH CLU PLATE
4HF1 ENG(RLS) 04.164 		8-94483-400-0 01 1 9312-9711
353 04.176 RING; SNAP,HIGH CLU PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.164 		8-94483-400-0 01 1 9712-
354 04.176 PLATE; RET,HIGH CLU
4BD2 ENG(RLW) 		8-97107-395-0 01 1 9505-9610
354 04.176 PLATE; RET,HIGH CLU
4BD2 ENG(RLW) 		8-97107-395-0 01 1 9701-
362 04.159 BEARING; THRUST,RR CARRIER
4HF1 ENG(RLS) 		8-97044-694-0 01 1 9312-9711
362 04.159 BEARING; THRUST,RR CARRIER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97044-694-0 01 1 9712-

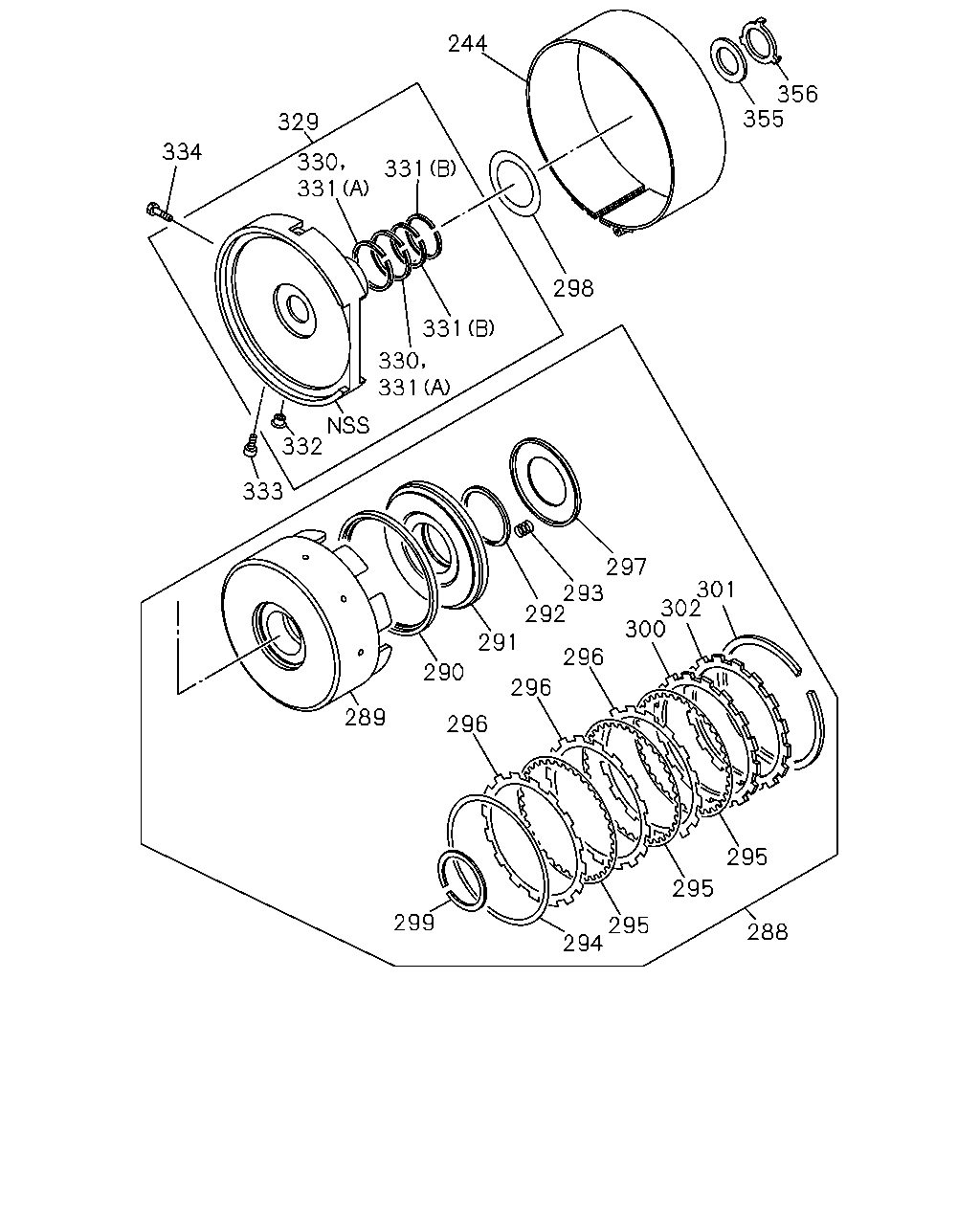

çizim 66461
244 356 355 329 334 330 331 331 298 331 330 331 332 333 297 293 292 301 302 300 291 296 290 296 289 296 295 295 299 295 294 288
BalonParca AdiParca NoAdetTipApplied Date
244 04.251 BAND; BRK,CLU,A/T
4HF1 ENG(RLS) 		8-94483-435-1 01 1 9312-9709
244 04.251 BAND; BRK,CLU,A/T
4HF1 ENG(RLS) 		8-97178-708-0 01 1 9710-9711
244 04.251 BAND; BRK,CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97178-708-0 01 1 9712-
288 04.164 CLUTCH ASM; RR,A/T
4BD2 ENG(RLW) 		8-97092-792-0 01 1 9506-9610
288 04.164 CLUTCH ASM; RR,A/T
4BD2 ENG(RLW) 		8-97174-494-0 01 1 9611-
288 04.164 CLUTCH ASM; RR,A/T
4HF1 ENG(RLS) 		8-97092-792-0 01 1 9312-9505
288 04.164 CLUTCH ASM; RR,A/T
4HF1 ENG(RLS) 		8-97119-876-0 01 1 9506-9610
288 04.164 CLUTCH ASM; RR,A/T
4HF1 ENG(RLS) 		8-97174-493-0 01 1 9611-9711
288 04.164 CLUTCH ASM; RR,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97174-493-0 01 1 9712-
289 04.164 DRUM; RR CLU,A/T
4HF1 ENG(RLS) 		8-97092-795-0 01 1 9312-9610
289 04.164 DRUM; RR CLU,A/T
4HF1 ENG(RLS) 		8-97174-509-0 01 1 9611-9711
289 04.164 DRUM; RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97174-509-0 01 1 9712-
290 04.166 GASKET; RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-439-0 01 1 9312-9711
290 04.166 GASKET; RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-439-0 01 1 9712-
291 04.054 PISTON; RR CLU,A/T
4BD2 ENG(RLW) 		8-97092-796-0 01 1 9506-
291 04.054 PISTON; RR CLU,A/T
4HF1 ENG(RLS) 		8-97092-796-0 01 1 9312-9505
291 04.054 PISTON; RR CLU,A/T
4HF1 ENG(RLS) 		8-97119-877-0 01 1 9506-9711
291 04.054 PISTON; RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97119-877-0 01 1 9712-
292 04.166 SEAL; RING,LATHE CUT,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-440-0 01 1 9312-9711
292 04.166 SEAL; RING,LATHE CUT,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-440-0 01 1 9712-
293 04.164 SPRING; PISTON RETURN,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-441-0 16 1 9312-9711
293 04.164 SPRING; PISTON RETURN,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-441-0 16 1 9712-
294 04.163 PLATE; DISHED,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-446-0 01 1 9506-
294 04.163 PLATE; DISHED,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-446-0 01 1 9312-9505
294 04.163 PLATE; DISHED,RR CLU,A/T
4HF1 ENG(RLS) 		8-97119-878-0 01 1 9506-9711
294 04.163 PLATE; DISHED,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97119-878-0 01 1 9712-
295 04.163 PLATE; DRIVE,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-445-0 03 1 9312-9711
295 04.163 PLATE; DRIVE,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-445-0 03 1 9712-
296 04.163 PLATE; DRIVEN,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-444-0 03 1 9312-9711
296 04.163 PLATE; DRIVEN,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-444-0 03 1 9712-
297 04.162 RETAINER; SPR,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-442-0 01 1 9312-9711
297 04.162 RETAINER; SPR,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-442-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=0.7 		8-94483-311-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=0.7 		8-94483-311-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=0.9 		8-94483-312-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=0.9 		8-94483-312-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=1.1 		8-94483-313-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.1 		8-94483-313-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=1.3 		8-94483-314-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.3 		8-94483-314-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=1.5 		8-94483-315-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.5 		8-94483-315-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=1.6 		8-94483-316-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.6 		8-94483-316-0 01 1 9712-
298 04.164 WASHER; THRUST,REV CLU,A/T
4HF1 ENG(RLS) T=1.9 		8-94483-317-0 01 1 9312-9711
298 04.164 WASHER; THRUST,REV CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.9 		8-94483-317-0 01 1 9712-
299 04.164 RING; SNAP,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-443-0 01 1 9312-9711
299 04.164 RING; SNAP,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-443-0 01 1 9712-
300 04.163 PLATE; RET,RR CLU,A/T
4HF1 ENG(RLS) T=5.4 		8-94483-426-0 01 1 9312-9711
300 04.163 PLATE; RET,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.4 		8-94483-426-0 01 1 9712-
301 04.164 RING; SNAP,RR CLU,A/T
4HF1 ENG(RLS) 		8-94483-400-0 01 1 9312-9711
301 04.164 RING; SNAP,RR CLU,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-400-0 01 1 9712-
302 04.163 PLATE; RET,RR CLU
4HF1 ENG(RLS) T=4.4 		8-94483-421-0 01 1 9312-9711
302 04.163 PLATE; RET,RR CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.4 		8-94483-421-0 01 1 9712-
302 04.163 PLATE; RET,RR CLU
4HF1 ENG(RLS) T=4.6 		8-94483-422-0 01 1 9312-9711
302 04.163 PLATE; RET,RR CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.6 		8-94483-422-0 01 1 9712-
302 04.163 PLATE; RET,RR CLU
4HF1 ENG(RLS) T=4.8 		8-94483-423-0 01 1 9312-9711
302 04.163 PLATE; RET,RR CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.8 		8-94483-423-0 01 1 9712-
302 04.163 PLATE; RET,RR CLU
4HF1 ENG(RLS) T=5.0 		8-94483-424-0 01 1 9312-9711
302 04.163 PLATE; RET,RR CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.0 		8-94483-424-0 01 1 9712-
302 04.163 PLATE; RET,RR CLU
4HF1 ENG(RLS) T=5.2 		8-94483-425-0 01 1 9312-9711
302 04.163 PLATE; RET,RR CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) T=5.2 		8-94483-425-0 01 1 9712-
302 04.163 PLATE; RET,RR CLU
4HF1 ENG(RLS) T=4.2 		8-97107-396-0 01 1 9506-9711
302 04.163 PLATE; RET,RR CLU
4HG1 ENG(RJH),4HF1 ENG(RLS) T=4.2 		8-97107-396-0 01 1 9712-
329 04.169 SUPPORT ASM; DRUM,A/T
4HF1 ENG(RLS) 04.166 		8-94483-321-0 01 1 9312-9711
329 04.169 SUPPORT ASM; DRUM,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.166 		8-94483-321-0 01 1 9712-
330 04.166 RING; SEAL,REV CLU DRUM
4HF1 ENG(RLS) 		8-97026-889-0 02 1 9312-9505
331 04.166 RING; SEAL,HIGH CLU DRUM
4HF1 ENG(RLS) (B) 		8-97026-890-0 02 1 9312-9711
331 04.166 RING; SEAL,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97026-890-0 02 1 9712-
331 04.166 RING; SEAL,HIGH CLU DRUM
4HF1 ENG(RLS) (A) 		8-97026-889-0 02 1 9506-9711
331 04.166 RING; SEAL,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97026-889-0 02 1 9712-
332 04.166 SEAL; DRUM SUPPORT,A/T
4HF1 ENG(RLS) 		8-94483-324-0 04 1 9312-9711
332 04.166 SEAL; DRUM SUPPORT,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-324-0 04 1 9712-
333 04.169 BOLT; DRUM SUPPORT
4HF1 ENG(RLS) 		8-94483-253-0 01 1 9312-9711
333 04.169 BOLT; DRUM SUPPORT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-253-0 01 1 9712-
334 04.169 BOLT; DRUM SUPPORT
4HF1 ENG(RLS) 		8-94483-286-0 02 1 9312-9412
334 04.169 BOLT; DRUM SUPPORT
4HF1 ENG(RLS) 		8-97129-722-0 02 1 9501-9711
334 04.169 BOLT; DRUM SUPPORT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97129-722-0 02 1 9712-
355 04.169 BEARING; THRUST,HIGH CLU DRUM
4HF1 ENG(RLS) 		8-94483-427-0 01 1 9312-9711
355 04.169 BEARING; THRUST,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-427-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=0.8 		8-94483-428-0 01 1 9312-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.0 		8-94483-429-0 01 1 9312-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.2 		8-94483-430-0 01 1 9312-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.4 		8-94483-431-0 01 1 9312-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.4 		8-94483-431-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.6 		8-94483-432-0 01 1 9312-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.6 		8-94483-432-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.8 		8-94483-433-0 01 1 9312-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.8 		8-94483-433-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=2.0 		8-94483-434-0 01 1 9312-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=2.0 		8-94483-434-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=0.8 		8-97112-977-0 01 1 9506-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=0.8 		8-97112-977-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.0 		8-97112-978-0 01 1 9506-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.0 		8-97112-978-0 01 1 9712-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HF1 ENG(RLS) T=1.2 		8-97112-979-0 01 1 9506-9711
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4HG1 ENG(RJH),4HF1 ENG(RLS) T=1.2 		8-97112-979-0 01 1 9712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
