2-44B — AUTO TRANS CONTROL VALVE; LOWER BODY (#34235) — 160 parça

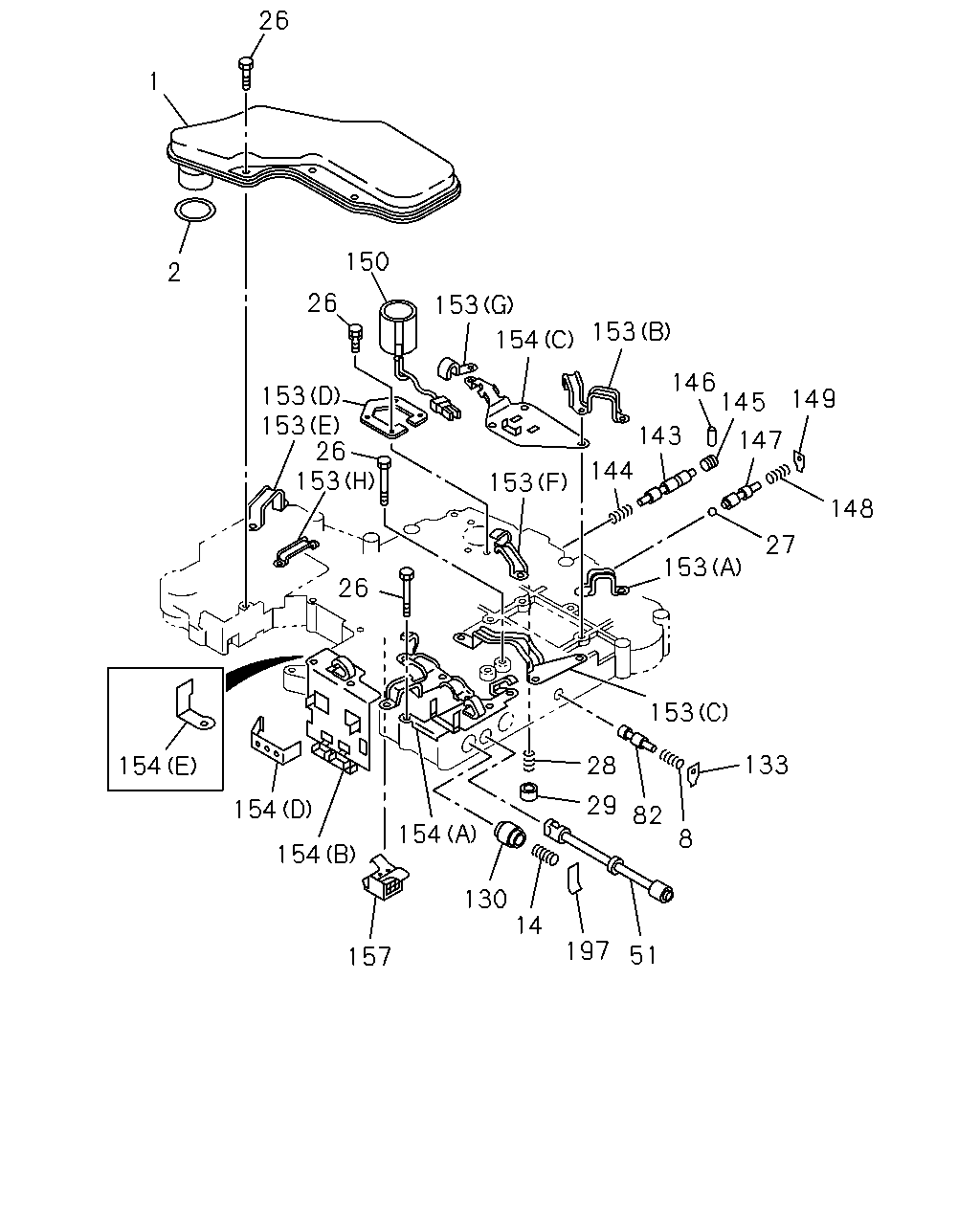

26 1 150 2 26 153 153 154 146 145 153 153 26 153 149 143 147 144 153 148 27 153 26 153 133 28 154 29 154 82 154 8 154 130 14 197 51 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.197 STRAINER ASM; OIL,A/T 4HF1 ENG(RLS)	8-94483-567-0	01	1	9312-9711
1	04.197 STRAINER ASM; OIL,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-567-0	01	1	9712-
2	04.197 GASKET; OIL STRAINER,A/T 4HF1 ENG(RLS)	8-94483-568-0	01	1	9312-9711
2	04.197 GASKET; OIL STRAINER,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-568-0	01	1	9712-
8	04.265 SPRING; 1ST VALVE 4HF1 ENG(RLS)	8-94483-557-0	01	1	9312-9711
8	04.265 SPRING; 1ST VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-557-0	01	1	9712-
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4HF1 ENG(RLS)	8-97092-821-0	01	1	9312-9711
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-821-0	01	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X25	8-94343-064-0	02	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X25	8-94343-064-0	02	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X55	8-94483-587-0	01	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X55	8-94483-587-0	01	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X45	8-94483-588-0	01	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X45	8-94483-588-0	01	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X33	8-94483-589-0	16	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X33	8-94483-589-0	16	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X50	8-94483-590-0	10	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X50	8-94483-590-0	10	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X16	8-94483-591-0	02	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X16	8-94483-591-0	02	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X70	8-94483-592-0	02	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X70	8-94483-592-0	02	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X27	8-94483-598-0	02	1	9312-9505
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) M6X27	8-94483-598-0	02	1	9506-9510
27	04.265 BALL; STEEL,VLV,A/T 4HF1 ENG(RLS)	8-94320-297-0	01	1	9312-9711
27	04.265 BALL; STEEL,VLV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94320-297-0	01	1	9712-
28	04.265 SPRING; ORIFICE VLV,A/T 4HF1 ENG(RLS)	8-94140-856-0	01	1	9312-9711
28	04.265 SPRING; ORIFICE VLV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94140-856-0	01	1	9712-
29	04.265 VALVE; ORIFICE,CHECK,A/T 4HF1 ENG(RLS)	8-94483-605-0	01	1	9312-9711
29	04.265 VALVE; ORIFICE,CHECK,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-605-0	01	1	9712-
51	04.265 VALVE; MANUAL,A/T 4HF1 ENG(RLS)	8-94483-555-0	01	1	9312-9711
51	04.265 VALVE; MANUAL,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-555-0	01	1	9712-
82	04.262 VALVE; 1ST 4HF1 ENG(RLS)	8-94483-556-1	01	1	9312-9711
82	04.262 VALVE; 1ST 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-556-1	01	1	9712-
130	04.241 PISTON; ACCUMLATOR CONT 4HF1 ENG(RLS)	8-94342-922-0	01	1	9312-9711
130	04.241 PISTON; ACCUMLATOR CONT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94342-922-0	01	1	9712-
133	04.216 PLATE; RET,1ST REDUCING VALVE 4HF1 ENG(RLS)	8-94483-558-0	01	1	9312-9711
133	04.216 PLATE; RET,1ST REDUCING VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-558-0	01	1	9712-
143	04.265 VALVE; SERVO CHARGER 4HF1 ENG(RLS)	8-94483-559-0	01	1	9312-9711
143	04.265 VALVE; SERVO CHARGER 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-559-0	01	1	9712-
144	04.265 SPRING; SERVO CHARGER VALVE 4HF1 ENG(RLS)	8-94483-560-0	01	1	9312-9711
144	04.265 SPRING; SERVO CHARGER VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-560-0	01	1	9712-
145	04.265 PLUG; SERVO CHARGER VALVE 4HF1 ENG(RLS)	8-94483-561-0	01	1	9312-9711
145	04.265 PLUG; SERVO CHARGER VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-561-0	01	1	9712-
146	04.265 PIN; PLUG,SERVO CHARGER VALVE 4HF1 ENG(RLS)	8-94483-507-0	01	1	9312-9711
146	04.265 PIN; PLUG,SERVO CHARGER VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-507-0	01	1	9712-
147	04.265 VALVE; 3-2 TIMING CONT 4HF1 ENG(RLS)	8-94316-251-0	01	1	9312-9505
147	04.265 VALVE; 3-2 TIMING CONT 4HF1 ENG(RLS)	8-97112-976-0	01	1	9506-9711
147	04.265 VALVE; 3-2 TIMING CONT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97112-976-0	01	1	9712-
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-94483-560-0	01	1	9511-
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4HF1 ENG(RLS)	8-94316-252-0	01	1	9312-9510
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94316-252-0	01	1	9511-9711
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4HF1 ENG(RLS)	8-94316-252-0	01	1	9511-9711
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94316-252-0	01	1	9712-
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-94316-252-0	01	1	9712-
149	04.265 PLATE; 3-2 TIMING CONT VALVE 4HF1 ENG(RLS) 04.216	8-94483-558-0	01	1	9312-9711
149	04.265 PLATE; 3-2 TIMING CONT VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.216	8-94483-558-0	01	1	9712-
150	04.265 VALVE; SOLENOID,LOCKUP 4BD2 ENG(RLW)	8-94343-060-0	01	1	9511-
150	04.265 VALVE; SOLENOID,LOCKUP 4HF1 ENG(RLS)	8-97027-250-0	01	1	9312-9711
150	04.265 VALVE; SOLENOID,LOCKUP 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97027-250-0	01	1	9712-
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (A)	8-94483-576-0	01	1	9312-9711
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-94483-576-0	01	1	9712-
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (B)	8-94483-577-0	01	1	9312-9505
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (E)	8-94483-580-0	01	1	9312-9711
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) (E)	8-94483-580-0	01	1	9712-
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (F)	8-94483-581-0	01	1	9312-9711
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) (F)	8-94483-581-0	01	1	9712-
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (G)	8-94483-582-0	01	1	9312-9711
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) (G)	8-94483-582-0	01	1	9712-
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (D)	8-97024-245-0	01	1	9312-9711
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-97024-245-0	01	1	9712-
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (C)	8-97044-702-0	01	1	9312-9505
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HF1 ENG(RLS) (H)	8-97112-970-0	01	1	9506-9711
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) (H)	8-97112-970-0	01	1	9712-
154	04.265 CLIP; HARNESS 4HF1 ENG(RLS) (B)	8-94343-062-1	01	1	9312-9711
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-94343-062-1	01	1	9712-
154	04.265 CLIP; HARNESS 4HF1 ENG(RLS) (D)	8-94343-063-0	01	1	9312-9711
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) (D)	8-94343-063-0	01	1	9712-
154	04.265 CLIP; HARNESS 4HF1 ENG(RLS) (A)	8-94483-584-1	01	1	9312-9711
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-94483-584-1	01	1	9712-
154	04.265 CLIP; HARNESS 4HF1 ENG(RLS) (C)	8-94483-586-0	01	1	9312-9711
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-94483-586-0	01	1	9712-
154	04.265 CLIP; HARNESS 4HF1 ENG(RLS) (E)	8-97092-798-0	01	1	9312-9711
154	04.265 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS) (E)	8-97092-798-0	01	1	9712-
157	04.265 FILTER; OIL,LWR VALVE BODY 4HF1 ENG(RLS)	8-94483-604-0	01	1	9312-9711
157	04.265 FILTER; OIL,LWR VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-604-0	01	1	9712-
197	04.241 PLATE; ACCUMLATOR CONT VLV 4HF1 ENG(RLS) 04.265	8-94385-910-0	01	1	9312-9711
197	04.241 PLATE; ACCUMLATOR CONT VLV 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.265	8-94385-910-0	01	1	9712-

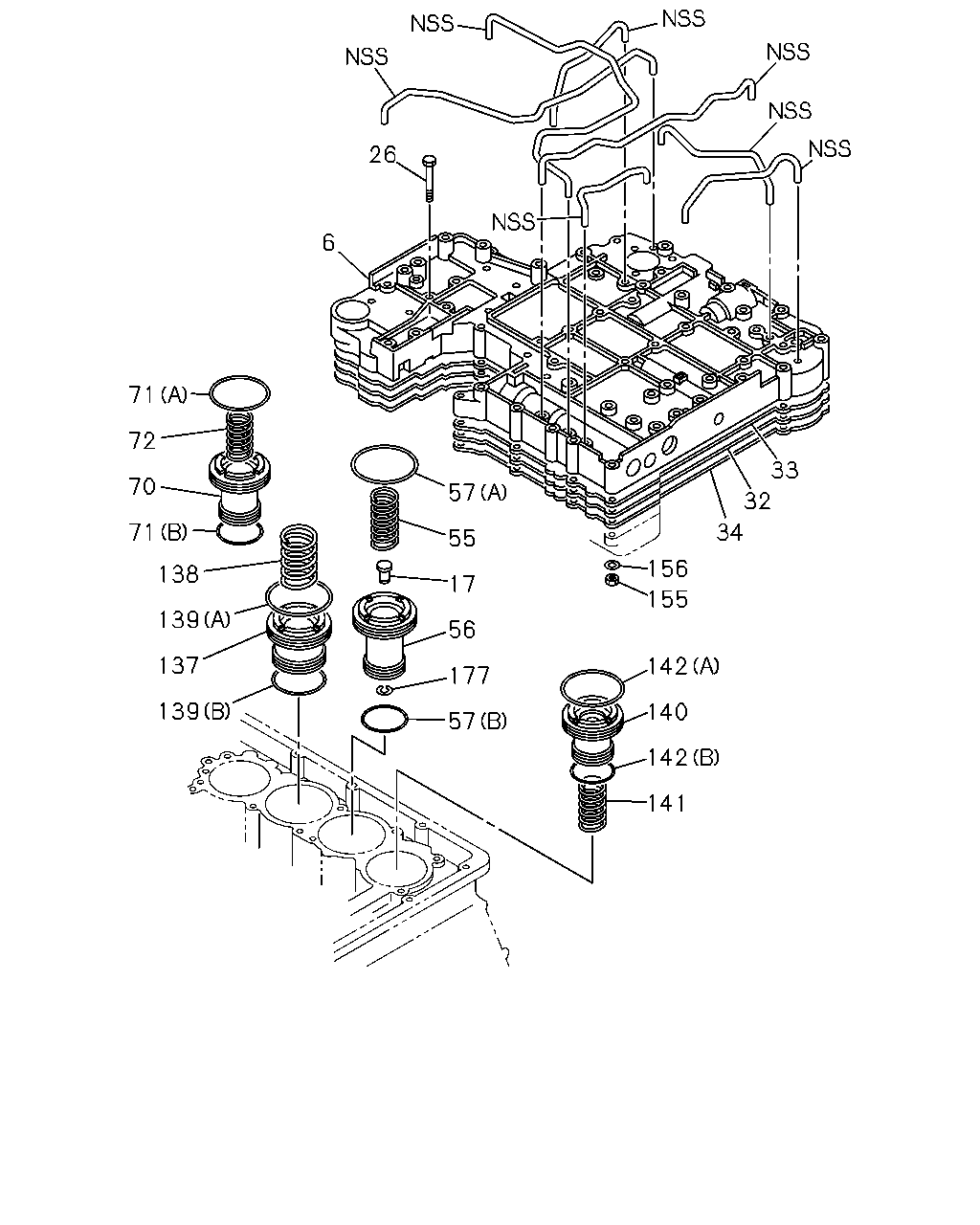

26 6 71 72 33 70 57 32 71 34 55 156 138 17 155 139 56 137 142 177 139 140 57 142 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.265 BODY ASM; VLV LWR,A/T 4HF1 ENG(RLS)	8-97027-239-0	01	1	9312-9711
6	04.265 BODY ASM; VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97027-239-0	01	1	9712-
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 4HF1 ENG(RLS)	8-97119-871-0	01	1	9409-9711
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97119-871-0	01	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X25	8-94343-064-0	02	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X25	8-94343-064-0	02	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X55	8-94483-587-0	01	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X55	8-94483-587-0	01	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X45	8-94483-588-0	01	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X45	8-94483-588-0	01	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X33	8-94483-589-0	16	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X33	8-94483-589-0	16	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X50	8-94483-590-0	10	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X50	8-94483-590-0	10	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X16	8-94483-591-0	02	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X16	8-94483-591-0	02	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X70	8-94483-592-0	02	1	9312-9711
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X70	8-94483-592-0	02	1	9712-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4HF1 ENG(RLS) M6X27	8-94483-598-0	02	1	9312-9505
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) M6X27	8-94483-598-0	02	1	9506-9510
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4BD2 ENG(RLW)	8-97078-326-0	01	1	9511-
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4HF1 ENG(RLS)	8-97109-228-0	01	1	9312-9408
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4HF1 ENG(RLS)	8-97119-869-0	01	1	9409-9711
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97119-869-0	01	1	9712-
33	04.265 GASKET; LWR,VLV BODY,A/T 4HF1 ENG(RLS)	8-94483-499-0	01	1	9312-9711
33	04.265 GASKET; LWR,VLV BODY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-499-0	01	1	9712-
34	04.265 GASKET; UPR,VLV BODY,A/T 4HF1 ENG(RLS)	8-97092-817-0	01	1	9312-9711
34	04.265 GASKET; UPR,VLV BODY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-817-0	01	1	9712-
55	04.246 SPRING; ACCUMLATOR PISTON 4HF1 ENG(RLS)	8-94483-483-0	01	1	9312-9711
55	04.246 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-483-0	01	1	9712-
56	04.241 PISTON; ACCUMLATOR 4HF1 ENG(RLS)	8-94483-480-0	01	1	9312-9408
56	04.241 PISTON; ACCUMLATOR 4HF1 ENG(RLS)	8-97119-870-0	01	1	9409-9711
56	04.241 PISTON; ACCUMLATOR 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97119-870-0	01	1	9712-
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HF1 ENG(RLS) 04.242 (B) ID=26.9	8-94483-488-0	01	1	9312-9711
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.242 (B) ID=26.9	8-94483-488-0	01	1	9712-
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HF1 ENG(RLS) (A) ID=44.2	8-94483-489-0	01	1	9312-9711
57	04.241 GASKET; 2ND SPD PISTON,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=44.2	8-94483-489-0	01	1	9712-
70	04.241 PISTON; ACCUMLATOR 4HF1 ENG(RLS)	8-97027-236-0	01	1	9312-9711
70	04.241 PISTON; ACCUMLATOR 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97027-236-0	01	1	9712-
71	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (A) ID=39.4	8-94483-485-0	01	1	9312-9711
71	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=39.4	8-94483-485-0	01	1	9712-
71	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (B) ID=24.0	8-94483-486-0	01	1	9312-9711
71	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=24.0	8-94483-486-0	01	1	9712-
72	04.233 SPRING; ACCUMLATOR PISTON 4HF1 ENG(RLS)	8-94483-482-0	01	1	9312-9711
72	04.233 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-482-0	01	1	9712-
137	04.241 PISTON; ACCUMLATOR,A/T 4HF1 ENG(RLS)	8-94483-481-0	01	1	9312-9508
137	04.241 PISTON; ACCUMLATOR,A/T 4HF1 ENG(RLS)	8-97138-484-0	01	1	9509-9711
137	04.241 PISTON; ACCUMLATOR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97138-484-0	01	1	9712-
138	04.246 SPRING; ACCUMLATOR PISTON 4HF1 ENG(RLS)	8-94483-484-0	01	1	9312-9711
138	04.246 SPRING; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-484-0	01	1	9712-
139	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (B) ID=39.4	8-94483-485-0	01	1	9312-9508
139	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (B)	8-97138-485-0	01	1	9509-9711
139	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97138-485-0	01	1	9712-
139	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (A) ID=44.2	8-94483-489-0	01	1	9312-9508
139	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (A)	8-97138-486-0	01	1	9509-9711
139	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97138-486-0	01	1	9712-
140	04.241 PISTON; ACCUMLATOR,(N-D),A/T 4HF1 ENG(RLS)	8-97027-237-0	01	1	9312-9711
140	04.241 PISTON; ACCUMLATOR,(N-D),A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97027-237-0	01	1	9712-
141	04.246 SPRING; ACCUMLATOR PISTON (N-D) 4HF1 ENG(RLS)	8-94483-492-0	01	1	9312-9711
141	04.246 SPRING; ACCUMLATOR PISTON (N-D) 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-492-0	01	1	9712-
142	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (A) ID=39.4	8-94483-485-0	01	1	9312-9711
142	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=39.4	8-94483-485-0	01	1	9712-
142	04.241 GASKET; ACCUMLATOR PISTON 4HF1 ENG(RLS) (B) ID=24.0	8-94483-486-0	01	1	9312-9711
142	04.241 GASKET; ACCUMLATOR PISTON 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=24.0	8-94483-486-0	01	1	9712-
155	04.265 NUT; VALVE BODY 4HF1 ENG(RLS) 04.228	8-94483-600-0	04	1	9312-9505
155	04.265 NUT; VALVE BODY 4HF1 ENG(RLS)	8-97112-969-0	04	1	9506-9711
155	04.265 NUT; VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97112-969-0	04	1	9712-
156	04.265 WASHER; PL,VALVE BODY 4HF1 ENG(RLS) 04.228	8-94483-601-0	06	1	9312-9505
156	04.265 WASHER; PL,VALVE BODY 4HF1 ENG(RLS) 04.228	8-94483-601-0	02	1	9506-9711
156	04.265 WASHER; PL,VALVE BODY 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.228	8-94483-601-0	02	1	9712-
177	04.265 RING; SNAP 4HF1 ENG(RLS)	8-97119-872-0	01	1	9409-9711
177	04.265 RING; SNAP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97119-872-0	01	1	9712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
