2-43B — AUTO TRANS CONTROL VALVE; UPPER BODY (#34234) — 136 parça

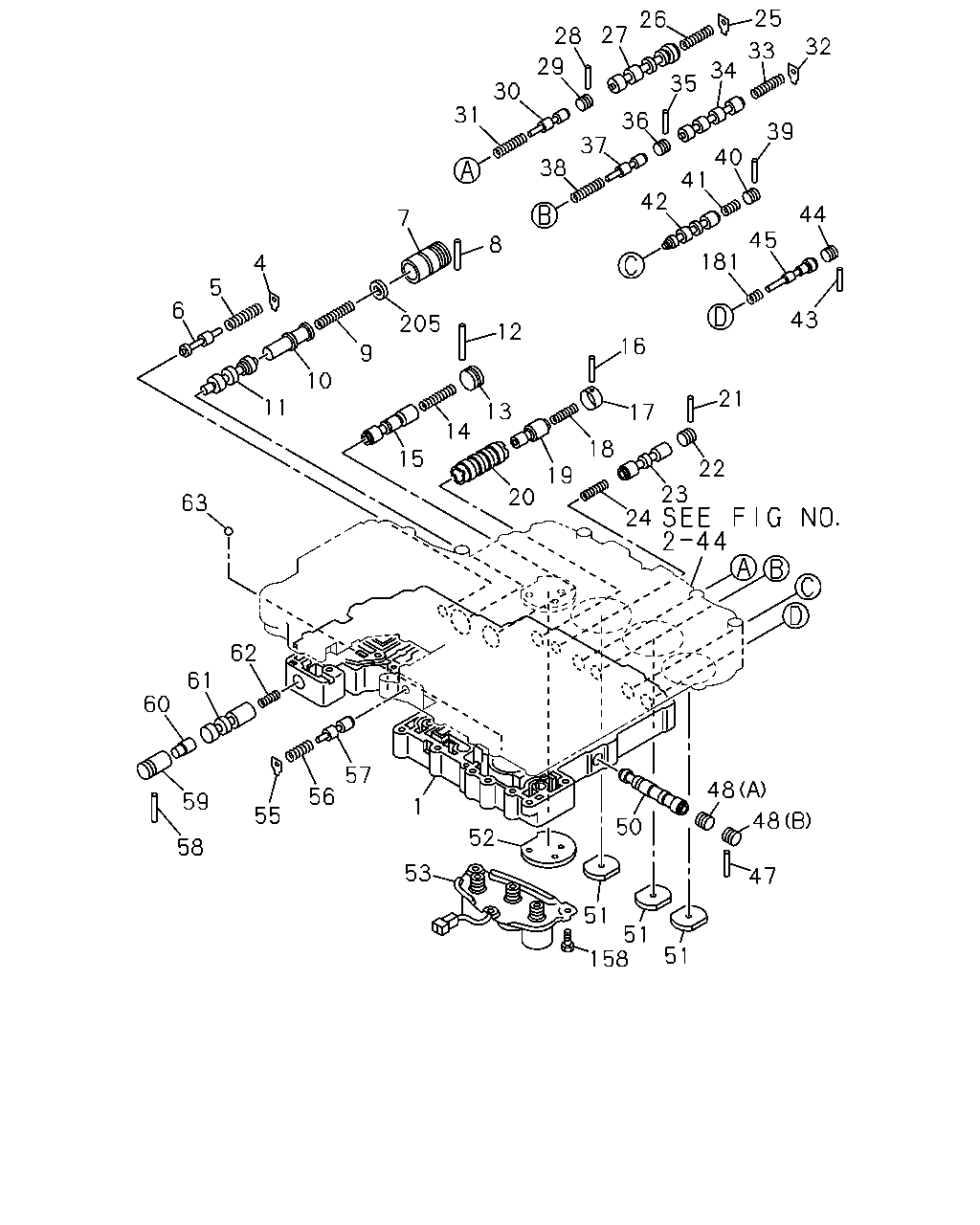

çizim 18270
25 26 27 28 32 33 29 34 35 30 31 36 39 37 40 41 38 42 44 7 45 8 181 4 5 6 43 205 12 16 9 10 21 11 13 17 14 18 15 22 19 23 24 20 63 62 61 60 57 48 56 59 1 55 48 50 52 58 53 47 51 51 158 51
BalonParca AdiParca NoAdetTipApplied Date
1 04.265 BODY ASM; UPR,VALVE,A/T
4HF1 ENG(RLS) 		8-94483-496-0 01 1 9312-9711
1 04.265 BODY ASM; UPR,VALVE,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-496-0 01 1 9712-
4 04.265 PLATE; RET,RELIEF VALVE,A/T
4HF1 ENG(RLS) 		8-94483-502-0 01 1 9312-9711
4 04.265 PLATE; RET,RELIEF VALVE,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-502-0 01 1 9712-
5 04.265 SPRING; RELIEF VALVE,UPR BODY,A/
4HF1 ENG(RLS) 		8-97024-246-0 01 1 9312-9711
5 04.265 SPRING; RELIEF VALVE,UPR BODY,A/
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97024-246-0 01 1 9712-
6 04.265 VALVE; RELIEF,UPR BODY,A/T
4HF1 ENG(RLS) 		8-97024-247-0 01 1 9312-9711
6 04.265 VALVE; RELIEF,UPR BODY,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97024-247-0 01 1 9712-
7 04.265 SLEEVE; PRESSURE REG VLV,A/T
4HF1 ENG(RLS) 		8-97078-319-0 01 1 9312-9711
7 04.265 SLEEVE; PRESSURE REG VLV,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97078-319-0 01 1 9712-
8 04.265 PIN; PRESSURE REG VLV PLUG
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
8 04.265 PIN; PRESSURE REG VLV PLUG
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
9 04.265 SPRING; PRESSURE REG VLV,A/T
4HF1 ENG(RLS) 		8-97024-250-0 01 1 9312-9711
9 04.265 SPRING; PRESSURE REG VLV,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97024-250-0 01 1 9712-
10 04.265 PLUG; PRESSURE REG VALVE,A/T
4HF1 ENG(RLS) 		8-97078-318-0 01 1 9312-9711
10 04.265 PLUG; PRESSURE REG VALVE,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97078-318-0 01 1 9712-
11 04.265 VALVE; PRESSURE REG,UPR BODY,A/T
4HF1 ENG(RLS) 		8-94483-503-0 01 1 9312-9711
11 04.265 VALVE; PRESSURE REG,UPR BODY,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-503-0 01 1 9712-
12 04.265 PIN; PLUG,PRESSURE MODIFIER VLV
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
12 04.265 PIN; PLUG,PRESSURE MODIFIER VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
13 04.265 PLUG; PRESSURE MODIFIER VLV
4HF1 ENG(RLS) 		8-94483-510-0 01 1 9312-9711
13 04.265 PLUG; PRESSURE MODIFIER VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-510-0 01 1 9712-
14 04.265 SPRING; PRESSURE MODIFIER VLV
4HF1 ENG(RLS) 		8-94483-509-0 01 1 9312-9711
14 04.265 SPRING; PRESSURE MODIFIER VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-509-0 01 1 9712-
15 04.265 VALVE; PRESSURE MODIFIER,UPR BOD
4HF1 ENG(RLS) 		8-94342-919-0 01 1 9312-9711
15 04.265 VALVE; PRESSURE MODIFIER,UPR BOD
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94342-919-0 01 1 9712-
16 04.265 PIN; PLUG,ACCUMLATOR CONT VLV
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
16 04.265 PIN; PLUG,ACCUMLATOR CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
17 04.265 PLUG; ACCUMLATOR CONT VLV
4HF1 ENG(RLS) 		8-94483-515-0 01 1 9312-9711
17 04.265 PLUG; ACCUMLATOR CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-515-0 01 1 9712-
18 04.265 SPRING; ACCUMLATOR CONT VLV
4HF1 ENG(RLS) 		8-97027-246-0 01 1 9312-9711
18 04.265 SPRING; ACCUMLATOR CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97027-246-0 01 1 9712-
19 04.265 VALVE; ACCUMLATOR CONT,UPR VLV
4HF1 ENG(RLS) 		8-97078-320-0 01 1 9312-9711
19 04.265 VALVE; ACCUMLATOR CONT,UPR VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97078-320-0 01 1 9712-
20 04.265 SLEEVE; ACCUMLATOR CONT VLV
4HF1 ENG(RLS) 		8-97078-321-0 01 1 9312-9711
20 04.265 SLEEVE; ACCUMLATOR CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97078-321-0 01 1 9712-
21 04.265 PIN; PLUG,SHUTTLE SHIFT VLV
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
21 04.265 PIN; PLUG,SHUTTLE SHIFT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
22 04.265 PLUG; SHUTTLE SHIFT VLV
4HF1 ENG(RLS) 		8-94483-519-0 01 1 9312-9711
22 04.265 PLUG; SHUTTLE SHIFT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-519-0 01 1 9712-
23 04.265 VALVE; SHUTTLE SHIFT,UPR BODY
4HF1 ENG(RLS) 		8-94483-517-0 01 1 9312-9711
23 04.265 VALVE; SHUTTLE SHIFT,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-517-0 01 1 9712-
24 04.265 SPRING; SHUTTLE SHIFT VLV
4HF1 ENG(RLS) 		8-94483-518-0 01 1 9312-9711
24 04.265 SPRING; SHUTTLE SHIFT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-518-0 01 1 9712-
25 04.265 PLATE; RET,SHIFT CONT VLV
4HF1 ENG(RLS) 		8-97044-700-0 01 1 9312-9711
25 04.265 PLATE; RET,SHIFT CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97044-700-0 01 1 9712-
26 04.265 SPRING; SHIFT CONT VLV
4HF1 ENG(RLS) 		8-94483-522-0 01 1 9312-9711
26 04.265 SPRING; SHIFT CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-522-0 01 1 9712-
27 04.265 VALVE; SHIFT CONT,UPR BODY
4HF1 ENG(RLS) 		8-94483-521-0 01 1 9312-9711
27 04.265 VALVE; SHIFT CONT,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-521-0 01 1 9712-
28 04.265 PIN; PLUG,SPOOL VALVE
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
28 04.265 PIN; PLUG,SPOOL VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
29 04.265 PLUG; SPOOL VALVE
4HF1 ENG(RLS) 		8-94483-526-0 01 1 9312-9412
29 04.265 PLUG; SPOOL VALVE
4HF1 ENG(RLS) 		8-97112-973-0 01 1 9501-9711
29 04.265 PLUG; SPOOL VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97112-973-0 01 1 9712-
30 04.265 VALVE; SPOOL,UPR BODY
4HF1 ENG(RLS) 		8-94483-524-0 01 1 9312-9711
30 04.265 VALVE; SPOOL,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-524-0 01 1 9712-
31 04.265 SPRING; SPOOL VLV,UPR BODY
4HF1 ENG(RLS) 		8-94483-532-0 01 1 9312-9711
31 04.265 SPRING; SPOOL VLV,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-532-0 01 1 9712-
32 04.265 PLATE; RET,SHIFT CONT VLV
4HF1 ENG(RLS) 		8-94483-530-0 01 1 9312-9711
32 04.265 PLATE; RET,SHIFT CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-530-0 01 1 9712-
33 04.265 SPRING; SHIFT CONT VLV
4HF1 ENG(RLS) 		8-94483-522-0 01 1 9312-9711
33 04.265 SPRING; SHIFT CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-522-0 01 1 9712-
34 04.265 VALVE; SHIFT CONT
4HF1 ENG(RLS) 		8-94483-528-0 01 1 9312-9711
34 04.265 VALVE; SHIFT CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-528-0 01 1 9712-
35 04.265 PIN; PLUG,SPOOL CONT VLV
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
35 04.265 PIN; PLUG,SPOOL CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
36 04.265 PLUG; SPOOL CONT VLV,UPR BODY
4HF1 ENG(RLS) 		8-94483-526-0 01 1 9312-9412
36 04.265 PLUG; SPOOL CONT VLV,UPR BODY
4HF1 ENG(RLS) 		8-97112-973-0 01 1 9501-9711
36 04.265 PLUG; SPOOL CONT VLV,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97112-973-0 01 1 9712-
37 04.265 VALVE; SPOOL CONT,UPR BODY
4HF1 ENG(RLS) 		8-94483-524-0 01 1 9312-9711
37 04.265 VALVE; SPOOL CONT,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-524-0 01 1 9712-
38 04.265 SPRING; SPOOL CONT VLV
4HF1 ENG(RLS) 		8-94483-532-0 01 1 9312-9711
38 04.265 SPRING; SPOOL CONT VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-532-0 01 1 9712-
39 04.265 PIN; PLUG,OVERRUN CLU CONT VALVE
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
39 04.265 PIN; PLUG,OVERRUN CLU CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
40 04.265 PLUG; OVERRUN CLU CONT VALVE
4HF1 ENG(RLS) 		8-94483-537-0 01 1 9312-9412
40 04.265 PLUG; OVERRUN CLU CONT VALVE
4HF1 ENG(RLS) 		8-97112-974-0 01 1 9501-9711
40 04.265 PLUG; OVERRUN CLU CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97112-974-0 01 1 9712-
41 04.265 SPRING; OVERRUN CLU CONT VALVE
4HF1 ENG(RLS) 		8-94483-536-0 01 1 9312-9711
41 04.265 SPRING; OVERRUN CLU CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-536-0 01 1 9712-
42 04.265 VALVE; OVERRUN CLU CONT
4HF1 ENG(RLS) 		8-94483-535-0 01 1 9312-9711
42 04.265 VALVE; OVERRUN CLU CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-535-0 01 1 9712-
43 04.265 PIN; PLUG,OVERRUN CLU REDUCING V
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
43 04.265 PIN; PLUG,OVERRUN CLU REDUCING V
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
44 04.265 PLUG; OVERRUN CLU REDUCING VALVE
4HF1 ENG(RLS) 		8-94483-537-0 01 1 9312-9412
44 04.265 PLUG; OVERRUN CLU REDUCING VALVE
4HF1 ENG(RLS) 		8-97112-974-0 01 1 9501-9711
44 04.265 PLUG; OVERRUN CLU REDUCING VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97112-974-0 01 1 9712-
45 04.265 VALVE; OVERRUN CLU REDUCING
4HF1 ENG(RLS) 		8-97027-247-0 01 1 9312-9711
45 04.265 VALVE; OVERRUN CLU REDUCING
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97027-247-0 01 1 9712-
47 04.265 PIN; PLUG,SHUTTLE SHIFT CONT VAL
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
47 04.265 PIN; PLUG,SHUTTLE SHIFT CONT VAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
48 04.265 PLUG; SHUTTLE SHIFT CONT VALVE
4HF1 ENG(RLS) (A) 		8-94483-519-0 01 1 9312-9711
48 04.265 PLUG; SHUTTLE SHIFT CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-94483-519-0 01 1 9712-
48 04.265 PLUG; SHUTTLE SHIFT CONT VALVE
4HF1 ENG(RLS) (B) 		8-97078-322-0 01 1 9312-9711
48 04.265 PLUG; SHUTTLE SHIFT CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97078-322-0 01 1 9712-
50 04.265 VALVE; SHUTTLE,SHIFT CONT
4HF1 ENG(RLS) 		8-97027-248-0 01 1 9312-9711
50 04.265 VALVE; SHUTTLE,SHIFT CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97027-248-0 01 1 9712-
51 04.265 PLATE; SUPPORT,ACCUMLATOR PISTON
4HF1 ENG(RLS) 04.241 		8-94483-607-0 03 1 9312-9509
51 04.265 PLATE; SUPPORT,ACCUMLATOR PISTON
4HF1 ENG(RLS) 		8-97140-016-0 03 1 9510-9711
51 04.265 PLATE; SUPPORT,ACCUMLATOR PISTON
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97140-016-0 03 1 9712-
52 04.265 PLATE; SIDE,SOLENOID VALVE
4HF1 ENG(RLS) 		8-97027-253-0 01 1 9312-9711
52 04.265 PLATE; SIDE,SOLENOID VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97027-253-0 01 1 9712-
53 04.265 VALVE; SOLENOID,UPR VLV BODY
4BD2 ENG(RLW) 		8-94343-061-0 01 1 9511-
53 04.265 VALVE; SOLENOID,UPR VLV BODY
4HF1 ENG(RLS) 		8-97027-249-0 02 1 9312-9406
53 04.265 VALVE; SOLENOID,UPR VLV BODY
4HF1 ENG(RLS) 		8-97027-249-0 01 1 9407-9711
53 04.265 VALVE; SOLENOID,UPR VLV BODY
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97027-249-0 01 1 9712-
55 04.265 PLATE; RET,PILOT VALVE SPRING
4HF1 ENG(RLS) 		8-94483-502-0 01 1 9312-9711
55 04.265 PLATE; RET,PILOT VALVE SPRING
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-502-0 01 1 9712-
56 04.265 SPRING; PILOT VALVE,SPOOL CONT
4HF1 ENG(RLS) 		8-94483-544-0 01 1 9312-9711
56 04.265 SPRING; PILOT VALVE,SPOOL CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-544-0 01 1 9712-
57 04.265 VALVE; PILOT,SPOOL CONT
4HF1 ENG(RLS) 		8-94483-543-0 01 1 9312-9711
57 04.265 VALVE; PILOT,SPOOL CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-543-0 01 1 9712-
58 04.265 PIN; PLUG,LOCKUP CONT VALVE
4HF1 ENG(RLS) 		8-94483-507-0 01 1 9312-9711
58 04.265 PIN; PLUG,LOCKUP CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-507-0 01 1 9712-
59 04.265 SLEEVE; LOCKUP CONT VALVE
4HF1 ENG(RLS) 		8-94483-548-0 01 1 9312-9711
59 04.265 SLEEVE; LOCKUP CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-548-0 01 1 9712-
60 04.265 PLUG; LOCKUP CONT VALVE
4HF1 ENG(RLS) 		8-94483-547-0 01 1 9312-9711
60 04.265 PLUG; LOCKUP CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94483-547-0 01 1 9712-
61 04.265 VALVE; LOCKUP CONT,UPR BODY
4HF1 ENG(RLS) 		8-94342-920-0 01 1 9312-9711
61 04.265 VALVE; LOCKUP CONT,UPR BODY
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94342-920-0 01 1 9712-
62 04.265 SPRING; LOCKUP CONT VALVE
4HF1 ENG(RLS) 		8-94342-921-0 01 1 9312-9711
62 04.265 SPRING; LOCKUP CONT VALVE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-94342-921-0 01 1 9712-
63 04.265 BALL; STEEL,VLV UPR,A/T
4HF1 ENG(RLS) 		8-94320-297-0 09 1 9312-9505
63 04.265 BALL; STEEL,VLV UPR,A/T
4HF1 ENG(RLS) 		8-97135-609-0 09 1 9506-9711
63 04.265 BALL; STEEL,VLV UPR,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97135-609-0 09 1 9712-
158 04.115 BOLT; SOLENOID
4HF1 ENG(RLS) 04.265 M6X27 		8-94483-598-0 02 1 9506-9711
158 04.115 BOLT; SOLENOID
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.265 M6X27 		8-94483-598-0 02 1 9712-
181 04.265 SPRING; OVERRUN CLU REDUCING VAL
4HF1 ENG(RLS) 		8-97044-701-0 01 1 9312-9711
181 04.265 SPRING; OVERRUN CLU REDUCING VAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97044-701-0 01 1 9712-
205 04.265 SEAT; SPR
4HF1 ENG(RLS) 04.256 		8-97024-249-0 01 1 9401-9711
205 04.265 SEAT; SPR
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.256 		8-97024-249-0 01 1 9712-

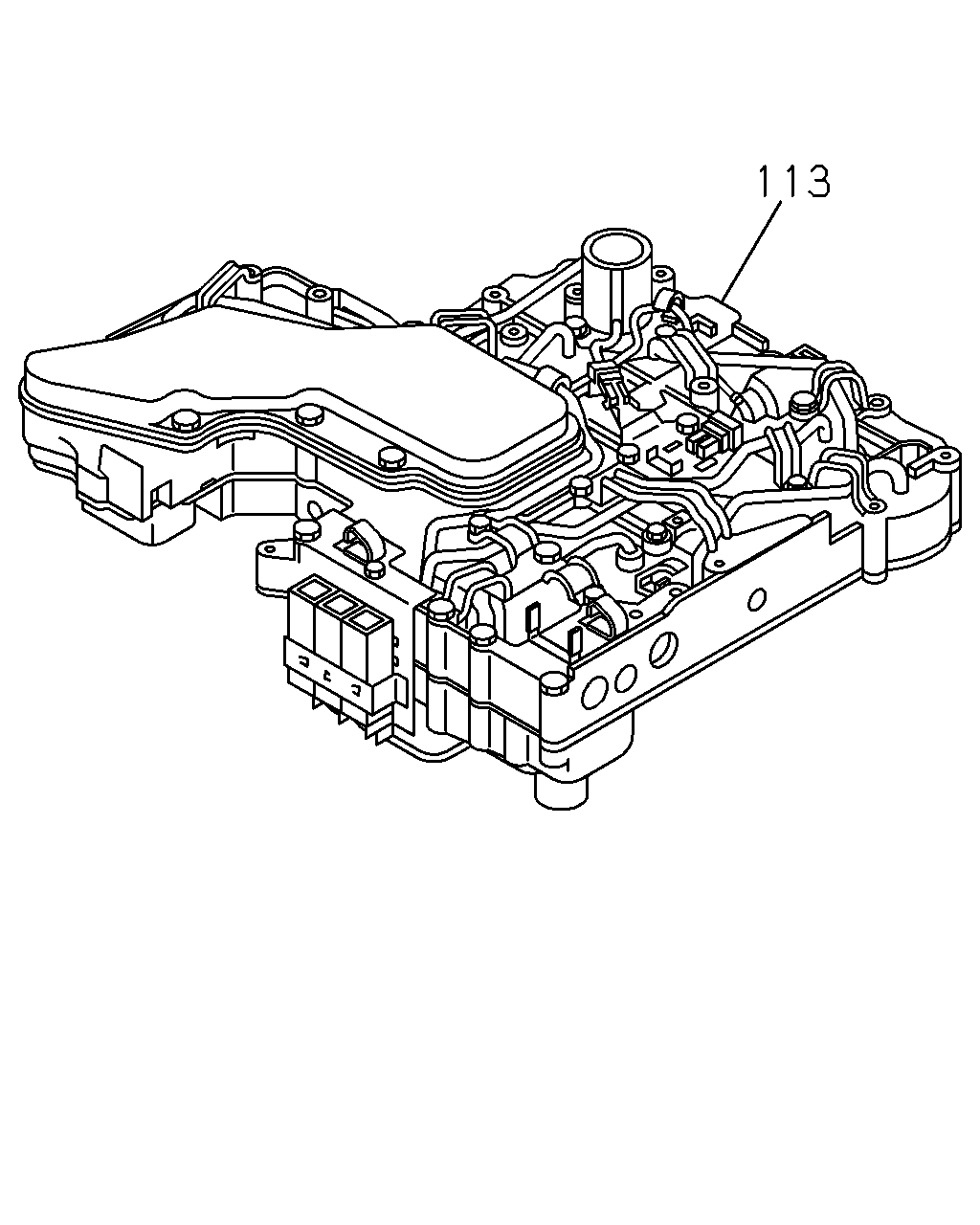

çizim 67882
113
BalonParca AdiParca NoAdetTipApplied Date
113 04.265 VALVE ASM; CONT,A/T
4BD2 ENG(RLW) 		8-97092-825-0 01 1 9511-
113 04.265 VALVE ASM; CONT,A/T
4HF1 ENG(RLS) 		8-97109-234-0 01 1 9407-9408
113 04.265 VALVE ASM; CONT,A/T
4HF1 ENG(RLS) 		8-97119-868-0 01 1 9409-9711
113 04.265 VALVE ASM; CONT,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97119-868-0 01 1 9712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
