2-42B — AUTO TRANS OIL PAN AND OIL CONTROL (#34233) — 31 parça

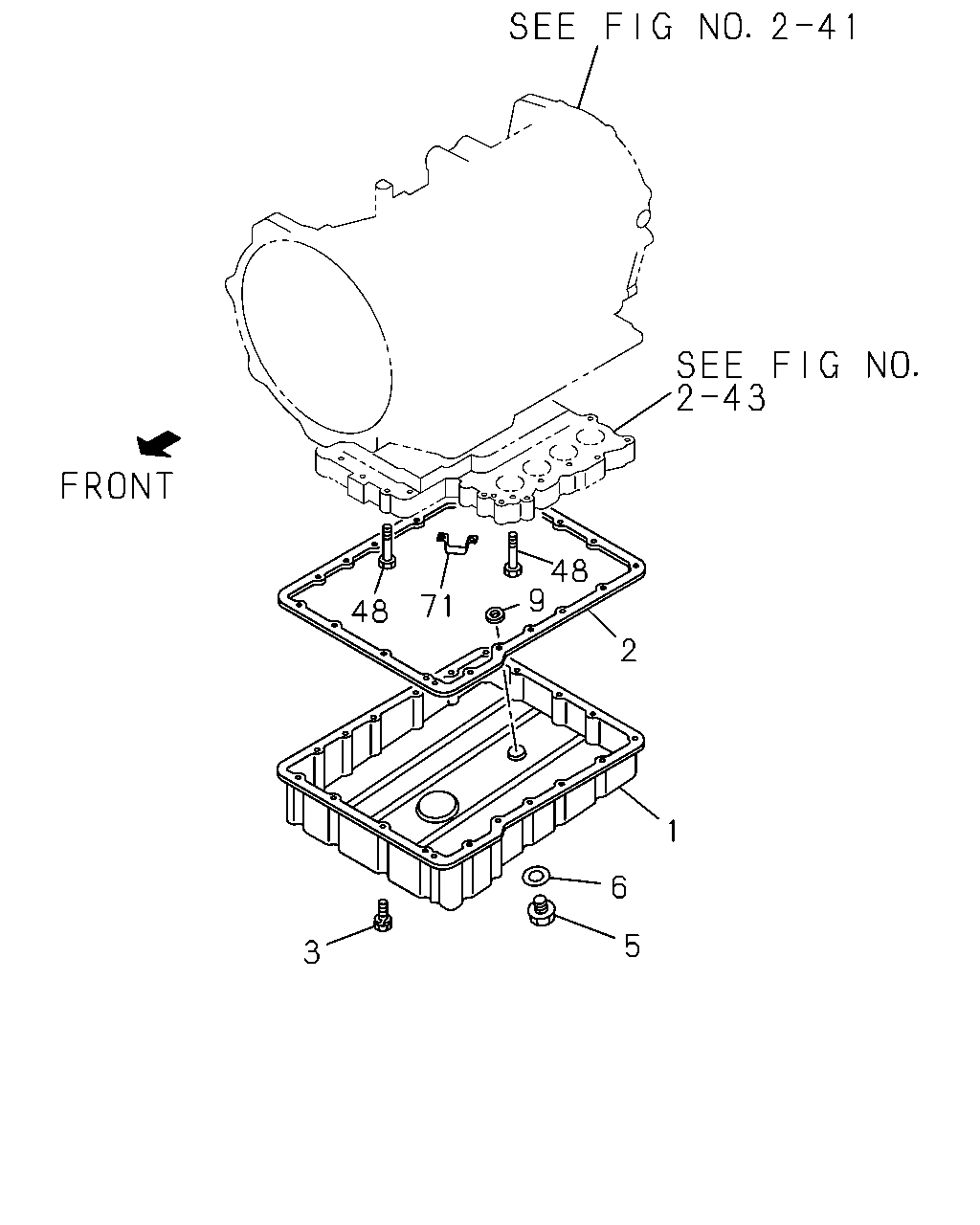

48 9 71 48 2 1 6 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.195 PAN ASM; OIL,A/T 4HF1 ENG(RLS)	8-97027-232-0	01	1	9312-9505
1	04.195 PAN ASM; OIL,A/T 4HF1 ENG(RLS)	8-94483-347-0	01	1	9506-9709
1	04.195 PAN ASM; OIL,A/T 4HF1 ENG(RLS)	8-97189-182-0	01	1	9710-9711
1	04.195 PAN ASM; OIL,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97189-182-0	01	1	9712-
2	04.196 GASKET; OIL PAN,A/T 4HF1 ENG(RLS)	8-97109-221-0	01	1	9312-9711
2	04.196 GASKET; OIL PAN,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97109-221-0	01	1	9712-
3	04.196 BOLT; OIL PAN TO CASE 4HF1 ENG(RLS)	8-94483-348-0	18	1	9312-9505
3	04.196 BOLT; OIL PAN TO CASE 4HF1 ENG(RLS)	8-97134-264-0	18	1	9506-9711
3	04.196 BOLT; OIL PAN TO CASE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97134-264-0	18	1	9712-
5	04.195 PLUG; OIL PAN 4HF1 ENG(RLS)	8-97044-670-0	01	1	9312-9505
5	04.195 PLUG; OIL PAN 4HF1 ENG(RLS)	8-97131-023-0	01	1	9506-9711
5	04.195 PLUG; OIL PAN 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97131-023-0	01	1	9712-
6	04.195 GASKET; OIL PAN TO PLUG 4HF1 ENG(RLS)	8-97044-671-0	01	1	9312-9711
6	04.195 GASKET; OIL PAN TO PLUG 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97044-671-0	01	1	9712-
9	04.195 MAGNET; OIL PAN 4HF1 ENG(RLS)	8-94140-738-0	01	1	9312-9312
48	04.265 BOLT; VLV BODY,A/T 4HF1 ENG(RLS) M6X33	8-94483-589-0	12	1	9312-9711
48	04.265 BOLT; VLV BODY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X33	8-94483-589-0	12	1	9712-
48	04.265 BOLT; VLV BODY,A/T 4HF1 ENG(RLS) M6X45	8-94483-609-0	08	1	9312-9711
48	04.265 BOLT; VLV BODY,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) M6X45	8-94483-609-0	08	1	9712-
71	04.265 CLIP; HARNESS,A/T CASE 4HF1 ENG(RLS)	8-94483-610-0	01	1	9312-9711
71	04.265 CLIP; HARNESS,A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-610-0	01	1	9712-

10 13 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	04.197 GAUGE; OIL LEVEL 4BD2 ENG(RLW)	8-97074-654-4	01	1	9604-
10	04.197 GAUGE; OIL LEVEL 4HF1 ENG(RLS)	8-97061-278-2	01	1	9312-9711
10	04.197 GAUGE; OIL LEVEL 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97061-278-3	01	1	9712-
11	04.197 TUBE; OIL FILLER 4BD2 ENG(RLW)	8-97074-038-1	01	1	9604-
11	04.197 TUBE; OIL FILLER 4HF1 ENG(RLS)	8-97077-401-5	01	1	9312-9711
11	04.197 TUBE; OIL FILLER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97077-401-5	01	1	9712-
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4HF1 ENG(RLS) 06.673	9-09561-216-0	01	1	9312-9504
12	04.197 GASKET; OIL FILLER TUBE TO A/T 06.673	9-09561-216-0	01	1	9505-
13	04.197 BOLT; OIL FILLER 4HF1 ENG(RLS) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9504
13	04.197 BOLT; OIL FILLER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9505-
