Sayfa 2-41B - Isuzu EPC

2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#34232) — 176 parça

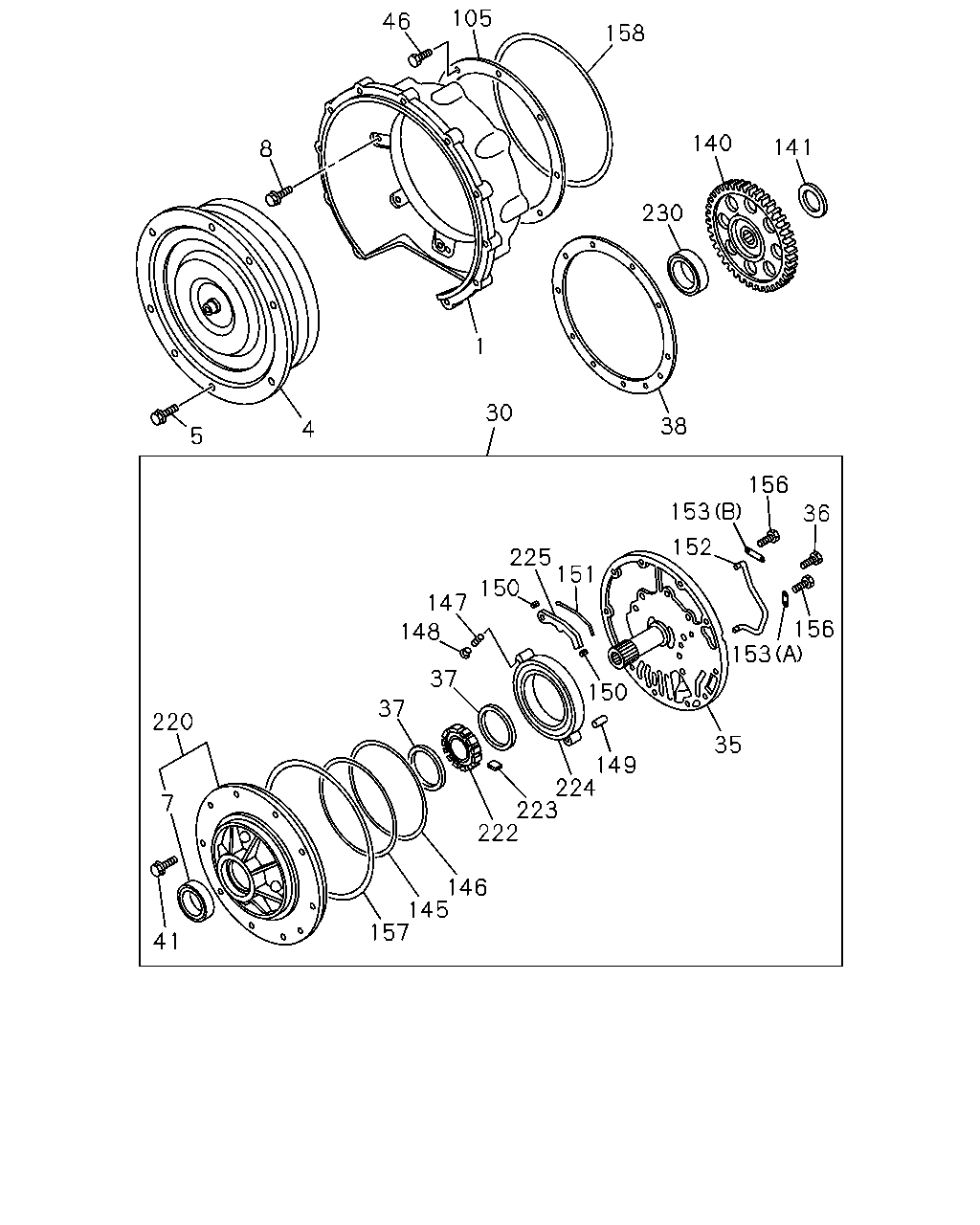

105 46 158 140 141 8 230 1 30 38 4 5 156 153 36 152 225 151 150 147 156 148 153 37 150 37 220 35 149 224 223 222 7 146 145 157 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.103 HOUSING; CONV,A/T 4BD2 ENG(RLW)	8-94483-326-0	01	1	9511-
1	04.103 HOUSING; CONV,A/T 4HF1 ENG(RLS)	8-97027-231-0	01	1	9312-9711
1	04.103 HOUSING; CONV,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97027-231-0	01	1	9712-
4	04.115 CONVERTER ASM; TORQUE,A/T 4HF1 ENG(RLS)	8-97046-476-0	01	1	9312-9412
4	04.115 CONVERTER ASM; TORQUE,A/T 4HF1 ENG(RLS)	8-97129-721-0	01	1	9501-9505
4	04.115 CONVERTER ASM; TORQUE,A/T 4HF1 ENG(RLS)	8-97133-022-0	01	1	9506-9709
4	04.115 CONVERTER ASM; TORQUE,A/T 4HF1 ENG(RLS)	8-97183-139-0	01	1	9710-9711
4	04.115 CONVERTER ASM; TORQUE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97183-139-0	01	1	9712-
5	04.008 BOLT; RR PLATE TO TORQUE CONV 4HF1 ENG(RLS) 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9312-9504
5	04.008 BOLT; RR PLATE TO TORQUE CONV 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9505-9801
5	04.008 BOLT; RR PLATE TO TORQUE CONV 03.405 M10X25 FLANGE	0-28681-025-0	06	1	9802-
7	04.226 SEAL; OIL,LIP,A/T 4HF1 ENG(RLS)	8-94483-289-0	01	1	9312-9505
7	04.226 SEAL; OIL,LIP,A/T 4HF1 ENG(RLS)	8-97135-606-0	01	1	9506-9711
7	04.226 SEAL; OIL,LIP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97135-606-0	01	1	9712-
8	04.217 BOLT; HSG TO CASE 4HF1 ENG(RLS) M12X40 M12X40	8-94483-327-0	08	1	9312-9711
8	04.217 BOLT; HSG TO CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) M12X40 M12X40	8-94483-327-0	08	1	9712-
8	04.217 BOLT; HSG TO CASE 4HF1 ENG(RLS) 04.290 M10X49 M10X49	8-94483-337-0	02	1	9312-9711
8	04.217 BOLT; HSG TO CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.290 M10X49 M10X49	8-94483-337-0	02	1	9712-
30	04.224 PUMP ASM; OIL,A/T 4HF1 ENG(RLS)	8-94483-288-1	01	1	9312-9709
30	04.224 PUMP ASM; OIL,A/T 4HF1 ENG(RLS)	8-97177-197-0	01	1	9710-9711
30	04.224 PUMP ASM; OIL,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97177-197-0	01	1	9712-
35	04.224 COVER; OIL PUMP,A/T 4HF1 ENG(RLS)	8-97044-674-0	01	1	9312-9711
35	04.224 COVER; OIL PUMP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97044-674-0	01	1	9712-
36	04.226 BOLT; OIL PUMP COVER,A/T 4HF1 ENG(RLS)	8-94483-297-0	06	1	9312-9711
36	04.226 BOLT; OIL PUMP COVER,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-297-0	06	1	9712-
37	04.226 RING; SEAL,OIL PUMP,A/T 4HF1 ENG(RLS)	8-94483-310-0	02	1	9312-9711
37	04.226 RING; SEAL,OIL PUMP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-310-0	02	1	9712-
38	04.226 GASKET; OIL PUMP,A/T 4HF1 ENG(RLS)	8-97109-223-0	01	1	9312-9711
38	04.226 GASKET; OIL PUMP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97109-223-0	01	1	9712-
41	04.226 BOLT; OIL PUMP HSG,A/T 4HF1 ENG(RLS)	8-94483-301-0	10	1	9312-9505
41	04.226 BOLT; OIL PUMP HSG,A/T 4HF1 ENG(RLS)	8-97112-975-0	10	1	9506-9711
41	04.226 BOLT; OIL PUMP HSG,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97112-975-0	10	1	9712-
46	04.226 BOLT; RET 4HF1 ENG(RLS)	8-94483-320-0	10	1	9312-9711
46	04.226 BOLT; RET 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-320-0	10	1	9712-
105	04.226 SPACER; OIL PUMP 4HF1 ENG(RLS)	8-94483-325-0	01	1	9312-9711
105	04.226 SPACER; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-325-0	01	1	9712-
140	04.175 GEAR; PTO DRIVE,A/T 4HF1 ENG(RLS)	8-97092-785-0	01	1	9312-9711
140	04.175 GEAR; PTO DRIVE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-785-0	01	1	9712-
141	04.176 BEARING; THRUST,PTO DRIVE GEAR 4HF1 ENG(RLS)	8-94483-242-0	01	1	9312-9711
141	04.176 BEARING; THRUST,PTO DRIVE GEAR 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-242-0	01	1	9712-
145	04.226 RING; FRICTION,OIL PUMP CAM RING 4HF1 ENG(RLS)	8-94483-290-0	01	1	9312-9711
145	04.226 RING; FRICTION,OIL PUMP CAM RING 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-290-0	01	1	9712-
146	04.226 GASKET; CAM RING,OIL PUMP 4HF1 ENG(RLS)	8-94483-291-1	01	1	9312-9711
146	04.226 GASKET; CAM RING,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-291-1	01	1	9712-
147	04.226 SPRING; CAM RING,OIL PUMP 4HF1 ENG(RLS)	8-94483-292-0	01	1	9312-9711
147	04.226 SPRING; CAM RING,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-292-0	01	1	9712-
148	04.226 RETAINER; SPRING,CAM RING,OIL PU 4HF1 ENG(RLS)	8-94483-293-0	01	1	9312-9711
148	04.226 RETAINER; SPRING,CAM RING,OIL PU 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-293-0	01	1	9712-
149	04.226 PIN; PIVOT,OIL PUMP 4HF1 ENG(RLS)	8-94483-294-0	02	1	9312-9711
149	04.226 PIN; PIVOT,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-294-0	02	1	9712-
150	04.166 SEAL; CONT PISTON,SIDE,OIL PUMP 4HF1 ENG(RLS)	8-94483-295-0	02	1	9312-9711
150	04.166 SEAL; CONT PISTON,SIDE,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-295-0	02	1	9712-
151	04.166 SEAL; CONT PISTON,OIL PUMP 4HF1 ENG(RLS)	8-94483-296-0	01	1	9312-9711
151	04.166 SEAL; CONT PISTON,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-296-0	01	1	9712-
152	04.226 TUBE; OIL,OIL PUMP,A/T 4HF1 ENG(RLS)	8-94483-299-0	01	1	9312-9711
152	04.226 TUBE; OIL,OIL PUMP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-299-0	01	1	9712-
153	04.226 BRACKET; OIL TUBE,A/T 4HF1 ENG(RLS) (B)	8-94483-300-0	01	1	9312-9711
153	04.226 BRACKET; OIL TUBE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-94483-300-0	01	1	9712-
153	04.226 BRACKET; OIL TUBE,A/T 4HF1 ENG(RLS) (A)	8-94483-308-0	01	1	9312-9711
153	04.226 BRACKET; OIL TUBE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-94483-308-0	01	1	9712-
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4HF1 ENG(RLS) M8X12	8-94483-307-0	02	1	9312-9711
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X12	8-94483-307-0	02	1	9712-
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4HF1 ENG(RLS) M8X55	8-94483-309-0	02	1	9312-9711
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) M8X55	8-94483-309-0	02	1	9712-
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4HF1 ENG(RLS)	8-94483-298-0	01	1	9312-9711
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-298-0	01	1	9712-
158	04.166 SEAL; OIL PUMP TO A/T CASE 4HF1 ENG(RLS)	8-94483-319-0	01	1	9312-9711
158	04.166 SEAL; OIL PUMP TO A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-319-0	01	1	9712-
220	04.200 HOUSING ASM; OIL PUMP,A/T 4HF1 ENG(RLS)	8-97044-673-1	01	1	9312-9711
220	04.200 HOUSING ASM; OIL PUMP,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97044-673-1	01	1	9712-
222	04.224 ROTOR; OIL PUMP 4HF1 ENG(RLS) T=16.967	8-97066-822-0	01	1	9312-9711
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.967	8-97066-822-0	01	1	9712-
222	04.224 ROTOR; OIL PUMP 4HF1 ENG(RLS) T=16.974	8-97066-823-0	01	1	9312-9711
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.974	8-97066-823-0	01	1	9712-
222	04.224 ROTOR; OIL PUMP 4HF1 ENG(RLS) T=16.981	8-97066-824-0	01	1	9312-9711
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.981	8-97066-824-0	01	1	9712-
222	04.224 ROTOR; OIL PUMP 4HF1 ENG(RLS) T=16.988	8-97066-825-0	01	1	9312-9711
222	04.224 ROTOR; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.988	8-97066-825-0	01	1	9712-
223	04.224 VANE; OIL PUMP 4HF1 ENG(RLS) T=16.967	8-97066-814-0	13	1	9312-9711
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.967	8-97066-814-0	13	1	9712-
223	04.224 VANE; OIL PUMP 4HF1 ENG(RLS) T=16.974	8-97066-815-0	13	1	9312-9711
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.974	8-97066-815-0	13	1	9712-
223	04.224 VANE; OIL PUMP 4HF1 ENG(RLS) T=16.981	8-97066-816-0	13	1	9312-9711
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.981	8-97066-816-0	13	1	9712-
223	04.224 VANE; OIL PUMP 4HF1 ENG(RLS) T=16.988	8-97066-817-0	13	1	9312-9711
223	04.224 VANE; OIL PUMP 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.988	8-97066-817-0	13	1	9712-
224	04.224 RING; CAM 4HF1 ENG(RLS) T=16.987	8-97066-826-1	01	1	9312-9711
224	04.224 RING; CAM 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.987	8-97066-826-1	01	1	9712-
224	04.224 RING; CAM 4HF1 ENG(RLS) T=16.994	8-97066-827-1	01	1	9312-9711
224	04.224 RING; CAM 4HG1 ENG(RJH),4HF1 ENG(RLS) T=16.994	8-97066-827-1	01	1	9712-
224	04.224 RING; CAM 4HF1 ENG(RLS) T=17.001	8-97066-828-1	01	1	9312-9711
224	04.224 RING; CAM 4HG1 ENG(RJH),4HF1 ENG(RLS) T=17.001	8-97066-828-1	01	1	9712-
224	04.224 RING; CAM 4HF1 ENG(RLS) T=17.008	8-97066-829-1	01	1	9312-9711
224	04.224 RING; CAM 4HG1 ENG(RJH),4HF1 ENG(RLS) T=17.008	8-97066-829-1	01	1	9712-
225	04.224 PISTON; CONT 4HF1 ENG(RLS) T=13.467	8-97066-818-0	01	1	9312-9711
225	04.224 PISTON; CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) T=13.467	8-97066-818-0	01	1	9712-
225	04.224 PISTON; CONT 4HF1 ENG(RLS) T=13.474	8-97066-819-0	01	1	9312-9711
225	04.224 PISTON; CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) T=13.474	8-97066-819-0	01	1	9712-
225	04.224 PISTON; CONT 4HF1 ENG(RLS) T=13.481	8-97066-820-0	01	1	9312-9711
225	04.224 PISTON; CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) T=13.481	8-97066-820-0	01	1	9712-
225	04.224 PISTON; CONT 4HF1 ENG(RLS) T=13.488	8-97066-821-0	01	1	9312-9711
225	04.224 PISTON; CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) T=13.488	8-97066-821-0	01	1	9712-
230	04.176 BEARING; BALL,PTO DRIVE GEAR 4HF1 ENG(RLS)	8-97044-690-0	01	1	9312-9711
230	04.176 BEARING; BALL,PTO DRIVE GEAR 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97044-690-0	01	1	9712-

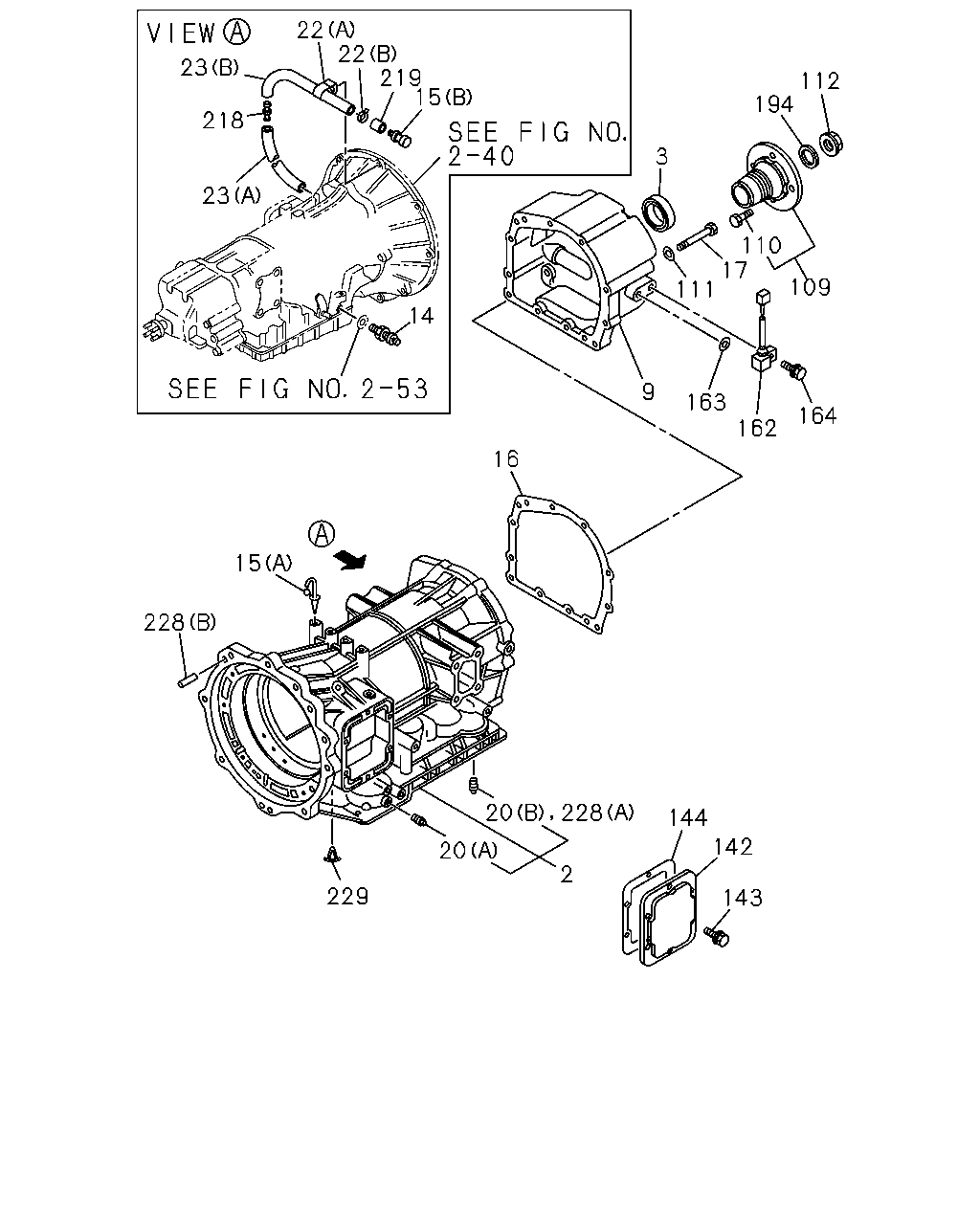

22 22 219 15 23 112 194 218 3 23 110 17 109 111 14 9 163 164 162 16 15 228 20 228 144 142 20 2 229 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.103 CASE ASM; A/T 4HF1 ENG(RLS)	8-97109-117-0	01	1	9312-9408
2	04.103 CASE ASM; A/T 4HF1 ENG(RLS)	8-97119-873-0	01	1	9409-9510
2	04.103 CASE ASM; A/T 4HF1 ENG(RLS)	8-97161-743-0	01	1	9511-9709
2	04.103 CASE ASM; A/T 4HF1 ENG(RLS)	8-97178-706-0	01	1	9710-9711
2	04.103 CASE ASM; A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97178-706-0	01	1	9712-
3	04.241 SEAL; OIL,RR COVER,A/T 4HF1 ENG(RLS)	8-94483-329-0	01	1	9312-9711
3	04.241 SEAL; OIL,RR COVER,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94483-329-0	01	1	9712-
9	04.317 COVER ASM; RR,A/T 4HF1 ENG(RLS)	8-97044-668-0	01	1	9312-9709
9	04.317 COVER ASM; RR,A/T 4HF1 ENG(RLS)	8-97178-707-0	01	1	9710-9711
9	04.317 COVER ASM; RR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97178-707-0	01	1	9712-
14	04.205 UNION; OIL COOLER RETURN PIPE 4BD2 ENG(RLW)	8-94320-411-0	01	1	9604-
15	04.104 BREATHER; A/T CASE 4HF1 ENG(RLS) (B)	1-33547-004-2	01	1	9312-9505
15	04.104 BREATHER; A/T CASE 4HF1 ENG(RLS) (A)	8-97044-669-0	01	1	9312-9711
15	04.104 BREATHER; A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97044-669-0	01	1	9712-
16	04.318 GASKET; EXT HSG 4HF1 ENG(RLS)	8-97109-220-0	01	1	9312-9711
16	04.318 GASKET; EXT HSG 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97109-220-0	01	1	9712-
17	04.319 BOLT; REAR COVER TO CASE 4HF1 ENG(RLS) M10X100	8-94483-342-0	03	1	9312-9711
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X100	8-94483-342-0	03	1	9712-
17	04.319 BOLT; REAR COVER TO CASE 4HF1 ENG(RLS) M10X115	8-94483-343-0	03	1	9312-9711
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X115	8-94483-343-0	03	1	9712-
17	04.319 BOLT; REAR COVER TO CASE 4HF1 ENG(RLS) M10X50	8-94483-344-0	04	1	9312-9711
17	04.319 BOLT; REAR COVER TO CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) M10X50	8-94483-344-0	04	1	9712-
20	04.105 PLUG; TAPER,A/T CASE 4HF1 ENG(RLS) 04.104 (A)	8-94140-708-0	06	1	9312-9505
20	04.105 PLUG; TAPER,A/T CASE 4HF1 ENG(RLS) 04.104 (A)	8-94140-708-0	07	1	9506-9711
20	04.105 PLUG; TAPER,A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.104 (A)	8-94140-708-0	07	1	9712-
20	04.105 PLUG; TAPER,A/T CASE 4HF1 ENG(RLS) (B)	8-97092-790-0	02	1	9312-9711
20	04.105 PLUG; TAPER,A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97092-790-0	02	1	9712-
22	04.101 CLIP; BREATHER HOSE,A/T 03.162 (A) ID=12 L=35	5-09700-206-0	01	1	9511-9709
22	04.101 CLIP; BREATHER HOSE,A/T 4HF1 ENG(RLS) 03.162 (A) ID=12 L=35	5-09700-206-0	01	1	9312-9505
22	04.101 CLIP; BREATHER HOSE,A/T 4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	01	1	9312-9505
23	04.101 HOSE; BREATHER,A/T 4HF1 ENG(RLS) 08.962 (A) L=280 SERVICED BY L=3000	0-04750-300-0	01	1	9312-9505
23	04.101 HOSE; BREATHER,A/T 4HF1 ENG(RLS) 08.962 (B) L=210 SERVICED BY L=3000	0-04770-300-0	01	1	9312-9505
109	04.175 DRIVER; COUPLING,A/T 4HF1 ENG(RLS)	8-97092-812-0	01	1	9312-9711
109	04.175 DRIVER; COUPLING,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97092-812-0	01	1	9712-
110	04.176 BOLT; COUPLING DRIVER,A/T 4HF1 ENG(RLS) 05.605 M12X41	8-94476-729-0	04	1	9312-9711
110	04.176 BOLT; COUPLING DRIVER,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) 05.605 M12X41	8-94476-729-0	04	1	9712-
111	04.319 WASHER; PL,RR COVER 4HF1 ENG(RLS) 04.317	8-94483-345-0	11	1	9312-9711
111	04.319 WASHER; PL,RR COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.317	8-94483-345-0	11	1	9712-
112	04.176 NUT; COUPLING DRIVER,A/T 4HF1 ENG(RLS)	8-94483-355-0	01	1	9312-9412
112	04.176 NUT; COUPLING DRIVER,A/T 4HF1 ENG(RLS)	8-97129-649-0	01	1	9501-9711
112	04.176 NUT; COUPLING DRIVER,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97129-649-0	01	1	9712-
142	04.318 COVER; PTO HOLE,A/T CASE 4HF1 ENG(RLS)	8-94483-284-0	01	1	9312-9505
142	04.318 COVER; PTO HOLE,A/T CASE 4HF1 ENG(RLS)	8-97119-879-0	01	1	9506-9510
142	04.318 COVER; PTO HOLE,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97119-879-0	01	1	9511-9711
142	04.318 COVER; PTO HOLE,A/T CASE 4HF1 ENG(RLS)	8-97119-879-0	01	1	9511-9711
142	04.318 COVER; PTO HOLE,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97119-879-0	01	1	9712-
142	04.318 COVER; PTO HOLE,A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97119-879-0	01	1	9712-
143	04.319 BOLT; HOLE COVER,PTO,A/T 4HF1 ENG(RLS)	8-94483-251-0	06	1	9312-9510
143	04.319 BOLT; HOLE COVER,PTO,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-251-0	06	1	9511-9711
143	04.319 BOLT; HOLE COVER,PTO,A/T 4HF1 ENG(RLS)	8-94483-251-0	06	1	9511-9711
143	04.319 BOLT; HOLE COVER,PTO,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-251-0	06	1	9712-
143	04.319 BOLT; HOLE COVER,PTO,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-94483-251-0	06	1	9712-
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4HF1 ENG(RLS)	8-97109-222-0	01	1	9312-9510
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97109-222-0	01	1	9511-9711
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4HF1 ENG(RLS)	8-97109-222-0	01	1	9511-9711
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97109-222-0	01	1	9712-
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97109-222-0	01	1	9712-
162	04.054 SENSOR; REVOLUTION,A/T CONT 4HF1 ENG(RLS)	8-97039-486-0	01	1	9312-9711
162	04.054 SENSOR; REVOLUTION,A/T CONT 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97039-486-0	01	1	9712-
163	04.054 GASKET; REV SENSOR,A/T 4HF1 ENG(RLS) 04.205	8-94483-615-0	01	1	9312-9711
163	04.054 GASKET; REV SENSOR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.205	8-94483-615-0	01	1	9712-
164	04.054 BOLT; REV SENSOR,A/T 4HF1 ENG(RLS) 04.205	8-94483-616-0	01	1	9312-9711
164	04.054 BOLT; REV SENSOR,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.205	8-94483-616-0	01	1	9712-
194	04.205 GASKET; COUPLING DRIVE 4HF1 ENG(RLS)	8-97100-696-0	01	1	9312-9711
194	04.205 GASKET; COUPLING DRIVE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97100-696-0	01	1	9712-
218	04.104 JOINT; BREATHER HOSE 4HF1 ENG(RLS) 03.145	8-94139-518-0	01	1	9312-9505
219	04.104 PROTECTOR; BREATHER 4HF1 ENG(RLS)	8-97043-410-0	01	1	9312-9505
228	04.105 DOWEL; CASE,A/T 4HF1 ENG(RLS) (B)	8-97044-667-0	04	1	9312-9711
228	04.105 DOWEL; CASE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97044-667-0	04	1	9712-
228	04.105 DOWEL; CASE,A/T 4HF1 ENG(RLS) (A)	8-97148-998-0	01	1	9511-9711
228	04.105 DOWEL; CASE,A/T 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97148-998-0	01	1	9712-
229	04.104 FILTER; CASE 4HF1 ENG(RLS) 04.265	8-97069-603-0	01	1	9312-9412

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
