Isuzu WW
▶
TRUCKS
▶
NPR
▶
50696 - NPR/NQR-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40B - AUTO TRANS ASM AND REPAIR KIT
▶
2-40B — AUTO TRANS ASM AND REPAIR KIT
(#34231) — 24 parça
◀

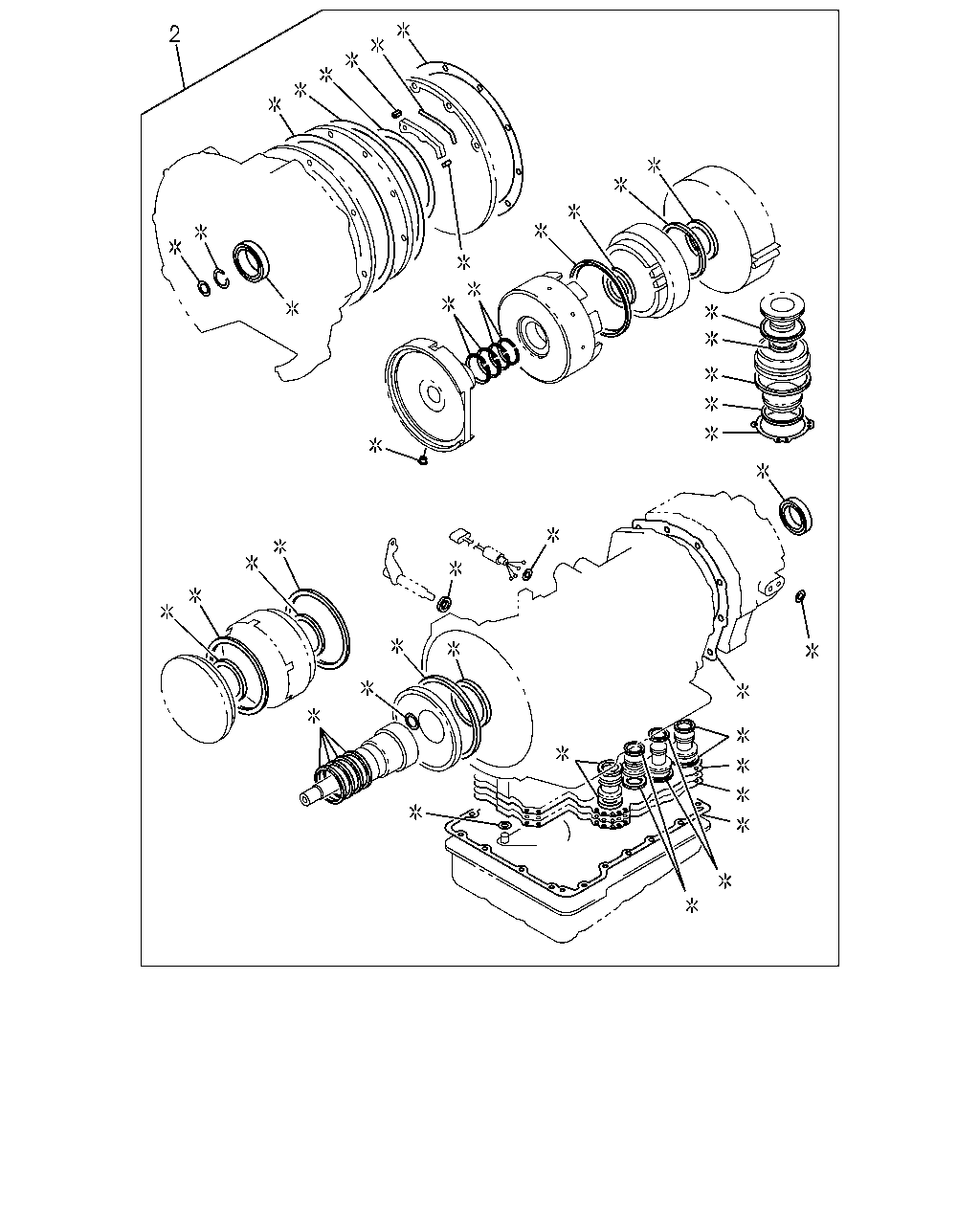

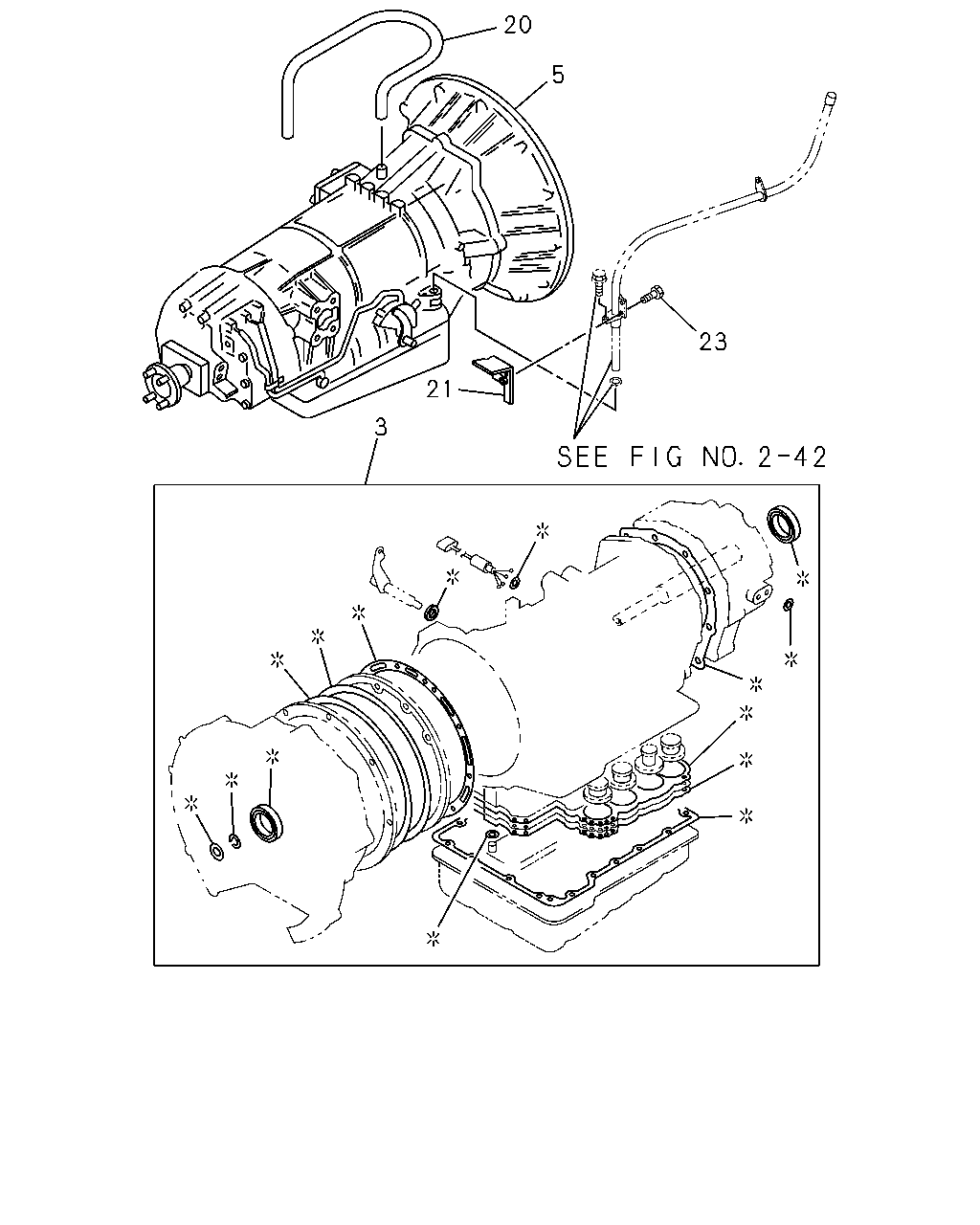

[240B] A/T(NO.1) (21 parça)
[240B] A/T(NO.2) (3 parça)
▶
20
5
23
21
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4HF1 ENG(RLS)
8-94316-250-0
01
1
9312-9711
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS)
8-94316-250-0
01
1
9712-
5
04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)
8-97142-729-0
01
1
9511-9610
5
04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)
8-97164-515-0
01
1
9611-9709
5
04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)
8-97170-488-0
01
1
9710-
5
04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)
8-97142-726-0
01
1
9511-9610
5
04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)
8-97164-510-0
01
1
9611-9709
5
04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)
8-97170-486-0
01
1
9710-
5
04.003 TRANSMISSION ASM; AUTO
4HF1 ENG(RLS)
8-97083-372-4
01
1
9312-9412
5
04.003 TRANSMISSION ASM; AUTO
4HF1 ENG(RLS)
8-97122-777-0
01
1
9501-9505
5
04.003 TRANSMISSION ASM; AUTO
4HF1 ENG(RLS)
8-97131-953-0
01
1
9506-9510
5
04.003 TRANSMISSION ASM; AUTO
4HF1 ENG(RLS)
8-97142-728-0
01
1
9511-9610
5
04.003 TRANSMISSION ASM; AUTO
4HF1 ENG(RLS)
8-97164-512-0
01
1
9611-9709
5
04.003 TRANSMISSION ASM; AUTO
4HF1 ENG(RLS)
8-97178-570-0
01
1
9710-9711
5
04.003 TRANSMISSION ASM; AUTO
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)
8-97178-570-0
01
1
9712-
20
04.104 HOSE; AIR BREATHER
4HF1 ENG(RLS)
8-97123-052-0
01
1
9506-9510
20
04.104 HOSE; AIR BREATHER
4HF1 ENG(RLS) L=750
8-97143-174-0
01
1
9511-9709
20
04.104 HOSE; AIR BREATHER
4HF1 ENG(RLS)
8-97178-810-0
01
1
9710-9711
20
04.104 HOSE; AIR BREATHER
4HG1 ENG(RJH),4HF1 ENG(RLS)
8-97178-810-0
01
1
9712-
21
04.012 PROTECTOR; SELECT LEVER
4HF1 ENG(RLS)
8-97081-274-0
01
1
9312-9412
23
04.012 BOLT; PROTECTOR
4HF1 ENG(RLS) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
9312-9412
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.005 REPAIR KIT; A/T
4HF1 ENG(RLS)
8-97010-855-0
01
1
9312-9510
2
04.005 REPAIR KIT; A/T
4HF1 ENG(RLS)
8-97171-225-0
01
1
9511-9711
2
04.005 REPAIR KIT; A/T
4HG1 ENG(RJH),4HF1 ENG(RLS)
8-97171-225-0
01
1
9712-
