2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#34230) — 86 parça

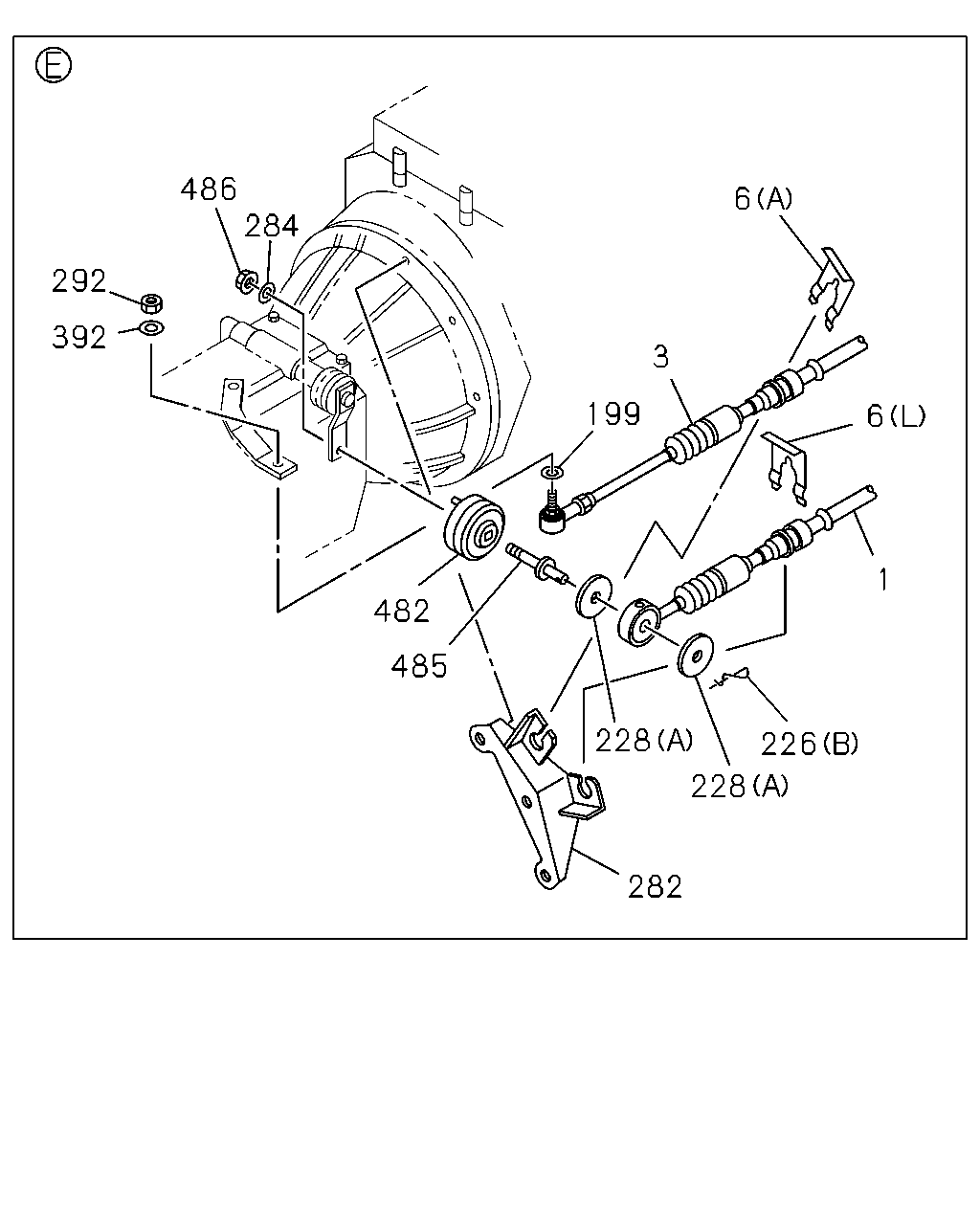

çizim 68853
486 284 6 292 392 3 199 6 1 482 485 228 226 228 282
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070 		8-97148-590-0 01 1 9712- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97096-508-1 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3207 		8-97148-586-0 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125 		8-97096-503-0 01 1 9712- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) ,4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-333-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-333-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		5-09700-341-0 01 1 9805- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 02 1 9712-9808 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9809- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-448-0 02 1 9712- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) 		9-09917-171-0 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) 		9-09917-171-0 01 1 9802- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97028-508-2 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97028-508-2 01 1 9802-9804 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9802- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) ,4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (D) 		8-97036-332-1 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97036-332-1 01 1 9802- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 01 1 9712-9808 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 9809- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (L) ID=22.2 		1-09701-209-1 01 1 9712- ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9712- ● ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9712- ● ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 9712- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9712- ● ●
292 04.047 NUT; CABLE TO RELAY LEVER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9712-9801 ● ●
292 04.047 NUT; CABLE TO RELAY LEVER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ●
292 04.047 NUT; CABLE TO RELAY LEVER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9803- ● ●
392 00.854 WASHER; LK,SELECT CABLE,CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9712- ● ●
482 04.047 WEIGHT; SHIFT CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97079-982-1 01 1 9712- ● ●
485 04.047 BOLT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=88 		8-97017-375-0 01 1 9712- ● ●
486 04.047 NUT; WEIGHT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9712- ● ●

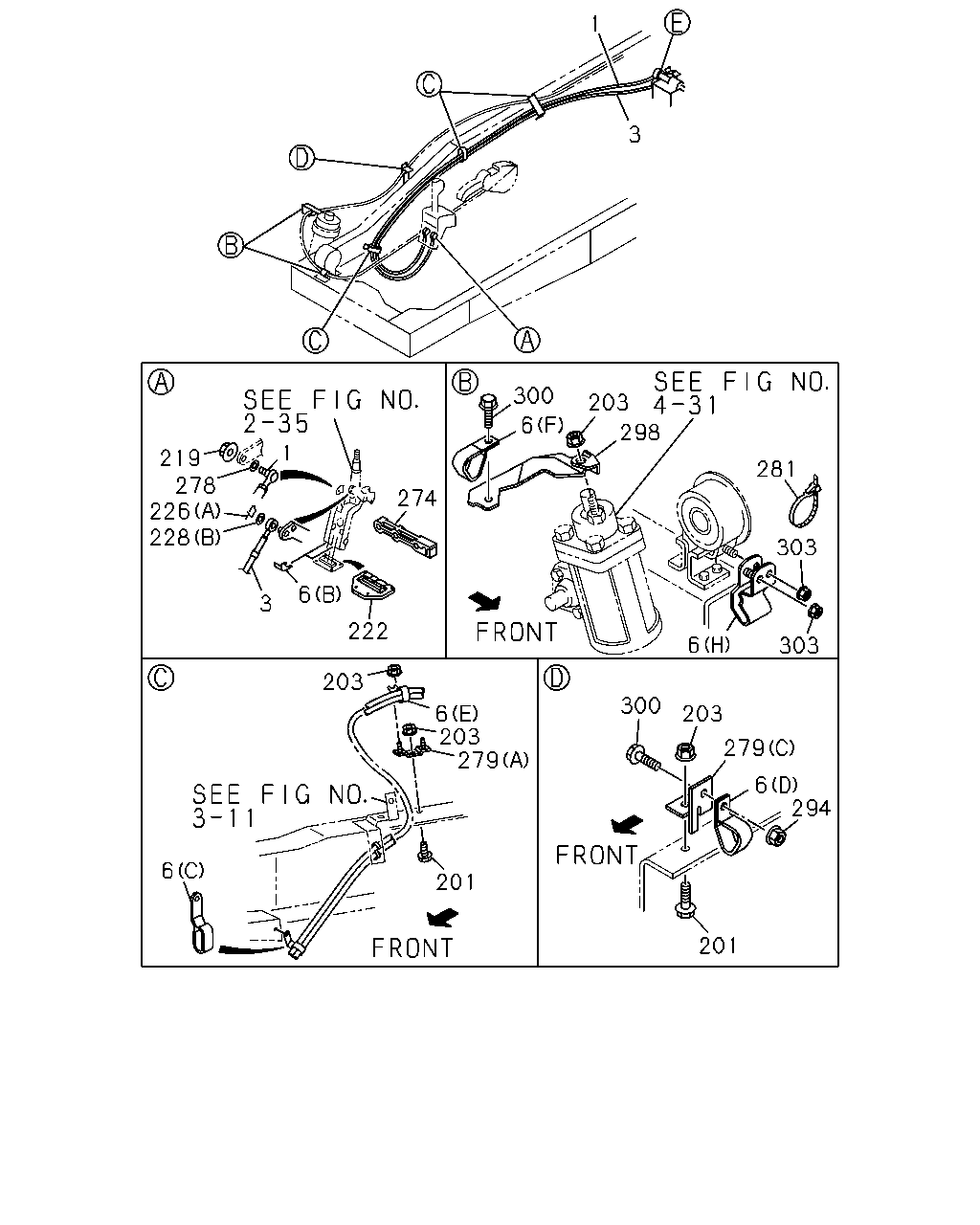

çizim 70466
1 3 300 203 6 298 219 278 226 228 281 274 303 6 3 222 6 303 203 300 6 203 279 203 279 6 294 6 201 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3070 		8-97148-590-0 01 1 9712- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2988 		8-97096-508-1 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3207 		8-97148-586-0 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3125 		8-97096-503-0 01 1 9712- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) ,4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-333-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-333-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		5-09700-341-0 01 1 9805- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 02 1 9712-9808 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9809- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-448-0 02 1 9712- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) 		9-09917-171-0 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) 		9-09917-171-0 01 1 9802- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97028-508-2 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97028-508-2 01 1 9802-9804 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97147-985-0 01 1 9802- ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) ,4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (D) 		8-97036-332-1 01 1 9712-9801 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97036-332-1 01 1 9802- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-94365-914-2 01 1 9712-9808 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 01 1 9809- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (L) ID=22.2 		1-09701-209-1 01 1 9712- ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-9801 ● ●
201 04.032 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802- ● ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9712-9801 ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9803- ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97065-212-1 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9712- ● ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9712- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9712- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9712- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97171-065-0 01 1 9712- ● ●
281 04.042 CLIP; BAND
4HG1 ENG(RJH),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 01 1 9712- ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-9801 ● ●
294 00.854 NUT; CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9802- ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802- ● ●
298 00.854 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 04.785 		8-97065-098-1 01 1 9712- ● ●
300 00.854 BOLT; CLIP
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
300 00.854 BOLT; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ●
303 00.855 NUT; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) ,4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
303 00.855 NUT; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9801 ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9802- ● ●
