◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#3423) — 34 parça

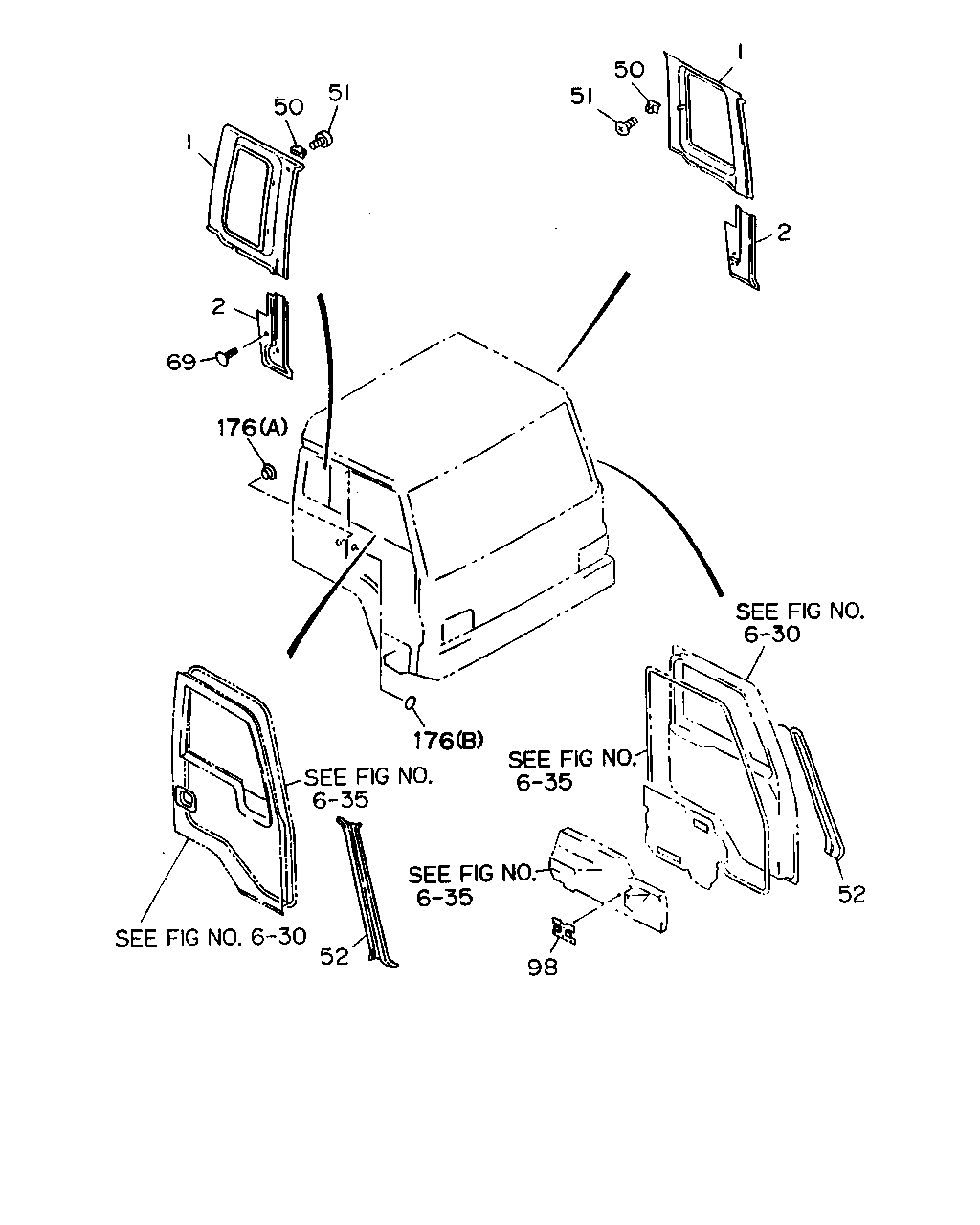

çizim 37217
1 50 51 2 69 51 50 1 2 52 98 52 176 176
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRIM; ROOM,QUARTER WINDOW UPR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) INTERIOR FULL TRIM<WM3> 		1-73347-556-0 01 1 9002-9306 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) INTERIOR FULL TRIM<WM3> 		1-73347-555-0 01 1 9002-9306 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) INTERIOR FULL TRIM<WM3> 		1-73347-647-0 01 1 9307- ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) INTERIOR FULL TRIM<WM3> 		1-73347-646-0 01 1 9307- ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) 		1-73347-594-0 01 1 9002-9306 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) 		1-73347-593-0 01 1 9002-9306 ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) 		1-73347-741-0 01 1 9307- ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) 		1-73347-740-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3) INTERIOR FULL TRIM<WM3> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) 		1-73347-643-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) INTERIOR FULL TRIM<WM3> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) 		1-73347-643-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) INTERIOR FULL TRIM<WM3> 		1-73347-642-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) INTERIOR FULL TRIM<WM3> 		1-73347-598-0 01 1 9002-9306 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) INTERIOR FULL TRIM<WM3> 		1-73347-597-0 01 1 9002-9306 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-73347-645-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-73347-645-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-73347-644-0 01 1 9307- ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-73347-600-0 01 1 9002-9003 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-73347-600-0 01 1 9004-9306 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELTWO/RETRACTOR 2 POINT(W25) 		1-73347-600-0 01 1 9004-9306 ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
INTERIOR FULL TRIM<WM3> EXC. FRONT SEAT&SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR(A37),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-73347-599-0 01 1 9002-9306 ● ● ●
50 FINISHER; HD LINING RR PILLAR 1-73317-235-0 01 1 9002-9306 ● ● ●
50 FINISHER; HD LINING RR PILLAR 1-73317-234-0 01 1 9002-9306 ● ● ●
50 FINISHER; HD LINING RR PILLAR 1-73317-279-1 01 1 9307- ● ● ●
50 FINISHER; HD LINING RR PILLAR 1-73317-272-1 01 1 9307- ● ● ●
51 SCREW; FINISHER,RR PILLAR
M4X16 TAPPING 		1-09981-476-0 04 1 9002- ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR FULL TRIM<WM3> 		1-73347-552-0 01 1 9002-9306 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR FULL TRIM<WM3> 		1-73347-551-0 01 1 9002-9306 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR FULL TRIM<WM3> 		1-73347-629-0 01 1 9307- ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR FULL TRIM<WM3> 		1-73347-628-0 01 1 9307- ● ● ●
69 PLUG; HOLE
BLACK 		8-94279-808-0 01 1 9110- ● ● ●
98 BRACKET; ASH TRAY 1-76457-049-0 01 1 9307- ● ● ●
176 SEAL; RR PILLAR
(A) OD=25 BLACK 		1-76798-019-0 02 1 9002-9302 ● ● ●
176 SEAL; RR PILLAR
(A) OD=25 BLACK 		1-76798-019-0 03 1 9303- ● ● ●
176 SEAL; RR PILLAR
(B) OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9002- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
