2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#34229) — 51 parça
çizim 18353
303 6 300 6 294 303 300 6
BalonParca AdiParca NoAdetTipApplied Date
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-333-1 01 1 9712-
6 04.047 CLIP; CABLE
(H) 		8-94178-109-0 01 1 9312-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 01 1 9312-
6 04.047 CLIP; CABLE
02.559 (I) ID=19 L=50 		9-09525-885-0 01 1 9312-9502
6 04.047 CLIP; CABLE
04.785 (I) ID=13 L=50 		9-09525-286-0 01 1 9503-
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) (A) ID=19.2 		8-94365-914-2 01 1 9712-9808
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) (A) ID=19.2 		8-97211-011-0 01 1 9809-
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.672 (J) 		8-94107-545-0 01 1 9712-
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 (K) 		8-94458-385-1 01 1 9712-
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-9801
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-
300 00.854 BOLT; CLIP
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH), 4HF1 ENG(RLS),4BD2 ENG(RLW) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9507-9510
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9606
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9607-9705
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9706-9711
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9706-9709
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9710-9711
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-
303 00.855 NUT; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-

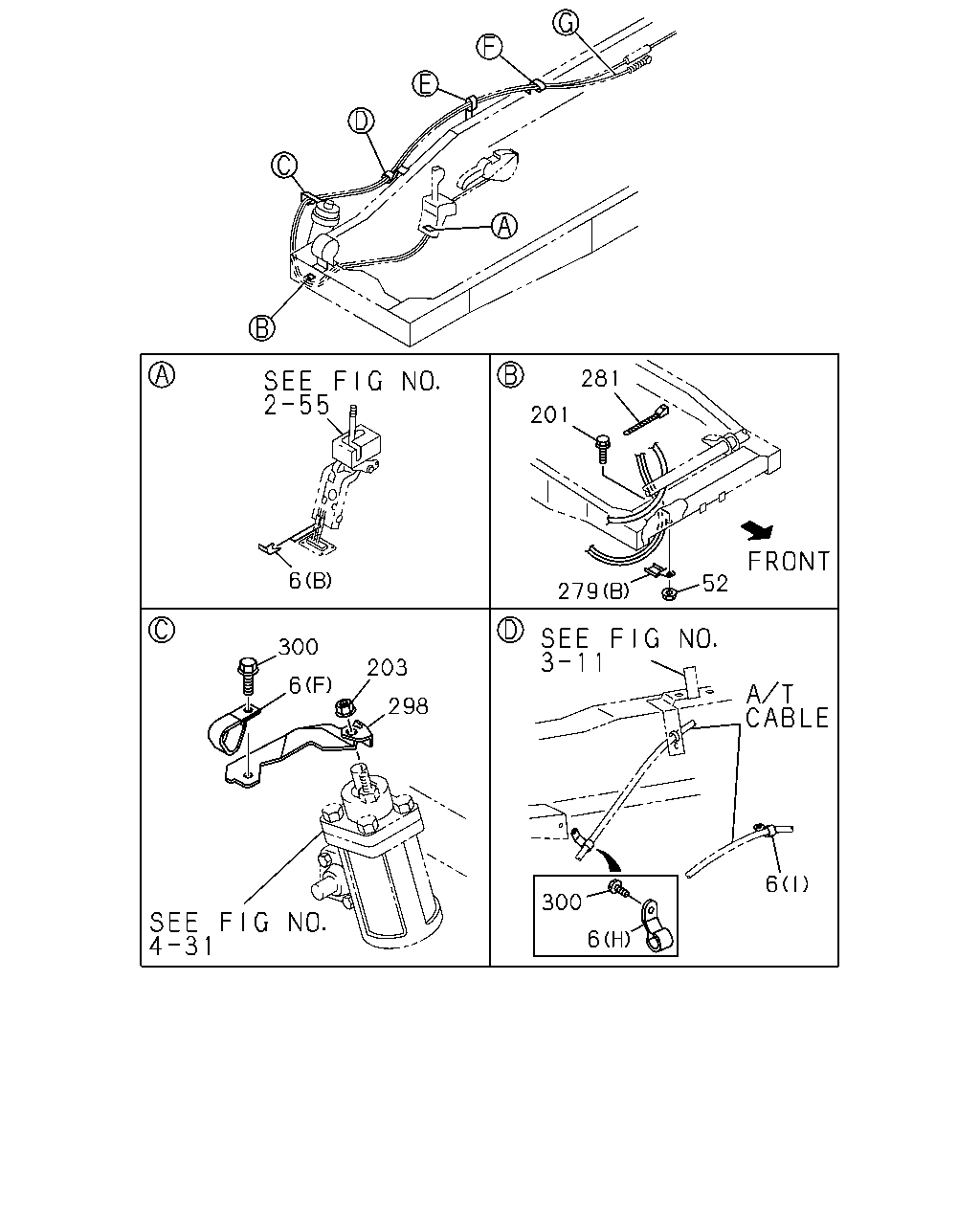

çizim 70613
281 201 6 52 279 300 203 6 298 6 300 6
BalonParca AdiParca NoAdetTipApplied Date
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97036-333-1 01 1 9712-
6 04.047 CLIP; CABLE
(H) 		8-94178-109-0 01 1 9312-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 01 1 9312-
6 04.047 CLIP; CABLE
02.559 (I) ID=19 L=50 		9-09525-885-0 01 1 9312-9502
6 04.047 CLIP; CABLE
04.785 (I) ID=13 L=50 		9-09525-286-0 01 1 9503-
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) (A) ID=19.2 		8-94365-914-2 01 1 9712-9808
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) (A) ID=19.2 		8-97211-011-0 01 1 9809-
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.672 (J) 		8-94107-545-0 01 1 9712-
6 04.047 CLIP; CABLE
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 (K) 		8-94458-385-1 01 1 9712-
52 04.047 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 9312-9412
201 04.032 BOLT; BRKT
09.008 M10X20 FLANGE 		0-28081-020-0 01 1 9312-9412
201 04.032 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9802-
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-
279 04.047 BRACKET; CABLE TO FRAME
(B) 		8-97066-440-0 01 1 9312-9412
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-0 01 1 9312-9510
281 04.042 CLIP; BAND
4HG1 ENG(RJH),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 01 1 9712-
298 00.854 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 04.785 		8-97065-098-1 01 1 9712-
300 00.854 BOLT; CLIP
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH), 4HF1 ENG(RLS),4BD2 ENG(RLW) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9507-9510
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9606
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9607-9705
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9706-9711
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9706-9709
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9710-9711
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-
