◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35C - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35C — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#34227) — 35 parça

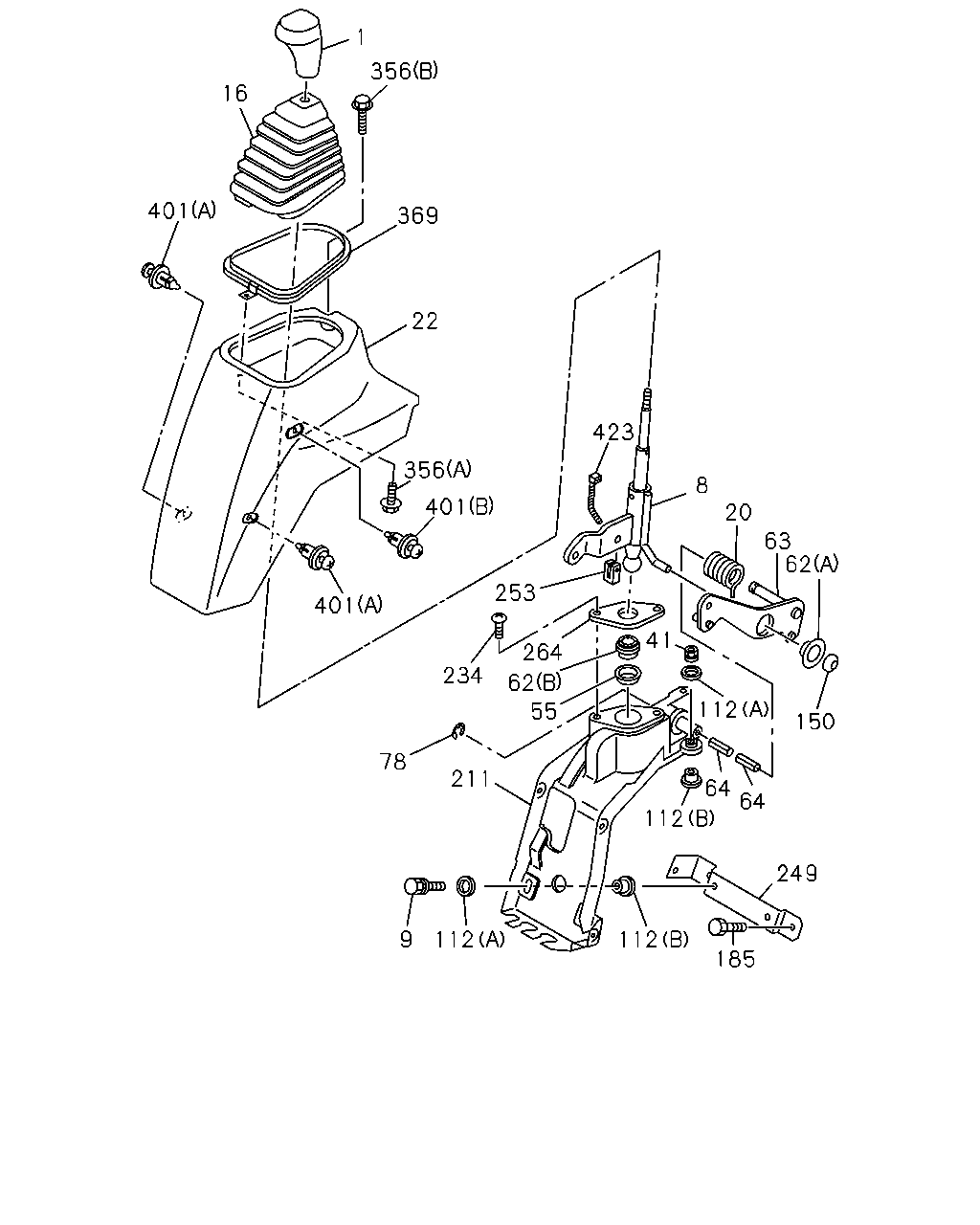

çizim 69081
1 356 16 401 369 22 423 356 8 401 20 63 62 253 401 41 264 234 62 112 55 150 78 64 64 211 112 249 9 112 112 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97155-986-0 01 1 9712- ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97093-842-1 01 1 9712-9802 ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-507-0 01 1 9803- ● ●
9 04.012 BOLT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9712- ● ●
16 04.015 BOOT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97066-287-1 01 1 9712- ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97091-424-0 01 1 9712-9802 ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-0 01 1 9803- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97867-625-3 01 1 9712- ● ●
41 04.012 NUT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9712- ● ●
55 04.012 SEAT; RUBBER,SELECT SPRING
FLOOR REMOTE SHIFT<M11> 		8-97083-150-0 01 1 9712-9802 ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (A) 		8-97049-148-0 01 1 9712-9802 ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-895-1 01 1 9803- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-423-0 01 1 9712-9802 ● ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97163-768-0 01 1 9712- ● ●
64 04.008 BUSHING; SELECT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97083-149-0 02 1 9712-9802 ● ●
78 04.008 RING; SNAP,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 08.934 ID=10 		9-09185-410-0 01 1 9712-9802 ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 9712- ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 9712- ● ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 9712- ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97143-198-0 01 1 9712-9802 ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97143-198-0 01 1 9803- ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97011-898-0 02 1 9712-9802 ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 9803- ● ●
249 04.012 BRACKET; COVER 8-97065-170-0 01 1 9712- ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97026-014-0 01 1 9712-9802 ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 9803- ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97083-151-0 01 1 9712-9802 ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 9803- ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9712- ● ●
356 04.012 SCREW; COVER
FLOOR REMOTE SHIFT<M11> 02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9712- ● ●
369 04.012 RETAINER; REINF
FLOOR REMOTE SHIFT<M11> 		8-97066-288-0 01 1 9712- ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 9712- ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 9712- ● ●
423 04.008 CLIP; BAND
FLOOR REMOTE SHIFT<M11> 		8-97062-120-0 01 1 9712-9802 ● ●
