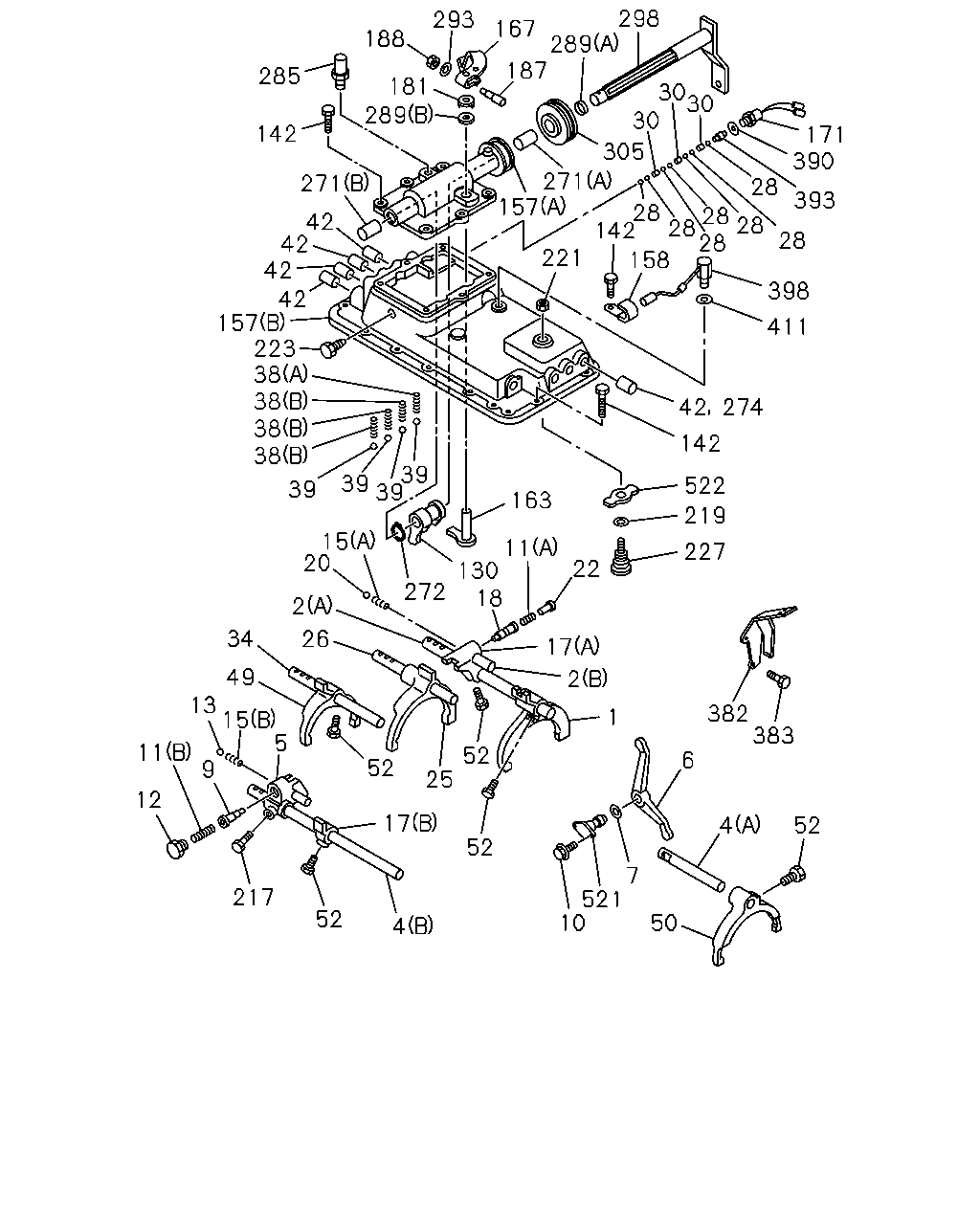

2-30C — GEAR SHIFTER AND QUADRANT BOX (#34224) — 74 parça

298 293 167 188 289 187 181 285 30 30 30 289 142 171 390 305 271 157 271 28 393 28 28 142 28 28 28 42 42 42 28 221 158 398 42 157 223 38 38 38 38 411 42 274 142 39 39 39 522 39 163 219 15 20 11 130 18 227 22 272 2 34 26 17 49 13 15 5 2 382 383 1 11 52 6 9 52 25 12 17 52 4 52 7 521 10 217 52 50 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	1-33511-502-1	01	1	9712-	●	●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) (A)	1-33531-360-1	01	1	9712-	●	●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) (B)	1-33531-361-1	01	1	9712-	●	●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) (A)	1-33531-341-1	01	1	9712-	●	●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) (B)	1-33531-387-0	01	1	9712-	●	●
5	04.303 BLOCK; SHIFT,6TH 4HE1 ENG(RLY)	1-33511-326-1	01	1	9712-	●	●
6	04.302 LEVER; RELAY 4HE1 ENG(RLY)	1-33511-462-0	01	1	9712-	●	●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 01.456 ID=24.4 ID=24.4	1-09623-183-0	01	1	9712-	●	●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK 4HE1 ENG(RLY)	1-33516-029-0	01	1	9712-	●	●
10	04.302 BOLT; SPINDLE 4HE1 ENG(RLY) 09.171 M14X20	1-09044-078-0	02	1	9712-	●	●
11	04.307 SPRING; RETURN,SHIFT SLEEVE 4HE1 ENG(RLY) (A)	1-09580-444-0	01	1	9712-	●	●
11	04.307 SPRING; RETURN,SHIFT SLEEVE 4HE1 ENG(RLY) (B)	9-09941-160-0	01	1	9712-	●	●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK 4HE1 ENG(RLY)	9-33516-060-1	01	1	9712-	●	●
13	04.311 BALL; LK,SHIFT SLEEVE 4HE1 ENG(RLY)	9-00097-009-0	01	1	9712-	●	●
15	04.307 SPRING; LK,SHIFT SLEEVE 4HE1 ENG(RLY) (A)	1-09580-445-0	01	1	9712-	●	●
15	04.307 SPRING; LK,SHIFT SLEEVE 4HE1 ENG(RLY) (B)	1-09580-526-0	01	1	9712-	●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) (A)	1-33511-387-2	01	1	9712-	●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) (B)	1-33511-432-1	01	1	9712-	●	●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK 4HE1 ENG(RLY)	1-33516-029-0	01	1	9712-	●	●
20	04.311 BALL; DETENT SLEEVE 4HE1 ENG(RLY)	9-00097-009-0	01	1	9712-	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4HE1 ENG(RLY)	9-33516-060-1	01	1	9712-	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33511-430-0	01	1	9712-9807	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33511-580-1	01	1	9808-	●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33531-384-0	01	1	9712-	●	●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4BD2 ENG(RLW),4HE1 ENG(RLY)	9-00097-010-0	07	1	9712-	●	●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY)	1-33534-002-0	03	1	9712-	●	●
34	04.309 ROD; SHIFT,4TH & 5TH ARM 4HE1 ENG(RLY)	1-33531-385-0	01	1	9712-	●	●
38	04.311 SPRING; DETENT 4HE1 ENG(RLY) (A)	1-09580-374-0	01	1	9712-	●	●
38	04.311 SPRING; DETENT 4HE1 ENG(RLY) (B)	1-09580-548-0	03	1	9712-	●	●
39	04.307 BALL; DETENT 4HE1 ENG(RLY)	9-00097-013-0	04	1	9712-	●	●
42	04.105 CAP; QUAD BOX 4HE1 ENG(RLY) OD=20	1-33545-002-1	08	1	9712-	●	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	1-33511-463-0	01	1	9712-9807	●	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	1-33511-581-1	01	1	9808-	●	●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY)	1-33511-477-0	01	1	9712-	●	●
52	04.302 BOLT; SHIFT ARM 4HE1 ENG(RLY)	1-09052-034-2	07	1	9712-	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	1-33521-131-1	01	1	9712-	●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9712-	●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9712-	●	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9712-	●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (A)	1-33541-465-0	01	1	9712-	●	●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (B)	1-33541-503-0	01	1	9712-	●	●
158	04.105 CLIP; HARNESS 4HE1 ENG(RLY) 04.342	9-09716-059-0	02	1	9712-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	1-33522-130-0	01	1	9712-	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	1-33521-137-1	01	1	9712-	●	●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	1-82340-534-0	01	1	9712-	●	●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY) OD=37	1-09532-007-0	01	1	9712-	●	●
187	04.302 BOLT; SELECT LEVER 4HE1 ENG(RLY) M8X42	1-33659-045-0	01	1	9712-	●	●
188	04.302 NUT; SELECT LEVER 4HE1 ENG(RLY) 04.309 M8 FLANGE	1-09440-049-0	01	1	9712-9804	●	●
188	04.302 NUT; SELECT LEVER 4HE1 ENG(RLY) M8 FLANGE	1-09440-062-1	01	1	9805-	●	●
217	04.312 SCREW; SET,6TH SHIFT BLOCK 4HE1 ENG(RLY) M8X12.5	9-09814-533-0	01	1	9712-	●	●
219	04.302 WASHER; PL,SPINDLE 4HE1 ENG(RLY) ID=14	9-09851-275-0	01	1	9712-	●	●
221	04.302 NUT; SPINDLE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9712-	●	●
223	04.105 SCREW; SET,QUAD BOX 4HE1 ENG(RLY) 04.312 M8X12.5	9-09814-533-0	01	1	9712-	●	●
227	04.302 SPINDLE; 1ST & REV 4HE1 ENG(RLY)	1-33519-043-0	01	1	9712-9808	●	●
227	04.302 SPINDLE; 1ST & REV 4HE1 ENG(RLY)	1-33519-130-0	01	1	9809-	●	●
271	04.105 BUSHING; QUAD BOX 4HE1 ENG(RLY) (A) ID=25 OD=28	1-33549-107-0	01	1	9712-	●	●
271	04.105 BUSHING; QUAD BOX 4HE1 ENG(RLY) (B) ID=17 OD=19	1-33549-108-0	01	1	9712-	●	●
272	04.027 RING; SNAP,QUAD BOX 4HE1 ENG(RLY) 04.302	1-09588-174-0	01	1	9712-	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4HE1 ENG(RLY) OD=24 L=31	9-33545-011-1	01	1	9712-	●	●
285	04.104 BREATHER; AIR,QUAD BOX 4HE1 ENG(RLY) 05.387	1-33149-003-0	01	1	9712-	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (A)	1-09625-269-0	01	1	9712-	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (B)	1-09625-369-0	01	1	9712-	●	●
293	04.302 WASHER; PL,TAPER BOLT 4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9712-	●	●
298	04.309 SHAFT; SHIFT LEVER 4HE1 ENG(RLY)	1-33522-115-1	01	1	9712-	●	●
305	04.107 BOOT; LEVER SHAFT 4HE1 ENG(RLY)	1-33529-051-0	01	1	9712-	●	●
382	04.105 BRACKET; PARKING BRK CONT CABLE 4HE1 ENG(RLY)	8-97081-310-0	01	1	9712-	●
382	04.105 BRACKET; PARKING BRK CONT CABLE 4HE1 ENG(RLY)	8-97177-321-1	01	1	9712-		●
383	04.105 BOLT; BRKT,PARK BRAKE 4HE1 ENG(RLY) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9712-	●	●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=14.2	8-94462-114-0	01	1	9712-	●	●
393	02.698 PIN; SW 4HE1 ENG(RLY) 04.307	1-33534-003-0	01	1	9712-	●	●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY)	1-82440-083-2	01	1	9712-	●	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.075 ID=14.2	8-94462-114-0	01	1	9712-	●	●
521	04.309 SPINDLE; 6TH 4HE1 ENG(RLY)	1-33519-008-1	01	1	9712-	●	●
522	16.069 LEVER; SHIFT,1-REV 4HE1 ENG(RLY)	1-33521-135-0	01	1	9712-	●	●
