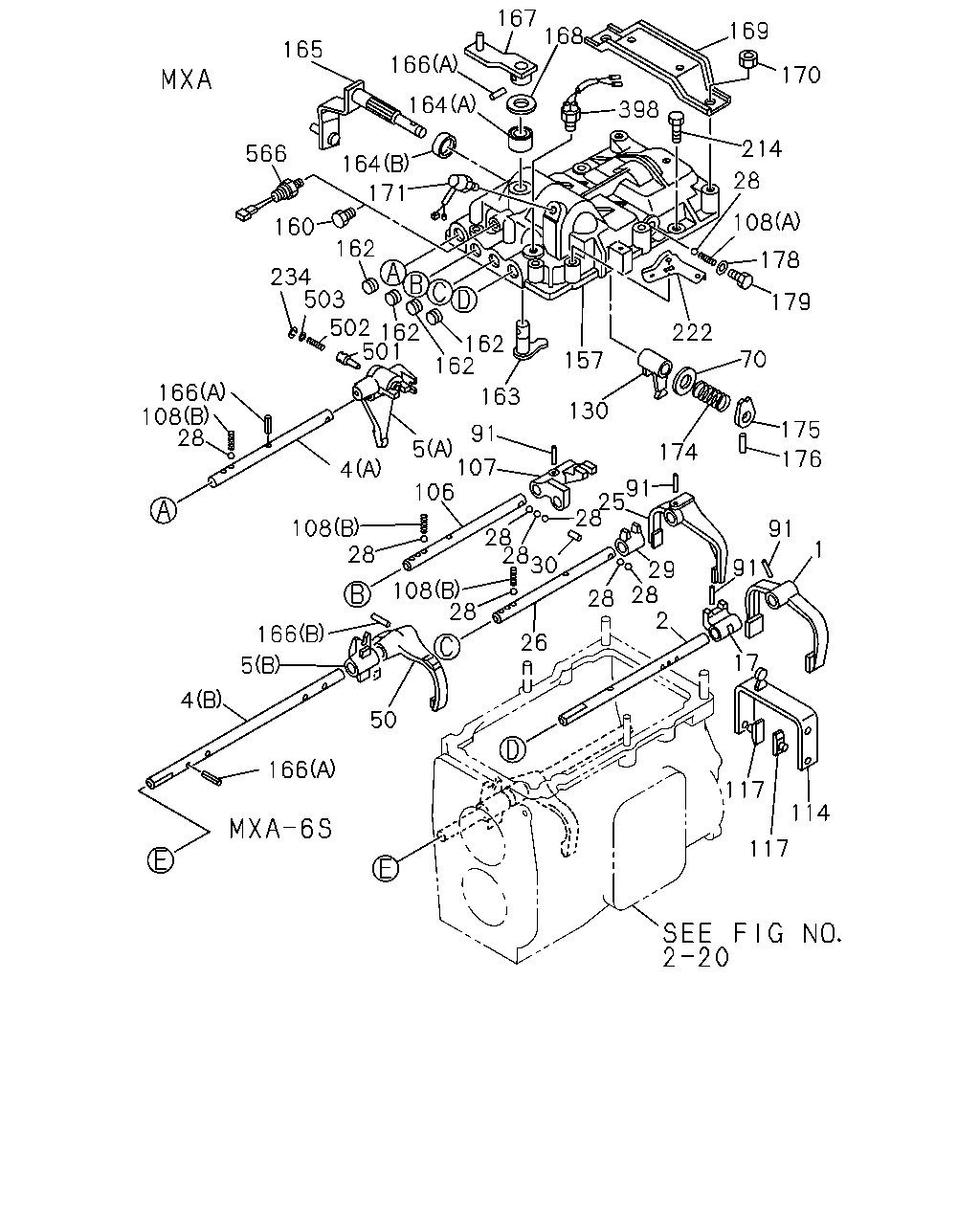

2-30A — GEAR SHIFTER AND QUADRANT BOX (#34223) — 774 parça

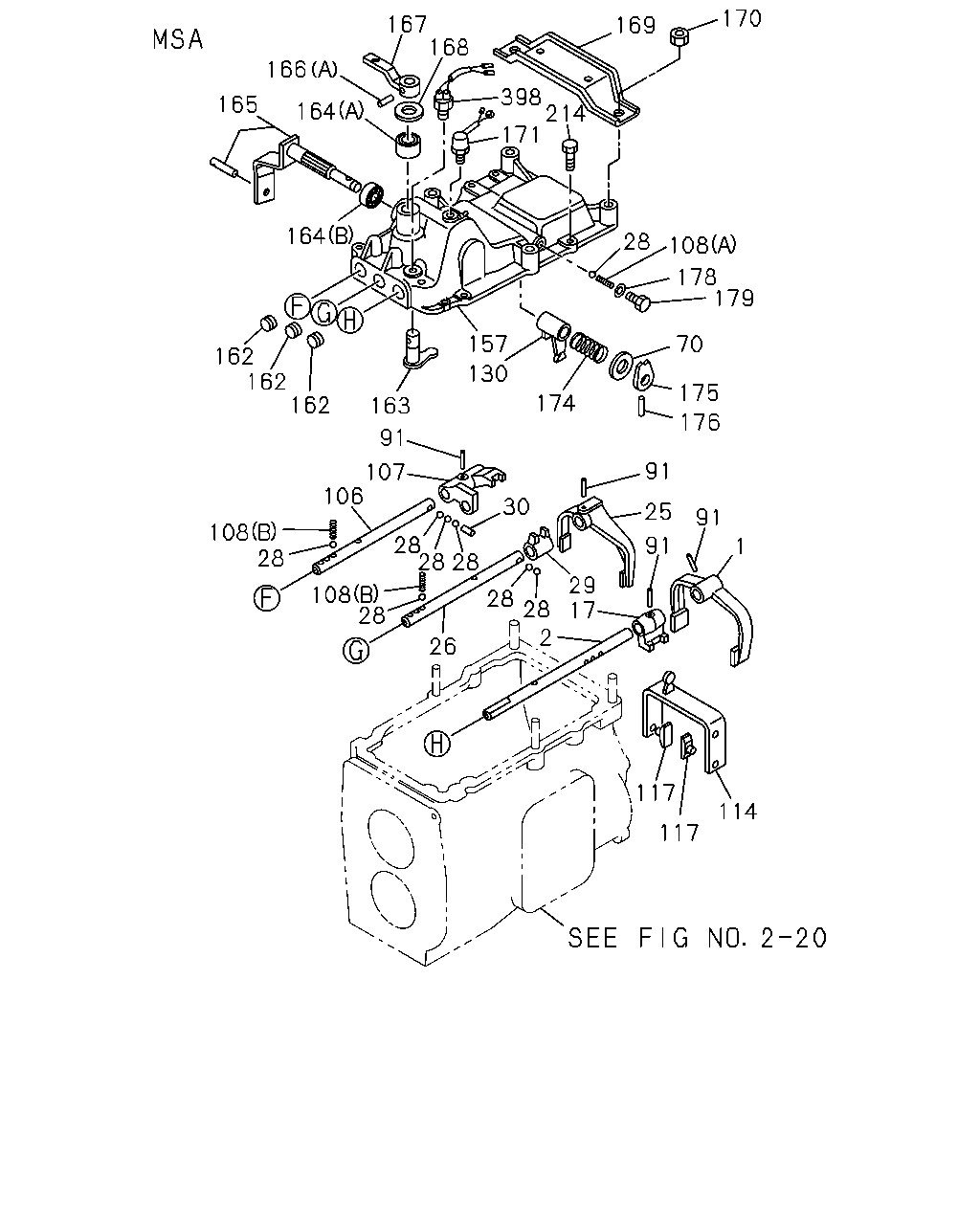

çizim 16017
170 167 168 169 166 398 214 171 165 164 164 28 108 178 179 157 70 162 162 162 130 175 174 163 176 91 91 107 106 30 25 91 108 28 28 91 1 29 17 108 28 28 28 2 26 117 114 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.302 ARM; SHIFT,1ST & REV 8-97011-363-1 01 1 9312-9505 ● ● ●
1 04.302 ARM; SHIFT,1ST & REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97011-363-1 01 1 9506-9510 ● ● ●
1 04.302 ARM; SHIFT,1ST & REV
4BE1 ENG(RLH) 		8-97011-363-1 01 1 9511- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97034-825-1 01 1 9312-9506 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HF1 ENG(RLS) 		8-97034-825-1 01 1 9507-9510 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-825-1 01 1 9511-9711 ● ● ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-825-1 01 1 9712- ● ●
2 04.309 ROD; SHIFT,1ST & REV 8-97078-204-0 01 1 9312-9505 ● ● ●
2 04.309 ROD; SHIFT,1ST & REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97078-204-0 01 1 9506-9510 ● ● ●
2 04.309 ROD; SHIFT,1ST & REV
4BE1 ENG(RLH) 		8-97078-204-0 01 1 9511- ●
2 04.309 ROD; SHIFT,1ST & REV 8-97034-820-0 01 1 9312-9506 ● ●
2 04.309 ROD; SHIFT,1ST & REV
4HF1 ENG(RLS) 		8-97034-820-0 01 1 9507-9510 ● ●
2 04.309 ROD; SHIFT,1ST & REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-820-0 01 1 9511-9711 ● ● ● ●
2 04.309 ROD; SHIFT,1ST & REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-820-0 01 1 9712- ● ●
17 04.303 BLOCK; SHIFT,1ST & REV 8-94135-719-4 01 1 9312-9505 ● ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94135-719-4 01 1 9506-9510 ● ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4BE1 ENG(RLH) 		8-94135-719-4 01 1 9511- ●
17 04.303 BLOCK; SHIFT,1ST & REV 8-97034-829-1 01 1 9312-9506 ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4HF1 ENG(RLS) 		8-97034-829-1 01 1 9507-9510 ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-829-1 01 1 9511-9711 ● ● ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-829-1 01 1 9712- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97011-364-1 01 1 9312-9505 ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97011-364-1 01 1 9506-9510 ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4BE1 ENG(RLH) 		8-97011-364-1 01 1 9511- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97034-826-2 01 1 9312-9506 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97034-826-2 01 1 9507-9510 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-826-2 01 1 9511-9711 ● ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-826-2 01 1 9712- ● ●
26 04.309 ROD; SHIFT,2ND & 3RD 8-97078-205-0 01 1 9312-9505 ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97078-205-0 01 1 9506-9507 ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97129-494-0 01 1 9508-9510 ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4BE1 ENG(RLH) 		8-97129-494-0 01 1 9511- ●
26 04.309 ROD; SHIFT,2ND & 3RD 8-97034-821-0 01 1 9312-9506 ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97034-821-0 01 1 9507-9507 ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97129-493-0 01 1 9508-9510 ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97129-493-0 01 1 9511-9711 ● ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97129-493-0 01 1 9712- ● ●
28 04.311 BALL; INTER LK 9-00097-010-0 08 1 9312-9505 ● ● ●
28 04.311 BALL; INTER LK
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		9-00097-010-0 08 1 9506-9510 ● ● ●
28 04.311 BALL; INTER LK
4BE1 ENG(RLH) 		9-00097-010-0 08 1 9511- ●
28 04.311 BALL; INTER LK 9-00097-010-0 07 1 9312-9506 ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 07 1 9507-9606 ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 07 1 9607-9711 ● ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		9-00097-010-0 07 1 9712- ● ● ●
28 04.311 BALL; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 10 1 9511-9711 ●
29 04.303 BLOCK; SHIFT,2ND & 3RD 8-97017-573-1 01 1 9312-9505 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-97017-573-1 01 1 9506-9506 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97017-573-1 01 1 9507-9510 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4BE1 ENG(RLH) 		8-97017-573-1 01 1 9511- ●
29 04.303 BLOCK; SHIFT,2ND & 3RD 8-97034-830-0 01 1 9312-9506 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97034-830-0 01 1 9507-9510 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-830-0 01 1 9511-9711 ● ● ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-830-0 01 1 9712- ● ●
30 04.307 PIN; INTER LK
04.311 		5-33534-001-0 01 1 9312-9505 ● ● ● ●
30 04.307 PIN; INTER LK
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.311 		5-33534-001-0 01 1 9506-9510 ● ● ● ●
30 04.307 PIN; INTER LK
4JG2 ENG(RJC),4BE1 ENG(RLH) 04.311 		5-33534-001-0 01 1 9511- ● ●
30 04.307 PIN; INTER LK 8-97035-041-0 01 1 9312-9506 ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS) 		8-97035-041-0 01 1 9507-9510 ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-041-0 01 1 9511-9711 ● ● ●
30 04.307 PIN; INTER LK
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-041-0 01 1 9712- ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-041-0 02 1 9511-9711 ●
70 04.302 WASHER; PL,SHIFT LEVER 8-94461-345-0 01 1 9312-9410 ● ● ● ● ●
70 04.302 WASHER; PL,SHIFT LEVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94461-345-0 01 1 9411-9510 ● ● ● ● ●
70 04.302 WASHER; PL,SHIFT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94461-345-0 01 1 9511-9711 ● ● ● ● ●
70 04.302 WASHER; PL,SHIFT LEVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94461-345-0 01 1 9712- ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 03 1 9312-9410 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9411-9510 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9511-9711 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9712- ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 02 1 9312-9410 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32 		8-97011-596-2 02 1 9411-9510 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32 		8-97011-596-2 02 1 9511-9711 ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 06 1 9312-9506 ●
91 04.302 PIN; SPR,SHIFT ARM
4JG2 ENG(RJC) 04.303 L=25 OD=5 		8-94135-771-0 06 1 9507- ●
91 04.302 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 03 1 9511-9711 ●
91 04.302 PIN; SPR,SHIFT ARM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) L=32 		8-97011-596-2 02 1 9712- ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97078-206-0 01 1 9312-9505 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97078-206-0 01 1 9506-9510 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4BE1 ENG(RLH) 		8-97078-206-0 01 1 9511- ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97034-822-0 01 1 9312-9506 ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HF1 ENG(RLS) 		8-97034-822-0 01 1 9507-9510 ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-822-0 01 1 9511-9609 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97166-578-0 01 1 9610-9711 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97166-578-0 01 1 9712- ● ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97129-450-0 01 1 9511-9609 ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97166-579-0 01 1 9610-9711 ●
107 04.303 BLOCK; SHIFT,OD TO TOP 8-94135-718-2 01 1 9312-9505 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-94135-718-2 01 1 9506-9506 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94135-718-2 01 1 9507-9510 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4BE1 ENG(RLH) 		8-94135-718-2 01 1 9511- ●
107 04.303 BLOCK; SHIFT,OD TO TOP 8-97034-832-0 01 1 9312-9506 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HF1 ENG(RLS) 		8-97034-832-0 01 1 9507-9510 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-832-0 01 1 9511-9711 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-832-0 01 1 9712- ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-831-1 01 1 9511-9711 ●
107 04.303 BLOCK; SHIFT,OD TO TOP 8-97117-725-0 01 1 9511-9711 ●
108 04.311 SPRING; LOCK BALL
(B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9312-9506 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9507-9510 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9511-9606 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9607-9711 ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
(A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9312-9505 ● ● ●
108 04.311 SPRING; LOCK BALL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9506-9510 ● ● ●
108 04.311 SPRING; LOCK BALL
4BE1 ENG(RLH) (A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9511- ●
108 04.311 SPRING; LOCK BALL
(A) 		8-97035-053-0 01 1 9312-9506 ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS) (A) 		8-97035-053-0 01 1 9507-9510 ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97035-053-0 01 1 9511-9711 ● ● ●
108 04.311 SPRING; LOCK BALL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (A) 		8-97035-053-0 01 1 9712- ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 04 1 9511-9711 ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9712- ● ● ● ●
114 04.302 ARM; SHIFT,OD TO TOP 8-94316-994-1 01 1 9312-9505 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-94316-994-1 01 1 9506-9506 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94316-994-1 01 1 9507-9510 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4BE1 ENG(RLH) 		8-94316-994-1 01 1 9511- ●
114 04.302 ARM; SHIFT,OD TO TOP
4BD2 ENG(RLW) 04.303 		8-94178-520-1 01 1 9312-9510 ●
114 04.302 ARM; SHIFT,OD TO TOP 8-97129-451-0 01 1 9511-9711 ●
114 04.302 ARM; SHIFT,OD TO TOP 8-97034-827-1 01 1 9312-9506 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4HF1 ENG(RLS) 		8-97034-827-1 01 1 9507-9510 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-827-1 01 1 9511-9711 ● ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-827-1 01 1 9712- ● ●
117 04.302 PIECE; SHIFT,OD TO TOP 8-94316-996-0 02 1 9312-9506 ● ● ● ●
117 04.302 PIECE; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94316-996-0 02 1 9507-9510 ● ● ● ●
117 04.302 PIECE; SHIFT,OD TO TOP
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94316-996-0 02 1 9511-9711 ● ● ● ●
117 04.302 PIECE; SHIFT,OD TO TOP
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94316-996-0 02 1 9712- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94340-131-2 01 1 9312-9410 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94340-131-2 01 1 9411-9510 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94340-131-2 01 1 9511-9711 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94340-131-2 01 1 9712- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 9312-9506 ●
130 04.302 LEVER; SHIFT,INTERNAL
4JG2 ENG(RJC) 		8-94105-141-2 01 1 9507- ●
157 04.105 BOX; QUAD,TRANS 8-97048-844-0 01 1 9312-9505 ● ● ●
157 04.105 BOX; QUAD,TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97048-844-0 01 1 9506-9510 ● ● ●
157 04.105 BOX; QUAD,TRANS
4BE1 ENG(RLH) 		8-97048-844-0 01 1 9511- ●
157 04.105 BOX; QUAD,TRANS 8-97034-814-1 01 1 9312-9506 ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS) 		8-97034-814-1 01 1 9507-9510 ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-814-1 01 1 9511-9610 ● ● ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-814-1 01 1 9611-9711 ●
157 04.105 BOX; QUAD,TRANS
4HE1 ENG(RLY) 		8-97177-066-0 01 1 9712- ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97167-640-0 01 1 9611-9711 ● ● ●
157 04.105 BOX; QUAD,TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97167-640-0 01 1 9712- ● ●
157 04.105 BOX; QUAD,TRANS 8-94340-145-0 01 1 9312-9506 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) 		8-94340-145-0 01 1 9507-9710 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 9711-9711 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) 		8-94340-145-0 01 1 9712- ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 		8-94340-146-0 01 1 9711-9711 ●
162 04.105 COVER; SHIFT ROD,QUAD BOX 8-94101-319-0 03 1 9312-9505 ● ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94101-319-0 03 1 9506-9510 ● ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4BE1 ENG(RLH) 		8-94101-319-0 03 1 9511- ●
162 04.105 COVER; SHIFT ROD,QUAD BOX 8-94101-319-0 04 1 9312-9506 ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4HF1 ENG(RLS) 		8-94101-319-0 04 1 9507-9510 ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94101-319-0 04 1 9511-9711 ● ● ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94101-319-0 04 1 9712- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-94159-268-1 01 1 9312-9505 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94159-268-1 01 1 9506-9510 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-94159-268-1 01 1 9511- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97034-886-0 01 1 9312-9506 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HF1 ENG(RLS) 		8-97034-886-0 01 1 9507-9510 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-886-0 01 1 9511-9711 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-886-0 01 1 9712- ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HE1 ENG(RLY) 		8-97177-068-0 01 1 9712- ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27 		8-94128-784-0 01 1 9312-9410 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27 		8-94128-784-0 01 1 9411-9510 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27 		8-94128-784-0 01 1 9511-9711 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.309 (A) OD=27 		8-94128-784-0 01 1 9712- ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32 		8-94462-019-0 01 1 9312-9410 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32 		8-94462-019-0 01 1 9411-9510 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32 		8-94462-019-0 01 1 9511-9711 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (B) OD=32 		8-94462-019-0 01 1 9712- ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27 		8-94128-784-0 02 1 9312-9506 ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.309 OD=27 		8-94128-784-0 02 1 9507- ●
165 04.302 LEVER; SHIFT 8-97035-556-0 01 1 9312-9505 ● ● ●
165 04.302 LEVER; SHIFT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-556-0 01 1 9506-9510 ● ● ●
165 04.302 LEVER; SHIFT
4BE1 ENG(RLH) 		8-97035-556-0 01 1 9511- ●
165 04.302 LEVER; SHIFT 8-97034-816-0 01 1 9312-9506 ● ●
165 04.302 LEVER; SHIFT
4HF1 ENG(RLS) 		8-97034-816-0 01 1 9507-9510 ● ●
165 04.302 LEVER; SHIFT
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-816-0 01 1 9511-9711 ● ● ● ●
165 04.302 LEVER; SHIFT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-816-0 01 1 9712- ● ●
165 04.302 LEVER; SHIFT 8-97036-221-0 01 1 9312-9506 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) 		8-97036-221-0 01 1 9507-9710 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 9711-9711 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) 		8-97036-221-0 01 1 9712- ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 		8-97035-557-0 01 1 9711-9711 ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9312-9506 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9507-9510 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9511-9606 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9607-9711 ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 03 1 9511-9711 ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9712- ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) L=32 		8-97011-596-2 01 1 9511-9711 ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-559-1 01 1 9312-9505 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-559-1 01 1 9506-9510 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4BE1 ENG(RLH) 		8-97035-559-1 01 1 9511- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-558-1 01 1 9312-9506 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1 ENG(RLS) 		8-97035-558-1 01 1 9507-9510 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-558-1 01 1 9511-9711 ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-558-1 01 1 9712- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 9312-9506 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JG2 ENG(RJC) 		8-97035-560-1 01 1 9507- ●
168 04.302 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 9312-9506 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9507-9510 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9511-9606 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9607-9711 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-94249-250-1 01 1 9712- ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS 8-94112-892-2 02 1 9312-9410 ● ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94112-892-2 02 1 9411-9510 ● ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94112-892-0 02 1 9511-9711 ● ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94112-892-1 02 1 9712- ● ● ●
170 04.105 NUT; CONT BOX
M12 FLANGE 		8-94249-242-0 04 1 9312-9410 ● ● ● ● ●
170 04.105 NUT; CONT BOX
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE 		8-94249-242-0 04 1 9411-9510 ● ● ● ● ●
170 04.105 NUT; CONT BOX
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE 		8-94249-242-0 04 1 9511-9711 ● ● ● ● ●
170 04.105 NUT; CONT BOX
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) M12 FLANGE 		8-94249-242-0 04 1 9712- ● ● ●
171 04.054 SWITCH; NEUTRAL 8-97065-416-0 01 1 9312-9405 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97065-416-0 01 1 9312-9405 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97065-416-0 01 1 9312-9405 ●
171 04.054 SWITCH; NEUTRAL 8-97113-440-1 01 1 9406-9508 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97113-440-1 01 1 9406-9508 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97113-440-1 01 1 9406-9508 ●
171 04.054 SWITCH; NEUTRAL 8-97137-656-0 01 1 9509-9509 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97137-656-0 01 1 9509-9509 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97137-656-0 01 1 9509-9509 ●
171 04.054 SWITCH; NEUTRAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-656-0 01 1 9510-9510 ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97137-656-0 01 1 9510-9510 ●
171 04.054 SWITCH; NEUTRAL
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4JG2 ENG(RJC) 		8-97137-656-0 01 1 9510-9510 ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-656-0 01 1 9511-9608 ● ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97165-946-0 01 1 9609-9711 ● ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97165-946-0 01 1 9712- ● ● ● ●
174 04.307 SPRING; REV 8-97076-907-0 01 1 9312-9505 ● ● ●
174 04.307 SPRING; REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97076-907-0 01 1 9506-9510 ● ● ●
174 04.307 SPRING; REV
4BE1 ENG(RLH) 		8-97076-907-0 01 1 9511- ●
174 04.307 SPRING; REV 8-97035-052-0 01 1 9312-9506 ● ●
174 04.307 SPRING; REV
4HF1 ENG(RLS) 		8-97035-052-0 01 1 9507-9510 ● ●
174 04.307 SPRING; REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-052-0 01 1 9511-9711 ● ● ●
174 04.307 SPRING; REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-052-0 01 1 9712- ● ●
174 04.307 SPRING; REV 8-97031-927-0 01 1 9312-9506 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC) 		8-97031-927-0 01 1 9507- ●
174 04.307 SPRING; REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97076-906-0 01 1 9511-9711 ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-97034-819-0 01 1 9312-9410 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-819-0 01 1 9411-9510 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-819-0 01 1 9511-9711 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-819-0 01 1 9712- ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-94249-048-2 01 1 9312-9506 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) 		8-94249-048-2 01 1 9507-9710 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 9711-9711 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) 		8-94249-048-2 01 1 9712- ●
176 04.302 PIN; SPR,STOPPER
04.555 		9-09678-549-0 02 1 9312-9506 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9507-9510 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9511-9606 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9607-9710 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.555 		9-09678-549-0 01 1 9711-9711 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 04.555 		9-09678-549-0 02 1 9712- ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9711-9711 ● ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 08.929 		9-09571-612-0 01 1 9312-9410 ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929 		9-09571-612-0 01 1 9411-9510 ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929 		9-09571-612-0 01 1 9511-9711 ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 08.929 		9-09571-612-0 01 1 9712- ● ● ●
179 04.311 PLUG; LOCK BALL 8-97031-668-0 01 1 9312-9410 ● ● ● ● ●
179 04.311 PLUG; LOCK BALL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97031-668-0 01 1 9411-9510 ● ● ● ● ●
179 04.311 PLUG; LOCK BALL
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97031-668-0 01 1 9511-9711 ● ● ● ● ●
179 04.311 PLUG; LOCK BALL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97031-668-0 01 1 9712- ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X25 		8-94128-786-0 05 1 9312-9505 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.105 M8X25 		8-94128-786-0 05 1 9506-9510 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BE1 ENG(RLH) 04.105 M8X25 		8-94128-786-0 05 1 9511- ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X45 		8-94132-164-0 02 1 9312-9505 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.105 M8X45 		8-94132-164-0 02 1 9506-9510 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BE1 ENG(RLH) 04.105 M8X45 		8-94132-164-0 02 1 9511- ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X25 		8-94128-786-0 04 1 9312-9506 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS) 04.105 M8X25 		8-94128-786-0 04 1 9507-9510 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.105 M8X25 		8-94128-786-0 04 1 9511-9711 ● ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.105 M8X25 		8-94128-786-0 04 1 9712- ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X45 		8-94132-164-0 06 1 9312-9506 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS) 04.105 M8X45 		8-94132-164-0 06 1 9507-9510 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.105 M8X45 		8-94132-164-0 06 1 9511-9711 ● ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.105 M8X45 		8-94132-164-0 06 1 9712- ● ●
398 02.698 SWITCH; REV LAMP 8-97071-665-0 01 1 9312-9405 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-97113-435-1 01 1 9406-9506 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97113-435-1 01 1 9507-9508 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9509-9510 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9511-9606 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9607-9608 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97165-947-0 01 1 9609-9711 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97165-947-0 01 1 9712- ● ● ● ●
çizim 16033
167 168 169 165 166 170 164 398 214 566 164 28 171 108 160 162 178 234 503 502 162 501 179 222 162 162 70 157 166 108 28 163 130 175 91 5 174 176 107 106 4 91 25 28 108 28 91 28 28 30 1 91 29 28 2 108 28 28 166 26 17 5 4 50 166 117 114 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.302 ARM; SHIFT,1ST & REV 8-97011-363-1 01 1 9312-9505 ● ● ●
1 04.302 ARM; SHIFT,1ST & REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97011-363-1 01 1 9506-9510 ● ● ●
1 04.302 ARM; SHIFT,1ST & REV
4BE1 ENG(RLH) 		8-97011-363-1 01 1 9511- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97034-825-1 01 1 9312-9506 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HF1 ENG(RLS) 		8-97034-825-1 01 1 9507-9510 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-825-1 01 1 9511-9711 ● ● ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-825-1 01 1 9712- ● ●
2 04.309 ROD; SHIFT,1ST & REV 8-97078-204-0 01 1 9312-9505 ● ● ●
2 04.309 ROD; SHIFT,1ST & REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97078-204-0 01 1 9506-9510 ● ● ●
2 04.309 ROD; SHIFT,1ST & REV
4BE1 ENG(RLH) 		8-97078-204-0 01 1 9511- ●
2 04.309 ROD; SHIFT,1ST & REV 8-97034-820-0 01 1 9312-9506 ● ●
2 04.309 ROD; SHIFT,1ST & REV
4HF1 ENG(RLS) 		8-97034-820-0 01 1 9507-9510 ● ●
2 04.309 ROD; SHIFT,1ST & REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-820-0 01 1 9511-9711 ● ● ● ●
2 04.309 ROD; SHIFT,1ST & REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-820-0 01 1 9712- ● ●
4 04.309 ROD; SHIFT,6TH
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		8-97034-824-0 01 1 9511-9711 ●
4 04.309 ROD; SHIFT,6TH
4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97129-495-0 01 1 9511-9711 ●
5 04.303 BLOCK; SHIFT,6TH
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) 		8-97034-836-0 01 1 9511-9711 ●
5 04.303 BLOCK; SHIFT,6TH
4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97123-420-0 01 1 9511-9711 ●
17 04.303 BLOCK; SHIFT,1ST & REV 8-94135-719-4 01 1 9312-9505 ● ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94135-719-4 01 1 9506-9510 ● ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4BE1 ENG(RLH) 		8-94135-719-4 01 1 9511- ●
17 04.303 BLOCK; SHIFT,1ST & REV 8-97034-829-1 01 1 9312-9506 ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4HF1 ENG(RLS) 		8-97034-829-1 01 1 9507-9510 ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-829-1 01 1 9511-9711 ● ● ● ●
17 04.303 BLOCK; SHIFT,1ST & REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-829-1 01 1 9712- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97011-364-1 01 1 9312-9505 ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97011-364-1 01 1 9506-9510 ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4BE1 ENG(RLH) 		8-97011-364-1 01 1 9511- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97034-826-2 01 1 9312-9506 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97034-826-2 01 1 9507-9510 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-826-2 01 1 9511-9711 ● ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-826-2 01 1 9712- ● ●
26 04.309 ROD; SHIFT,2ND & 3RD 8-97078-205-0 01 1 9312-9505 ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97078-205-0 01 1 9506-9507 ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97129-494-0 01 1 9508-9510 ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4BE1 ENG(RLH) 		8-97129-494-0 01 1 9511- ●
26 04.309 ROD; SHIFT,2ND & 3RD 8-97034-821-0 01 1 9312-9506 ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97034-821-0 01 1 9507-9507 ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97129-493-0 01 1 9508-9510 ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97129-493-0 01 1 9511-9711 ● ● ● ●
26 04.309 ROD; SHIFT,2ND & 3RD
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97129-493-0 01 1 9712- ● ●
28 04.311 BALL; INTER LK 9-00097-010-0 08 1 9312-9505 ● ● ●
28 04.311 BALL; INTER LK
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		9-00097-010-0 08 1 9506-9510 ● ● ●
28 04.311 BALL; INTER LK
4BE1 ENG(RLH) 		9-00097-010-0 08 1 9511- ●
28 04.311 BALL; INTER LK 9-00097-010-0 07 1 9312-9506 ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 07 1 9507-9606 ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 07 1 9607-9711 ● ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		9-00097-010-0 07 1 9712- ● ● ●
28 04.311 BALL; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 10 1 9511-9711 ●
29 04.303 BLOCK; SHIFT,2ND & 3RD 8-97017-573-1 01 1 9312-9505 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-97017-573-1 01 1 9506-9506 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97017-573-1 01 1 9507-9510 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4BE1 ENG(RLH) 		8-97017-573-1 01 1 9511- ●
29 04.303 BLOCK; SHIFT,2ND & 3RD 8-97034-830-0 01 1 9312-9506 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4HF1 ENG(RLS) 		8-97034-830-0 01 1 9507-9510 ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-830-0 01 1 9511-9711 ● ● ● ●
29 04.303 BLOCK; SHIFT,2ND & 3RD
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-830-0 01 1 9712- ● ●
30 04.307 PIN; INTER LK
04.311 		5-33534-001-0 01 1 9312-9505 ● ● ● ●
30 04.307 PIN; INTER LK
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.311 		5-33534-001-0 01 1 9506-9510 ● ● ● ●
30 04.307 PIN; INTER LK
4JG2 ENG(RJC),4BE1 ENG(RLH) 04.311 		5-33534-001-0 01 1 9511- ● ●
30 04.307 PIN; INTER LK 8-97035-041-0 01 1 9312-9506 ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS) 		8-97035-041-0 01 1 9507-9510 ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-041-0 01 1 9511-9711 ● ● ●
30 04.307 PIN; INTER LK
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-041-0 01 1 9712- ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-041-0 02 1 9511-9711 ●
50 04.302 ARM; SHIFT,6TH
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-828-1 01 1 9511-9711 ●
70 04.302 WASHER; PL,SHIFT LEVER 8-94461-345-0 01 1 9312-9410 ● ● ● ● ●
70 04.302 WASHER; PL,SHIFT LEVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94461-345-0 01 1 9411-9510 ● ● ● ● ●
70 04.302 WASHER; PL,SHIFT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94461-345-0 01 1 9511-9711 ● ● ● ● ●
70 04.302 WASHER; PL,SHIFT LEVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94461-345-0 01 1 9712- ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 03 1 9312-9410 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9411-9510 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9511-9711 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9712- ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 02 1 9312-9410 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32 		8-97011-596-2 02 1 9411-9510 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32 		8-97011-596-2 02 1 9511-9711 ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 06 1 9312-9506 ●
91 04.302 PIN; SPR,SHIFT ARM
4JG2 ENG(RJC) 04.303 L=25 OD=5 		8-94135-771-0 06 1 9507- ●
91 04.302 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 03 1 9511-9711 ●
91 04.302 PIN; SPR,SHIFT ARM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) L=32 		8-97011-596-2 02 1 9712- ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97078-206-0 01 1 9312-9505 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97078-206-0 01 1 9506-9510 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4BE1 ENG(RLH) 		8-97078-206-0 01 1 9511- ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97034-822-0 01 1 9312-9506 ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HF1 ENG(RLS) 		8-97034-822-0 01 1 9507-9510 ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-822-0 01 1 9511-9609 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97166-578-0 01 1 9610-9711 ● ● ●
106 04.309 ROD; SHIFT,OD TO TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97166-578-0 01 1 9712- ● ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97129-450-0 01 1 9511-9609 ●
106 04.309 ROD; SHIFT,OD TO TOP 8-97166-579-0 01 1 9610-9711 ●
107 04.303 BLOCK; SHIFT,OD TO TOP 8-94135-718-2 01 1 9312-9505 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-94135-718-2 01 1 9506-9506 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94135-718-2 01 1 9507-9510 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4BE1 ENG(RLH) 		8-94135-718-2 01 1 9511- ●
107 04.303 BLOCK; SHIFT,OD TO TOP 8-97034-832-0 01 1 9312-9506 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HF1 ENG(RLS) 		8-97034-832-0 01 1 9507-9510 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-832-0 01 1 9511-9711 ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-832-0 01 1 9712- ● ●
107 04.303 BLOCK; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-831-1 01 1 9511-9711 ●
107 04.303 BLOCK; SHIFT,OD TO TOP 8-97117-725-0 01 1 9511-9711 ●
108 04.311 SPRING; LOCK BALL
(B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9312-9506 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9507-9510 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9511-9606 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9607-9711 ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
(A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9312-9505 ● ● ●
108 04.311 SPRING; LOCK BALL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9506-9510 ● ● ●
108 04.311 SPRING; LOCK BALL
4BE1 ENG(RLH) (A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9511- ●
108 04.311 SPRING; LOCK BALL
(A) 		8-97035-053-0 01 1 9312-9506 ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS) (A) 		8-97035-053-0 01 1 9507-9510 ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97035-053-0 01 1 9511-9711 ● ● ●
108 04.311 SPRING; LOCK BALL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (A) 		8-97035-053-0 01 1 9712- ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 04 1 9511-9711 ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9712- ● ● ● ●
114 04.302 ARM; SHIFT,OD TO TOP 8-94316-994-1 01 1 9312-9505 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-94316-994-1 01 1 9506-9506 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94316-994-1 01 1 9507-9510 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4BE1 ENG(RLH) 		8-94316-994-1 01 1 9511- ●
114 04.302 ARM; SHIFT,OD TO TOP
4BD2 ENG(RLW) 04.303 		8-94178-520-1 01 1 9312-9510 ●
114 04.302 ARM; SHIFT,OD TO TOP 8-97129-451-0 01 1 9511-9711 ●
114 04.302 ARM; SHIFT,OD TO TOP 8-97034-827-1 01 1 9312-9506 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4HF1 ENG(RLS) 		8-97034-827-1 01 1 9507-9510 ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-827-1 01 1 9511-9711 ● ● ●
114 04.302 ARM; SHIFT,OD TO TOP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-827-1 01 1 9712- ● ●
117 04.302 PIECE; SHIFT,OD TO TOP 8-94316-996-0 02 1 9312-9506 ● ● ● ●
117 04.302 PIECE; SHIFT,OD TO TOP
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94316-996-0 02 1 9507-9510 ● ● ● ●
117 04.302 PIECE; SHIFT,OD TO TOP
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94316-996-0 02 1 9511-9711 ● ● ● ●
117 04.302 PIECE; SHIFT,OD TO TOP
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94316-996-0 02 1 9712- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94340-131-2 01 1 9312-9410 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94340-131-2 01 1 9411-9510 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94340-131-2 01 1 9511-9711 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94340-131-2 01 1 9712- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 9312-9506 ●
130 04.302 LEVER; SHIFT,INTERNAL
4JG2 ENG(RJC) 		8-94105-141-2 01 1 9507- ●
157 04.105 BOX; QUAD,TRANS 8-97048-844-0 01 1 9312-9505 ● ● ●
157 04.105 BOX; QUAD,TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97048-844-0 01 1 9506-9510 ● ● ●
157 04.105 BOX; QUAD,TRANS
4BE1 ENG(RLH) 		8-97048-844-0 01 1 9511- ●
157 04.105 BOX; QUAD,TRANS 8-97034-814-1 01 1 9312-9506 ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS) 		8-97034-814-1 01 1 9507-9510 ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-814-1 01 1 9511-9610 ● ● ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-814-1 01 1 9611-9711 ●
157 04.105 BOX; QUAD,TRANS
4HE1 ENG(RLY) 		8-97177-066-0 01 1 9712- ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97167-640-0 01 1 9611-9711 ● ● ●
157 04.105 BOX; QUAD,TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97167-640-0 01 1 9712- ● ●
157 04.105 BOX; QUAD,TRANS 8-94340-145-0 01 1 9312-9506 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) 		8-94340-145-0 01 1 9507-9710 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 9711-9711 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) 		8-94340-145-0 01 1 9712- ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 		8-94340-146-0 01 1 9711-9711 ●
160 04.105 PLUG; BLIND
4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8> 08.971 M14X9 		9-99202-314-0 01 1 9604-9711 ●
162 04.105 COVER; SHIFT ROD,QUAD BOX 8-94101-319-0 03 1 9312-9505 ● ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94101-319-0 03 1 9506-9510 ● ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4BE1 ENG(RLH) 		8-94101-319-0 03 1 9511- ●
162 04.105 COVER; SHIFT ROD,QUAD BOX 8-94101-319-0 04 1 9312-9506 ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4HF1 ENG(RLS) 		8-94101-319-0 04 1 9507-9510 ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94101-319-0 04 1 9511-9711 ● ● ● ●
162 04.105 COVER; SHIFT ROD,QUAD BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94101-319-0 04 1 9712- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-94159-268-1 01 1 9312-9505 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94159-268-1 01 1 9506-9510 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-94159-268-1 01 1 9511- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97034-886-0 01 1 9312-9506 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HF1 ENG(RLS) 		8-97034-886-0 01 1 9507-9510 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-886-0 01 1 9511-9711 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-886-0 01 1 9712- ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HE1 ENG(RLY) 		8-97177-068-0 01 1 9712- ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27 		8-94128-784-0 01 1 9312-9410 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27 		8-94128-784-0 01 1 9411-9510 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27 		8-94128-784-0 01 1 9511-9711 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.309 (A) OD=27 		8-94128-784-0 01 1 9712- ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32 		8-94462-019-0 01 1 9312-9410 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32 		8-94462-019-0 01 1 9411-9510 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32 		8-94462-019-0 01 1 9511-9711 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (B) OD=32 		8-94462-019-0 01 1 9712- ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27 		8-94128-784-0 02 1 9312-9506 ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.309 OD=27 		8-94128-784-0 02 1 9507- ●
165 04.302 LEVER; SHIFT 8-97035-556-0 01 1 9312-9505 ● ● ●
165 04.302 LEVER; SHIFT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-556-0 01 1 9506-9510 ● ● ●
165 04.302 LEVER; SHIFT
4BE1 ENG(RLH) 		8-97035-556-0 01 1 9511- ●
165 04.302 LEVER; SHIFT 8-97034-816-0 01 1 9312-9506 ● ●
165 04.302 LEVER; SHIFT
4HF1 ENG(RLS) 		8-97034-816-0 01 1 9507-9510 ● ●
165 04.302 LEVER; SHIFT
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-816-0 01 1 9511-9711 ● ● ● ●
165 04.302 LEVER; SHIFT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-816-0 01 1 9712- ● ●
165 04.302 LEVER; SHIFT 8-97036-221-0 01 1 9312-9506 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) 		8-97036-221-0 01 1 9507-9710 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 9711-9711 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) 		8-97036-221-0 01 1 9712- ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 		8-97035-557-0 01 1 9711-9711 ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9312-9506 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9507-9510 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9511-9606 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9607-9711 ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 03 1 9511-9711 ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9712- ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) L=32 		8-97011-596-2 01 1 9511-9711 ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-559-1 01 1 9312-9505 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-559-1 01 1 9506-9510 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4BE1 ENG(RLH) 		8-97035-559-1 01 1 9511- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-558-1 01 1 9312-9506 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1 ENG(RLS) 		8-97035-558-1 01 1 9507-9510 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-558-1 01 1 9511-9711 ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-558-1 01 1 9712- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 9312-9506 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JG2 ENG(RJC) 		8-97035-560-1 01 1 9507- ●
168 04.302 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 9312-9506 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9507-9510 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9511-9606 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9607-9711 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-94249-250-1 01 1 9712- ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS 8-94112-892-2 02 1 9312-9410 ● ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94112-892-2 02 1 9411-9510 ● ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94112-892-0 02 1 9511-9711 ● ● ● ● ●
169 00.029 BRACKET; ENG MTG TO TRANS
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94112-892-1 02 1 9712- ● ● ●
170 04.105 NUT; CONT BOX
M12 FLANGE 		8-94249-242-0 04 1 9312-9410 ● ● ● ● ●
170 04.105 NUT; CONT BOX
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE 		8-94249-242-0 04 1 9411-9510 ● ● ● ● ●
170 04.105 NUT; CONT BOX
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE 		8-94249-242-0 04 1 9511-9711 ● ● ● ● ●
170 04.105 NUT; CONT BOX
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) M12 FLANGE 		8-94249-242-0 04 1 9712- ● ● ●
171 04.054 SWITCH; NEUTRAL 8-97065-416-0 01 1 9312-9405 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97065-416-0 01 1 9312-9405 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97065-416-0 01 1 9312-9405 ●
171 04.054 SWITCH; NEUTRAL 8-97113-440-1 01 1 9406-9508 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97113-440-1 01 1 9406-9508 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97113-440-1 01 1 9406-9508 ●
171 04.054 SWITCH; NEUTRAL 8-97137-656-0 01 1 9509-9509 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97137-656-0 01 1 9509-9509 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97137-656-0 01 1 9509-9509 ●
171 04.054 SWITCH; NEUTRAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-656-0 01 1 9510-9510 ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97137-656-0 01 1 9510-9510 ●
171 04.054 SWITCH; NEUTRAL
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4JG2 ENG(RJC) 		8-97137-656-0 01 1 9510-9510 ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-656-0 01 1 9511-9608 ● ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97165-946-0 01 1 9609-9711 ● ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97165-946-0 01 1 9712- ● ● ● ●
174 04.307 SPRING; REV 8-97076-907-0 01 1 9312-9505 ● ● ●
174 04.307 SPRING; REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97076-907-0 01 1 9506-9510 ● ● ●
174 04.307 SPRING; REV
4BE1 ENG(RLH) 		8-97076-907-0 01 1 9511- ●
174 04.307 SPRING; REV 8-97035-052-0 01 1 9312-9506 ● ●
174 04.307 SPRING; REV
4HF1 ENG(RLS) 		8-97035-052-0 01 1 9507-9510 ● ●
174 04.307 SPRING; REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-052-0 01 1 9511-9711 ● ● ●
174 04.307 SPRING; REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-052-0 01 1 9712- ● ●
174 04.307 SPRING; REV 8-97031-927-0 01 1 9312-9506 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC) 		8-97031-927-0 01 1 9507- ●
174 04.307 SPRING; REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97076-906-0 01 1 9511-9711 ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-97034-819-0 01 1 9312-9410 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-819-0 01 1 9411-9510 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-819-0 01 1 9511-9711 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-819-0 01 1 9712- ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-94249-048-2 01 1 9312-9506 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) 		8-94249-048-2 01 1 9507-9710 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 9711-9711 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) 		8-94249-048-2 01 1 9712- ●
176 04.302 PIN; SPR,STOPPER
04.555 		9-09678-549-0 02 1 9312-9506 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9507-9510 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9511-9606 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9607-9710 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.555 		9-09678-549-0 01 1 9711-9711 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 04.555 		9-09678-549-0 02 1 9712- ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9711-9711 ● ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 08.929 		9-09571-612-0 01 1 9312-9410 ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929 		9-09571-612-0 01 1 9411-9510 ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929 		9-09571-612-0 01 1 9511-9711 ● ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 08.929 		9-09571-612-0 01 1 9712- ● ● ●
179 04.311 PLUG; LOCK BALL 8-97031-668-0 01 1 9312-9410 ● ● ● ● ●
179 04.311 PLUG; LOCK BALL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97031-668-0 01 1 9411-9510 ● ● ● ● ●
179 04.311 PLUG; LOCK BALL
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97031-668-0 01 1 9511-9711 ● ● ● ● ●
179 04.311 PLUG; LOCK BALL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97031-668-0 01 1 9712- ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X25 		8-94128-786-0 05 1 9312-9505 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.105 M8X25 		8-94128-786-0 05 1 9506-9510 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BE1 ENG(RLH) 04.105 M8X25 		8-94128-786-0 05 1 9511- ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X45 		8-94132-164-0 02 1 9312-9505 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.105 M8X45 		8-94132-164-0 02 1 9506-9510 ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4BE1 ENG(RLH) 04.105 M8X45 		8-94132-164-0 02 1 9511- ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X25 		8-94128-786-0 04 1 9312-9506 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS) 04.105 M8X25 		8-94128-786-0 04 1 9507-9510 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.105 M8X25 		8-94128-786-0 04 1 9511-9711 ● ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.105 M8X25 		8-94128-786-0 04 1 9712- ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 M8X45 		8-94132-164-0 06 1 9312-9506 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS) 04.105 M8X45 		8-94132-164-0 06 1 9507-9510 ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.105 M8X45 		8-94132-164-0 06 1 9511-9711 ● ● ● ●
214 04.510 BOLT; CONT BOX,SUB TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.105 M8X45 		8-94132-164-0 06 1 9712- ● ●
222 04.057 BRACKET; CLIP 8-97061-051-0 01 1 9312-9506 ● ●
222 04.057 BRACKET; CLIP
4HF1 ENG(RLS) 		8-97061-051-0 01 1 9507-9510 ● ●
222 04.057 BRACKET; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97061-051-0 01 1 9511-9711 ● ● ● ●
222 04.057 BRACKET; CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97061-051-0 01 1 9712- ● ●
234 04.311 RING; SNAP
4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-09180-117-0 01 1 9511-9711 ●
398 02.698 SWITCH; REV LAMP 8-97071-665-0 01 1 9312-9405 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-97113-435-1 01 1 9406-9506 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97113-435-1 01 1 9507-9508 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9509-9510 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9511-9606 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9607-9608 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97165-947-0 01 1 9609-9711 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97165-947-0 01 1 9712- ● ● ● ●
501 04.311 PLUNGER; SHIFT BLOCK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97123-165-0 01 1 9511-9711 ●
502 04.311 SPRING; PLUNGER
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97123-424-0 01 1 9511-9711 ●
503 04.311 WASHER; PLUNGER
4HF1 ENG(RLS),4BD2 ENG(RLW) ID=4.5 		8-97035-057-0 01 1 9511-9711 ●
566 04.054 SWITCH; SELECT,LOW REV
4HE1 ENG(RLY) 04.052 		8-97177-088-0 01 1 9712- ●
çizim 17439
158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 33 91 99 102 31 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
28 04.311 BALL; INTER LK 9-00097-010-0 08 1 9312-9505 ● ● ●
28 04.311 BALL; INTER LK
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		9-00097-010-0 08 1 9506-9510 ● ● ●
28 04.311 BALL; INTER LK
4BE1 ENG(RLH) 		9-00097-010-0 08 1 9511- ●
28 04.311 BALL; INTER LK 9-00097-010-0 07 1 9312-9506 ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 07 1 9507-9606 ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 07 1 9607-9711 ● ● ● ●
28 04.311 BALL; INTER LK
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		9-00097-010-0 07 1 9712- ● ● ●
28 04.311 BALL; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		9-00097-010-0 10 1 9511-9711 ●
30 04.307 PIN; INTER LK
04.311 		5-33534-001-0 01 1 9312-9505 ● ● ● ●
30 04.307 PIN; INTER LK
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.311 		5-33534-001-0 01 1 9506-9510 ● ● ● ●
30 04.307 PIN; INTER LK
4JG2 ENG(RJC),4BE1 ENG(RLH) 04.311 		5-33534-001-0 01 1 9511- ● ●
30 04.307 PIN; INTER LK 8-97035-041-0 01 1 9312-9506 ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS) 		8-97035-041-0 01 1 9507-9510 ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-041-0 01 1 9511-9711 ● ● ●
30 04.307 PIN; INTER LK
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-041-0 01 1 9712- ● ●
30 04.307 PIN; INTER LK
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-041-0 02 1 9511-9711 ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97011-365-1 01 1 9312-9506 ●
31 04.302 ARM; SHIFT,LOW & 2ND
4JG2 ENG(RJC) 		8-97011-365-1 01 1 9507- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97011-370-1 01 1 9312-9506 ●
33 04.309 ROD; SHIFT,LOW & 2ND
4JG2 ENG(RJC) 		8-97011-370-1 01 1 9507- ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 8-97022-837-2 01 1 9312-9506 ●
51 04.303 BLOCK; SHIFT,1ST & 2ND
4JG2 ENG(RJC) 		8-97022-837-2 01 1 9507- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 03 1 9312-9410 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9411-9510 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9511-9711 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.303 L=25 OD=5 		8-94135-771-0 03 1 9712- ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 02 1 9312-9410 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32 		8-97011-596-2 02 1 9411-9510 ● ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32 		8-97011-596-2 02 1 9511-9711 ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 06 1 9312-9506 ●
91 04.302 PIN; SPR,SHIFT ARM
4JG2 ENG(RJC) 04.303 L=25 OD=5 		8-94135-771-0 06 1 9507- ●
91 04.302 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 03 1 9511-9711 ●
91 04.302 PIN; SPR,SHIFT ARM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) L=32 		8-97011-596-2 02 1 9712- ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97011-371-1 01 1 9312-9506 ●
98 04.309 ROD; SHIFT,TOP & 3RD
4JG2 ENG(RJC) 		8-97011-371-1 01 1 9507- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-97011-366-1 01 1 9312-9506 ●
99 04.302 ARM; SHIFT,4TH & 3RD
4JG2 ENG(RJC) 		8-97011-366-1 01 1 9507- ●
100 04.309 ROD; SHIFT,REV & 5TH 8-94316-923-0 01 1 9312-9506 ●
100 04.309 ROD; SHIFT,REV & 5TH
4JG2 ENG(RJC) 		8-94316-923-0 01 1 9507- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-97077-342-0 01 1 9312-9401 ●
101 04.302 ARM; SHIFT,REV & 5TH 8-97107-545-0 01 1 9402-9506 ●
101 04.302 ARM; SHIFT,REV & 5TH
4JG2 ENG(RJC) 		8-97107-545-0 01 1 9507- ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 8-97017-573-1 01 1 9312-9506 ●
102 04.303 BLOCK; SHIFT,3RD & 4TH
4JG2 ENG(RJC) 		8-97017-573-1 01 1 9507- ●
103 04.303 BLOCK; SHIFT,REV TO OD 8-94135-719-4 01 1 9312-9506 ●
103 04.303 BLOCK; SHIFT,REV TO OD
4JG2 ENG(RJC) 		8-94135-719-4 01 1 9507- ●
104 04.311 PLUG; PLATE
04.105 OD=16 		9-09201-316-0 01 1 9312-9506 ●
104 04.311 PLUG; PLATE
4JG2 ENG(RJC) 04.105 OD=16 		9-09201-316-0 01 1 9507- ●
108 04.311 SPRING; LOCK BALL
(B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9312-9506 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9507-9510 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9511-9606 ● ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9607-9711 ● ● ● ● ●
108 04.311 SPRING; LOCK BALL
(A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9312-9505 ● ● ●
108 04.311 SPRING; LOCK BALL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9506-9510 ● ● ●
108 04.311 SPRING; LOCK BALL
4BE1 ENG(RLH) (A) OD=21.9 L=35.5 		8-97022-866-0 01 1 9511- ●
108 04.311 SPRING; LOCK BALL
(A) 		8-97035-053-0 01 1 9312-9506 ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS) (A) 		8-97035-053-0 01 1 9507-9510 ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97035-053-0 01 1 9511-9711 ● ● ●
108 04.311 SPRING; LOCK BALL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (A) 		8-97035-053-0 01 1 9712- ● ●
108 04.311 SPRING; LOCK BALL
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6 		9-09740-114-0 04 1 9511-9711 ●
108 04.311 SPRING; LOCK BALL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) (B) OD=6.8 L=31.6 		9-09740-114-0 03 1 9712- ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94340-131-2 01 1 9312-9410 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94340-131-2 01 1 9411-9510 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94340-131-2 01 1 9511-9711 ● ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-94340-131-2 01 1 9712- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 9312-9506 ●
130 04.302 LEVER; SHIFT,INTERNAL
4JG2 ENG(RJC) 		8-94105-141-2 01 1 9507- ●
142 04.012 BOLT; QUAD BOX
04.105 (A) M8X25 		8-94128-786-0 08 1 9312-9506 ●
142 04.012 BOLT; QUAD BOX
4JG2 ENG(RJC) 04.105 (A) M8X25 		8-94128-786-0 08 1 9507- ●
142 04.012 BOLT; QUAD BOX
04.105 (B) M8X30 		8-97029-705-0 02 1 9312-9506 ●
142 04.012 BOLT; QUAD BOX
4JG2 ENG(RJC) 04.105 (B) M8X30 		8-97029-705-0 02 1 9507- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.012 		8-94257-162-0 01 1 9312-9506 ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.012 		8-94257-162-0 01 1 9507- ●
157 04.105 BOX; QUAD,TRANS 8-97048-844-0 01 1 9312-9505 ● ● ●
157 04.105 BOX; QUAD,TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97048-844-0 01 1 9506-9510 ● ● ●
157 04.105 BOX; QUAD,TRANS
4BE1 ENG(RLH) 		8-97048-844-0 01 1 9511- ●
157 04.105 BOX; QUAD,TRANS 8-97034-814-1 01 1 9312-9506 ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS) 		8-97034-814-1 01 1 9507-9510 ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-814-1 01 1 9511-9610 ● ● ● ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-814-1 01 1 9611-9711 ●
157 04.105 BOX; QUAD,TRANS
4HE1 ENG(RLY) 		8-97177-066-0 01 1 9712- ●
157 04.105 BOX; QUAD,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97167-640-0 01 1 9611-9711 ● ● ●
157 04.105 BOX; QUAD,TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97167-640-0 01 1 9712- ● ●
157 04.105 BOX; QUAD,TRANS 8-94340-145-0 01 1 9312-9506 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) 		8-94340-145-0 01 1 9507-9710 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-94340-145-0 01 1 9711-9711 ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) 		8-94340-145-0 01 1 9712- ●
157 04.105 BOX; QUAD,TRANS
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 		8-94340-146-0 01 1 9711-9711 ●
158 04.105 CLIP; HARNESS
01.152 (A) ID=8.5 		5-09700-275-0 01 1 9312-9506 ●
158 04.105 CLIP; HARNESS
4JG2 ENG(RJC) 01.152 (A) ID=8.5 		5-09700-275-0 01 1 9507- ●
158 04.105 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9312-9506 ●
158 04.105 CLIP; HARNESS
4JG2 ENG(RJC) 03.162 (B) L=140 		5-09707-031-0 01 1 9507-9710 ●
158 04.105 CLIP; HARNESS
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.162 (B) L=140 		5-09707-031-0 01 1 9711-9711 ●
158 04.105 CLIP; HARNESS
4JG2 ENG(RJC) 03.162 (B) L=140 		5-09707-031-1 01 1 9712- ●
163 04.302 LEVER; SELECT,INTERNAL 8-94159-268-1 01 1 9312-9505 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-94159-268-1 01 1 9506-9510 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-94159-268-1 01 1 9511- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97034-886-0 01 1 9312-9506 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HF1 ENG(RLS) 		8-97034-886-0 01 1 9507-9510 ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-886-0 01 1 9511-9711 ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-886-0 01 1 9712- ● ●
163 04.302 LEVER; SELECT,INTERNAL
4HE1 ENG(RLY) 		8-97177-068-0 01 1 9712- ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27 		8-94128-784-0 01 1 9312-9410 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27 		8-94128-784-0 01 1 9411-9510 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27 		8-94128-784-0 01 1 9511-9711 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.309 (A) OD=27 		8-94128-784-0 01 1 9712- ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32 		8-94462-019-0 01 1 9312-9410 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32 		8-94462-019-0 01 1 9411-9510 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32 		8-94462-019-0 01 1 9511-9711 ● ● ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (B) OD=32 		8-94462-019-0 01 1 9712- ● ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27 		8-94128-784-0 02 1 9312-9506 ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.309 OD=27 		8-94128-784-0 02 1 9507- ●
165 04.302 LEVER; SHIFT 8-97035-556-0 01 1 9312-9505 ● ● ●
165 04.302 LEVER; SHIFT
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-556-0 01 1 9506-9510 ● ● ●
165 04.302 LEVER; SHIFT
4BE1 ENG(RLH) 		8-97035-556-0 01 1 9511- ●
165 04.302 LEVER; SHIFT 8-97034-816-0 01 1 9312-9506 ● ●
165 04.302 LEVER; SHIFT
4HF1 ENG(RLS) 		8-97034-816-0 01 1 9507-9510 ● ●
165 04.302 LEVER; SHIFT
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-816-0 01 1 9511-9711 ● ● ● ●
165 04.302 LEVER; SHIFT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-816-0 01 1 9712- ● ●
165 04.302 LEVER; SHIFT 8-97036-221-0 01 1 9312-9506 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) 		8-97036-221-0 01 1 9507-9710 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97036-221-0 01 1 9711-9711 ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) 		8-97036-221-0 01 1 9712- ●
165 04.302 LEVER; SHIFT
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 		8-97035-557-0 01 1 9711-9711 ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9312-9506 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9507-9510 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9511-9606 ● ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9607-9711 ● ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5 		8-94135-771-0 03 1 9511-9711 ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 04.303 (A) L=25 OD=5 		8-94135-771-0 01 1 9712- ● ● ● ●
166 04.302 PIN; SPR,SELECT LEVER
4HF1 ENG(RLS),4BD2 ENG(RLW) (B) L=32 		8-97011-596-2 01 1 9511-9711 ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-559-1 01 1 9312-9505 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-559-1 01 1 9506-9510 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4BE1 ENG(RLH) 		8-97035-559-1 01 1 9511- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-558-1 01 1 9312-9506 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1 ENG(RLS) 		8-97035-558-1 01 1 9507-9510 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-558-1 01 1 9511-9711 ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-558-1 01 1 9712- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97035-560-1 01 1 9312-9506 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JG2 ENG(RJC) 		8-97035-560-1 01 1 9507- ●
168 04.302 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 9312-9506 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9507-9510 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9511-9606 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-94249-250-1 01 1 9607-9711 ● ● ● ● ● ●
168 04.302 WASHER; LK,SELECT LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-94249-250-1 01 1 9712- ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-97065-416-0 01 1 9312-9405 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97065-416-0 01 1 9312-9405 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97065-416-0 01 1 9312-9405 ●
171 04.054 SWITCH; NEUTRAL 8-97113-440-1 01 1 9406-9508 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97113-440-1 01 1 9406-9508 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97113-440-1 01 1 9406-9508 ●
171 04.054 SWITCH; NEUTRAL 8-97137-656-0 01 1 9509-9509 ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-97137-656-0 01 1 9509-9509 ●
171 04.054 SWITCH; NEUTRAL
MANUAL TILT CAB<RWZ> 		8-97137-656-0 01 1 9509-9509 ●
171 04.054 SWITCH; NEUTRAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-656-0 01 1 9510-9510 ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97137-656-0 01 1 9510-9510 ●
171 04.054 SWITCH; NEUTRAL
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4JG2 ENG(RJC) 		8-97137-656-0 01 1 9510-9510 ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-656-0 01 1 9511-9608 ● ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97165-946-0 01 1 9609-9711 ● ● ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97165-946-0 01 1 9712- ● ● ● ●
174 04.307 SPRING; REV 8-97076-907-0 01 1 9312-9505 ● ● ●
174 04.307 SPRING; REV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97076-907-0 01 1 9506-9510 ● ● ●
174 04.307 SPRING; REV
4BE1 ENG(RLH) 		8-97076-907-0 01 1 9511- ●
174 04.307 SPRING; REV 8-97035-052-0 01 1 9312-9506 ● ●
174 04.307 SPRING; REV
4HF1 ENG(RLS) 		8-97035-052-0 01 1 9507-9510 ● ●
174 04.307 SPRING; REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97035-052-0 01 1 9511-9711 ● ● ●
174 04.307 SPRING; REV
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97035-052-0 01 1 9712- ● ●
174 04.307 SPRING; REV 8-97031-927-0 01 1 9312-9506 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC) 		8-97031-927-0 01 1 9507- ●
174 04.307 SPRING; REV
4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97076-906-0 01 1 9511-9711 ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-97034-819-0 01 1 9312-9410 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-819-0 01 1 9411-9510 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97034-819-0 01 1 9511-9711 ● ● ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 		8-97034-819-0 01 1 9712- ● ● ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-94249-048-2 01 1 9312-9506 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) 		8-94249-048-2 01 1 9507-9710 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-94249-048-2 01 1 9711-9711 ●
175 04.302 RING; STOPPER,SHIFT LEVER
4JG2 ENG(RJC) 		8-94249-048-2 01 1 9712- ●
176 04.302 PIN; SPR,STOPPER
04.555 		9-09678-549-0 02 1 9312-9506 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9507-9510 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9511-9606 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9607-9710 ● ● ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.555 		9-09678-549-0 01 1 9711-9711 ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 04.555 		9-09678-549-0 02 1 9712- ● ● ● ●
176 04.302 PIN; SPR,STOPPER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 		9-09678-549-0 02 1 9711-9711 ● ● ● ● ● ●
180 04.302 WASHER; REV STOP SPRING
04.307 		8-94249-244-0 01 1 9312-9506 ●
180 04.302 WASHER; REV STOP SPRING
4JG2 ENG(RJC) 04.307 		8-94249-244-0 01 1 9507- ●
183 04.105 PLUG; SCREW,OIL FILTER
M18 		8-94337-946-1 01 1 9312-9506 ●
183 04.105 PLUG; SCREW,OIL FILTER
4JG2 ENG(RJC) M18 		8-94337-946-1 01 1 9507- ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3 		8-94336-511-0 01 1 9312-9506 ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.422 ID=15.3 		8-94336-511-0 01 1 9507- ●
398 02.698 SWITCH; REV LAMP 8-97071-665-0 01 1 9312-9405 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-97113-435-1 01 1 9406-9506 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97113-435-1 01 1 9507-9508 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9509-9510 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9511-9606 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97137-650-0 01 1 9607-9608 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 		8-97165-947-0 01 1 9609-9711 ● ● ● ● ● ●
398 02.698 SWITCH; REV LAMP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1 ENG(RLY) 		8-97165-947-0 01 1 9712- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
