1 |

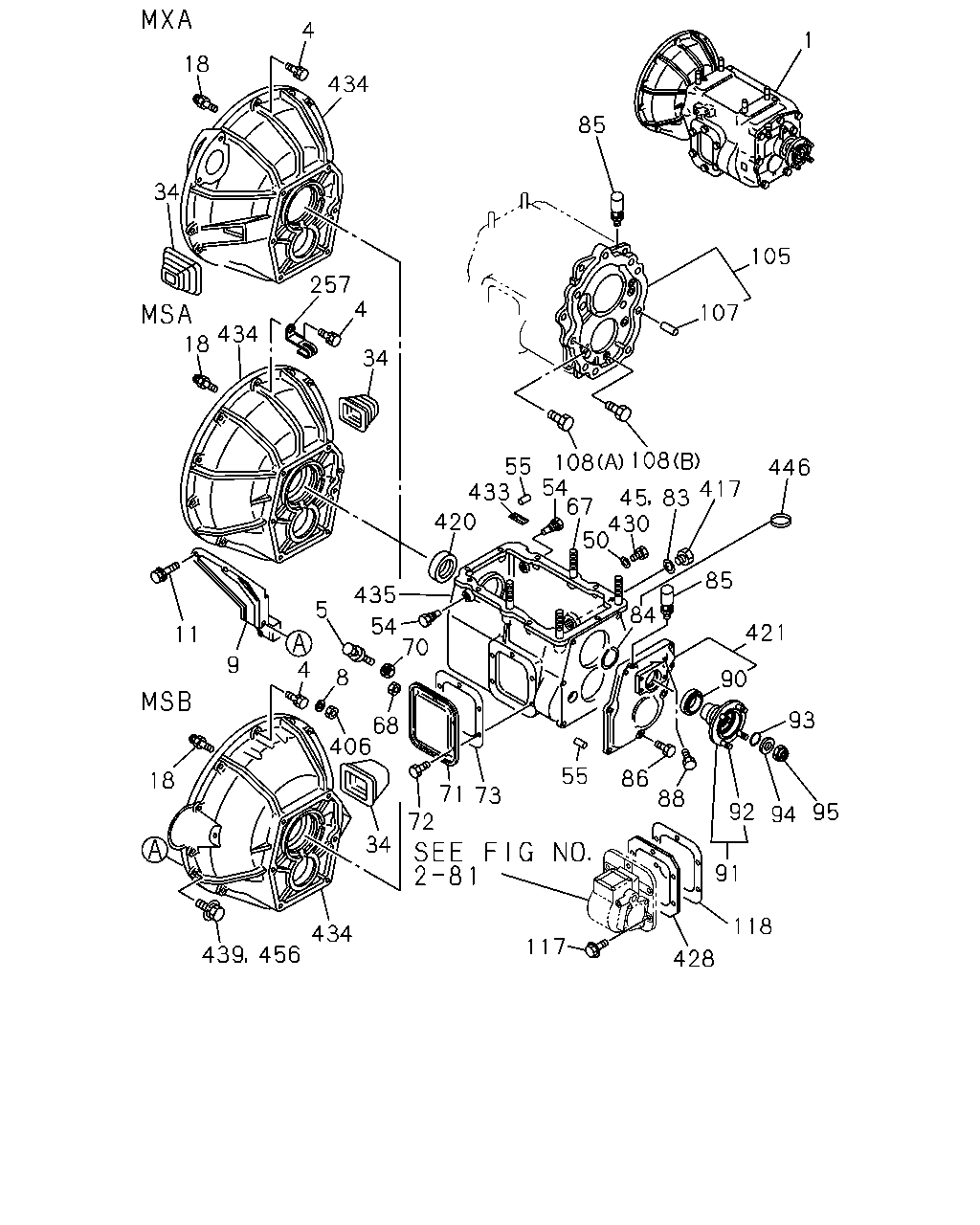

04.003 TRANSMISSION ASM; MANUAL
|
8-97092-053-0 |
01 |
1 |
9312-9505 |
● |
|
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD1 ENG(LJ6)
|
8-97092-053-0 |
01 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97134-949-0 |
01 |
1 |
9511-9605 |
|
● |
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97161-351-0 |
01 |
1 |
9606- |
|
● |
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97092-057-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
|
8-97116-468-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97183-856-0 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
|
8-97091-276-0 |
01 |
1 |
9312-9605 |
|
● |
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
|
8-97091-276-0 |
01 |
1 |
9511-9605 |
|
● |
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
|
8-97161-342-0 |
01 |
1 |
9606-9711 |
|
● |
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97161-342-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
EXHAUST BRAKE<NF8>
EXC. MANUAL TILT CAB<RWZ>
|
8-97092-047-0 |
01 |
1 |
9312-9509 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
MANUAL TILT CAB<RWZ>
|
8-97092-047-0 |
01 |
1 |
9312-9509 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97092-047-0 |
01 |
1 |
9510-9605 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97161-353-0 |
01 |
1 |
9606-9711 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
EXC. EXHAUST BRAKE<NF8>,MANUAL
TILTCAB<RWZ>
|
8-97103-644-0 |
01 |
1 |
9312-9509 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
|
8-97103-644-0 |
01 |
1 |
9510-9605 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
|
8-97161-355-0 |
01 |
1 |
9606-9711 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HG1 ENG(RJH),4HF1 ENG(RLS)
|
8-97183-852-0 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97124-201-0 |
01 |
1 |
9507-9605 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97161-357-0 |
01 |
1 |
9606-9711 |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
|
8-97035-097-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JG2 ENG(RJC)
|
8-97035-097-0 |
01 |
1 |
9507-9710 |
|
|
|
|
|
● |
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
|
8-97106-340-0 |
01 |
1 |
9711-9711 |
|
|
|
|
|
● |
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JG2 ENG(RJC)
|
8-97106-340-0 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4JG2 ENG(RJC)
EXC. EXHAUST BRAKE<NF8>
|
8-97108-782-0 |
01 |
1 |
9711-9711 |
|
|
|
|
|
● |
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
|
8-97091-280-0 |
01 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BE1 ENG(RLH)
|
8-97091-280-0 |
01 |
1 |
9407-9605 |
|
|
|
|
|
|
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BE1 ENG(RLH)
|
8-97161-363-0 |
01 |
1 |
9606- |
|
|
|
|
|
|
● |
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97117-383-0 |
01 |
1 |
9511-9605 |
|
|
|
|
|
|
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97161-361-0 |
01 |
1 |
9606-9702 |
|
|
|
|
|
|
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4BD2 ENG(RLW)
|
8-97162-267-0 |
01 |
1 |
9703-9711 |
|
|
|
|
|
|
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY)
|
8-97183-675-0 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
|
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
|
8-97117-381-0 |
01 |
1 |
9511-9605 |
|
|
|
|
|
|
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
|
8-97161-359-0 |
01 |
1 |
9606-9702 |
|
|
|
|
|
|
|
● |
| |
1 |
04.003 TRANSMISSION ASM; MANUAL
4HF1 ENG(RLS)
|
8-97162-265-0 |
01 |
1 |
9703-9711 |
|
|
|
|
|
|
|
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
03 |
1 |
9312-9505 |
● |
● |
● |
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
03 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
03 |
1 |
9506-9510 |
|
● |
● |
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
03 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
03 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9312-9505 |
● |
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6)
PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9506-9510 |
|
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
04 |
1 |
9312-9505 |
● |
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
04 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
04 |
1 |
9506-9510 |
|
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
04 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
04 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
06 |
1 |
9312-9505 |
● |
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
06 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
06 |
1 |
9506-9510 |
|
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
06 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
06 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9312-9505 |
● |
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HF1 ENG(RLS)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9312-9505 |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BD1 ENG(LJ6)
EXC. PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9506-9510 |
|
|
● |
|
|
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HF1 ENG(RLS)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9506-9510 |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HF1 ENG(RLS)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9511-9711 |
|
● |
|
|
● |
|
|
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
M10X55 FLANGE
|
8-94399-863-1 |
02 |
1 |
9312-9510 |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HF1 ENG(RLS)
M10X55 FLANGE
|
8-94399-863-1 |
02 |
1 |
9511-9711 |
|
● |
|
|
● |
|
|
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
M10X55 FLANGE
|
8-94399-863-1 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
9312-9510 |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HF1 ENG(RLS)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
9511-9711 |
|
● |
|
|
● |
|
|
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HF1 ENG(RLS)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
9511-9711 |
|
● |
|
|
● |
|
|
● |
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. PTO TRANSMISSION SIDE(V66)
04.525
M10X30 FLANGE
|
0-28181-030-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
04.510
M10X35 FLANGE
|
0-28181-035-0 |
01 |
1 |
9312-9411 |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
00.685
M10X35 FLANGE
|
0-28081-035-0 |
01 |
1 |
9412-9506 |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC)
00.685
M10X35 FLANGE
|
0-28081-035-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC)
AIR INTAKE SYSTEM FRONT<6PC>
00.685
M10X35 FLANGE
|
0-28081-035-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
04.510
M10X40 FLANGE
|
0-28181-040-0 |
01 |
1 |
9312-9411 |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC)
04.525
M10X40 FLANGE
|
0-28081-040-0 |
01 |
1 |
9412- |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
09.171
M10X45 FLANGE
|
0-28181-045-0 |
01 |
1 |
9312-9411 |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
00.685
M10X45 FLANGE
|
0-28081-045-0 |
01 |
1 |
9412-9506 |
|
|
|
|
|
● |
|
|
| |
4 |
00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC)
00.685
M10X45 FLANGE
|
0-28081-045-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
5 |
00.683 BOLT; REAR PLATE
04.510
M10X35 FLANGE
|
0-28181-035-0 |
01 |
1 |
9312-9411 |
|
|
|
|
|
● |
|
|
| |
5 |
00.683 BOLT; REAR PLATE
4JG2 ENG(RJC)
00.685
M10X35 FLANGE
|
0-28081-035-0 |
01 |
1 |
9412- |
|
|
|
|
|
● |
|
|
| |
8 |
04.083 WASHER; PL,STIFFENER
PTO TRANSMISSION SIDE(V66)
16.674
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
8 |
04.083 WASHER; PL,STIFFENER
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
16.674
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9507-9708 |
|
|
|
|
|
● |
|
|
| |
9 |
04.083 STIFFENER; C/BL
|
8-97074-108-3 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
|
| |
9 |
04.083 STIFFENER; C/BL
|
8-97084-390-1 |
01 |
1 |
9312- |
|
|
|
|
|
● |
|
|
| |
11 |
04.085 BOLT; BRKT
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
02 |
1 |
9312-9706 |
|
|
|
|
|
● |
|
|
| |
11 |
04.085 BOLT; BRKT
08.900
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
9707- |
|
|
|
|
|
● |
|
|
| |
18 |
00.683 SUPPORT; DRAW LEVER
00.796
L=47.5
|
5-31345-002-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
18 |
00.683 SUPPORT; DRAW LEVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
00.796
L=47.5
|
5-31345-002-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
18 |
00.683 SUPPORT; DRAW LEVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
00.796
L=47.5
|
5-31345-002-1 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
18 |
00.683 SUPPORT; DRAW LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
00.796
L=47.5
|
5-31345-002-1 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
18 |
00.683 SUPPORT; DRAW LEVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
00.796
L=47.5
|
5-31345-002-1 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
|
8-94459-958-0 |
01 |
1 |
9312-9506 |
● |
|
● |
|
|
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4BD1 ENG(LJ6),4BD2 ENG(RLW)
|
8-94459-958-0 |
01 |
1 |
9507-9510 |
● |
|
● |
|
|
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4BD2 ENG(RLW)
|
8-94459-958-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
|
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4BD2 ENG(RLW)
|
8-94459-958-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
|
8-97017-333-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
● |
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4HF1 ENG(RLS)
|
8-97017-333-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
● |
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4HF1 ENG(RLS)
|
8-97017-333-0 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97017-333-0 |
01 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
● |
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
|
8-97017-333-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
|
8-97034-880-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4JG2 ENG(RJC)
|
8-97034-880-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
|
8-97105-854-0 |
01 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
|
| |
34 |
00.686 COVER; DUST,SHIFT FORK
4BE1 ENG(RLH)
|
8-97105-854-0 |
01 |
1 |
9407- |
|
|
|
|
|
|
● |
|
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9312-9506 |
● |
● |
|
|
● |
|
● |
|
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9507-9510 |
● |
● |
|
|
● |
|
● |
|
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
45 |
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9511-9606 |
|
● |
● |
● |
● |
● |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
|
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4HF1 ENG(RLS),4BD2 ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
02 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
50 |
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
54 |
04.105 BOLT; FULCRUM
|
8-94459-970-1 |
02 |
1 |
9312-9506 |
● |
● |
|
|
● |
|
● |
|
| |
54 |
04.105 BOLT; FULCRUM
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-94459-970-1 |
02 |
1 |
9507-9510 |
● |
● |
|
|
● |
|
● |
|
| |
54 |
04.105 BOLT; FULCRUM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-94459-970-1 |
02 |
1 |
9511-9612 |
|
● |
|
● |
● |
|
● |
● |
| |
54 |
04.105 BOLT; FULCRUM
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-97171-503-0 |
02 |
1 |
9701-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
54 |
04.105 BOLT; FULCRUM
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
8-97171-503-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
55 |
04.105 PIN; KNOCK,CASE,TRANS
|
9-08161-016-0 |
02 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
55 |
04.105 PIN; KNOCK,CASE,TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
9-08161-016-0 |
02 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
55 |
04.105 PIN; KNOCK,CASE,TRANS
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
9-08161-016-0 |
02 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
55 |
04.105 PIN; KNOCK,CASE,TRANS
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
9-08161-016-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
67 |
04.105 STUD; CASE TRANS
|
5-09302-011-0 |
04 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
67 |
04.105 STUD; CASE TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
5-09302-011-0 |
04 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
67 |
04.105 STUD; CASE TRANS
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
5-09302-011-0 |
04 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
67 |
04.105 STUD; CASE TRANS
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
5-09302-011-0 |
04 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
67 |
04.105 STUD; CASE TRANS
|
9-09631-004-0 |
04 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
67 |
04.105 STUD; CASE TRANS
4JG2 ENG(RJC)
|
9-09631-004-0 |
04 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
68 |
00.683 NUT; REAR PLATE
04.785
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
68 |
00.683 NUT; REAR PLATE
4JG2 ENG(RJC)
04.785
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
70 |
00.683 NUT; REAMER BOLT
04.785
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
70 |
00.683 NUT; REAMER BOLT
4JG2 ENG(RJC)
04.785
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
71 |
04.439 COVER; SIDE,TRANS CASE
|
9-33141-601-2 |
01 |
1 |
9312-9405 |
● |
● |
● |
|
● |
|
● |
|
| |
71 |
04.439 COVER; SIDE,TRANS CASE
|
9-33141-601-2 |
01 |
1 |
9406-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
71 |
04.439 COVER; SIDE,TRANS CASE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
|
9-33141-601-2 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
71 |
04.439 COVER; SIDE,TRANS CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
9-33141-601-2 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
71 |
04.439 COVER; SIDE,TRANS CASE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
9-33141-601-2 |
01 |
1 |
9607-9710 |
|
● |
|
● |
● |
● |
● |
● |
| |
71 |
04.439 COVER; SIDE,TRANS CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
9-33141-601-2 |
01 |
1 |
9711-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
71 |
04.439 COVER; SIDE,TRANS CASE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
9-33141-601-2 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
71 |
04.439 COVER; SIDE,TRANS CASE
|
8-97100-427-0 |
01 |
1 |
9312-9405 |
|
|
|
|
|
● |
|
|
| |
71 |
04.439 COVER; SIDE,TRANS CASE
4JG2 ENG(RJC)
|
8-97106-371-0 |
01 |
1 |
9711- |
|
|
|
|
|
● |
|
|
| |
72 |
04.439 BOLT; SIDE COVER
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9312-9405 |
● |
● |
● |
|
● |
|
● |
|
| |
72 |
04.439 BOLT; SIDE COVER
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9406-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
72 |
04.439 BOLT; SIDE COVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
72 |
04.439 BOLT; SIDE COVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
72 |
04.439 BOLT; SIDE COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9607-9710 |
|
● |
|
● |
● |
● |
● |
● |
| |
72 |
04.439 BOLT; SIDE COVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9711-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
72 |
04.439 BOLT; SIDE COVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
04.105
M10X12 FLANGE
|
8-94128-791-0 |
06 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
72 |
04.439 BOLT; SIDE COVER
09.008
M10X20 FLANGE
|
0-28081-020-0 |
06 |
1 |
9312-9405 |
|
|
|
|
|
● |
|
|
| |
72 |
04.439 BOLT; SIDE COVER
4JG2 ENG(RJC)
09.008
M10X20 FLANGE
|
0-28081-020-0 |
06 |
1 |
9711- |
|
|
|
|
|
● |
|
|
| |
73 |
04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
|
9-33142-601-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
73 |
04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
|
9-33142-601-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
73 |
04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
9-33142-601-0 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
73 |
04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
9-33142-601-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
73 |
04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
|
9-33142-601-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
83 |
04.105 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
4BD2 ENG(RLW)
04.422
ID=15.3
|
8-94336-511-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
|
| |
84 |
04.319 SPACER; COVER,TRANS
|
8-94452-972-0 |
01 |
1 |
9312-9403 |
|
|
|
|
|
● |
|
|
| |
84 |
04.319 SPACER; COVER,TRANS
|
8-97112-995-0 |
01 |
1 |
9404-9501 |
|
|
|
|
|
● |
|
|
| |
85 |
04.104 BREATHER; RR COVER
04.510
|
8-94368-963-2 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
85 |
04.104 BREATHER; RR COVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
04.510
|
8-94368-963-2 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
85 |
04.104 BREATHER; RR COVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-97010-244-1 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
85 |
04.104 BREATHER; RR COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-97010-244-1 |
01 |
1 |
9607-9608 |
|
● |
|
● |
● |
● |
● |
● |
| |
85 |
04.104 BREATHER; RR COVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-97165-939-0 |
01 |
1 |
9609-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
85 |
04.104 BREATHER; RR COVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
|
8-97165-939-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
86 |
04.317 BOLT; RR COVER
04.104
M10X50
|
8-94318-782-0 |
01 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.104
M10X50
|
8-94318-782-0 |
01 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.104
M10X50
|
8-94318-782-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
04.104
M10X50
|
8-94318-782-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
M10X30 FLANGE
|
8-94482-338-0 |
06 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
M10X30 FLANGE
|
8-94482-338-0 |
06 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
M10X30 FLANGE
|
8-94482-338-0 |
06 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
M10X30 FLANGE
|
8-94482-338-0 |
06 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
86 |
04.317 BOLT; RR COVER
04.105
M8X25
|
8-94128-786-0 |
07 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
86 |
04.317 BOLT; RR COVER
4JG2 ENG(RJC)
04.105
M8X25
|
8-94128-786-0 |
07 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
86 |
04.317 BOLT; RR COVER
4HF1 ENG(RLS),4BD2 ENG(RLW)
M10X30 FLANGE
|
8-94482-338-0 |
07 |
1 |
9511-9702 |
|
|
|
|
|
|
|
● |
| |
86 |
04.317 BOLT; RR COVER
4HF1 ENG(RLS),4BD2 ENG(RLW)
04.510
M10X35 FLANGE
|
0-28181-035-0 |
07 |
1 |
9703-9711 |
|
|
|
|
|
|
|
● |
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
M8X12
|
8-94128-785-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
|
● |
● |
|
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
M8X12
|
8-94128-785-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
● |
● |
|
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
M8X12
|
8-94128-785-0 |
01 |
1 |
9511-9605 |
|
● |
● |
|
|
● |
● |
|
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
M8X12
|
8-94128-785-0 |
02 |
1 |
9312-9506 |
|
|
|
|
● |
|
|
|
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4HF1 ENG(RLS)
M8X12
|
8-94128-785-0 |
02 |
1 |
9507-9510 |
|
|
|
|
● |
|
|
|
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4HF1 ENG(RLS),4BD2 ENG(RLW)
M8X12
|
8-94128-785-0 |
02 |
1 |
9511-9605 |
|
|
|
|
● |
|
|
● |
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
M8X12
|
8-94128-785-0 |
01 |
1 |
9606-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
M8X12
|
8-94128-785-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
88 |
04.338 SCREW; SPEEDOMETER BUSHING
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
M8X12
|
8-94128-785-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
KOYO
|
8-97036-167-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
KOYO
|
8-97036-167-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
KOYO
|
8-97036-167-0 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
KOYO
|
8-97036-167-0 |
01 |
1 |
9607-9709 |
|
● |
|
● |
● |
● |
● |
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97074-651-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
NOK
|
8-97074-651-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
NOK
|
8-97074-651-0 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
NOK
|
8-97074-651-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
90 |
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
NOK
|
8-97074-651-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
91 |
05.605 DRIVER; COUPLING
|
8-97011-344-1 |
01 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
91 |
05.605 DRIVER; COUPLING
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-97011-344-2 |
01 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
91 |
05.605 DRIVER; COUPLING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-97011-344-2 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
91 |
05.605 DRIVER; COUPLING
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
8-97011-344-2 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
91 |
05.605 DRIVER; COUPLING
|
8-97011-346-2 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
91 |
05.605 DRIVER; COUPLING
4JG2 ENG(RJC)
|
8-97011-346-2 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
M12X41
|
8-94476-729-0 |
04 |
1 |
9312-9402 |
● |
● |
● |
|
● |
|
● |
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
|
8-97109-697-0 |
04 |
1 |
9403-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-97109-697-1 |
04 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-97109-697-1 |
04 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
92 |
05.605 BOLT; COUPLING DRIVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
8-97109-697-1 |
04 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
M10X33
|
8-94146-486-1 |
04 |
1 |
9312-9402 |
|
|
|
|
|
● |
|
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
M10X33
|
8-97109-696-1 |
04 |
1 |
9403-9506 |
|
|
|
|
|
● |
|
|
| |
92 |
05.605 BOLT; COUPLING DRIVER
4JG2 ENG(RJC)
M10X33
|
8-97109-696-1 |
04 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
93 |
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
|
8-94178-725-0 |
01 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
93 |
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-94178-725-0 |
01 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
93 |
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-94178-725-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
93 |
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
|
8-94178-725-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
93 |
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
|
8-94421-576-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
93 |
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC)
|
8-94421-576-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
94 |
05.595 WASHER; COUPLING DRIVER
|
8-94249-240-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
94 |
05.595 WASHER; COUPLING DRIVER
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-94249-240-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
94 |
05.595 WASHER; COUPLING DRIVER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-94249-240-0 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
94 |
05.595 WASHER; COUPLING DRIVER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-94249-240-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
94 |
05.595 WASHER; COUPLING DRIVER
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
|
8-94249-240-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
95 |
05.595 NUT; MAINSHAFT
04.162
M24 FLANGE
|
8-97087-750-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
95 |
05.595 NUT; MAINSHAFT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
04.162
M24 FLANGE
|
8-97087-750-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
95 |
05.595 NUT; MAINSHAFT
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
04.162
M24 FLANGE
|
8-97087-750-0 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
95 |
05.595 NUT; MAINSHAFT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.162
M24 FLANGE
|
8-97087-750-0 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
95 |
05.595 NUT; MAINSHAFT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
04.162
M24 FLANGE
|
8-97087-750-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
105 |
04.105 PLATE; MIDDLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97034-805-0 |
01 |
1 |
9511-9702 |
|
|
|
|
|
|
|
● |
| |
105 |
04.105 PLATE; MIDDLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97139-678-0 |
01 |
1 |
9703-9711 |
|
|
|
|
|
|
|
● |
| |
107 |
04.105 PIN; MIDDLE PLATE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
9-08161-016-0 |
02 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
108 |
04.105 BOLT; MIDDLE PLATE
4HF1 ENG(RLS),4BD2 ENG(RLW)
04.317
(A)
M10X30 FLANGE
|
8-94482-338-0 |
04 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
108 |
04.105 BOLT; MIDDLE PLATE
4HF1 ENG(RLS),4BD2 ENG(RLW)
(B)
|
8-97035-059-0 |
03 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
01.652
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9312-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
09.171
M10X30 W/LK WASHER
|
0-50041-030-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
09.171
M10X30 W/LK WASHER
|
0-50041-030-0 |
02 |
1 |
9511-9603 |
|
● |
|
● |
● |
● |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
03.417
M10X25 FLANGE
|
0-28081-025-0 |
04 |
1 |
9610-9610 |
|
● |
|
● |
● |
● |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
01.652
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9611-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
01.652
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
00.685
M10X30 FLANGE
|
0-28081-030-0 |
02 |
1 |
9610-9710 |
|
● |
|
● |
● |
● |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
09.171
M10X30 W/LK WASHER
|
0-50041-030-0 |
02 |
1 |
9711-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
117 |
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66)
09.171
M10X30 W/LK WASHER
|
0-50041-030-0 |
02 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
118 |
04.439 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T).
PTO TRANSMISSION SIDE(V66)
|
9-38113-603-0 |
02 |
1 |
9312-9506 |
● |
● |
● |
|
● |
|
|
|
| |
118 |
04.439 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38113-603-0 |
02 |
1 |
9507-9510 |
● |
● |
● |
|
● |
|
|
|
| |
118 |
04.439 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T).
PTO TRANSMISSION SIDE(V66)
|
9-38113-603-0 |
02 |
1 |
9511-9602 |
|
● |
|
● |
● |
|
|
● |
| |
118 |
04.439 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T).
4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38113-603-0 |
02 |
1 |
9603-9705 |
|
● |
|
● |
● |
|
|
● |
| |
118 |
04.439 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T).
PTO TRANSMISSION SIDE(V66)
|
9-38113-603-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
● |
|
| |
118 |
04.439 GASKET; PTO TO TRANS
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-38113-603-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
● |
|
| |
257 |
02.559 CLIP; HARNESS
4BE1 ENG(RLH)
03.430
ID=17
|
8-94449-734-1 |
01 |
1 |
9511- |
|
|
|
|
|
|
● |
|
| |
406 |
04.510 NUT; BRKT
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
|
|
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
M18
|
8-94337-946-1 |
01 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
M18
|
8-94337-946-1 |
01 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
M18
|
8-94337-946-1 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
417 |
04.105 PLUG; OIL FILLER,TRANS
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
M18
|
8-94337-946-1 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
420 |
04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-97017-350-0 |
01 |
1 |
9312-9410 |
● |
● |
● |
|
● |
|
● |
|
| |
420 |
04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
NOK
|
8-97017-350-0 |
01 |
1 |
9411-9510 |
● |
● |
● |
|
● |
|
● |
|
| |
420 |
04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
NOK
|
8-97017-350-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
● |
● |
| |
420 |
04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
NOK
|
8-97017-350-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
● |
|
| |
420 |
04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
8-94326-441-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
420 |
04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
4JG2 ENG(RJC)
NOK
|
8-94326-441-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
421 |
04.317 COVER; RR,TRANS
|
8-97093-364-0 |
01 |
1 |
9312-9505 |
● |
|
● |
|
|
|
● |
|
| |
421 |
04.317 COVER; RR,TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
|
8-97093-364-0 |
01 |
1 |
9506-9510 |
● |
|
● |
|
|
|
● |
|
| |
421 |
04.317 COVER; RR,TRANS
4BE1 ENG(RLH)
|
8-97093-364-0 |
01 |
1 |
9511- |
|
|
|
|
|
|
● |
|
| |
421 |
04.317 COVER; RR,TRANS
|
8-97034-809-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
● |
|
|
|
| |
421 |
04.317 COVER; RR,TRANS
4HF1 ENG(RLS)
|
8-97034-809-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
● |
|
|
|
| |
421 |
04.317 COVER; RR,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97034-809-0 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
|
|
| |
421 |
04.317 COVER; RR,TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
|
8-97034-809-0 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
421 |
04.317 COVER; RR,TRANS
|
8-97036-150-0 |
01 |
1 |
9312-9403 |
|
|
|
|
|
● |
|
|
| |
421 |
04.317 COVER; RR,TRANS
|
8-97112-986-1 |
01 |
1 |
9404-9506 |
|
|
|
|
|
● |
|
|
| |
421 |
04.317 COVER; RR,TRANS
4JG2 ENG(RJC)
|
8-97112-986-1 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
421 |
04.317 COVER; RR,TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97117-374-0 |
01 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
428 |
04.439 PLATE; DIST
PTO TRANSMISSION SIDE(V66)
|
8-97026-807-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
|
|
|
| |
428 |
04.439 PLATE; DIST
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-97026-807-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
|
|
|
| |
428 |
04.439 PLATE; DIST
PTO TRANSMISSION SIDE(V66)
|
8-97026-807-0 |
01 |
1 |
9511-9602 |
|
● |
|
● |
● |
|
|
● |
| |
428 |
04.439 PLATE; DIST
4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-97026-807-0 |
01 |
1 |
9603-9705 |
|
● |
|
● |
● |
|
|
● |
| |
430 |
04.105 PLUG; OIL DRAIN
|
8-94336-512-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
|
● |
● |
● |
|
| |
430 |
04.105 PLUG; OIL DRAIN
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-94336-512-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
● |
● |
● |
|
| |
430 |
04.105 PLUG; OIL DRAIN
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
|
8-94336-512-1 |
01 |
1 |
9511-9606 |
|
● |
|
● |
● |
● |
● |
● |
| |
430 |
04.105 PLUG; OIL DRAIN
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
|
8-94336-512-1 |
01 |
1 |
9607-9711 |
|
● |
|
● |
● |
● |
● |
● |
| |
430 |
04.105 PLUG; OIL DRAIN
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),
4HE1 ENG(RLY)
|
8-94336-512-1 |
01 |
1 |
9712- |
|
● |
|
|
● |
● |
● |
|
| |
430 |
04.105 PLUG; OIL DRAIN
4HF1 ENG(RLS),4BD2 ENG(RLW)
M18
|
8-94337-946-1 |
01 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
433 |
04.105 LABEL; TRANS
|
8-94340-236-2 |
01 |
1 |
9312-9505 |
● |
|
|
|
|
|
|
|
| |
433 |
04.105 LABEL; TRANS
4BD1 ENG(LJ6)
|
8-94340-236-2 |
01 |
1 |
9506-9510 |
● |
|
|
|
|
|
|
|
| |
433 |
04.105 LABEL; TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97093-115-0 |
01 |
1 |
9511-9711 |
|
|
|
|
|
|
|
● |
| |
433 |
04.105 LABEL; TRANS
4BD2 ENG(RLW)
|
8-94340-245-2 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
|
| |
433 |
04.105 LABEL; TRANS
|
8-97093-114-0 |
01 |
1 |
9312-9506 |
|
|
|
|
● |
|
|
|
| |
433 |
04.105 LABEL; TRANS
4HF1 ENG(RLS)
|
8-97093-114-0 |
01 |
1 |
9507-9606 |
|
|
|
|
● |
|
|
|
| |
433 |
04.105 LABEL; TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97093-114-0 |
01 |
1 |
9607-9711 |
|
|
|
|
● |
|
|
|
| |
433 |
04.105 LABEL; TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
|
8-97093-114-0 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
|
| |
433 |
04.105 LABEL; TRANS
|
8-97076-909-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
433 |
04.105 LABEL; TRANS
4JG2 ENG(RJC)
|
8-97076-909-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
434 |
00.683 HOUSING; CLU
|
8-97102-070-1 |
01 |
1 |
9312-9506 |
● |
|
● |
|
|
|
|
|
| |
434 |
00.683 HOUSING; CLU
4BD1 ENG(LJ6),4BD2 ENG(RLW)
|
8-97102-070-1 |
01 |
1 |
9507-9510 |
● |
|
● |
|
|
|
|
|
| |
434 |
00.683 HOUSING; CLU
|
8-97034-801-2 |
01 |
1 |
9312-9510 |
|
● |
|
|
● |
|
|
|
| |
434 |
00.683 HOUSING; CLU
4HF1 ENG(RLS)
|
8-97034-801-2 |
01 |
1 |
9511-9711 |
|
● |
|
|
● |
|
|
● |
| |
434 |
00.683 HOUSING; CLU
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
|
8-97034-801-2 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
434 |
00.683 HOUSING; CLU
4BD2 ENG(RLW)
|
8-97092-566-1 |
01 |
1 |
9507-9510 |
|
|
|
|
● |
|
|
|
| |
434 |
00.683 HOUSING; CLU
4BD2 ENG(RLW)
|
8-97092-566-1 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
|
● |
| |
434 |
00.683 HOUSING; CLU
4BD2 ENG(RLW)
|
8-97092-566-1 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
434 |
00.683 HOUSING; CLU
|
8-97034-879-2 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
434 |
00.683 HOUSING; CLU
4JG2 ENG(RJC)
|
8-97034-879-2 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
434 |
00.683 HOUSING; CLU
|
8-97102-057-1 |
01 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
|
| |
434 |
00.683 HOUSING; CLU
4BE1 ENG(RLH)
|
8-97102-057-1 |
01 |
1 |
9407- |
|
|
|
|
|
|
● |
|
| |
435 |
04.103 CASE; TRANS
|
8-94318-703-3 |
01 |
1 |
9312-9505 |
● |
|
|
|
|
|
● |
|
| |
435 |
04.103 CASE; TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH)
|
8-94318-703-3 |
01 |
1 |
9506-9506 |
● |
|
|
|
|
|
● |
|
| |
435 |
04.103 CASE; TRANS
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
|
8-94318-703-3 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
● |
|
| |
435 |
04.103 CASE; TRANS
4BE1 ENG(RLH)
|
8-94318-703-3 |
01 |
1 |
9511- |
|
|
|
|
|
|
● |
|
| |
435 |
04.103 CASE; TRANS
4BD2 ENG(RLW)
|
8-94318-704-2 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
|
| |
435 |
04.103 CASE; TRANS
|
8-97034-803-2 |
01 |
1 |
9312-9506 |
|
● |
|
|
● |
|
|
|
| |
435 |
04.103 CASE; TRANS
4HF1 ENG(RLS)
|
8-97034-803-2 |
01 |
1 |
9507-9510 |
|
● |
|
|
● |
|
|
|
| |
435 |
04.103 CASE; TRANS
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97034-803-2 |
01 |
1 |
9511-9711 |
|
● |
|
● |
● |
|
|
● |
| |
435 |
04.103 CASE; TRANS
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
|
8-97034-803-2 |
01 |
1 |
9712- |
|
● |
|
|
● |
|
|
|
| |
435 |
04.103 CASE; TRANS
|
8-97072-004-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
435 |
04.103 CASE; TRANS
4JG2 ENG(RJC)
|
8-97072-004-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
439 |
04.105 BOLT; BRKT
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
02.183
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9709- |
|
|
|
|
|
● |
|
|
| |
446 |
04.105 PLUG; CASE,TRANS
OD=16
|
9-09201-316-0 |
01 |
1 |
9312-9407 |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66)
07.068
M12X35 FLANGE
|
0-28081-235-0 |
03 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
07.068
M12X35 FLANGE
|
0-28081-235-0 |
03 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66)
09.171
M12X40 FLANGE
|
0-28081-240-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
09.171
M12X40 FLANGE
|
0-28081-240-0 |
01 |
1 |
9507- |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66)
01.540
M8X35 W/LK WASHER
|
0-50040-835-0 |
01 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
01.540
M8X35 W/LK WASHER
|
0-50040-835-0 |
01 |
1 |
9507-9708 |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
EXC. PTO TRANSMISSION SIDE(V66)
07.068
M12X35 FLANGE
|
0-28081-235-0 |
04 |
1 |
9312-9506 |
|
|
|
|
|
● |
|
|
| |
456 |
04.085 BOLT; STIFFENER
4JG2 ENG(RJC)
EXC. PTO TRANSMISSION SIDE(V66)
07.068
M12X35 FLANGE
|
0-28081-235-0 |
04 |
1 |
9507- |
|
|
|
|
|
● |
|
|
