◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#34212) — 30 parça

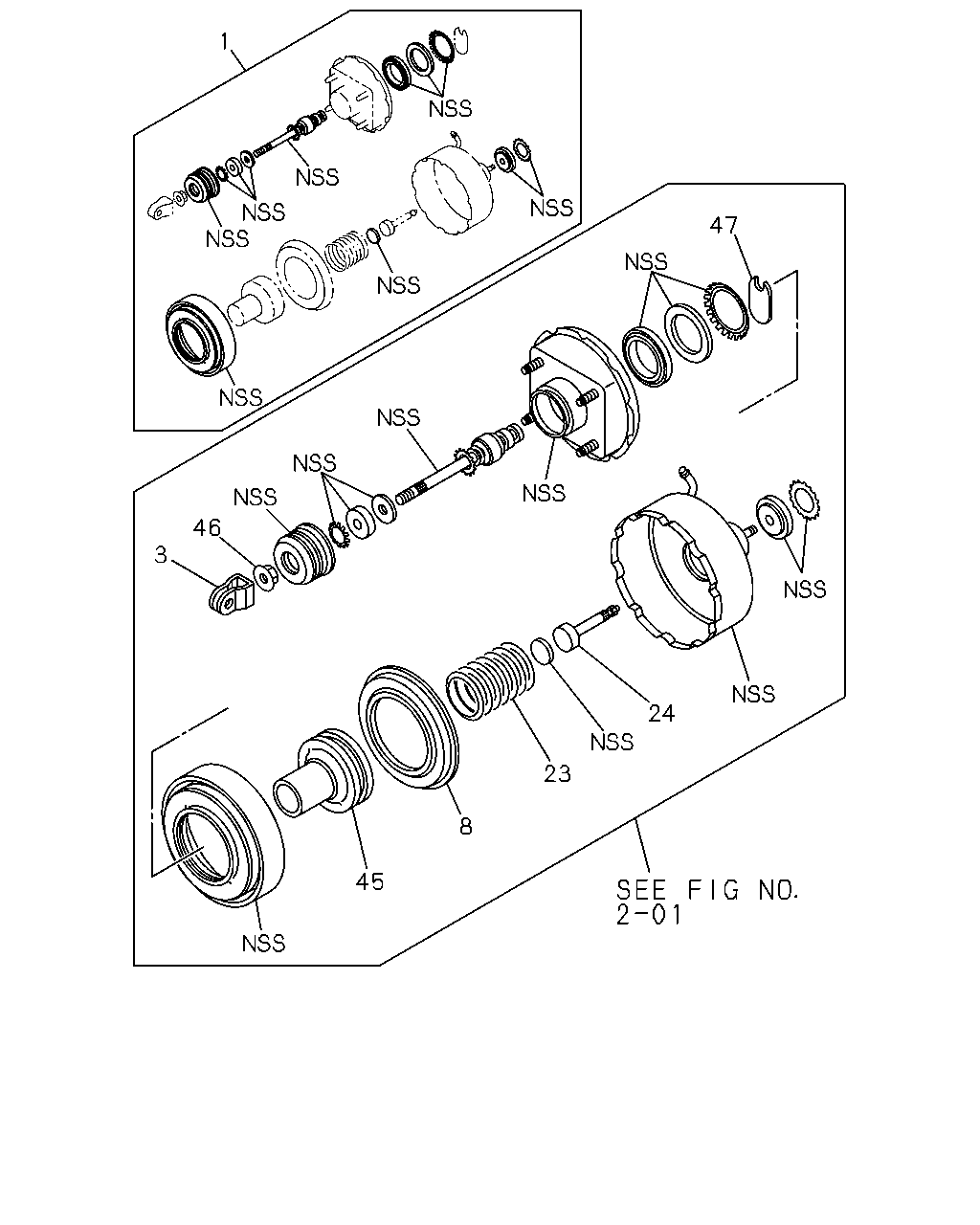

çizim 15954
1 47 46 3 24 23 8 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.775 REPAIR KIT; CLU BOOSTER
4BD1 ENG(LJ6),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97080-112-0 01 1 9312-9510 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97080-112-0 01 1 9511-9606 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97080-112-0 01 1 9607-9703 ● ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 9704-9711 ● ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4BD2 ENG(RLW),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 9712- ●
1 00.775 REPAIR KIT; CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97080-111-0 01 1 9312-9703 ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 9704-9711 ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 9712- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.662 		8-94341-787-0 01 1 9312-9510 ● ● ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.662 		8-94341-787-0 01 1 9511-9703 ● ● ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 9704-9711 ● ● ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 9712- ● ● ●
8 00.775 RETAINER; DIAPH
4BD1 ENG(LJ6),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97094-977-0 01 1 9312-9510 ● ●
8 00.775 RETAINER; DIAPH
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97094-977-0 01 1 9511-9606 ● ●
8 00.775 RETAINER; DIAPH
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97094-977-0 01 1 9607-9703 ● ● ● ●
8 00.775 RETAINER; DIAPH
4BE1 ENG(RLH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97015-778-0 01 1 9312-9703 ● ● ●
23 00.775 SPRING; SHELL,CLU BOOSTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-94369-071-0 01 1 9312-9510 ● ● ● ● ●
23 00.775 SPRING; SHELL,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-94369-071-0 01 1 9511-9703 ● ● ● ● ●
24 00.787 ROD; PUSH,CLU BOOSTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97094-972-0 01 1 9312-9510 ● ● ● ● ●
24 00.787 ROD; PUSH,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97094-972-0 01 1 9511-9703 ● ● ● ● ●
45 00.775 PLATE; END,CLU BOOSTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97103-376-0 01 1 9312-9510 ● ● ● ● ●
45 00.775 PLATE; END,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97103-376-0 01 1 9511-9703 ● ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4BD1 ENG(LJ6),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.662 M10 FLANGE 		8-97096-430-0 01 1 9312-9510 ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.662 M10 FLANGE 		8-97096-430-0 01 1 9511-9606 ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.662 M10 FLANGE 		8-97096-430-0 01 1 9607-9703 ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-9703 ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 9704-9711 ● ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 9712- ● ● ●
47 00.775 KEY; CLU BOOSTER
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.924 		8-94123-120-0 01 1 9312-9510 ● ● ● ● ●
47 00.775 KEY; CLU BOOSTER
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER ASSIST CLUTCH(S2T) 04.924 		8-94123-120-0 01 1 9511-9703 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
